Haier HWM110-9188DD User manual

Automaticwashingmachine
This manual is for
HWM110-9188DD
User's manual
Please read this manual
carefully before using.
Retain it for future reference.

Names of the parts 1
Safety precautions 2
Installation and adjustment 4
Preparation before washing
Put in the laundries
Usage of detergent

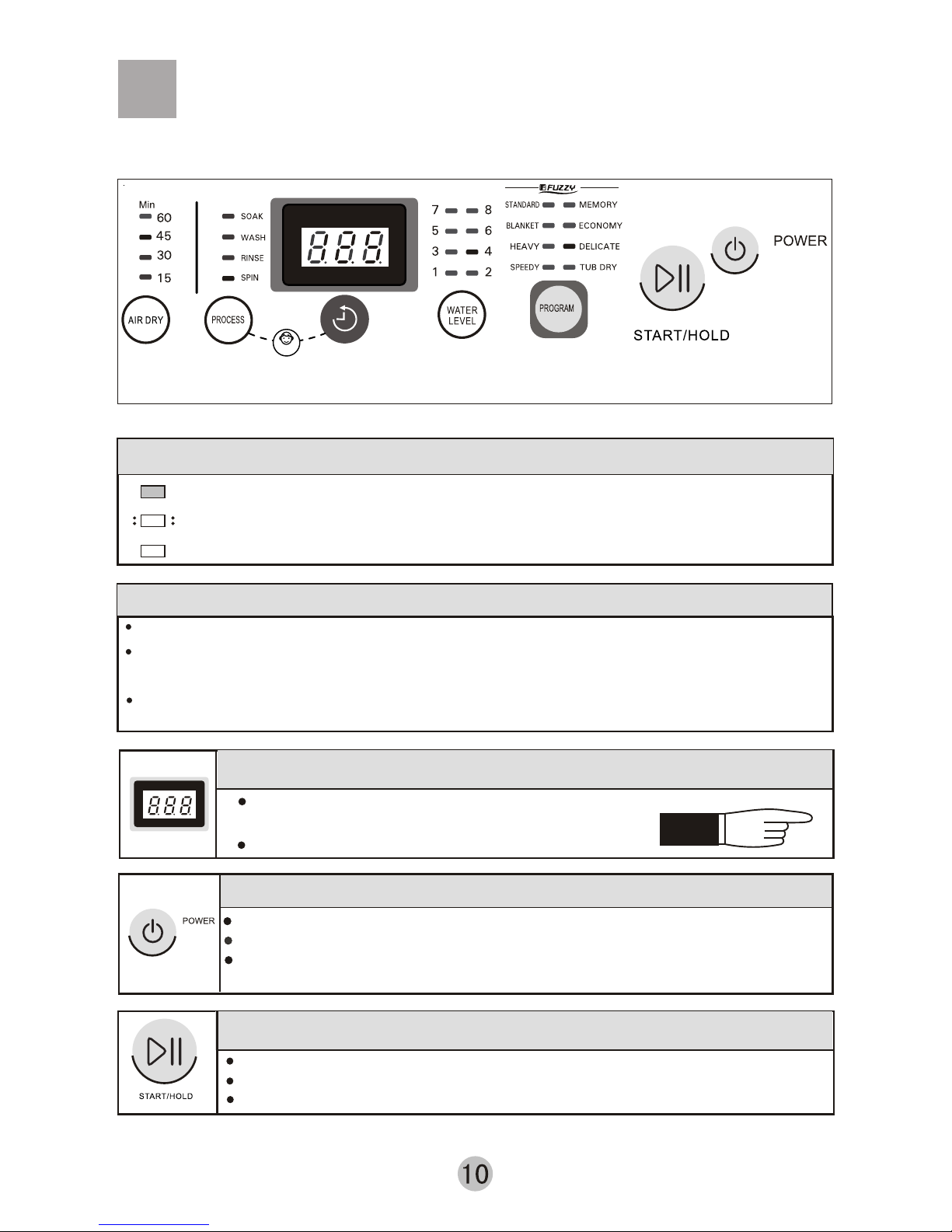

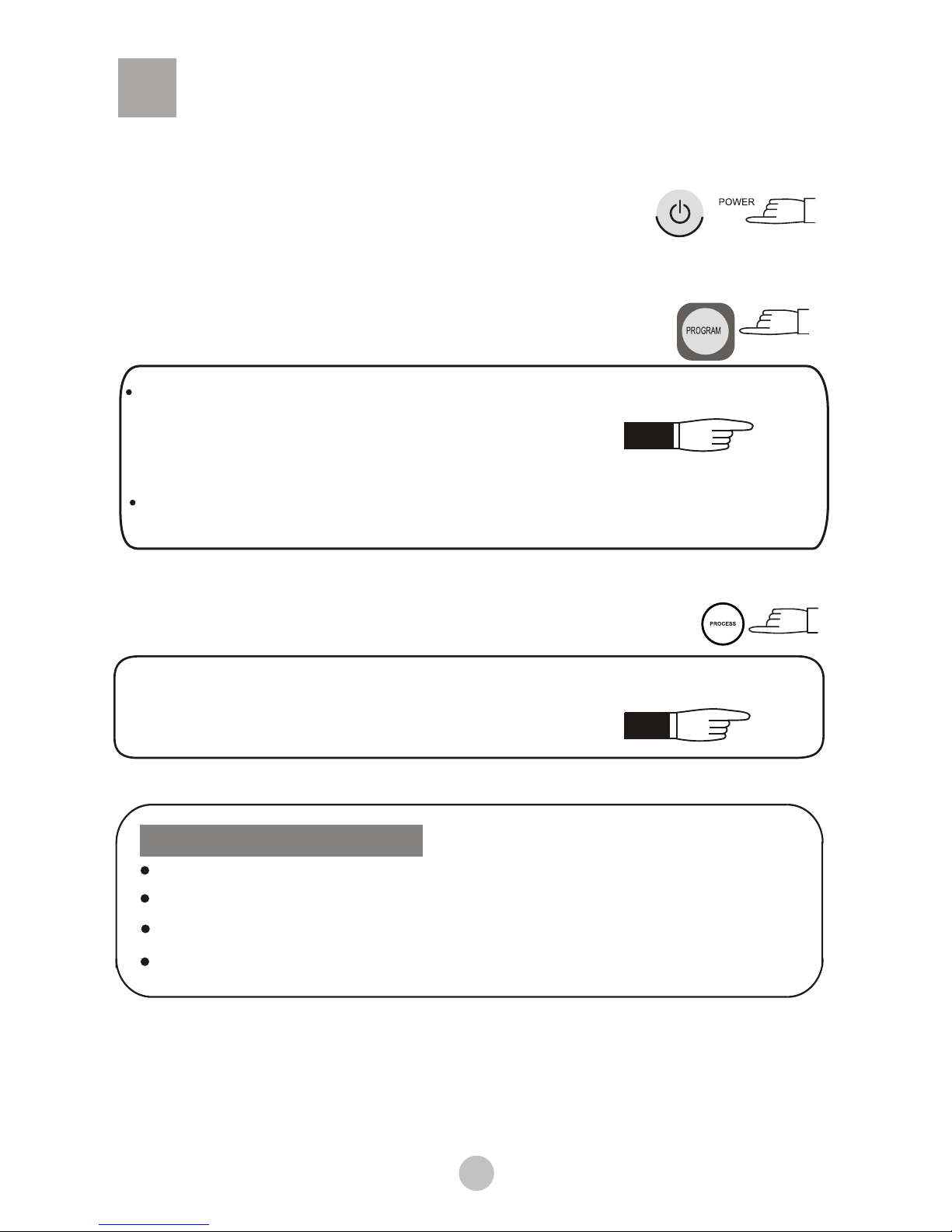

Usage of the Operation Buttons 10

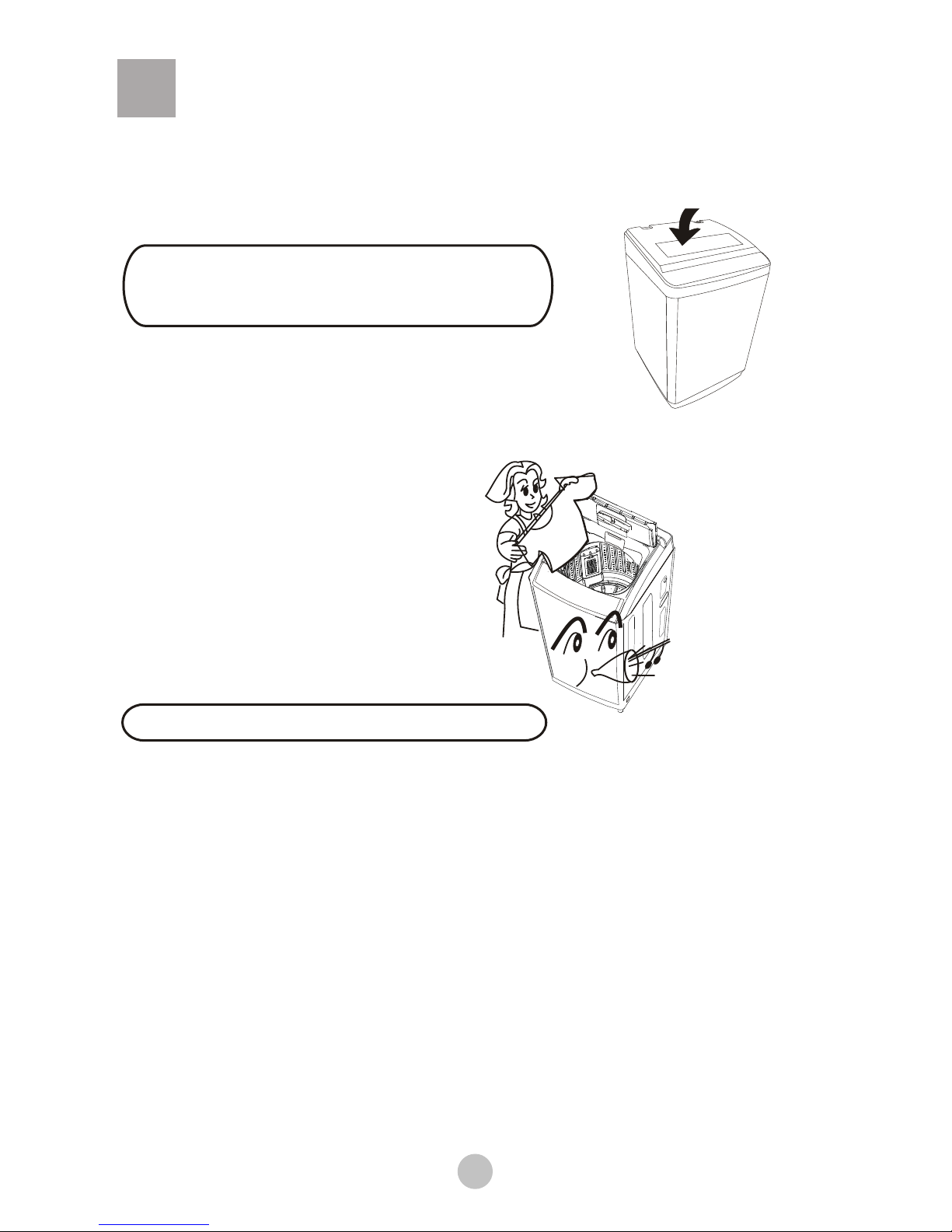

Close the top lid 14
Finish washing 14
After washing 15
Trouble shooting answer to question 16
Packing list
Specification the back cover
the back cover
Contents

Names of the parts
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related to the safety of the product and
the personal safety of the users. Please operate in strict conformity to the
contents, otherwise it may cause damage of the machine or injure the personal
safety of the user.
Contents marked with that symbol are actions forbidden to perform. Performing
of those actions may result in damage of the machine or injure the personal
safety of the user.
Please understand theshapes of thewashing machine andaccessories may bedifferent
from the sketchfigures in thismanual due toproduct improvement.
1
Outer tub cover
ÄÚ²¿¹¹ÔìºÍ²¿¼þÃû³Æ
Detergent box
Handle
Top lid component
Filter frame
Lint filter
Inner tub
Pulsator
Cabinet
Adjustable leg
Adjustable leg film
Base frame
Power cord
Drain hose
Back cover
Water inlet valve
Water absorption
(3 pieces)
Fixed leg
Control pannel
Liquid detergent inlet
Panel
Hook
Screw cover

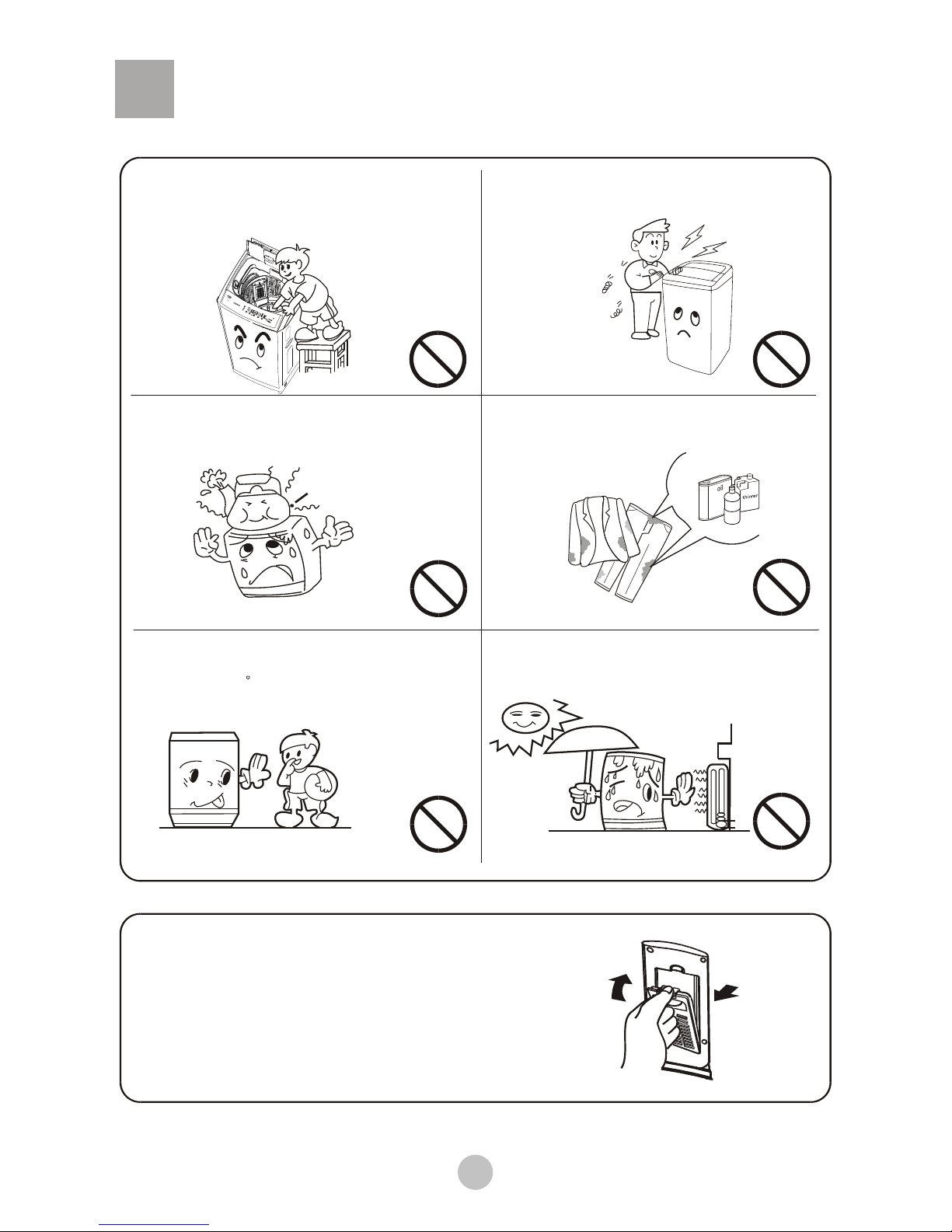

Safety precautions
Do not stretch hands into the working machine.
It is dangerous even if the rotation is slow.
Take special care of the children.
Do not decompose, repair or alter the machine
by yourself.
Do not put any hot or heavy items (such as the kettle
with hot water) on the washing machine
Do not wash laundries with volatile materials
(such as thinner, petrol etc.).
Keep the machine away from direct sunlight and
heat source like the heater.
The handicapped or children without care shall not
use the machine.
The lint filter shall be kept in good condition, and
installed to proper position. If the lint filter is lost
or damaged, please contact the local after-sales
service department of our company.
Benzene
Install
Dismantle
2

Safety precautions
Soft object
Do not put the machine at damp place like the bathroom.
Never wash it with water. Not put wet laundries on the
control panel.
In case the washing machine is installed on ground with
carpet, do not block the ventilation hole with carpet.
Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the
plugging into the receptacle is loose, do not use the plug any more.
Do not wash water-proof laundries like the raincoat,
bike covers etc. to avoid abnormal vibrations in spinning.
Do not use water hotter than 50 C .
3
The ventilation
holes at the bottom
Please plug the power plug on special receptacle.
Be sure to use three-pins power receptacle. Ensure
that the earthing prong of the power receptacle is
earthed reliably. Use leakage protector if possible.
The washing machinemust be positioned so that
the plug is accessible.Be sure topull the plug off
and close thewater faucet infollowing cases:
power failure, delivering the machine, setting the
machine idle orcleaning the machine.Do not plug
or pull thepower plug with wet hand.
Do not bend ,extend, twist, bind by force. Do not press or nip it with weight.
Keep the pin of the power plug clean, if the power plug is polluted with dust, please wipe with
dry cloth carefully.
If the power cord or the power plug is bad, to avoid risk it is required to have it replaced by
the technicians of our special shop or our customer care agent.

4
Adjust the installation position
Confirm it's horizontal:
Hang the lead line to confirm
if it is horizontal.
Adjust the adjustable foot:
Installation and adjustment
Back
Front
Screw
Bottom plate Soft items
Install the bottom plate
After opening thepackage, please lean
the washing machinegently down onsoft
items(like to welcloth,blanket,etc.).Install
the bottom plateto the bottomof the
machine with eight screws by across
screwdriver, thenlift the machine up
gently. See to thefigure:
The largest allowed slope of the base of the machine is 2 . The slanting or rough ground will
result in unstable running or stoppage of the machine. Please adjust it with following methods:
¡ã

A
<10cm
AB
<1.5m
1.Lean the machinedown gently withthe front
surface facing theground.
3.Extend the drain hose from the left side. Push the
drain hose into the groove with hands.
2.Pull out the drain hose from the groove at the left side.
Back
Front
Soft item
Use groove at
this side after
direction changing 4.Install the bottomplate(as per indicatedbefore),
then lift themachine up gently.
Page4
5

The exit end face of the faucet
Confirm the water faucet
Connection between the water inlet hose jointer and the water faucet
water faucet, suitable water faucet, not suitable
It is required that the front end shall be longer than 10mm.
The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.
3 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.
See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen
the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth, otherwise
it may leak water. See to Figure 3.)
1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the
water inlet hose component. See to Figure 1.
4 Fasten the four screws evenly. See to Figure 4..
5 Twisting the fastening nut, See to Figure 5 After twisting, the threading is less than 2mm above the upper
surface of the nut.
water inlet hose jointerwater inlet hose jointer
Screw knife
Screw
Bushing
Nameplate
water inlet hose Figure 1 Figure 2 Figure 3
Slider
Lock level
2 Take off the nameplate. Make sure the threading is 4mm above the upper surface of the nut. See to Figure 6
about 4mm after twisting
About above 2mm after twisting
Screw nut
Figure 4 Figure 5 Figure 6
If the threading is less than 4mm above the upper surface of the nut. please loosen the screws
6

7
Connection between the water inlet hose and the washer
Dismantle the waterinlet hose
Connection between the jointer of the water inlet hose and the water inlet hose
Check the connection between the jointer of the water inlet hose and the water faucet
1.Do not take off the water absorption cushion. Please check if the
cushion is dropped or damaged before each usage. If it happens
please contact our after-sale department immediately.
1.Swing the hose gently to confirm if it is fastened stable.
2.After installation, open the faucet to check if it leaks.
3.Do not bend the hose with overstrain.
1.Push down the slider. Insert the water inlet hose into the jointer.
2 Hang the lock lever to the jointer. Release the slider till a click sound is heard.
Locking level
Slider
water absorption cushion.
nut of the water inlethose
the jointer of the water inlet hose
Slider
Locking level
jointer of the water inletvalve
1. Close the water faucet.
2. Press the locking lever. Push down the slider. Then pull of the water inlet hose.
If the machine is used frequently, the jointer of the water inlet hose can be kept
on the faucet to prevent damaging the fixing screw.
2 Put the nut of the water inlet hose on the valve jointer.
3 Fasten the nut. Swing it gently to confirm if it's suitable.
4.Before each usage please check if the connection
between the jointer of the water inlet hose and the
water faucet, and the installation of the water inlet
hose are firm, so as to prevent dropping from
improper installation position.

Preparation before washing
Pay attention to followings before washing the laundries
Preparation before washing
1.Connect the water inlet hose. Open the water faucet.
2.Confirm that the washing machine is earthed reliably.
Then insert the power plug into the receptacle. The
earth terminal shall not link to gas pipeline and faucet
water pipeline.
3.Put down the drain hose.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that arenot colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like mud or dust.
For the parts with heavy soil,please apply detergent on them inadvance, which
can make it easier to removethe soil.
e. For thoselaundries that may get lint ball and those with long fur,turn it over before
putting in.
f. Do not put those laundriespolluted by chemicals into the washing machine directly.
8
Check if thelaund-
ries has special
requirement on
washing
Clear the pocket.
Takeout the coins,
Sand,hairpins,etc.
Tie the longstrips;
fasten the buttons;
close zippers.
The quantity ofthe
laundries shall not
be too large. Stretch
and loosen thelaun-
dries before putting
them in thetub.
When the pulsator is
running, the buttons of
the laundries may cause
noise. For the sake of
discretion, please put the
laundries with buttons into
other laundries.
