Haier XQB60-91BF User manual

Automatic
Washing Machine
®
User Manual-
Guide de l’Utilisateur-
Manual del Usuario-
Model #
Modèle
Para Modelo de
XQB60-91BF
Lavadora Automática
Lave-Linge
Automatique
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 1

IMPORTANT SAFETY INSTRUCTIONS
Warning – To reduce the risk of fire, electric shock, or injury
to persons when using your appliance, follow basic
precautions, including the following:
1. Read all instructions before using the appliance.
2. Use this appliance only for its intended purpose as described in this use and
care guide.
3. Use only detergents or softeners recommended for use in this appliance and
keep them out of the reach of children.
4. This appliance must be properly installed in accordance with the installation
instructions before it is used.
5. Never unplug your appliance by pulling on the power cord. Always grasp the
plug firmly and pull straight out from the outlet.
6. Replace immediately worn power cords, loose plugs/power outlets.
7. Unplug your appliance before cleaning or before making any repairs.
8. If your old appliance is not being used, we recommend that you
remove the door. This will reduce the possibility of danger to children.
9. Do not operate your appliance in the presence of explosive fumes.
10. Do not use this appliance to wash clothes soaked, spotted or washed in
gasoline, dry cleaning solvents or any other explosive or flammable substances
that could ignite and explode.
11. Clothes or rags used to clean flammable or explosive materials should not be
washed in this appliance till all traces of this material has been removed, to
avoid an accident.
12. Do not add or mix any flammable or explosive substances to the wash.
13. Do not try to remove clothes while the tub is moving. Let it come to a complete
stop before use.
14. The appliance loading door must be closed when tub is spinning.
15. Do not operate your appliance when parts are missing or parts are broken.
16. Do not use this appliance for commercial clothes washing.
17. Do not operate this appliance unless all enclosure panels are properly in place.
18. Do not tamper with controls.
19. To reduce risk of injury do not allow children to play in or on the appliance.
Close supervision of children is necessary when the appliance is used
near children.
1
English
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 2

2
20. This appliance must be connected to proper electrical outlet with the correct
electrical supply.
21. Proper grounding must be ensured to reduce the risk of shock and fire. DO
NOT CUT OR REMOVE THE GROUNDING PLUG. If you do not have a
three-prong electric receptacle outlet in the wall, have a certified electrician
install the proper receptacle. The wall receptacle MUST be properly grounded.
22. Hydrogen gas may be produced if the water heater has not been used in more
then 2 weeks. This could be explosive and can explode under certain
circumstances. If this is the case, before using this appliance turn on all the hot
faucets and let the hot water run for a few minutes. This will let the trapped
hydrogen escape. During this process do not turn on an electric appliance,
smoke, light a match/lighter or use a flame to avoid an accident, as hydrogen
gas is flammable and can explode.
23. Do not repair or replace any part of the appliance or attempt any servicing
unless specifically recommended in the user-repair instructions that you
understand and have skills to carry out.
24. To reduce the risk or electric shock or fire, do not use extension cords or
adapters to connect the unit to electrical power source.
SAVE THESE INSTRUCTIONS
English
DANGER
Risk of child entrapment. Before you throw away your old
appliance, take off the door so that children may
not easily get trapped inside.
Thank you for purchasing our Haier
product. This easy-to-use manual will
guide you in getting the best use of
your washer.
Remember to record the model and
serial number. They are on a label in
back of the washer.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 3

Table Of Contents
PAGE
SAFETY INSTRUCTIONS....................................................................1
Understanding Your “Hand Wash” Washer..............................................4
OPERATING INSTRUCTIONS............................................................5
Parts and Features..............................................................................5-6
Operations ............................................................................................7
Normal Operating Sounds....................................................................16
Care and Cleaning Guide ............................................................17
Cleaning and Maintenance ..................................................................17
Moving and Vacationing ......................................................................18
Storage of Your Washer ......................................................................18
Troubleshooting..............................................................................19
INSTALLATION INSTRUCTIONS ....................................................22
Tools and Materials Required................................................................22
Unpacking Your Washer ......................................................................23
Leveling Your Washer ..........................................................................23
Steps for Installation ............................................................................24
Installing Quick Sink Adapter................................................................26
Electrical Connections ....................................................................28
Grounding Instructions..........................................................................28
Power Interruptions ..............................................................................28
Warranty ........................................................................................29
3
English
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 4

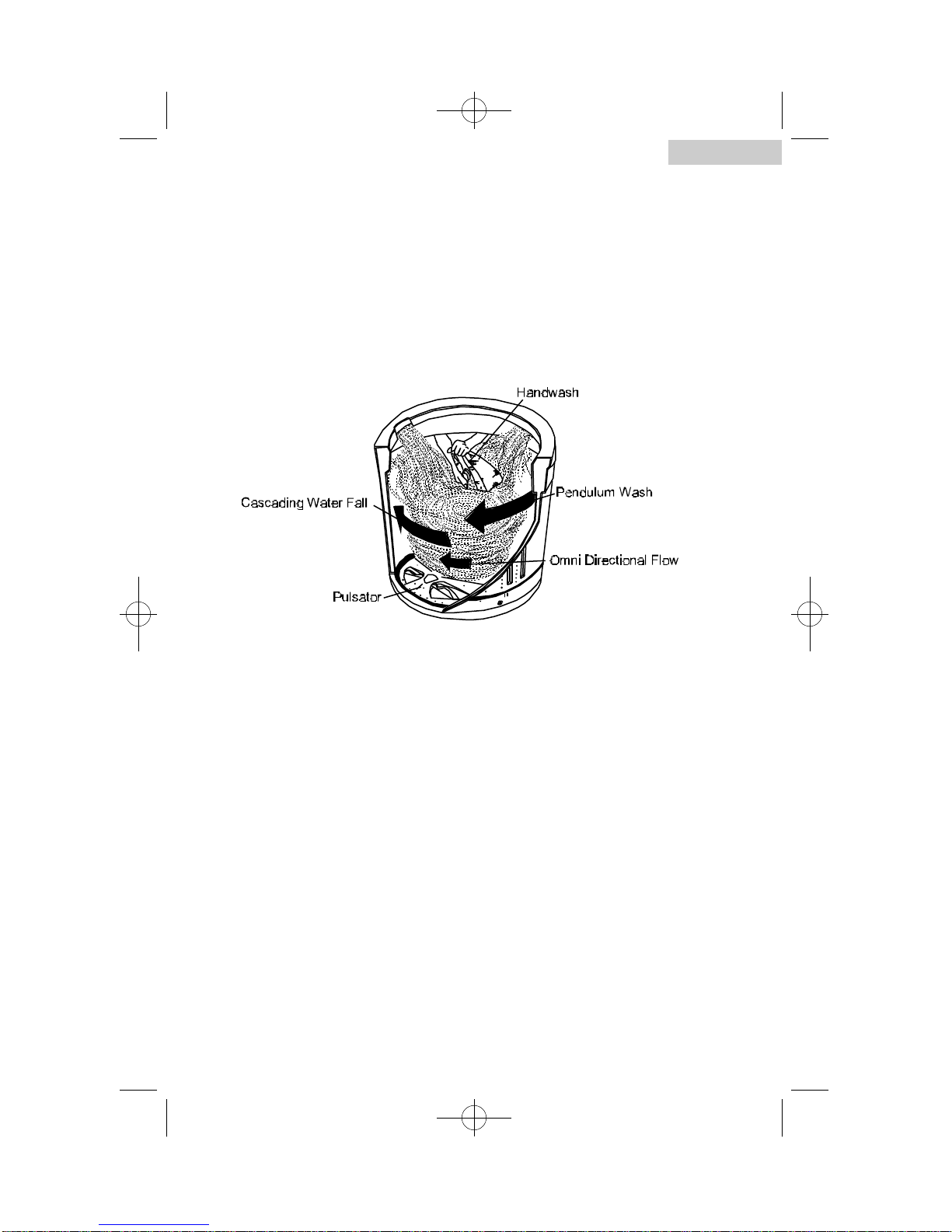

Understanding Your "Hand Wash"Washer
Hand-Wash System:
The convenient top loading format with no central agitator gives you more usable
space and cleans your clothes gently. The special designed pulsator at the bottom of
the washer creates a cascading motion to gently lift and bounce clothes through a
continuous waterfall. Because of this unique wash motion of the pulsator, you can
wash many delicate washables that you previously might have washed by hand.
Cascading Water Fall:
Series of small water falls moving through the clothes in clockwise direction going
from lower surface to upper surface removing soil and residue from the clothes to
give the best cleaning result.
Omni-Direction Flow:
To give you the optimum cleaning result for your clothes, the pulsator moves in both
clockwise and counter clockwise direction every couple of seconds throughout the
wash cycle. Your clothes are being folded and unfolded during this process to
remove the soil and stain out of your clothes. This gentle, but effective process
protects your clothes from wear and tear.
Pendulum Wash:
The water is being sprayed from the left to right direction during the wash and rinse
cycle to give you the best cleaning results for your clothes.
4
English
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 5

English
1. Folding Top Lid
2. Detergent/Softener Dispenser
3. Control Panel
4. Balance Display (Leveling Indicator)
5. Lint Filter
6. Pulsator
7. Washer Cabinet
8. Front Leveling Legs
9. Inner Tub
10. Cabinet Handle (Located on both
sides of the washer)
4
5
6
2
3
OPERATING INSTRUCTIONS
Parts and Features
1
7
8
9
10
5
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 6

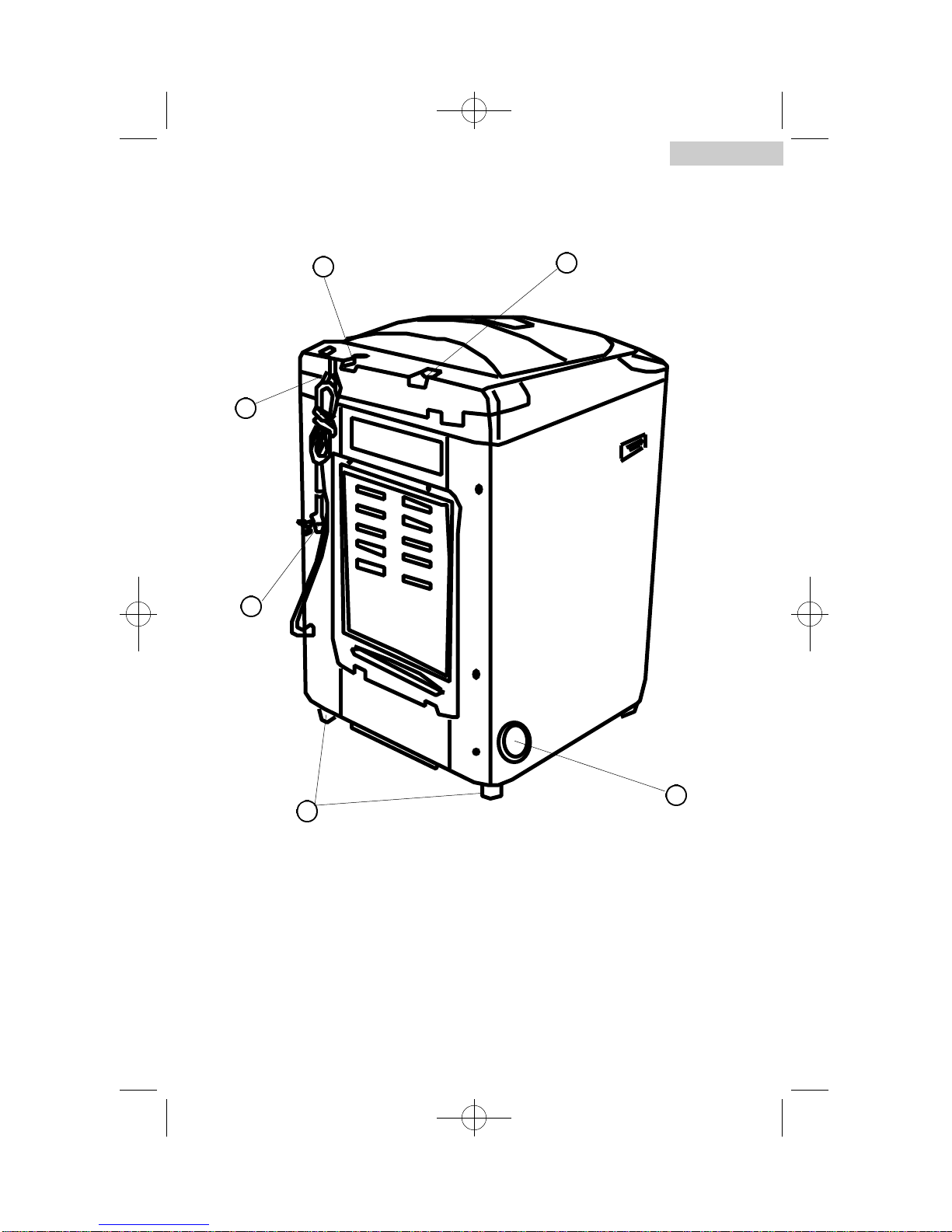

English
1. Cold Water Inlet Valve
2. Hot Water Inlet Valve
3. Drain Hose Connection
4. Rear Leveling Legs
5. Power Cord (115 Volt / 60 Hz)
6. Power Cord Holder Clip
5
2
3
4
1
6
6
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 7

WARM/COLD
COLD/COLD
HOT/COLD
English

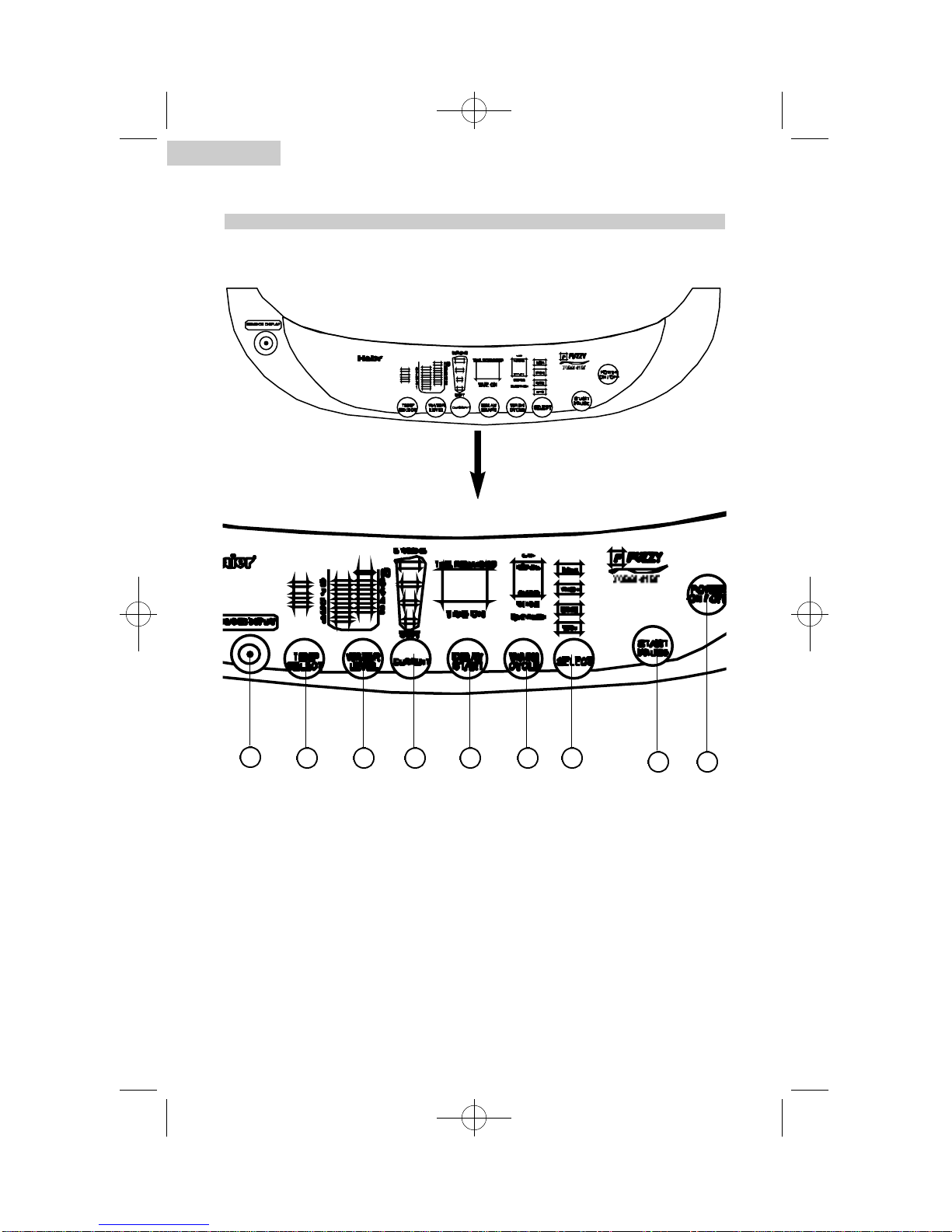

Understanding the Control Panel
OPERATIONS
WARM/COLD
COLD/COLD
HOT/COLD
12
8 37 6 5 4
9
Power Button: (1)
•Press the button once to operate the washer. Press the button once again to turn
the washer "OFF".
Start/Pause Button: (2)
•Press this button once to start the wash process. Press this button once again to
pause the activity during the wash cycle. (See pg. 14 under "Start/Pause Button"
section for more details)
7
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 8

English
Select Button: (3)
•"Select Button" will let you select your desired cycle program. There
are four options to select from in this mode: Soak, Wash, Rinse and Spin.
Simply press the select button to go up and down. (See pg. 12 under
"Wash Cycle Options" section for more details)
Wash Cycle Button: (4)
•"Wash Cycle" button will let you select your desired wash cycles. For your
convenience, there are four fabric care wash cycles programmed in this mode:
Normal, Synthetic, Gentle and Quick. (See pg. 11-12 under "Selecting Wash
Cycle" section for more details)
Delay Start Button: (5)
•This convenient feature lets you delay the start of the wash cycle between
2 to 24 hours. Press the "Delay Start" to choose the number of hours you
want to delay the start of the cycle. (See pg. 15 under "Delay Start Button"
section for more details)
Current Button: (6)
•This button allows you to select current level from Soft to Strong position for
selected cycles. Press the current button to go up and down the levels. (See pg. 12
under "Selecting Current Level" section for more details)
Water Level Button: (7)
•Press the button to go up and down to select the proper water level setting
option.For your convenience, you can select from 1 to 10 water level setting
depending upon the cycle type. (See pg. 13 under "Selecting Water Level"
section for more details)
Temperature Select Button: (8)
• You can select your desired temperature depending upon the fabric
types by simply pressing the "Temp Select" button to go up and down to
select the proper option. For your convenience, there are three temperature
options: Cold/Cold, Warm/Cold and Hot/Cold. (See pg. 14 under
"Selecting Wash/Rinse Temperature" section for more details)
Balance Display (Leveling Indicator): (9)
•Balance Display is located at the front top on the upper left corner. This display
shows if the washer is leveled properly. (See pg. 23 under "Balance Display"
section for more details)
8
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 9

English
Understanding the Function Light Indicator:
•The function "display light" indicates selected feature is "ON" or the
cycle is about to begin.
• During the wash cycle, "flashing light" indicates current running program.
•Rapidly flashing light indicates that the washer is not operating properly.
Note: Refer to troubleshooting guide for "Error Code" explanation.
Loading the Washer:
• Load each item loosely.
•Separate the white and colored clothes. Separate heavy fabrics from light fabrics.
•Carefully check all pockets and cuffs for small items. They can easily slide in to the
tub and may damage the tub.
• Pre-treat all stains and heavily soiled areas for best results.
• Do not overload your washer.
•Close the door properly after loading the clothes.
•When loading wet items, keep water level high enough so items can float easily in
the water and unit may not go off balance.
Proper Use of Dispenser:
The detergent dispenser is located inside the washer at the upper middle center part
of the drum under the washer door. Open the dispenser by pulling it out. You will
see that there are two compartments.
Right Compartment: This is used for fabric softener.
Left Compartment: This is used for wash detergent.
Note: The detergent will be mixed with the water automatically during the
cycle at the proper time.
Right CompartmentLeft Compartment
9
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 10

English
Proper Use of Fabric Softener:
•Pour in liquid fabric softener into left side compartment as recommended by the
manufacturer.
• Do not exceed the level in the compartment to avoid overflow.
Warning: Never pour fabric softener directly onto clothes because it will stain
your clothes or you may get spots on your clothes.
Proper Use of Detergent:
•The amount of detergent to use depends on size of load, water type (hard or soft)
and whether the clothes are heavily soiled or lightly soiled. Besides the
performance of the washing machine the quality of the detergent also affects the
washing result.
Proper Use of Bleach:
Use the manufacturer’s chart for recommended use of liquid or powder bleach by
looking on the container.
Note: You can not use liquid or powder bleach in the dispenser.
Warning: Be careful not to spill undiluted bleach on the washer cabinet
or your clothes as it is a strong chemical. It may damage some
of your clothes or the finish of the washer if not properly diluted.
Filter
•The filter is located in side the washer at the upper middle back part of the drum
right under the detergent dispenser. There is a small nylon bag that will collect the
lint and residue from the clothes during the wash cycle.
• You must clean the filter after every load for the best results. Pull up the filter to
remove. Clean and slide back the filter to replace.
Note: Do not wash your clothes without the filter in its compartment inside the tub.
10
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 11

English
Selecting Wash Cycle:
•Press the "Wash Cycle button" to select your desired wash cycles. For
your convenience, there are four fabric care wash cycles: Normal,
Synthetic, Gentle and Quick.
Note: When you turn the power "ON", the machine will set the standard
wash program to "Normal" position. To select your desired wash
cycle, simply press the Wash Cycle button.
Normal Cycle: This is used for work & play, household linens and heavy to
lightly soiled cottons clothes. This cycle is approximately 48 minutes.
Note: If you want to select "Soak" option when using this cycle, press "Select
Button" five times to set this option. You will see Soak ---> Wash ---> Rinse
Spin sequence lid up.
Synthetic Cycle: This is used for soiled permanent press, silks, woolens, nylon
and acrylic fabrics. This cycle is approximately 65 minutes.
Note: If you want to select "Soak" option when using this cycle, press "Select
Button" five times to set this option. You will see Soak ---> Wash ---> Rinse
Spin sequence lid up.
Gentle Cycle: This is used for special care fabric, labeled "Hand-Washable",
lingerie with light soil clothes and delicate items. This cycle is approximately
21 minutes.
Note: You cannot select "Soak" option when using gentle cycle.
Quick Cycle: This is used for small load of lightly soiled items that needs to be
washed quickly. This cycle is approximately 10 minutes.
Note: • You cannot select "Soak" option when using quick cycle.
•When you select this cycle, the machine will automatically set the water
level at number 2 position. You will not be able to change the water
level setting in this mode.
11
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 12

English
Wash Cycle Options:
When you turn the power "ON", the machine will set automatically to "Wash --->
Rinse ---> Spin" program. You can change this setting by pressing "Select Button" to
select other options.
Follow the procedure below when manually selecting wash cycle options:
Soak Option: This is used for heavily soiled or stained clothes. Here the tub fills
with water allowing clothes to soak with periodic water movement. The cycle is
completed when water is extracted by spinning of the drum. This cycle is
approximately 15 to 35 minutes.
Rinse Option: In this cycle, the machine sprays fresh cold water to remove soil
and odor of the detergent from the clothes. The rinse time varies for each cycle.
Spin Option: In this cycle, the water is extracted from the clothes by spinning of
the drum at the end of the cycle, so your clothes are not as damp when taking out
to dry. The spin time varies for each cycle.
Selecting Current Level:
The "Current Level" refers to level of force at which the water is moving through the
clothes. Press the current button to select the proper current level from soft to strong
for selected cycles.
•For Normal and Synthetic Cycle, you can select any current level from
"Soft to Strong" position.
•For Gentle Cycle, the machine will not let you select any current level.
The current is preset for this cycle and display is not lit during the
cycle.
•For Quick Cycle, the current level is preset at second level position and
you will not be able to override the level. The display will be lit to
indicate that.
Warning: In low water level, do not select strong current level in order to avoid
splashing and vibration.
Select Button
(Preset) from the factory
Push one time
Push two times
Push three times
Push four times
Push five times
Cycle Type
For Wash-Rinse-Spin
For Wash only
For Wash-Rinse
For Rinse-Spin
For Spin only
For Soak-Wash-Rinse-Spin
12
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 13

English
Selecting Water Level:
When you turn the power "ON", the initial water level is set at 6th position.
Note: •For normal, synthetic and gentle cycle, you can select water level
between 1-10 position.
•In the quick cycle mode the water level is preset to the 2nd position. The
washer begins to wash clothes once the water has reached the 2nd
level. Water in this mode fills until the 4th level is reached.
Press the water level button to increase or decrease the water level as indicated in
the chart below to select the proper water level setting for the load size.
Note: Position “1” as the lowest level.
Position “5” as the medium level.
Position “10” as the highest level.
Water Level Button
Preset from the factory
Press one time for
Press two times for
Press three times for
Press four times for
Press five times for
Press six times for
Press seven times for
Press eight times for
Press nine times for
Press ten times to go back
to its preset position
Water Level Position
6
7
8
9
10
1
2
3
4
5
6
13
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 14

English
Selecting Wash/Rinse Temperature:
When you turn the power "ON", the initial temperature is
set at "Cold/Cold" position.
Press the "Temp Select Button" to select the proper temperature
option. For your convenience, there are three temperature
options: Cold/Cold, Warm/Cold and Hot/Cold.
Always refer to the label on the garment for proper
temperature that is recommended by garment manufacturers. See the reference
chart below to select proper temperature for the fabrics.
WASH/RINSE TYPES OF FABRICS
Cold/Cold Non-colors Fabrics, lingerie
with light or normal soil
clothes & special care fabrics
Warm/Cold Delicate & colors Fabrics
Hot/Cold Sturdy whites & colors
Fabrics such as work & play
clothes, soiled fabrics
Note: When selecting hot water option for your load,
• Incoming hot water must not exceed over 140 Degree F/60 Degree C.
•If the incoming hot water temperature exceeds over level shown above,
the display will show “E5” error code and it will beep.
• You must let the hot water cool down below the temperature level shown
above. Once the hot water has cooled down, you must press
“Start/Pause” button to resume the cycle again.
Start/Pause Button:
After selecting your options and closing the washer door properly, you need to
press the "Start/Pause" button to start the washer.
If you want to pause during the cycle operation, simply press "Start/Pause" button.
This will stop the activity during the cycle operation until you press this button again
to resume the cycle.
WARM/COLD
COLD/COLD
HOT/COLD
14
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 15

Delay Start Button:
This convenient option lets you delay the start of the wash cycle
between 2 to 24 hours.
•Press the "Delay Start Button" to choose the number of
hours you want to delay the start of the cycle.
•The time will delay by 1 hour for every time you press
the button
•During this cycle if you want to cancel, you must turn the power off and
reselect the option.
End of Cycle Signal:
The machine will beep at the end of the cycle, indicating that the washing is
complete. You will see that "Wash/Rinse/Spin" indicator lights are still "On". The
washer will turn off automatically in about 10 minutes after the completion of the
cycle.
Closing the Top Lid:
As a safety device, you must always have the top lid closed during the
wash process. If you open the top lid while the wash cycle is on, you will
observe the following.
• The filling and the draining of the water will go on.
• The tub will not spin while the lid is open.
• If the unit is in the wash mode it will stop.
Simply close the top lid and press the start/pause button to resume the cycle again.
15
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 16

Steps for the Wash Process:
1. Turn the power ‘On".
2. Fill the detergent/softener dispenser.
3. Selecting the cycle:
Note: If you choose to keep the "Auto Presets" of the cycle, skip to step # 5. If you
choose to change any or all of the preset options, continue with step # 4. There may
be some restrictions when choosing selected options.
4. Manually Selecting Your Options
A. When selecting wash cycle options, please refer to "Wash Cycle
Options" section of page 11 for details.
B. When selecting delay start, please refer to "Delay Start Button" section
of page 15 for details.
C. When selecting current level, please refer to "Selecting Current Level"
section of page 12 for details.
D. When selecting water level, please refer to "Selecting Water Level"
section of page 13 for details.
E. When selecting temperature, please refer to "Selecting Wash/Rinse
Temperature" section of pages 14 for details.
F. Once you have selected proper options go to step # 5.
5. Load clothes into the wash tub.
6. Close the washer door properly.
7. Press the "Start/Pause" button to begin the wash process.
Normal Operating Sounds
The following sounds are normally heard during the
operation of the washer:
• Tumbling sounds: This is normal as the heavy wet clothes in the Washer are
continuously being tossed around.
•Air rushing noise: This happens when the Washer tub spins at very high RPM.
• Wash and Rinse cycles going on and off will also make clicking sounds.
16
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 17

Warning: Always unplug your appliance to avoid electric shock before cleaning.
Ignoring this warning may result in death or injury. Before using
cleaning products, always read and follow manufacturer’s instructions
and warnings to avoid personal injury or product damage.
Cleaning and Maintenance
Use only damp or sudsy cloth for cleaning control panel.
• To avoid any kind of damage to cabinet finish, wipe appliance cabinet as
needed. If you spill liquid/powdered softener, bleach or detergent on the cabinet,
wipe cabinet immediately because it can damage the finish.
•Do not use any abrasive, harsh chemicals, ammonia, chlorine bleach,
concentrated detergent, solvents or metal scouring pads. Some of these chemicals
may dissolve, damage and/or discolor your appliance.
•Remove pins or other sharp objects from clothes to prevent scratching
interior parts.
•Lint filter needs to be cleaned before and after each use for your appliance to
operate at optimum efficiency. DO NOT USE YOUR WASHER WITHOUT
THE LINT FILTER IN PLACE.
•The Detergent Dispenser Compartment is removable. Over time, this compartment
may accumulate dried detergent, dirt and debris. You must remove it and rinse in
a sink or remove debris with a soft brush.
•The filter screen of the water inlet valve is likely to be blocked by some soil or
residue. Please clean it with brush monthly.
Care and Cleaning Guide
17
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 18

Moving & Vacationing
• Turn off water supply faucets and disconnect hoses. Drain water from all hoses.
This will prevent from damaging due to water leakage if the hoses accidentally get
ruptured or they become loose.
• Disconnect electrical plug.
• Dry inner wash tub. If moving washer, disconnect drain hose.
• Turn the leveling legs clockwise all the way in.
• To prevent mold or mildew, leave door open so moisture inside machine
can evaporate.
•Reinstall the foam base/styrofoam at the bottom to prevent internal part from
shaking when the washer is moving to another location. This is used to secure the
washer from shipping damage due to vibration and shock.
Storage of Your Appliance in Cold Environment
• This appliance must be stored at room temperature.
•If you just got delivery of this appliance when outside temperature is below
freezing, do not operate until this appliance has warmed to room temperature.
•Do not install or operate this appliance in the area where room temperature is
below freezing.
18
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 19

English
Before calling for service, determine the symptoms and follow suggested solutions.
Washer does not operate:
• Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall receptacle is of proper voltage.
•Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
•Check if the washer is overloaded: load may need to be re-balanced and clothes
may need to be redistributed.
• Check if the door is open. You may have to close the door properly.
•The washer pauses in some cycles. This is normal in synthetic or gentle cycle,
which has short soak period where your clothes are being soaked for very short
period of time. You will not hear washer operate for a short period of time. When
the soak time is over, it will start automatically.
•Check if the program/option selections are set properly. You may have to adjust
proper setting. (refer to "Operation" section)
•Check if you have selected "Delay Start" option. You may have to turn that option
off and reselect.
•Check the Power "On/Off" button to see if it is on "OFF" position. You may have
to press the button to set it on "ON" position.
•Check if the “Start/Pause” button is on “Pause” mode. Press this button to start the
wash process.
•The wash process is paused.
This is normal. The clothes sensor is checking clothes to verify that there are
clothes inside the wash tub. It will add water approximately 48 seconds later.
•The Pulsator pauses during incoming water flow in wash and rinse cycle.
This is normal. It is to avoid splashing during water inlet.
Troubleshooting
19
XQB60-91BF MANUAL 10/22/01 11:42 AM Page 20
