HaiKe DAB-005B User manual

IN-CAR DAB+ RECIEVER
With Bluetooth FM Transmitter
DAB-005B
User manual

Introduction:
Thanks for choosing our DAB+ receiver DAB-005B. It will receive the
DAB/DAB+ broadcasts and transmit the audio to your car radio system
wirelessly. It also helps you listen to the phone music, other external music
and enjoy the hands free while driving.
Package contents:
DAB Receiver 1 pc
User manual 1 pc
Active antenna 1 pc
Antenna installation manual 1 pc
Dual USB car charger 1 pc
3.5mm audio cable 1 pc
Product bracket 1 pc
Features:
1. Auto-scan the available DAB+ stations
2. Wirelessly transmit the audio to car stereo system
3. Bluetooth 4.2 offer amazing sounds experience
4. With Service following
5. 2.3 inch LCD screen brings wide & comfortable view
6. Supports reading music from TF card (up to 64GB)
7. Preset 60 favourite stations
8. Stations list for easy choice.
9. With active antennas
Technical specifications:
Radio: Digital DAB/DAB+
DAB range: Band III 174-240 MHz
FM Transmit range: 87.6-107.9 MHz
Display: 2.3 inch LCD screen Bluetooth Version: 4.2
Bluetooth range: 2.4G-2.48G
Support: TF card (up to 64GB) / Aux-out
Music format: MP3/WMA
Antenna: Active antenna
Audio output: 3.5mm audio jack
Power input: 12V-24V
Charging output: 5V/3.1A
2

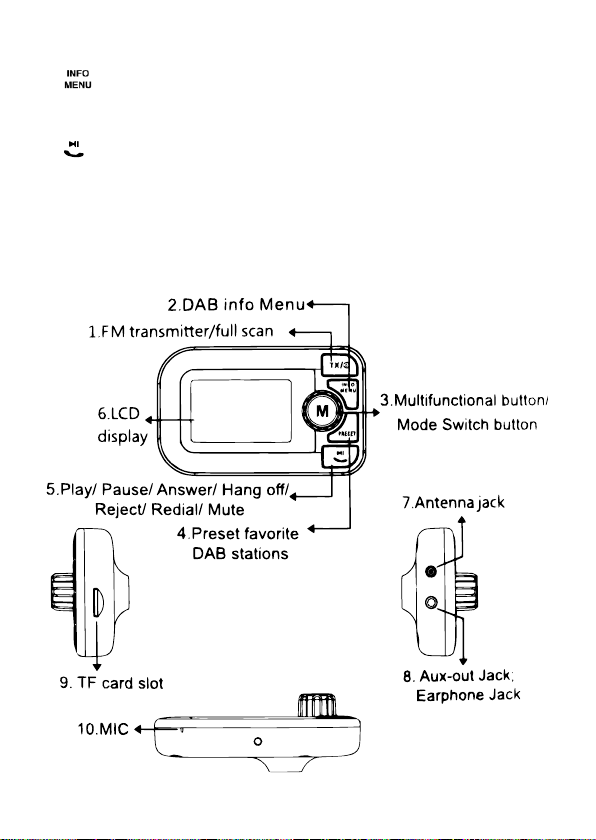

Appearance:
1. TX/© FM Transmitter / Full scan available DAB
2. DAB information / Stations list
3. MMultifunctional button / Mode switch button
4. PRESET Preset favourite DAB stations
5. Play / Pause / Answer / Hang off / Reject / Redial / Mute
6. 2.3”LCD screen
7. Antenna Jack
8. Aux-out Jack; Earphone Jack
9. TF card slot
10. MIC
11. Micro USB charging port
3

Installation:
1. Sucker holder:
Option 1: Remove the protective film of the sucker; paste the holder on the
car dashboard
Option 2: Remove the protective film of the sucker; paste the holder on the
car front windshield
4

2. DAB Receiver
DAB receiver has an iron plate on the back side; attract the plate on the
magnet of the sucker holder. Adjust the angles for comfortable view.
3. Power supply
Plug the dual USB car charger into car cigarette socket, use micro USB
charging cable to connect the receiver and the car charger.
Short click the button to power on; long press button to turn off.
! Note: Please use our car charger and micro USB charging cable (included
in the package), others might cause signals interference.
4. Active antenna
Please follow the antenna installation manual.
5

Connection:
1. Connect with your mobile devices (phone/tablet, etc.)
Turn on the Bluetooth function of your mobile devices; search the "DAB-
005B", click it for connection.
2. Connect with your car stereo system
.Option 1:Use the audio cable (if your car has auxiliary port).
Plug the 3.5mm audio head into the DAB receiver's Aux-Out port;
insert the other head into the car auxiliary port.
.Option 2:Use the FM transmitter.
Press TX/©the button, the screen will show the current FM
transmitting frequency, manually spin the "M" button to adjust the
frequency. Please choose an unoccupied frequency.
3. Connect with the antenna
Insert the antenna metal head into the antenna jack.
! Note: Our antenna were made based on COAXIAL POWER SUPPLY.
Please don't use other antenna. That might damage the power board.
Operation:
. DAB mode:
1. Press "M" button, switch the mode to "DAB".
2. Long press DM) button to full scan the available stations. The screen will
show "scanning", once it finished, it will play the first DAB channel
automatically.
3. Rotate "M" button to switch the previous/next channel.
4. Click button shows the DAB stations list, spin "M" button to choose
the channel you want. Long press mINEFNC)u button to enter main
menu setting.
5. If you want to save your favourite channel, choose it first, then long press
PRESET button, enter the favourite station list, rotate the "M" button to
choose the location you want. Such as P1, P2, P3..., and then press "M"
button to confirm.
6. If you want to listen the saved channels, short press PRESET button,
rotate the "M" button to choose your favourite one.
6

7. Volume control: Long press the "M" button, and then rotate it to adjust the
volume.
8. Press to mute. Press again to recover.
Bluetooth mode:
1. Press "M" button, switch the mode to "Bluetooth". Pair the DAB with your
mobile device successfully; it will automatically play the music from your
mobile devices. If not, press to start playing music.
2. Press to pause / play the music.
3. When there is an incoming call, press once to answer / hang off ;
press twice to reject the incoming call.
4. Press twice to redial last phone call under no call status.
5. Long press the TX/© button to forcefully disconnect.
Music playing mode:
TF card: Insert the TF card and it will play the MP3/WMA format music
automatically. Press to pause / play the music.
Charging other devices:
The dual USB car charger has an extra USB charging slot. Use the
charging cable (Not provided) connect the USB port and your mobile
devices, it will charge your other devices on the way.
Menu setting:
Long press the button will enter the system menu, rotate the "M" button
to choose and press "M" to confirm. Press once to exit the system
menu.
