Haiwei H2 User manual

User manual- H2
Last updated: 3/ 25/ 2021
1

Contents
Preface………………………………………………………………..1
Part Ⅰ: Connection illustrated…………………………………… …..4
Part Ⅱ: Configure network…………………………………………...4
Part Ⅲ: Encoder Functions …………………………………………6
Part Ⅳ: Operation ………..…………………………………………18
Part Ⅴ: LiveX………………………………………………...………21
Part Ⅵ: FAQ …………………………………………………………22
Part Ⅶ: Contact us ……………………………………………….. ...23
Status bar ……………………………………...…………………..6
2
Adapt network …………………………………………...………..7
Operation mode ………………………………...……..…………..8
TS Info and OSD ………………………………………...………..9
Decoding…………………………….…………………...………..10
Transcoding ……………………………………………...………..11
Video mixing ………………………………………….....………..13
Loop Through………………………………………...……..……..15
Audio ………………………………………...………………..…..16
System ………………………………………...................………..17
Encoding………………………………...………...…..…………..8

Preface
Thank you for supporting HAIWEI, who are the leading developer
of various video processing hardware for different kind of video transmission
scenarios like OTT, IPTV, Broadcasting, Video streaming, News gathering,
medical video processing and so forth.
Our products including:
ENCODER : HDMI/ SDI/ VGA/ YPBPR/ CVBS/ DVI over HTTP/ RTSP/ RTMP
(pull/ push)/ UDP Unicast O Multicast/ RTP/ SRT/ P-P (Haiwei proprietary protocol),
4G ,WIFI, Ethernet encoder
DECODER: 4K (4096*2160) IP decoder, transcoder
Transcoder: RTSP/ RTMP/ UDP/ HTTP/ HLS/ P-P/ SDK to HTTP/ HLS/ RTSP over
UDP TCP/ RTMP/ UDP Unicast Multicast/ ONVIF/ RTP/ P-P
This user manual is designed for H2 encoder, you will get following information by
reading this manual
It may leads to damage if privately disassemble the device, please read this to
Troubleshooting first, or please send us email for help!
The info of the H2
Functions of the H2
How to use H2
Reference
3

Part Ⅰ: Connection illustrated
Part Ⅱ: Configure network
DHCP suggested for new customer or will use it in different networks,
so network configuration can be ignored if parameter of the stream
configured.
If not DHCP enabled by default, please follow the following steps to
configure the network for streaming
4

1- Enter network setting
2- Enter “Properties”
3- Choose IPv4
4- Enter current IP address and DNS (if don’t know the DNS, use 8.8.8.8)
5- Add another 192.168.1.x based IP address.
6- Then reboot the encoder on the UI of “System”option.
Once the network configured, to change the IP address of the
encoder to your local IP gateway required, like following instance
5

1- Status Bar
* The detected video information, Preview and streaming URL display here, the Preview function is based on
HTML5, it means HLS need to be enabled before using this function 6
Part Ⅲ: Encoder Functions

2- Adapting the encoder network to your own
Configuring network became necessary before starting if streaming to platform required, and the
Default DNS should set 8.8.8.8 or another local DNS in case of streaming failure
Here is an example
Local network Encoder
7

2- Choosing operation mode
There are 5 modes can be selected
from
1- Encoding Only
2- Decoding Only
3- Encoding+ Decoding
4- Transcoding
5- Video mixing
Choose different channel to configure
2* Main+ 2* Sub
Use H.265 or H.264 for streaming
Choose H.264 profile
Set up channel name
16:9 or 4:3 aspect ratio
Change the GOP size
Set up outputvideo frame rate
Set up video bitrate
Smarting encoding
Choose CBR or VBR
Manually set up resolution or auto
Choose video resolution
Set up TS info
Disable/ Enable HTTP streaming
Edit stream name
Disable/ Enable RTSP
Disable/ Enable multicast
Disable/ Enable unicast
Disable/ Enable RTP
Disable/ Enable RTMP
Disable/ Enable SRT
Set up OSD 8
3- Setting up Encoding

4- Editable TS info
Video ID= Stream ID
Audio ID= video ID+1
5- OSD
9

6- Decoding
Decoding function will be useful
while using those modes
Decoding
Encoding+ Decoding
Video Mixing
Transcoding
There are three different feeds can be
decoded from URL to P2P and SDK
1- URL
RTSP, RTMP, UDP, HLS, HTTP
2- P2P
From another P2P encoder, see
configuration here
3- SDK
This function is used for a pair of
encoder from us, and can be used
under intranet only.
Refresh
Click to get the P2P ID
On the intranet, the ID can be input
Under P2P decoding mode.
10

7- Transcoding
This sector will be functional under
Transcoding mode, the functions
listed here are same to the
See details on the relevant page by
clicking here
11

Activate Transcoding
①Turn the Transcoding function on
on the
②Set up inputting feeds by setting
up from First to fourth
③Set up information of the
transcoded feeds by setting up
parameters on the
Tips: The H2 supports 4channels
transcoding in 2different bitrates
for each, decoding feeds “First” is
meant “First” on the Source list on
transcoder info
12

8- Video Mixing
This sector will be functional under
Mixing mode, the functions listed
here are same to the
See details on the relevant page by
clicking here
13

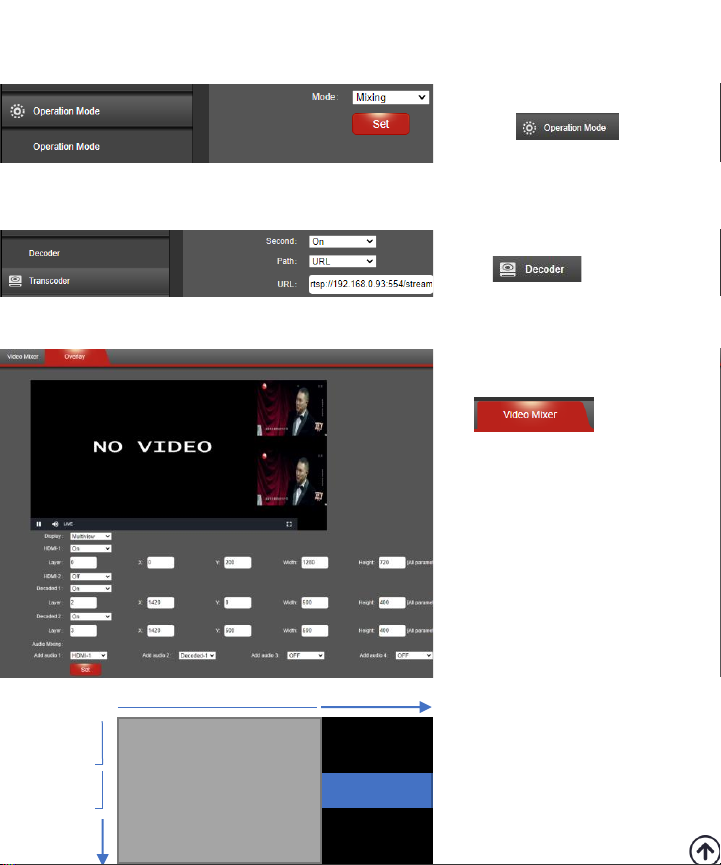

①Turn the Mixing function on on
the
②Set up inputting feeds by setting
up from First to fourth
③Set up information of the mixed
feeds by setting up parameters on the
Activate Video Mixing
④Adjust the pattern of the
displaying feeds by re-locate the
coordination of each feed, here is an
example
400
600
D1
1280 1920
0
D2
H1 OSD
1080
The size and its location of the items are
H1- 1280*1080, 0* 0
D1- 640* 400, 1280* 0
OSD- 640* 480, 1280* 400
D2- 640* 200, 1280* 680
14

9- Setting up HDMI output
This function is designed for setting
up the pattern of the feeds that
output from HDMI loop through
HDMI MODE:
One Split
Four Split
Nine Split
15

10- Changing audio setting
Audio encoding can be configured
on the Extended function.
Adjustable parameters
Encoding: AAC/ MP3/ OPUS
AAC Over LC/ HE
Choose HDMI 1/2 Audio Input
Set up the sampling rate
Setting up HLS for HDMI 1 and
HDMI2
16

11- System settings
1- Timing reboot
In general, 168 hours (7 days) timing reboot
suggested for TCP connection.
2- Firmware version
The firmware will be updated if there is new
function added, Bugs fixed and so forth,
please provide us current version before
upgrading the encoder
Tips: if need transparent logo, black/ grey background required, to make the OSD function work,
24 Bits in BMP format required.
File names for different OSD
transcode:logo05bmp-logo12.bmp. Video Mixing:logo21.bmp-logo22.bmp
3- Upload files
upload logo, firmware
17

Part Ⅳ: Operation Guidance
1) HTTP-RTSP- RTMP pull- HLS- UDP
Copy the address and open it with VLC- streaming- network- fill the URL
( Except RTMP push)
Such as HTTP：WEB management→ HDMI Main→ Enable HTTP/
RTPS→ Apply→ Status( find the URL) → VLC→ fill the URL→
Done
18

3) RTMP (Push/ pull)- HLS
URL mode
Copy the CORRECT RTMP address from the server or platform and directly
paste it on the RTMP filed, then “Enable”the RTMP function.
IP mode
Copy the CORRECT RTMP address from the server or platform, separately
input it like following image, then “Enable”the RTMP function.
19

4) SRT
The encoder supports SRT caller and listener mode, here we will demonstrate how
to set up each mode on the encoder and decoder side
Encoder Decoder
Encoder Decoder
1- Listener Mode
2- Caller Mode
* Enter the IP of the encoder and its port on
the decoder side
* Enter the IP of the Decoder and its port on
the Encoder side 20
