Hako Rotobic rocket vac User manual

INSTRUCTION MANUAL AND PARTS GUIDE

CAUTION Read the instruction manual before using the machine

Rocket Vac

Back Pack Vacuum Cleaner

Model No.: 12923009

Hako Australia Pty Ltd

ABN: 43 002 858 059

90 Wetherill St North, Silverwater NSW 2128

Phone: +61 2 8756 4700

Fax: +61 2 8756 4799

Email: [email protected]

Website: www.hakoaustralia.com.au

Rocket Vac Manual # 13806193 - Rev:1/140415 Page 1

Safety Instructions

Read this manual before using the back pack and always follow the

Safety and Maintenance Instructions

CAUTION: This machine shall be stored indoors only

•This machine is intended for domestic and commercial use only

•Do not leave the appliance when plugged in. Unplug from the power point when not in use and

before servicing.

•Do not use outdoors or on wet surfaces.

•For domestic use:

oThe appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety

•For commercial use:

oThe appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge

•Children should be supervised to ensure that they do not play with the appliance.

•Use only as described in this manual. If appliance is not working as it should, has been dropped,

damaged, left outdoors, or dropped into water, return it to a service centre.

•Extension Cord MUST be secured by the relief retainer in the side of the vacuum cleaner

•Do not pull or carry by cord or plug, use cord as a handle, close a door on cord, or pull cord around

sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

•If the cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly

qualified person in order to avoid a hazard.

•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

•Do not handle plug or appliance with wet hands.

•Do not put any object into openings. Do not use with any opening blocked.

•Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

•Turn off all controls before unplugging.

•Use extra care when cleaning stairs.

•Do not use to pick up flammable or combustible liquids, such as petrol, or use in areas where they

may be present.

SAVE THESE INSTRUCTIONS

Rocket Vac Manual # 13806193 - Rev:1/140415 Page 2

Packaging

•Every Rocket Vac unit comes with:

•A basic set of cleaning accessories: vacuum hose with elbow hand grip, 2 piece wand, and Ezi-

Glide floor tool.

•Cloth filter bag

•Secondary filter (located under cloth filter bag)

Assembly

•Remove lid by releasing latches and remove check both the cloth filter bag and secondary

filter bag are included

•Rotate the canister lid so that the vacuum inlet is on the left or right side to suit your

'vacuuming' arm.

•Attach hose end into canister lid inlet.

•Connect both wands together to create one length.

•Attach end of wand to other end elbow pistol grip.

•Attach Ezi-Glide floor tool to other end of wand.

Start Up

•Unwind power supply cord and leave uncoiled on floor.

•Plug the cord into an electrical socket and switch power ON at the power point.

Wearing and Adjusting

•Loosen shoulder straps and waist strap to allow sliding of arm through the strap comfortably.

•Lift machine onto one shoulder, by first inserting opposite arm through the shoulder strap by

which the machine is lifted (like putting on a shirt or blouse), slide second arm through

opposite shoulder strap so now the Rocket Vac is on both shoulders.

•Position the waist-band into the 'small' of your back just above your backside. This will lower

the centre of gravity of the unit, and positions the weight closer to the body onto the stronger

pelvic area. It provides freedom of movement for the arms, and prevents the unit from riding

up the back when forward bending. It also provides greater manoeuvrability with less effort

for any vacuuming task.

•Tighten waist strap until secure and comfortable.

•Pull down on both ends of the shoulder strap until the back supports just make

contact with the back, bringing the unit into a vertical position. The tension in the

shoulder straps should be minimal, enabling you to easily insert your fingers easily between

the shoulder strap and shoulder.

Controls and Features

•Switch the vacuum ON. The switch is located at the left hand side at waist level.

•The Ezi-Glide floor tool can be used for either hard floors or carpet.

Rocket Vac Manual # 13806193 - Rev:1/140415 Page 3

•Removing the floor tool

•Twist the chrome wand while holding the floor tool neck.

•Do not stand on floor tool.

•The slide regulator on the hand grip of the wand controls the airflow and suction at the floor tool nozzle.

The resistance between the tool and floor surface depends on floor type and suction. Opening the slide

regulator will reduce the resistance. Adjust the regulator to an open position to reduce suction/airflow.

Good for vacuuming low profile carpets or loose coverings e.g. tapestry, or upholstery corners using the

correct vacuuming tool.

•Adjusting the regulator to the closed position increases suction and airflow. Good for plush or thicker

pile carpets.

•The (optional) crevice tool is designed for crevice cleaning on upholstered furniture or spot cleaning.

•The (optional) dusting brush is used for upholstery, corner and cornices cleaning.

•Both the crevice tool and dusting brush can be used with or without the chrome wands, simply attach it

to the end nozzle of the hose. The main advantage is to reduce the need for physical bending when

vacuuming. The plastic ferrule at the chrome wand, allows for easy disconnection.

•For fine dust areas use the (optional) paper bag liners, inside the cloth filter bag.

•The Rocket Vac is provided with an integral cord restraint. Ensure that the cord is fitted through the lead

guide in order to provide strain relief to the cord.

•The Rocket Vac is provided with on board tool storage. Store acrevice tool and dusting bush in the

holes provided for ready access.

Use, Operation and Manoeuvrability

•The slender profile of the Rocket Vac limits the protrusion from the operators back to 270mm. It is

important to maintain this clearance to prevent collision while working.

•For comfortable operation of the Rocket Vac, stand upright with a relaxed posture, arms hanging loosely

to the side. Maintaining a straight wrist, hold the hand grip section of the wand with one hand, parallel

to the floor. The double swivel neck on the floor tool more than compensates for any height variance of

operators, and maintains a flat vacuuming face to the floor.

•Use an easy arm-swing motion that covers approximately a 600mm stroke when vacuuming.

•Plan the work path based on location of the power point, room/furniture layout, and entrance and exit

points

•Commence vacuuming using a systematic approach working one half of the area first, away from the

power point and then the other half of the area, returning back to the start.

•Ensure that the power cord is clear of feet to reduce likelihood of tripping.

•When vacuuming under office desks, the reach of the wands is sufficient to avoid bending at the waist.

When vacuuming under lower profile objects, or when picking up items off the floor, bend the knees and

maintain a straight back.

•When turning do not twist at the waist, turn using your feet.

•Once finished, switch the vacuum OFF at the machine, then switch OFF at the power point and unplug

from power socket. Remove Rocket Vac by unbuckling waist band and sliding strap off one shoulder by

Rocket Vac Manual # 13806193 - Rev:1/140415 Page 4

sliding hand and arm between shoulder strap and body. Lower unit to the floor using free hand (DO

NOT DROP the vacuum unit)

Maintenance

and Storage

Cord Storage and Maintenance

•Gather the cord by winding from the machine end, checking for cuts, fractures any exposed wires.

Cleaning the cord if soiled. This practice minimises the likelihood of knuckling, and provides a visual

inspection of cord. Drape cord over the frame for storage.

•Replace badly kinked or knuckled cords. Knuckling is caused by stretching the cord. Stretching occurs by

pulling on an entrapped cord, winding the cord from the machine end while still plugged into the power

point, or winding the cord from the plug end.

Filter Bag Maintenance

•The filter bag must be emptied frequently, and the fine dust coating removed from the bag surface.

Access the filter bag by releasing the canister clamps holding the lid. To clean, push the bag inside out

over a bin, and then brush the surface clean using a soft bannister brush or vacuum. Do not hit the bag

against a wall because this may damage the filter media. Check the filter bag for perforations to maintain

filtration efficiency.

Secondary Filter Maintenance

•The secondary filter is located under the filter bag. The filter can be cleaned by thoroughly washing in

water with neutral detergent. Ensure the filter is dry before refitting or replace with a clean one while

the washed one dries.

Exhaust Filter Maintenance

•The exhaust filter is located on the vacuum cleaner exhaust. To access, remove screw from end cap, and

slide exhaust deflector clear of cap. Squeeze the sides of the exhaust deflector to remove.

•Clean the exhaust filter by thoroughly washing in water with neutral detergent.

•Ensure the filter is dry before refitting.

Blockage Checks, Hose and Hose Swivel Maintenance

•Loss of suction can occur due to blockages, check for blockages at the floor tool, bent elbow and along

hose length.

•Loss of suction can also occur if the hose splits, check the hose for splits.

•The double swivel action at each hose end may lock when heavily impregnated with dust. To free the

joint, squeeze together the bayonet click ring retainers and clear the obstructing dust and debris, before

re-assembling.

Motor Maintenance

•Check vacuum motor carbon brushes at regular intervals using qualified personnel.

Rocket Vac Manual # 13806193 - Rev:1/140415 Page 5

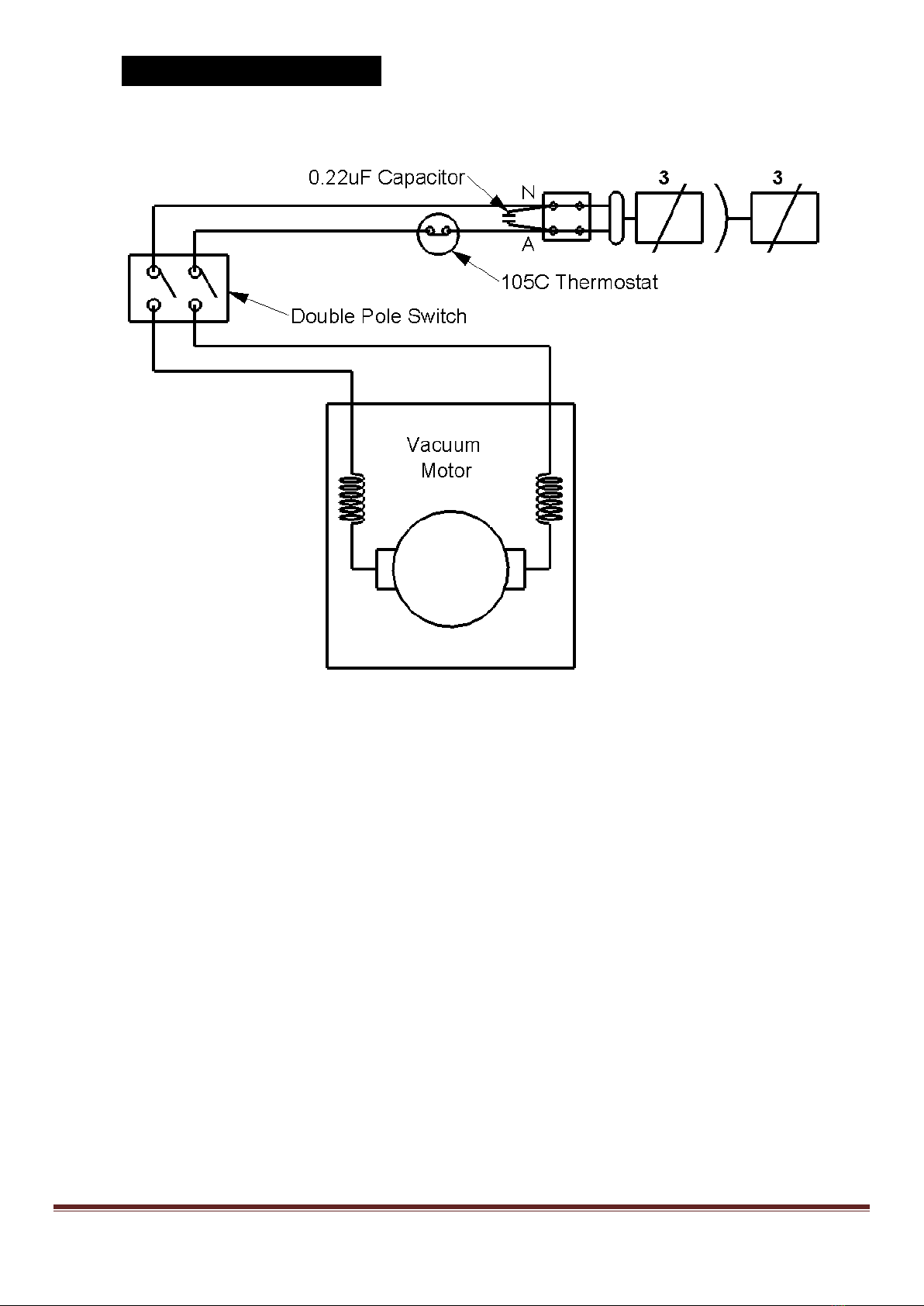

Electrical Wiring Diagram

Rocket Vac Manual # 13806193 - Rev:1/140415 Page 6

Specifications

Packaging

Machine 560 x 350 x 300mm – Package weight 8.4 kg

Machine Weight

4.8 kg -not including cord and wand

Electrical Power Supply

220-240V. a.c., 50 Hz

Electrical Cord

18 metre, 10 ampere, 3 core ordinary duty extension cord

Thermal Protection

105°C automatic reset thermostat

Vacuum Motor

Series Motor, Flow Through, Twin Impeller System

Air Flow

32 litres/sec

Water Lift

2400mm

Power Rating

1200 Watts

Carbon Brush Life

600 - 800 hours average

Noise Levels

Noise level at operator’s ear level 72 dBA. The noise level readings do not

exceed the 8 hr noise level equivalent of 85dBA referred to in clause 49

Occupational Health and Safety Regulation 2001

Filter and Filtration

The filter bag capacity is 4.0 litres and constructed, using 380g/m2

polyester needle felt, rated at 5 micron. Filtration is rated at 99% efficiency

at 1 micron.

Secondary Filtration:

"U" media EU5. Filtration is rated at 20% at 0,5 micron, 35% at 1 micron

and 95% at 5 micron

Exhaust Filter

13mm foam media, 24 pores/cm

Please note specifications can change without notice.

Rocket Vac Manual # 13806193 - Rev:1/140415 Page 7

Rocket Vac Parts List

MODEL: Rocket Vac

MODEL No.: 12923009

Item Part No. Part Name Qty

Optional Tool Accessories

13310007

Lid Canister Black

13806372

Paper Bag Filter 5pc/Pkt

13806253

Filter Bag

13790001

Crevice Tool Back Pack

13805439

Filter Secondary

10410427

Combination Floor Tool 270 Wide

13806262

Canister Back Pack Assy

13806254

Combination Floor Tool 300 Wide

13806163

Canister Upper

11410559

Dusting Brush

13310006

Latch Toggle

13806497

Sealing Ring

13806160

Motor Vac RV 1000W 240V F/T

13805304

Carbon Brush

13806101

Foam Ring Stator

13806098

Foam Canister Upper (4 pieces)

13806145

Canister Lower

13806332

Thermostat Klixon 105C

13806107

Wire Blue 180mm 10A

13806135

Capacitor 0.22µF

13806108

Terminal Block 2 Way

13805403

Grommet 7.2mm ID

13806141

Cable Clamp

13380026

Screw WN1412 KB40 X 16Z

13806302

Cord Red 0.25m 10A 3Core

13620010

Cord Ext'n Red 18m 10A 3Core

13806143

Exhaust Cover

13806097

Foam Exhaust Back Pack

13806100

Foam Motor Canister Lower

13806099

Foam End Cap

13806334

Cap Motor Canister

13380048

Screw WN1412 KB50 X 20Z

13750020

Plate Mtg Switch No PO

13780014

Switch Rocker 2HP

13806090

Cap Frame Tube

13806146

Strap Padded Waist Blk

13806092

Tube Spacer 20 X 2 Wall 66 L Blk

13380031

Screw No. 8 x 3/8 B/Z

13806148

Strap Padded Back Blk

13806149

Strap Padded Shoulder Blk

13806094

Frame Tube Blk

13830120

Washer Poly 4.3 X 8.5 X 3 Blk

13380032

Screw No. 8 X 15 B/Z

13670006

Hose 32 dia x 1.2 Long Blk

13640002

Elbow BEP 32mm Blk

13677002

Hose BEP Assy 32mm

13820011

Chrome Wand 500 L

13797001

Tool Floor Ezi-Glide

Rocket Vac Manual # 13806193 - Rev:1/140415 Page 8

Rocket Vac, Exploded Diagram

Optional Tool Accessories

Rocket Vac Manual # 13806193 - Rev:1/140415 Page 9

General Warranty Policy

Hako Australia Pty Ltd ACN 002 858 059 (“Hako”) warrants to the original purchaser that the equipment specified in

this manual (“Equipment”) is free from defects in workmanship and materials under normal use for a period of 12

months.

Under this warranty, after examination discloses it to have been defective, Hako will repair or replace at its factory

or authorised dealer service outlet, parts of the Equipment that fail under normal use and service, when operated

and maintained in accordance with the applicable operation and instruction manuals.

All warranty claims must be submitted via the Hako-authorised dealer or service agent the item was purchased.

The purchaser is responsible to return the defective goods at their expense, to the Hako-authorised dealer or service

agent the item was purchased from.

This warranty does not apply to components replaced due to recommended service schedules, normal wear and tear

or to items whose life is dependent on their use and care.

Use of replacement parts not manufactured or supplied by Hako will void all warranties expressed or implied and

may give rise to a potential health hazard. All parts replaced under this warranty become the sole property of Hako

or its original manufacturer, whichever the case may be.

This warranty is applicable only to the original purchaser. Hako is not responsible for costs or repairs performed by

persons other than those specifically authorised by Hako. This warranty does not apply to damage from

transportation, alterations by unauthorised persons, misuse or abuse of the equipment, use of non-compatible

chemicals or parts, or damage to property, or loss of income due to malfunction of the Equipment. If a difficulty

develops with this Equipment you should contact the dealer from whom it was originally purchased.

The warranty coverage period on Equipment will commence 1 year after the date of shipment from Hako to its

dealer or authorised agent unless the Equipment is sold before this time. This sale date would then be the beginning

date of the warranty coverage.

The following statements only apply to a consumer sale of goods or services as defined in the Australian Consumer

Law. In this statement, ‘Our’ means ‘Hako’ and ‘you’ means ‘original purchaser’:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a

replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or

damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality

and the failure does not amount to a major failure.

To the extent permitted by law, all other warranties whether implied or otherwise, not set out in these warranty

terms and conditions are excluded and Hako is not liable in contract, tort (including, without limitation, negligence or

breach of statutory duty) or otherwise to compensate you for:

·any increased costs or expenses;

·any loss of profit, revenue, business, contracts or anticipated savings;

·any loss or expense resulting from a claim by a third party; or

·any special, indirect or consequential loss or damage of any nature whatsoever caused by Hako’s failure in

complying with its obligations.

The benefits given to you in this warranty are in addition to other rights and remedies under a law in relation to the

Equipment or services to which this warranty applies.

Rocket Vac Manual # 13806193 - Rev:1/140415 Page 10

Warranty Registration Details

Purchaser:..........................................................................................Purchase date:....................................

Address:............................................................................................................................................................

State:............................Post Code:.........................Contact:................................................ph:

Model No.:....................................Serial Number:..........................................

Purchased from:...............................................................................................................................................

Address:..............................................................................................................................................................

Please attach copy of receipt.
