DVB-T USB 2.0 Stick
00062772
00062772bda3 05.10.2005 15:46 Uhr Seite 1

Copyright note
© Copyright 2005. All rights reserved. Hama GmbH & Co.KG reserves the right to modify the products and informati-
on at any time without prior notice. This user manual may not be reproduced in any from without the explicit written
consent of Hama GmbH & Co.KG.
Notes on trademarks and brands
•Microsoft and Windows are trademarks of the Microsoft Corporation
•All other trademarks and brands in this user manual are the property of the respective owner.
Contents
Contents 2
Chapter 1: Introduction 3
Chapter 2: Installing the DTV/System Software Installation 4
2.1 Configuring the DTV user program 5
2.2 Setting the recording process 7
2.3. Configuring the display 10
2.4. Configuring the recording 10
2.5. Configuring the timeshift 11
Chapter 3: DTV Software Overview 12
3.1 Control panel 12
3.2 Right-click menu and keyboard access 13
3.3 Functions 14
3.4 Additional Functions 14
Chapter 4: Trouble shooting 16
L
LTV USB receiver User Manual
2
00062772bda3 05.10.2005 15:46 Uhr Seite 2

Chapter 1: Introduction
Introduction
The DVB-T USB 2.0 receiver is completely compatible with the DVB-T protocol and can receive digital TV via anten-
na so you can receive and enjoy digital transmissions on desktop and laptop PCs.
Installation is very easy and the device provides a user-friendly USB interface. No external power pack required.
Thanks to the elegant and compact design, you can enjoy the programmes in digital quality at home, the office or
on the go.
It also operates as a digital video recorder. You can record your favourite programs on the hard drive either in real
time or according to the time schedule.
Package contains:
•DVB-T USB 2.0 Stick
•IR remote control
•Quick guide for installation
•External DVB -T antennae (passive)
•USB cable
•CD with CD KEY
Please make sure to keep the CD cover with the CD key; otherwise you can no longer reinstall the software.
3
00062772bda3 05.10.2005 15:46 Uhr Seite 3

Chapter 2 Installing the DTV/System Software Installation
The software for the DVB-T transmission is very powerful. You can enjoy the digital sound output and visual
effects in high quality. The software not only allows you to receive the TV programmes, but also enables you to
make digital video recordings (DVR) in real time. The Timeshift function ensures that you don't miss the best
moments.
Once the software is installed, the DVB-Tplayer.exe symbol appears. Simply move the cursor and double click
this symbol to start the program.

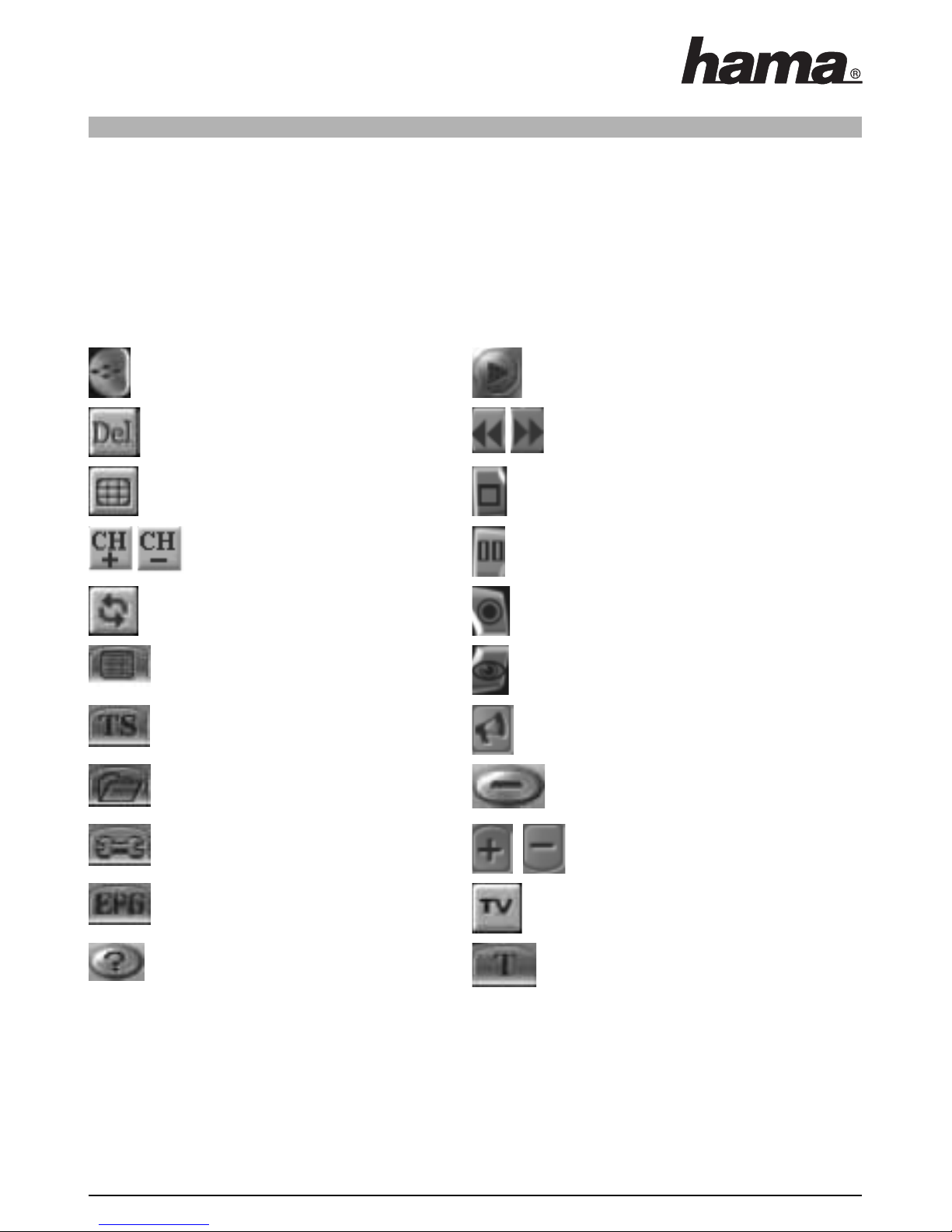

Once the DTV software has started, you can use the control panel as follows.
4
00062772bda3 05.10.2005 15:46 Uhr Seite 4

2.1 Configuring the DTV user program
Due to the various countries or regions, the DVB-T has its own frequencies. The following manual should help you
in configuring the parameters in your region.
Scanning frequencies:
1. Click on the control panel and then select Scan Channels.
5
00062772bda3 05.10.2005 15:46 Uhr Seite 5

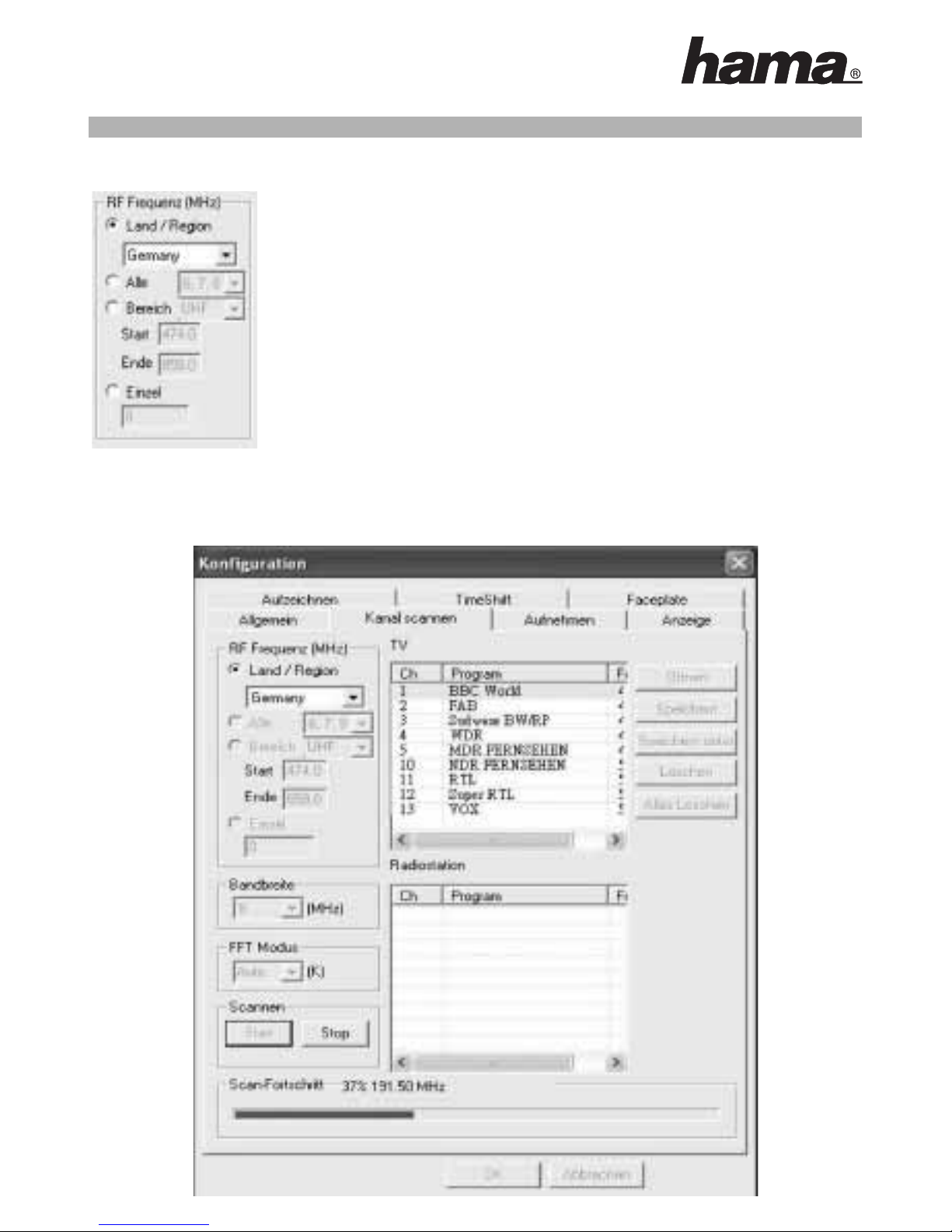

2. Select the RF frequency. You can select one of the following options:
6
(1) Land/Region: Select your location.
(2) All: If you do not find your location on the Land/Region list, select this
option.
(3) Area: You can determine your own frequency range. Select VHF or UHF
and then enter its frequency range.
(4) Single: If you know the exact frequency of a digital program, you can
enter its frequency here.
3. Click Start to scan the frequency according to the selected RR frequency option.
4. Click Save As to store all of the scanned channels.
5. Click OK to exit the control panel.
Note: The channel list is stored as a TBL file.
00062772bda3 05.10.2005 15:46 Uhr Seite 6

2.2 Setting the recording process
Two methods are available for recording: Recording in real time or according to the time schedule.

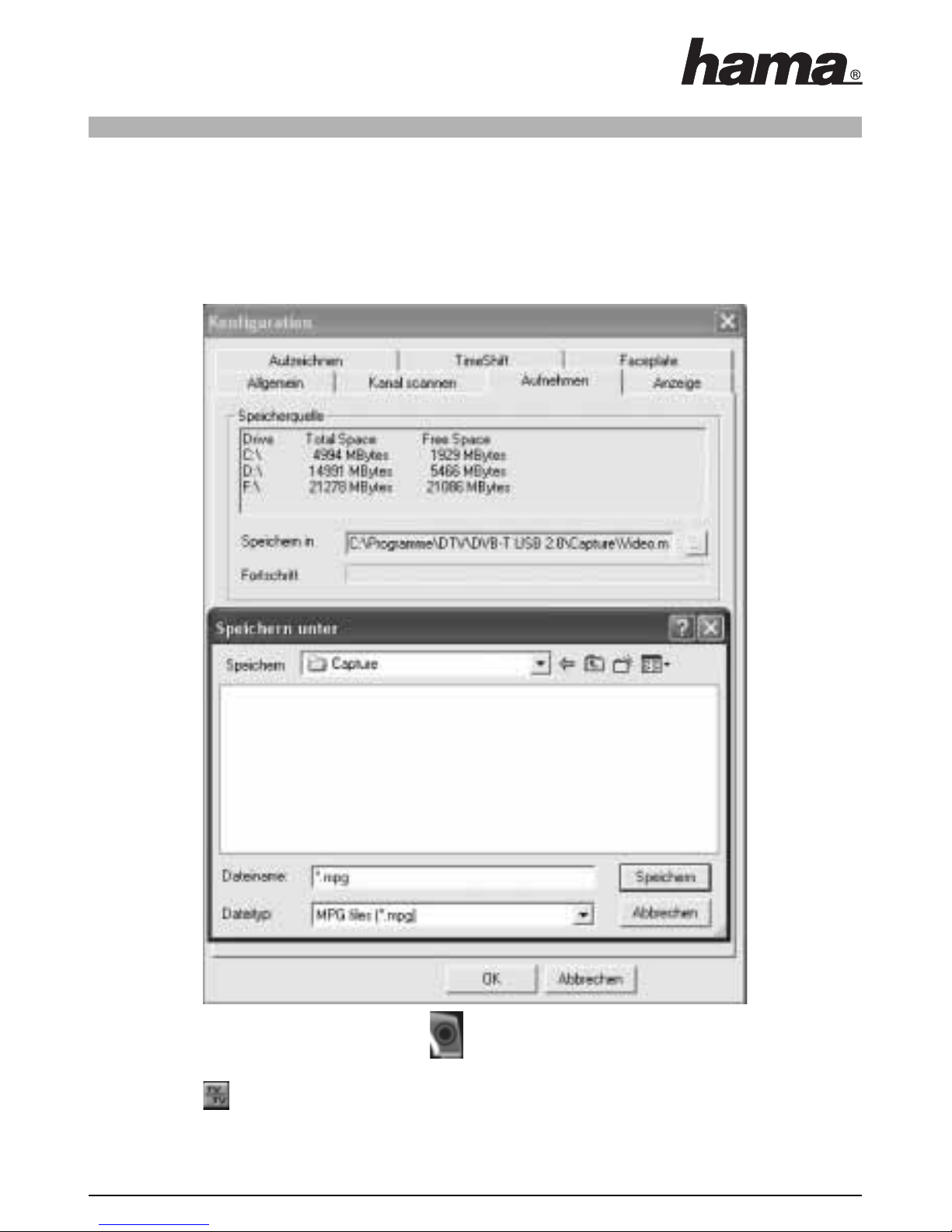

I. Recording in real time: When recording the program in real time mode, the recorded file is stored in the
default target folder under C:\Programs\DTV\DVB-T USB 2.0\Capture\Video.mpg. To store this program file
at another location, you can create the path as desired.
Once you have carried out the above setting, click on the control panel, if you would like to view the digital
programs. When the recording starts, the clock is displayed in red on the left side of the control panel. To stop the
recording, click.
7
00062772bda3 05.10.2005 15:46 Uhr Seite 7

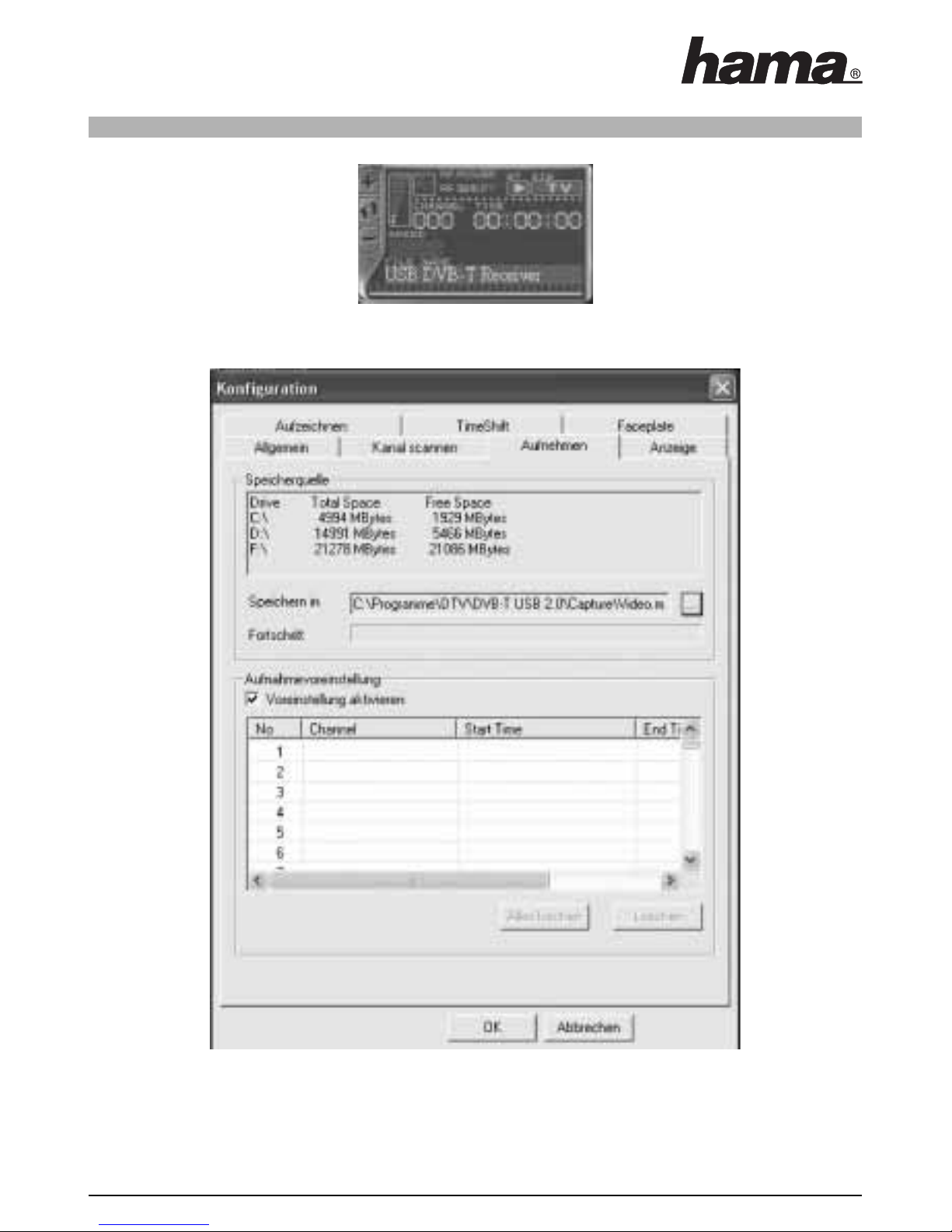

II. Recording according to the time schedule: Select Setup and the recording option. Then select Activate
Default. Double click Channel in the default recording section.
8
00062772bda3 05.10.2005 15:46 Uhr Seite 8

When the Recording Input window appears, select the channel and enter the start time and end time of the recor-
ding. Click OK to continue.
Once the recording ends, the ok menu is displayed as follows.
Note: You cannot simultaneously record two programs that have different frequencies.
Note: Observe the capacity of recording device. A recording lasting for several hours can exceed the capacity of
the hard drive.
9
00062772bda3 05.10.2005 15:46 Uhr Seite 9
