2
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
1. Only use an iron for its intended use.
2. To avoid the risk of electric shock, do not immerse the iron
in water or other liquids.
3. Always turn the iron to OFF before plugging or unplugging
the iron from the electrical outlet. Never pull on the cord to
disconnect the iron from the electrical outlet; instead, grasp
the plug and pull on the plug to disconnect the iron.
4. Do not let the cord touch hot surfaces. Let the iron cool
completely before putting the iron away. Coil the cord
loosely around the iron for storing.
5. Always disconnect the iron from the electrical outlet before
filling the iron with water, emptying the water from the iron,
and when the iron is not in use.
6. Do not operate the iron with a damaged cord or in the event
the iron has been dropped or damaged or there are visible signs
of damage or it is leaking. To avoid the risk of electric shock,
do not disassemble the iron. Take it to a qualified serviceman
for examination and repair. Incorrect assembly might result in
a risk of electric shock when the iron is used after reassembly.
7. The iron must be used and rested on a stable surface.
8. When placing the iron on its stand, ensure that the surface
on which the stand is placed is stable.
9. Close supervision is required for any appliance used by or
near children. Do not leave the iron unattended while the iron
is connected or on an ironing board.
10. Burns can occur from touching hot metal parts, hot water, or
steam. Use caution when you turn a steam iron upside down—
there might be hot water in the reservoir.
11. To avoid a circuit overload, do not operate an iron on the same
circuit with another high-wattage appliance.
12. If an extension cord is absolutely necessary, a cord with an
ampere rating equal to or greater than the maximum rating of the
iron shall be used. A cord rated for less amperage can result in a
risk of fire or electric shock due to overheating. Care shall be
taken to arrange the cord so that it cannot be pulled or be tripped
over.
When using your flatiron, basic safety precautions should always be followed, including the following:
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 2

3
OTHER CONSUMER SAFETY INFORMATION
This product is intended for household use only.
WARNING! Shock Hazard: This appliance has a polarized plug (one
wide blade) that reduces the risk of electric shock. The plug fits only
one way into a polarized outlet. Do not defeat the safety purpose of
the plug by modifying the plug in any way or by using an adapter.
If the plug does not fit fully into the outlet, reverse the plug. If it still
does not fit, have an electrician replace the outlet.
• Use the iron on an ironing board. Ironing on any other surface
may damage that surface.
• Do not iron or vertical-steam clothes that are being worn.
• Do not use vertical steam in the direction of people or pets.
• During first use of the iron, it may appear to smoke. This will stop
and does not indicate a defect or hazard.
• Many irons spit or sputter during the first few uses with tap water.
This happens as the steam chamber becomes conditioned. This
will stop after a few uses.
• To clean steam vents before first use, prepare iron for steam ironing
and then iron over an old cloth for a few minutes while letting the
iron steam. Press the Steam Burst button several times to clean the
vents. Then follow the self-cleaning instructions on page 12.
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 3

4

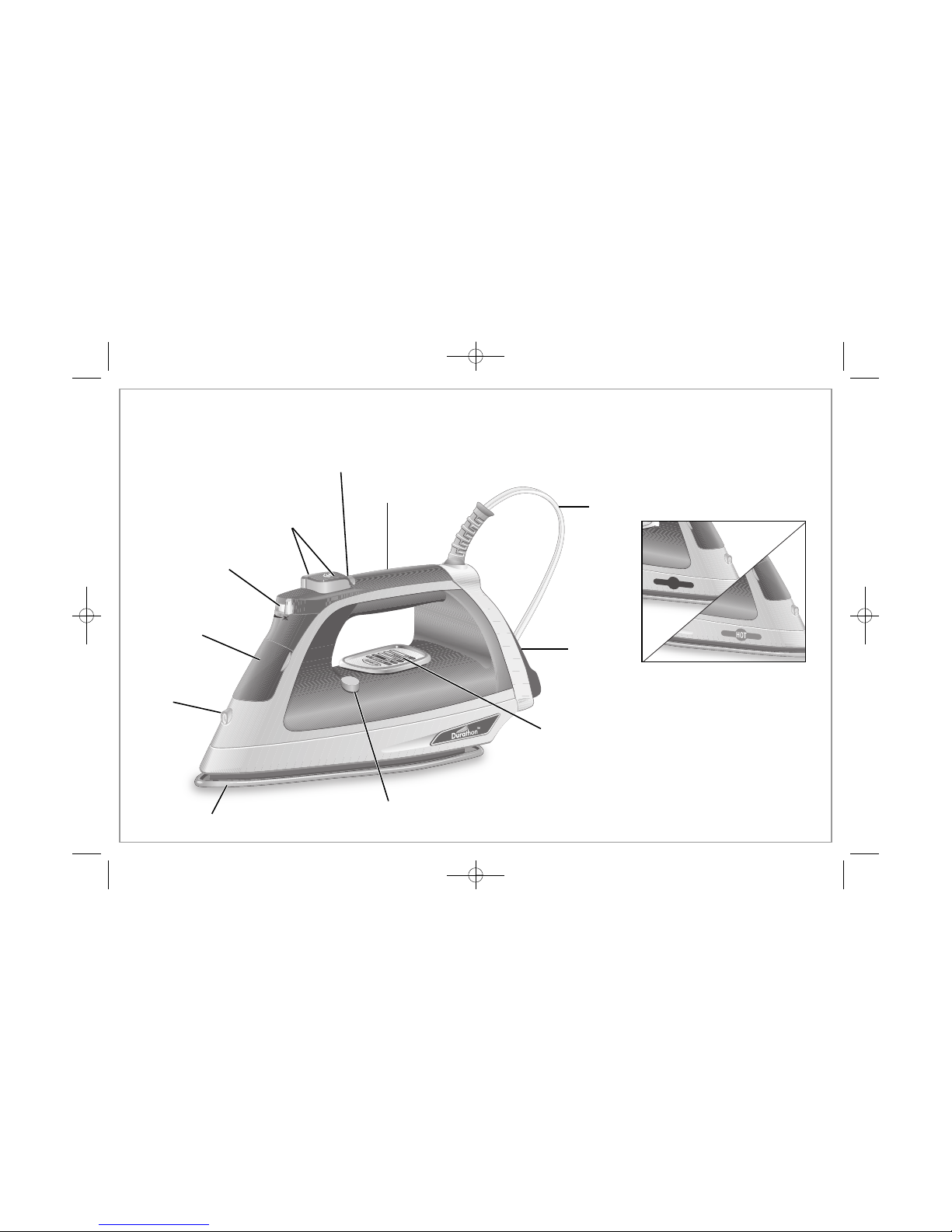

Parts and Features
Heel Rest
Water Tank
Cover
Cord
Self-Clean
Button
Durathon™ Nonstick Soleplate
Spray
Nozzle
Spray and Steam
Burst Buttons
Adjustable
Steam Switch
Temperature Settings/
Auto Shutoff Indicator
Temperature
Settings Button
Hot Dot Indicator
(refer to page 9 for more information)
Soft Touch Grip
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 4

5

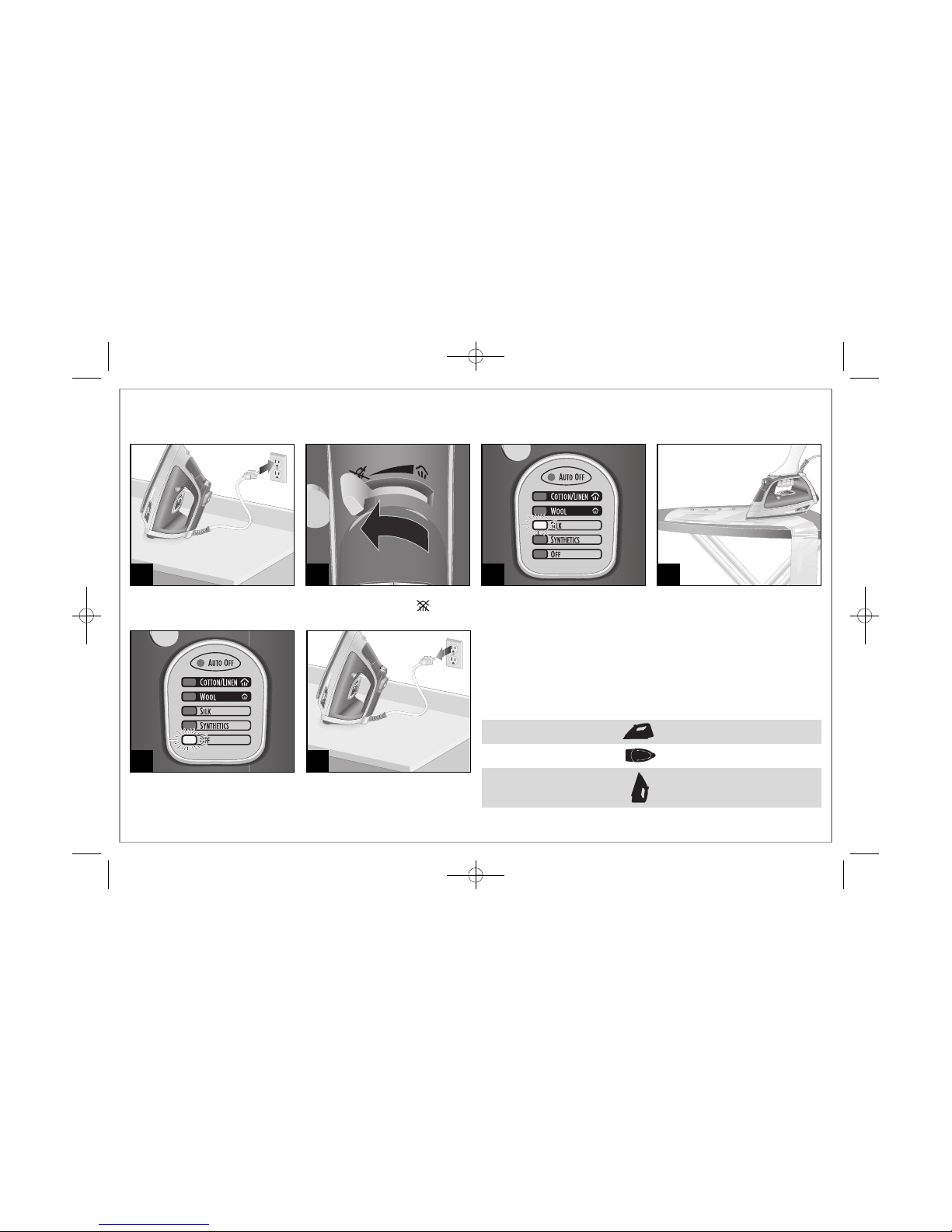

How to Dry Iron
1 2 3 4
Set the Adjustable Steam Switch
to (Dry Iron). Press Temperature Settings Button to select desired temperature.
Allow 2 minutes for iron to reach
maximum temperature. The light
will blink while preheating.
To turn iron off, press Temperature
Settings Button until OFF is
illuminated. The light will stay
on until iron is unplugged.
56
IRON POSITION
Resting on soleplate
Resting on either side
Resting on heel
POSITION SENSING/AUTO SHUTOFF
The iron will turn off automatically when left in the following positions.
The Auto Shutoff time varies based on the iron’s position.
MOTIONLESS TIME
30 seconds
30 seconds
15 minutes
NOTE: Moving the iron will reset the Auto Shutoff sensor.
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 5

6
How to Steam Iron
24
5
Set the Adjustable Steam Switch
to (Dry Iron). Press Temperature Settings
Button to select desired fabric
setting in the steam range.
Allow 2 minutes for iron to reach
maximum temperature. The light
will blink while preheating.
WARNING! Burn Hazard:
Attempting to steam iron on
a lower temperature setting or
failing to allow the iron to preheat
for 2 minutes can result in hot
water dripping from the soleplate.
Set Adjustable Steam Switch to
the desired steam level.
13
6 6
For vertical steaming, hold iron 6 inches (15 cm) from garment and do
not allow hot soleplate to touch delicate garments. Press and release
the Steam Burst Button to steam out wrinkles. Wait at least 5 seconds
before pressing Steam Burst Button again.
OR
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 6

7
How to Steam Iron (cont.)
To turn iron off, set Adjustable
Steam Switch to (Dry Iron).
7 8
Press Temperature Settings
Button until OFF is illuminated.
The light will stay on until iron is
unplugged.
9
IRON POSITION
Resting on soleplate
Resting on either side
Resting on heel
POSITION SENSING/AUTO SHUTOFF
The iron will turn off automatically when left in the following positions.
The Auto Shutoff time varies based on the iron’s position.
MOTIONLESS TIME
30 seconds
30 seconds
15 minutes
NOTE: Moving the iron will reset the Auto Shutoff sensor.
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 7

8
Fabric Setting Chart
NOTICE: To avoid garment damage, check garment label for
fabric composition and ironing instructions.
Garment Label Symbols
Fabric care labels on garments have symbols that show ironing
instructions and recommended temperature settings. These symbols
are shown below along with an explanation of their meaning.
Temperature
Setting
OFF
Synthetics
Silk, Wool
Cotton, Linen
Steam
Setting
Dry
Iron
Steam
Range
Ironing
Instructions
OFF
Dry iron using spray
if necessary.
Iron silk on wrong
side.
For cotton, iron while
still damp or use
spray.
For linen, iron fabric
on wrong side.
•
Low
••
Medium
•••
High
Iron High Temp
Setting Medium
Temp
Setting
Low Temp
Setting
Do not iron Do not use
steam
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 8

9

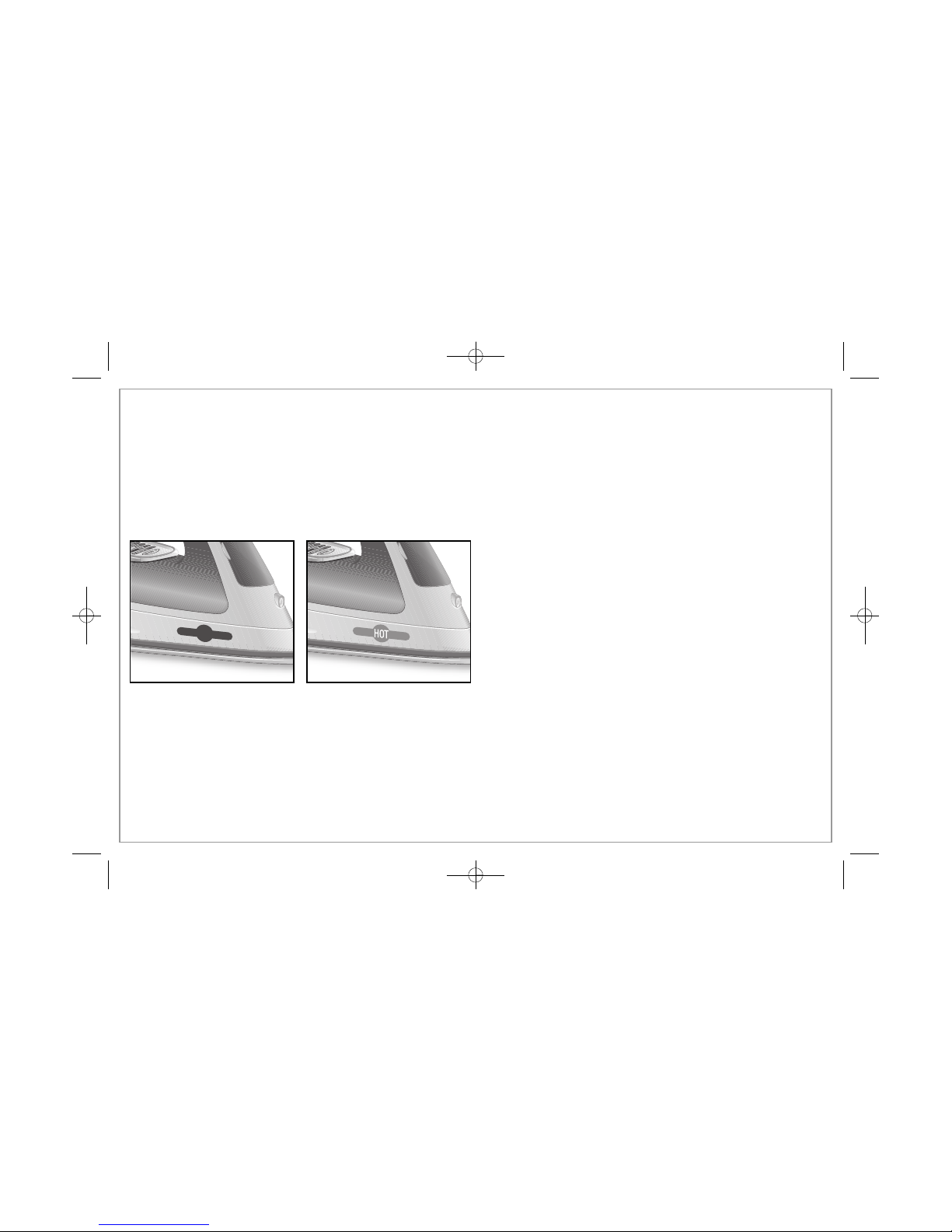

Hot Dot Indicator
After the iron has been preheated (approximately 2 minutes after turning on the iron), the Hot Dot Indicator will gradually change from
all black to red, and the word “HOT” will appear in the center of the dot in white letters. When the word “HOT” is no longer visible
(approximately 35 minutes after turning off the iron) and the dot is all black again, the iron is cool enough to put away.
WARNING! Burn Hazard: The Hot Dot Indicator is a guideline only. Always avoid contact with the soleplate of the iron.
Due to usage conditions, the Hot Dot Indicator may stop working before the end of the iron’s useful life. If may start to remain red after the
iron cools down. Replacement Hot Dot Indicators are available by calling 1.800.851.8900.
Iron is cool enough to store. Iron is too hot to store.
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 9

10
Tips for Best Ironing Results
PREPARE TO IRON:
1. Cover your ironing board with a padded, heat-resistant cover. Brush or wipe off any dust, dirt, or debris so it doesn’t end up on your clothes.
2. To set the height of the ironing board, stand with your elbows bent at right angles; then drop your hands slightly so that your arms are in a
comfortable position. Set the height of your ironing board to this height.
3. Check the soleplate (the surface of the iron that meets the fabric) for mineral deposits or scorched material before you begin ironing. If these
deposits or minerals are left on the soleplate, they may end up on your clothes. Unsure? Test-glide the iron on a rag or old towel first.
TEST KITCHEN TIP: To clean an iron’s soleplate, preheat the iron to the highest temperature setting and iron over a damp, 100% cotton cloth.
This creates heavy steam that transfers grime from the soleplate to the cloth. Many irons have a Self-Clean Button. This will clean the steam
holes, but it will not remove grime from the flat surface of the soleplate. NOTE: Care should be used while cleaning; steam can burn.
FAST FACTS:
• Don’t iron in a circular motion as this can stretch fabric. Instead, iron lengthwise.
• Natural fibers such as cotton and linen should be ironed slightly damp for faster, easier ironing. If they are completely dry, use maximum steam
while ironing or mist them with water prior to ironing.
• Any portion of a garment that has 2 layers of fabric such as pockets, seams, collars, and cuffs should be ironed inside out first.
• To press a collar, iron from the points in using small strokes of the iron. After wrinkles are pressed out, crease the collar into place by hand—not
with the iron. Treat French cuffs similarly, gently creasing by hand after ironing.
IRONING VERSUS PRESSING:
• You may have heard the terms “ironing” and “pressing” used interchangeably, but they are actually quite different. When ironing, you slide the
iron back and forth over fabric. When pressing, the iron is placed and held on the fabric in one spot, lifted up, and this process is repeated until
the areas that need attention are smooth. A “pressing” technique is helpful to avoid stretching fabrics.
• A pressing cloth can help reduce unwanted “shine” on fabrics. You can purchase a pressing cloth in the laundry care section, or a clean white
dishtowel or 100% cotton pillowcase works equally well. You do not need to increase the recommended iron temperature when using a
pressing cloth.
FABRIC FACTS AND LABELS:
Every fabric is different and should be treated accordingly. The label inside clothing or linens should recommend fabric care instructions that
include ironing treatment. As a general rule, these instructions should be followed. If the fabric is a blend, use a low temperature setting. If you
do not know what the content of the fabric is, use the lowest temperature first and test on an inside seam.
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 10

11
Care and Cleaning
1
Allow iron to cool.
2
To clean an iron’s soleplate, preheat the iron to the highest
temperature setting and iron over a damp, 100% cotton cloth.
This creates heavy steam that transfers grime from the soleplate
to the cloth. Many irons have a Self-Clean Button. This will clean
the steam holes, but it will not remove grime from the flat surface
of the soleplate.
NOTE: Care should be used while cleaning; steam can burn.
NOTICE: To avoid damage to the iron soleplate:
• Never iron over zippers, buttons, pins, metal rivets, or snaps,
since they may scratch the soleplate surface.
• Allow the iron to cool and wipe with a soapy, soft damp cloth to
clean occasional buildup on the soleplate. Never use abrasive
cleaners or metal scouring pads, since they may scratch the
surface.
Do not store iron laying flat on
soleplate.
3
To empty water from iron, open
the water tank cover and slowly
tilt pointed end of iron over sink
until water runs out.
Soleplate Care
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 11

12
5 6 7
Self-Clean Feature To keep the steam vents clear of any buildup, follow these
instructions each time you iron using steam.
1 2 34
Press and hold the Self-Clean
Button until tank is empty.
Press Temperature Settings
Button until COTTON/LINEN is
illuminated and let iron heat until
light stops blinking.
Hold iron over sink.
Press Temperature Settings
Button until OFF is illuminated.
The light will stay on until iron is
unplugged.
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 12

13
Troubleshooting
PROBLEM
Iron won’t heat.
Water is leaking.
Iron won’t steam.
Iron leaves spots
on clothing.
Twisted cord.
Wrinkles not removed.
Iron too hot/not hot
enough.
PROBABLE CAUSE
• Is iron plugged in and the outlet working? Check outlet by plugging in a lamp.
• Has a temperature been selected?
• Is the Auto Off light illuminated? Move the iron to reset.
• Do not overfill the water tank.
• Adjust steam to a lower setting.
• If steam ironing, is the Adjustable Steam Switch in a steam position? Has a temperature been
selected? Did the iron have enough time to preheat?
• If dry ironing, make sure the Adjustable Steam Switch is in the (Dry Iron) position.
• Check water level.
• Is the Adjustable Steam Switch in the (Steam) position?
• Has the iron had enough time to preheat?
• Anti-drip feature will not allow steam when temperature setting is in the dry range.
• ALWAYS empty water tank after using. Water left in tank may discolor clothing and soleplate.
• If the iron cord should become twisted, unplug iron and let cool. Hold iron cord in the middle
of entire length. Let plug and iron dangle freely until cord uncoils. This will extend the life of
the iron cord.
• Choose correct temperature setting for your fabric.
• Adjust temperature to desired setting. Let iron cool down 5 minutes before continuing.
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 13

14
Limited Warranty
This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu
of any other warranty or condition.
This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original
purchase; in addition, the Durathon™ nonstick covering on the soleplate is warranted not to wear out for a period of ten (10) years
from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any
component found to be defective, at our option; however, you are responsible for all costs associated with returning the product
to us and our returning a product or component under this warranty to you. If the product or component is no longer available,
we will replace with a similar one of equal or greater value.
This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the
product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift
recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product
is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label
(e.g., 120V ~ 60 Hz).
We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is
limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability
or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is
limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary
depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or
consequential damages, so the foregoing limitations may not apply to you.
To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada
or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers
on your appliance.
840202100 ENv02.qxd:Layout 1 5/6/11 3:31 PM Page 14

CONSERVER CES INSTRUCTIONS !
MEASURES DE SÉCURITÉ IMPORTANTES
LIRE TOUTES LES INSTRUCTIONS
AVANT L’UTILISATION
1. Utiliser exclusivement le fer pour son usage prévu.
2. Pour éviter le risque de choc électrique, ne pas plonger
le fer dans l’eau ou d’autres liquides.
3. Toujours mettre le fer sur ARRÉT avant de le brancher ou
débrancher de la prise électrique. Ne jamais tirer sur le cordon
pour déconnecter le fer de la prise électrique ; au lieu de cela,
saisir la fiche et tirer dessus pour débrancher le fer.
4.
Ne pas laisser le cordon toucher les surfaces chaudes. Laisser
refroidir le fer complètement avant de le remiser.
Enrouler
lâchement le cordon autour du fer à repasser pour ranger.
5. Toujours débrancher le fer de la prise électrique avant de remplir
le fer d’eau et de vider l’eau du fer, et lorsque le fer ne sert pas.
6. Ne pas utiliser le fer avec un cordon endommagé, si le fer est
tombé ou endommagé, s’il y a des signes visibles de dommage
ou s’il fuit. Pour éviter le risque de choc électrique, ne pas
démonter le fer. Le faire examiner et réparer par un dépanneur
qualifié. Un assemblage incorrect risque d’entraîner un risque
de choc électrique lorsque le fer est utilisé après réassemblage.
7. Le fer doit être utilisé et reposé sur une surface stable.
8. En plaçant le fer sur son support, assurez-vous que la surface
sur laquelle le support est placé est stable.
9. Une surveillance étroite est requise pour tout appareil utilisé par
ou près d’enfants.
Ne pas laisser le fer sans surveillance pendant
qu’il est branché ou pendant qu’il est sur une planche à repasser.
10. Des brûlures peuvent survenir lorsqu’on touche des pièces
chaudes en métal, de l’eau chaude ou de la vapeur. Adopter des
précautions lorsqu’on tourne un fer à vapeur à l’envers, car il peut
rester de l’eau chaude dans le réservoir.
11. Pour éviter une surcharge du circuit, ne pas utiliser le fer sur le
même circuit qu’un autre appareil de haute puissance.
12. Si une rallonge électrique est absolument nécessaire, un cordon
d’intensité nominale égale ou supérieure à l’intensité nominale
maximale du fer doit être utilisé. Un cordon d’une
intensité
nominale moindre peut entraîner un risque d’incendie
ou de choc
électrique en raison d’une surchauffe.
Il faut prendre soin de
placer le cordon de rallonge pour qu’il ne puisse pas être tiré
par des enfants ou faire trébucher.
Lors de l’utilisation de votre fer à repasser, des précautions préliminaires de sécurité doivent toujours être observées, y compris ce qui suit :
15
840202100 FRv02.qxd:Layout 1 5/6/11 3:31 PM Page 15

16
AUTRES RENSEIGNEMENTS DE SÉCURITÉ AUX CONSOMMATEURS
Cet appareil est conçu pour une utilisation domestique seulement.
AVERTISSEMENT ! Risque d’électrocution : Cet appareil est doté
d’une fiche polarisée (lame large) qui réduit le risque d’électrocution.
Cette fiche s’insère d’une seule manière dans une prise polarisée.
Ne pas transformer le dispositif de sécurité de la fiche en modifiant
celle-ci de quelconque façon ou en utilisant un adaptateur. Si la fiche
refuse de s’insérer, inversez-la. Si elle refuse toujours de s’insérer,
faites remplacer la prise par un électricien.
• Utilisation du fer sur une planche à repasser. L’utilisation du fer sur
un autre type de surface peut endommager cette surface.
• Ne pas repasser ou repasser à la vapeur à la verticale les vêtements
que vous portez.
• Ne pas repasser à la vapeur en direction des gens ou des animaux.
• Lors de la première utilisation du fer à repasser, il peut sembler
émettre de la fumée. Ceci cessera et n’indique pas un défaut ou
un danger.
• Lors des premières utilisations avec de l’eau du robinet, de
nombreux fers crachent. Ceci se produit durant le conditionnement
de la chambre de vapeur. Ce phénomène cesse après quelques
utilisations.
• Pour nettoyer les évents de vapeur avant la première utilisation,
préparer le fer pour un repassage à la vapeur puis repasser un linge
usagé pendant quelques minutes en permettant l’échappement de
vapeur du fer. Appuyer sur le bouton de surpuissance de vapeur à
plusieurs reprises pour nettoyer les évents. Effectuer ensuite un
autonettoyage en suivant les instructions de la page 26.
840202100 FRv02.qxd:Layout 1 5/6/11 3:31 PM Page 16

17
Pièces et caractéristiques
Talon d’appui
Couvercle de
réservoir d’eau
Cordon
Bouton d’autonettoyage
Semelle antiadhésive DurathonMC
Vaporisateur
Boutons de surpuissance
de vapeur et de vaporisation
Commutateur de
réglage de la vapeur
Réglage de
température/
Indicateur d’arrêt
automatique
Bouton de réglage
de température
Points indicateurs de chaleur
(consulter la page 22 pour obtenir
plus d’information)
Poignée douce
840202100 FRv02.qxd:Layout 1 5/6/11 3:31 PM Page 17

Repassage à sec
1 2 3 4
Régler le commutateur de
réglage de la vapeur à
(repassage à sec).
Appuyez sur le bouton de réglage de
température pour choisir la température
désirée. Attendez 2 minutes pour que le
fer atteigne la température maximale. Le
voyant clignotera pendant le préchauffage.
Appuyez sur le bouton de réglage de température jusqu’à ce que le
témoin d’alimentation (OFF) s’allume pour éteindre le fer à repasser.
Le témoin restera allumé tant que le fer n’est pas débranché.
56
POSITION DU FER
Repos sur la semelle
Repos sur le côté
Repos sur talon
DÉTECTION DE MOUVEMENT/MISE HORS TENSION AUTOMATIQUE
Le fer se coupe automatiquement lorsqu’il est laissé dans les positions
suivantes. La durée de mise hors tension automatique varie selon la
position du fer.
TEMPS D’IMMOBILISATION
30 secondes
30 secondes
15 minutes
REMARQUE : Le déplacement du fer à repasser réinitialisera le
capteur d’arrêt automatique.
18
840202100 FRv02.qxd:Layout 1 5/6/11 3:31 PM Page 18

Repassage à la vapeur
24
5
Régler le commutateur de
réglage de la vapeur à
(repassage à la vapeur).
Appuyez sur le bouton de réglage
de température pour choisir le
réglage du tissu selon la gamme
de vapeur. Attendez 2 minutes
pour que le fer atteigne la
température maximale. Le
voyant clignotera pendant le
préchauffage.
AVERTISSEMENT ! Risque
de brûlure : La tentative du
repassage à la vapeur à un
réglage de température inférieur
ou ne pas laisser le fer chauffer
pendant 2 minutes peut
occasionner un égouttement
d’eau depuis la semelle.
Régler le commutateur de
réglage de la vapeur au niveau
de vapeur désiré.
13
6 6
Pour un repassage à la pattemouille, tenir le fer à une distance de
15 cm (6 po) du vêtement et éviter de toucher les vêtements délicats
avec la semelle. Appuyer et relâcher le bouton de surpuissance de
vapeur pour éliminer les plis. Attendre environ 5 secondes avant
d’appuyer à nouveau sur le bouton de surpuissance de vapeur.
OU
19
840202100 FRv02.qxd:Layout 1 5/6/11 3:31 PM Page 19

Repassage à la vapeur (suite)
Régler le commutateur de
réglage de la vapeur à
(repassage à sec) pour mettre
le fer hors tension.
7 8
Appuyez sur le bouton de
réglage de température jusqu’à
ce que le témoin d’alimentation
(OFF) s’allume. Le témoin restera
allumé tant que le fer n’est pas
débranché.
9
POSITION DU FER
Repos sur la semelle
Repos sur le côté
Repos sur talon
DÉTECTION DE MOUVEMENT/MISE HORS TENSION AUTOMATIQUE
Le fer se coupe automatiquement lorsqu’il est laissé dans les positions
suivantes. La durée de mise hors tension automatique varie selon la
position du fer.
TEMPS D’IMMOBILISATION
30 secondes
30 secondes
15 minutes
REMARQUE : Le déplacement du fer à repasser réinitialisera le
capteur d’arrêt automatique.
20
840202100 FRv02.qxd:Layout 1 5/6/11 3:31 PM Page 20
