HAMPTON BAY OFW148S User manual

1
Slate Top Fire Pit
REV. 3/2012
Item # 322 855
Model #OFW148S
30-10-007
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this fireplace insert. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

2
Table of Contents
Warranty
Warranty......................................................................... 2
Pre-Installation ............................................................. 2
Tools Required ............................................................... 2
Hardware Included .......................................................... 2
Package Contents .......................................................... 3
Safety Information ........................................................ 4
Installation ..................................................................... 5
Assembly Instruction ...................................................... 5
Care and Maintenance ................................................. 7
Replacement Parts List ............................................... 8
1 Year Limited Frame Warranty
If within one year from the date of original purchase, this item fails due to a defect in material or workmanship, we will replace or repair at our
option, free of charge. This warranty does not cover defects resulting from improper or abnormal use, misuse, accident, or alteration. Failure to
follow all instructions in the owner’s manual will also void this warranty. The manufacturer will not be liable for incidental or consequential damages,
or common erosion of outdoor products. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion of incidental or consequential damages may not apply to you. This warranty gives you specific legal rights and you
may also have other rights which vary from state to state.
Manufactured by: GHP Group, Inc. • 8280 Austin Avenue • Morton Grove, IL 60053
For assistance, contact the Hampton Bay Customer Service Team at 1-877-527-0313 or visit www.hamptonbay.com.
TOOLS REQUIRED
HARDWARE INCLUDED
AA BB
Part Description Quantity
AA M6x12mm Bolt 30
BB M6 Nut 1
CC M6-M5 Wrench 1
Pre-Installation
M6-M5
Wrench
(included)
Phillips
screwdriver
(not included)
CC

3
Pre-Installation (continued)
HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
Part Description Quantity
A Handle 1
B Mesh Wire Cover 1
C Fire Bowl 1
D Triangular Air Vents 3
E Slate Top 1
F Side Panel 4
Part Description Quantity
G Legs 4
H Base 1
I Levelers 4
J Vinyl Cover 1
K Poker 1

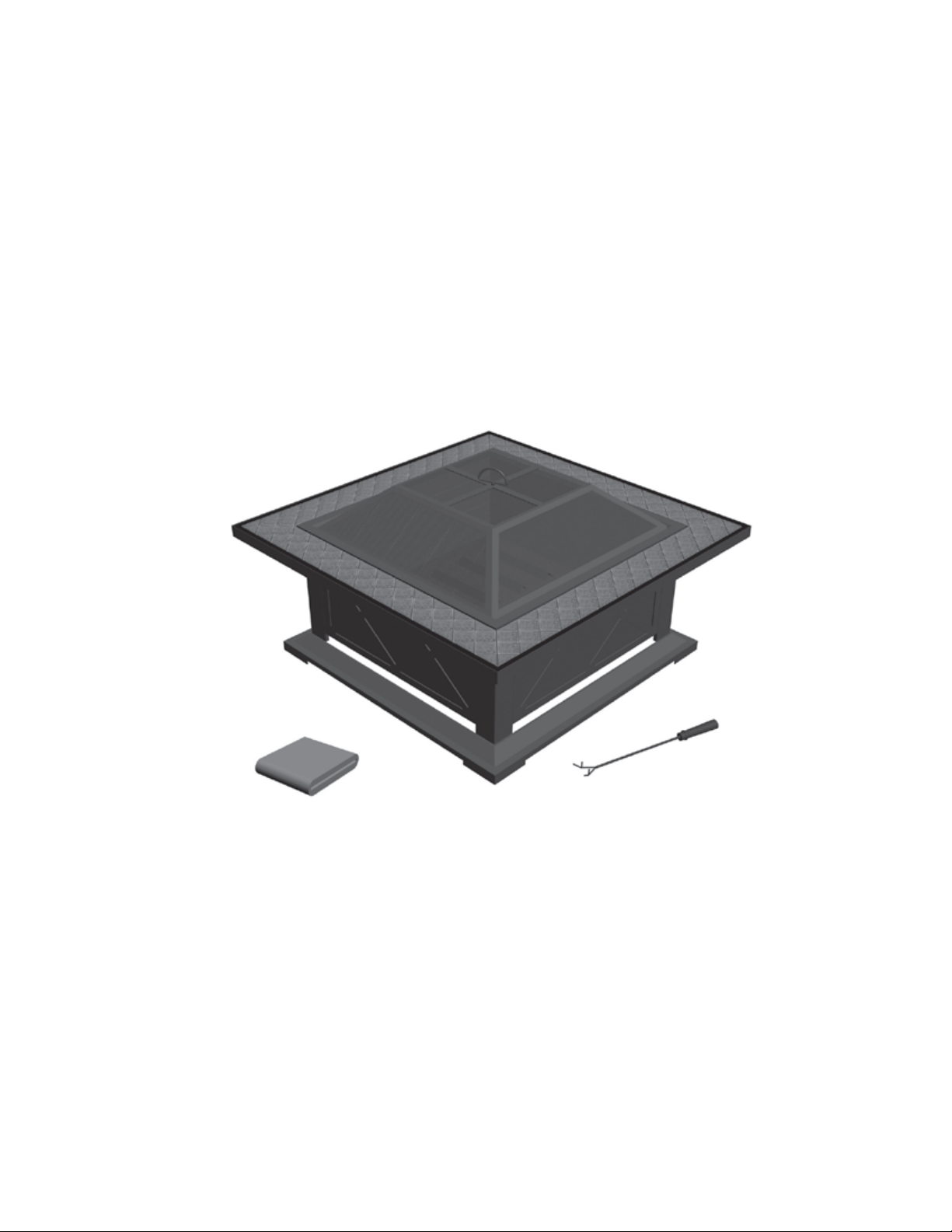

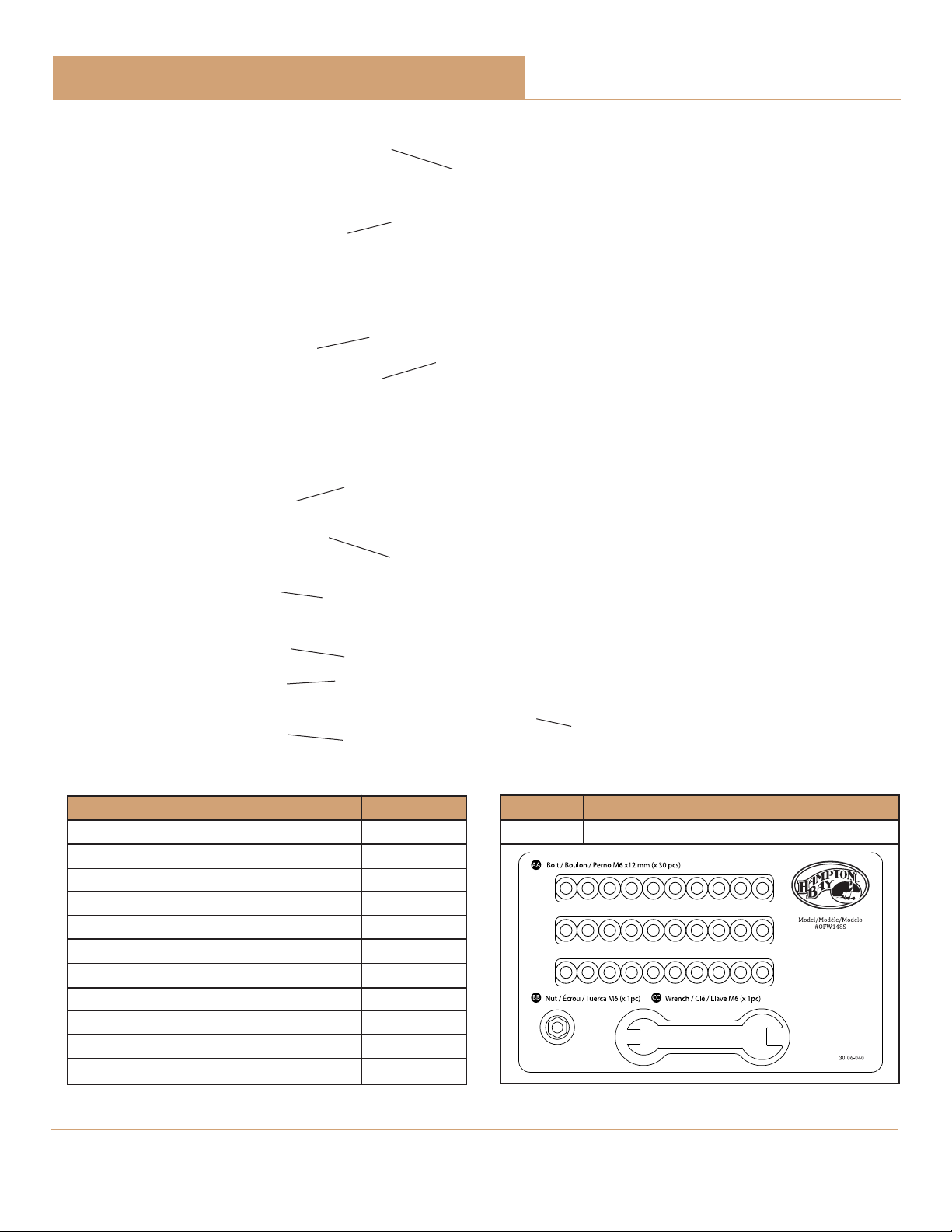

PACKAGE CONTENTS
A
B
C
F
G
E
D
H
I
JK

4
Safety Information
Please read and understand this entire manual before attempting to assemble, operate or install the product.
• FOR OUTDOOR USE ONLY! NEVER LEAVE FIRE UNATTENDED!
• DO NOT USE THE FIRE PIT TO COOK FOOD! The re pit is not designed for grilling food.
• DO NOT allow children or pets near the re pit without supervision.
• DO NOT touch surface of iron re grate or re bowl while in use.
• NEVER burn in vehicles, tents or indoors.
• NEVER place vinyl cover on re pit when in use. Ensure re pit and mesh wire cover have cooled before placing
vinyl cover over fire pit.
• Lift mesh wire cover by using poker when in use.
• Burn only wood or re logs in the re pit.
• DO NOT use gasoline or kerosne to start the re in your re pit.
• DO NOT use this unit on a wood deck, long or dry grass and/or leaves, or on combustible surfaces.
• DO NOT attempt to move the re pit while it is hot or in use.
• Place the re pit no closer than 8 feet from walls or combustibles during use.
• Adequate re extinguishing material should be readily available.
• Always ensure that the mesh wire cover is secured over re bowl while in use.
• Poker handle may become hot during and after use.
• Use heat-resistant gloves to handle hot tools.
PROPOSITION 65 WARNING: Fuels used in wood and charcoal burning appliances and the products of combustion of
such fuels contain chemicals known to cause cancer, birth defects or other reproductive harm.
Consumers should check State and Provincial, in addition to local codes and regulations regarding the use of the product.
WARNING
CAUTION

5
HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
Installation
ASSEMBLY INSTRUCTIONS
Carefully remove all pieces from carton and make sure that you have all
parts listed (refer to parts list). If you are missing parts, please contact
1-877-527-0313 for further assistance.
1. Insert handle (A) into hole in mesh wire cover (B). Use wrench (CC) to
secure M6 nut (BB) to the underside of the mesh wire cover (B).
2. Assemble legs (G) and side panels (F) by inserting M6x12mm bolts (AA)
through predrilled holes as illustrated. Tighten with Phillips screwdriver.
3. With side panel assembly (from Step 2) upside down on a flat surface,
attach assembly to base (H) by inserting one M6x12mm bolt (AA)
through corresponding predrilled holes in each corner of the base (H)
and side panel assembly. Tighten with Phillips screwdriver.
1
2
A
B
A
BB
F
AA
G
3
HAA

6
Installation (continued)
4. Turn base assembly (from Step 3) right side up. Set slate top (E) on
top of assembly and align predrilled holes in each corner. Insert one
M6x12mm bolt (AA) in each set of holes and tighten with Phillips
screwdriver.
5. Align the triangular air vents (D) with predrilled holes in re bowl (C).
Insert one M6x12mm bolt (AA) in each of the six holes and tighten with
Phillips screwdriver.
6. Adjust levelers (I) by screwing clockwise to shorten or screwing
counter-clockwise to lengthen. Adjust each of the four corners so that
the fire pit sits level and stable.
4
EAA
6
I
5
CD
AA

7
Installation (continued)
Care and Maintenance
7. To use your fire pit, assemble parts in order shown. Insert fire bowl (C)
into base assembly, then top with mesh wire cover (B). Place poker (K)
conveniently near fire pit. Protect from elements with vinyl cover (J).
• To extend the life of your re pit, clean it after each use and use vinyl cover (J) to protect the unit from the elements.
• To protect re pit nish, use a soft cloth in lieu of bare hands while handling.
• Use a soft cloth to wipe re pit and poker.
• Do not attempt to clean while hot.
• Clean re bowl after each use once ashes have cooled.
• Store in a cool, clean, dry place.
7
K
J
HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.

8
Replacement Parts List
Part Description Part #
A Handle 30-06-029
B Mesh Wire Cover 30-06-030
C Fire Bowl 30-06-031
D Triangular Air Vents 30-06-032
E Slate Top 30-06-033
F Side Panel 30-06-034
G Legs 30-06-035
H Base 30-06-036
I Levelers 30-06-037
J Vinyl Cover 30-06-038
K Poker 30-06-039
Part Description Part #
N/A Hardware Pack 30-06-040
A
B
C
F
G
E
D
H
I
JK

9
Manufactured by: GHP Group, Inc. • 8280 Austin Avenue • Morton Grove, IL 60053
