HX-601K
Radio Cassette Recorder with Bluetooth
(Bluetooth Pairing Code : HX-601K HANNLOMAX)
INSTRUCTION MANUAL
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
6. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
7. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
8. Only use attachments/accessories specified by the manufacturer.
9. Unplug this apparatus during lightning storms or when unused for long periods of time.
10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
11. Caution Marking and rating plate was located at bottom enclosure of the apparatus.
12. WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
13. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on apparatus.
14. The mains plug is used as disconnect device. The mains plug of apparatus should not be obstructed OR should
be easily accessed during intended use. To be completely disconnect the power input, the mains plug or
apparatus shall be disconnected from the mains.
15. Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

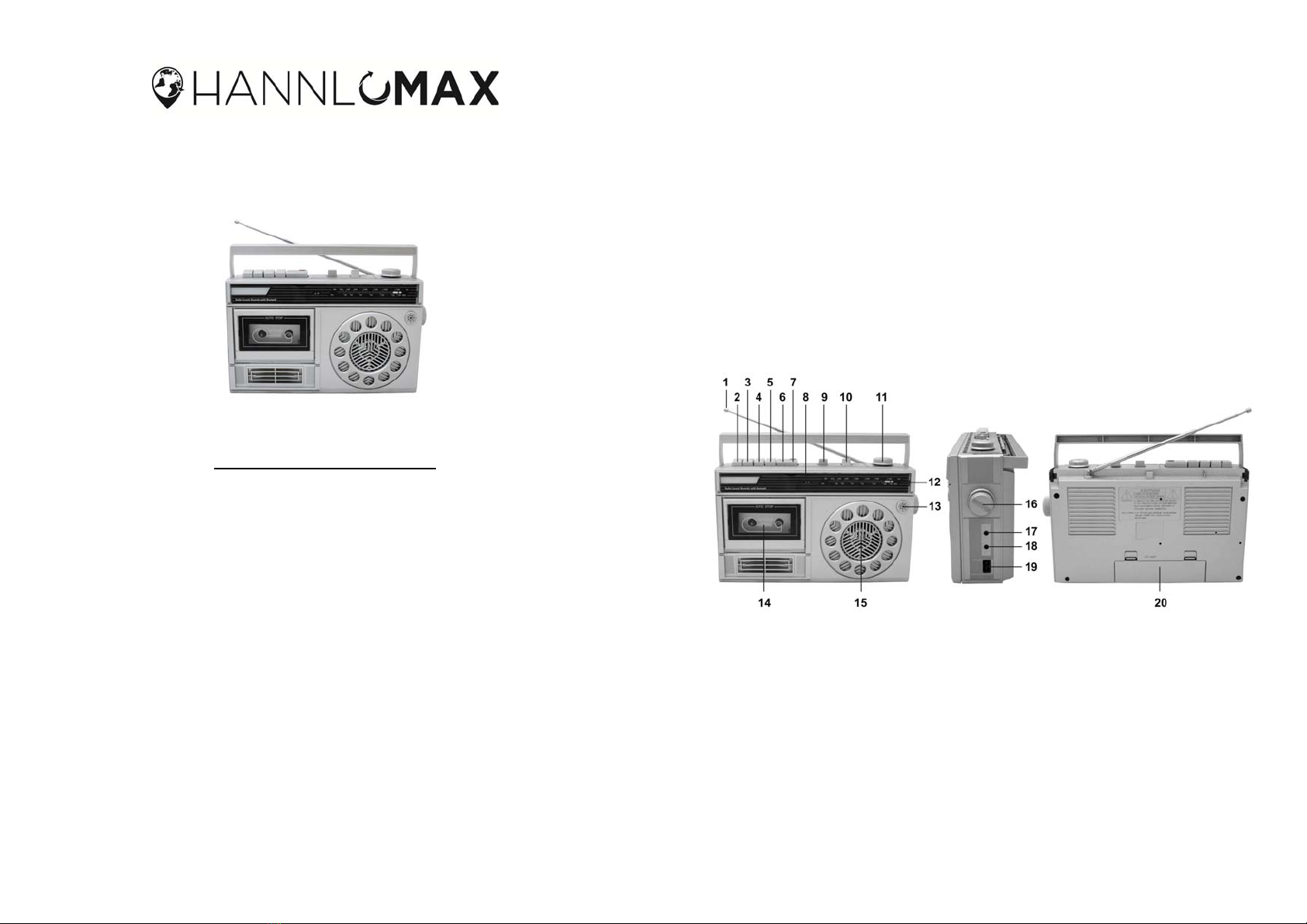

LOCATION OF CONTROLS
1. Antenna 11. VOLUME Control
2. PAUSE Button 12. Dial Scale
3. STOP/EJECT Button 13. Condenser Microphone
4. F.F Button 14. Cassette Compartment
5. REW Button 15. Speaker
6. PLAY Button 16. TUNING Control
7. REC Switch 17. Earphone Jack
8. BT Indicator 18. DC Jack (6V)
9. FUNCTION Switch 19. AC Socket
10. BAND Switch .20 Battery Compartment

AC OPERATION
Before operation, please make sure that the unit is set to the voltage corresponds to the VOLTAGE of your
local area. Insert one end of the supplied power cord into theAC Socket at the side of the unit, and the other
end into the wall outlet.
Note : When the power cord is not being used, disconnect it from the wall outlet.
BATTERY OPERATION
Open the Battery Compartment Door and insert 4 x UM-1 D size batteries, make sure to observe the proper
polarity as indicated inside the battery compartment.
USING THE DC POWER INPUT JACK
Plug one end of the 6VAC adaptor (not included) into the unit’s DC Jack (6V), and then plug the other end into
AC wall outlet. Before switching on the unit, make sure that the voltage of your electricity supply is the same
as that indicated on the rating plate.
RADIO OPERATION
1. Set the FUNCTION Switch to RADIO position.
2. Set the Band Switch to AM or FM position.
3. Rotate the TUNING Control to select the desired radio station.
4. For FM reception, adjust the rod antenna appropriately to obtain best reception.
5. Adjust the VOLUME Control to the desired listening level.
6. To turn off the radio, set the FUNCTION Switch to TAPE/OFF position.
CASSETTE OPERATION
Tape Playback
1. Press the STOP/EJECT Button to open the cassette door, insert a cassette tape into the Cassette
Compartment and push the cassette door to close.
2. Slide the FUNCTION Switch to TAPE/OFF position and press the PLAY Button to start playing the tape.
3. Adjust the VOLUME Control to your desired volume level.
4. To stop the tape, simply press the STOP/EJECT Button.
Fast Forward and Rewind
The tape can be fast forward or rewind by pressing the F.F. Button or REW Button respectively.
Auto Stop System
When the tape runs to its end during playback or recording, the cassette operation will be stopped
automatically.
Caution : To avoid damage to the cassette mechanism or to the cassette tape, always press the STOP Button
between each operation
Recording From Radio
1. Set the FUNCTION Switch to RADIO position.
2. Tune to desired radio program as described in the ‘RADIO OPERATION’ section.
3. Insert a blank cassette tape into the Cassette Compartment.
4. Press the REC Button and the PLAY Button simultaneously to start recording. With the built-in Automatic
Level Control (ALC), the best recording quality is automatically adjusted. Changing the volume level will
not affect the recording.
5. To stop recording, press the STOP/EJECT Button.
6. When the tape runs to its end, the cassette operation will be stopped automatically.
Recording From Built-In Microphone
1. Set the FUNCTION Switch to TAPE/OFF position.
2. Insert a blank cassette tape into the Cassette Compartment.
3. Press the REC Button and the PLAY Button simultaneously to start recording. With the built-inAutomatic
Level Control (ALC), the best recording quality is automatically adjusted. Changing the volume level will
not affect the recording.
4. To stop recording, press the STOP/EJECT Button.
5. When the tape runs to its end, the cassette operation will be stopped automatically.
BLUETOOTH OPERATION
Connecting BLUETOOTH
1. Slide the FUNCTION Switch to BT position, the BT indicator will light up.
2. Turn on the Bluetooth of your Bluetooth device and search the unit for connection. Your Bluetooth device
should find “HX-601K HANNLOMAX”.
3. Pair your Bluetooth device with the unit.
4. Select and play the audio file though your Bluetooth device.
Auto Paring
The unit has auto pairing function. Once the unit paired with the Bluetooth device, it will automatically pair with
that device next time when you turn on the unit and that Bluetooth device.
Turn Off the Bluetooth Operation
To turn off the BLUETOOTH operation, slide the FUNCTION Switch to other position (RADIO or TAPE/OFF).
STEREO HEADPHONE JACK
For private listening, insert the plug of a stereo headphone into the Earphone Jack and adjust the VOLUME
Control Knob accordingly. During the use of a headphone, the speaker is automatically disconnected.
SPECIFICATIONS
Frequency Range: AM 540 - 1710 KHz
FM 88 - 108 MHz
Power Supply: AC 120 ~ 60 Hz
DC6V(UM1X4)
Specifications are subject to change without further notice.
CARE AND MAINTENANCE
Always turn off the unit after use.
Keep the unit away from magnetic objects, water or heat sources.
Use a clean soft cloth moistened with lukewarm water to clean the cabinet. Never use chemical cleaners
that could damage the finish of the unit.
Disconnect the unit from any power sources before cleaning.
If the tape is loose in its cassette, take up the stack by inserting a pencil in one of the
reels and rotating.
If the tape is loose it may get stretched, cut or caught in the cassette player.
Do not touch the tape surface.
To prevent recordings from being erased accidentally, remove the tab(s)Aand B
To record after the tabs have been broken off, reseal theAand B with a piece of adhesive tape.
