Happatio Hpo-hpz-m-h User manual

HAPPATIO

Outdoor Fire Tables

OWNER’S MANUAL

"Happy families through happy living"

.......................................................................................................................................................

If you have any questions,

please contact customer service:

E-mail: [email protected]

Facebook: @happatio

...............................................................................................................................................................

Safety Precautions

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

DANGER

CARBON MONOXIDE HAZARD

...............................................................................................................................................................

WARNING

FIRE OR EXPLOSION HAZARD

If you smell gas:

1. Immediately shut off gas to the appliance.

2. Extinguish any open ﬂames.

3. If an odor persists, keep away from the appliance and immediately call your gas supplier or ﬁre

department.

Failure to follow these instructions could result in a ﬁre or explosion, which could cause property

damage, personal injury, or death.

Do not store or use gasoline or other ﬂammable liquids or vapors in the vicinity of this or any other

appliance.

An LP cylinder not connected for use should not be stored in the vicinity of this or any other appli-

ance.

This appliance can produce carbon monoxide, which has no odor.

Using this appliance within an enclosed space may cause personal injury or death.

Never use this appliance in an enclosed space such as a camper, tent, vehicle, or

home.

...............................................................................................................................................................

WARNING: For Outdoor Use Only

Installation and service must be performed by a qualiﬁed installer, service agency, or gas supplier.

WARNING

If the information in this manual is not followed exactly, it may result in a ﬁre or explosion, which

can cause property damage, personal injury, or loss of life.

INSTALLER:

CONSUMER:

Leave this manual with the appliance.

Retain this manual for future reference.

1

Safety Precautions

...............................................................................................................................................................

Safety Precautions

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

...............................................................................................................................................................

DANGER

Failure to comply with the precautions and instructions provided with this ﬁre pit can result in

ﬁre, explosions burns, asphyxiation, and/or carbon monoxide poisoning, which may in turn

lead to property damage or loss, personal injury, or death. Only persons who have fully read,

understand, and can follow the instructions should ever use or service this ﬁre pit.

DANGER indicates an imminently hazardous situation that, if not avoided, will result in

death or serious injury.

FOR YOUR SAFETY

If you smell gas:

1. Immediately shut off gas to the appliance.

2. Extinguish any open ﬂames.

3. If an odor persists, keep away from the appliance and immediately call your gas supplier or

ﬁre department.

Keep solid combustibles, such as building materials, paper, or cardboard, a safe distance

away from the ﬁre pit, as recommended by the instructions.

Provide adequate clearance around places where air can vent into the combustion chamber.

During operation, this product can be a source of ignition. Keep ﬁre pit area clear and free

from combustible materials, gasoline, paint thinner cleaning solvents, and other ﬂammable

vapors and liquids. Do not use the ﬁre pit in areas with high dust content. Minimum ﬁre pit

clearances from combustible materials: 65"(165cm) from the top; 48"(121.9cm) from all sides

and back.

Never store propane near high heat, open ﬂames, pilot lights, direct sunlight, other ignition

sources, or locations where temperatures may exceed 120 degrees F (49°C)

Propane vapors are heavier than air and can accumulate in low places. If you smell gas, leave

the area immediately.

Never install or remove a propane cylinder while the ﬁre pit is lit, or while near ﬂames, pilot

lights, or other ignition sources, or while the ﬁre pit is hot to touch.

This ﬁre pit can become extremely hot during use and can ignite ﬂammables that are too

close to the burner. Keep gasoline and other ﬂammable liquids and vapors well away from

the ﬁre pit.

Store the propane cylinder outdoors in a well-ventilated space out of reach of children. Never

store the propane cylinder in an enclosed area (house, garage, shed, etc.). If the ﬁre pit is to

be stored indoors, disconnect the propane cylinder so that it can be stored outdoors, sepa-

rately.

EXPLOSION-FIRE HAZARD

2

...............................................................................................................................................................

Safety Precautions

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

...............................................................................................................................................................

Safety Precautions

DANGER

This ﬁre pit is a combustion appliance. All combustion appliances produce carbon monoxide

(CO) during the combustion process. This product is designed to produce extremely minute,

non-hazardous amounts of CO if used and maintained in accordance with all warnings and

instructions. Do not block airﬂow into or out of the ﬁre pit.

Carbon Monoxide (CO) poisoning produces ﬂu-like symptoms, watery eyes, headaches, dizzi-

ness, fatigue, and possibly death. You can't see it or smell it - it is an invisible killer. If you or

anyone around you experiences these symptoms during the operation of this product, get fresh

air immediately!

This product is intended for outdoor use only.

This ﬁre pit consumes oxygen. Do not use it inside the home or in any unventilated or enclosed

areas. Oxygen depletion within an enclosed space can be dangerous or fatal.

CARBON MONOXIDE HAZARD

WARNING

Do not store or use gasoline or any other ﬂammable vapors and liquids in the vicinity of this or

any other appliance. An LP-cylinder not connected for use should not be stored in the vicinity

of this or any other appliance.

WARNING indicates an imminently hazardous situation that, if not avoided, may result in

serious injury or death.

Improper installation, adjustment, alteration, service, or maintenance may lead to property

damage, injury, or death. Read the installation, operation, and maintenance instructions

thoroughly before installing or servicing this equipment.

Certain materials or items, when stored under the ﬁre pit, will be subjected to radiant heat

and could be seriously damaged.

This product is fueled by propane gas. Propane gas is invisible, odorless, and ﬂammable. An

odorant, usually described as having a “rotten egg” smell, is normally added to help detect

leaks. The odorant may fade over time, however, so leaking gas is not always detectable by

smell alone.

Propane gas is heavier than air and leaking propane will sink to the lowest available space.

It may be ignited by ignition sources including matches, lighters, sparks, or open ﬂames of

any kind, and it may be ignited by sources many feet away from the original leak. Only use

propane gas set up for vapor withdraw. Store or use propane gas in compliance with local

ordinances and codes or with ANSI/NFPA 58. Turn off propane when not in use.

3

...............................................................................................................................................................

Safety Precautions

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

...............................................................................................................................................................

Safety Precautions

WARNING

For Outdoor Use Only:

CARBON MONOXIDE HAZARD

This appliance can produce carbon monoxide, which has no odor. Using this appliance within

an enclosed space may result in serious injury or death. Never use this appliance in an enclosed

space such as a camper, tent, or home.

California Proposition 65

Combustion by-products produced when using this product contain chemicals known to the

state of California to cause cancer, birth defects, and other reproductive harm.

BURN HAZARD

Never leave ﬁre pit unattended while in use.

Keep out of reach of children.

The installation of this appliance must conform with local codes, or with the National Fuel Gas

Code, ANSI Z223.1 NFPA 54, in the case of a lack of local codes; Use National Fuel Gas Code;

Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling

Code, CSA B149. 2, as applicable

Solid fuels (plastic and artiﬁcial wood decks, etc.) should not be burned in this appliance.

Max. gas supply: 250 PSI; Min gas supply for input adj.: 25 PSI.

Keep the area around the appliance clear and free from combustible materials, gasoline, and

other ﬂammable vapors and liquids;

Please clean the combustion tube before use.

The hose must be inspected before each use of the appliance.

If there is evidence of excessive abrasion or wear, or if the hose is damaged, please contact the

manufacturer for a replacement hose.

The burner must be replaced prior to the appliance being put into operation if it is evident that

the burner is damaged; a suitable replacement burner shall be speciﬁed by the manufacturer;

Please install the battery base as per the installation instructions. If the battery base is not

installed, you will not be able to ignite the ﬂame and use the burner.

The propane gas supply cylinder to be used must be:

constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)

Speciﬁcations for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for Trans-

portation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable;

equipped with a listed overﬁlling prevention device;

equipped with a cylinder connection device compatible with the connection for the appliance.

4

...............................................................................................................................................................

Safety Precautions

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

...............................................................................................................................................................

Safety Precautions

NOTE

Warranty Coverage Requirements:

WARNING

Alert children and adults to the hazards of high surface temperatures. Stay away from these

surfaces to avoid burning skin or igniting clothing.

Carefully supervise young children when they are in the vicinity of the ﬁre pit.

Do not hang clothing or any other ﬂammable materials from the ﬁre pit. Do not place them on

or near the ﬁre pit either.

Replace any guard or protective device that was removed for servicing the appliance before you

put the appliance back in service.

Installation and repair should be done by a qualiﬁed service person. The ﬁre pit should be

inspected before use, and annually thereafter, by a qualiﬁed service person. More frequent

cleaning may be required as necessary. It is imperative that the control compartment, burners,

and circulating air passageway of the appliance be kept clean.

Do not use this appliance if any part has been under water. Immediately call a qualiﬁed service

technician to inspect the appliance and to replace any part of the control system and/or any gas

control that has been underwater;

WARNING: Failure to position the parts in accordance with these diagrams or failure to use

exclusively parts speciﬁcally approved for this appliance may result in property damage or

personal injury.

SERVICE SAFETY

Keep all connections and ﬁttings clean. Make sure the propane cylinder valve outlet is clean.

During set up, check all connections and ﬁttings for leaks using soapy water. Never use a ﬂame

to check leaks. Use as a heating appliance only. Never alter the device or use the device in any

way not intended by the manufacturer.

CAUTION indicates an imminently hazardous situation that, if not avoided, may result in minor

or moderate personal injury, or property damage.

Photos of the damaged parts.

The order number of your product.

Please gather all of this information BEFORE you contact us.

Do not use this item in a way inconsistent with the manufacturer's instructions, as this could

void the product warranty.

Before assembly, please check all the product parts by referencing the package contents list

and hardware contents list. If any part is missing or damaged, do not begin the assembly of this

product. Instead, contact customer service.

5

...............................................................................................................................................................

Table installation steps

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

6

...............................................................................................................................................................

..........................

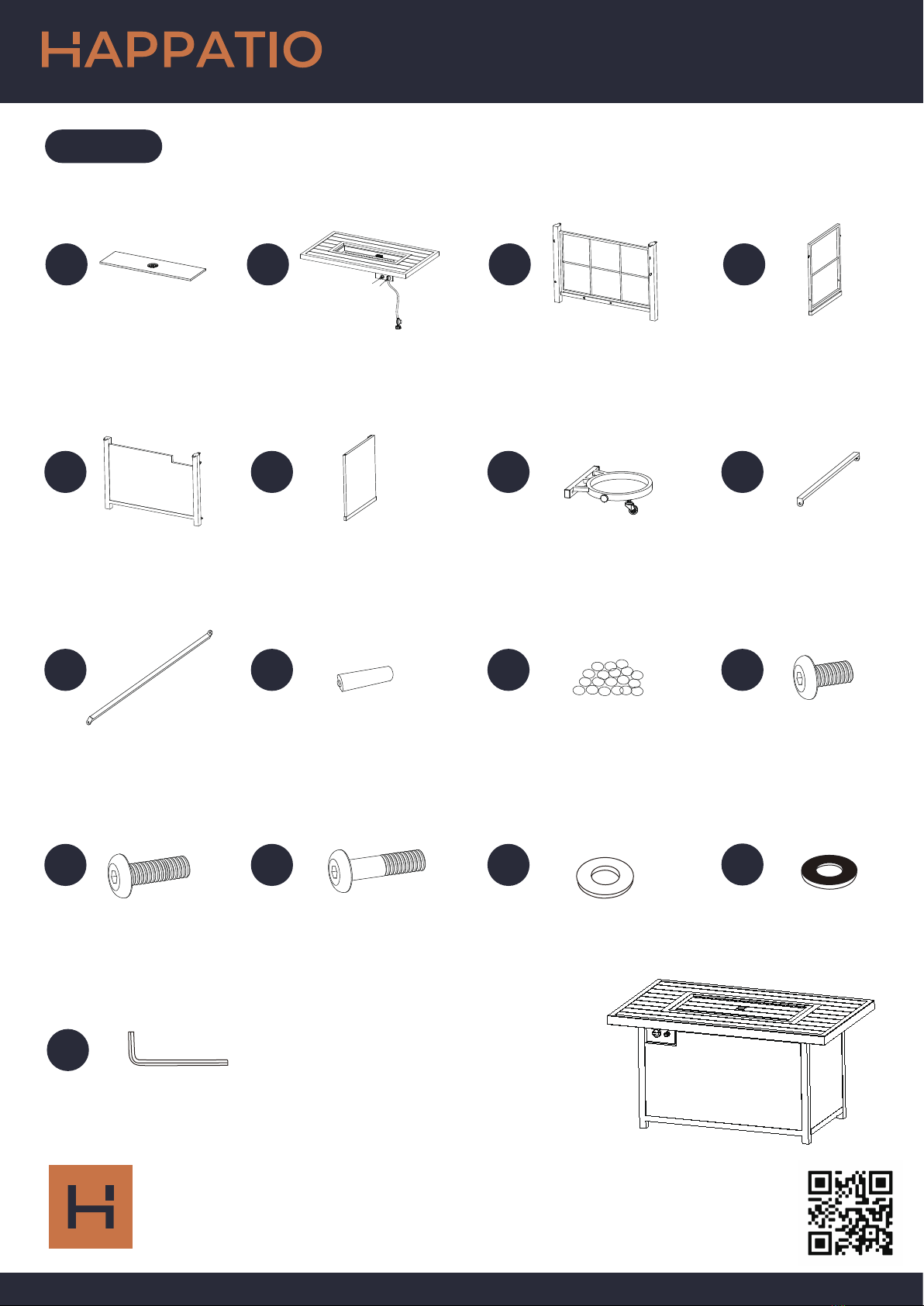

Part List

G

Support Frame

E

Back Side Panel

H

Right Side Panel

1PC 1PC 1PC 1PC

F

Gas cylinder bracket

...............................................................................................................................................................

..........................

K

M6X20MM Bolt

M6X25MM Half Tooth BoltM6X35MM Bolt

10PCS

I L

..........................

P

2PCS

“AAA” Battery

1PC

Inclined support frame

1PC

J

Lava Glass

1Box

..........................

A

Cover Plate

1PC

CB D

Table Top

1PC

Left Side Panel

1PC

Door Panel

1PC

...............................................................................................................................................................

..........................

OM

4PCS

N

Steel Washer

16PCS

Q

Wrench

1PC

Plastic Washer

2PCS

...............................................................................................................................................................

Table installation steps

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

7

OFF

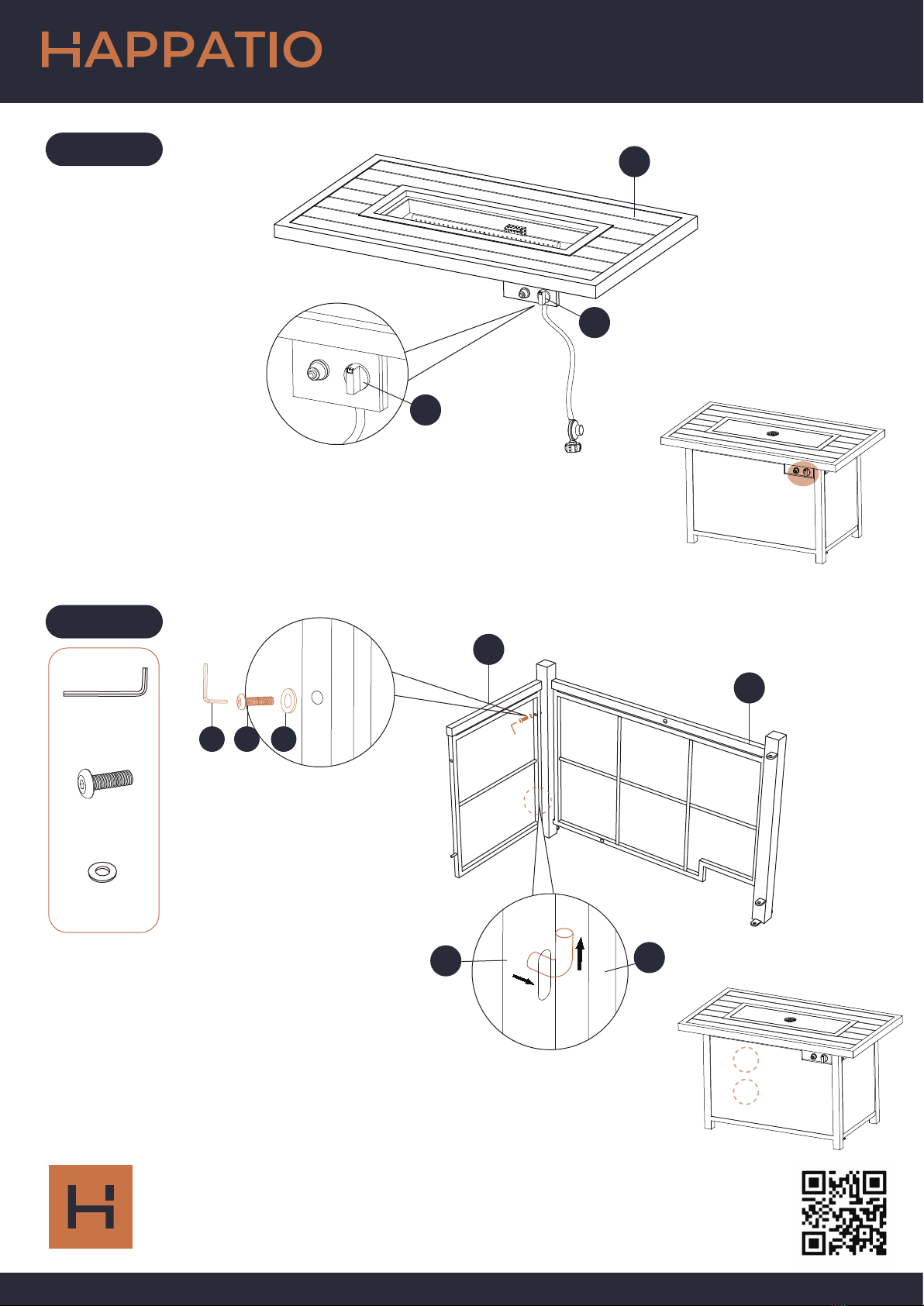

STEP 1 B

a

Check that the control knob (a) for

the gas supply system is turned to

the “ OFF” position before starting

any assembly.

STEP 2

Wrench

1PC

Q

M6X35MM Bolt

1PC

M

Steel Washer

1PC

O

E

D

Insert the back side panel (D) to the right side

panel (E). Then connect the back side panel (D)

and right side panel (E) using one M6X35 bolt

(M), washer (O), wrench (Q).

Q M O

E

D

...............................................................................................................................................................

F

...............................................................................................................................................................

Table installation steps

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

8

STEP 4

E

C

Wrench

1PC

Q

M6X20MM Bolt

2PC

L

Steel Washer

2PC

O

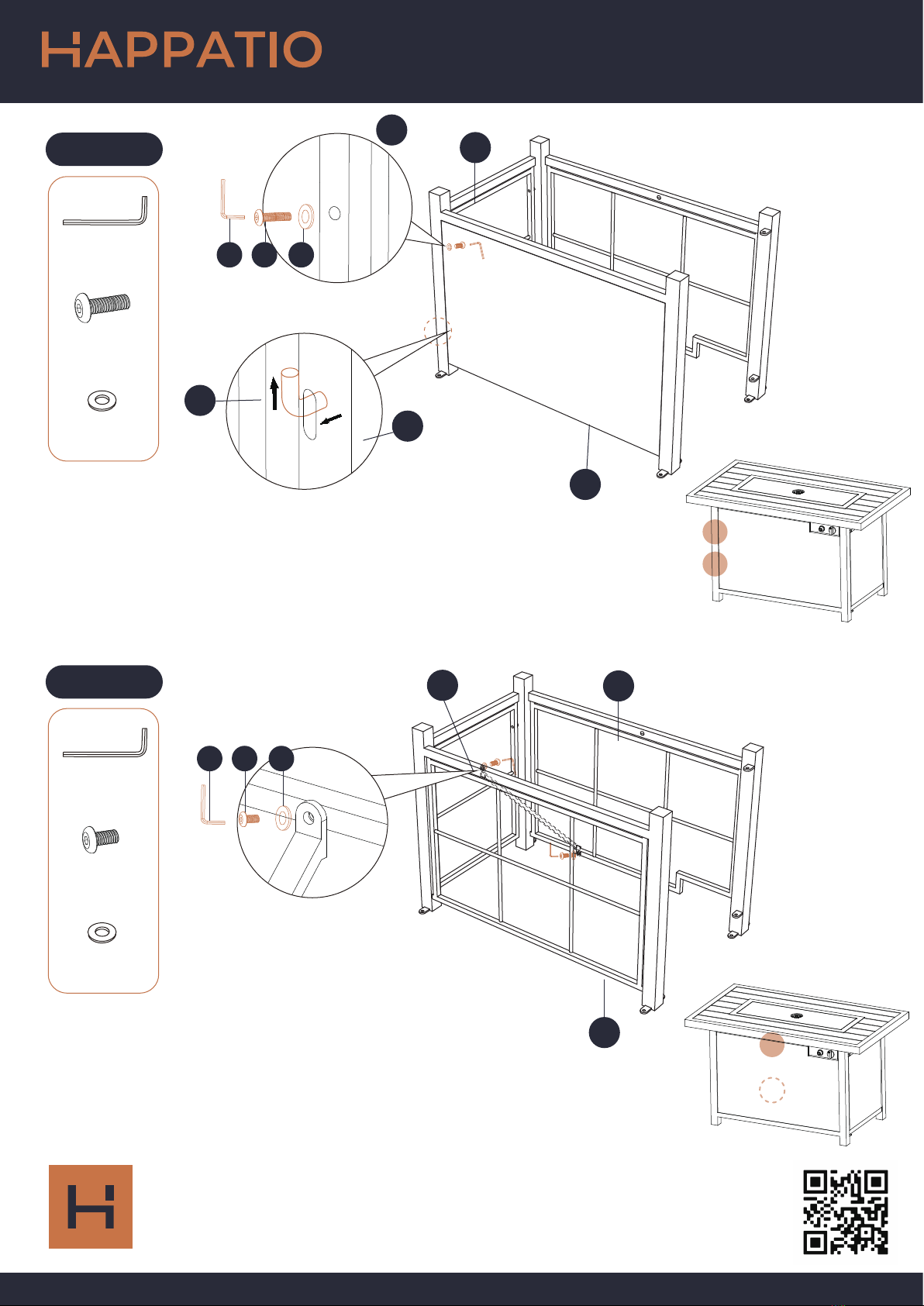

Attach the inclined support frame (I) to

the left side panel (C) and right side

panel (E) using two M6X20 bolt (L), two

steel washers (O), one wrench (Q).

I

Q L O

...............................................................................................................................................................

STEP 3

C

D

Wrench

1PC

Q

M6X35MM Bolt

1PC

M

Steel Washer

1PC

O

Insert the back side panel (D) to the left side

panel (C). Then connect the back side panel

(D) and left side panel (C) using one M6X35

bolt (M), washer (O), wrench (Q).

Q M O

C

D

...............................................................................................................................................................

Table installation steps

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

9

STEP 6

Wrench

1PC

Q

M6X35MM Bolt

2PC

M

Steel Washer

2PC

O

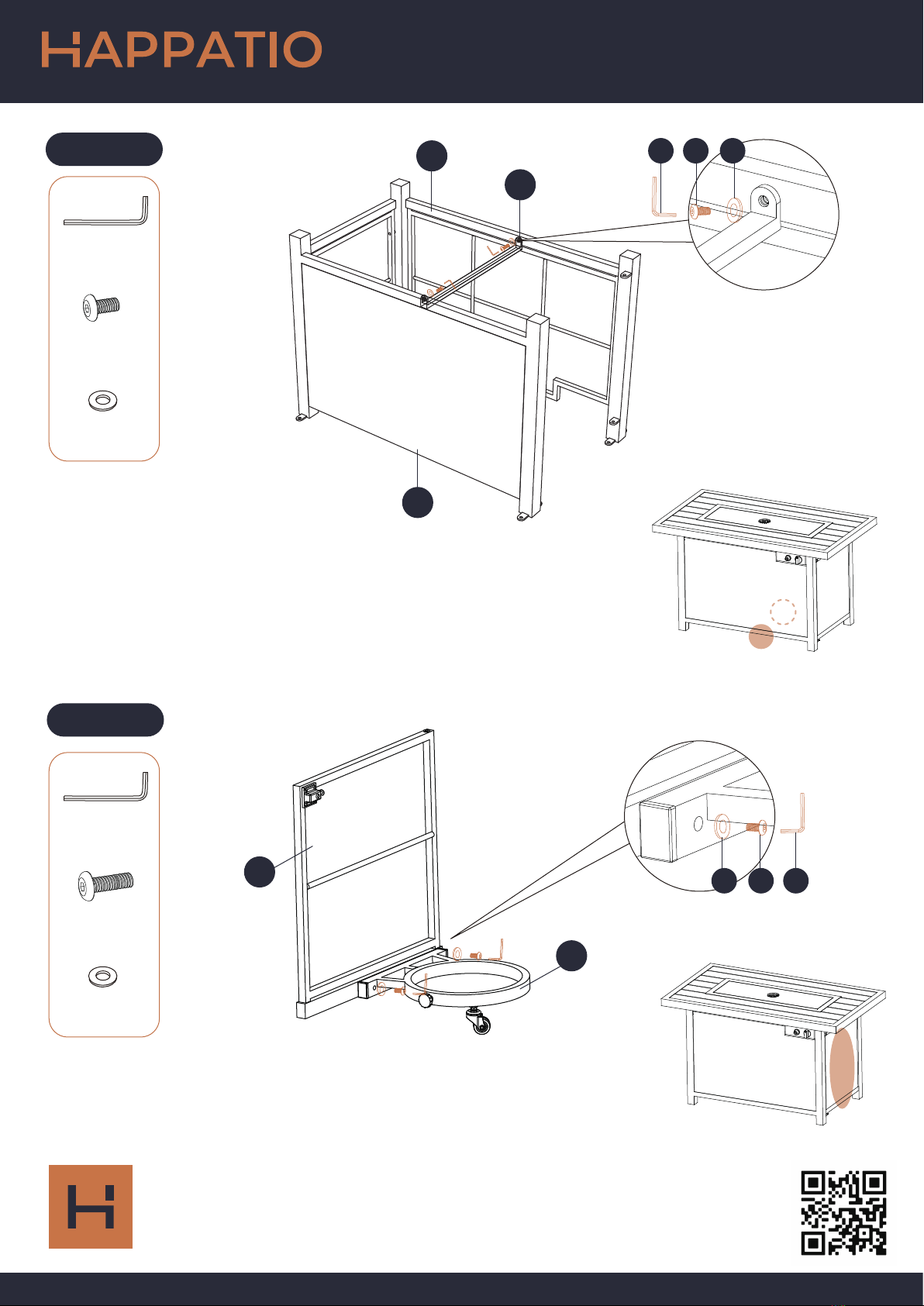

Attach the gas cylinder bracket (G)

to the left door panel (F) using two

M6X35 bolt (M), two steel washers

(O) one wrench (Q).

M OQ

F

G

E

H

C

STEP 5

Wrench

1PC

Q

M6X20MM Bolt

2PC

L

Steel Washer

2PC

O

Attach the support frame (H) to the left

side panel (C) and right side panel (E)

using two M6X20 bolt (L), two steel

washers (O) one wrench (Q).

Q L O

...............................................................................................................................................................

Table installation steps

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

10

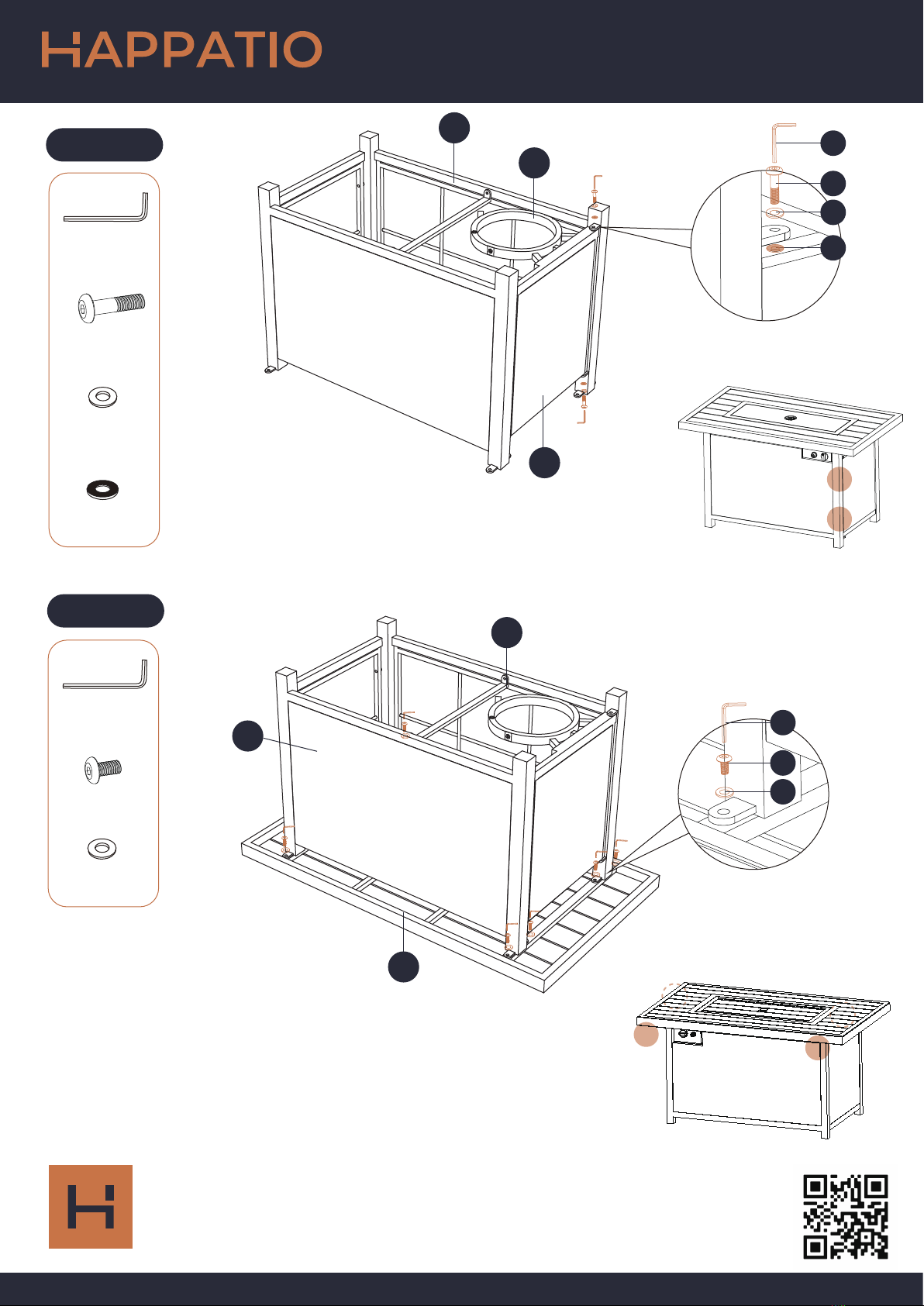

Attach the door panel (F) to the right

side panel (E) using two M6X25 bolt

(N),two steel washers (O),two plastic

washers(P) one wrench (Q).

...............................................................................................................................................................

STEP 7

Plastic Washer

Q

N

O

P

Wrench

1PC

Q

M6X25MM Bolt

2PC

N

Steel Washer

2PC

O

2PC

P

Wrench

1PC

Q

Steel Washer

6PCS

O

Attach the table top (B) to the left

side panel (C) and right side panel

(E) using six M6X20 bolt (L), six steel

washers (O) one wrench (Q).

STEP 8

E

C

B

M6X20MM Bolt

L

Q

L

O

E

G

F

...............................................................................................................................................................

Place propane gas tank (not included)

into the gas cylinder bracket (G).Make

sure the gas tank sits on the gas cylinder

bracket (G) completely.

Turn the pre-assembled screw(b) on the

outer part of gas cylinder bracket (G)

clockwise to secure the propane gas

tank tightly.

...............................................................................................................................................................

Table installation steps

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

11

...............................................................................................................................................................

STEP 9

G

b

STEP 10

Connect the pressure regulator to the

cylinder by rotating the knob clockwise

until it is fully secured.Make sure there is

no leakage or damage.

...............................................................................................................................................................

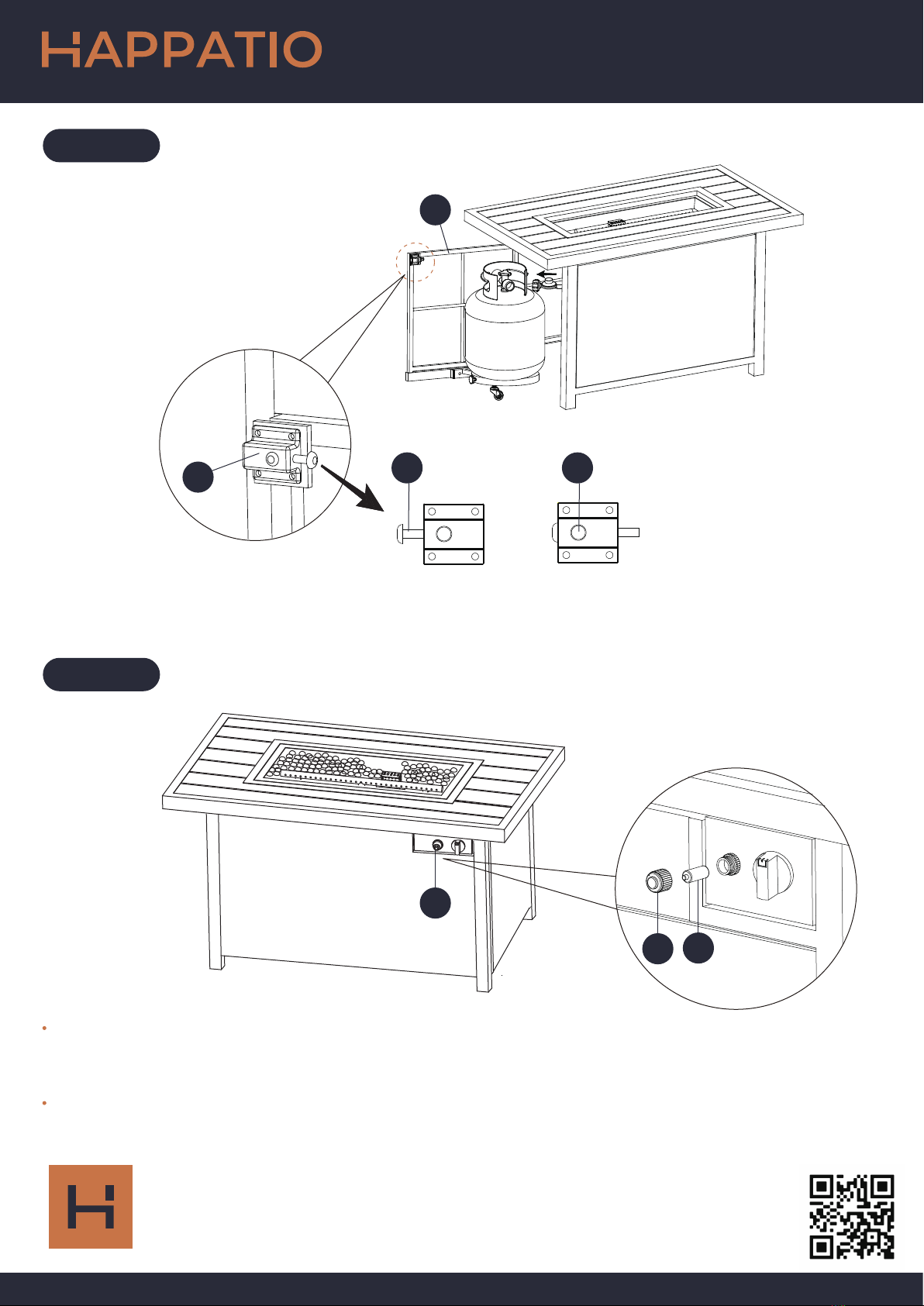

Press (h1) to close the door and (h2) to

open the door.

Unscrew the rubber cap (c) on the electronic

igniter by unscrewing and slide battery (I)

into the battery slot. Make sure the positive

side of the battery faces outwards.

Screw the rubber cap (c) over the battery

tightly.

...............................................................................................................................................................

Table installation steps

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

12

...............................................................................................................................................................

STEP 11

h1h2

F

h

+_

STEP 11

c

cI

...............................................................................................................................................................

STEP 13

STEP 14

CAUTION

Pour the box of lava glass (J) into

the ﬁrebowl (f)

To ensure proper function, the guard (d)

on this burner (e) should be free of lava

glass rocks at all time.

...............................................................................................................................................................

Table installation steps

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

13

J

df

e

A

...............................................................................................................................................................

STEP 15

Complete

It's available to adjust foot height

through leveler (h) regarding ground

condition to keep ﬁre table in balance.

Loosening the leveler (h) will raise the

leg, and tightening the leg will lower it.

...............................................................................................................................................................

Table installation steps

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

14

Please use 20LBS propane tank

（not included）

h

...............................................................................................................................................................

Safety Precautions

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

15

Operation

Before performing a leak test, be sure that no sparks can occur in your vicinity and set yourself

in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve

on the unit to the "OFF" position.

Brush a soap and water mixture on all connections. Turn the gas supply on; if bubbles occur

on any connection there may be a leak. If you smell gas or a leak is discovered, turn the gas

valve off, disconnect the propane gas tank, and do not use the appliance until the leak is

repaired.

Do not use the heating unit without inspecting the gas hose.

If there are signs of wear or abrasion you must replace the hose (if applicable). Lava Glass

could pop up and strike somebody's face during the process of lighting this unit; stand away

from the unit for the ﬁrst 20 minutes after igniting. Flames should be yellow/blue in color and

between 2-10 inches in height.

Wait ﬁve minutes after extinguishing the ﬂame prior to placing a lid (if applicable) or protec-

tive cover on the heating item.

To Light:

1. Make sure the control knob is in the "OFF" position.

2. Open the door (F). Slowly open the valve on the propane gas tank by turning the knob

counterclockwise.

3. Close the door (F).

4. Push and hold in the electronic igniter (C) to create sparks within the electrode, continue to

hold.

5. Push in the control knob (a) and turn to the " " position. Keep holding down the control

knob (a) to allow gas to ﬂow for 15 seconds.

6. If ignition doesn't occur within a few seconds, release the control knob (a) and rotate to the

"OFF" position. Wait for ﬁve minutes for gas to clear and then repeat the above lighting

instructions.

7. Once the ﬁre is lit, the ﬂame intensity may be controlled by turning the control (a) knob

between the " " and " " positions.

...............................................................................................................................................................

Safety Precautions

Happy Families

Through

Happy Living

E-mail: [email protected]

Facebook: @happatio

16

Operation

To Extinguish

1. Push in the gas control knob slightly and turn to the "OFF" position.

2. Turn the knob counterclockwise to detach the pressure regulator from the cylinder.

3. If needed, you can use soapy water to check if there is gas leakage at the outlet.

Maintenance

Before performing any maintenance always disconnect the propane gas tank.

Keep the heating item free and clear from combustible materials.

Visually inspect the burner for obstructions and keep the tank enclosure free and clear from

debris.

Use a soft brush to get rid of the mild stains, loose dirt, and soil after the burner and pumice

stones/lava rocks/Lava Glass are completely cooled down. Then, wipe down with a soft cloth.

Harsh weather conditions may cause stubborn stains, discoloration, and possibly rust pitting.

Permanent damage may occur if powder or solvent comes in contact with painted or plastic

components on this heating unit

Keep the heating unit stored away from direct sunlight.

If storing this unit inside, disconnect the propane gas tank from the gas valve and store it

separately, outdoors.

Not using manufacturer-approved or supplied parts and/or accessories may result in a defec-

tive product and may void the warranty of this heating unit.

If you have a lid or protective cover, always place it on the heating item when the heating

item is not in use.

HAPPATIO HPO-HPZ-M-H User manual

Popular Outdoor Fireplace manuals by other brands
