Harbor Freight Tools 95706 User manual

Square Solar
Garden Light
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright © 2007 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
95706
Due to continuing improvements, actual product may differ slightly from the product described herein.
To prevent serious injury, read and understand all warnings and instructions before use.

SKU 95706 For technical questions please call 1-800-444-3353 Page 2
Specifications
Save This Manual
You will need the manual for the safety warnings and precautions, assembly
instructions, operating and maintenance procedures, parts list and diagram. Keep
your invoice with this manual. Write the invoice number on the inside of the front
cover. Keep the manual and invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using tool, basic safety precautions should always be fol-
lowed to reduce the risk of personal injury and damage to equipment.
Read all instructions before using this tool!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in
damp or wet locations. Don’t expose Lantern to rain. Keep work area well lit.
3. Keep children away. Children must never be allowed in the work area. Do
not let them handle machines, tools, or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry
location to inhibit rust. Always lock up tools and keep out of reach of children.
5. Use the right product for the job. Do not attempt to force a small light or
attachment to do the work of a larger industrial unit. There are certain
applications for which this product was designed. It will do the job better
and more safely at the rate for which it was intended. Do not modify this
item and do not use this product for a purpose for which it was not intended.
6. Maintain tools with care. Keep tools maintained and clean for better and
safer performance. Inspect tool components periodically and, if damaged, have
them repaired by an authorized technician.
7. Avoid unintentional starting. Disconnect the batteries before doing any
maintenance to the light.
:noitpircseDthgilnretnaLDELderewopraloS:noitcurtsnoC ralosenillatsyrcyloPdnaedahSssalGhtiWleetSsselniatS
.sthgilDELhtiwsllec
:noitaruDegrahcllufnosruoh7-5:emiTgnigrahC .noitisopffonihctiwshtiwegrahctsrifsruoH8
n
oitisopnonihctiwshtiwnusniyadlluf,egrahctneuqesbuS
:epyTyrettaBhAm006"AA",elbaegrahceRDC-iN2:sthgiLrotcel
feRcitsalPhtiwthgilDEL
slenaPraloSlenapralosenillatsyrcylop1:hctiwSrewoPFFO/NOotuAeyEotohPdnaFFO/NOgnidil
slaunaM

SKU 95706 For technical questions please call 1-800-444-3353 Page 3
8. Stay alert. Watch what you are doing, use common sense. Do not operate
any tool when you are tired.
9. Check for damaged parts. Before using any tool, any part that appears
damaged should be carefully checked to determine that it will operate
properly and perform its intended function. Check for any broken parts or
mounting fixtures; and any other condition that may affect proper operation.
Any part that is damaged should be properly repaired or replaced by a
qualified technician. Do not use the tool if any switch does not turn On and Off
properly.
10. Guard against electric shock. Prevent body contact with grounded surfaces
such as pipes, radiators, ranges, and refrigerator enclosures.
11. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use
accessories intended for use with this tool. Approved accessories are
available from Harbor Freight Tools.
12. Do not operate item if under the influence of alcohol or drugs. Read
warning labels on prescriptions to determine if your judgment or reflexes are
impaired while taking drugs. If there is any doubt, do not operate the tool.
13. Maintenance. For your safety, service and maintenance should be performed
regularly by a qualified technician.
Warning: The warnings, cautions, and instructions discussed in this instruc-
tion manual cannot cover all possible conditions and situations that may oc-
cur. It must be understood by the operator that common sense and caution
are factors which cannot be built into this product, but must be supplied by
the operator.

SKU 95706 For technical questions please call 1-800-444-3353 Page 4
Unpacking
When unpacking, check to make sure that the product is intact and undamaged.
If any parts are missing or broken, please call Harbor Freight Tools at the number
on the cover of this manual.

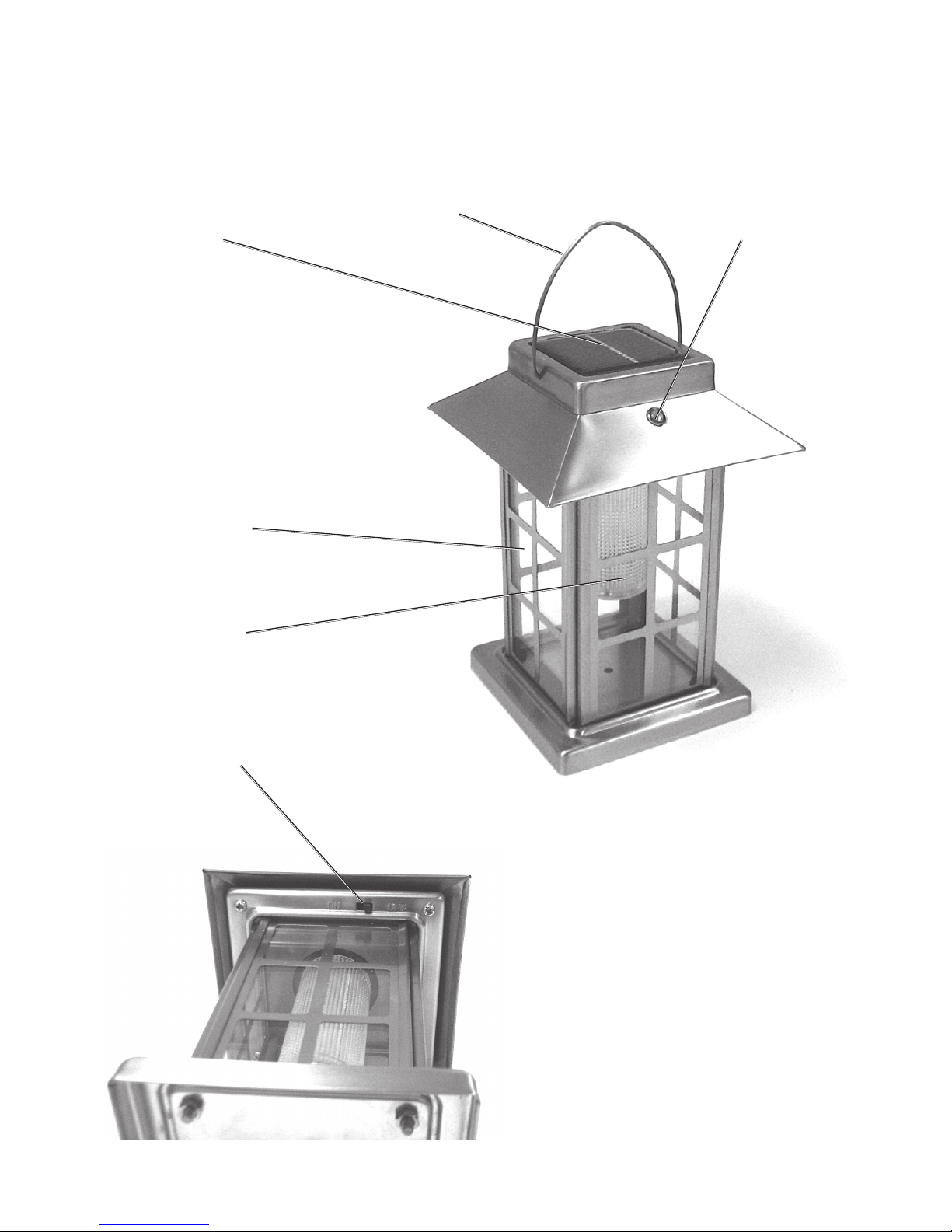

ON / OFF Power Switch
Plastic Reflector
Solar Panel
Mounting Handle
Glass
Photo Eye

SKU 95706 For technical questions please call 1-800-444-3353 Page 5
Assembly and Operation
The solar panel produces electricity in the presence of sunlight.The amount of
electricity produced increases as the sunlight becomes stronger. Less power is
produced in less sunlight, but the panels will generate electricity even on cloudy
days.
This product includes Ni-CD rechargeable batteries to store energy created during
the day for use in the light at other times.
The Lamp uses an energy efficient LED light which operates when the Power
Switch is in the ON position and the Photo Eye determines that it is dark outside.
Mounting the Lantern:
1. Select a location for the solar lantern that will allow sufficient sunlight to
charge the batteries during the day, and will also be attractive during the
evening. Also, to prevent the lantern from unintentionally lighting, keep it away
from any nearby light source.
2. The Lantern has a Mounting Handle at the top, which can be used to hang the
Lantern. Also, the Lantern can be placed on a table top or other secure flat
surface.
NOTE: the location selected must be able to support the weight of the
Lantern, and any additional stress that may be placed on it by wind, etc.
CAUTION: Whenever drilling holes or mounting screws check to be sure that
no wires, pipes or other utilities are in the path of the holes or screws.
CAUTION: The solar panels are rigid , and may be damaged by bending or twisting.
Be sure to locate this lantern in a way that it is protected from damage.
Operation
This Lantern captures electrical energy from sunlight and stores it in
rechargeable batteries. The Photo Eye will detect when the area has become
dark, and will cause the Lantern to come ON. The ON / OFF Power Switch
must be in the ON position for the Lantern to come on.
First Use Charging Instructions:
1. Have the Power Switch in the OFF position.
2. Place the Lantern where it will receive full sunlight for at least 8 hours. Leave it
there in the OFF position while it charges.

SKU 95706 For technical questions please call 1-800-444-3353 Page 6
Operation (Continued)
Normal Operation:
1. The Power Switch is on the underside of the Lantern Cover. After initially
charging the batteries, move the Power Switch to the ON position. When in
the ON position, the Lantern will come on whenever the Photo Eye detects
that the light level is low.
2. To turn the Lantern OFF, move the Power Switch to the OFF position.
Maintenance
1. Protect this device from damage or excess exposure to rain, sun and wind.
2. Occasionally clean the solar panel surfaces, Lantern Glass and Photo Eye
with a clean soft cloth. Do not use detergents or solvents for cleaning.
3. Occasionally check the installation to be sure the Lantern is secure.
If the Lantern will not recharge or light normally:
1. First check to see if it is getting enough sunlight during the day.
2. Check to see that the Solar Panels are clean.
3. Test the voltage output of the batteries. If the solar panels are functioning
properly, and the batteries are not storing energy, they must be replaced.
Changing the Batteries:
1. Slide the power switch to the “OFF” position.
2. Remove the (4) Screws from the underside of the Lantern Cover (A). Set them
aside for safekeeping.
3. Rotate Plastic Reflector so that it release from ledges and set it aside.
4. Press release tabs. Pull and remove battery covers.
5. Replace the batteries with identical replacements, being careful to match the
polarity of the batteries. Always properly dispose of all used batteries.
6. Replace the battery covers and PLastic Reflector.
7. Replace the Lantern Cover (A) and secure it in place using the (4) Screws.
8. Slide the power switch to the “ON” position.
NOTE: It is recommended that the batteries be charged for at least 8 hours of
daylight with the Power Switch in the OFF position before first use.
CAUTION: This Lantern is intended for decorative use only. Do not use this lantern
for any safety-related illumination task.
Troubleshooting

SKU 95706 For technical questions please call 1-800-444-3353 Page 7
Parts List
Assembly Diagram
#traPnoitpircseD.ytQ
ArevoCnretnaL1
BnretnaL1
CwercS4
DyrettaB2
PLEASE READTHE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE
BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR
THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT,
THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS
AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK
AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT
OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Battery
Screws
Lantern Lantern Cover
