Harbor Freight Tools 02628 User manual

CYCLE TREE
Compact Bike Storage
Model 02628
ASSEMBLY AND OPERATING INSTRUCTIONS
Patent 6,182,836 (Covered by U.S. Patent)
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2002 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 11a

Page 2For technical questions, please call 1-800-444-3353.SKU 02628
Specications
Dimensions 30” Square Base, adjusts from 69” to 72” high
Capacity Up to 6 Bikes
Casters 7/8” W x 3” Diameter
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions, operating
and maintenance procedures, parts list and diagram. Keep your receipt with this manual. Write
the receipt number on the inside of the front cover. Keep the manual and receipt in a safe and
dry place for future reference.
Safety Warnings and Precautions
WARNING: When using the movable bicycle rack, basic safety precautions should always
be followed to reduce the risk of personal injury and damage to equipment.
Read all instructions before using this movable bicycle rack!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use Cycletree in damp or wet locations. Do
not expose to rain. Keep work area well lighted. Situate the Cycletree in a “child safe”
location. Only use the Cycletree on a at, level, hard surface.
3. Keep children away. Children must never be allowed in the work area. Do not let them
handle the Cycletree . Do not let children remove or add cycles to the Cycle- tree. Do not
allow children to hang on or play with this product.
4. Store idle equipment. When not in use, Cycle Tree must be stored in a dry location to
inhibit rust. Always keep Cycle Tree out of reach of children.
5. Use the right tool for the job. There are certain applications for which this product was
designed. Do not modify this product and do not use this product for a purpose for which it
was not intended.
6. Use eye protection. Always wear ANSI approved impact safety goggles during assembly.
7. Do not overreach. Keep proper footing and balance at all times..
8. Maintain this movable bicycle rack with care. Keep Cycle Tree clean for better and
safer performance. The handles must be kept clean, dry, and free from oil and grease at
all times.
9. Stay alert. Watch what you are doing and use common sense when operating this piece
of equipment. Do not use this piece of equipment while tired or under the inuence of
drugs, alcohol or medication.
10. Check for damaged parts. Before using this movable bicycle rack, any part that appears
damaged should be carefully checked to determine that it will operate properly and perform
REV 03l, 06l, 09k

Page 3For technical questions, please call 1-800-444-3353.SKU 02628
its intended function. Check for alignment and binding of moving parts; any broken parts or
mounting xtures; and any other condition that may affect proper operation. Any part that
is damaged should be properly repaired or replaced by a qualied technician.
11. Replacement parts and accessories. When servicing, use only identical replacement
parts. Use of any other parts will void the warranty. Only use accessories intended for use
with this movable bicycle rack. Approved accessories are available from Harbor Freight
Tools.
12. Do not assemble Cycle Tree if under the inuence of alcohol or drugs. Read warning
labels on prescriptions to determine if your judgment or reexes are impaired while taking
drugs. If there is any doubt, do not assemble the Cycle Tree .
13. Maintenance. For your safety, parts replacement or repair should be performed by a
qualied technician.
14. Maintain Balance. To obtain the best and safest performance of the Cycle Tree, be sure
that the multiple hanging bicycles are evenly distributed on the Cycle Tree.
Be careful to follow the operation instructions.
Warning: The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be understood
by the operator that common sense and caution are factors which cannot be built into this
product, but must be supplied by the operator.
Unpacking
When unpacking, check to make sure all the parts listed on page 7 are included. If any parts are
missing or damaged, please call Harbor Freight Tools at the number on the cover of this manual
as soon as possible.
REV 03l, 06l, 09k, 10l, 11a

Page 4For technical questions, please call 1-800-444-3353.SKU 02628
Assembly
Base
Brackets
Base
Channeled
Supports
A
Base
Bracket
Base
Channeled
Support B
1. Assemble the base rst by joining Base Brackets (1) to Base Channeled Supports (2)
forming a 30” x 30” square base. Next place the Casters (3) on the corners of the base
but only “nger tighten” the Self Locking Nut on the stem of the caster.
2. Place the Base Beam (7) on top of the base remembering to only “nger tighten” all of the
Self Locking Nuts.
3. Remove the Self Locking Nut of one of the Casters (3) and place one of the Struts (6) on
the Caster stem, and replace the nut. Repeat this same procedure with the other struts.
Caster
REV 03l, 06l, 09k, 10g
C
Assemble 4 Struts (6)
Assemble
Base Beam
(7)
Self Locking Caster Nut

Page 5For technical questions, please call 1-800-444-3353.SKU 02628
Adjustment Holes
F
Plastic Covered T-Bar
G
4. Slide the Base Post (9) on top of the Base Beam (7) and join the Struts on the holes
provided on the Base Post (9).
5. Insert Center Post (10) into the Base Post (9) and secure with two bolts on the holes
provided.
6. Slide the T-Bar (11) on top of the Base Post (9) using the two lower holes of the four holes
provided on the center post for height adjustment.
7. Now hang your longest bicycle on the T-Bar, it should clear the base, but if it does not, you
may go up one hole to adjust the height of the T-Bar.
Note: The lowest setting is desired to provide the most stability; this low setting also makes it
easier to hang the bicycles.
8. When assembly is complete, tighten all the self locking nuts.
Base Post
Center Post
E
Square
recess
of Base Beam D
Flexible
opening
REV 03l, 06l, 09k, 10g, 11a
Insert Base Post (9) Here

Page 6For technical questions, please call 1-800-444-3353.SKU 02628
REV 03l, 06l, 09k, 10g, 11a
Operation
Warning: Hanging and dismounting of bicycles should only be done by adults who are
physically capable of safely handling and lifting the weight of a bicycle.
Hanging Bicycles

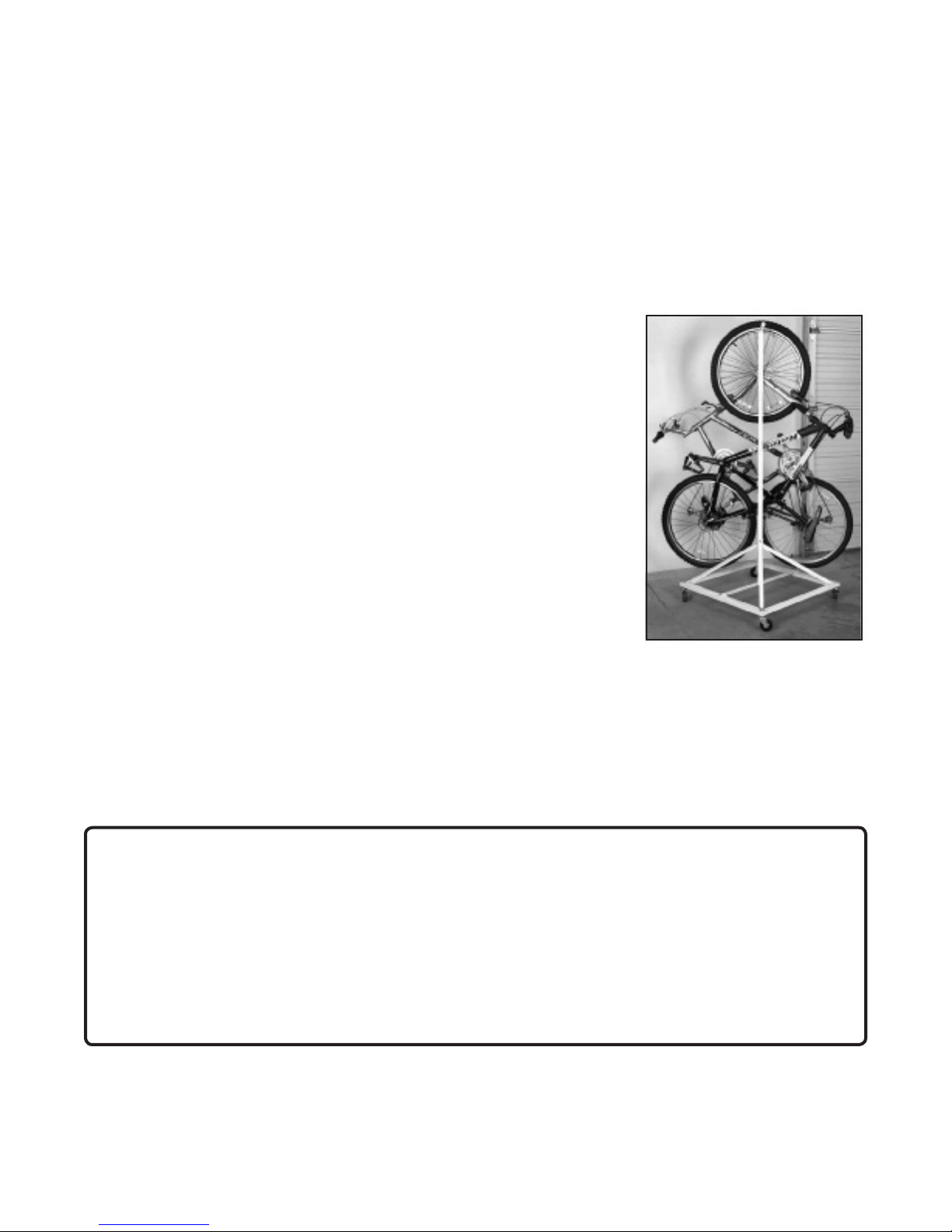

Hang one bicycle by threading the front wheel spokes through the plasic covered T-Bar. The
next bicycle should be hung the same way, but facing the opposite
direction. (See photos to the right and on front cover) Continue
the same procedure making sure that all the bicycles hang
opposite to each other. It is recommended that two people assist
in hanging the bicycles to maintain the balance and stability of the
Cycle Tree.
Dismounting Bicycles
Before lifting the front wheel off the Plastic Covered T-Bar (11),
place a rm grip on the bicycle frame, just behind the front fork,
making sure that the bicycle does not sway the wrong way,
and carefully remove the bicycle from the Cycle Tree. Maintain
balance to obtain the best and safest performance of the
Cycle Tree. Be sure that multiple hanging bicycles are evenly
distributed.
Maintenance
Periodically check that the hardware is tight. Tighten if necessary.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL
AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO
MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS
OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT
ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED
TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING
OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR
ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
NOTE: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.

Page 7For technical questions, please call 1-800-444-3353.SKU 02628
REV 03l, 06l, 09k, 10g, 10l, 11a
Assembly Drawing
