Harley Benton TUBE5 Celestion User manual

TUBE5 Celestion,
TUBE15 Celestion
Guitar Combo
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
18.08.2022, ID: 469677, 469683 (V2)

Table of contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 12
4 Installation and starting up................................................................................................................ 13
5 Connections and operating elements........................................................................................... 14
6 Technical specications....................................................................................................................... 19
7 Plug and connection assignment.................................................................................................... 23
8 Protecting the environment.............................................................................................................. 25
Table of contents
TUBE5 Celestion, TUBE15 Celestion 3
Guitar Combo

4TUBE5 Celestion, TUBE15 Celestion
Guitar Combo

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
TUBE5 Celestion, TUBE15 Celestion 5
Guitar Combo

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
General information
6TUBE5 Celestion, TUBE15 Celestion
Guitar Combo

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Letterings
General information
TUBE5 Celestion, TUBE15 Celestion 7
Guitar Combo

Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
8TUBE5 Celestion, TUBE15 Celestion
Guitar Combo

2 Safety instructions
This device is intended to be used for amplication and playback of signals from musical
instruments with electromagnetic pickups. Any other use or use under other operating condi‐
tions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
Intended use
Safety instructions
TUBE5 Celestion, TUBE15 Celestion 9
Guitar Combo

DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a
registered electrician.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
Safety instructions
10 TUBE5 Celestion, TUBE15 Celestion
Guitar Combo

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt pads or similar.
Safety instructions
TUBE5 Celestion, TUBE15 Celestion 11
Guitar Combo

3 Features
Item no. 469677 TUBE5 Celestion
nOutput power: 5 watt @ 8 Ω
n1 × 8" Celestion Super speaker
nOutput for external speaker box
nPreamp tubes: 1 × ECC83/12AX7
nPower tubes: 1 × 6V6GT
Item no. 469683 TUBE15 Celestion
nOutput power: 15 watt @ 8 Ω
n1 × 12" Celestion Seventy speaker
nFootswitch connector (not included)
nOutput for external speaker box
nFurther connectors: Eects loop
nPreamp tubes: 3 × ECC83/12AX7
nPower tubes: 2 × EL84
Features
12 TUBE5 Celestion, TUBE15 Celestion
Guitar Combo

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Installation and starting up
TUBE5 Celestion, TUBE15 Celestion 13
Guitar Combo

5 Connections and operating elements

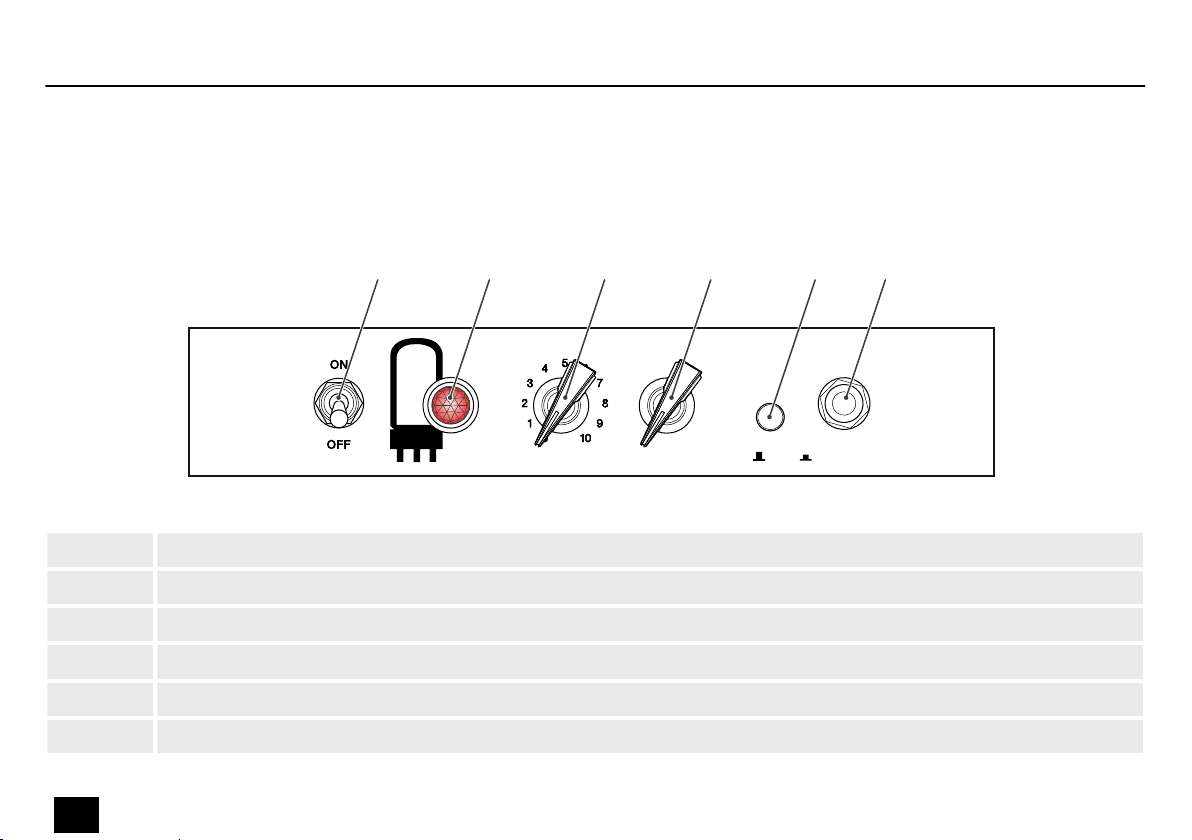

TUBE5
55
44
33
11
22
00 11
22
33
44
55
--
--
--
--
--
VOLUME TONE 5W 1W/ INPUT
ö # $ % '&
1[ON/OFF] | main switch. Turns the device on and o.
2 Status LED. This LED lights when the device is turned on.
3[VOLUME] | control to adjust the volume
4[TONE] | control to adjust the tone colour of the input signal
5[5W/1W] | toggle switch to switch the output level
6[INPUT] | 1/4" jack socket to connect an instrument
Item no. 469677
TUBE5 Celestion Front panel
Connections and operating elements
14 TUBE5 Celestion, TUBE15 Celestion
Guitar Combo

POWER SOURCE: 230V~50Hz
POWER CONSUMPTION: 15W (max. 50W)
OUTPUT POWER: 5W (RMS)
EXTERNAL SPEAKER
IMPEDANCE
8-16 OHMS
( )
7[EXTERNAL SPEAKER] | 1/4" output socket for connecting an external speaker box (recommended impedance: 8 Ω).
The internal speaker will be turned o when this connector is used.
8 Power cord
Item no. 469677
TUBE5 Celestion Rear panel
Connections and operating elements
TUBE5 Celestion, TUBE15 Celestion 15
Guitar Combo

TUBE15
55
44
33
11
22
00 11
22
33
44
55
--
--
--
--
--
55
44
33
11
22
00 11
22
33
44
55
--
--
--
--
--
55
44
33
11
22
00 11
22
33
44
55
--
--
--
--
--
55
44
33
11
22
00 11
22
33
44
55
--
--
--
--
--
GAIN VOLUME TONE BASS MIDDLE TREBLE REVERB 15W 1W/ INPUT
ö # $ % & ' ( ) * + ,
Item no. 469683
TUBE15 Celestion Front panel
Connections and operating elements
16 TUBE5 Celestion, TUBE15 Celestion
Guitar Combo

1[ON/OFF] | main switch. Turns the device on and o.
2 Status LED. This LED lights when the device is turned on.
3[GAIN] | control to adjust the signals preamp gain
4[VOLUME] | control to adjust the volume
5[TONE] | control to adjust the tone colour of the input signal
6[BASS] | control to adjust the low frequencies
7[MIDDLE] | control to adjust the mid frequencies
8[TREBLE] | control to adjust the high frequencies
9[REVERB] | control to adjust the intensity of the reverb eect
10 [15W/1W] | toggle switch to switch the output level
11 [INPUT] | 1/4" jack socket to connect an instrument
Connections and operating elements
TUBE5 Celestion, TUBE15 Celestion 17
Guitar Combo

POWER SOURCE: 230V~50Hz
POWER CONSUMPTION: 30W (max. 50W)
OUTPUT POWER: 15W (RMS)
REVERBRETURNSEND
EXTERNAL SPEAKER
IMPEDANCE
8-16 OHMS
- . / 0 1
12 [EXTERNAL SPEAKER] | 1/4" output socket for connecting an external speaker box (recommended impedance: 8 Ω).
The internal speaker will be turned o when this connector is used.
13 [ SEND] | 1/4" output socket for looping in an eects processor
14 [ RETURN] | 1/4" input socket for looping in an eects processor
15 [REVERB] | 1/4" jack socket to connect a footswitch for adjusting the reverb eect intensity
16 Power cord
Item no. 469683
TUBE15 Celestion Rear panel
Connections and operating elements
18 TUBE5 Celestion, TUBE15 Celestion
Guitar Combo

6 Technical specications
Speaker 1 × 8" Celestion Super speaker
Input connections Instruments 1/4" jack socket
Output connections external speaker (min. impedance 8 Ω) 1/4" phone socket
Input impedance 1 MΩ
Output power 5 W (RMS) @ 8 Ω (external speaker)
Frequency range 80 Hz…10 kHz
Signal-to-noise ratio –75 dB
Total harmonic distortion (THD) 0.5 %
Power consumption 15 W (max. 50 W)
Operating supply voltage 230 V 50 Hz
Dimensions (W × H × D) 305 mm × 310 mm × 210 mm
Weight 6 kg
Item no. 469677
TUBE5 Celestion
Technical specications
TUBE5 Celestion, TUBE15 Celestion 19
Guitar Combo

Ambient conditions Temperature range 0 °C…40 °C
Relative humidity 20 %…80 % (non-condensing)
Channels 1
Reverb no
External eects loop no
Recording output no
MIDI port no
External speaker connector yes
Headphone connection no
Foot switch connector no
Incl. foot switch no
Further information
Technical specications
