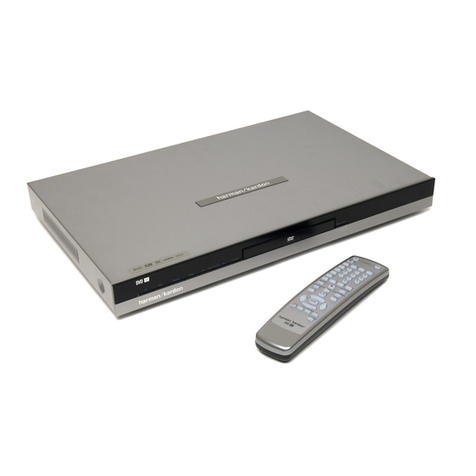

Harman Kardon dmc230 User manual

harman/kardon Service Manual
DMC250/230
DIGITAL MEDIA CENTER
CONTENTS
TECHNICAL SPECIFICATIONS 2
TROUBLESHOOTING GUIDE 3
FRONT PANEL CONTROLS 4
REAR PANEL CONNECTIONS 5
PACKAGE LIST AND PARTS 6
EXPLODED VIEW AND PARTS 7
ELECTRICAL PARTS LIST 8
SEMICONDUCTOR PINOUTS 33
PCB DRAWINGS 86
BLOCK DIAGRAM 102
WIRING DIAGRAM 103
SCHEMATIC DIAGRAMS 104
Released EU2008 harman/kardon, Inc. Rev 0, 09/2008
250 Crossways Park Dr.
Woodbury, New York, 11797
harman/kardon
DMC250/230 Service Manual
Page 1 of 110

TECHNICAL SPECIFICATIONS 35
ENGLISH
Technical Specifications
Applicable Disc: Disc formats: 5 inch (12 cm) or 3 inch (8 cm) DVD Video, DVD-Audio, Standard conforming DVD+RW, DVD+R, DVD-R,
DVD-RW, DivX, VCD, CD, CD-R, MP3,WMA, JPEG or CD-RW discs,
Region code: DVD Movie disc with Code 2 or 0 only.
DVD-Layers: Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Single Layer, Dual Side/Dual Layer
Audio formats: DVD-Audio MLP lossless, Linear PCM, MPEG, Windows Media®9,
Dolby Digital or DTS Audio discs
Still-image format: JPEG
Memory cards Slot 1: Secure Digital (SD), Multimedia Card (MMC) and Memory Stick (compatible with Magic Gate) cards. Other card
types may be used with a compatible adapter, but are not guaranteed to be recognized by the DMC 250 Slot 2: Compact
Flash I (CF) cards, or cards using a Compact Flash 1-compatible adapter Card Capacity: Up to 1 GB
USB Port: Up to USB 2.0-compatible solid-state flash drives
Video Signal System: PAL /NTSC
HDMI™Output: Video: 576p, 720p, 1080i, 1080p
HDMI Version 1.2a-compliant
HDCP Version 1.1-compliant
Composite Video Output: 1 Vp-p/75 Ohms, sync negative polarity
S Video Output: Y/Luminance: 1 Vp-p/75 Ohms, sync negative polarity
C/Chrominance: 0.286 Vp-p
Component Video Output: Y: 1 Vp-p/75 Ohms, sync negative polarity
Cr: 0.7 Vp-p/75 Ohms
Cb: 0.7 Vp-p/75 Ohms
Analog Audio Output: 2 Vrms max
Frequency Response: DVD (Linear PCM): 2Hz - 22kHz (48kHz sampling)
2Hz - 44kHz (96kHz sampling)
CD: 2Hz - 20kHz
Signal/Noise Ratio (SNR): 105 dB (A-weighted)
Dynamic Range: DVD: 100dB (18 Bit) / 105dB (20 Bit)
CD/DVD: 96dB (16 Bit)
THD/1kHz: DVD/CD: 0.0025 %
Wow & Flutter: Below Measurable Limits
AC Power: 100 - 240 V/50 ~ 60 Hz
Power Consumption: 1 Watts (Standby)/13 Watts (Max)
Dimensions (WxHxD): 440 x 50 x 385 mm
Weight: 4.0 kg
Depth measurement includes knobs and connectors.
Height measurement includes feet and chassis.
All specifications subject to change without notice.
Harman Kardon and Logic 7 are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.
Designed to Entertain and Guide+Play are trademark of Harman International Industries, Incorporated.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Digital, ProLogic and the double-D symbol are trademarks of
Dolby Laboratories.
Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Out are registered
trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.
Microsoft, Windows and WMA are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Kodak is a registered trademark, and Photo CD is a trademark, of Eastman Kodak Company.
DivX, DivX Certified, and associated logos are trademarks of DivX Networks, Inc and are used under license.
Memory Stick, MagicGate, Memory Stick Duo and SACD are trademarks or registered trademarks of Sony Corporation.
CompactFlash is a trademark of the CompactFlash Association.
Guide + Play is a trademark of Harman International Industries, Incorporated.
The SD logo is a trademark. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by
Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
harman/kardon
DMC250/230 Service Manual
Page 2 of 110

34 TROUBLESHOOTING GUIDE
Troubleshooting Guide
TroubleShooting Guide
Symptom Possible Cause Solution
Unit does not turn on • No AC power • Check AC power plug and make certain any switched
outlet is turned on.
Disc does not play • Disc loaded improperly • Load disc label-side up; align the disc with the guides and place
it in its proper position.
• Incorrect disc type • Check to see that disc is CD, CD-R, CD-RW, DivX, VCD, MP3, WMA,
JPEG, DVD-R, DVD-RW, DVD+R, DVD+RW (standard conforming),
DVD-Audio or DVD-Video; other types will not play.
• Invalid Region Code • Use Region 2 or Open Region (0) disc only.
• Rating is above parental preset • Enter password to override or change rating settings.
No picture • Intermittent connections • Check all video connections.
• Wrong input • Check input selection of TV or receiver.
• Progressive Scan output selected • Use Progressive Scan mode only with compatible TV. If needed, press
the Progressive Scan/Interlaced Button
L to toggle to the
correct mode.
• Video Off feature active • Press Video Off Button
Q to reactivate video circuitry (see page 26)
• HDMI Output
A is connected to a • The HDMI Output A may not be used with video displays that are not
video display that is not HDCP-compliant. HDCP-compliant. Unplug the cable and select another audio and video
connection (see pages 13 through 14).
No sound • Intermittent connections • Check all audio connections.
• Incorrect digital audio selection • Check digital audio settings.
• DVD disc is in fast or slow mode • There is no audio playback on DVD discs during fast or slow modes.
• Surround receiver not compatible • Use analog audio outputs.
with 96kHz PCM audio
• DVD Audio disc is loaded without • Use 6-Channel Audio Outputs
B or Analog Audio Outputs 9 .
using analog audio connection
Picture is distorted or jumps during • MPEG-2 decoding • It is a normal artifact of DVD playback for pictures to jump or show
fast forward or reverse play some distortion during rapid play.
Some remote buttons do not operate • Function not permitted at this time • With most discs, some functions are not permitted at certain
during DVD play; prohibited symbol times (e.g., Track Skip) or at all (e.g., direct audio track selection).
appears (see below)
The OSD menu is in a foreign language • Incorrect OSD language • Change the display language selection.
The symbol appears • Requested function not available at • Certain functions may be disabled by the DVD itself during
this time passages of a disc.
Picture is displayed in the • Incorrect match of aspect ratio settings • Change aspect ratio settings.
wrong aspect ratio to disc
Remote control inoperative • Weak batteries • Change both batteries.
• Sensor is blocked • Clear path to sensor or use optional outboard remote sensor.
Disc will not copy to VCR • Copy protection • Many DVDs are encoded with copy protection to prevent
copying to VCR.
Password not accepted. • Incorrect password being used or • Factory default password “1234” always remains active.
password has been forgotten.
Cannot program playlist • DMC 250 must be in Stop mode to • Stop play of disc before programming a playlist.
program a playlist
• Edit Mode is turned off • Select the Edit Mode line in the Control Commands and
press the Enter button to turn it on
Cannot navigate through hierarchy • Edit Mode is turned on, • Select the Edit Mode line in the Control Commands and
disabling navigation of folders press the Enter button to turn it off
Unable to select desired media • No media is present • Insert the appropriate memory card into one of the card
source slots, or a USB flash drive into the USB Port
• Wrong type of USB drive was inserted • Only USB flash drives that do not function as stand alone
in USB Port MP3 players are compatible
• Media was not inserted correctly • Remove media and carefully insert according to the
instructions on page 7
harman/kardon
DMC250/230 Service Manual
Page 3 of 110

8FRONT PANEL CONTROLS
 Main Information Display: This display
delivers messages and status indications to help
you operate the DMC 250 player.
1 Power On/Off (Standby): Press the button
once to turn the DMC 250 player on, press it
again to put the unit in the Standby mode.
2 Open/Close: Press this button to open or
close the Disc Tray.
3 Disc Drawer.
4 Play/Pause: Press to initiate playback or to
resume playback after Pause has been pressed.
Press this button to momentarily pause play-
back. To resume playback, press the button
again. If a DVD is playing, action will freeze and
a still picture will be displayed when the button
is pressed.
5 Stop: Press this button once to place the
disc in the Resume mode, which means that
playback will stop, but as long as the tray is not
opened or the disc changed, DVD playback will
continue from the same point on the disc when
the Play Button is pressed again. Resume will
also work if the unit was turned off. To stop a
disc and have play start from the beginning,
press the button twice.
6 Skip/Search (Previous): Press this button
to move backward through the music tracks on
a CD disc or the chapters on a DVD disc. Keep
the button pressed to search backwards at one
of the available speeds.
7 Skip/Search (Next): Press to move forward
through the music tracks on a CD or the
chapters on a DVD disc. Keep the button pressed
to search forwards at one of the available
speeds.
8 Record: When an audio CD is loaded, or the
Analog Audio Inputs are selected as the source,
press this button to view the Record tab of the
on-screen menu. Pressing this button does not
begin the recording.
NOTE: It is not possible to record from one of
the memory cards or the USB device to any
other media or to the USB device. It is also not
possible to transfer image or video files.
However, an audio signal is always available at
the Analog Audio Outputs. You may make ana-
log recordings from any source by connecting an
analog audio recorder to the rear-panel Analog
Audio Outputs.
9 Source Selector: Press this button to view
the current media source selection. If a media
source is available, that is, if media is currently
installed, the source icon will appear at normal
brightness. If no media is installed in a particular
source, e.g. if a card slot is empty, its icon will be
dimmed and you will not be able to select it. You
may always select the Disc Player or the
Auxiliary Analog Audio Inputs, even when no
media is present. Use the
M / N Buttons to scroll
through the available sources, and press the
Enter Button to select and switch to the high-
lighted source.
NOTE: It is not possible to select a new source
while the current source is playing or even while
it is paused. Press the Stop Button before select-
ing a new source.
ABM / N / K / L Navigation and Enter
Buttons: Use these buttons to navigate the on-
screen menus, and press the Enter Button to
select an item.
The
M / N Buttons may be used to switch
between the track or file list on the left side of
the screen and the settings on the right side.
Press and hold a Navigation Button to scroll at a
faster rate.
When a folder is highlighted, press the Enter
Button to expand it.
Highlight the “Up” line and press the Enter
Button to close a folder and view the contents
of the next higher level of the disc, card or
device.
When a file or track is highlighted, press the
Enter Button to begin playback.
C Card Slot 1: Insert an SD, MMC or Memory
Stick memory card into this slot by gently
pushing it all the way in until it clicks. The slot
also accommodates miniSD, microSD and
Memory Stick Duo cards when used with the
appropriate adapter, available in most
electronics and computer stores. Remove a card
from this slot by gently pushing it in until it
unlatches, then pulling it all the way out of the
slot.
D Card Slot 2: Insert a Compact Flash I
memory card into this slot by gently pushing it
all the way in until it is firmly seated in the slot.
Remove it by pulling it all the way out of the
slot.
E USB Port: Insert a USB client device’s
connector into this port, being careful to
correctly align the device’s plastic tongue with
the gap. Do not connect a computer to this port.
F Remote IR Sensor.
 Main Information Display
1 Power On/Off (Standby)
2 Open/Close
3 Disc Drawer
4 Play/Pause
5 Stop
6 Skip/Search (Previous)
7 Skip/Search (Next)
8 Record
9 Source Selector
A Navigation Buttons
B Enter
C Card Slot 1
D Card Slot 2
E USB Port
F Remote IR Sensor
1
3
876549ABA
2EDCF
Front Panel Controls
harman/kardon
DMC250/230 Service Manual
Page 4 of 110

12 REAR PANEL CONNECTIONS
Rear Panel Connections
13
5
6
89C
0
3
4
7AB2
0 Optical Digital Output
1 Coaxial Digital Output
2 AC Power Cord
3 Composite Video Output
4 S-Video Output
5 Component Video Outputs
6 Scart TV Output
7 Remote Control Output
8 Remote Control Input
9 Analog Audio Output
A HDMI Output
B 6-Channel Audio Outputs
C Analog Audio Input
0 Optical Digital Output: Connect this jack
to the optical digital input of an A/V receiver or
surround processor for Dolby Digital, DTS or
PCM audio playback.
1 Coaxial Digital Output: Connect this jack
to the coaxial digital input of an A/V receiver or
surround processor for Dolby Digital, DTS or
PCM audio playback.
NOTE: The coaxial digital output should only be
connected to a digital input. Even though it is
the same RCA-type connector as standard
analog audio connections, DO NOT connect it to
a conventional analog input jack.
Connect either the Optical Digital Audio
Output
0 or the Coaxial Digital Audio
Output
1 to a corresponding digital audio
input on your receiver or processor, but not both.
2 AC Power Cord: Connect this plug to an
AC outlet. If the outlet is controlled by a switch,
make certain that it is in the ON position.
3 Composite Video Output: Connect this
jack to the video input on a television or video
projector, or to a video input on an A/V receiver
or processor if you are using that type of device
for video input switching.
4 S-Video Output: Connect this jack to the
S-Video input on a television or video projector,
or to an S-Video input on an A/V receiver or
processor if you are using that type of device for
S-Video input switching.
5 Component Video Outputs: These out-
puts carry the component video signals for
connection to display monitors with component
video inputs. For standard analog TV's or
projectors with inputs marked Y/Pr/Pb or
Y/Cr/Cb, connect these outputs to the correspon-
ding inputs. If you have a high-definition televi-
sion or projector that is compatible with high
scan rate progressive video, connect these jacks
to the “HD Component” inputs. Note that if you
are using a progressive scan display device, then
”Progressive” must be selected in the Video
Set-up Menu in order to take advantage of the
progressive scan circuitry. See page 22 for more
information on progressive scan video.
IMPORTANT: These jacks should NOT be
connected to standard composite video inputs.
6 SCART OUT (TV): If your TV has a SCART
socket, you can connect a SCART cable to your
TV and to your DMC 250 Player for improved
video quality. The SCART cable carries both
audio and video. You can select Composite Video
or RGB video for that SCART connector’s video
output signal.
7 Remote Control Output: Connect this
jack to the infrared (IR) input jack of another
compatible Harman Kardon remote controlled
product to have the built-in Remote Sensor on
the DMC 250 provide IR signals to other com-
patible products.
8 Remote Control Input: Connect the
output of a remote infrared sensor, or the
remote control output of another compatible
Harman Kardon product, to this jack. This will
enable the remote control to operate even when
the front panel Remote Sensor on the
DMC 250 is blocked. This jack may also be used
with compatible IR remote control-based
automation systems.
9 Analog Audio Output: Connect these
jacks to an audio input on an A/V receiver or
surround processor for analog audio playback.
A HDMI Output: If you have an HDMI-com-
patible receiver or video display device, connect
this output to an HDMI input on the receiver or
video display for the highest-quality uncom-
pressed digital audio and video available. Even if
your receiver is not capable of processing audio
in the HDMI format, you may still experience the
superb reproduction of HDMI video.
If your video display has a DVI input, you may
use an optional HDMI-to-DVI cable or adapter
for the connection to the display. In all cases, the
video display must be HDCP-compliant in order
to use the HDMI output. For best results, we do
not recommend HDMI connections in excess of
ten feet.
The following audio formats may be output via
the HDMI connection:
Audio CD – 2-Channel PCM or 5.1-channel DTS
DVD-Audio – 2-Channel or 5.1-channel PCM
DVD-Video – Up to 5.1-channel Dolby Digital or
DTS
Note: To hear the high-resolution surround
sound recorded on DVD-Audio discs, you need
to connect the 6-Channel Audio Outputs
B
to the corresponding input jacks on your receiver
or processor. These formats are not output digi-
tally.
B 6-Channel Audio Outputs: Connect these
outputs to the matching 6-channel analog audio
inputs on your receiver or surround sound
processor. This connection is required to listen to
the multichannel tracks on DVD-Audio discs. If
the disc also contains a linear PCM, Dolby
Digital or DTS track, you may listen to it using
the HDMI
A , Optical 0 or Coaxial Dgital
Audio Output
1 or the Analog Audio
Outputs
9 .
Note: You’ll find more details about all
Audio/Video connections under Setup and
Connections on the following pages.
C Analog Audio Inputs: Connect these jacks
to an audio output on a source player like a tape
deck or record player for analog audio recording.
harman/kardon
DMC250/230 Service Manual
Page 5 of 110

4. PACKING VIEW
4.2 DMC250/230
Ref. No. Part No. Part Name Remarks Q'ty NEW
1CPG1A826Y BOX , OUT CARTON 1
2CPB1A180Z BAG, POLY(SET) 1
3CQB1A551Z LABEL, BAR CODE 3
4CQB1A857Z LABEL, DTS 1
5CPS1A759 PAD, SNOW-R 1
6CPS1A758 PAD, SNOW-L 1
7CPS1A765 PAD, CENTER 1
8CQXDMC250/230 INSTRUCTION MANUAL ASS'Y 1
8-1 CQX1A1258Z MANUAL , INSTRUCTION 1
8-2 HQE1A273Z HARMAN IMAGE BROCHURES 1
8-3 CJS0I006Z CABLE, S-VHS(1.5M) 1
8-4 CJS9D002Z CORD , JACK(MONO) 1200MM 1
8-5 CJS4S004Z CORD , PIN(3P,W/R/Y) 1
8-6 CJA2B020Z CORD , POWER 1
8-7 CABR6P BATTERY (SIZE 'AA') 2
8-8 CARTDMC250 REMOCON ASS'Y 1
8-9 CJS8T001Z CABLE, HDMI(2M) 1
8-10 CPB1061W BAG, POLY(MANUAL) 1
9 CQB1A741Z LABEL, ORIGIN 1
harman/kardon
DMC250/230 Service Manual
Page 6 of 110

harman/kardon
DMC250/230 Service Manual
Page 7 of 110

DMC 250/230 ELECTRICAL PARTS LIST
Ref# Component Description Value
CHE154 CLAMPER , ARM
CPG1A826Y BOX , OUT CARTON DMC250/230
CPS1A758 PAD , SNOW(L)
CPS1A759 PAD , SNOW(R)
CPS1A765 PAD , CENTER DMC250
CQB1A549Y LABEL , ATTENTION DVD48
CQB1A551Z LABEL , BAR CODE
CQB1A622 LABEL , SERIAL NO
CQB1A741Z ORIGIN LABEL
CQB1A744Z LABEL, DIVX
CQB1A876Z LABEL , COUNTRY DVD29/230
CQXDMC250/230 INSTRUCTION MANUAL ASS'Y
CARTDMC250 REMOCON ASS'Y
CJA2B020Z CORD , POWER
CJS0I006Z CABLE, S-VHS(1.5M) Y, C
CJS4S004Z CORD , PIN(3P,W/R/Y)
CJS8T001Z CABLE, HDMI(2M) CBADV-005-2
CJS9D002Z CORD , JACK(MONO) 1200MM
CQX1A1258Z MANUAL , INSTRUCTION DMC250/230
CGR1A411ZA DVD DOOR ASS'Y(DMC250) DMC250
CGR1A410 ORNAMENT , DOOR
CGR1A411A25 DOOR , DVD
CGR1A412R4B24 COVER , BACK DMC250
CGWDMC250/230 FRONT PANEL ASS'Y
CBT2A1029ZA FUNCTION KNOB ASS'Y
CBT2A1029MMZB24 KNOB , FUNCTION DMC250
CGX1A383Z SHEET , LED
CMH2A280 HOLDER , KNOB
CGB1A158Y BADGE , FRONT HARMAN/KARDON
CGB1A172Y BADGE , DMC250
CGL1A266Y INDICATOR , POWER DVD29
CGW2A428YA DMC250/230 FRONT PANEL ASS'Y
CBT1A1030MMZB17 KNOB , OPEN
CGU1A400A25Z WINDOW , FIP
CGW2A428R4YB24 PANEL , FRONT DMC250/230
CGX1A385 COVER , SHEET DMC250
CGX1A395C66 SHEET , AL FRONT DMC250
CHG1A305 CUSHION , SUPPORT
CMC1A341 PLATE , EARTH DMC250
CMD1A604 BRACKET , USB
CMD1A655 FRAME , FRONT
CMD1A682 BRACKET , HOLDER
CMX1A227 SHEET , CARD DMC250
CMZ1A118Z FILTER , FIP
COP11950B FRONT/CARD PCB ASS'Y DMC250
CIP11950B FRONT/CARD AUTO PCB ASS'Y DMC250
CIP11950BSMD FRONT/CARD SMD PCB ASS'Y DMC250
CIP11950BBSMD FRONT/CARD BOTTOM SMD PCB ASS'Y DMC250
C202 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C203 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C214 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C217 CCUS1H102KC CAP , CHIP 1000PF 50V K
C333 CCUS1H220JA CAP , CHIP 22PF 50V J
C334 CCUS1H220JA CAP , CHIP 22PF 50V J
C335 CCUS1H220JA CAP , CHIP 22PF 50V J
C336 CCUS1H220JA CAP , CHIP 22PF 50V J
C337 CCUS1H220JA CAP , CHIP 22PF 50V J
C904 CCUS1H104KC CAP , CHIP 0.1UF 50V K
R203 CRJ10DJ681T RES , CHIP 1608 SIZE
R204 CRJ10DJ103T RES , CHIP 1608 SIZE
R205 CRJ10DJ331T RES , CHIP
R227 CRJ10DJ333T RES , CHIP 1608 SIZE
R228 CRJ10DJ100T RES , CHIP 1608 SIZE
R229 CRJ10DJ103T RES , CHIP 1608 SIZE
R905 CRJ104DJ301T RES , ARRAY 300R (1608*4)
R906 CRJ104DJ301T RES , ARRAY 300R (1608*4)
R907 CRJ104DJ301T RES , ARRAY 300R (1608*4)
R909 CRJ104DJ301T RES , ARRAY 300R (1608*4)
R910 CRJ104DJ301T RES , ARRAY 300R (1608*4)
harman/kardon
DMC250/230 Service Manual
Page 8 of 110

R911 CRJ104DJ301T RES , ARRAY 300R (1608*4)
R912 CRJ104DJ301T RES , ARRAY 300R (1608*4)
R913 CRJ104DJ301T RES , ARRAY 300R (1608*4)
R914 CRJ104DJ301T RES , ARRAY 300R (1608*4)
R921 CRJ10DJ103T RES , CHIP 1608 SIZE
R923 CRJ10DJ103T RES , CHIP 1608 SIZE
R924 CRJ10DJ301T RES , CHIP 1608
R927 CRJ10DJ301T RES , CHIP 1608
R930 CRJ10DJ301T RES , CHIP 1608
R931 CRJ10DJ301T RES , CHIP 1608
CIP11950BTSMD FRONT/CARD TOP SMD PCB ASS'Y DMC250
CUP11950Z PCB , FRONT/CRAD DMC250 330X170(FR-4/2 LAYER)
CN27 CJP50GA205ZM WAFER , MOLEX 51374 50PIN, 0.5mm STRAIGHT MOLEX 51374 50PIN, 0.5MM
C201 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C216 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C331 CCUS1H221JA CAP , CHIP 220PF 50V J
C332 CCUS1H221JA CAP , CHIP 220PF 50V J
C902 CCUS1H680JA CAP , CHIP 68PF 50V J
C903 CCUS1H680JA CAP , CHIP 68PF 50V J
C909 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C910 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C911 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C912 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C914 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C915 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C918 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C919 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C922 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C923 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C924 CCUS1H104KC CAP , CHIP 0.1UF 50V K
D301 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
FB91 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB93 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
IC91 HVITC4053BF IC , 2CH. MULTI/DEMULTIPLXER TC4053BF (TAPE)
IC92 HVITC4053BF IC , 2CH. MULTI/DEMULTIPLXER TC4053BF (TAPE)
IC93 CVIKIA1117S33 I.C , REGULATOR(SOT-223) KIA1117S/F33, SOT-223
IC94 CVIRT9702APB IC , CURRENT LIMITER
JK16 CJJ9Y001Z JACK , CF CARD SOCKET RJ-006TC
JK17 CJJ9Y002Z JACK , CARD SOCKET(4 IN 1)
Q201 HVTKRA107ST T.R , CHIP KRA107S
R201 CRJ10DJ152T RES , CHIP 1608 SIZE
R202 CRJ10DJ222T RES , CHIP 1608 SIZE
R206 CRJ10DJ122T RES , CHIP 1608 SIZE
R207 CRJ10DJ821T RES , CHIP 1608 SIZE
R208 CRJ10DJ681T RES , CHIP 1608 SIZE
R209 CRJ10DJ122T RES , CHIP 1608 SIZE
R210 CRJ10DJ821T RES , CHIP 1608 SIZE
R211 CRJ10DJ332T RES , CHIP 1608 SIZE
R212 CRJ10DJ331T RES , CHIP
R213 CRJ10DJ222T RES , CHIP 1608 SIZE
R214 CRJ10DJ152T RES , CHIP 1608 SIZE
R215 CRJ10DJ331T RES , CHIP
R216 CRJ10DJ331T RES , CHIP
R217 CRJ10DJ331T RES , CHIP
R218 CRJ10DJ331T RES , CHIP
R219 CRJ10DJ331T RES , CHIP
R220 CRJ10DJ331T RES , CHIP
R221 CRJ10DJ331T RES , CHIP
R222 CRJ10DJ331T RES , CHIP
R223 CRJ10DJ331T RES , CHIP
R224 CRJ10DJ331T RES , CHIP
R225 CRJ10DJ331T RES , CHIP
R226 CRJ10DJ331T RES , CHIP
R901 CRJ10DJ104T RES , CHIP 1608 SIZE
R902 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R903 CRJ10DJ270T RES , CHIP
R904 CRJ10DJ270T RES , CHIP
R908 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R915 CRJ10DJ103T RES , CHIP 1608 SIZE
R916 CRJ10DJ103T RES , CHIP 1608 SIZE
R917 CRJ10DJ103T RES , CHIP 1608 SIZE
harman/kardon
DMC250/230 Service Manual
Page 9 of 110

R918 CRJ10DJ104T RES , CHIP 1608 SIZE
R919 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R920 CRJ104DJ301T RES , ARRAY 300R (1608*4)
R922 CRJ104DJ301T RES , ARRAY 300R (1608*4)
R925 CRJ10DJ103T RES , CHIP 1608 SIZE
R926 CRJ10DJ750T RES , CHIP 1608 SIZE
R928 CRJ104DJ301T RES , ARRAY 300R (1608*4)
R929 CRJ104DJ750T RES , ARRAY 75R (1608*4)
R932 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
R933 CRJ104DJ750T RES , ARRAY 75R (1608*4)
R934 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
R935 CRJ10DJ750T RES , CHIP 1608 SIZE
R936 CRJ10DJ103T RES , CHIP 1608 SIZE
R937 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R938 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
R939 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
R940 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R941 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R942 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R943 CRJ10DJ202T RES , CHIP
R944 CRJ10DJ202T RES , CHIP
R945 CRJ10DJ202T RES , CHIP
R946 CRJ10DJ202T RES , CHIP
R947 CRJ10DJ103T RES , CHIP 1608 SIZE
R951 CRJ10DJ273T RES , CHIP
R952 CRJ10DJ273T RES , CHIP
R998 CRJ10DJ220T RES , CHIP 1608 SIZE
R999 CRJ10DJ222T RES , CHIP 1608 SIZE
C213 CCEA1CKS220T CAP , ELECT 22UF 16V SMALL SIZE
C901 CCEA1HKS100T CAP , ELECT 10UF 50V SMALL SIZE
C906 CCEA1HKS100T CAP , ELECT 10UF 50V SMALL SIZE
C907 CCEA1AKS221T CAP , ELECT 220UF 10V
C908 CCEA1EKS470T CAP , ELECT 47UF 25V
C913 CCEA1EKS470T CAP , ELECT 47UF 25V
C916 CCEA1EKS470T CAP , ELECT 47UF 25V
C917 CCEA1EKS470T CAP , ELECT 47UF 25V
C920 CCEA1CKS101T CAP , ELECT 100UF 16V
C921 CCEA1CKS101T CAP , ELECT 100UF 16V
D901 CVD1N4003SRT DIODE , RECT 1N4003
SW11 CST1A012ZT SW , TACT SKHV10910G
SW12 CST1A012ZT SW , TACT SKHV10910G
SW13 CST1A012ZT SW , TACT SKHV10910G
SW14 CST1A012ZT SW , TACT SKHV10910G
SW15 CST1A012ZT SW , TACT SKHV10910G
SW16 CST1A012ZT SW , TACT SKHV10910G
SW17 CST1A012ZT SW , TACT SKHV10910G
SW18 CST1A012ZT SW , TACT SKHV10910G
SW19 CST1A012ZT SW , TACT SKHV10910G
SW20 CST1A012ZT SW , TACT SKHV10910G
SW21 CST1A012ZT SW , TACT SKHV10910G
SW22 CST1A012ZT SW , TACT SKHV10910G
SW23 CST1A012ZT SW , TACT SKHV10910G
CMD2A602 BRACKET , FL
BN31 CWZDMC250BN31 SHIEL WIRE ASS'Y(4P, 200mm)
BN99 CWB1C903180EN WIRE ASS'Y (3P, 180mm)
CN18 CJP17GB113ZY WAFER
CN33 CJP09GB113ZY WAFER , 9PIN ANGLE CARD CABLE 1MM
CN34 CJP09GB113ZY WAFER , 9PIN ANGLE CARD CABLE 1MM
CN99 CJP03GB46ZY WAFER , ANGLE(3PIN)
D201 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D202 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D203 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D204 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D205 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D206 CVD1L034FA22M0MA L.E.D , AMBER DIFFUSED 1L034FA22M0MA001
D207 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D208 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D209 CVD30BSOKTAAU4 L.E.D , SUPER ORANGE(3PAI, 2.5mm/BULK) TOL-30BSOKTAA-U4
D210 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D211 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D212 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
harman/kardon
DMC250/230 Service Manual
Page 10 of 110

D213 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D214 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D998 CVD1L0345W31BOCT20 L.E.D , WHITE 1L0345W31BOCT201
D999 CVD1L034FA22M0MA L.E.D , AMBER DIFFUSED 1L034FA22M0MA001
FIP1 CFL13BT231GINK F.I.P , FUTABA
IC21 HRVKSM603TH2 SENSOR , REMOCON KSM-603TH2
JK13 HJJ9X001Z JACK, USB
JW14 CWE8202080RV WIRE ASS'Y(1P)
JW21 CWE7202100AR WIRE ASS'Y
JW22 CWE8202080RV WIRE ASS'Y(1P)
JW23 CWE8202080RV WIRE ASS'Y(1P)
CTB3+10JR SCREW
CTB3+6JR SCREW
CTB3+8JR SCREW
CTS3+8JFZR SCREW
CWE7202050RR WIRE ASS'Y
CWE8102050RR RING WIRE ASS'Y
C4FA031 TAPE , BOTH SIDE NITTO #500
KMC1A267 TAPE , EMI GASKET
CKC1A178S60 CABINET, TOP DMC250
CMC1A327 PLATE , SHIELD
CMX1A180Z INSULATOR
CTB3+6JR SCREW
CTB3+8JFZR SCREW
CTS3+8JFZR SCREW
CUADMC250/230 BOTTOM CHASSIS ASS'Y
CHD1A055R SCREW , SPECIAL
CHG1A373 CUSHION , FOOT AVR350
CJDDMC250YA DVD MECHANISM ASS'Y
CADSDL003WA DVD LOADER ASS'Y
CADSDL003Z LOADER
CJDDV348HG TRAVERSE PICKUP ASS'Y SF-HD850HG
CMH1A250 GUIDE, CABLE
CWB1B905150EE WIRE ASS'Y
CWB5A906150SE WIRE ASS'Y
CWC4G2A24G300B CABLE , CARD DVD(0.5mm PITCH, A-B) DMC250
CKF2A331YK1 PANEL , REAR DMC250/230
CKL1A098 FOOT , L
CKL1A099 FOOT , R
COP11985C DMC250/230 MAIN PCB ASS'Y
C101 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C102 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C103 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C104 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C108 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C110 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C111 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C112 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C113 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C116 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C117 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C118 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C119 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C120 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C122 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C123 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C124 CCUS1H101JA CAP , CHIP 100PF 50V J
C130 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C131 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C132 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C133 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C134 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C135 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C136 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C137 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C138 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C139 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C140 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C141 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C142 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C143 CCUS1H103KC CAP , CHIP 0.01UF 50V K
harman/kardon
DMC250/230 Service Manual
Page 11 of 110

C144 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C145 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C146 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C147 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C148 CCUS1H101JA CAP , CHIP 100PF 50V J
C155 CCUS1H102KC CAP , CHIP 1000PF 50V K
C156 CCUS1H102KC CAP , CHIP 1000PF 50V K
C157 CCUS1H273KC CAP , CHIP 0.027UF 50V K
C158 CCUS1H273KC CAP , CHIP 0.027UF 50V K
C166 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C180 CCUS1H102KC CAP , CHIP 1000PF 50V K
C185 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C186 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C195 CCUS1H050CA CAP , CHIP 5PF 50V C
C281 CCUS1H030CA CAP , CHIP(50V/3PF)
C282 CCUS1H030CA CAP , CHIP(50V/3PF)
C283 CCUS1H030CA CAP , CHIP(50V/3PF)
C284 CCUS1H030CA CAP , CHIP(50V/3PF)
C285 CCUS1H030CA CAP , CHIP(50V/3PF)
C286 CCUS1H030CA CAP , CHIP(50V/3PF)
C287 CCUS1H030CA CAP , CHIP(50V/3PF)
C288 CCUS1H030CA CAP , CHIP(50V/3PF)
C311 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C312 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C313 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C314 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C315 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C316 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C317 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C318 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C319 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C320 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C321 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C322 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C323 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C325 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C326 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C327 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C328 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C329 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C330 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C331 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C332 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C333 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C334 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C335 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C336 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C337 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C338 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C339 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C340 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C341 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C342 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C343 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C344 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C345 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C346 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C347 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C348 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C354 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C361 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C362 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C363 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C369 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C370 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C371 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C372 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C373 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C374 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C404 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C406 CCUS1H104KC CAP , CHIP 0.1UF 50V K
harman/kardon
DMC250/230 Service Manual
Page 12 of 110

C408 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C409 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C426 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C604 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C606 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C612 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C618 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C663 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C664 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C756 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C758 CCUS1H221JA CAP , CHIP 220PF 50V J
C759 CCUS1H221JA CAP , CHIP 220PF 50V J
C760 CCUS1H221JA CAP , CHIP 220PF 50V J
C803 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C804 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C807 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C808 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C811 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C812 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C813 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C814 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C816 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C817 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C820 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C821 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C824 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C825 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C826 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C827 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C828 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C829 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C830 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C831 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C832 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C833 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C841 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C842 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C843 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C844 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C845 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C846 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C848 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C849 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C850 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C851 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C852 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C853 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C904 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C905 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C906 CCUS1H102KC CAP , CHIP 1000PF 50V K
C907 CCUS1H102KC CAP , CHIP 1000PF 50V K
C911 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C912 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C913 CCUS1H102KC CAP , CHIP 1000PF 50V K
C914 CCUS1H102KC CAP , CHIP 1000PF 50V K
C915 CCUS1H102KC CAP , CHIP 1000PF 50V K
C916 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C917 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C918 CCUS1H102KC CAP , CHIP 1000PF 50V K
C919 CCUS1H102KC CAP , CHIP 1000PF 50V K
C920 CCUS1H102KC CAP , CHIP 1000PF 50V K
C923 CCSJA1C100B CAP , CHIP TANTAL(A TYPE, 10uF/16V, ELNA)
C924 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C925 CCSJA1C100B CAP , CHIP TANTAL(A TYPE, 10uF/16V, ELNA)
C930 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C931 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C933 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C945 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C952 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C953 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C956 CCUS1H221JA CAP , CHIP 220PF 50V J
harman/kardon
DMC250/230 Service Manual
Page 13 of 110

FB13 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB24 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB45 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L509 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L607 HLZ9R005Z BEAD CHIP 60(1608 SIZE) HH-1M1608-600
L901 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
R11 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R112 CRJ10DJ103T RES , CHIP 1608 SIZE
R137 CRJ10DJ202T RES , CHIP
R138 CRJ10DJ202T RES , CHIP
R141 CRJ10DJ330T RES , CHIP 1608 SIZE
R143 CRJ10DF2002T RES , CHIP 1%
R151 CRJ10DF39R0T CHIP RES, 1% 39 Ohm
R152 CRJ10DF4300T RES
R198 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R199 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R215 CRJ10DJ472T RES , CHIP 1608 SIZE
R321 CRJ10DJ103T RES , CHIP 1608 SIZE
R322 CRJ10DJ103T RES , CHIP 1608 SIZE
R348 CRJ10DJ103T RES , CHIP 1608 SIZE
R350 CRJ104DJ101T RES , CHIP NETWORK(1/16W, 100ohm, 1608X4) 100R (1608)
R351 CRJ10DJ102T RES , CHIP 1608 SIZE
R352 CRJ10DJ102T RES , CHIP 1608 SIZE
R353 CRJ10DJ102T RES , CHIP 1608 SIZE
R354 CRJ10DJ102T RES , CHIP 1608 SIZE
R355 CRJ10DJ102T RES , CHIP 1608 SIZE
R356 CRJ10DJ102T RES , CHIP 1608 SIZE
R357 CRJ10DJ102T RES , CHIP 1608 SIZE
R379 CRJ10DJ103T RES , CHIP 1608 SIZE
R380 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R436 CRJ10DJ103T RES , CHIP 1608 SIZE
R735 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R752 CRJ10DJ103T RES , CHIP 1608 SIZE
R753 CRJ10DJ103T RES , CHIP 1608 SIZE
R761 CRJ10DJ103T RES , CHIP 1608 SIZE
R762 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R763 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R797 CRJ10DJ473T RES , CHIP 1608 SIZE
R798 CRJ10DJ473T RES , CHIP 1608 SIZE
R810 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R811 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R812 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R822 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R824 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R835 CRJ10DJ472T RES , CHIP 1608 SIZE
R842 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R844 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R893 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R912 CRJ10DJ472T RES , CHIP 1608 SIZE
R913 CRJ10DF4700T RES, CHIP 470 OHM/1608/1%
R919 CRJ10DJ473T RES , CHIP 1608 SIZE
CN20 CJP24GA195ZM SMT FFC/FPC WAFER(0.5MM PITCH) 52559-2472 (PB FREE)
CN26 CJP50GA205ZM WAFER , MOLEX 51374 50PIN, 0.5mm STRAIGHT MOLEX 51374 50PIN, 0.5MM
C106 CCUS1H102KC CAP , CHIP 1000PF 50V K
C109 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C121 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C126 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C127 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C151 CCUS1H330JA CAP , CHIP 33PF 50V J
C152 CCUS1H330JA CAP , CHIP 33PF 50V J
C153 CCUS1H330JA CAP , CHIP 33PF 50V J
C154 CCUS1H330JA CAP , CHIP 33PF 50V J
C162 CCUS1H330JA CAP , CHIP 33PF 50V J
C165 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C167 CCUS1H102KC CAP , CHIP 1000PF 50V K
C168 CCUS1H330JA CAP , CHIP 33PF 50V J
C169 CCUS1H330JA CAP , CHIP 33PF 50V J
C170 CCUS1H330JA CAP , CHIP 33PF 50V J
C171 CCUS1H330JA CAP , CHIP 33PF 50V J
C172 CCUS1H330JA CAP , CHIP 33PF 50V J
C173 CCUS1H330JA CAP , CHIP 33PF 50V J
harman/kardon
DMC250/230 Service Manual
Page 14 of 110

C174 CCUS1H330JA CAP , CHIP 33PF 50V J
C175 CCUS1H330JA CAP , CHIP 33PF 50V J
C176 CCUS1H330JA CAP , CHIP 33PF 50V J
C177 CCUS1H330JA CAP , CHIP 33PF 50V J
C181 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C183 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C189 CCUS1H200JA CAP , CHIP
C191 CCUS1H200JA CAP , CHIP
C192 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C196 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C197 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C199 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C201 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C203 CCUS1H102KC CAP , CHIP 1000PF 50V K
C204 CCUS1H102KC CAP , CHIP 1000PF 50V K
C205 CCUS1H102KC CAP , CHIP 1000PF 50V K
C206 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C208 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C209 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C210 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C211 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C212 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C213 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C217 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C221 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C231 CCUS1H273KC CAP , CHIP 0.027UF 50V K
C233 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C237 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C240 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C261 CCUS1H102KC CAP , CHIP 1000PF 50V K
C263 CCUS1H102KC CAP , CHIP 1000PF 50V K
C291 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C293 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C296 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C301 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C303 CCUS1H471JA CAP , CHIP 470PF 50V J
C304 CCUS1H471JA CAP , CHIP 470PF 50V J
C305 CCUS1H120JA CAP , CHIP(12PF/50V/COG/1608) 12PF 50V J
C306 CCUS1H120JA CAP , CHIP(12PF/50V/COG/1608) 12PF 50V J
C307 CCUS1H471JA CAP , CHIP 470PF 50V J
C308 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C352 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C355 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C381 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C382 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C401 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C412 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C413 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C417 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C420 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C424 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C429 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C431 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C442 CCUS1H391JA CAP , CHIP 390PF 50V J
C445 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C448 CCUS1H391JA CAP , CHIP 390PF 50V J
C449 CCUS1H391JA CAP , CHIP 390PF 50V J
C450 CCUS1H391JA CAP , CHIP 390PF 50V J
C454 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C458 CCUS1H391JA CAP , CHIP 390PF 50V J
C460 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C463 CCUS1H391JA CAP , CHIP 390PF 50V J
C464 CCUS1H391JA CAP , CHIP 390PF 50V J
C468 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C469 CCUS1H391JA CAP , CHIP 390PF 50V J
C475 CCUS1H391JA CAP , CHIP 390PF 50V J
C477 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C480 CCUS1H391JA CAP , CHIP 390PF 50V J
C482 CCUS1H391JA CAP , CHIP 390PF 50V J
C485 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C486 CCUS1H391JA CAP , CHIP 390PF 50V J
harman/kardon
DMC250/230 Service Manual
Page 15 of 110

C492 CCUS1H391JA CAP , CHIP 390PF 50V J
C494 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C497 CCUS1H391JA CAP , CHIP 390PF 50V J
C498 CCUS1H391JA CAP , CHIP 390PF 50V J
C500 CCUS1H391JA CAP , CHIP 390PF 50V J
C502 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C510 CCUS1H101JA CAP , CHIP 100PF 50V J
C511 CCUS1H101JA CAP , CHIP 100PF 50V J
C512 CCUS1H101JA CAP , CHIP 100PF 50V J
C513 CCUS1H101JA CAP , CHIP 100PF 50V J
C514 CCUS1H101JA CAP , CHIP 100PF 50V J
C515 CCUS1H101JA CAP , CHIP 100PF 50V J
C516 CCUS1H101JA CAP , CHIP 100PF 50V J
C517 CCUS1H101JA CAP , CHIP 100PF 50V J
C518 CCUS1H101JA CAP , CHIP 100PF 50V J
C519 CCUS1H101JA CAP , CHIP 100PF 50V J
C524 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C525 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C528 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C529 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C532 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C534 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C536 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C537 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C602 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C605 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C607 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C608 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C609 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C614 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C615 CCUS1A105KC CAP , CHIP 1UF 10V K
C617 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C619 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C620 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C621 CCUS1H821JA CAP , CHIP 820PF 50V J
C622 CCUS1H392KC CAP , CHIP CERAMIC(1608, 3900p) 3900PF 50V K
C624 CCUS1H101JA CAP , CHIP 100PF 50V J
C628 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C629 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C630 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C633 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C636 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C637 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C638 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C641 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C643 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C645 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C646 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C649 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C651 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C654 CCUS1H560JA CAP , CHIP 56PF 50V J
C655 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C658 CCUS1H220JA CAP , CHIP 22PF 50V J
C665 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C668 CCUS1H560JA CAP , CHIP 56PF 50V J
C676 CCUS1H470JA CAP , CHIP 47PF 50V J
C677 CCUS1H470JA CAP , CHIP 47PF 50V J
C678 CCUS1H470JA CAP , CHIP 47PF 50V J
C679 CCUS1H470JA CAP , CHIP 47PF 50V J
C680 CCUS1H470JA CAP , CHIP 47PF 50V J
C681 CCUS1H470JA CAP , CHIP 47PF 50V J
C683 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C688 CCUS1H680JA CAP , CHIP 68PF 50V J
C689 CCUS1H680JA CAP , CHIP 68PF 50V J
C690 CCUS1H680JA CAP , CHIP 68PF 50V J
C691 CCUS1H680JA CAP , CHIP 68PF 50V J
C692 CCUS1H680JA CAP , CHIP 68PF 50V J
C693 CCUS1H680JA CAP , CHIP 68PF 50V J
C703 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C704 CCUS1H151JA CAP , CHIP 150PF 50V J
C705 CCUS1H150JA CAP , CHIP(15PF/50V) 15PF 50V J
harman/kardon
DMC250/230 Service Manual
Page 16 of 110

C706 CCUS1H150JA CAP , CHIP(15PF/50V) 15PF 50V J
C710 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C715 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C752 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C753 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C757 CCUS1H221JA CAP , CHIP 220PF 50V J
C763 CCUS1H102KC CAP , CHIP 1000PF 50V K
C764 CCUS1H220JA CAP , CHIP 22PF 50V J
C765 CCUS1H220JA CAP , CHIP 22PF 50V J
C766 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C790 CCUS1H101JA CAP , CHIP 100PF 50V J
C794 CCUS1H101JA CAP , CHIP 100PF 50V J
C797 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C799 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C809 CCUS1H180JA CAP , CHIP(18PF/50V) 18PF 50V J
C810 CCUS1H180JA CAP , CHIP(18PF/50V) 18PF 50V J
C822 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C856 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C858 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C859 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C862 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C863 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C901 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C902 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C903 CCUS1H102KC CAP , CHIP 1000PF 50V K
C908 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C909 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C910 CCUS1H102KC CAP , CHIP 1000PF 50V K
C921 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C922 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C926 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C927 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C928 CCSJA1C100B CAP , CHIP TANTAL(A TYPE, 10uF/16V, ELNA)
C929 CCSJA1C100B CAP , CHIP TANTAL(A TYPE, 10uF/16V, ELNA)
C932 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C934 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C935 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C936 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C940 CCSJA1C100B CAP , CHIP TANTAL(A TYPE, 10uF/16V, ELNA)
C941 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C942 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C943 CCSJA1C100B CAP , CHIP TANTAL(A TYPE, 10uF/16V, ELNA)
C944 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C950 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C955 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C957 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C970 CCUS1H150JA CAP , CHIP(15PF/50V) 15PF 50V J
C971 CCUS1H150JA CAP , CHIP(15PF/50V) 15PF 50V J
D201 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D202 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D292 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D293 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D294 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D298 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D299 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D401 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D402 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D602 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D701 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D702 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D703 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D781 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D782 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D783 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D784 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
D785 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11
FB10 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB11 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB12 HLZ9R006Z BEAD , CHIP
FB14 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB15 CRJ10CJ0R0T RES , CHIP (1/10W OR) 3216 SIZE
harman/kardon
DMC250/230 Service Manual
Page 17 of 110

FB16 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB17 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB18 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB19 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB21 HLZ9R006Z BEAD , CHIP
FB22 HLZ9R006Z BEAD , CHIP
FB25 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB26 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB27 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB28 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB29 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB31 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB32 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB41 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB42 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB43 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB46 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB62 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB64 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB91 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
FB92 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
IC10 HVIKIC7S66FU i.c , SWITCH(USV PACKAGE) KIC7S66FU-RTK/3
IC11 CVIKIA1117S33 I.C , REGULATOR(SOT-223) KIA1117S/F33, SOT-223
IC12 CVIKIA1117S18 I.C , REGULATOR(SOT-223) KIA1117S/F18, SOT-223
IC13 CVIZR36886HLCG I.C , MPEG(ZORAN)
IC14 CVIES29LV320ET70TG I.C , FLASH ROM 32Mbit IC (TOP BOOST) ES29LV320ET70TG
IC15 HVIM12L64164A7T IC, 64M SDRAM (4X16)
IC16 HVIAT24C08N10SC I.C AT24C08N10SC2.7
IC201 HVITL3472IDR IC,OP AMP 8-SOIC (TI)
IC22 HVIAM5888SLF I. C , Motor Driver(AMtek,Pb free) AM5888S L/F
IC24 HVTHN1K05FU MOS FET HN1K05FU
IC31 HVIKIC7SH08FU HIGH SPEED 2 INPUT AND GATE (USV PACKAGE) KIC7SHO8FU-RTK
IC32 CVITMS320DA707 I.C , DSP DECODER
IC33 HVIRH5VT28C I.C , RESET
IC35 CVIKIA1117S33 I.C , REGULATOR(SOT-223) KIA1117S/F33, SOT-223
IC36 CVIKIA1117S00 I.C , REGULATOR(SOT-223) KIA1117S00-RTK/P
IC37 HVI57V161610ET7 SDRAM 16M 7NS HY57V161610ET-7
IC38 CVIS29AL016D70TFI01 IC,16M FLASH(SPANSION)
IC41 HVIKIC7SH08FU HIGH SPEED 2 INPUT AND GATE (USV PACKAGE) KIC7SHO8FU-RTK
IC42 HVICS4382-KQ I.C , DAC CS4382-KQ
IC43 HVIKIC7SH08FU HIGH SPEED 2 INPUT AND GATE (USV PACKAGE) KIC7SHO8FU-RTK
IC44 HVIAK5381VT I.C , ADC
IC45 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC46 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC47 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC48 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC49 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC51 CVIKIA1117S50 I.C , REGULATOR(SOT-223) KIA1117S50-RTK/P
IC53 CVIKIA1117S33 I.C , REGULATOR(SOT-223) KIA1117S/F33, SOT-223
IC61 CVIADV7320KSTZ I.C , VIDEO ENCODER
IC62 BVIBA50BC0FP I.C , REGULATOR CHIP (+5V) BA50BC0FP-E2
IC63 CVIKIA1117S33 I.C , REGULATOR(SOT-223) KIA1117S/F33, SOT-223
IC64 CVIKIA1117S25 I.C , REGULATOR(SOT-223) KIA1117S25-RTK/P
IC65 BVIBH7862FS IC , 6CH VIDEO DRIVER ROHM (BH7862FS)
IC66 HVIBA7660FS IC , R.G.B DRIVER BA7660FS
IC71 HVIST72F324K2 IC,FLASH (ST)
IC72 HVITC74HCT7007F I.C TC74HC7007AFEL
IC74 HVIBU2098F IC , I2C BUS ROHM
IC75 CVIKIA1117S33 I.C , REGULATOR(SOT-223) KIA1117S/F33, SOT-223
IC77 CVIT5CB5PQ I.C , MCU (FLASH 61440 bytes PQFP64)
IC78 HVIKIC7SH08FU HIGH SPEED 2 INPUT AND GATE (USV PACKAGE) KIC7SHO8FU-RTK
IC81 CVIFLI2310LFCF I/P CONVERTER, FLI2310-LF-CF FLI2310-LF-CF
IC82 CVIW9864G2GH6 SDRAM , 64M(512K x 4Banks x 32bit) 6nS
IC83 HVISN74AHC541PW OCTAL BUFFERS IC(TSSOP-20 PKG) SN74AHC541PWR
IC84 HVITA48033FTE16 I.C , REGULATOR TA48033FTE16
IC85 BVIBA18BC0FP I.C , REGULATOR CHIP (1.8V) BA18BC0FP-E2
IC88 BVIBA50BC0FP I.C , REGULATOR CHIP (+5V) BA50BC0FP-E2
IC89 CVIKIA1117S33 I.C , REGULATOR(SOT-223) KIA1117S/F33, SOT-223
IC91 CVISII9030CTU7 I.C , HDMI TX
IC92 CVIKIA1117S50 I.C , REGULATOR(SOT-223) KIA1117S50-RTK/P
IC93 CVIKIA1117S18 I.C , REGULATOR(SOT-223) KIA1117S/F18, SOT-223
harman/kardon
DMC250/230 Service Manual
Page 18 of 110

IC94 CVIKIA1117S33 I.C , REGULATOR(SOT-223) KIA1117S/F33, SOT-223
IC95 HVIKIC7SH08FU HIGH SPEED 2 INPUT AND GATE (USV PACKAGE) KIC7SHO8FU-RTK
IC96 HVTHN1K02FUTE85 TR , MOS FET (S-MOS) HN1K02FU-TE85L
IC98 HVIKIC7SZ08FU I.C ,INPUT AND GATE (USV PACKAGE) KIC7SZ08FU-RTK
JK91 CJJ9H004Z JACK , HDMI GOLD YKF45-7043N
LC30 CLZ9R007Z CHIP , BEAD (EMC FILTER)
LC31 CLZ9R007Z CHIP , BEAD (EMC FILTER)
L104 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L201 HLQ06E100KRZ INDUCTOR , CHIP 3225 SIZE
L202 HLQ06E100KRZ INDUCTOR , CHIP 3225 SIZE
L203 HLQ06E100KRZ INDUCTOR , CHIP 3225 SIZE
L301 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L504 HLQ08ER68KRZ CHIP FERRITE INDUCTOR 2012-R68UH
L505 HLQ08ER39KRZ CHIP FERRITE INDUCTOR 2012-R39UH
L506 HLQ08E1R8KRZ CHIP , COIL (1.8UH) 2012
L507 HLQ08E1R8KRZ CHIP , COIL (1.8UH) 2012
L508 HLQ08E1R8KRZ CHIP , COIL (1.8UH) 2012
L510 HLQ08ER68KRZ CHIP FERRITE INDUCTOR 2012-R68UH
L511 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L515 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L516 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L601 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L602 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L603 HLQ06E100KRZ INDUCTOR , CHIP 3225 SIZE
L605 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L608 CRJ10DJ0R0T RES , CHIP 1608 SIZE
L609 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L610 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L611 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L700 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L712 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L790 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L797 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L798 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L799 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L801 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L803 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L804 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L805 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L807 HLZ9R005Z BEAD CHIP 60(1608 SIZE) HH-1M1608-600
L902 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L903 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L905 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L906 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L907 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L908 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L909 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L910 CLZ9R009Z CHOKE COIL, CHIP ( FOR HDMI )
L911 CLZ9R009Z CHOKE COIL, CHIP ( FOR HDMI )
L912 CLZ9R009Z CHOKE COIL, CHIP ( FOR HDMI )
L913 CLZ9R009Z CHOKE COIL, CHIP ( FOR HDMI )
L914 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L915 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A
L970 HLQ09E8R2KRZ CHIP , COIL
Q201 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS
Q202 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS
Q203 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS
Q204 HVTKTA1664YP T.R
Q205 HVTKTA1664YP T.R
Q291 HVTKTC3875SYRTK T.R , CHIP KTC3875S Y RTK
Q292 HVTKTC3875SYRTK T.R , CHIP KTC3875S Y RTK
Q401 HVTKRC107S T.R , CHIP
Q402 HVTKRA107ST T.R , CHIP KRA107S
Q403 HVTKRA107ST T.R , CHIP KRA107S
Q404 HVTKRA107ST T.R , CHIP KRA107S
Q406 HVTKRC107S T.R , CHIP
Q407 HVTKRA107ST T.R , CHIP KRA107S
Q408 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q409 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q410 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q411 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
harman/kardon
DMC250/230 Service Manual
Page 19 of 110

Q412 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q413 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q414 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q415 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q416 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q417 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q418 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q419 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q420 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q421 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q422 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q423 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q601 HVTKTA2014GR T.R , CHIP TRPNPB-R2
Q602 HVTKTA2014GR T.R , CHIP TRPNPB-R2
Q603 HVTKTA2014GR T.R , CHIP TRPNPB-R2
Q604 HVTKTA2014GR T.R , CHIP TRPNPB-R2
Q605 HVTKTA2014GR T.R , CHIP TRPNPB-R2
Q611 HVTKRC107S T.R , CHIP
Q612 HVTKTA2014GR T.R , CHIP TRPNPB-R2
Q613 HVTKRC107S T.R , CHIP
Q701 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK
Q702 HVTKTC3875SYRTK T.R , CHIP KTC3875S Y RTK
Q703 HVTKRC107S T.R , CHIP
Q704 HVTKRA107ST T.R , CHIP KRA107S
Q780 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS
Q781 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS
Q901 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS
Q970 HVTKRA107ST T.R , CHIP KRA107S
Q971 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
Q972 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK
Q974 HVTKRA107ST T.R , CHIP KRA107S
Q975 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK
Q976 HVTKTD1304T T.R , CHIP (MUTE) KTD1304
RN61 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN62 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN63 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN64 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN65 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN66 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN67 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN81 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN82 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN83 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN84 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN85 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN86 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN87 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN88 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN89 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN90 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN91 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN92 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN93 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN94 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN95 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN98 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN99 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
R101 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R102 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R103 CRJ10DJ472T RES , CHIP 1608 SIZE
R104 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R105 CRJ10DJ472T RES , CHIP 1608 SIZE
R106 CRJ10DJ472T RES , CHIP 1608 SIZE
R107 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R108 CRJ10DJ472T RES , CHIP 1608 SIZE
R109 CRJ10DJ102T RES , CHIP 1608 SIZE
R110 CRJ10DJ102T RES , CHIP 1608 SIZE
R111 CRJ10DJ680T RES , CHIP
R113 CRJ10DJ102T RES , CHIP 1608 SIZE
R114 CRJ10DJ513T RES , CHIP 51K
R115 CRJ10DJ303T RES , CHIP
harman/kardon
DMC250/230 Service Manual
Page 20 of 110
