Harman JBL CLICK User manual

JBL CLICK

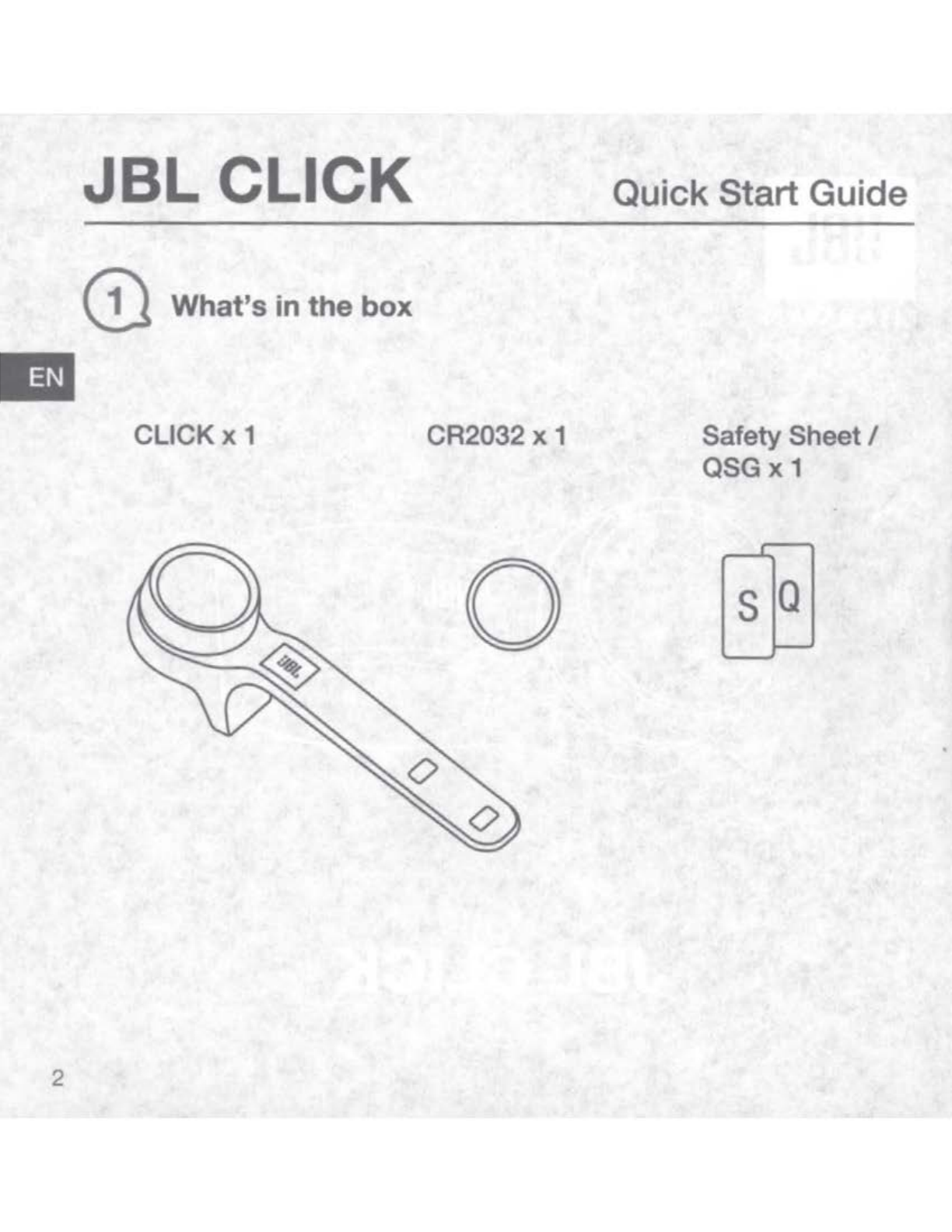

0 What's in the box
CLICK x 1 CR2032 x 1
2
Quick Start Guide
Safety Sheet/
QSGx1
•
sa
-

JBL CLICK Quick Start Guide
® Overview
~) ·············
(}
3

4
JBL CLICK

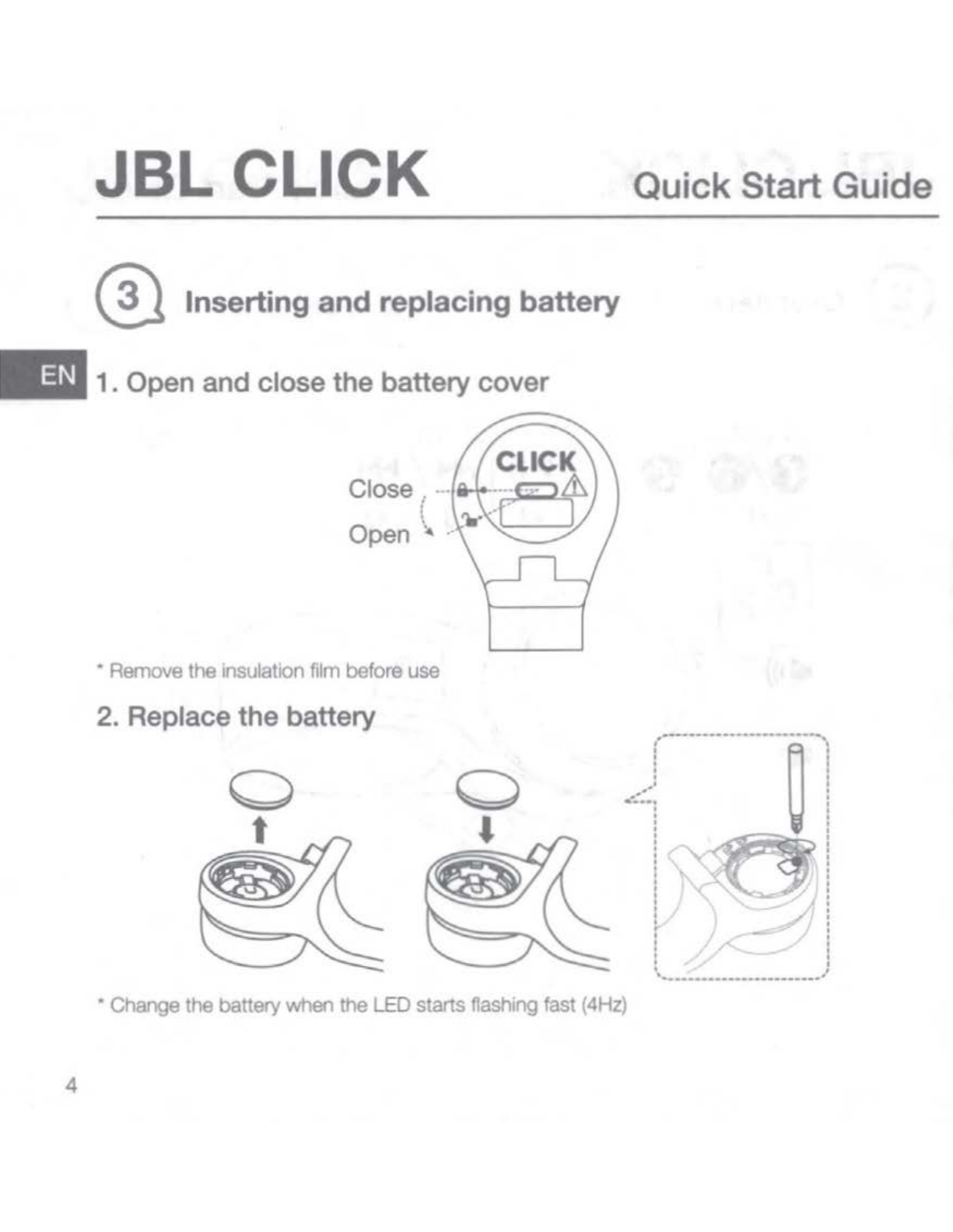

® Inserting and replacing battery
1. Open and close the battery cover
Close , -
f
Open\
• Remove the insulation film before use
2. Replace the battery
0
t 0
'
• Change the battery when the LED starts flashing fast (4Hz)
Quick Start Guide

JBL CLICK
© Bluetooth®Connection
1. Press and hold the knob
0
9 5.0s
2. Connect to Bluetooth device
•
=
Quick Start Guide
< Settings
Bluetooth
Bluetooth 0
DEVICES ;_.~
JBLClick
a-necroo CD
~
Choose"JBLCllck"toconnect
5

6
JBL CLICK Quick Start Guide

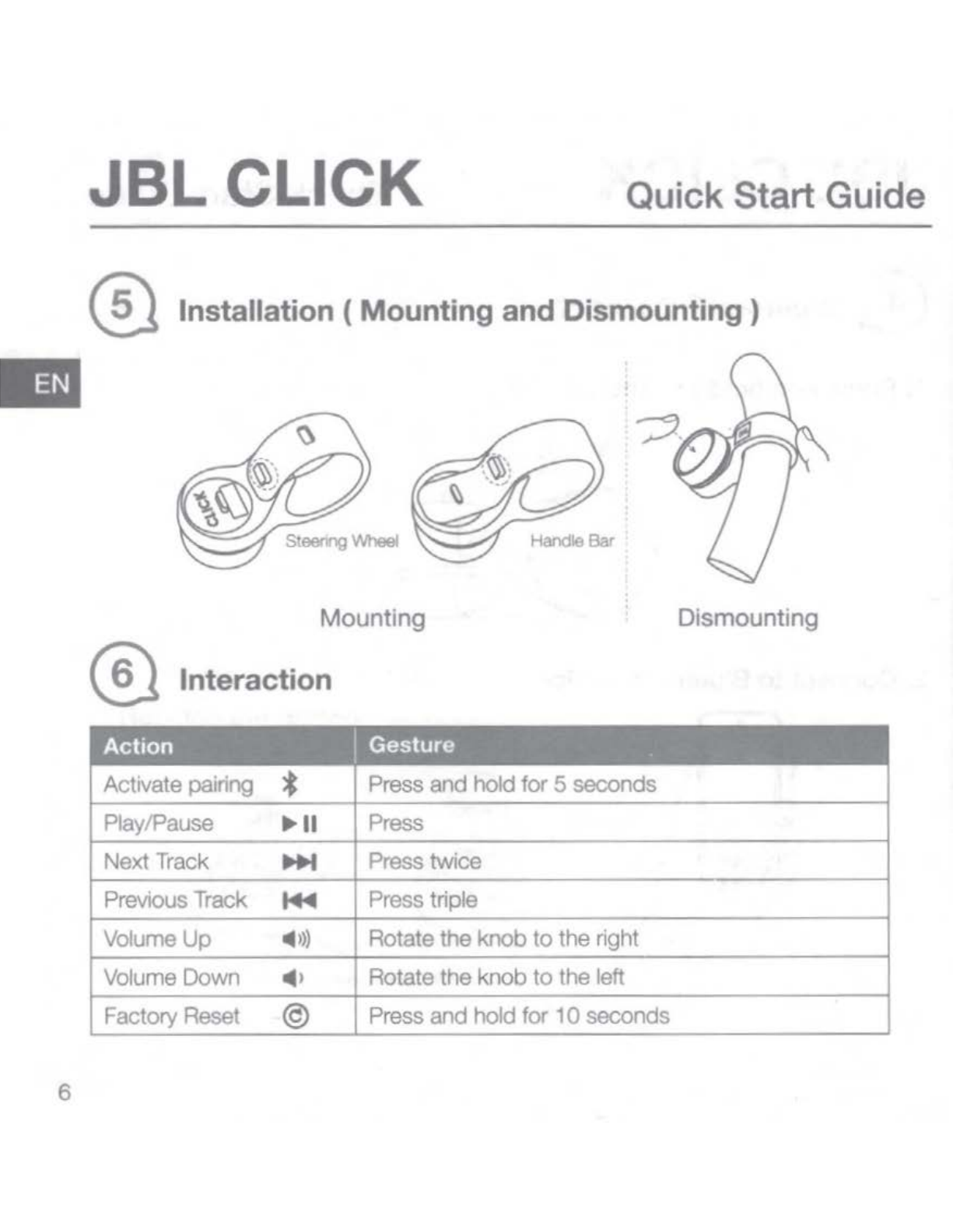

® Installation ( Mounting and Dismounting )
Handle Bar
Mounting
© Interaction
Action , Gesture
Activate pairing * Press and hold for 5 seconds
Play/Pause
► II
Press
Next Track ...
Press twice
Previous Track
~
Press triple
Volume Up
. ,))
Rotate the knob to the right
Volume Down
◄ >
Rotate the knob to the left
Factory Reset
@) Press and hold for 10 seconds
Dismounting

JBL CLICK

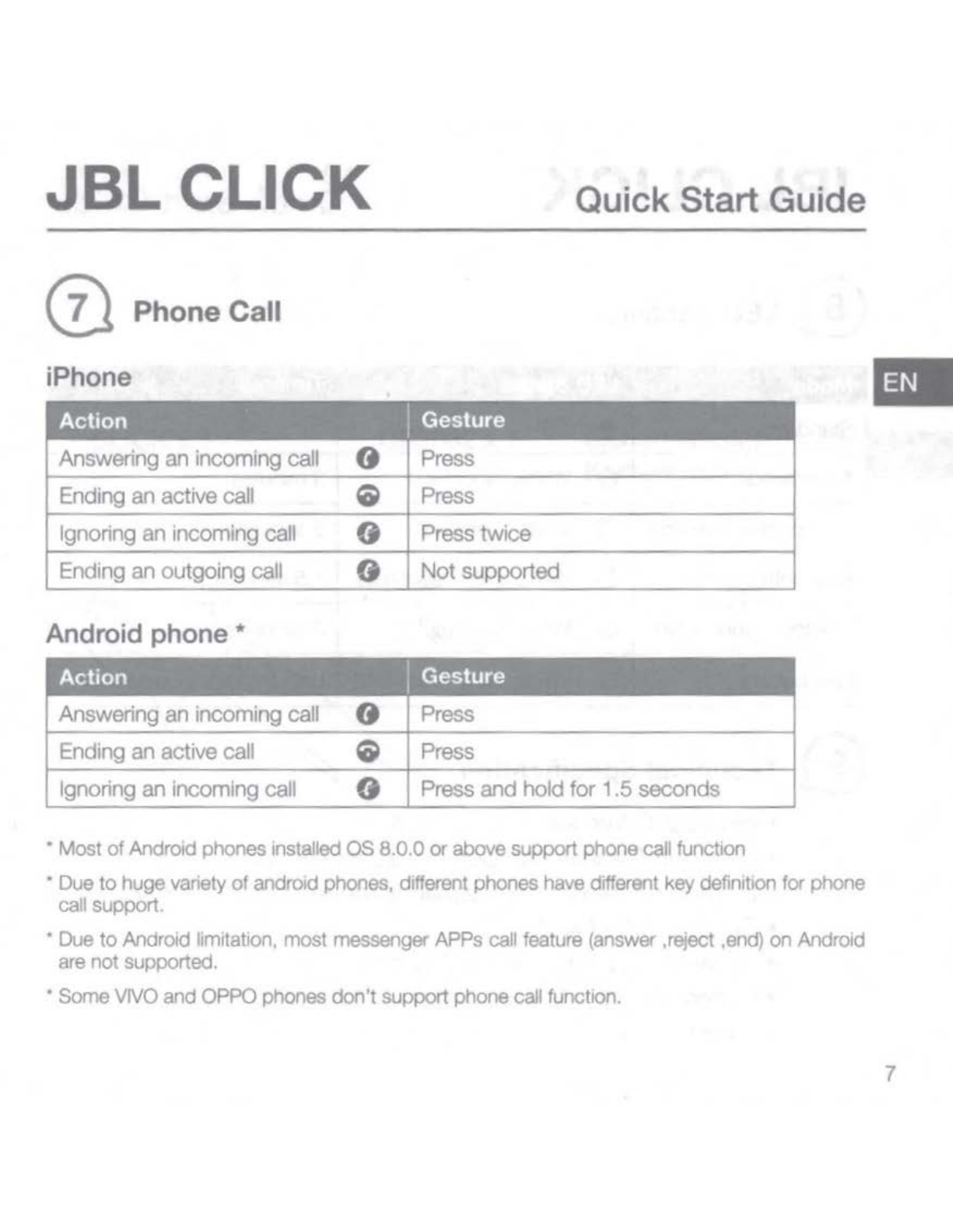

0 PhoneCall
iPhone
Action
Answering an incoming call
Ending an active call
Ignoring an incoming call
Ending an outgoing call
Android phone *
Action
Answering an incoming call
Ending an active call
Ignoring an incoming call
&
~
0
G
G
~
0
Quick Start Guide
l Gesture
Press
Press
Press twice
Not supported
[ Gesture
Press
Press
Press and hold for 1.5 seconds
• Most of Android phones installed OS 8.0.0 or above support phone call function
• Due to hugevariety of android phones, different phones have different key definition for phone
call support
• Due to Android limitation, most messenger APPs call feature (answer ,reiect ,end) on Android
are notsupported.
• SomeVIVO and OPPO phones don't support phone call function.
7

JBL CLICK Quick Start Guide
© LED Behavior
Mode
I
1 LED Status I Timeout
Stand-by • Off
Advertising
(}
White, Slow Flash 3 minutes
After battery insertion 0 White, Constant 5 seconds
Bluetooth pairing 0 White, Fast Flash(4Hz) 1.5 minutes
Bluetooth connected 0 White, Constant 3 seconds
Low battery
(}
White, Slow Flash(1 Hz) Until the battery poweroff
® Technical Specification
• Bluetoothe Version: 4.2
• Bluetoothe transmitter power: -20 to + 8 dBm
• Bluetoothe transmitter frequency range: 2.402 G - 2.480 G
• Support: HID ANCS
• PowerSupply: 3 V CR2032 battery
• Dimension 0N x D x H ): 139.9x 38.3 x 39.6 mm
• Weight: 38 g
8

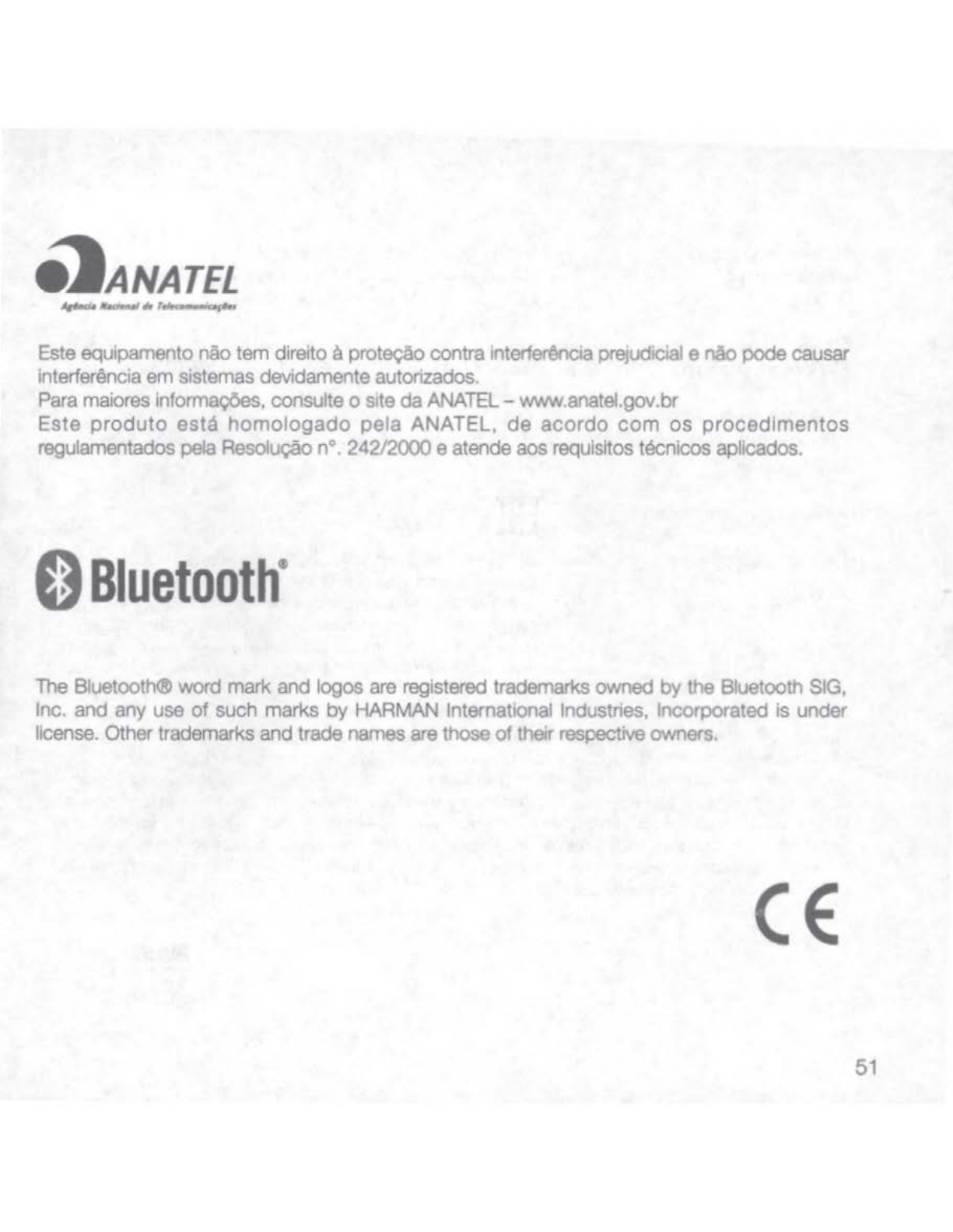

~ANATEL
Este equipamento nao tern direito a prot~o contra interferencia prejudicial e nAo podecausar
interferencia em sistemas devidamente autorizados.
Para maiores informac;oes, consults o s,te da ANATEL -www.anatel.gov.br
Esta produto esta homologado pela ANATEL, de acordo com os procedimentos
regulamentados pela Resoluvao n°. 242/2000e atende aos requlsitos tecnicos aplicados.
0 Bluetooth ·
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG,
Inc. and any use of such marl<s by HARMAN International Industries, Incorporated is under
license. Other trademarks and trade names are those of their respective owners.
CE
51

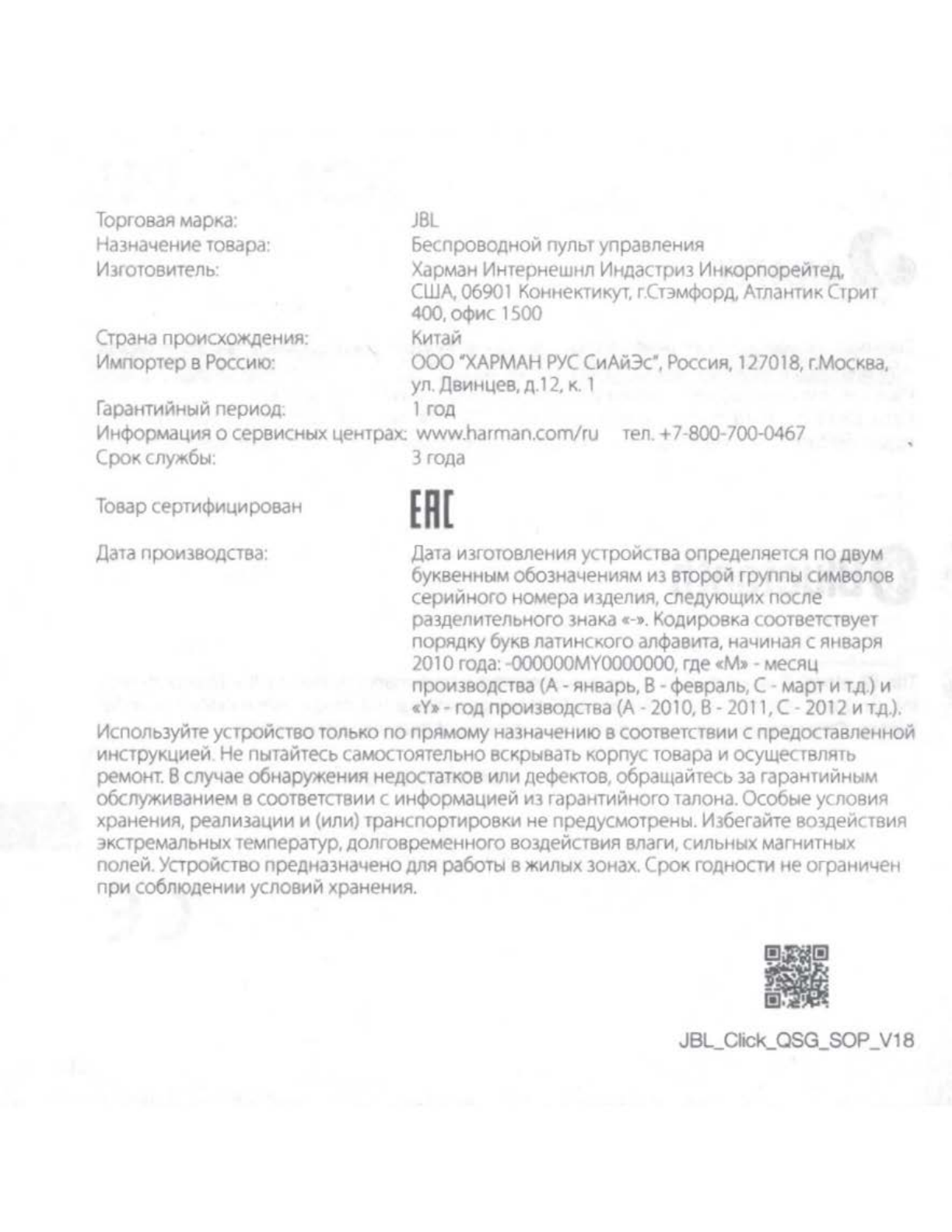

ToprosaR MapKa:
