Harobot HRB-E0110Q User manual

Harobot
Non-contact Forehead Thermometer
Instructions/manuals
Product model:HRB-E0110Q
Please read the instructions carefully before using

Harobot
Contents
1. Safety precautions
2. Principle
3. Scope of application
4. Structure composition
5. Product description
6. Operation instructions
7. Considerations
8. Product system settings
9. Memory function
10. Battery replacement
11. Maintenance
12. Transportation and storage conditions
13. Exception message
14. Product performance
15. After-sale service
16. Electromagnetic compatibility

Harobot
In order to use the product safely, please read the instruction manual before use.
Please keep it properly after reading, so that you can consult it at any time.
[Safety precautions]
1. This product is a precision instrument. Please handle it with care to avoid product failure due to
impact and falling.
2. Do not immerse this product in water.
3. Please keep the thermometer out of children's reach to prevent children from swallowing small
parts.
4. If the product cannot be used normally, please stop using and consult the dealer.
5. In addition to battery replacement, please do not disassemble the product without permission
under other circumstances. If you have any questions, please contact the dealer.
6. Waste batteries shall not be discarded at will. They shall be sent to designated places for
classified treatment according to local environmental protection requirements to avoid
environmental pollution.
7. If you do not use this product for a period of time, please take out the battery.
8. Electromagnetic interference: This product contains sensitive electronic components, which
should be avoided in the environment of electromagnetic interference (for example, near mobile
phones, microwave ovens, etc.), so as to avoid affecting the accuracy of measurement.
9. Please don't hit and drop this product. If there is any damage, please don't use it.
10. Please use this product at 1 ℃~ 50 ℃ambient temperature, humidity: ≤ 85%; when the
temperature and humidity of the use environment are not in this range, the measurement may
be inaccurate.
[Principle]
In nature, all objects with temperature higher than absolute zero (- 273 ℃) will radiate infrared rays,
and the energy of the infrared rays radiated is directly proportional to the temperature. Using this
relationship, the product measures the body temperature by collecting the infrared thermal
radiation from the forehead and hair of the human body.
[Scope of application]
The temperature of the measured object is displayed by measuring the thermal radiation of the
forehead.
[Structure composition]
It consists of infrared detector, display screen, button, shell, circuit board and embedded software
(v1.0).

Harobot
[Operation instructions]

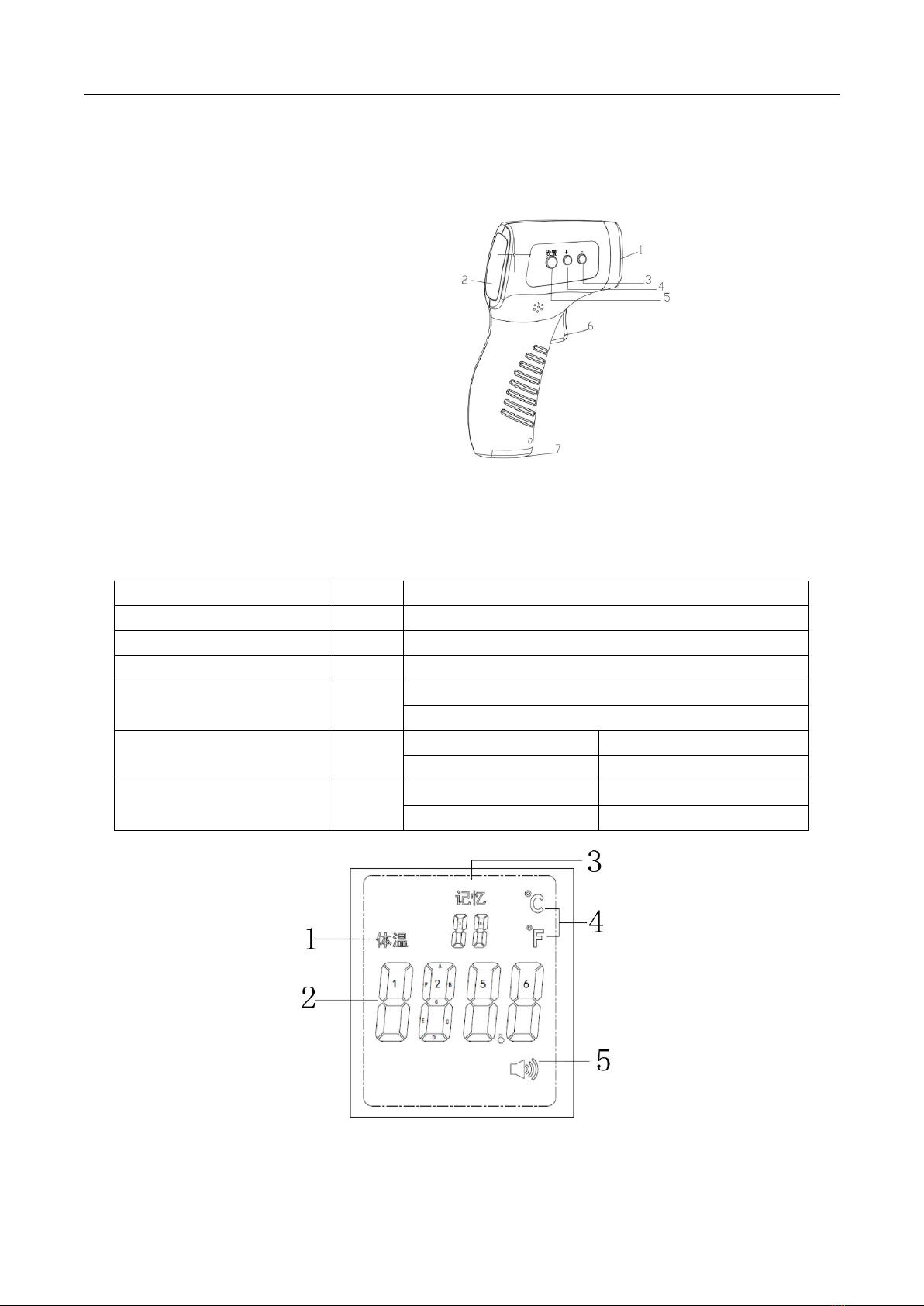

The appearance structure of the product is shown in the following figure:
1—Infrared detector
2—LCD screen
3—Up button
4—Down button
5—Set button
6—Measuring button
7—Battery cover
Display icon description
Icon definition
Icon
State description
Measurement mode
1
Measurement mode and calibration mode display
Display value
2
Measured temperature value
Storage position
3
memory group number position
Temperature symbol
4
Centigrade
Fahrenheit degree
Buzz symbol
5
display
Buzzer on
No Display
Buzzer off
Low battery symbol
6
display
Low batter
No Display
Sufficient electricity

Harobot
[Considerations]
Confirm that the screen is in body temperature mode.
Aim the thermometer probe at the middle of the forehead and keep it vertical, with a distance of
about 3cm ~ 5cm. Press the measurement key, and after about 1 second, the "tick" will display the
measured value, and the test is completed. If the measured value exceeds the temperature alarm
point (the default temperature is 38 ℃), the "tick" will be issued Five beeps for warning.
When the temperature of forehead is greatly affected by the change of ambient temperature,
please aim at the earlobe and measure it.
Tips:
1. Please keep the sensor and probe cavity clean before and after use.
2. Please keep the thermometer in a stable temperature environment. When the ambient
temperature changes greatly, please leave it for about 10 minutes and then measure it.
3. Please do not measure the body temperature immediately after measuring the temperature of
extremely high or very low temperature objects. Please keep it for ten minutes and then measure
it.
4. When the measured object comes from a place with a large difference from the measured
ambient temperature, it shall stay in the test environment for at least five minutes.
5. Try not to measure it under the condition of blowing, drenching, sweating and applying cosmetics
on the forehead. Do not take measurements within 30 minutes after exercise, bathing, or eating.
[Product system settings]
This product provides five function settings, such as temperature unit, tone switch, temperature
alarm point, temperature offset and measurement mode. The measurement mode setting is set
by the mode switch key, and other settings are set in the setting menu.
The comparison table of setting menu is as follows:
Men
u
Function
“-”button
“+”button
Initial value
Remarks
F 1
Temperature unit
℃
℉
℃
F 2
Temperature
alarm point
reduce0.1℃
add0.1℃
38℃
F 3
Temperature
migration
Downward migration
0.1℃
Upward migration
0.1℃
0.0
Range-3℃~±3℃
F 4
Tone switch
off
on
on

Harobot
Measurement mode setting:
In the power on state, press the "set" key briefly to switch the measurement mode to body
temperature and calibration.
Temperature unit setting - F1
Press and hold the "set" key for 2 seconds, F1 will be displayed on the screen, the icon of Celsius
temperature will flash, press the "-" key to switch the "Fahrenheit temperature" unit, press the
"+" key to switch the "Celsius temperature".
Temperature alarm point setting - F2
Press and hold the "set" key for 2 seconds, the screen will display F1, press and hold the "set" key
for 1 time to enter F2, then press and hold the + "key to increase the temperature by 0.1 ℃,
press and hold the" - "key to decrease the temperature by 0.1 ℃. Note: the alarm default value is
38 ℃(100.4 ℉).
Temperature offset setting - F3
Press and hold the "set" key for 2 seconds, F1 will be displayed on the screen, press and hold the
"set" key for 2 times to enter F3, then press and hold the + "key to increase the offset value by
0.1 ℃, press and hold the" - "key to decrease the offset value by 0.1 ℃.
Tone switch - F4
Press and hold the "set" key for 2 seconds, F1 will be displayed on the screen, press and hold the
"set" key for 3 times to enter F4, then press and hold the "+" key to start the buzzer, and press
and hold the "-" key to close the buzzer.
Tips:
1. After setting the parameters, you need to save the settings. If you exit during shutdown, the new
settings will not be saved.
2. After entering the setting menu, pressing the measurement key is invalid and the thermometer
will not measure.
3. Body temperature mode is used to measure human body temperature, which is obtained by
dynamic compensation of ambient temperature and forehead surface temperature.
4. According to the influence of environmental temperature, measurement distance, specific
individual skin difference and other factors, the temperature deviation value can be corrected by
the difference between the target measurement value and the real value, and the correction
range is limited to - 3.0 ℃~ 3.0 ℃. See the setting operation for specific settings. The factory
default value is 0.0 ℃.
[Memory function]
This product can automatically store 32 sets of latest measured values:
In the power on / off state, press "+" or "-" to enter the memory query.
Short press "+" or "-" to view the 1st and 2nd in turn Group 32 memory.

Harobot
[Battery replacement]
When the LCD is displayed , it indicates that the battery is in a low power state. Please push the
battery cover to replace the battery.
Note: do not install the positive and negative poles of the battery. Please dispose of the replaced
battery according to the local regulations.
[Maintenance]
Please keep the sensor and probe cavity clean, otherwise the accuracy of measurement will be
affected. Use a clean soft cloth or cotton stick to dip a small amount of medical alcohol to wipe
the dirt, and use it only after the alcohol completely evaporates.
Before use, please read the operation manual in detail to ensure that the battery has been installed.
It is forbidden to immerse the thermometer in the liquid, and it is forbidden to put it under the
environment of too high or too low temperature for a long time.
It is forbidden to collide, drop or place sharp objects together, or dismantle them by yourself.
The thermometer shall not be used in the sun, water or strong magnetic interference environment.
It is recommended to practice many times to be familiar with the measurement method and try not
to change the factory settings of the product.
Measurement results cannot replace the diagnosis of doctors.
In case of failure during use, please contact the seller or manufacturer.
Please dispose the waste and residue at the end of the service life of the product according to the
local laws and regulations.
[Transportation and storage conditions]
Temperature: - 20 ℃~ + 55 ℃
Humidity: ≤ 93% RH
Atmospheric pressure: 86kpa ~ 106kpa
The thermometer is allowed to be used as a general means of transportation. However, severe
impact, vibration, rain and snow splashing shall be prevented during transportation. The packed
thermometer shall be stored in a room with a temperature of - 20 ℃~ + 55 ℃, relative humidity
≤ 93% (non condensing), no strong sunlight, no corrosive gas and good ventilation.

Harobot
[Exception message]
Fault description
Resolvent
Screen display
“L0 ”or“Hi”
1. Check the measurement object. Measurement cannot be guaranteed
under the conditions of forehead blowing, dripping, sweating, applying
cosmetics, etc.
2. Check the temperature offset setting, factory set to 0.0.
3. Check the operating environment. Environmental change has great
influence on measurement.
4. If the ambient temperature changes too much, or the ultra-high
temperature object is directly transferred to the low temperature object,
the measurement difference will occur. It should be used in a relatively
stable environment after 10 minutes of storage to obtain a new test heat
balance.
5. Check the measurement distance (3-5cm).
no response
Reload the battery; check if it operates under the setup menu
No display or abnormal display
Reload battery
Silent tone
Check if the Beep setting is off
Shut down immediately after
power on
Check the battery capacity and reload the battery
[Product performance]
Product model
HRB-E0110Q
Anthropometric range
32.0℃~ 42.5℃
Measurement accuracy
Within 33.0℃~ 37.0℃，Not more than ±0.2℃
Display resolution
0.1℃
Memory
32 group
Type of protection against
electric shock
Internal power equipment
Degree of protection against
electric shock
Type B application part
Protection degree of liquid
inlet
IPX0
Operation mode
Continuous operation
AP / APG device or not
not
Electromagnetic
compatibility-[GB4824-2013]
Group I B class
Permanent equipment or not
not
working condition
Temperature 1-50 ℃relative humidity ≤ 85%
battery
DC 3V（2 section AAA battery）

Harobot
size
150mmx80mmx45mm
weight
153g
Measurement Distance
3-15cm
[Explanation of figures and symbols used in labels]
[After-sale service]
The service life of this product is 2 years, and 1 year free maintenance service is provided.
Note: no free maintenance service will be provided for any damage caused by user's personal fault
or unauthorized disassembly.
[Electromagnetic compatibility]
The infrared thermometer complies with EMC test standard YY0505-2012。
Table 1
Guidance and Statement on Electromagnetic Launching-Non-Life Support Equipment and Systems
The equipment shall be used in the specified electromagnetic environment, and the customer or
user shall ensure that the equipment is used in the following specified electromagnetic environment
Launch test
Compliance
Electromagnetic Environment-Guidelines
radio-frequency emission
CISPR 11
Group 1
This device uses RF energy only when running its
internal functions
radio-frequency emission
CISPR 11
Group B
This equipment is suitable for families and directly
connected to residential public low voltage power
supply network.
Harmonic radiation
IEC61000-3-2
Not
applicable
Voltage Fluctuation and
Scintillation Radiation
Not
applicable
Note, refer to attached documents
Represents type B application part

Harobot
61000-3-3
Table 2
Guidance and Statement on Electromagnetic Anti-interference-Non-life Support Equipment and Systems
The equipment shall be used in the specified electromagnetic environment, and the customer or user shall
ensure that the equipment is used in the following specified electromagnetic environment
Immunity test
IEC6061 Test grade
Conformity level
Electromagnetic
Environment-Guidelines
Electrostatic discharge
（ESD）
IEC 61000-4-2
±6KV Contact
discharge
±8KV Air discharge
±6KV Contact
discharge
±8KV Air
discharge
The ground must be wood, concrete
or ceramic tile. If the floor is paved
with synthetic materials, the relative
humidity shall be at least 30%
Electric fast pulse group
（EFT）
IEC 61000-4-4
±2KV Power cord
±1KV I/O Cable
（length>3 meters）
Not applicable
Network power quality must be a
typical commercial or hospital
environment.
Surge IEC 61000-4-5
±1KV Differential mode
±2KV common mode
Not applicable
Voltage Sags,
Short-term
Interruptions and
Voltage Changes IEC
61000-4-11
<5% UT(Fall>95
UT)0.5cycle
40% UT(Fall60% UT)
5cycle
70% UT(Fall 30 UT)
25cycle
<5% UT(Fall>95 UT)5
秒
Not applicable
Network power quality must be a
typical commercial or hospital
environment. If the equipment needs
to keep running continuously during
the interruption of network power
supply, we recommend using UPS
with different power supplies.
Power frequency
magnetic field
（50/60Hz）
IEC 61000-4-5
3A/m
3A/m
The power frequency magnetic field
must be the level of a typical place in
a typical commercial or hospital
environment.
Note: AC voltage before UT measure plus experimental voltage

Harobot
Table 3
Electromagnetic immunity guidelines and statements - non life support equipment and systems
The equipment shall be used in the specified electromagnetic environment, and the customer or user
shall guarantee to use the equipment in the following specified electromagnetic environment
Immunity test
IEC6061Test level
Conformity
level
Electromagnetic environment - Guidelines
Conducted
immunity
IEC61000-4-6
3Vrms
150k~80MHz
Not
applicable
The floor must be wood, concrete or tile. If the
ground is covered with synthetic materials, the
relative humidity shall be at least 30%
radiated immunity
IEC61000-4-3
3V/m
80M~2.5GHz
3V/m
Portable and mobile RF communication
equipment must be used outside the specified
distance from any part of the equipment and
system (including cables). This isolation
distance is calculated according to the
appropriate equation of transmitter frequency
selection, and the calculation formula of your
isolation distance is:
d=1.2X
P
d=1.2X
P
80MHz to 800MHz
d=1.2X
P
800MHz to 2.5GHz
Where p is the rated output power of the
transmitter, in watts; D is the recommended
distance, in meters. The field strength of RF
transmitter measured by electromagnetic field
a must be less than the compliance level in
each frequency range B. Interference may
occur near equipment marked with the
following symbols;
Note 1: in 80MHz ~ 800MHz, the formula of higher frequency band is adopted.
Note 2: the above guidelines do not apply to all cases, because substances, structural objects and
people can absorb and reflect electromagnetic waves, which affect electromagnetic propagation.
The field strength of base station and ground mobile radio receiver, radio receiver, FM and am radio
broadcast and TV broadcast of a radio (cellular and wireless) mobile phone can not be accurately
estimated by pure theoretical method. In order to evaluate the electromagnetic environment
produced by the fixed RF transmitter, the method of electromagnetic field measurement should be
considered. If the field strength of the equipment exceeds the specified RF level, it is necessary to
observe whether the equipment can work normally. Once abnormal conditions are found, relevant

Harobot
measures must be taken, such as relocating the equipment or moving it to other environment.
in the frequency range of 150k-80mhz, the field strength should be less than 3V / m.
Table 4
Recommended distance between this device and portable / mobile RF communication device
This equipment can be used in the electromagnetic environment where RF interference is
controlled. In order to avoid electromagnetic interference, customers or users should keep the
minimum recommended distance between this equipment and portable / mobile RF communication
equipment. The following recommended distance is calculated based on the maximum output
power of the communication equipment.
Rated maximum
output power of
transmitter（W）
Calculate the isolation distance (m) according to the RF of transmitter
150kHz -2MHz
d=1.2X
P
150kHz -2MHz
d=1.2X
P
800MHz -2.5GHz
d=1.2X
P
0.01
0.12
0.12
0.23
0.1
0.37
0.37
0.74
1
1.17
1.17
2.34
10
3.69
3.69
7.38
100
11.67
11.67
23.34

Harobot
【Date of manufacture】See package or label
【Service life】2 years
【Name of manufacturer】Fujian Harobot Rehabilitation Robot Production Co., Ltd.
【Domicile of the registrant】12 workshops at No. 1, Tengfei Sixth Road, Datong Town, Changting County,
Longyan City, Fujian Province
【Production address】12 workshops at No. 1, Tengfei Sixth Road, Datong Town, Changting County, Longyan
City, Fujian Province
【Standard】EN 60601-1-2:2015
EN 60601-1:2006+A12:2014
【Classification】Class 1
【Production license No】
【Medical device registration certificate No. / product technical requirement No】
【After sales service unit】Fujian Harobot Rehabilitation Robot Production Co., Ltd.
【Contact information】Tel: [phone] Fax: [phone]
【Date of preparation】February 10, 2020

Harobot
Warranty card
User files
DATE:
NAME
SEX
AGE
ADDRESS
TEL
Zip
code
Place of purchase
Purchase price
Sales unit
Product name and
specification
Machine
number
Dealer signature
User signature
Warranty clause
1. In case of performance failure within three months from the date of sale of the goods, the goods
themselves and the outer packaging must be intact without scratches, and the same type of
goods can be replaced, but not including artificial damage.
2. The goods shall be guaranteed for one year from the date of sale, with lifetime maintenance.
Accessories are not covered by the warranty.
3. The warranty service is only valid under normal use.
4. Any damage to the appearance, such as man-made damage, self disassembly, unsealing,
improper use, etc. If it is not covered by the warranty, the card shall be provided. If it is not
provided or cross altered, the company has the right to make non warranty treatment.
