Oakton Temp-100 User manual

Instruction Manual
Temp-100 and Temp-300
Dual-Input Thermocouple
Datalogging Thermometer
68X518203 Re
v
0 07/09

T
A BLE OF CONTENTS
1. INTRODUCTION ....................................... 1
2. SAFETY PRECAUTIONS.......................... 2
3. SPECIFICATIONS .................................... 3
4. BATTERY INSTALLATION AND
REPLACEMENT........................................ 6
5. INSERTING AND REMOVING OPTIONAL
RUBBER ARMOUR................................... 7
6. ASSEMBLING OPTIONAL HANDSFREE
ACCESORIES
........................................... 8
7. CONNECTING A THERMOCOUPLE........ 9
8. KEY FUNCTIONS ................................... 11
9. DISPLAY OVERVIEW ............................. 12
10. MEASUREMENT MODE ......................... 13
11. HOLD FUNCTON .................................... 14
12. MIN, MAX, and AVE FUNCTION............. 14
13. DATA LOGGING ..................................... 14
14. SETUP MODE ......................................... 15
15. GENERAL SETUP SCREEN .................. 16
16. CALIBRATION SCREEN ......................... 18
17. ALARMS SCREEN .................................. 21
18. DATA LOGGING SCREEN ..................... 22
19. CALIBRATION REPORT SCREEN ......... 23
20. CLEAR / RESET SCREEN ..................... 24
21. MAINTENANCE ....................................... 25
22. CLEANING ............................................... 25
23. BATTERIES ............................................. 25
24. TROUBLE SHOOTING............................ 26
25. ACCESSORIES ....................................... 27
26. WARRANTY ............................................ 28
27. PRODUCT RETURN ............................... 28
28. INNOCAL® CALIBRATION AND REPAIR
SERVICES............................................... 29

- 1 -
1. INTRODUCTION
T
his versatile hand-held
in strument provides highly
accu rate te mperature
measurements
. T he
instrument
is designed
for
easy oper ation and
includes
the follo wing
features:
• Menu driven setup and operation
• Datalogging for up to 1000 points on
Temp 100, 2000 on Temp 300
• USB output (Temp 300 only)
• Differential temperature
measurements
• Operator selection of Celsius or
Fahrenheit scale
• Resolution of 0.1° C/F from -199.9 to
999.9°
• Large backlit LCD with two lines of
four-digit display
• Hold feature for temporarily retain a
reading
• Displays min and max readings
• Field calibration capability
• Disabling of Auto-Off function
• Low battery warning
• Two blade female ANSI mini-
connector input
• Operates with a wide selection of
probes

- 2 -
2. SAFETY PRECAUTIONS
WARNING:
1. This instrument is designed to
accept low level signals supplied by
standard Thermocouples. Under NO
circumstances should the input
voltage exceed the specified 50V
RMS.
2. To prevent ignition of a hazardous
atmosphere, batteries must only be
changed in an area known to be
non-hazardous.
CAUTION:
1. Do not use or store this instrument in
microwave ovens or any abnormally
hot or cold areas.
2. Weak batteries should not be left in
the instrument. Dead batteries can
leak and cause damage to unit.
DANGER:
1. Voltages present at the
Thermocouple may also be present
at the battery terminals. Always
disconnect the Thermocouple when
changing batteries.

- 3 -
3. SPECIFICATIONS
Thermocouple Thermometers
Type
Temperature range
–210°C to 1200°C
Type J
(–346°F to 2192°F)
–250°C to 1372°C
Type K
(–418°F to 2501°F)
–250°C to 400°C
Type T
(–418°F to 752°F)
-250°C to 1000°C
Type E
(-418°F to1832°)
0°C to 1768°C
Type R (300 only)
(32°F to 3214°F)
0°C to 1768°C
Type S (300 only)
(32°F to 3214°F)
-250°C to 1300°C
Type N (300 only)
(-418°F to 2372°F)
200°C to 1800°C
Type B (300 only)
(392°F to 3272°F)
Out of
ra nge displa y : - - - -
Reso lution
0.1°/1° auto-ranging,
0.1° C/F from -199.9 to 999.9°,
1° outside this range

- 4 -
Accuracy
J,K,T,E & N
Below -150 °C (-238 °F):
±0.25% of reading ±1 °C (±0.25% ±0.7 °F)
Above -150 °C (-238 °F):
±0.1% of reading ±0.4 °C (±1% ±0.7 °F)
R,S & B
±0.1% of reading ±1 °C (±0.1% ±2 °F)
Displa y
Backlit Dot-matrix 50mm X 37.2mm
Data Logging
Temp 100 : 1000 points
Temp 300 : 2000 points
Logging Interval
1 sec to 60 min
Min/Max/Avg Function
Yes
Auto Off (adjustable time)
Enable/Disable option available
Stability Criteria
Yes, upon stability of 5 seconds
Display upda
te rate
0.6 sec per up date.
Inpu t
Two thermocouple with ANSI connector.
Inpu t Prote ct ion
50V rms

- 5 -
Storage
–40°C to 65°C (–40°F to 149°F)
Humidity
10% to 90% (non-condensing)
Battery Life
Size: Three AA, 1.5V; Alkaline
Life: 400 hours continuous, typical,
(without backlighting)
Dimensions
Without Armor:
175mm (L) X 97mm (W) X 42mm (H)
With Armor:
180mm (L) X 102mm (W) X 52mm (H)
Weight with batteries
Without Armor: 267g
With Armor: 362g
Ingress protection:
Meets IEC-529 IP-54 for dust and water
resistant enclosures (probe attached)
CE Compliance
EN61326-1/A1: 1998 (EU EMC Directive)

- 6 -

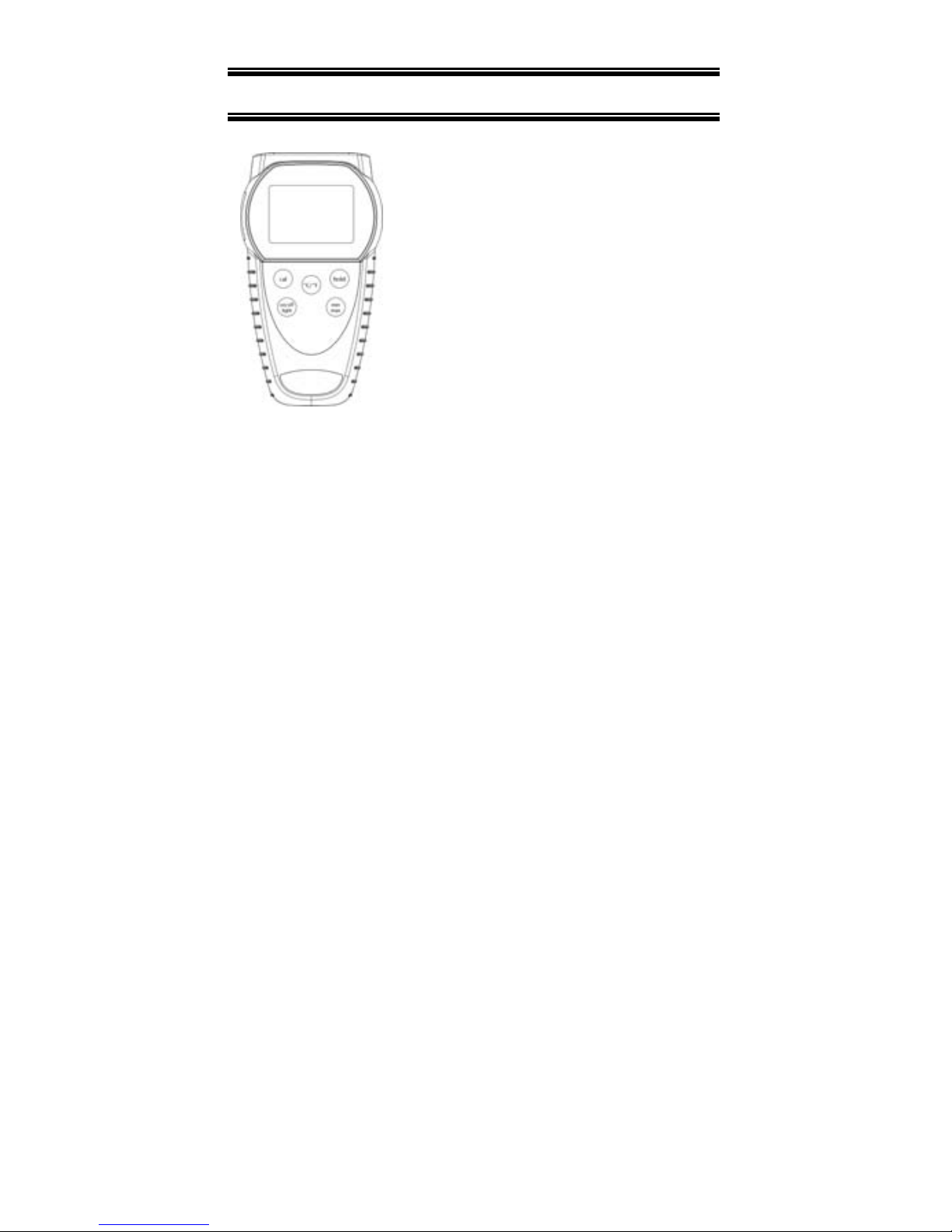

4. BATTERY INSTALLATION AND
REPLACEMENT
The total battery life without
backlighting and alarm is about 400
hours. The battery bar annunciator
represents the battery strength. An
empty battery annunciator indicates low
battery strength; a blinking battery
annunciator indicates that the batteries
should be replaced immediately
.
Selecte d se ttin gs are stor ed in memory
and
will remain in memory even after
power is turned off, or while batteries
are being replac ed.
1. Before changing batter y , tur n
instrume
nt off and disconnect
thermocoupl
e.
2.
Loosen screw and lift batter y cover off
back of case.
3. Remove the t hree AA batteries.
4. Insert three
new batteri es observing
pol
arit y .
5. Install
cover and tig h ten screw .

- 7 -

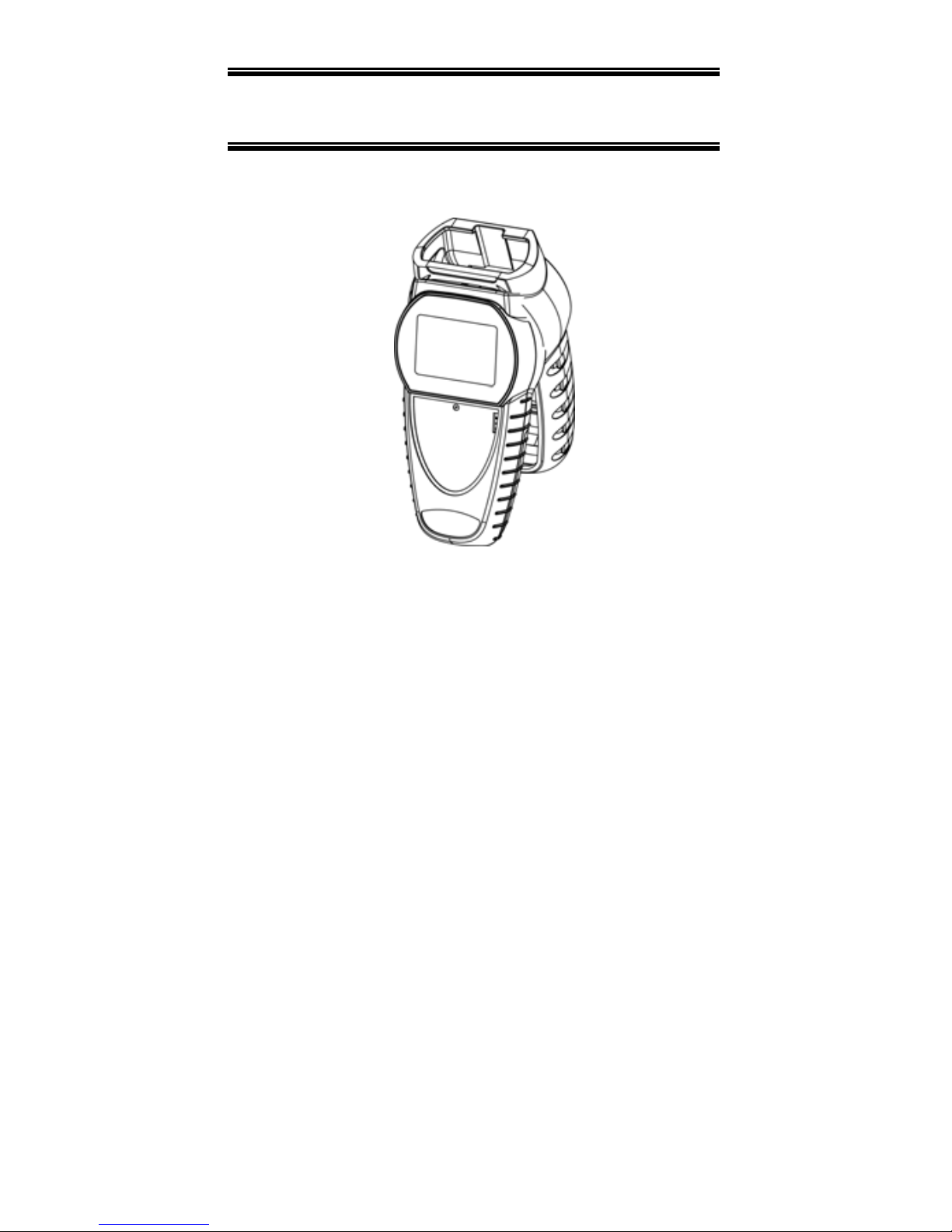

5. INSERTING AND REMOVING
OPTIONAL RUBBER ARMOUR
1. To insert thermometer into the
optional rubber armor, slide in from
the top of meter before pushing the
bottom edges of meter down to set it
into position. Lift up the stand at the
back of meter for bench top
applications if necessary.
2. To remove thermometer from armor,
push out from the bottom edges of
meter until it is completely out of boot.

- 8 -

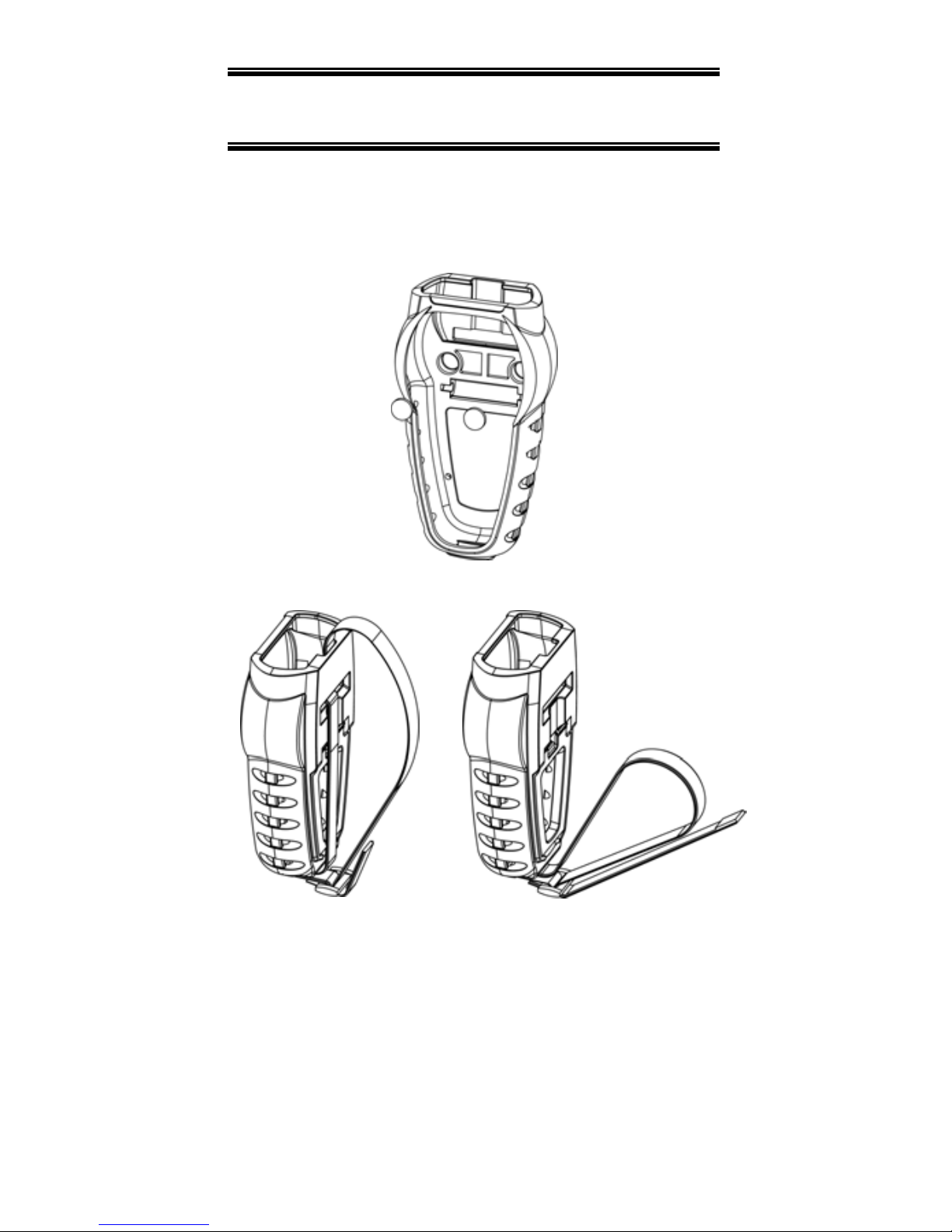

6. ASSEMBLING OPTIONAL
HANDSFREE ACCESORIES
You can use the optional magnets and
strap in the Handsfree Kit accessories for
hands free operations.

- 9 -
7. CONNECTING A THERMOCOUPLE
Use the correc t thermocouple t ype for
your instrume nt setting. Using an
incorr ect th ermocouple ty pe will resul t in
erroneous
readi ngs. T hermocouples are
colour coded by t ype using th e North
American ANSI Colour Code as follo w s:
TYPE COLOR
J Black
K Yello w
T Blue
E Purple

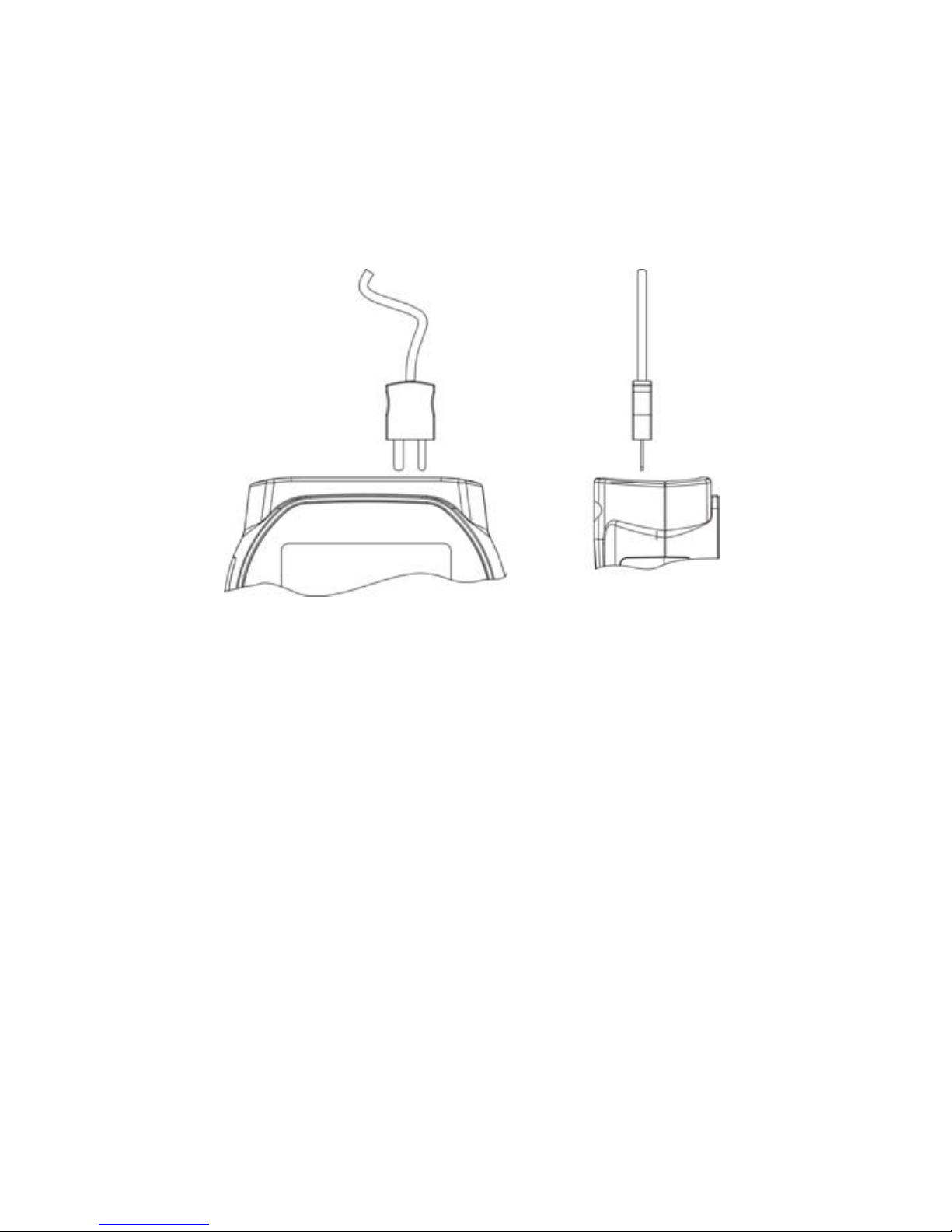

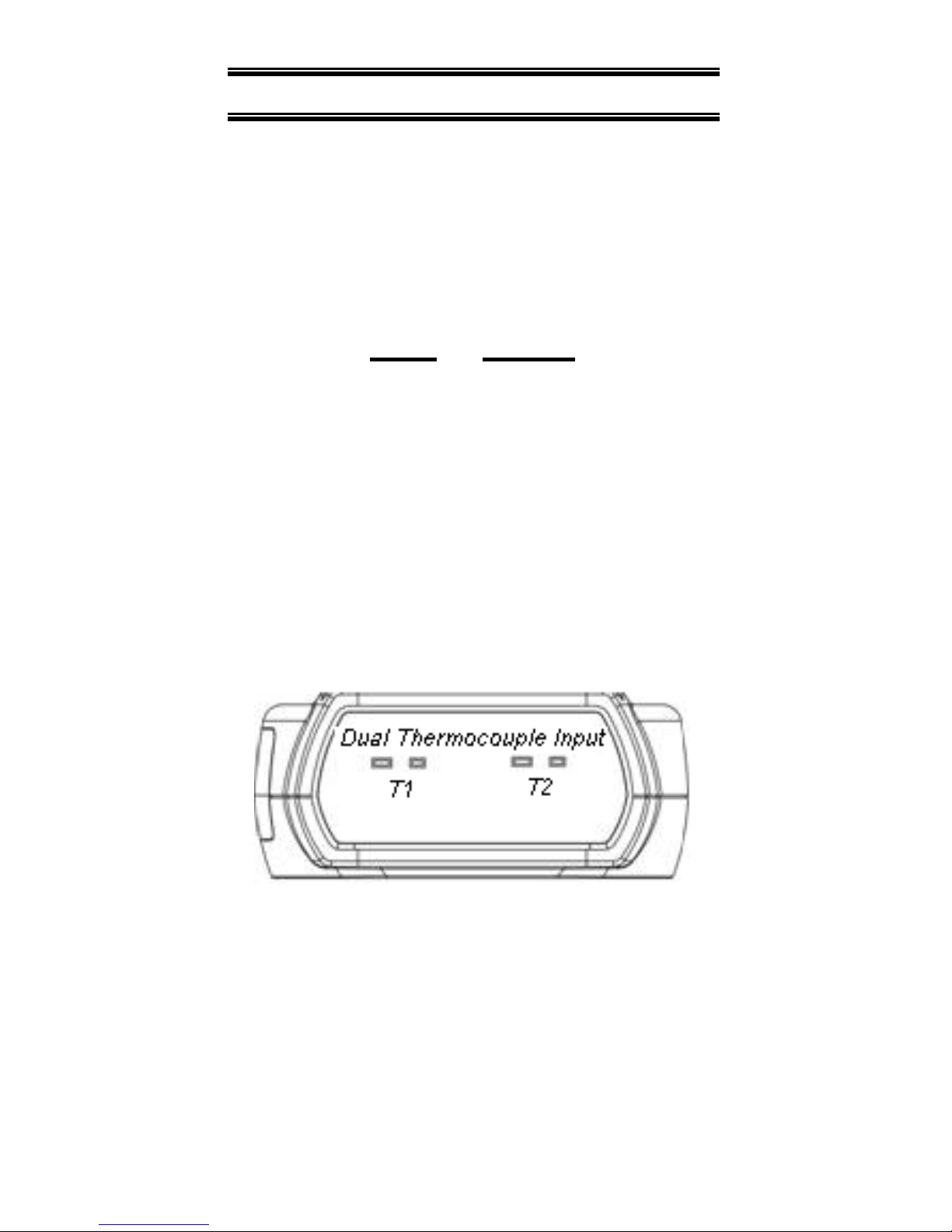

Thermocouple connectors have one wide
blade and one narrow blade. Do not force
connector in backwards. Connect
thermocouples to receptacles at top of
instrument as shown in the following
illustration.

- 10 -
Thermocouple wiring polarity must be
correct. If readings decrease as the
temperature increases, the thermocouple
wires may be reversed. The red wire is
negative for thermocouple wires
manufactured in North America.
If no probe is connected the display will
read “open”.
T
hermocouples are sensitive at the tip or
measuring junction . W hen taki ng
measurements
, allow tim e for the reading
t o stabilize. Mu ltip lying the tim e constant
of the probe by 5 will give you the
approx imat e time required .

- 11 -

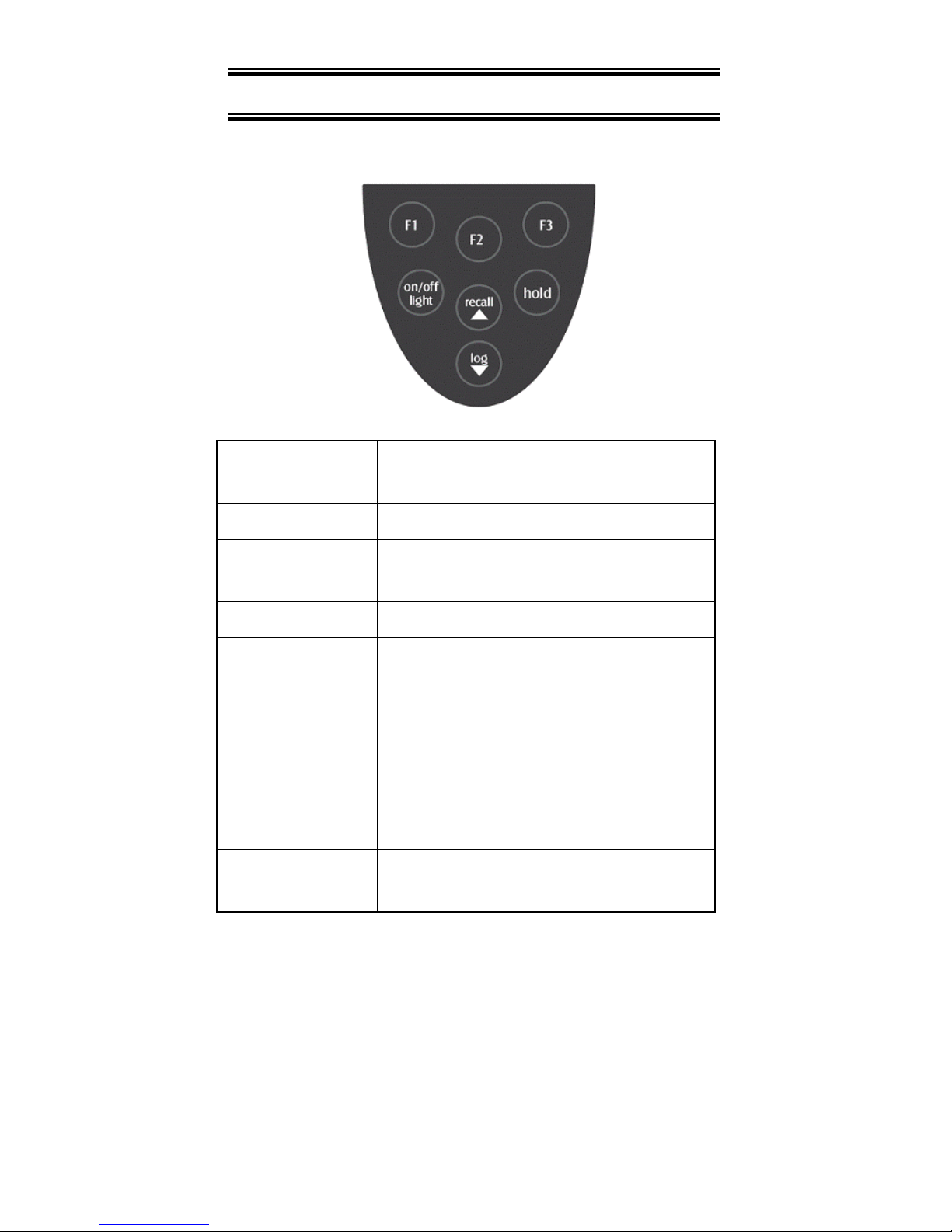

8. KEY FUNCTIONS
Note: Function keys change in setup
mode to provide advanced operation
flexibility. Text above key will indicate
function.
F1 Step through Min, Max and
Avg readings.
F2 Choose probe T1, T2 or T1-T2
F3 Toggle between menu and
measure mode
hold Freeze display
on/off
light
Turns meter on and off (press
and hold for 3 seconds to turn
off)
Press momentarily to turn on
backlight
recall▲Recalls and steps through
stored readings
log▼Stores current measured
value to memory

- 12 -
9. DISPLAY OVERVIEW
The dot matrix display features a large
primary display, smaller secondary
displays for channel info or min/max/ave,
and helpful annuciators for added
measurement data
1 HOLD - Active
2 Data Logging is Active
3 Alarm Enabled – channel in alarm
indicated: T1 or T2 or T1&T2
4 MAX/MIN/AVG of Secondary
channel if MIN/MAX/AVG activated
5 MAX/MIN/AVG of Primary channel
if MIN/MAX/AVG activated
6 Min/Max hit time since Min/Max
activated. For Avg, it is continually
increments since activated
7 Current active Mode –
Min/Max/Avg
1 2
3
4
7
6
5

- 13 -

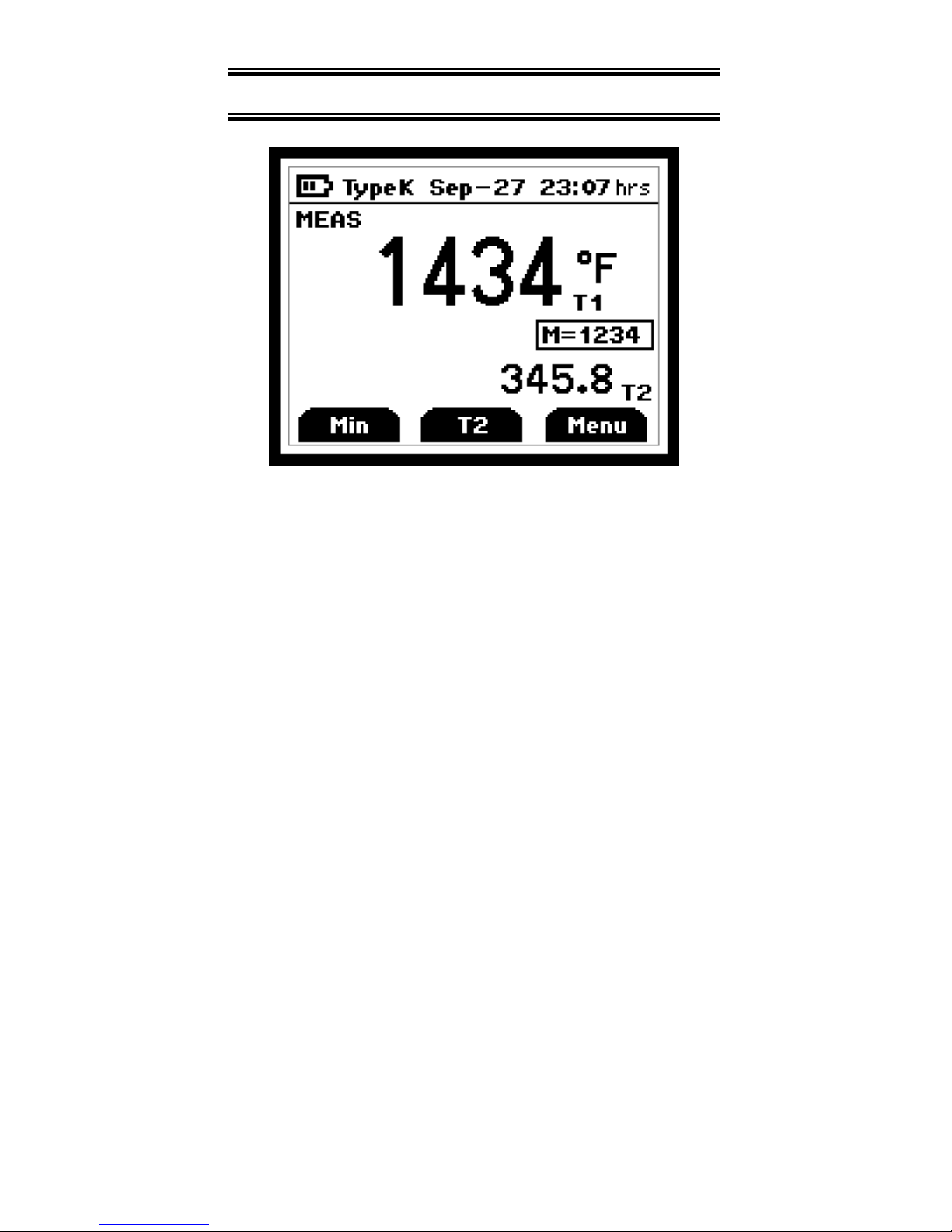

10. MEASUREMENT MODE
On initial start-up the meter will display
the measured value for input one in the
primary display and for input two in the
secondary display.
Pressing the
F2 key will toggle primary
display through input one (T1), input two,
and the delta (T1 – T2) values.
Pressing the
F1 key initiates and toggles
through Minimum, Maximum, and
Average reading modes.
Pressing
F3 enter accesses Setup mode.

- 14 -
11. HOLD FUNCTON
Press the hold key to retain the reading
on the display. Press the hold key again
for normal operation.
12. MIN, MAX, and AVE FUNCTION
Press the F1 key to toggle between the
minimum, maximum, and average
readings. The minimum and maximum
reading function is ideal for monitoring
unattended operations while continually
displaying every temperature change that
occurs. The minimum and maximum
values are sensed and automatically
stored.
To exit and clear this function, press the
F3 to access the Menu functions.
See the Clear Reset menu section for
more details.
13. DATA LOGGING
Press the log ▼key to store the current
reading to memory. The memory
indicator M = 1234 shows the memory
location for the next stored reading.
Press the
recall ▲ key to review stored
readings.
See section on Data Logging for timed
logging, and logging to a computer (300
model only).
See section on Clear/Reset for
information on clearing stored readings.

- 15 -
14. SETUP MODE
To access the setup mode from
measurement mode press the F3 key
(Menu).
Press ▲▼ keys on the meter key pad to
scroll through options.
To enter a setup screen press Select
F1
key.
To return to measurement mode press
Meas
F3 key. Following menu options
are listed
1. General Setup
2. User field calibration
3. Alarm settings
4. Data logging settings
5. View user calibration report
6. Clear/Reset options

- 16 -
15. GENERAL SETUP SCREEN
The first page of the General Setup
screens let you set probe type,
measurement units, time, and date.
Press F1 to indicate you want to change
the setting of the current parameter or
recall▲or log▼to move to the next
parameter.
Press recall▲or log▼to change the
options.
Press F2 to choose the next setting.
Whenever set the options, press F1 for
accepting the choice.

- 17 -
On the second page you can set auto-off
time, line frequency, and password.
This screen below is used to reset/change
password. In the event if uses forget
his/her password, 5586 can be used to
reset to a new value
