ASSEMBLY INSTRUCTIONS
Sorrento Square Corner Casual Dining Set - Left and Right 2 Seaters plus Corner & Sorrento Middle Sofa
( 67006068 / 67008068 )
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is a soft metal and over tightening may strip the thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the sofa over and into position when
fully assembled
RH SOFA ASSEMBLY STEPS:
1. Position part (A), part (B) and part (C) ready for assembly
2. LOOSELY attach RH arm with leg frame (A) and LH leg frame (B) to seating section (C) using bolts (G) and flat washers (I) with the
spanner (J) DO NOT TIGHTEN BOLTS AT THIS STAGE.
3. LOOSELY attach backrest (D) to assembled leg frames using bolts (H) and flat washers (I) with spanner (J) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
4. Tighten all bolts using the spanner (J)
5. Turn it over and place in desired position, then put all seat cushions (E) and back cushions (F) on the sofa
For more information regarding maintenance of your furniture please visit
https://www.hartmanuk.com/home
Component’s
Fixings
Parts List
Parts Picture
Description
Q’ty
Parts list
Parts Picture
Description
Q’ty
A
RH arm
with leg
frame
1
67006068A
F
Back
cushion
2
67006068
F
B
LH leg
frame
1
67006068B
G
M6*35 bolts
7
2100040
C
Seating
section
1
67006068C
H
M6*25 bolts
2
1231162
D
Backrest
1
67006068D
I
Flat
washers
9
1061162
E
Seat
cushion
2
67006068E
J
Spanner
1
2100041

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Sorrento Square Corner Casual Dining Set Right Hand 2 Seaters Sofa
( 67006068 / 67008068 )
1
2
3

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the sofa over and into position when
fully assembled
LH SOFA ASSEMBLY STEPS:
1. Position part (A), part (B) and part (C) ready for assembly
2. LOOSELY attach RH leg frame (A) and LH arm with leg frame (B) to seating section (C) using bolts (G) and flat washers (I) with the
spanner (J) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
3. LOOSELY attach backrest (D) to assembled leg frames using bolts (H) and flat washers (I) with spanner (J) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
4. Tighten all bolts using the spanner (J)
5. Turn it over and place in desired position, then put all seat cushions (E) and back cushions (F) on the sofa
For more information regarding maintenance of your furniture please visit
https://www.hartmanuk.com/home
Component’s
Fixings
Parts List
Parts Picture
Description
Q’ty
Part no
Parts list
Parts Picture
Description
Q’ty
Part no.
A
RH leg
frame
1
67006068A1
F
Back
cushion
2
67006068
F
B
LH arm
with leg
frame
1
67006068B1
G
M6*35 bolts
7
2100040
C
Seating
section
1
67006068C
H
M6*25 bolts
2
1231162
D
Backrest
1
67006068D
I
Flat
washers
9
1061162
E
Seat
cushion
2
67006068E
J
Spanner
1
2100041

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Sorrento Square Corner Casual Dining Set Left Hand 2 Seaters Sofa
( 67006068 / 67008068 )
1
2
3

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the sofa over and into position when
fully assembled
CORNER SOFA UNIT ASSEMBLY STEPS:
1. Position part (A), part (B) and part (C) ready for assembly
2. LOOSELY attach RH Leg frame (A) and LH arm with leg frame (B) to seating section (C) using bolts (H) and flat washers (J) with
spanner (K) DO NOT TIGHTEN BOLTS AT THIS STAGE.
3. LOOSELY attach backrest (D) to assembled leg frames using bolts (I) and flat washers (J) with spanner (K) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
4. Tighten all bolts using the spanner (K)
5. Turn it over and place in desired position, then put all seat cushion (E), back cushion (F) and side cushion(G) on the sofa
For more information regarding maintenance of your furniture please visit
https://www.hartmanuk.com/home
Component’s
Fixings
Parts List
Parts Picture
Description
Q’ty
Part no
Parts list
Parts Picture
Description
Q’ty
Part no.
A
RH leg
frame
1
67006068A1
G
Side
cushion
1
67006068
G
B
LH arm
with leg
frame
1
67006068B1
H
M6*35 bolts
6
2100040
C
Seating
section
1
67006068C1
I
M6*25 bolts
2
1231162
D
Backrest
1
67008068D1
J
Flat
washers
8
1061162
E
Seat
cushion
1
67006068E
K
Spanner
1
2100041
F
Back
cushion
1
670086068F

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Sorrento Square Corner Casual Dining Set Corner Sofa
( 67006068 / 67008068 )
1
2
3

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the sofa over and into position when
fully assembled

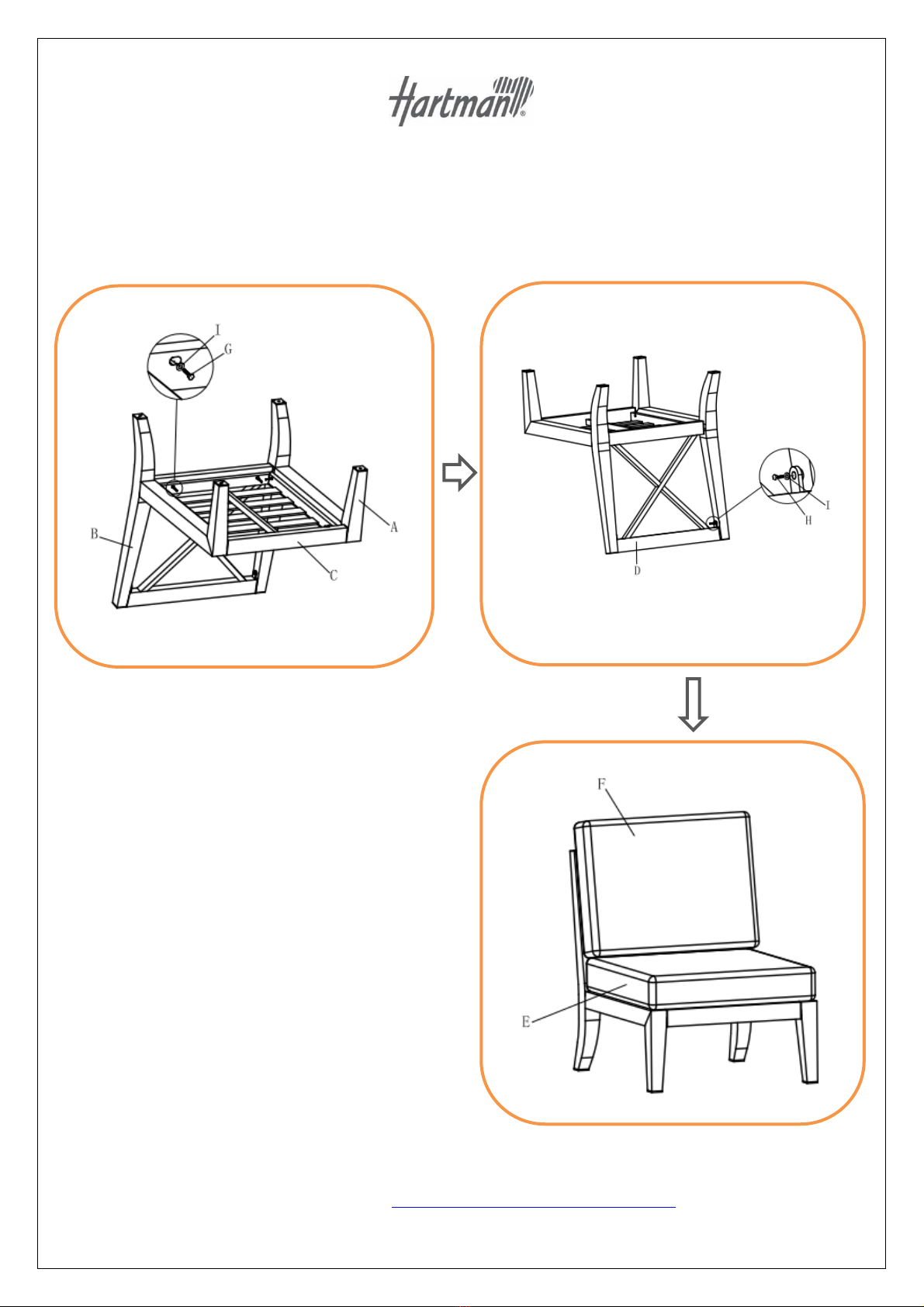

MIDDLE SOFA UNIT ASSEMBLY STEPS:
1. Position part (A), part (B) and part (C) ready for assembly
2. LOOSELY attach RH leg frame (A) and LH arm with leg frame (B) to seating section (C) using bolts (G) and flat washers (I) with
spanner (J) DO NOT TIGHTEN BOLTS AT THIS STAGE.
3. LOOSELY attach backrest (D) to assembled leg frames using bolts (H) and flat washers (I) with spanner (J) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
4. Tighten all bolts using the spanner (J)
5. Turn it over and place in desired position, then put all seat cushion (E) and back cushion (F) on the sofa
For more information regarding maintenance of your furniture please visit
https://www.hartmanuk.com/home
Component’s
Fixings
Parts List
Parts Picture
Description
Q’ty
Part no
Parts list
Parts Picture
Description
Q’ty
Part no.
A
RH leg
frame
1
68008068A
F
Back
cushion
1
68008068
F
B
LH arm
with leg
frame
1
68008068B
G
M6*35 bolts
6
2100040
C
Seating
section
1
68008068C
H
M6*25 bolts
2
1231162
D
Backrest
1
68008068D
I
Flat
washers
8
1061162
E
Seat
cushion
1
68008068E
J
Spanner
1
2100041

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Sorrento Square Corner Casual Dining Set Middle Sofa
( 67006068 / 67008068 )
1
2
3

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the sofa over and into position when
fully assembled

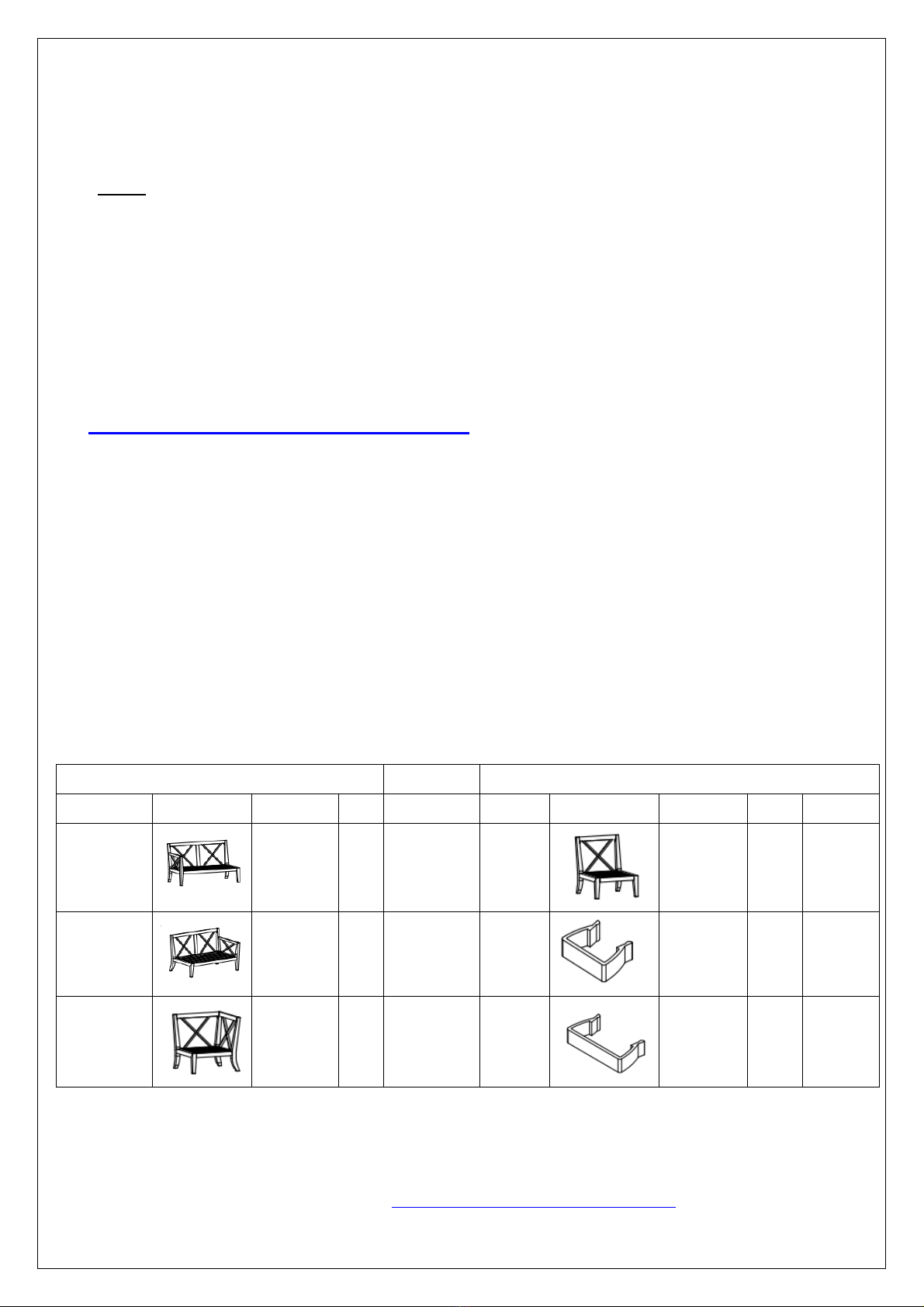

ASSEMBLY STEPS:
1. Position part (A), part (B), part (C) and part (D) ready for assembly
2. With brackets (E) and (F) position over the section that adjoin parts (A), (B), (C) and (D).
3. Turn sofas over and place in desired position.
4. Put all cushions on the sofa
For more information regarding maintenance of your furniture please visit
http://www.hartmanuk.co.uk/after_care_videos.html
Component’s
Fixings
Parts List
Parts Picture
Description
Q’ty
Part no
Parts list
Parts Picture
Description
Q’ty
Part no.
A
RH Sofa
1
D
Middle sofa
1
B
LH Sofa
1
E
Bracket
2
C
Corner sofa
1
F
Bracket
4

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Sorrento 150x80cm Rectangular Ceramic Coffee Table
( 67002068 )
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is a soft metal and over tightening may strip the thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the sofa over and into position when
fully assembled
ASSEMBLY STEPS:
1. Place glass in safe place whilst assembling table
2. Turn the table top (A) upside down on a soft clean surface
3. LOOSELY attach table top (A) to legs (B) using bolts (E) and flat washers (F) with spanner (G) DO NOT TIGHTEN BOLTS AT THIS
STAGE.
4. LOOSELY attach connecting bar (C) to assembled leg frames With bolts (E) and flat washers (F) with spanner (G) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
5. Tighten all bolts using the spanner (G)
6. Turn it over and place in desired position, then put glass (D) on the table
For more information regarding maintenance of your furniture please visit
https://www.hartmanuk.com/home
Component’s
Fixings
Parts List
Parts Picture
Description
Q’ty
Parts list
Parts Picture
Description
Q’ty
A
Table top
1
67002068A
E
M6*25 bolts
10
1231162
B
Leg
2
67002068B
F
Flat
washers
10
1061162
C
Connecting
bar
1
67002068C
G
Spanner
1
2100041
D
Glass
1
67002068D

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Sorrento 150x80cm Rectangular Ceramic Coffee Table
( 67002068 )
1
2
3

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Sorrento 60x45cm Stool
( 67004068 )
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the sofa over and into position when
fully assembled
ASSEMBLY STEPS:
1. Turn the cushion (B) upside down on a soft clean surface
2. LOOSELY attach legs (A) using bolts (E) and flat washers (G) with spanner (H) to cushion base (B) DO NOT TIGHTEN BOLTS AT
THIS STAGE.
3. LOOSELY attach connecting bar (C) using bolts (F) and flat washers (G) with spanner (H) to assembled leg frames DO NOT TIGHTEN
BOLTS AT THIS STAGE.
4. Tighten all bolts using the spanner (H)
5. Turn it over and place in desired position, then put seat cushion (D) on the stool
For more information regarding maintenance of your furniture please visit
https://www.hartmanuk.com/home
Component’s
Fixings
Parts List
Parts Picture
Description
Q’ty
Parts list
Parts Picture
Description
Q’ty
A
Leg
2
67004068A
E
M6*35 bolts
8
2100040
B
Cushion
base
1
67004068B
F
M6*25 bolts
2
1231162
C
Connecting
bar
1
67004068C
G
Flat
washers
10
1061162
D
Stool
cushion
1
67004068D
H
Spanner
1
2100041

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Sorrento 60x45cm Stool
( 67004068 )
1
2
3

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Sorrento Lounge Chair
(67005068 / 67001068 )
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. DO NOT use power tools
4. Please allow 30 minutes for assembly
5. Although assembly only requires 1 person it is advised that a second person be present to help turn the sofa over and into position when
fully assembled
ASSEMBLY STEPS:
1. Position part (A), part (B) and part (C) ready for assembly
2. LOOSELY attach RH arm with leg frame (A) and LH arm with leg frame (B) to seating section (C) using bolts (G) and flat washers (I)
with the spanner (J) DO NOT TIGHTEN BOLTS AT THIS STAGE.
3. LOOSELY attach backrest (D) to assembled leg frames using bolts (H) and flat washers (I) with the spanner (J) DO NOT TIGHTEN
BOLTS AT THIS STAGE.
4. Tighten all bolts using the spanner (J)
5. Turn it over and place in desired position, then put all seat cushion (E) and back cushion (F) on the sofa
For more information regarding maintenance of your furniture please visit
https://www.hartmanuk.com/home
Component’s
Fixings
Parts List
Parts Picture
Description
Q’ty
Part no
Parts list
Parts Picture
Description
Q’ty
Part no.
A
RH arm
with leg
frame
1
67005068A
G
M6*35 bolts
6
2100040
B
LH arm
with leg
frame
1
67005068B
H
M6*25 bolts
2
1231162
C
Seating
section
1
67005068C
I
Flat
washers
8
1061162
D
Backrest
1
67005068D
J
Spanner
1
2100041
E
Seat
cushion
1
67005068E
F
Back
cushion
1
67005068F

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE
For replacement or lost spare parts please go to http://spares.hartmanuk.co.uk/purchase
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product
ASSEMBLY INSTRUCTIONS
Sorrento Lounge Chair
(67005068 / 67001068 )
1
2
3
1
