Haswill STC-9200 User manual

1 / 9
STC-9200 Thermostat
Quick Start Guide
(Version 22.11.03GEN)
Video on YouTube

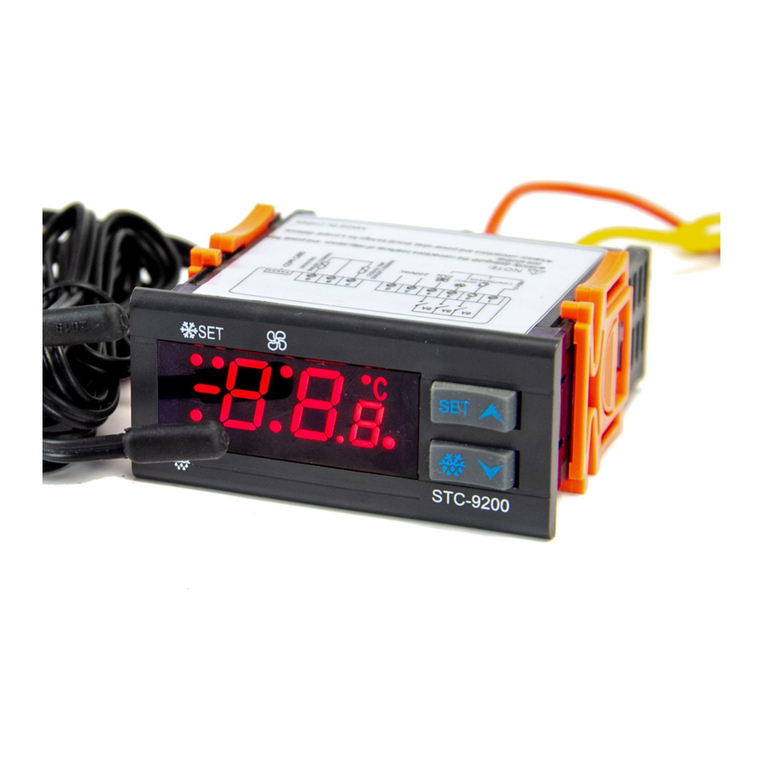

STC-9200 digital temperature controller controls three
loads: the refrigeration device, the defrosting unit, and
the Evaporator Fan; Typically suited to an oversized
freezer room.
1. Wiring Diagram

2 / 9
2. Set the target temperature
The room temperature was supposed to keep at the range
from "F1" to "F1 + F2" ("SET" to "SET + HY").
You can set them in the user interface and the Admin
Interface; below is the 2nd method.
Step 1: enter the Admin Interface by hold the [SET] key
and the [ ] key at the same time for 10s; you will
see the code "F1" ("SET").
Step 2: Press the [SET] key to check current value, and
press the key or the key to change the F1
value;
Step 3: Press the [SET] key to save the new data, and back
to the menu list, you will see the code "F1" ("SET")

3 / 9
again.
Step 4: Switch to the "F2" ("HY") code by press the key.
Repeat the above 2-4 steps to update all the code you
want to.
At last:Just leave the unit alone; it will auto quit from
setting mode back to normal status in 10s.
1) F1 (SET): SP (Temperature Set-Point)
2) F2 (HY): Temperature Hysteresis / Return Difference
3) F3 (US): Upper limit for SP
4) F4 (LS): Lower limit for SP
5) F5 (AC): Delay Time for the Compressor and Delay

4 / 9
time for defrosting if it was Hot Gas mode F10 = 1
(TDF = HTG)
If you found the "F1" (SET) value cannot be modified to the
value you need, please adjust the F3 and F4 (US and LS),
which are the limitation for F1 (SET).
3. Configure the Defrosting
This unit controls the defrosting by Time and
Temperature.
Temperature Condition: the evaporation sensor
temperature is lower than the preset "defrosting Stop
temperature" F8 (DTE), which is a significant value to
prevent over defrost.

5 / 9
Time Condition 1: the real-time passes the preset
interval time F6 (IDF), a regular parameter for almost all
defrosting thermostats.
Time Condition 2: If the "defrosting method" you take is
the hot gas from the compressor reverse rotary when F10
= 1 (TDF = HTG), it will count the compressor's last stops
moment plus F5 (ac), which is a protective value to avoid
the compressor frequently startup and stops.
The operates method is just like page 1 shows;
6) F6 (IDF): Defrosting Cycle / Interval Time
7) F7 (ADF): Defrosting Lasting/Running Time
8) F8 (DTE): Defrosting Stop Temperature

6 / 9
9) F9 (FDT): Defrosting Water Dripping Time
10) F10 (TDF): Defrosting Mode:
•0 (EL): Electric-Heating.
•1 (HTG): Hot Gas from the compressor.
11) F11 (DCT): Count mode of defrost cycle:
•0 (RT): Cumulative time from the
controller power on.
•1 (COH): Cumulative time of the
compressor working.
12) F12 (DFD): Display mode when defrosting:
A. 0 (RT): Shows the room sensor
temperature display.
B. 1 (IT): Shows the evaporator sensor
temp. (continue showing 10 minutes
once defrosting over)
4. Set the Evaporation Fan?
Check the F15 (FOD) value before others

7 / 9
13) F15 (FOD): Time delay seconds for the Fan
A. < 0: in this case, f15 (FOD) is the period for the
Fan starts earlier than the compressor starts, Fan
stops if defrosting begins.
B. ≥0: Fan was controller by F13 (FMC).
14) F13: Fan output modes when f15 (FOD) ≥ 0
A. 0 (CTR): Fan Starts by F14 (FOT), Stop by F16
(FST).
B. 1 (O-N): continuous working except defrosting.
C. 2 (C-N): in this case, F15 (FOD) is the time for the
Fan to start later than the compressor; the

8 / 9
Fan stops if defrosting begins.
15) F14 (FOT): Defrost sensor Temp for Fan Starts
16) F16 (FST): Defrost sensor Temp for Fan Stops
5. Set the Alarm
The alarm function is based on the room sensor
temperature, and the Alarm also works if the evaporator
sensor is broken.
17) F17 (ALU): Upper Temperature of the Room sensor to
Trigger Alarm
18) F18 (ALL): Lower Temperature of the Room sensor to
Trigger Alarm
19) F19 (ALD): Time delay of the Room sensor to Trigger
Alarm
20) F20 (OT): Temperature Calibration = Real

9 / 9
Temperature - Measured Temperature.
This is not a step-by-step user manual;
It just shows the key points.
The new user should read the Full-Content Version User
Manual
