Hatteland JH 21C06 User manual

21” CRT
JH 21C06 - 21 inch Industrial Monitor
Jakob Hatteland Display AS
Åmsosen, N-5578 Nedre Vats, Norway
Phone: [phone], Fax: [phone]
www.hatteland.com
DEGAUSS
BRIGHT
CONT ON
Jakob Hatteland Display AS
Created : 06 Apr, 2001
Modied : 01 Jul, 2002 Created by: Stein Eikesdal
Title : IND100014-1
Subject : JH21C06-UserManual
Description: Internet release for customers. Rev.8

Product: JH 21C06
CONTENTS Product: JH 21C06
JH 21C06 - 21 inch Industrial Monitor
CONTENTS:
OPERATION........................................................................................................... 3
Power switch, Monitor Adjustment Controls......................................................... 3
USER CONTROLS PANEL.................................................................................... 4
User Controls, Input Select, Power LED Adjust / Indicator...................................4
Select Functions / Adjust buttons, Auto Degauss................................................ 4
OSD MENU USAGE............................................................................................... 5
Language Select, Brightness & Contrast, Horizontal Pos., Horizontal Size......... 5
Vertical Pos., Vertical Size, Rotation, Pincushion, Trapezoid, Right Pincushion...5
Right Trapezoid, Color Select, Color Balance...................................................... 5
USAGE / STORE.................................................................................................... 6
Horizontal Moire, Vertical Moire, Store................................................................. 6
PHYSICAL CONNECTIONS.................................................................................. 7
VGA Signal, Power Terminal, Touchscreen Connector......................................... 7
PIN ASSIGNMENTS............................................................................................... 8
VGA 15P D-SUB (Input1, Input2), Touchscreen 9P D-SUB................................. 8
SIGNAL CHECKING.............................................................................................. 9
Signal Check, Automatic Signal Check............................................................... 9
Video Muting....................................................................................................... 10
PRESETS / POWER SAVING................................................................................ 11
Preset Signal Timing Table, Power Saving, Plug & Play...................................... 11
TROUBLESHOOTING............................................................................................ 12
Common Errors................................................................................................... 12
NOTES.................................................................................................................... 13
SPECIFICATIONS.................................................................................................. 14
2
Features:
This color monitor is an industrialized version of a high quality Hitachi based
monitor. The monitor allows you to display professional applications with clarity
and enhanced color and image quality. The monitor provides you with automatic
compatibility with multiple upgrading platforms and a vast array of graphics
standards allowing resolution upgrades without upgrading the monitor. The monitor
is tested according to the maritime standard EN60945 (IEC945).
DEGAUSS
BRIGHT
CONT ON

OPERATION Product: JH 21C06
POWER SWITCH:
Power ON: To turn the monitor on, press the power switch in the upper area marked “1”
The power light indicator (Power LED)will turn green.
Note: If no VGA signal sync is present, it will turn orange after 10 seconds and the
message “NO SYNC. SIGNAL” will be shown in the display.
Power OFF: To turn the monitor off, press the power switch in the lower area marked “0”.
MONITOR ADJUSTMENT CONTROLS:
This CRT monitor has a 100% dimmable image, which means it is capable of displaying a
completely black image when the brightness knob is turned fully to the left.
Note: For navigational use, a external dimmable illumination is required (IEC 60945, 6.5.c,
e.g. Goose neck light). This is because the brightness and contrast knobs are not self
lightning (dimmable)
WARNING: Use of brightness and contrast knobs may inhibit visibility of information at night.
CONTRAST - Adjust the image brightness in relation to the background using the knob
marked “CONT”.
BRIGHTNESS - Adjust the overall image and background screen brightness using the knob
marked “BRIGHT”
DEGAUSS - To manually degauss the picture press this button. This function will remove any
color impuritites that may be visible in the picture. This function is also available
under the “user controls panel” on the left front side of the monitor.
Note: - The monitor degausses itself during intital power up. Wait at least 10 minutes
before repeating this function.
Power Switch
Brightness Knob
Power Light Indicator
Product: JH 21C06
3
Degauss ButtonContrast Knob
1
0

USER CONTROLS PANEL Product: JH 21C06
USER CONTROLS:
The On Screen Manager (OSD EasyMenu) controls are located under the metal hatch on the left front
side of the monitor. To begin adjusting any of the monitor’s functions, press then desired function item, and
then refer to the table below to make any changes to the picture. Below follows a rough guide to what
these user controls buttons stand for.
INPUT SELECT:
This CRT monitor have two input terminals in the back. This will let the user to connect two computers
simultaneously. The user may select any of the inputs to display by pressing the “Input Select” button.
POWER LED ADJUST / INDICATOR:
The user can adjust the intensity of the “Power Light Indicator” by using a screwdriver and gently turn the
screw inside the “Power Led Adjust” hole.
SELECT FUNCTIONS BUTTONS / ADJUST BUTTONS:
Any picture adjustments can be viewed or modied by pressing any of these buttons. This will bring up an
EasyMenu showing it’s function. Every function can be adjusted using the “Adjust Buttons” to either
increase or decrease the values.
The EasyMenu will be visible for 6 seconds before it automatically disappears. Pressing the same
button will also close the EasyMenu. When any of the “Adjust Buttons” are pressed, a purple color
will indicate that the selected function is active and are now beeing modied. A slider will also
indicate the adjustment.
AUTO DEGAUSS / DEGAUSS:
To manually degauss the picture press this button. This function will remove any color impuritites that may
be visible in the picture. This function is also available as a hot-key beside the “CONT” and “BRIGHT”
adjustment knobs on the right front side of the monitor.
The AUTO DEGAUSS adjustment knob can be adjusted or turned beyond the “30” mark. This will
deactivate (OFF) the auto degauss function. The manual degauss function will however be available.
Product: JH 21C06
4
Input Select
Power Light Indicator
LANGUAGE
INPUT
POWER
RG
RECALL
BHV
MOIRE
POWER LED
ADJUST
AUTO DEGAUSS
DEGAUSS
1
OFF
MIN.
30
Select Function Buttons
Degauss Button
Power Led Adjust Auto Degauss Adjust
Adjust Buttons

OSD MENU USAGE Product: JH 21C06
AVAILABLE FUNCTIONS:
Each of the “function buttons” have two sets of parameters that can be modied. One upper parameter
and one lower parameter. To modify any of the parameters use either of the “adjust buttons” sets.
The EasyMenu display will also indicate what parameter is beeing moded. Some of the parameters
requires the user to press two “functions buttons” simultaneous. This will be shown in the table below.
Upper Parameter are adjusted with these buttons:
Lower Parameter are adjusted with these buttons:
Product: JH 21C06
5
PARAMETER FUNCTION BUTTON ADJUST BUTTON
Language Select and or
Contrast or
Brightness or
H.Position or
H.Size or
V.Position or
V.Size or
Rotation or
Pincushion or
Trapezoid or
Right Pincushion or
Right Trapezoid or
Color Select or
Color Balance
Red and or
Green and or
Blue and or
Color This function is only valid when and
reset the user already has entered the
color balance parameter menu.
(As described above)
RESULT
Choose between these languages:
ENGLISH, DEUTSCH, ESPANOL, ITALIANO and
FRANCAIS. Will affect all of the menus and messages.
Makes Contrast darker/brighter excluding background.
Makes Brightness darker/brighter including background.
Moves the position of the picture left or right
Shrinks or expands the picture horizontally.
Moves the position of the picture down or up.
Shrinks or expands the picture vertically.
Rotates the picture counter clockwise or anti-clockwise.
Curves the left and right sides inwards or outwards.
Shrinks or expands the top and bottom side.
Curves the right side inwards or outwards.
Shrinks or expands the right top side+right bottom side.
Choose the color warmth (Kelvin Degree) of the picture.
Available modes are: No 1:9300K, No 2:6500K,
No 3:5000K and No 4:USER (if available)
Decrease or increase the intensity of the red color.
Decrease or increase the intensity of the green color.
Decrease of increase the intensity of the blue color.
Pressing these two buttons simultaneously will cancel
the currently adjusted color mode, and recalls the
previously selected color mode, before entering the
color balance parameter menu.
NOTE:
- When EasyMenu is not shown, the user can start the adjustment of Contrast and Brightness only, without pressing any of the “Select Function Buttons”
- It is recommended to follow the following procedures for the adjustment of distortions;
(1) “Rotation” - (2) “Pincushion” and “Trapezoid” (Adjust the right side) - (3) “Right Pincushion” and “Right Trapezoid” (Adjust the right side)
- The mode “No 4:USER” is not factory preset, it can be programmed by the user - if desired.
After adjustment of “Color Balance” (Red, Green or Blue) and “STORE” (refer to page 5), the user’s color balance preset can be restored by selecting “No 4:USER”
continues....

USAGE / STORE Product: JH 21C06
Product: JH 21C06
6
PARAMETER FUNCTION BUTTON ADJUST BUTTON
or
H. Moire Reduction and
or
or
V. Moire Reduction and
or
RESULT
Stops or operates the horizontal moire changing circuit.
Increases or decreases the strength of the horizontal
moire changing circuit.
Stops or operates the vertical moire changing circuit.
Increases or decreases the strength of the vertical
moire changing circuit.
NOTE:
- Moire may appear on the screen due to interference between CRT dot pitch and video signal by conditions of
video image, display size, display brightness etc.
Adjust the conditions of display size, display brightness etc, before trying the adjustment of moire.
- In some cases, this function may cause deterioration of display quality, such as focus, jitter etc.
- The condition of the moire changing circuit will be indicated by pressing any of the “Select Function Buttons” or
“Adjust Buttons”, and will be displayed in the lower left corner of the EasyMenu as its own icon. See below.
AVAILABLE FUNCTIONS: (continued)
Moire changing circuit condition:
Indicated Symbol Horizontal Vertical
ON ON
ON OFF
OFF ON
not indicated OFF OFF
STORE:
The user can store the display settings. Only one setting is allowed for each video mode.
These geometry settings will be saved automatically when the EasyMenu is exited:
H.POSITION, H.SIZE, V.POSITION, V.SIZE, PINCUSHION, TRAPEZOID, RIGHT PINCUSHION,
RIGHT TRAPEZOID, H.MOIRE REDUCTION, and V.MOIRE REDUCTION.

PHYSICAL CONNECTIONS Product: JH 21C06

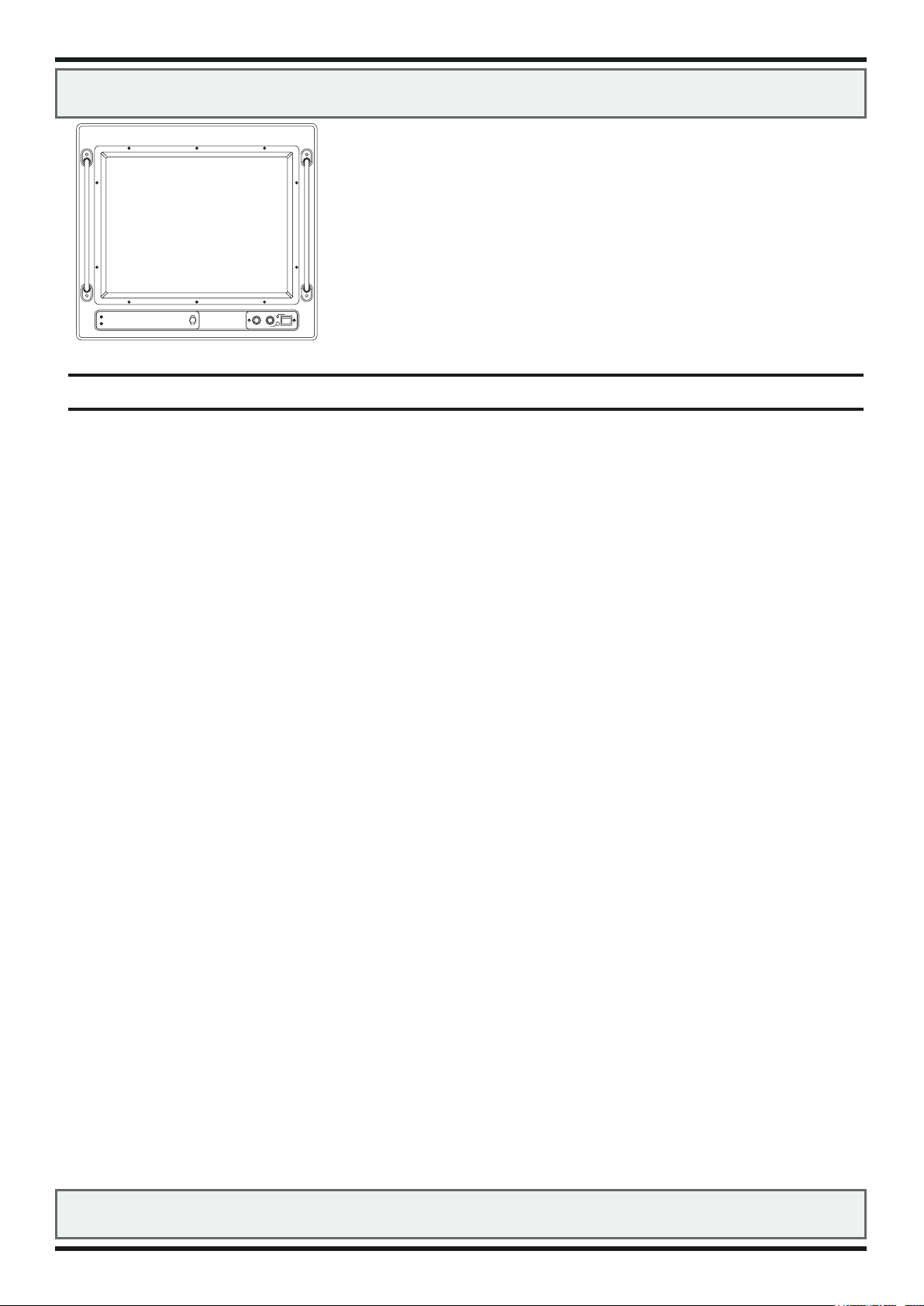

Rear side of monitor
SIGNAL INPUTS:
There are two signal inputs connectors allowing you to display two signals from separate sources.
Connect the VGA cable to the desired D-SUB 15P Connector (female) on the rear side of the monitor. If
possible, screw the VGA cable to the D-SUB connector and make sure you don’t bend any of the pins inside
the connector. To reduce tension of the VGA cable, secure it to the base mounted cable tie clamp. Connect
the other end of the cable to the VGA output of your computer, and fasten it there also.
POWER TERMINAL:
Make sure the monitor is turned off before connecting. Insert the powercable into the 220 VDC
power terminal. You may secure the cable further by mounting it to the base mounted cable tie clamp.
TOUCHSCREEN: (optional)
Connect the RS-232 cable to the D-SUB 9P Connector (female) on the rear side of the monitor.
Connect the other end to your COM port of your computer. Install the nesscessary software needed to
operate it.
Product: JH 21C06
7
Signal Inputs:
Input 1
Input 2
Power Terminal
WARNING
TO PREVENT ELECTRIC CHOCK,
DO NOT REMOVE BACK.
NO USER-SERVICEABLE
PARTS INSIDE
INPUT
INPUT 2
POWER
XXXXT3A1
Touch screen (opt)

PIN ASSIGNMENTS Product: JH 21C06

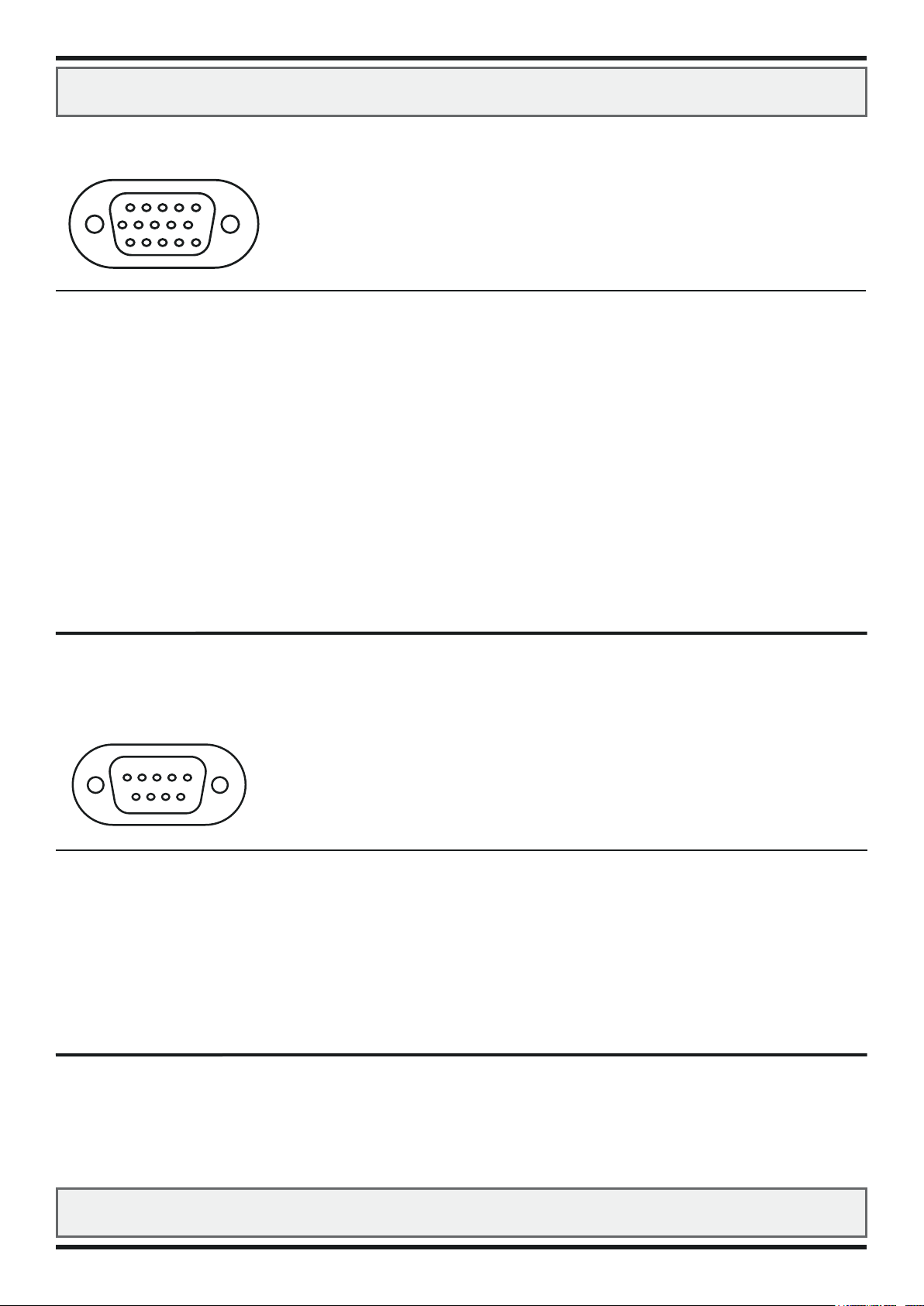

VGA D-SUB 15P CONNECTORS FEMALE:
Pin Number: Description (Input 1): Description (Input 2):
1 red video red video
2 green video (sync. optional) green video (sync. optional)
3 blue video blue video
4 no pin no pin
5 no connection no connection
6 red ground red ground
7 green ground green ground
8 blue ground blue ground
9 no connection no connection
10 ground ground
11 no connection no connection
12 bi-directional data (SDA) no connection
13 horizontal sync. (or H/V) horizontal sync. (or H/V)
14 vertical sync. (VCLK) vertical sync.
15 data clock (SCL) no connection
TOUCHSCREEN D-SUB 9P CONNECTOR FEMALE: (optional)
Pin Number: Description:
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
Product: JH 21C06
8
5 4 3 2 1
10 9 8 7 6
15 14 13 12 11
5 4 3 2 1
9 8 7 6

SIGNAL CHECKING Product: JH 21C06
SIGNAL CHECK:
To refer to the input signal condition, press any of the adjust buttons.
The horizontal and vertical frequency will be indicated in the lower part of the picture.
Above: Sample of “Input Select” EasyMenu.
AUTOMATIC SIGNAL CHECK:
When the CRT monitor has detected the change of the signal input condition, it will indicate the
condition automatically, as follows:
Indication 1:
The EasyMenu indicates the resolution
and vertical frequency. Precision
frequency +/- 2khz approx.
Condition 1:
The monitor detects proper signal.
Solution 1:
No action is needed.
Above: Sample of EasyMenu.
Indication 2:
The monitor indicates the message
“POWER SAVE” for 5 seconds.
Condition 2:
The monitor detects no sync. signal
Solution 2:
Verify power switch of the computer and check cable connection.
Above: Sample of POWER SAVE condition.
continues....
Product: JH 21C06
9

SIGNAL CHECKING Product: JH 21C06
Indication 3:
The Power Light Indicator ashes.
Condition 3:
This happens when the monitor will
go into the power saving mode.
(Refer to page 6)
Solution 3:
Verify power switch of the computer and check cable connection.
Indication 4:
The EasyMenu indicates the
message “INVALID SCAN FREQ”.
Condition 4:
This will happen when the monitor detects a
sync. signal which is out of set-up specication
or is unstable.
Solution 4:
Verify the specication of input signal.
Above: Sample of INVALID SCAN FREQ condition.
VIDEO MUTING:
When the monitor has detected the change of the input signal condition, the monitor mutes the
picture automatically. This function hides scrambled images which may appear during the changing
period of the input signal. The muting period may vary as it can take a while before the replaced input
signal has become stable or not.
Product: JH 21C06
10

PRESETS / POWER SAVING Product: JH 21C06
PRESET SIGNAL TIMING TABLE:
Microprocessor-based preset functions can store 26 sets of geometry settings including the
standard settings. The following industrial standard settings have been pre-programmed by
the factory.
Preset Resolution Vert. Frequency(Hz) Horiz. Frequency(Hz) Video Mode
01: 640 x 400 70 31.47 VGA
02: 800 x 600 85 53.67 VESA
03: 1024 x 768 85 68.68 VESA
04: 1280 x 1024 85 91.15 VESA
05: 1600 x 1200 90 112.50 VESA
06: 1856 x 1392 72 102.95
Note: - Input signals with approximately the same frequencies may be regarded as the same
signal.
- Standard settings are subject to change without notice.
POWER SAVING SYSTEM:
This monitor complies with VESA and ENERGY STAR© power saving requirements. The power
saving system works only when used with VESA DPMS compliant PC’s and/or graphic controllers.
VESA DPMS Power Saving States
MODE VIDEO H.Sync. V.Sync. Power Power LED
ON Active Yes Yes 130 W (typical) Lighting Green
Stand-by Blanked No Yes less than 15W Flashing quickly
Suspend Blanked Yes No less than 15W Flashing quickly
OFF Blanked No No less than 5W Flashing slowly
Note: - When the user switch the power OFF during the monitor is in OFF mode, sometimes
the LED ashes continues a few seconds afterwards. This is not an failure.
PLUG & PLAY:
This monitor complies with VESA DDC1/2B specications. Plug & Play is a system with computer,
peripherals (including monitors) and operating systems. It works when the monitor is connected to
DDC ready computer, which is running an operating system software that incorporates Plug & Play
functionality.
Product: JH 21C06
11

TROUBLESHOOTING Product: JH 21C06
COMMON ERRORS:
If for some reason there should be something wrong with the picture quality or no picture present, check
the symptoms carefully and try to cure it with the hints below:
NO PICTURE / LED BEHAVIOUR:
Power Switch and computer power switch should be in the ON position. The signal cable should be
completely connected to the video card/computer. Check the connector for bent or pushed-in pins. If the
LED in front is red, no external VGA signal is present. If there is no light at all in the LED, no power is
present to the unit. Check your external power source. A lack of image is most likely to be caused by
incorrect connection, lack of power, failure to provide a signal or incorrect graphic card settings.
SCROLLING / UNSTABLE IMAGE:
Signal cable may not be completely connected to computer or CRT monitor.
Check the pin assignments and signal timings of the display and your video card with respect to
recommended timing and pin assignments. Make sure that the video card is compatible and that it is
properly seated / installed on the computer.
DISPLAY AREA IS NOT CENTERED / SIZED CORRECTLY:
Make sure that a supported video mode has been selected on the display, or on the video card / system.
If it is impossible to position the image correctly, ie the image adjustment controls will not move the image
far enough, then test it again using another graphics card for the PC system. This situation can occur
with a custom graphics card that is not close to standard timings or if something is in the graphics line
that may be affecting the signal, such as a signal splitter (please note that normally a signal splitter will
not have any adverse effect).
IMAGE APPERANCE:
A faulty CRT tube can have black lines, failed sections, ickering or ashing image.
Incorrect graphics card refresh rate, resolution or interlaced mode will probably cause the image to be
the wrong size, it may scroll, icker badly or possibly even no image is present. Sparkling on the display
may be a faulty CRT tube signal cable.
CONTINUED FAILURE:
If unit after unit keeps failing, consider and investigate whether you are short circuiting the equipment or
doing something else seriously wrong.
Product: JH 21C06
12

NOTES Product: JH 21C06
Product: JH 21C06
13
- The monitor is type approved according EN 60945 (1997), 4.4, equipment category b) protected from
the weather.
- For navigational use a external dimmable illumination is required (IEC 60945, 6.5.c, e.g. Goose neck
light). This is because the knobs for brightness and contrast are not self lightning (dimmable).
- Use of brightness and contrast knobs may inhibit visibility of information at night.

CRT characteristics:
CRT size : 21”
Viewable image size : 20”
Viewable Size : 406 x 305 mm
Horizontal mask pitch : 0.21 mm
Deflection : 90 deg.
Tube:
Flat square, Super Space Saving, Black Matrix,
Advanced Elliptical Aperture electron gun with Multistep
Dynamic Focussing (A-EA-MDF)
Input Signal:
Video: Analogue 0.7V p-p 75 ohm
Sync: H/V separate TTL, H/V composite TTL, sync. on
green, automatic sync. mode detection
Display Colors Analog Input:
Unlimited colors
(Depending on the graphics board)
Light Intensity:
All white screen : >85 cd/m2
All black screen : <0,01 cd/m2
Synchronization Range:
Horizontal : 31 kHz to 107 kHz (Auto)
Vertical : 50 Hz to 160 Hz (Auto)
Resolutions:
Maximum : 1856 x 1392 @ 72 Hz
Recommended : 1280 x 1024 @ 85 Hz
: 1600 x 1280 @ 75 Hz
Pixel Clock Frequency:
230 MHz
Power Supply:
Universal Power Supply:
AC 100 - 120 V, 50/60 Hz or
AC 220 - 240 V, 50/60 Hz
Power Consumption:
130 W (typical), 145W max
Environmental Considerations:
Operating: Temperature -15 deg. C to +55 deg. C
Humidity 30% to 93% (non condensing)
Storage: Temperature -20 deg. C to +60 deg. C
Humidity 10% to 90% (non condensing)
User Adjustments by OSM:
Easy Menu (on screen display), contrast, brightness, color
temperature/white balance selection (9300k/6500k/5000k/
user), rotation, H-position/H-size, V-position/V-size, side pin-
cushion, right pincushion, trapezoid, right trapezoid, H.moiré
on/off, H.moiré adjustment
Presets:
27 (21 user-programmable, 6 factory settings)
Dimensions:
533 (W) x 480 (H) 570 (D) mm
Weight: approx 40 kg
Input Signal Terminals:
2 x mini D-SUB 15P connector (female)
User Controls:
On front bezel:
Power switch
Brightness control
Contrast control
Degauss switch (manual / auto)
Behind hatch:
Easy menu controls (on-screen display)
Input select
Power LED adjust
Quick auto degauss adjusting / setup
For additional information, datasheets and
support for this product, please visit our
website: http://www.hatteland.com
SPECIFICATIONS Product: JH 21C06
Specication and design are subject to change without notice.
Product: JH 21C06
14
Jakob Hatteland Display AS
Åmsosen, N-5578 Nedre Vats, Norway
Phone : [phone]
Fax : [phone]
E-mail : [email protected]
