Havener Enterprises BRADLEY MOWERS 32 User manual

1
Sep. 10th 2023

1
TABLE OF CONTENTS
About This Manual ............................................................................................................................................................. 2
Warranty Statement
........................................................................................................................................................... 3
SAFETY INFORMATION
.................................................................................................................................................. 4
Training
........................................................................................................................................................................ 4
Before Use of Equipment
......................................................................................................................................... 4
Operation of Equipment
.................................................................................................................................................... 5
Assembly Instructions
................................................................................................................................................. 6-18
OPERATING THE MOWER
........................................................................................................................................... 19
S tart ing Th e Engin e....................................................................................................................................................... 20
Going Forward
.................................................................................................................................................................. 20
Turning The Mower
.......................................................................................................................................................... 21
Stopping The Mower
....................................................................................................................................................... 21
Mowing
............................................................................................................................................................................... 21
Changing The Height Of Cut
.......................................................................................................................................... 22
Measuring The Height Of Cut
........................................................................................................................................ 22
Removing And Adjusting Blades
................................................................................................................................... 22
Adjusting Front Wheels
................................................................................................................................................... 22
GENERAL MAINTENANCE
........................................................................................................................................... 24
Maintenance Schedule ........................................................................................................................................... 24
Fuel
............................................................................................................................................................................. 25
Engine Oil
.................................................................................................................................................................. 25
Air Filter
..................................................................................................................................................................... 25
Tire Pressure
............................................................................................................................................................ 25
Blade
.......................................................................................................................................................................... 25
Cleaning The Mower ............................................................................................................................................... 25
Lubrication Points ................................................................................................................................................... 26
SERVICE ADJUSTMENTS
............................................................................................................................................ 27
Wheel Brake Adjustment
........................................................................................................................................ 27
Engine To Transmission Belt Adjustment
........................................................................................................... 28
T ROUBLE SHOOTING .............................................................................................................................................. 29-30
Engine assembly ........................................................................................................................................................ 32-33
Frame Assembly
........................................................................................................................................................ 34-35
Front Deck Assembly ................................................................................................................................................ 36-37
Rear Wheel Assembly
.................................................................................................................................................... 38
Front Caster Assembly .................................................................................................................................................... 39
Transmission Assembly ............................................................................................................................................ 40-41
Handle control Assembl y
.......................................................................................................................................... 42-43
Rear Deck Assembly ................................................................................................................................................ 44-45
Label
.. ......................................................................................................................................................................... 46-47
Fuel Tank Assembly ....................................................................................................................................................... 48
Electrical Diagram
......................................................................................................................................................... 49
Electrical Diagram .......................................................................................................................................................... 5 0
Bradley Mower Product Registration ........................................................................................................................... 51

Bradley Bel t -Drive With Electric Clutch Mower Par t s
2
About This Manual
This owner’s manual is considered a permanent part of the mower. It must be available to all of the
operators and/or person(s) servicing the mower. Should the mower be resold, this manual must
remain with the mower.
All information, illustrations, and specifications contained in this manual were in effect at the time of
publication. The mowers reserves the right to change, modify, and/or discontinue specifications and/or
design without notice. If there is a change that has been made to your mower which is not shown or
reflected in this manual, please see your authorized the mower dealer before operating and/or
servicing the equipment.
Congratulations on the purchase of your new the commercial mower. We at the mowers are confident
that this mower will provide you with years of excellent performance, durability, and trouble free
service when operated and maintained as directed in this manual.
Should you ever have any questions regarding the operation, maintenance, or safety of your mower,
please contact your authorized the mower dealer who has been specially trained on operation and
service of Red Hawk mower.
A space has been provided below to record information about your new the mower.
Please take time to record such information for future reference, especially
authorized the mower dealer with questions.
when
you
contact an
Date Purchase:
Model Number:
Serial Number:
Purchased From:

Bradley Bel t -Drive With Electric Clutch Mower Par t s
3
Warranty Statement
The mowers are warran t ed for two (2) years from the original da t e o f purchase agains t de f ec t s
in ma t erial or workmanship , when opera t ed and main t ained in accordance wi t h the mowers
Owner’s Manual . Commercial opera t ors : f irs t year is par t s and labor ; second year is par t s only .
Residen t ial opera t ors : f irs t t wo years par t s and labor ; t hird year par t s only .
The engine , t ransmission , and ba tt ery are warran t ed by their respec t ive manu f ac t urers . Havener
En t erprises , I nc . (Havener) will replace or repair , f ree o f charge , any par t o f t he original equipmen t
re t urned to us or our au t horized servicing represen t a t ive wi t h transpor t a t ion or pos t age prepaid and
which upon examina t ion shall be de f ec t ive . The cos t o f replacing i t ems tha t are subjec t t o normal
wear , such as bu t no t limi t ed to : air fil t ers , bel t s , blades , oil fil t ers , and t ires , will be borne by the
purchaser / owner unless such wear was caused by a de f ec t in ma t erial and workmanship .
This warran t y does no t cover any mower tha t has been subjec t t o neglec t, negligence , misuse , or
acciden t, or tha t has been opera t ed in any way con t rary t o the opera t ing ins t ruc t ions as speci f ied in
the Owner’s Manual . This warran t y does no t cover any mower tha t has been al t ered or
modi f ied changing per f ormance or durabili t y . I n addi t ion , t he warran t y is no t ex t ended to repairs
made necessary by the use o f par t s or accessories which , in the reasonable judgmen t o f t he
mowers are compa t ible wi t h the mower or adversely a ff ec t i t s opera t ion , per f ormance , or durabili t y .
This warran t y is no t transferable.
Havener assumes no responsibili t y or inciden t al , consequen t ial , or o t her damages including , bu t
no t limi t ed to : expense for gasoline , expense o f delivering the mower to a the mower au t horized
dealer and expense o f re t urning i t t o the owner , mechanic’s travel time , t elephone or communica t ion
charges , ren t al o f a like produc t during the time warran t y repairs are being per f ormed , t ravel , loss
or damage to personal proper t y , loss o f revenue , loss o f t he use o f t he time or inconvenience .
There are no o t her expressed or implied warran t ies and liabili t y for consequen t ial damages under
this warran t y and are excluded to t he ex t en t exclusions are permi tt ed by law . No warran t y
service will be au t horized un t il your regis t ra t ion card has been received by the mower .

Bradley Bel t -Drive With Electric Clutch Mower Par t s
4
SAFETY INFORMATION
Read This Manual Carefully And Thoroughly Before Operating The Mower !
T ra ining
Carefully and thoroughly read the owner’s manual. Allow adequate time to fully understand
the controls and operation of the equipment.
Never allow anyone to operate the mower that has not read and fully understood the owner's
manual. Do not carry passengers. Avoid mowing while people, especially children and pets are
nearby, since
1.
2.
3.
Bef o re Use o f Equip me n t
Operator:
Wear protective clothing while mowing. Long trousers and safety glasses will help reduce the risk of
injury from thrown objects. It is recommended that steel toe shoes with aggressive soles or some
other type of substantial footwear be worn to help protect your feet and maintain traction on slopes
or uneven ground. Always wear hearing protection.
Mowing Area:
Thoroughly inspect the area where the equipment is to be used. Look for items such as stones, sticks,
wire and other foreign objects. When struck by the mower, these and other objects my become
projectiles that could lead to serious injury and/or death.
Mower:
For your safety and the long life of your mower, always inspect the mower before each use.
Before inspection, make sure it is on a flat and level surface, the blades are disengaged, the ignition
switch off with the key removed, and the spark plug wire is off of the spark plug(s) and hidden so that
accidental contact can not be made.
General Condition:
● Walk around the mower looking for any fluid spills or leaks on or underneath the mower. Remove
any and all excessive debris, dirt, and/or fluids.
● Look for signs of damage or excessive wear. Check the tightness of all nuts, bolts, pins, and
screws. Tighten any that may be loose and replace any that may have been lost during use.
● Be sure the safety interlock controls are operating properly so that the engine can not be started
unless the ground speed control lever is in neutral and the blades disengaged.
● Check the mower blades for any damage or abnormal wear and replace in sets so that they
are balanced.
● Check the tire pressure on all four tires. See page 15 for details.
● Check all belts for proper wear and correct tension. See pages 17-19 for details.
● Check engine oil and air filters as recommended in the engine manufacturers operators manual.

Bradley Bel t -Drive With Electric Clutch Mower Par t s
5
Operation of Equipment
DANGER: GASOLINE IS HIGHLY FLAMMABLE AND EXPLOSIVE. DO NOT ADD FUEL
WHILE THE ENGINE IS RUNNING OR IS HOT. KEEP OPEN FLAMES, SPARKS, AND
HEAT AWAY FROM THE FUEL AND STORE FUEL IN CONTAINERS SPECIFICALLY
DESIGNED FOR THAT PURPOSE. ADD FUEL OUTDOORS ONLY AND IF THE FUEL IS
SPILLED, DO NOT START THE ENGINE. MANUALLY PUSH THE MOWER AWAY FROM
THE SPILL AND IMMEDIATELY WIPE UP.
Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.
Carbon monoxide is odorless, tasteless, and can be fatal.
Mow only in daylight .
Make sure the mower is in neutral and the blades are disengaged before attempting to start the engine.
Do not stop or start suddenly when going uphill. Never use riding attachments on slopes since there is an
increase risk that they might roll over.
Avoid steep slopes and use extreme caution when changing directions or speed when operating on a
slope.
Be extremely careful when operating on a slope or when the grass is damp or wet. Reduced traction
could cause sliding.
Never mow by pulling the mower back towards you...you might slip.
Watch for traffic when crossing surfaces other than grass, (i.e. transporting,) loading a trailer vehicle,
or when the mower is not in use.
Never operate the mower with defective guards, shields, or without the safety devices securely
mounted in place.
Never direct discharge of material toward bystanders nor allow anyone near the mower while in operation.
Do not change the governor settings or over speed the engine.
Always stop the engine whenever you leave the mower, even for a moment.
To help reduce the risk of a fire hazard, keep the engine and the area around the engine free of
grass,leaves, or any other type of foreign material.
Beware of cutting edges. Always wear gloves for safety when performing blade maintenance
activities.
Beware on multiple blades units since the rotation of one blade may cause the rotation of the other
blade.
Do not store or operate the mower with the grass chute deflector in raised position. Serious injury
could occur.

Bradley Bel t -Drive With Electric Clutch Mower Par t s
6
Assembly Instructions
Remove the fuel tank from the mower, unbolt the crate,removing the top and side rails
Tools needed:17mm or 5/8"wrench/ratchet
Remove the bolts that securing the back of the mower
Fuel Tank

Bradley Bel t -Drive With Electric Clutch Mower Par t s
7
Unpack the mower
Parts B
Parts A
Remove parts packages A and B

Bradley Bel t -Drive With Electric Clutch Mower Par t s
8

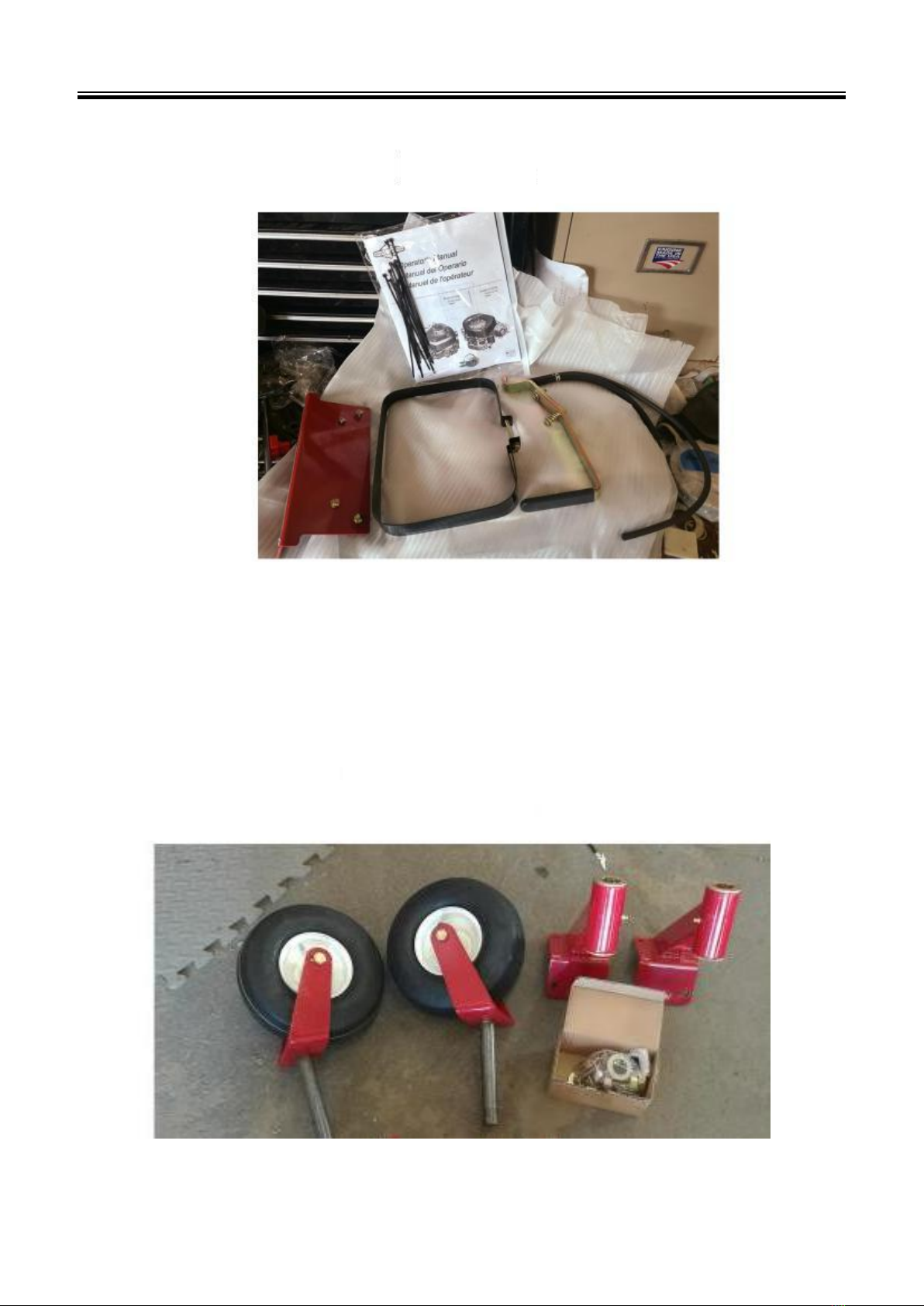

Parts A
Parts B

Bradley Bel t -Drive With Electric Clutch Mower Par t s
9
Remove the handlebar assembly
Handlebars
Remove the bolts securing the deck to
The frame

Bradley Bel t -Drive With Electric Clutch Mower Par t s
10

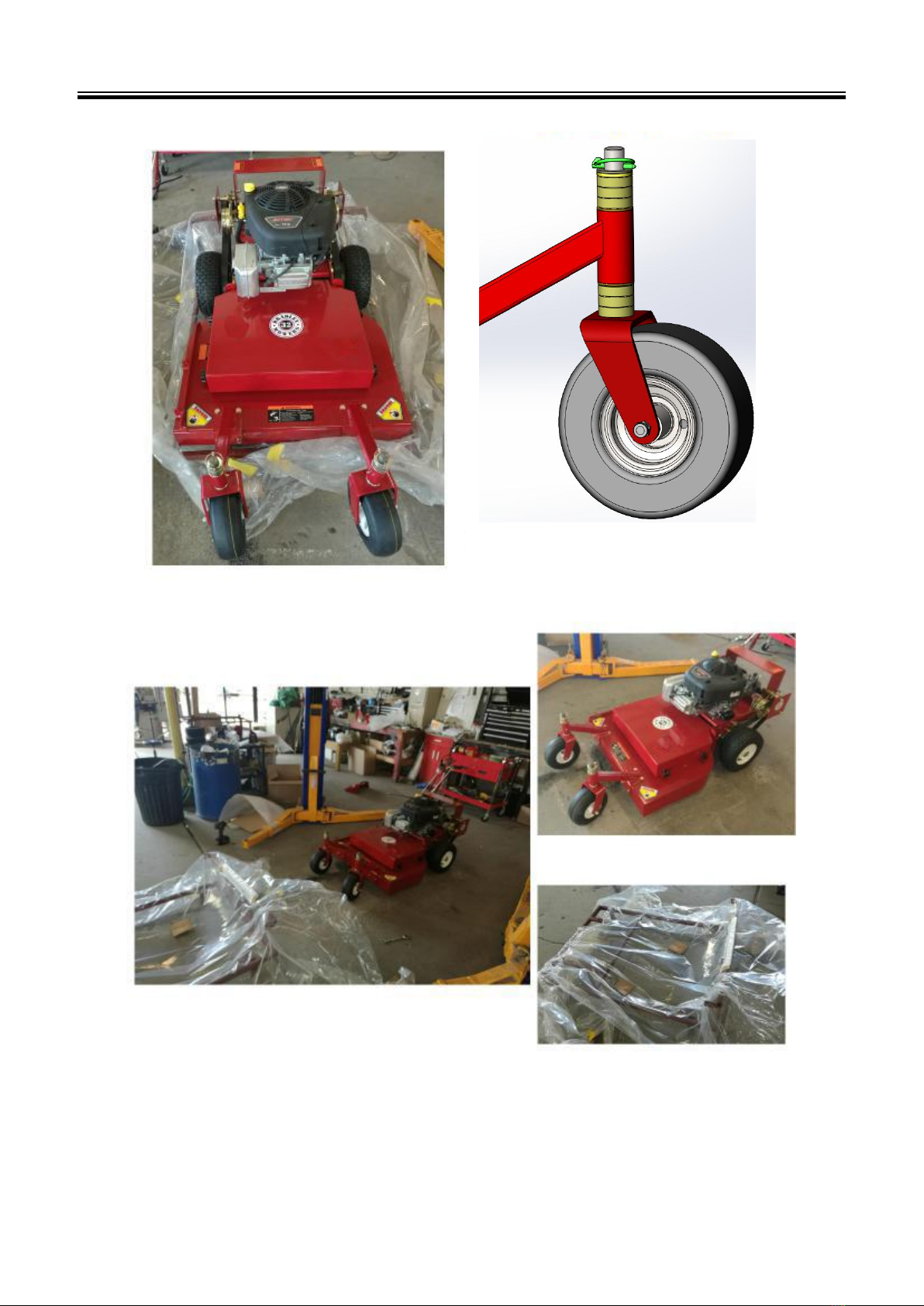

Prepare the 2 front wheel assemblies
Install the front
Wheel yoke
Tools needed:
17mm or 5/8"
wrench/ratchet

Bradley Bel t -Drive With Electric Clutch Mower Par t s
11
Install the front wheels
Remove the mower
From the crate
Mower
Base crate

Bradley Bel t -Drive With Electric Clutch Mower Par t s
12

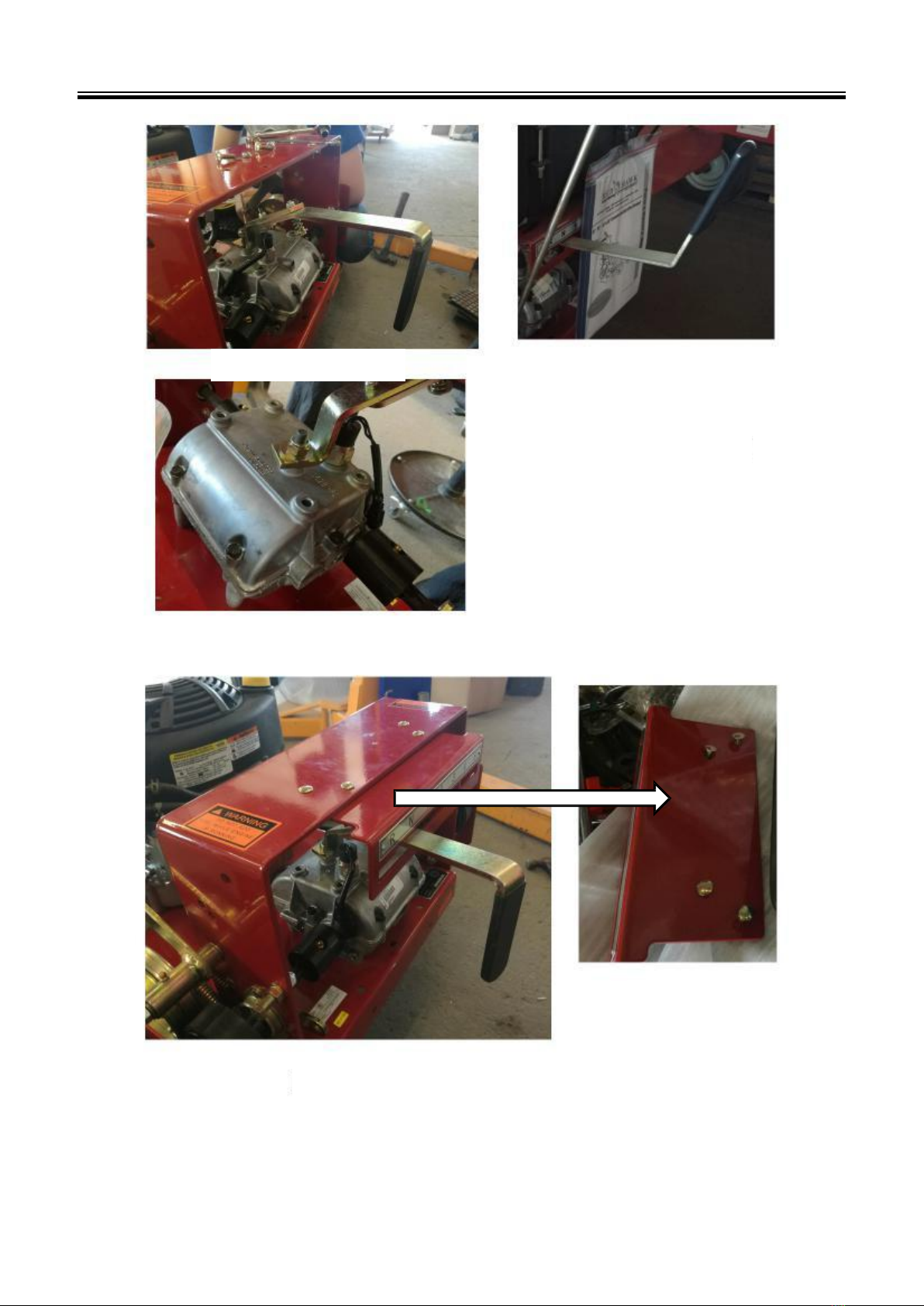

32 BDE gear shift lever
36 BDE gear shift lever
Install the gear shift lever
Install the shifting position plate

Bradley Bel t -Drive With Electric Clutch Mower Par t s
13
Remove the fuel tank pads from the manual package
Adhere the pads to the fuel tank; a spray adhesive is
recommended
Fuel tank straps
Install the fuel tank straps
Tools needed:10mm or3/8"
wrench/ratchet

Bradley Bel t -Drive With Electric Clutch Mower Par t s
14
Fuel line hose
Vent hose
Connect the line
hose vent hose
Connect the handle with the frame, NO NOT TIGHTEN
Measure the
distance from the
handle to the ground,
make sure the height
is 40-1/2 " and then
tighten the handle
mounting bolts

Bradley Bel t -Drive With Electric Clutch Mower Par t s
15
PTO
Release the grip
Adjust the tension by
turning the rod clockwise
or counterclockwise
Rotating the rod connector to adjust the tension of the belt, if
the belt is loosen, remove the cotter pin and disconnect the
rod connector with the diamond bracket and then follow the
direction of the yellow arrow rotating the rod connector and
then reconnect the rod connector with the diamond bracket,
put on the cotter pin make sure the idler pulley can fully
press on the belt.
Same on the other side.

Bradley Bel t -Drive With Electric Clutch Mower Par t s
16
the wire connect to the electric
clutch
Connect the transmission
safety switch to the plug
and zip tie it
Connect the engine wiring
2022 upgrade design

Bradley Bel t -Drive With Electric Clutch Mower Par t s
17
Push the throttle control
All the way forward
Connect the throttle cable
Install grass chute cover
Add engine oil and fuel in accordance
With engine instructions

Bradley Bel t -Drive With Electric Clutch Mower Par t s
18

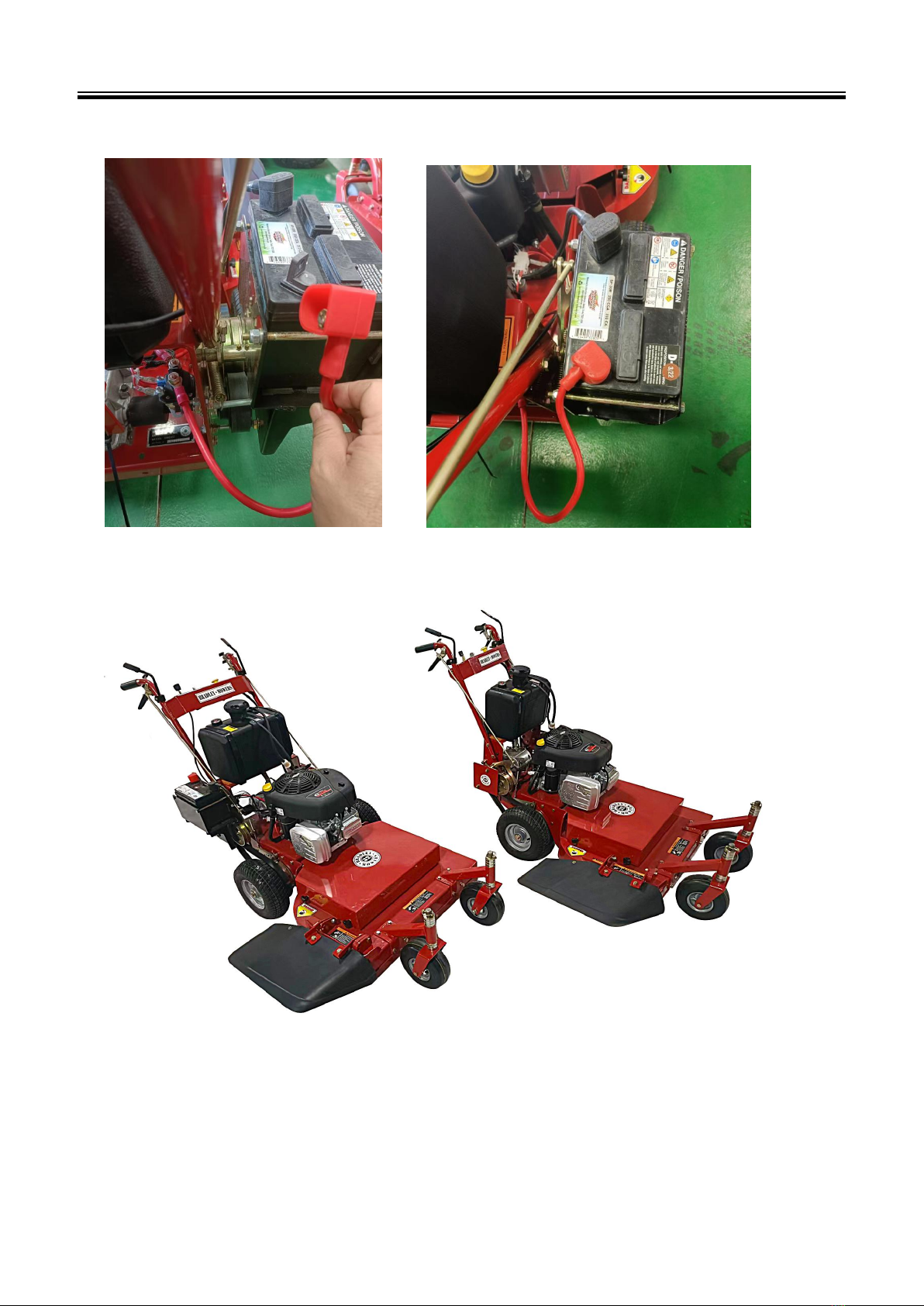

Enjoy your new Bradley Mowers lawn mower！
connect the positive line to the battery

Bradley Bel t -Drive With Electric Clutch Mower Par t s
19
OPERATING THE MOWER
It is recommended that before you operate the mower, you allow adequate time to fully understand
the controls and operation of the equipment. When reading this manual, it is recommended that you do
so with the equipment nearby for quick orientation, reference of controls and maintenance adjustments.
Figure 1
“A” Traction lever locks
“B” Operator presence controls
“C” PTO
“D” Key switch
“E” Throttle/Choke control
“F” Gear shift lever
A
A
B
B
C
D
E
F
Operating Controls (figure1 )
Before continuing to read the manual,it is recommended that you take adequate time to identify the
controls of the mower.
