Hawk 12-HPT300WH User manual

4-in-1
Wireless Media Presenter
(2.4GHz)
User’s Manual
Be sure to carefully read this User’s
Manual first for the proper use of the
4-in-1 Wireless Media Presenter and
keep it for future reference.

2
Information in this document is subject to change without notice. No part
of this document may be reproduced or transmitted in any form or by any
means, electronic or mechanical, for any purpose, without the express
written prior permission of the seller.
The seller provides this document without warranty, or condition of any
kind. The seller may make improvements or change in the product
described in this documentation at any time.
Other product and company name herein may be the trademarks of their
respective owners.
○
c2005 All rights reserved.

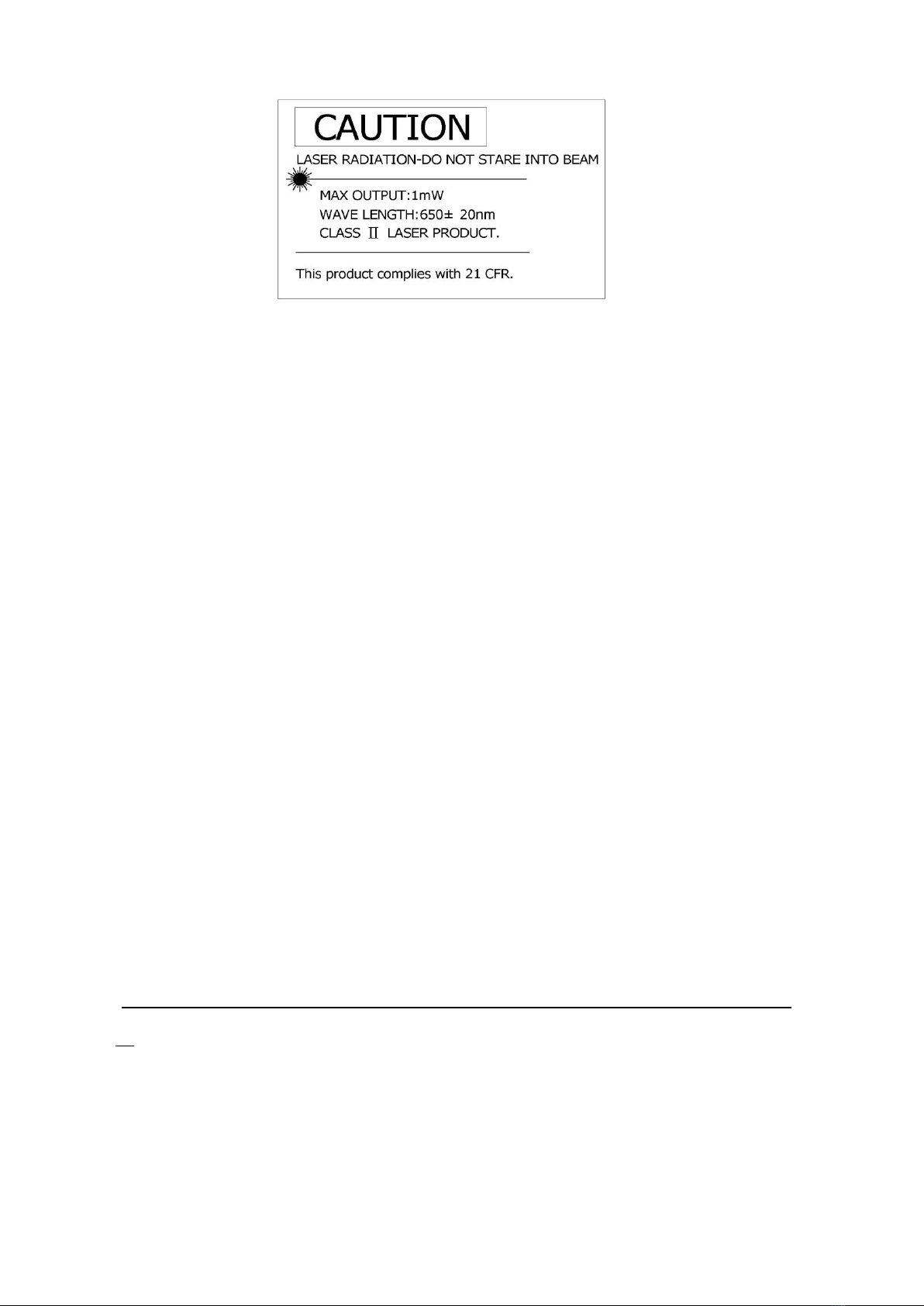

IMPORTANT SAFETYAND HEALTH INFORMATION
WARNING! RISK OF INJURY!
Laser beam can cause permanent damage to eyes. Do not look into the laser beam
or shine the laser beam into your eyes, other peoples’eyes, or pet’s eyes.
WARNING! RISK OF INJURY!
Keep this device away from Children. This is a working tool, not a toy or
entertainment device. It should only be used by adults.
Trademarks:
Windows, Windows Vista, Windows Media, Microsoft and PowerPoint are registered trademarks of
Microsoft Corporation.
iTunes is a registered trademarks of Apple Inc.
PowerDVD is a registered trademark of CyberLink Corp.
WinDVD is a registered trademark of InterVideo, Inc.
Other trademarks and registered trademarks not listed above may be used in this manual.

3
Table of Contents
Chapter 1 Introduction
What’s the benefits 4
Equipment checklist 5
System requirements 5
Chapter 2 Getting Started and Operation Mode
Inserting the battery 6
Connecting the USB receiver 6
Opening PowerPoint 6
Turning on the laser point 6
Operation mode 6
Take out/Put back the USB Receiver 7
Chapter 3 Using the 4-in-1 Wireless Presenter
PowerPoint® Presentation Mode (Part I) 8
PowerPoint® Presentation Mode (Part II) 9
Multimedia Player Mode 10
Chapter 4 Additional Information
Specifications 11
Care and Maintenance 11
Trouble Shooting 12
Special remarks on using Multimedia Player function 13
中文說明書 15

4
Chapter 1 Introduction
Thank you for choosing this 4-in-1 Wireless Media Presenter
—“Totally Control Your Presentation and PC Multimedia”
What’s the benefits
4-in-1 multi-function
This 4-in-1 Wireless Media Presenter combines the features of the
PowerPoint Controls, Laser Pointer, Wireless Mouse and PC Multimedia
Remote Control into one elegant device. Excellent 2.4GHz RF technology
enables you to control the computer up to 100 feet (30 meters) away from the
receiver (connected to the USB port), the laser pointer functions up to 130
feet (40 meters) from the target.
Making your presentation easier and more successful
When making presentation, with this 4-in-1 Wireless Media Presenter, you
don’t need to stand beside your notebook computer or have an additional
person to assist you, nor do you need to aim at the USB receiver.
Having your own way to your PC Multimedia
When enjoying your PC multimedia, this 4-in-1 Wireless Media Presenter
provides you with a single tool to manage your Windows Media Player or
iTunes running on Windows®.
Easy to use
This 4-in-1 Wireless Media Presenter is a USB plug-and-play device with no
additional software required. The laser beam safety switch protects people
from unintentional laser beam into human eyes.
Easy to carry
The slim RF receiver integrated with the Presenter enables this product to be
compact and easy to carry –especially convenient for business travelers.

5
Equipment Checklist
Carefully unpack your 4-in-1 Wireless Media Presenter, and make sure you have
all the following items:
4-in-1 Wireless Media Presenter 1
USB Receiver (attached in the back of Presenter) 1
AAA Batteries 2
User’s Manual 1
Carry case (might be optional) 1
System Requirements
Windows®98SE/ME/2000/XP/Windows Vista™/Windows 7
An available USB port

6
Chapter 2 Getting Started and Operation Mode
Inserting the batteries
Open the battery cover in the product rear side and insert two AAA batteries.
Connecting the USB receiver
Take out the USB receiver in the back (please refer to page 7), label side down
and plug it exactly into an USB port. Do as follows, depending on operating
system:
Windows® 2000 / XP / Windows Vista™/ Windows 7
The operating system identifies the receiver as a “USB Human Interface
Device” and begins installation automatically. Follow the instructions or
messages on the screen to complete the installation.
Windows® 98 SE/ME
The system prompts you to insert the operating system CD-ROM. Follow the
instructions on the screen to install the required drivers.
Opening PowerPoint and other necessary files on your screen
Turning on the laser pointer
Press “Fn”and “Laser”button on the product front simultaneously till the
Upper-left LED blinking in orange.
Operation Mode
There are two operation modes: One is 『PowerPoint Presentation Mode』,
another is『Multimedia Mode』, Default setting in 『PowerPoint Presentation
Mode』. Please make sure you are on the right mode you want.
Note: There are 3 LED on the product front which combines 4 modes below:
1 Orange LED blinks: At PowerPoint mode and laser pointer is turned on.
2. Blue LED blinks: At Multimedia mode
3. Red LED lights: Light when battery power is low.
PS Please change to new batteries to have normal function.
4. No LED blinks or lights: At PowerPoint mode and laser pointer is not turned on.

7

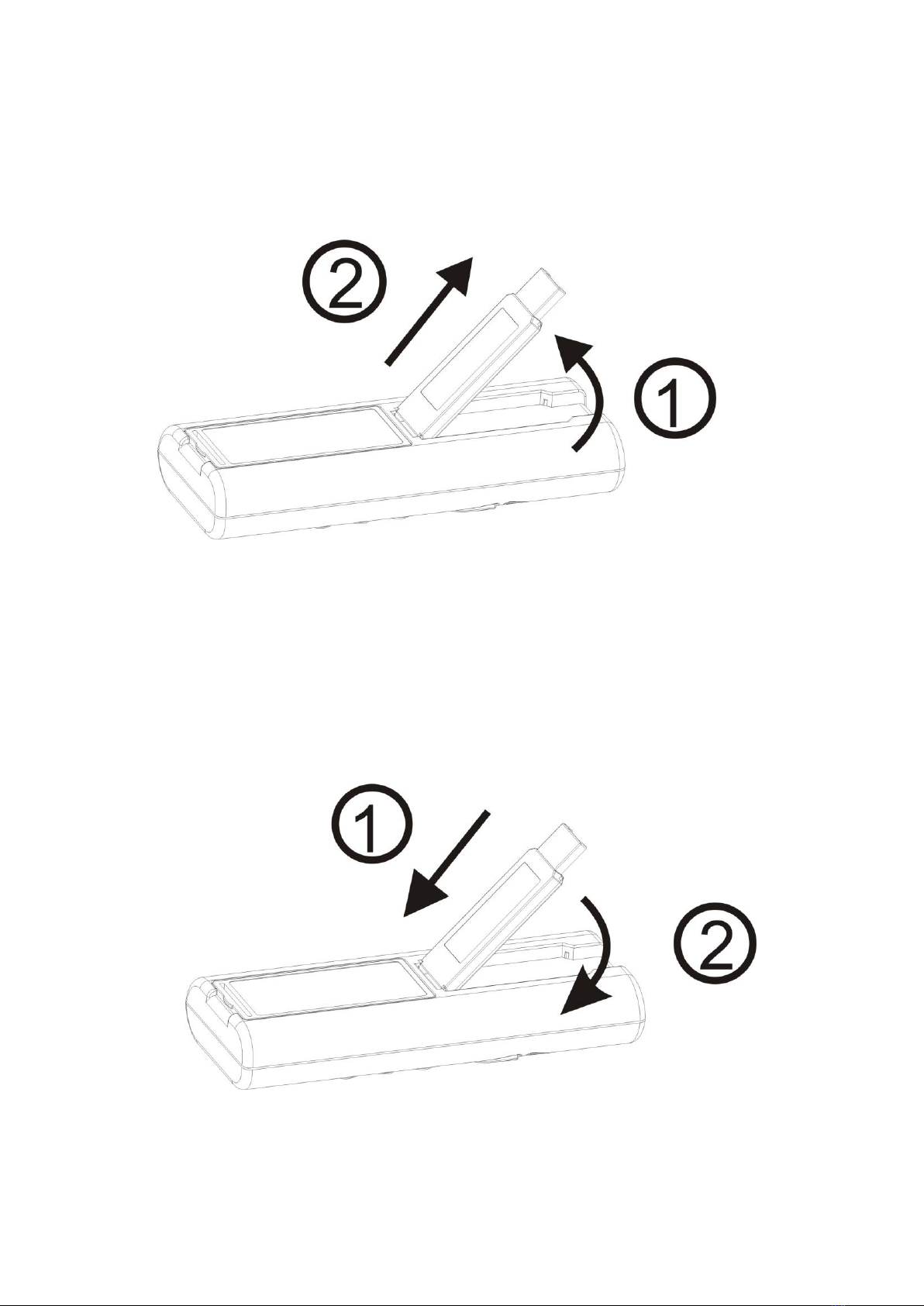

Take out the USB receiver
Figure 1
Pull up the USB receiver as the following figure and then take the USB
receiver out from the compartment.
Put back the USB receiver
Figure 2
Insert the bottom of the USB receiver with the label side up and then press
the USB receiver down to the compartment firmly.

8
Chapter 3 Using the 4-in-1 Wireless Media Presenter
PowerPoint Presentation Mode (Part I)
Figure 3
Print in key
Function description
Laser
1. Press Fn and Laser keys simultaneously till Orange LED blinking in orange to
turn on or off laser pointer
2. After turned on laser pointer, press Laser key to shoot the laser beam
Note：The laser will automatically shut off after 30 minutes idling time
Orange LED
Regularly blinks when laser pointer is turned on
Red LED
Lights when battery power is detected lower than 2.5V
Note：The control will still be available for a short time but suggest replacing new
batteries soon
Mouse keys
Use main and left/right mouse keys as common mouse
F5
Click to start the slide show
Esc
Click to end the slide show
Next
Click to go to next slide
Prev
Click to go to previous slide
Black
Click to turn the presentation screen black; one more click to come back
White
Click to turn the presentation screen white; one more click to come back
(Please go to the next page for further indication at PowerPoint Presentation Mode)

9
PowerPoint Presentation Mode (Part II)
Figure 3
Print in key
Function description
Fn
Mode change：
Press and hold for 1 second and release to change modes between PowerPoint
Presentation mode and Multimedia Player mode
Turn on or off laser pointer：
Press Fn and Laser keys simultaneously till Orange LED blinking in orange to
turn on or off laser pointer
Link
(Use with Fn key)
1. Click the Link key on the USB receiver until the LED on USB receiver
lights up.
2. Press Fn and Link keys simultaneously until the LED on USB receiver
blinks or 3 LEDs on product front blink in turn
Note: To implement ID change only when this product is interfered by other 2.4GHz
device(s) or when 2 or more of this product are to be used at a range within 30
meters at the same time
Alt/Tab
(Use with Fn key)
Press & hold Fn key and then press Alt/Tab key to choose the required file icon.
Release both keys to open the required files. Use the same process to go back to
PowerPoint slide
Note: Please make sure you are on the right mode you want to use.

10
Chapter 3 Using the 4-in-1 Wireless Media Presenter
Multimedia Player Mode (Note: Laser has no function at this mode)
Figure 4
Print on case
Function description
Mouse keys
Use main and left/right mouse keys as common mouse
Blue LED
Regularly blinks when at Multimedia Player mode
Red LED
Lights when battery power is detected lower than 2.5V
Note：The control will still be available for a short time but suggest replacing new
batteries soon
Click to start play; one more click to pause. Press and hold for 1 second to stop play
Click to next chapter
Click to previous chapter
Click for fast forward
Note: For DVD play control, the fast forward maybe able to choose forward speed
Click for fast rewind
Note: For DVD play control, the fast rewind maybe able to choose rewind speed
Click to turn up volume
Click to turn down volume
Click to turn on mute function; one more click to turn off mute function
Fn
Press and hold for 1 second to change modes from Multimedia Player to PowerPoint
Presentation.
Note: All combined function together with Fn key cannot be executed at Multimedia
Player Mode.

11
Chapter 4 Additional Information
Specifications
System
Frequency range：2400~2483MHz
Remote range：Approx. 100 feet (30 meters) indoors,
328 feet (100 meters) outdoors
Operating voltage：Remote control: 2.5V~3.3V, Laser: 2.6V~3.3V
Power：AAA batteries * 2
Power：Normal operation <10mA
Laser operation < 20mA
Sleep < 10uA
Output power: Under 1mW
Dimensions
Presenter：105 (H) x 40 (W) x 18 (D) mm
USB receiver：49 (L) x 16 (W) x 3.5 (H) mm
Weight
Presenter：About 63.2 grams (include batteries)
USB receiver：About 2.6 grams
Environmental Requirements
Temperature：
Operating：0℃(32℉)~60℃(140℉)
Non-operation：-10℃(14℉)~65℃(149℉)
Humidity(non-condensing)：
Operating：10%~85% RH
Non-operating：10%~95% RH
Laser
Semiconductor laser (λ= 650 nm), emission duration：Continuous
Laser output power：Max.0.95 mW
Note: Design and specifications are subject to change without prior notice.
Care and Maintenance
For cleaning, you are advised to use a soft, slightly moistened cloth.
Avoid using solvents or abrasive substances.
Do not open the presenter: for maintenance, consult qualified staff only.

12
Trouble Shooting
Question
Possible cause
How to resolve
Need to install software for first
use of this product?
No, this is a plug and play device.
Need to link ID before first use?
No need
Possible to use 2 or more of this
product in a room at the same
time?
Yes, but please implement ID Link in
advance to avoid interference (see
page 9 for how to link)
Laser pointer malfunction
1. At Multimedia Play Mode
2. Forget to turn on laser pointer
3. Laser function has been
automatically off after 30 minutes of
idling time
1. Change to PowerPoint
Presentation Mode (see page 9 for
mode change)
2&3 To switch on the laser pointer
(see page 9 for turn-on laser pointer)
Remote control malfunction
Interfered by other RF signal
To Implement ID Link
(see page 9 for how to link)
Laser pointer and remote control
both malfunction
Put batteries in wrong direction or
run out of battery power
Check the batteries

13

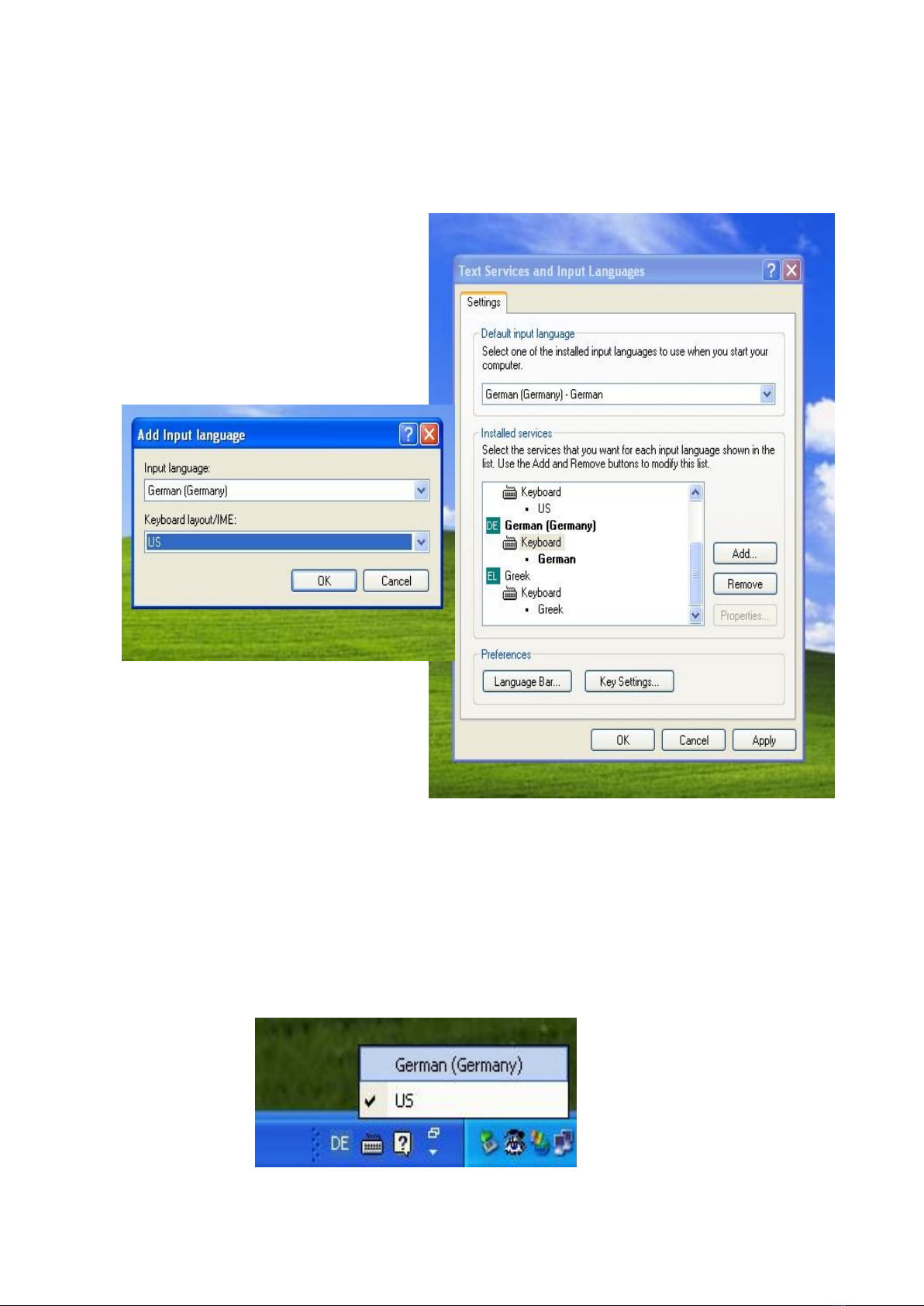

Special remark on using Multimedia Player function
This product is designed to support English keyboard. If you are using other language O/S,
please conduct following change before using the multimedia function.
(a) Go to " Control Panel" -> " Regional and language options" --> " Languages" 
click “ Details “

14
(b) Click “Add”and choose required language e.g. German at Input language and
change Keyboard layout/IME to “US”.
(c) Execute Mediaplayer e.g. PowerDVD or WinDVD etc.
(d) Move cursor inside the Mediaplayer screen to activate the full screen function.
(e) Select required language e.g. German and English keyboard layout.

15
四合一無線簡報器
(2.4GHz)
產品使用說明書
使用前務請詳閱本使用說明，以正確操作
本裝置，閱讀後並請妥善保存，以備日後
參考。謝謝

16
(注意：本產品具雷射功能，請勿將雷射光束直射眼睛並避免孩童把玩)
(一)、本產品包含：
1. 無線簡報器 x 1
2. USB 無線接收器(簡報器背面) x 1
3. 四號電池 x 2
4. 使用說明書 x 1
5. 潛水布套 (可能需另購) x 1
(二)、系統需求：
Windows® 98 SE / Me / 2000 / XP / Windows Vista™/ Windows 7
USB 插孔
(三)、開始操作及模式說明：
1. 請先打開無線簡報器背面之電池蓋，依電極指示方向置入電池。
2. 取出無線簡報器背面之無線接收器，標籤面朝下插入電腦或其他簡報裝置之 USB 插
孔，並依電腦畫面指示操作。
3. 打開簡報時所須之所有檔案。(建議先將 PowerPoint 顯示於簡報銀幕上)
4. 開啟／關閉雷射：先按住無線簡報器正面之功能鍵 (Fn)，再按住最上方之雷射開關
鍵(Laser)，待簡報器 Mouse 左上方之 LED 指示燈閃爍橘色即表示已啟動雷射功能。
重複上述操作關閉雷射。
(雷射開關安全設計：靜置三十分鐘後雷射自動關閉，重新開啟雷射須再執行上述程
序)
5. 四合一無線簡報器有兩種操作模式，系統預設模式為『簡報模式』，另一模式為『多
媒體模式』。 使用時請先確認本裝置已切換至您所需要的模式, 模式切換請參照第
19 頁說明)。

17
取出 USB 無線接收器
圖1
拉起無線接收器前端，然後取出無線接收器。
■放回 USB 無線接收器
圖2
標籤面朝上，先將無線接收器尾端插回儲存槽。 壓下無線接收器前端，確認無線
接收器固定於儲存槽中。

18
(四)、操作說明：(使用前請務必依本說明書實際操作一次，以便熟悉所有功能)
1. 簡報模式 (I) (注意: 請將語言輸入設定在”英文”, 不要在注音或倉頡模式)
圖3
按鍵
功能
操作說明
Laser
雷射按鍵
1. 同時按 Fn跟Laser按鍵, 橘色 LED燈閃爍時表示成功開啟或關閉雷射
2. 開啟雷射後, 單按雷射開關鍵發出雷射光束
注意：30 分鐘以上沒有使用雷射時, 雷射功能會自動關閉
Orange LED
模式指示
開啟雷射後, 此橘色 LED 燈會定時閃爍
Red LED
低電力指示
電池電壓低於 2.5V 時, 此紅色 LED 燈會亮起
注意：LED 紅燈亮起後, 電力只能維持短暫使用, 建議儘速更換新電池
Mouse keys
滑鼠
使用方式如一般電腦滑鼠
F5
投影片開始
按一下此鍵, 開始投影片放映
Esc
投影片結束
按一下此鍵, 結束投影片放映
Next
下一頁
按一下此鍵, 到投影片下一頁
Prev
上一頁
按一下此鍵, 到投影片上一頁
Black
螢幕變黑
按一下此鍵, 簡報播放螢幕全黑;
再按一下此鍵, 簡報播放螢幕恢復正常
White
螢幕變白
按一下此鍵, 簡報播放螢幕全白;
再按一下此鍵,簡報播放螢幕恢復正常
(請繼續翻到下頁, 看其他功能說明)

19
1. 簡報模式 (II) (注意: 請將語言輸入設定在”英文”, 不要在注音或倉頡模式)
圖3
按鍵
功能
操作說明
Fn
1.開啟或關閉
雷射
2.模式切換
1. 同時按 Fn 跟Laser 按鍵, 橘色 LED 燈閃爍時表示成功開啟或
關閉雷射
2. 單按此鍵 1秒, 可從 ”簡報模式”切換到 “多媒體模式”或
從“多媒體模式”切換到 ”簡報模式”
Link
(Use with Fn key)
頻率聯結
1. 先按下 USB 無線接收器上之頻率切換鈕(Link), 此時 USB 上
之紅色 LED 燈會亮起
2. 再同時按住簡報器上之 Fn 及Link 鍵, 直到簡報器上紅╱藍╱
橘3顏色之 LED 燈循環閃爍，表示完成重新聯結
注意：僅在操作無回應或要在同一處同時使用多支此產品時, 方執
行本功能
Alt/Tab
(Use with Fn key)
檔案切換
按住 Fn 鍵不放, 再按 ”檔案切換”鍵到所需檔案後, 同時放開
2鍵即可. 用上述步驟切換到其他檔案或回到原來簡報投影片放映

20
2. 多媒體模式 (注意：本模式下雷射功能無法使用)
圖4
按鍵
功能
操作說明
Mouse keys
滑鼠
使用方式如一般電腦滑鼠
Blue LED
模式指示
在多媒體模式時, 此藍色 LED 燈會定時閃爍
Red LED
低電力指示
電池電壓低於 2.5V 時, 此紅色 LED 燈會亮起
注意：LED 紅燈亮起後, 電力只能維持短暫使用, 建議儘速更換新電池
播放開始,
暫停, 結束
按一下此鍵, 開始多媒體放映; 再按此鍵並迅速放開, 暫停投影片放映.
長按此鍵 1秒決結束放映
下一章節
按一下此鍵, 跳至&播放下一章節
上一章節
按一下此鍵, 播放上一章節
快速前進
按一下此鍵, 快速前進播放章節
快速到退
按一下此鍵, 快速到退播放章節
調高音量
按一下此鍵, 調高音量
調低音量
按一下此鍵, 調低音量
靜音
按一下此鍵, 開啟靜音; 再按下此鍵並迅速放開, 關閉靜音
Fn
模式切換
單按此鍵 1秒, 從“多媒體模式”切換到 ”簡報模式”
注意：所有需與 Fn 鍵同時使用的複合功能無法在多媒體模式下使用
