Haws 1011HPSMS Owner's manual

03/17 Model 1011HPSMS/1011MS Page 1 of 4
1455 Kleppe Lane Sparks, NV 89431-6467 [phone] Fax [phone]
E-mail: [e-mail]  website: www.hawsco.com
Model 1011HPSMS/1011MS
Drinking Fountain
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
No. 2076519(11)
LIMITED WARRANTY
HAWS
warrants that this specific product is guaranteed against defective material
or poor workmanship for a period of one year from date of shipment. HAWS
liability under this warranty shall be discharged by furnishing without charge F.O.B.
HAWS Factory any goods, or part thereof, which shall appear to the Company
upon inspection to be of defective material or not of first class workmanship,
provided that claim is made in w
riting to Haws within a reasonable period after
receipt of the product. Where claims for defects are made, the defective part or
parts shall be delivered to the Company, prepaid, for inspection. HAWS will not be
liable for the cost of repairs, alterations
or replacements, or for any expense
connected therewith made by the owner or his agents, except upon written
authority from HAWS, Sparks, Nevada. HAWS will not be liable for any damages
caused by defective materials or poor workmanship, except for replacements, as
provided above. Buyer agrees that HAWS shall not be liable for general, special,
or consequential damages claimed to arise under the contract of sale. The
drinking fountain manufactured by HAWS is warranted to function if installation
and mainten
ance instructions provided are adhered to. The units also must be
used for the purpose for which they were intended.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED ARE AUTHORIZED,
PROVIDED OR GIVEN BY HAWS.
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT: 1-800-766-5612
FOR CUSTOMER SERVICE: 1-888-640-4297

03/17 Model 1011HPSMS/1011MS Page 2 of 4
RECOMMENDED TOOLS: Hack saw, pipe joint sealant, screwdriver, level, 12" adjustable
wrench, 10" pipe wrench, 5/32” hex key wrench, 9/16”, 1/2", 7/16” socket wrench or open
end wrench.
LOCATION OF UNIT: When installing Model 1011HPSMS/1011MS Drinking Fountain is a
wheelchair accessible drinking water facility. The height dimensions shown, meet current
ADA requirements. When installing this unit, local, state or federal codes should be adhered
to. If height other than shown is required, then dimensions must be adjusted accordingly.
SUPPLY LINE: The minimum recommended line size is 1/2“IPS with 30-90 psi (2-6 ATM)
flowing pressure. Where sediment or mineral content is a problem, an inlet filter is
recommended.
PLUMBING CONNECTIONS: Inlet is 3/8” O.D. push-in type fitting. Waste outlet is 1-1/4”
O.D. tube.
MAINTENANCE: Periodically clean the strainer. Refer to 5874 Series Valve Manual for
more information.
TROUBLESHOOTING
PROBLEM
REPAIR CHECKLIST
1. Insufficient bubbler flow. 1a. Check that inlet screwdriver stop valve (not
supplied) is wide open.
b. Verify minimum 30 psi flowing supply
pressure.
c. Clean strainer. See 5874 Series Valve
Manual.
d. Adjust valve to increase flow. Use front adjust
screw or see 5874 Series Valve manual.
GENERAL NOTES:
1. For all plastic push-in type fitting connections, only connect NSF-61 copper
or plastic tubing. Stainless steel or glass tubing is not recommended. The
following assembly instructions must be followed to ensure a watertight
connection:
a. Cut tubing square and clean.
b. Mark from end of tube the length of insertion (See table below).
c. Push tube into the fitting until it bottoms out.
d. To remove, depress collet and pull tubing out.
Tube Sizes
O.D.
Tolerance Insertion Depth
1/4”
±.005”
11/16”
3/8”
±.005”
3/4”
1/2”
±.005”
7/8”
For more information about Haws products, see our website: www.hawsco.com
© 2017 Haws®Corporation – All Rights Reserved
HAWS® and other trademarks usedin these materials are the exclusive property of Haws Corporation.

PARTS BREAKDOWN
APPROVED
DRAWN
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BYECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
PM
08/02/99
11
0002076519
1011HPSMS/1011MS
DRINKING FOUNTAIN
1:8
11
FV 07/06/17
.
VWC
3 OF 4
PARTS BREAKDOWN
5124
2017
VWC
A
(NOT SUPPLIED)
3
4
1
1
1
NOTES:
1 5874PBF (ITEM 2) INCLUDES VRK5874 CARTRIDGE
ASSEMBLY (ITEM 3) AND PBA6 FLANGED PUSH
BUTTON (ITEM 4).
6
8
7
5
BUBBLER HEAD, PCP1
1011HPS
DESCRIPTION
ITEM 1011
5705
5874PBFBUTTON, PUSH, PCP, FLANGED W/ VALVE2
VRK58743
PBA64
00040120005
MTGFR.DF26
64637
66088
PBM10009
000285023010
000208225311
5705
VALVE REPAIR KIT
BUTTON, PUSH, 5874, FLANGED
PANEL, BACK, F/ SATIN SWIRL OR HI-POL SS
FRAME, MOUNTING
STRAINER, WASTE ASSEMBLY, SCP OR PCP
PANEL, ACCESS, SS SATIN OR HI-POL
PLATE, BOTTOM, F/ 1000
INSERT, LAMINAR FLOW, 5705
DRIVER, NOZZLE, .25 HEX
0004012023
5874PBF
VRK5874
PBA6
6463PCP
6608HPS
PBM1000
0002850230
0002082253
* DENOTES OPTIONAL PART.
*
*
(TUBING CONNECTS TO
INSERT ASSY)
DETAIL A
(ROTATED 90° INTO VIEW)
9
11
10
MTGFR.DF2
21
OPTIONAL

IMPORTANT: MOUNTING
FRAME MUST BE INSTALLED
SO THAT FRAME FLANGE
BUTTS AGAINST FINISHED
FRAME
FLANGE
WALL
FACE
3/8" O.D. TUBING &
SCREWDRIVER STOPS (NOT SUPPLIED)
WASTE BEND
BACK
PANEL
(NOT SUPPLIED)
27"
686mm
32"
812mm
LINE
FLOOR FACE
WALL
MOUNTING
(SUPPLIED)
WASTE BENDS
FRAME
18-5/8"
473mm
76mm
3"
708mm
27-7/8" 32-7/8"
835mm
(NOT SUPPLIED)
1-1/4" IPS TRAPS
FOUNTAIN
WASTE
FOUNTAIN
WASTE
1-1/4" O.D.
SUPPLY
FOUNTAIN
28-11/16"
729mm 33-11/16"
FOUNTAIN
SUPPLY
856mm
MTGFR.DF2
*
**
*
WALL FACE.
SCREW
NUT, RETAINER
4
5
5
5 TO CHANGE FOUNTAIN MTG. SCREW LOCATIONS: FIRST REMOVE
SCREWS AND THEN SQUEEZE CLIPS ON NUT RETAINER TO POP
OUT. SNAP INTO NEW POSITIONS FROM BACKSIDE AND RE-
ASSEMBLE SCREWS.
6 IMPORTANT: A L.H. LOW (OPTIONAL) CONFIGURATION WILL REQUIRE
A DIFFERENT BACK PANEL AND THE WASTE AND SUPPLY
DIMENSIONS SHOWN (*) MUST BE REVERSED.
7 REFER TO 5874 SERIES OPERATION AND MAINTENANCE MANUAL
FOR PUSH BUTTON AND VALVE INSTALLATION/MAINTENANCE
INSTRUCTIONS.
1 HOLD ROUGH-IN DIMENSIONS ±1/8" (3.2mm).
2 WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL
CODES SHOULD BE ADHERED TO FOR DIMENSIONS
(LOCATIONS), WASTE AND SUPPLY REQUIREMENTS OTHER
THAN SHOWN.
3 INSTALLER MUST PROVIDE TRAP FOR PROPER
INSTALLATION.
4. HOLE COMBINATION SHOWN BELOW IS FOR USE WITH LOW
FOUNTAIN ON THE RIGHT AND HIGH FOUNTAIN ON THE LEFT.
USE OPPOSITE HOLES FOR HIGH ON RIGHT AND LOW ON LEFT.
BOWL MOUNTING PATTERN DETAIL
3
ELBOW ONTO BOWL. AFTER
BUTTON TO INSTALL WASTE
REMOVE VALVE FROM PUSH
WASTE ELBOW IS INSTALLED,
REINSTALL VALVE & ADJUST
FLOW
ROUGH-IN
606mm
23-7/8"
ROUGH-IN
16"
406mm
654mm
25-3/4"
32"
813mm
31-1/8"
791mm
ROUGH-IN
BACK
PANEL
PANEL
ACCESS
34 5/32"
864mm
991mm
39 5/32"
(SUPPLIED)
425mm
16-3/4"
LINE
FLOOR
Ø14-1/8"
359mm
406mm
16"
16mm
5/8"
2X
(SUPPLIED)
SUPPLY
NOTES:
7
APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
PM
08/02/99
11
0002076519.D
1011HPSMS/1011MS
DRINKING FOUNTAIN
1:16
11
FV 07/06/17
.
VWC
4 OF 4

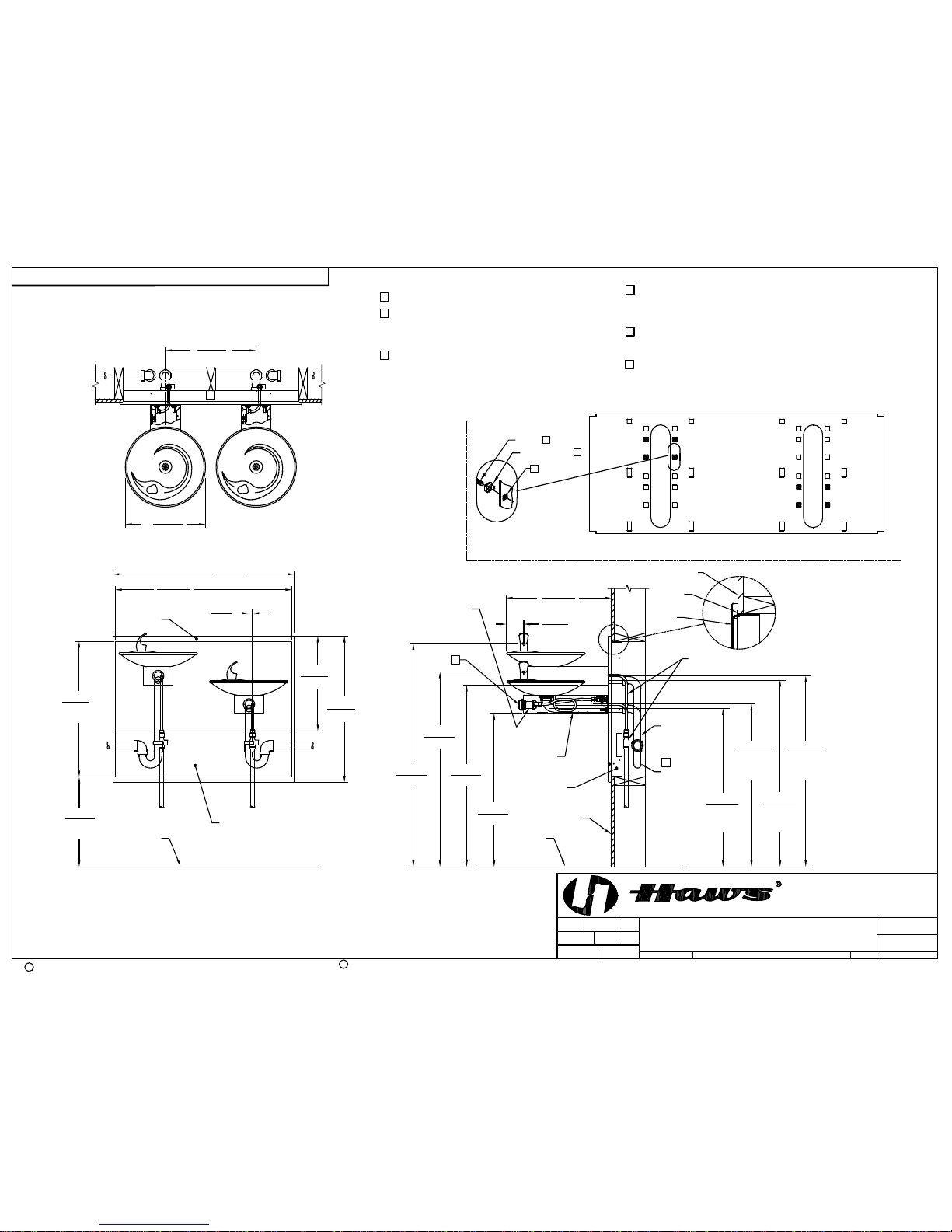

INSTALLATION
5124
2017
VWC
