hayneedle HDQ-18-02 User manual

DANGER
1.888.880.4884
Qingdao Hichanse Group Co.,Ltd.
Eastern Wenhua Road, Jimo Economic Developing
Zone, Shandong Province ,China
DANGER
This appliance can produce carbon
monoxide which has no odor
Using it in an enclosed space can
kill you.
Never use this appliance in an
enclosed space such as a camper,
tent, car or home.
If the fire pit is stored indoors, leave LP-Gas cylinder outdoors.
CARBON MONOXIDE HAZARD
WARNING:
If the information in this manual is not followed exactly
,a fire or explosion may result causing property
damage,personal injury or loss of life.
DANGER If you smell gas:
1.Shut off gas to the appliance.
2.Extinguish any open flame.
3.If odor continues,keep away from the appliance and immediately
call your gas supplier or fire department
Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death,
or in a fire or an explosion causing damage to property.
WARNING
Improper installation, adjustment,alteration,service or maintenance
can cause injury or property damage. Read the
installation,operating and maintenance instructions thoroughly
before installing or servicing this equipment.
WARNING An LP-cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
WARNING
USE LIQUEFIED PETROLEUM GAS ONLY! -
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier form a neighbor’s
phone.Follow the gas supplier’s instructions.
• If you cannot reach yous gas supplier,call the fire
department.
Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
Battery may contain mercury. Do not deposit in fire or put in trash.
Recycle manage as hazardous waste.
WARNING
Turn off gas supply when the fire pit is not in use.
ASSEMBLY INSTRUCTIONS
Propane cylinders sold separately
WARNING
For Outdoor Use Only!
Use Liquefied Petroleum Gas (LP-Gas) Only !
ITEM Number: ALZ767-1
READ BEFORE USE!
Product Name: LP Round Fire Pit with Burner Cover
and PVC Cover
S
I
L
D
E
T
USC
CM
Intertek
3195402

*Never use a flame to check for gas leaks.
*Combustible materials should never be within 48 feet of the top, back or sides of your propane fireplace.
*Do not put any other fireplace cover or anything flammable on, or beneath the fireplace.
*The pressure regulator and hose assembly provided with the fire pit must be used. The replacement must be those specified by manufacturer.
*Do not use this fireplace if any part has been under water.Immediately call a qualified service technician to inspect the appliance and to
replace any part of the control system and any gas control which has been under water.
*After a period of storage, and/or non use, the propane fireplace should be checked for gas leaks and burner obstructions before use.
*Do not operate the propane fireplace if there is a gas leak present.
*Do not use this fire pit for cooking.
*Do not burn any other materials than are supplied with and intended for use in this fireplace.
*Do not pour water into fireplace.
*The installation of this product must conform with local codes or,in the absence of local codes,with the National Fuel Gas Code,ANSI Z223.1.
Outdoor Gas Fireplace
*The propane fireplace should never be used by children. Children must be supervised when they are anywhere near the appliance.
*Users should be alerted to the hazards of high surface temperatures and keep a safe distance to avoid burning or clothing ignition.
*Pay attention when operating the fire pit. It is hot in use and should never be left unattended. Do not transit it while in operation.
*Should fire go out while burning, turn the gas valve off. Follow the instruction and wait five minutes before attempting to relight.
*Never use charcoal or any other solid fuel in the fire pit. Never parch clothing or other flammable materials on or near the fire pit.
*Never lean over the open fireplace or place hands or fingers on the upper portion of an operational unit.
This fire pit complies with "ANSI Z21.97-2010, American National Standard For Outdoor Decorative Gas Appliances and CSA CR97-003,
Outdoor Gas Fireplaces". Please read this manual thoroughly to familiarize yourself with the operation and precautions before you use this
appliance.If the information in this manual is not followed exactly,a fire or explosion may result causing property damage,personal injury or loss
of life.
GENERAL INFORMATION
SPECIFICATIONS
Max. 250 PSI
1.61mm
11 inch W.C
Product Name
Model No.
Rated Heat Output
Type of Gas
Gas Supply
Gas Supply Pressure
HDQ-18-02
26000 btu/hr
Propane
20 lb LP-Gas Cylinder
Orifice Size (dia.)
Mainfold Pressure
IMPORTANT SAFETY INFORMATION AND PRECAUTIONS

*A dented or rusty liquefied petroleum cylinder may be hazardous and should be checked by you
1. Turn off the gas supply and get away from the gas cylinder and the fire pit at once.
2. Do not attempt to correct the problem yourself.
*Never fill the cylinder beyond 80% full.
FOR LIQUEFIED PETROLEUM GAS UNITS
*Do not use this fireplace unless all parts are in place.
*Do not attempt to disconnect the gas regulator or any gas fitting while your fireplace is in operation.
*LP-gas supply cylinder to be used must be constructed and marked in accordance with the specifications for LP-gas cylinders of the U.S.
Department of Transportation (DOT).
3. Get to your gas supplier and/or the fire department for help.
*The conversion or attempted use of natural gas in a liquefied petroleum gas unit or liquefied petroleum gas in a natural gas unit is dangerous.
*This appliance shall be used only outdoors in a well-ventilated space and shall not be used in a building .garage or any other enclosed
area.Do not use this fire pit on vehicles or boats. Always operate the appliance on flat ground outdoors.
*Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
*Cylinder supply system must be arranged for vapor withdrawal.
*LP Tank used must include a collar to protect the cylinder valve.
*Liquefied petroleum gas is not natural gas. Only use propane for this fire pit.
*Keep ventilation openings in cylinder enclosure(FIREPLACE BODY) free and clear of debris.
*Do not rest feet on the fireplace.
*Please take out the battery when not using the fireplace for an extended length of time.
*Do not enlarge valve orifices or burner ports when cleaning the valve or burner.

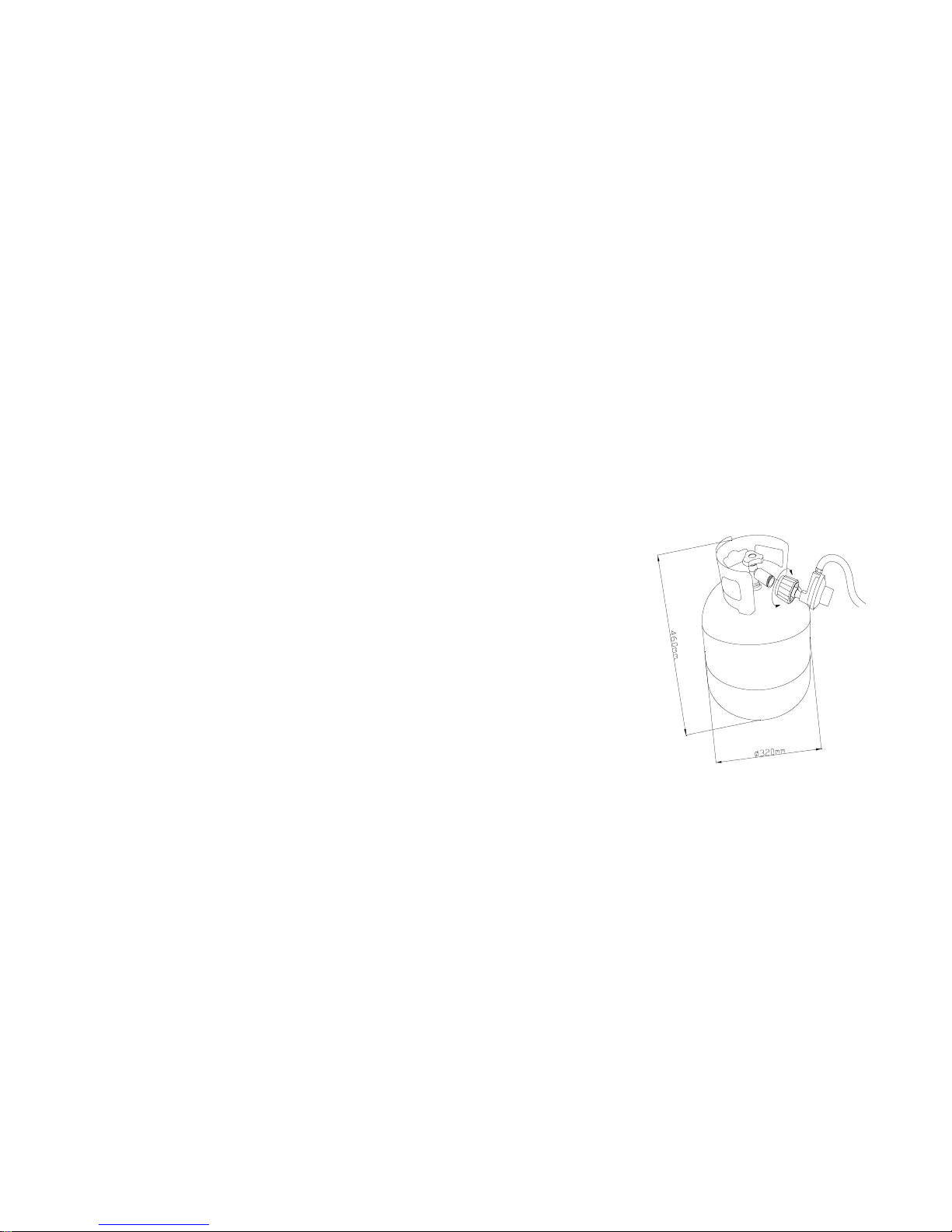

*Use only 20 lb / 9.1 kg LP-Gas cylinders.
*Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the appliance.
*Do not burn wood or any other materials in this fire pit.
*Cylinder must be stored outdoors in a well-ventilated area out of the reach of children. Disconnected
cylinder must have threaded valve plugs tightly installed and must not be stored in a building garage or
any other enclosed area.
*If you see, smell or hear the hiss of escaping gas from the liquefied petroleum cylinder:
*Transit and store the empty gas cylinders carefully and properly.
*Do not use a liquefied petroleum cylinder with a damaged valve and any other worn out parts.

ITEM DESCRIPTION QTY
A Fire Glass 1 BOX
B Battery (AAA) 1PC
C Body 1PC
D Door 1PC
EMarble Cover 1PC
Expanded view
E

No. Part Description
1 Body
2 Door
3 Burner
4 Firepan
5 Spark Ignitor
6 Thermocouple
7 Grounding Wire
8 Control Valve
9 Pulse Ignition
10 Knob
11 Hexagon screw M6
12 Nozzle
13 M4 Hex nut
14 Bellows
15 Shade
16 Regulator
17 M4 Hex bolt
18 Heat Insulation Board HDQ-18-02-18
HDQ-18-02-10
HDQ-18-02-11
HDQ-18-02-12
HDQ-18-02-13
HDQ-18-02-06
STEP 1.
(1) Cut the ties on the carton, the carton up and out.
(2) After removing the carton, remove the wooden frame and foam carefully.
1
HDQ-18-02-17
HDQ-18-02-09
5
HDQ-18-02-07
7
1
1
1
* Please keep these assembly instructions for future reference.
1
3
1 HDQ-18-02-14
HDQ-18-02-15
HDQ-18-02-16
ASSEMBLY INSTRUCTIONS
1
HDQ-18-02-081
1
1
HDQ-18-02-021
HDQ-18-02-03
1 HDQ-18-02-04
1
1 HDQ-18-02-05
QTY Part No.
HDQ-18-02-01
Parts/hardware List

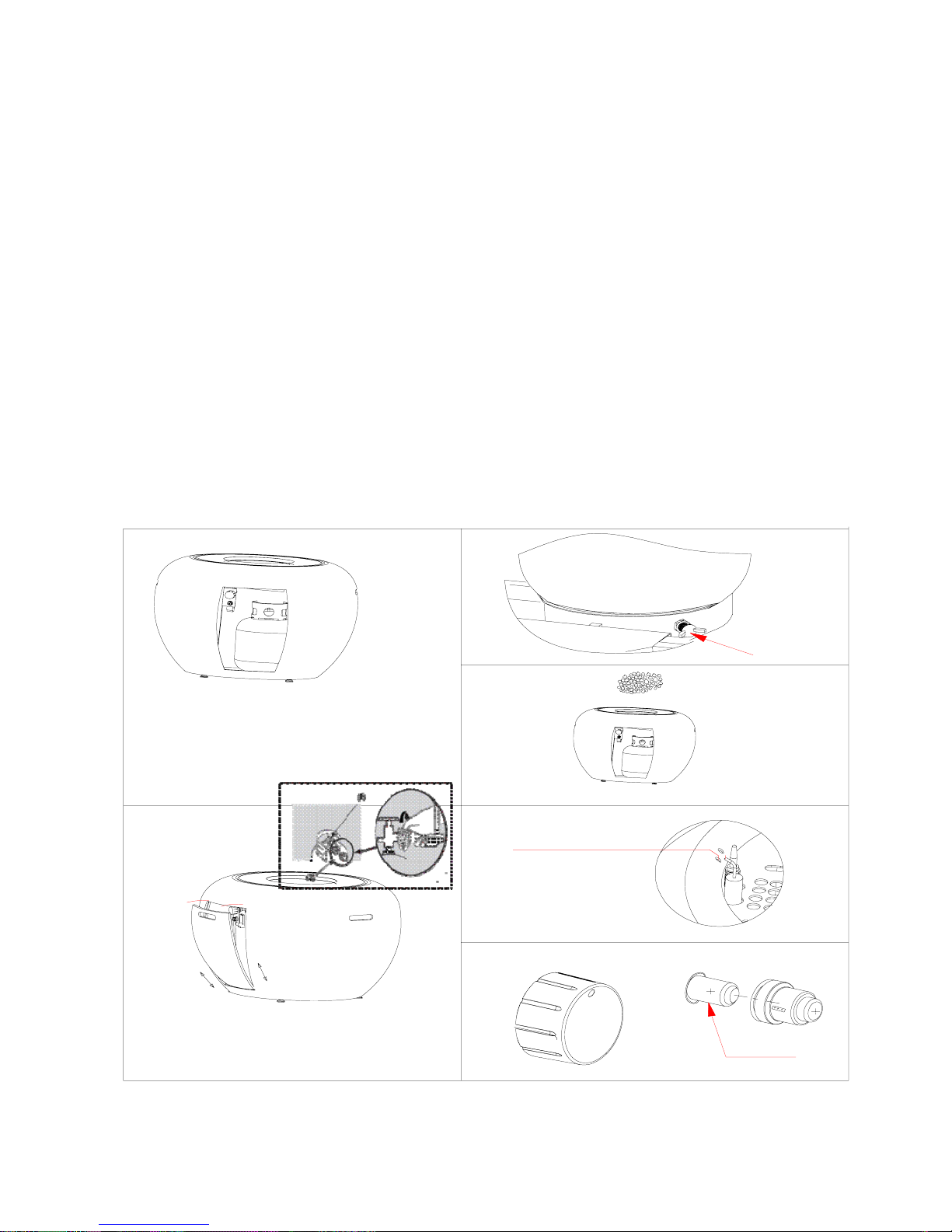

STEP 2. (1) Place the firepit on a flat ground.
(2) Cut off the tie fastened the regulator at the metal stand and set it
free for installation to LP-Gas Tank.
1
STEP 2
STEP 1

3. Turn the wing screw on the outer part of metal stand clockwise to secure the gas tank tightly. (See Figure II. )
4. Place the fireglass averagely in the fire bowl on the top of the fire pit. Otherwise the firepit can not be operated properly. (See Figure III )
2. Open the door of firepit,put the gas tank on the metal stand. Make sure the gas tank sits on the metal stand completely.Turn the T-handle
clockwise to close the gas supply on the gas tank. Secure the gas hose regulator onto the gas tank valve by turning the regulator clockwise till
tight. (See figure I). Make sure the gas tank is in the upright postion. Keep gas tank in upright position at ALL times.
6. Take the one AAA battery out of the envelope/packaging and insert it into the ignitor module, in the orientation as shown in the figure V, then
put the knob/cover back on.
STEP 3.
1. Check each part before using the product. Make sure the gas supply system is turned "OFF" before assembling.
When the battery is completely depleted, please replace with (7#) AAA battery.
If the product is not being used over a long period of time, please remove the battery and keep out of the reach of children
5. Check if ignitor electrode points to the hole of the burner correctly. Ensure the gap (spark gap) between burner and ignitor electrode is
1/8''(3mm) as per figure IV.
Ⅲ
Ⅰ
Ⅰ
Ⅰ
Ⅰ
M8*40 Screw
Battery (AAA)
1/8" (3MM)
v
v
Ⅰ
v

Before each use, inspect all hose. Replace hose if there are any signs of cutting, wear or abrasion.
(1) Turn the T-handle on the gas tank counter-clockwise to open the gas supply.
(2) Light the firepit as below steps:
A. Push and turn the Control Knob counter-clockwise to the "LOW" position. Keep pushing the Control Knob. Meanwhilepress and hold the
Electric Ignitor to light the burner .
B. After ignition, release the Electric Ignitor. Continue to push and hold the Control Knob for 15 seconds.
C. If ignition does NOT immediately take place in seconds, push and turn the Control Knob clockwise to "OFF". Wait 5 minutes, then repeat
the lighting procedure as above.
●Do not smoke during testing.
●Do not test indoors.
●A leak check must be performed whenever the gas cylinder is replaced.
TIPS: Before Beginning ●Read the instructions thoroughly.
●Check and make sure that all parts are present.
STEP 4. LEAK TEST
●If the appliance is not in use,the gas must be turn off at the supply cylinder.
TO LIGHT
WARNING
●Do not use an open flame to check for leaks.
2. Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without over tightening it.
3. Turn on the gas cylinder valve. Apply 50% soap and 50% water solution to the gas hose and connections between the control knob and gas
cylinder.
4. If something is leaking, you will see bubbles form. In case of leaks, turn off the gas supply, undo the leaking connection, re-connect and try
again. If the leak persists, consult Sunjoy Industries Customer Service Center for assistance.
●For future reference, save this instruction sheet.
1. Make sure the control knob is on the “OFF” position.
※The propane cylinder must be disconnected and removed from the fire pit before the appliance can be stored indoors.
※Be careful not to let any powder or solvent come in contact with painted or plastic components as damage may occur.
※After the burner and lava rocks are completely cooled down, use a soft brush to get rid of the mild stains,loose dirt and soil. Wipe with a soft
cloth.
※Store the fire pit in a cool dry place away from direct sunlight.
※Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather and dust, out of the reach of children,
and not in a building, garage or any other closed area.
※Visually inspect burner from obstructions, keep tank enclosure free and clear from debris.
※Keep your firepit free and clear from combustible materials.
※Turn the T-handle on the gas tank clockwise to close the gas supply if not for use in a long time.
MAINTENANCE
※Push the Control Knob and turn clockwise to the "OFF" position.
※Installation and repair should be done by a qualified service person.The appliance should be inspected before use and at least annually by a
qualified service person.More frequent cleaning may be required as necessary .It is imperative that control compartment,burners and
circulating air passageways of the appliance be kept clean.
※Make sure both the gas and the fire pit are turned off before changing battery. Please refer to the process of assembling battery.
※Use Manufacturer approved or supplied replacement parts and accessories only. Otherwise may void the warranty of this product and result
in a hazardous condition.
※If replacement parts are needed, please contact Hayneedle, Inc. Customer Service Center at 1.888.880.4884
** DO NOT COVER THE IGNITION SCREEN when placing the fireglass into the fire bowl. Always keep Ignition Screen visible.
This screen must be clear and free of obstructions
at all times to insure proper operation.
WARNING
Do not place the
fire glass on the
screen, keeping
the screen visible
Screen
