Hayward AQL-RELAY-AC-KT User manual

\
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Hayward Industries
400 Connell Drive, Suite 6100
Berkeley Heights, NJ 07922
Phone: [phone]
www.hayward.com
AC Relay Kit
For Aqua Logic & Pro Logic
Owner’s Manual
092086D RevB
AQL-RELAY-AC-KT
Contents
Introduction............................................1
Installation..............................................1
Operation................................................2
Warranty...........................................Back

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
1
Introduction
Compatibility
The AQL-RELAY-AC-KT is an optional AC relay kit for use with Pro Logic or Aqua Logic P-4 and
PS-4 models.
PS-4: Up to two AQL-RELAY-AC-KTs can be used with PS-4 moels. When used with a PS-4,
the Pro Logic/Aqua Logic’s Valve3 (and/or Valve4) output will not power pool valves. Instead, the
output is used to operate the AC relay which provides an ON/OFF output capable of handling up
to 3HP at 240VAC. The Valve 3/4 output can be configured for Manual On/Off, Countdown timer,
Timeclock, Solar, In-Floor Cleaner, Group or Super Chlorinate. Depending on the programmed
function, the Valve3 and/or Valve4 buttons on the local display can be used.
P-4: When used with a P-4, the Pro Logic/Aqua Logic’s Valve3 output will not power a pool valve.
Instead, the output is used to operate the AC relay which provides an ON/OFF output capable of
handling up to 3HP at 240VAC. The Valve 3 output can be configured for Timeclock, Solar, In-Floor
Cleaner or Super Chlorinate. There is no Valve3 button on the local display.
The AQL-RELAY-AC-KT relay is mounted in the empty row below the Pool/Spa and Aux relays and
the wire harness plugs into the appropriate Valve3 and/or Valve4 connector located on the circuit
board. Only one relay can be used on P-4 models; up to two AQL-RELAY-AC-KTs can be installed
(Valve3 and Valve4) on PS-4 models.
Installation
Before mounting the relay, attach the enclosed wiring harness to the coil side of the relay according
to the diagram below.
Mounting
The AQL-RELAY-AC-KT is designed to fit in the location below the row of four relays on the Pro
Logic or Aqua Logic. Refer to the instructions and diagram on the following page for proper instal-
lation.
1. Shut off power to the Aqua Logic control.
2. Locate the desired mounting position on the left side below the row of four relays. Install the
relay using the two relay mounting screws provided.
3. Route the cable underneath the relay cover bar and plug into the desired valve output.

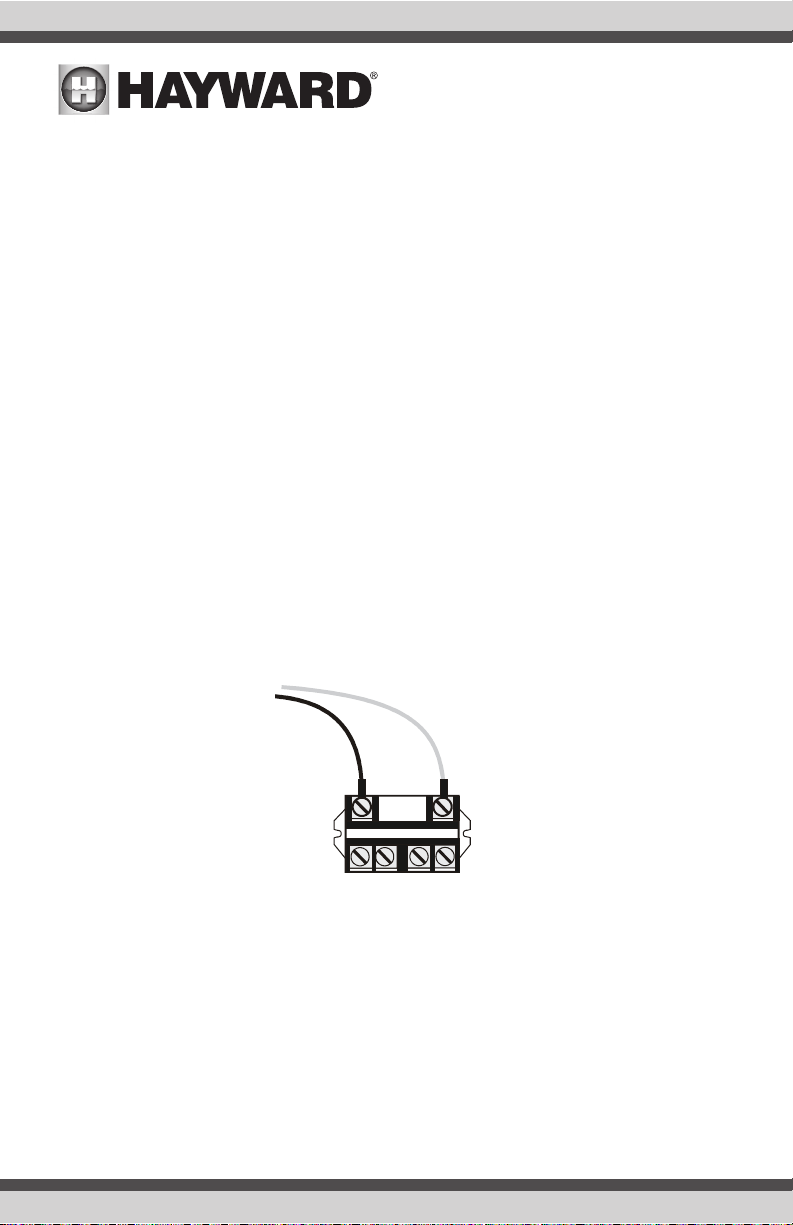

attach red wire
attach black wire
AC Relay
AQL-RELAY-AC-KT

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
2
4. Cover the relay with the provided relay cover bar and cover bar screws. Attach label on cover
bar above the mounted relay.
Wiring
The AC-RELAY-AC-KT is designed to operate high voltage devices rated up to 3HP/30A at 240V
(1½HP/30A at 120V). Refer to the diagrams above for typical high voltage relay wiring.
Operation
Refer to the Pro Logic or Aqua Logic manual for information on Valve3 (and/or Valve4) output
operation and programming.
Optional
2nd Relay
AQL-RELAY-AC-KT
240 VAC
Load
120 VAC
Load
Wiring relays for 240 VAC
Pool Equipment
Wiring relays for 120 VAC
Pool Equipment
120 VAC
Load
Wiring GFCB for 120 VAC
Pool Equipment

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
For further information or consumer
technical support, visit our website at
www.hayward.com
Hayward is a registered trademark and Pro Logic
is a trademark of Hayward Industries, Inc. © 2020 Hayward Industries, Inc.
All other trademarks not owned by Hayward are the property of their respective owners.
Hayward is not in any way affiliated with or endorsed by those third parties.
