OWNER’S MANUAL

2
Thank you for buying
a HAYWARD pool heat pump.
The HAYWARD pool heat pump is a self-contained unit designed specifically
for pool heating. Each component has been selected with care to achieve a
high-quality product in an effort to exceed all industry standards.
All HAYWARD pool heat pumps have an electronic board with service
analyzer, a titanium heat exchanger tube warranted for 10 years against
corrosion and a UV-resistant plastic cabinet that eliminates all maintenance
for life. All components are of superior quality, which presents you with an
effective, state-of-the-art technology heat pump.
Compared to other types of pool heaters, such as gas or oil-fired, the
HAYWARD pool heat pump has a lower heating capacity on a BTU/hr
basis. Therefore, it needs to operate for a longer time to accomplish the
desired results. Occasionally, it may be necessary to run the heat pump for
up to 24 hours per day. However, this should not be of concern to the owner
because the heater is designed to operate continuously. What’s more, despite
continuous operation, it will still heat the pool far more economically than other
types of heaters.
As with all pool heaters, you are advised to use a pool cover at night and when
the pool is not in use. The pool cover should be used if night temperatures are
15°F less than desired pool temperature. This will keep evaporation, the greatest
source of heat loss, to a minimum, thus greatly reducing the overall pool heating
costs. During warmer weather, the pool cover may not be required.
OWNER’S MANUAL

Please read carefully
Record your model’s information
Please complete and mail in the ownership registration card provided with
this guide. The return address is displayed on the front of your registration
card. Simply mail it as you would a postcard. The card helps us notify you
about any new information about your heater.
Whenever you call to request service for your heater, you must know your
complete model and serial numbers. You can find this information on the
plate located at the base of your heater.
Please also record the purchase date of your device and your dealer’s name,
address, and telephone number.
Model Number ____________________________________________________
Serial Number _____________________________________________________
Purchase Date ____________________________________________________
Dealer Name ______________________________________________________
Dealer Address ____________________________________________________
Dealer Phone _____________________________________________________
Keep this book and the sales slip together in a safe place for future reference.
3
Service can now be obtained by calling
these phone numbers.
CANADA: 1 888 238-7665
USA: 1 908 355-7995
OWNER’S MANUAL

General Safety Instructions
We care for our customers
We have provided important safety messages in this manual and on your
heater. Always read and obey all safety messages.
IMPORTANT
The IMPORTANT sign calls attention to a note that provides important
information or information essential to the completion of a task.
CAUTION
The CAUTION sign denotes a hazard. It calls attention to an operating
procedure, practice, or the like, which, if not correctly performed or
adhered to, could result in material damage, particularly to the product,
up to the destruction of part or all of the product.
WARNING
The WARNING sign denotes a hazard. It calls attention to a procedure,
practice, or the like, which, if not correctly performed or adhered to,
could result in personal injury or injury to a third party. These signs are
rare, but are extremely important.
?
!
4OWNER’S MANUAL

CAUTION
All electrical connections must be done by a qualified electrician and
according to the local electrical codes. Always cut off the unit’s main
power whenever the access panel is open or removed. Always install the
machine outdoors (unless otherwise approved by the manufacturer),
while respecting the minimal clearances needed for proper operation
and heating.
!
CAUTION
Proper pool chemistry is vital to the life of your heater. Pay particular
attention to the total alkalinity and TDS. It is highly recommended that you
have your pool chemistry checked often by an independent pool store.
!
5
OWNER’S MANUAL

Installation Instructions
ATTENTION!!! CONSUMER KIT LOCATED BEHIND FRONT PANEL
Location
The placement of the pool heater is very important in keeping installation
costs to a minimum while providing for maximum efficiency of operation, as
well as allowing adequate access for service and maintenance.
The pool heat pump is designed for outdoor installation and should
not be installed in a fully enclosed area, such as a shed, garage, etc.
Recirculation of cold discharged air back into the evaporator coil will greatly
reduce unit heating capacity and efficiency.
The unit should be located as close as practical to the existing pool pump and
filter to minimize water piping. However, do not forget to provide a 24”clea-
rance at the very least all around your heat pump. The use of 90 degree bends
and short radius elbows in the water piping should be kept to a minimum.
Mount the unit on a sturdy base, preferably a concrete slab or a set of blocks.
The base should be completely isolated from the building foundation wall to
prevent the possibility of sound or vibration transmission into the building.
The size of the base should not be less than 36” x 36” (92 cm x 92 cm).

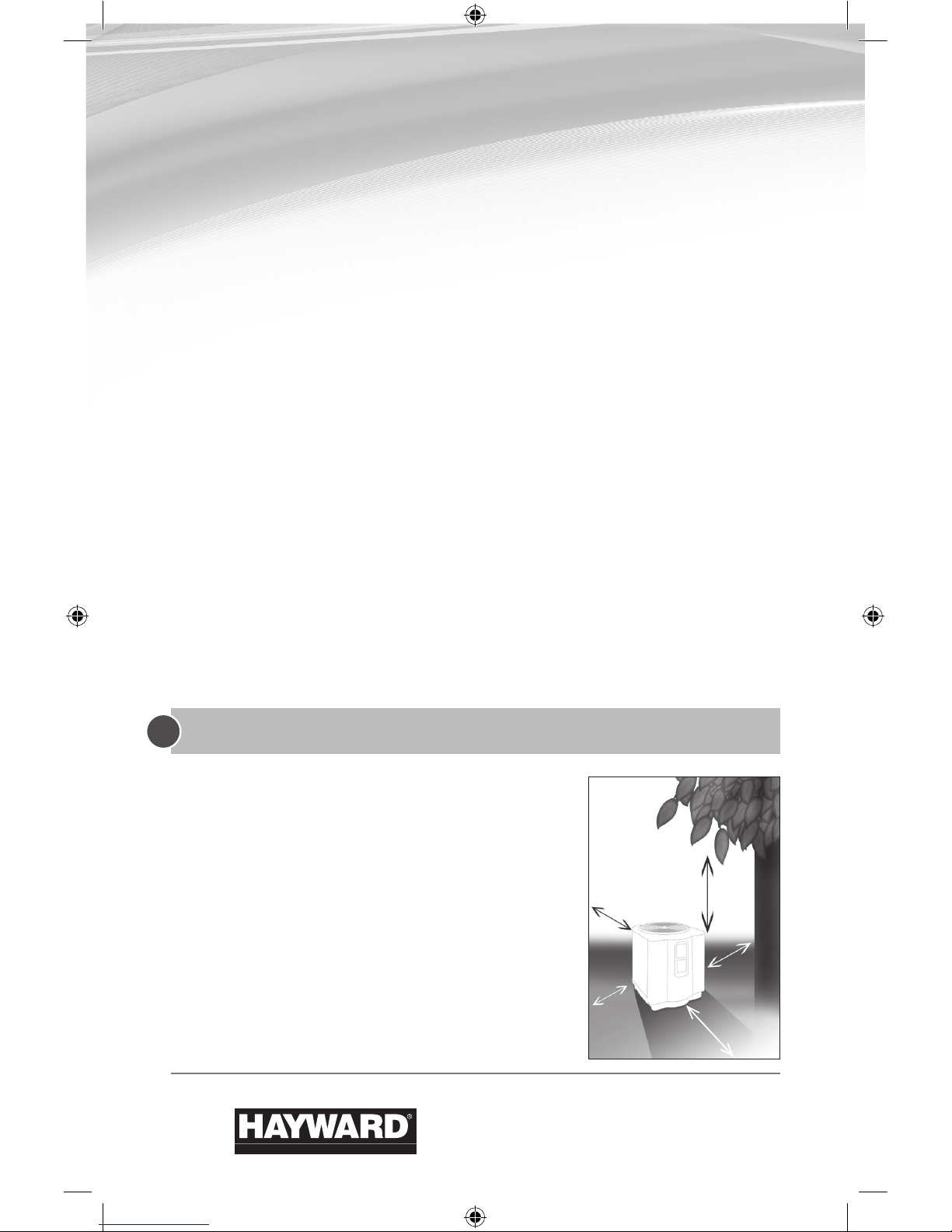

Air is pulled through the evaporator coil and
discharged through the top grille. A minimum
clearance of 72 inches should be allowed above
the unit for unrestricted air discharge. The unit
must not be installed under a porch. Any side of
the unit should be located at least 24 inches from a
wall or from any other obstruction for unrestricted
air intake and service access.
IMPORTANT
?
72”
24”
24”
24”
Service access
24” to 36”
6OWNER’S MANUAL

Water piping
The piping sequence is as follows: pool > pool pump > filter > heater > check
valve > chemical feeder > pool. Automated chlorine distribution systems, if
used, must be placed downstream of the heater to minimize harm to the pool
equipment. Use rigid PVC piping if possible (SCH40 or SCH80). All joints should
be glued with PVC glue. When the piping installation is complete, operate the
pool pump and check the system for leaks. Then, check the filter pressure
gauge to verify that there isn’t any indication of excessive pump head pressure.
You can also make the connections using high-pressure flexible hose, but
make sure the hose can withstand high pressure. The installation of a heat
pump bypass is not necessary unless the water flow exceeds 75 GPM.
Note: Certain installations have valves which isolate the heat pump from the water circuit. If the heat exchanger
is deprived of water circulation for several days, high chlorine gas could cause excessive corrosion. If the disconnect
switch is turned off, be sure that the pool water is allowed to circulate through the unit, or is drained out of it.
Electrical
The wiring of your pool heat pump should be performed by a qualified
electrician in accordance with local requirements.
Suitable electrical supply line: See rating plate on the heat pump units for
electrical specifications. A junction box is not needed at the heat pump; con-
nections are made inside the heat pump electrical compartment. Minimum
wire size to be selected per NEC SEC.440.33 based on unit MCA.
An electrical disconnect switch that will interrupt all power to the unit is
required. This switch MUST be installed within line of sight of the heat pump.
Check the heat pump data label for required maximum breaker size.
The unit must always be powered off before opening the access panel.
IMPORTANT
?
CAUTION
!
WARNING
7
OWNER’S MANUAL

Bonding
Because all metals have different electrical potentials, all metal and electrical
components of the pool system must be bonded together. This includes the
metal framework of the pool, the light, the pump, the filter (if made out of metal),
the heater, any automatic chlorine generator, and any other metal or electrical
equipment. On some older pools, this substructure bond wire may not exist.
In these cases, a 6 to 8 foot solid copper rod must be driven into the ground
near the equipment. All electric and metal components must then be bonded
to each other, and then to the copper rod.
CAUTION
!
1. A 1/3 lb check valve must be installed between
the heater and any automatic chlorine distribution
system (if used).
2. Any kind of automatic chlorine distribution system
must be installed after or downstream of the heat
pump.
3. The filter must be placed before or upstream from
the heat pump.
4. Bypasses must be installed on any system where wa-
ter flow at the heat pump is to be in excess of 75GPM.
Bonding and Plumbing
step-by-step instructions
8OWNER’S MANUAL

Bonding and Plumbing diagram
Fig. 2
Fig. 3
Heat Pump
Chemical
feeder
9
OWNER’S MANUAL

10
Installation in Combination with
Solar or Gas Heaters
If you are installing a heat pump in combination with any other type of heating
device, please call the HAYWARD service department at [phone]. We
will advise you of installation practices that will help keep your warranty valid.
Other pool heaters, such as gas-fired or solar-powered devices must be in-
stalled in a parallel circuit and operated independently (only one at
a time) for your warranty to stay valid.
NOTICE - Because of the intense heat that can be generated by gas and
solar units, isolating it with a shut-off valve and a check valve when gas
or solar heater is in operation protects the heat pump. Failure to follow the in-
structions may result in property damage.
Notes:
1. Isolate the heat pump from hot water flow of heating devices such as gas
or solar heater.
2. Install bypass loop for Hayward heat pump unit.
OWNER’S MANUAL

11
External switch
Pool (open)
Spa (closed)
Fig. 4
Using an External Controller
To connect the electronic board in order to control it remotely, use the P_S
terminals on the right side of the board. Next, access the P_S menu and se-
lect the desired mode. In internal mode, POOL or SPA mode can be adjusted
by using this menu. In external mode, a normally open contact puts the board
in POOL mode and a closed contact puts the board in SPA mode. Therefore,
a board set to OFF in POOL mode and to 80 degrees in SPA mode can be
controlled with an external switch to heat up to 80 degrees.
Internal mode: Use the P_S mode on the main menu
External mode: • Open contact = POOL mode
• Closed contact = SPA mode
Control using a switch
To control the board using an
external switch, follow these steps :
• Turn on the heat pump.
• Set POOL mode to OFF.
• Set SPA mode to the desired temperature.
• Access the setup menu.
• Select mode E (external) on the P_S menu.
• Run two J7 (P_S) terminal wires from the
HPEC-003 board to the NO switch terminals (see FIG. 4).
• You can now control the operating mode by
turning off the switch (open = POOL, closed = SPA.)
OWNER’S MANUAL

12
Electrical Connections
The installation of the pool heater should be performed by a certified
electrician. To connect the electricity, you must unscrew the five screws of
the front panel, then slide the electric cable through the knock out located
on the left or the right side of the base, and then insert it in the control box.
The electrical diagram is located on the lid of the control box as well as in
this manual.
WARNING
Ground
L1
L2
Fig. 5
Power requirements
240 V, 1 PH, 60 Hz
Look at the name plate loca-
ted on the heat pump to know
the required amperage.
Please refer to your local
electrical code for additional
wiring requirements.
OWNER’S MANUAL

13
Wiring Diagram
Black
Blue
Yellow
Black FAN
COMPRESSOR
C
R
S
Red Brown
Brown Brown
HPEC-003 Control Board
L1
L2
Black
Black
Light Blue
Light Blue Purple
Purple
Yellow
Yellow
Water sensor
Defrost sensor
High pressure switch
Closed = OK Opened = high pressure Low pressure switch Closed = OK Opened = low pressure Flow switch Closed = flow Opened = no flow
Orange (240 Vac)
or
Red (208 Vac)
24 Vac compressor
contactor
CAP
24 Vac transformer
Ground
Remote switch Pool (opened) Spa (closed)
P S
WS DS HP HP LP LP FLO FLO
HGD
H/C
FAN
FAN
COMPRESSOR
COMPRESSOR
24 VAC
208 / 230 Vac, 60 Hz 1 Phase
CAP
24 Vac
OWNER’S MANUAL

14 OWNER’S MANUAL
Temperature
and parameter
display
Celsius or
Fahrenheit mode
Access to
parameters
To raise the desired
temperature or to
change parameters
To lower the desired
temperature or to
change parameters
Heating mode
Compressor ( )
or fan ( ) running
Heating mode
Service Analyzer Control
The control panel is factory set to display the temperature in Fahrenheit degrees.

Operation
To increase the temperature
Push the SET key until you see POL or SPA. The programmed temperature
will be displayed. Press the UP arrow to increase the temperature setting
one degree at a time.
To lower the temperature
Proceed as explained above using the down arrow .
To select the pool or spa mode
The unit can keep two temperature settings in memory: one for pool mode
(max: 95°F/35°C), and the other for spa mode (max: 104°F/40°C). To have
access to either program, press the SET key until you see P_S and by press-
ing one of the arrow keys, you can switch to POL or SPA. Once the heating
mode has been programmed, it will be displayed for five seconds, and will
then return to the actual pool water temperature. The lights on the right side
of the display indicate the chosen heating mode.
To display the temperature in °F or in °C
Press the SET key until you see F_C and by pressing one of the arrow keys,
you can switch to °F or °C. Once the tempurature unit has been programmed,
it will be displayed for five seconds, and will then return to the actual pool
water temperature in the mode that you have chosen.
15
OWNER’S MANUAL

16
Caring for your Pool Heater
How to protect your pool heater
OWNER’S MANUAL

Initial Startup
Before starting the pool heater for the first time, it is important to verify that
the breaker is in the ON position.
Also make sure that the water circulates freely and that the pool pump is activited.
Then, you will need to set the water temperature you desire. The fan will
immediately start. The compressor will start after a 3 to 4-minute delay.
When the compressor is running, the HEATING/CHAUFFAGE indicator located
on the right (see “Service Analyzer Control,” p. 13) should be lit. At initial startup,
it is normal for the unit to run 24 hours a day.
It is also normal to see water dripping from the holes at the base of the unit.
This is just condensation.
IMPORTANT
?
17
OWNER’S MANUAL

18
Meaning of Display Codes
Service Analyzer Codes
Most problems will be detected by the service analyzer and a code will be
displayed on the digital display of your heater.
Display Meaning of codes
OFF The desired programmed temperature point is lower than 60°F
(15°C).
LP & LP3 Shortage of refrigerant gas in the unit or faulty low pressure
control. The digital display will show LP3 after 3 LP faults and shut
down your pool heater. The pool pump will also be stopped for pro-
tection if the unit’s internal time clock feature is used. If LP or LP3
occurs you should call for service.
HP & HP3 Low water flow to the unit or faulty high pressure control. Check wa-
ter flow. Backwash filter and/or heater. The unit will show HP3 after
3 HP faults. This will stop your heater for protection.
Po Water temperature probe connected to WS on the electronic
board may be disconnected. If it is not, the probe may be open or
defective.
Pc Water temperature probe is short circuited or may be defective.
FLo Possible causes:
- The filter is in backwash position.
- The filter pump is stopped.
- The filter is dirty.
- Shortage of water to pool pump.
- Water pressure switch must be adjusted or it is broken.
dPo Suction temperature probe connected to DS on the electronic
board may be disconnected. If it is not, the probe may be open or
defective.
dPc
Suction temperature probe is short circuited or may be defective.
FS Unit currently in defrosting cycle (the fan works but the compressor
is stopped). This is normal operation when outside temperatures
are cold.
OWNER’S MANUAL
