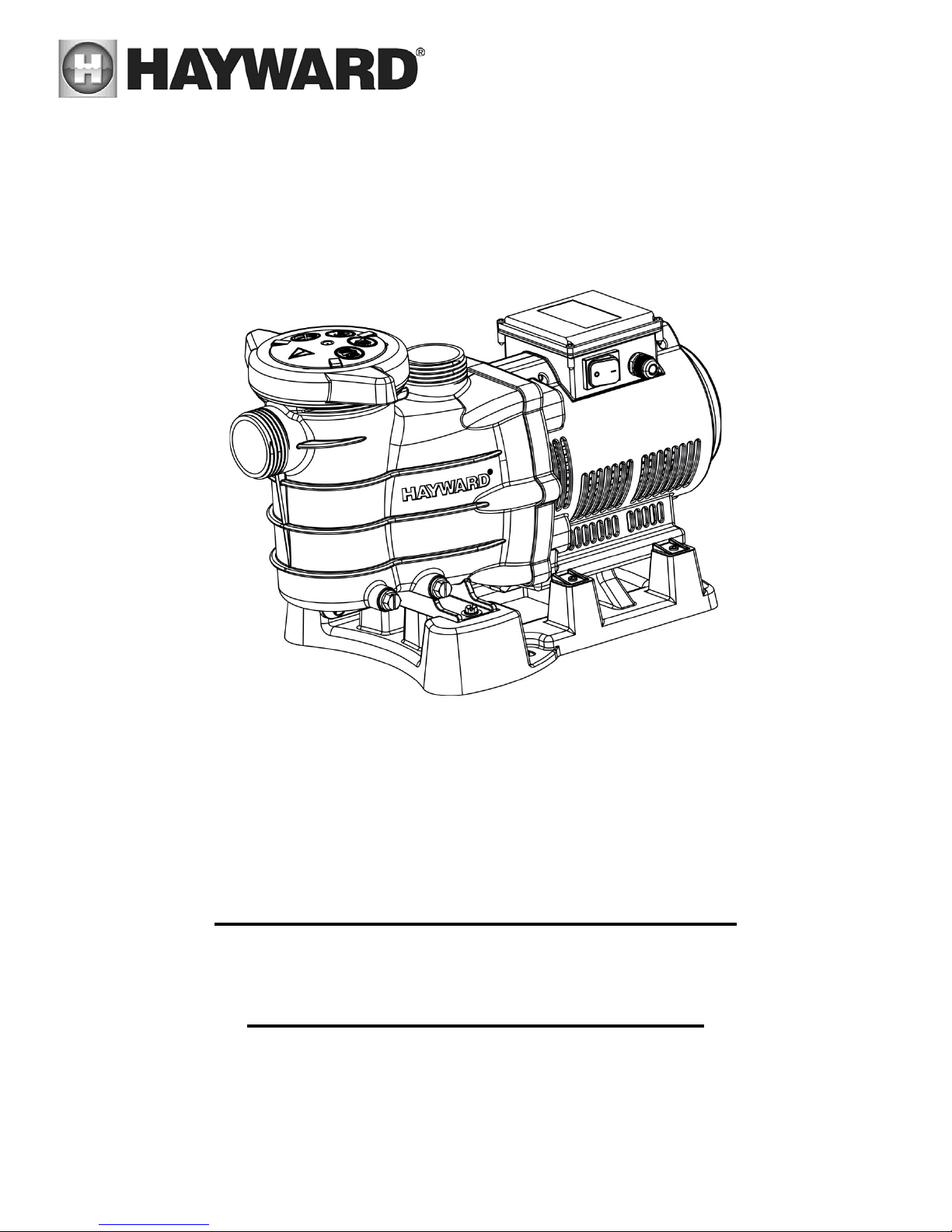

VL Series Pump®
Owner’s Manual
NOTE
- To prevent potential injury and to avoid unnecessary service calls, read this manual carefully and
completely.
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THIS INSTRUCTION MANUAL

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 2 of 15
VL Series Pump
ISVL1285 Rev B
Table of Contents
1. IMPORTANT SAFETY INSTRUCTIONS ...............................................................................................................3
2. General Information .................................................................................................................................... 6
2.1. Introduction 6

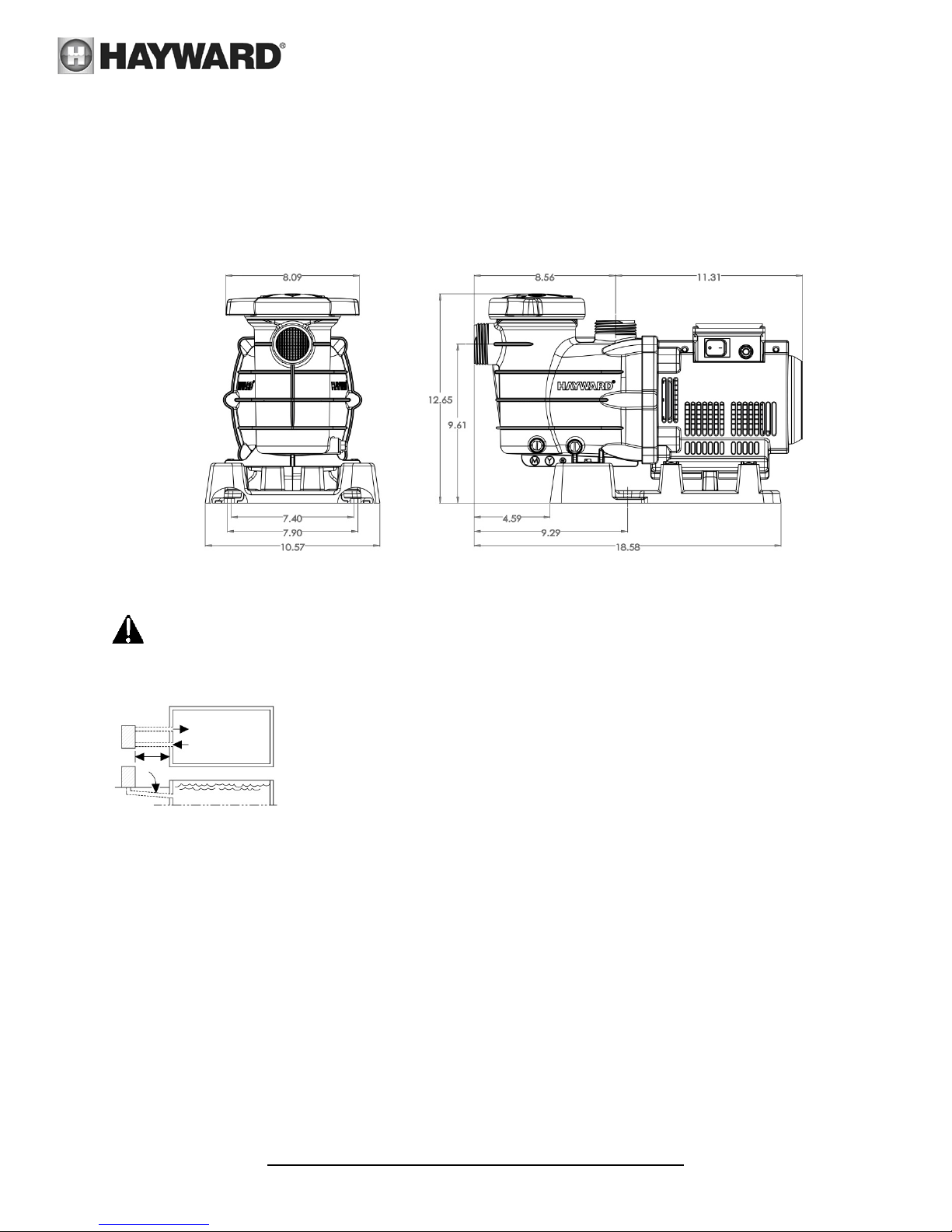

2.2. Product Dimensions 6
3. Installation and Wiring ................................................................................................................................ 6
3.1. Pump Location 6
3.2. Pump Mounting 6
3.3. Plumbing 7
3.4. Electrical 7
3.5. Voltage 7
3.6. Grounding and Bonding 7
4. Startup & Operation .....................................................................................................................................7
4.1. Starting/Priming the Pump 7
5. Maintenance............................................................................................................................................... 8
6. Storage / Winterization ............................................................................................................................... 8
6.1. Storing Pump For Winterization 8
7. Shaft Seal Change Instructions .................................................................................................................... 9
7.1. Removing the Motor Assembly 9
7.2. Removing the Impeller 9
7.3. Removing the Ceramic Seat 9
7.4. Seal Installation 9
7.5. Replacing the Impeller and Diffuser 9
7.6. Replacing the Motor Assembly 10
8. Replacement Parts ..................................................................................................................................... 11
8.1. Parts Diagram 11
8.2. Replacement Parts Listing 12
9. Troubleshooting......................................................................................................................................... 12
9.1. General Problems 12
10. Warranty.................................................................................................................................................... 14
11. Product Registration................................................................................................................................... 15

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 3 of 15
VL Series Pump
ISVL1285 Rev B
Basic safety precautions should always be followed, including the following: Failure to follow instructions may
result in injury.
This is the safety-alert symbol. When you see this symbol on your pump or in this manual, look for one of the
following signal words, and be alert to the potential for personal injury.
WARNING
warns about hazards that could cause serious personal injury, death or major property damage
and if ignored presents a potential hazard.
CAUTION
warns about hazards that
will
or
can
cause minor or moderate personal injury and/or property
damage and if ignored presents a potential hazard. It can also make consumers aware of actions that are
unpredictable and unsafe.
The
NOTICE
label indicates special instructions that are important but not related to hazards.
1.
IMPORTANT SAFETY INSTRUCTIONS
Before installing or servicing this electrical equipment, turn power supply OFF.
WARNING
– READ AND FOLLOW ALL INSTRUCTIONSin this owner’s
manual and on the equipment. Failure to follow instructions can cause severe injury and/or death.
WARNING
– This product should be installed and serviced only by a qualified professional.
CAUTION
– All electrical wiring MUST be in conformance with all applicable local codes, regulations, and
the National Electric Code (NEC).
USE OF NON-HAYWARD REPLACEMENT PARTS VOIDS WARRANTY.
ATTENTION INSTALLER - THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE INSTALLATION,
OPERATION, AND SAFE USE OF THIS VARIABLE SPEED PUMP THAT MUST BE FURNISHED TO THE END USER OF
THIS PRODUCT. FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS COULD RESULT IN SERIOUS INJURY.
WARNING
– To reduce risk of injury, do not permit children to use or climb on this product. Closely
supervise children at all times. Components such as the filtration system, pumps, and heaters must be positioned
to prevent children from using them as a means of access to the pool.
CAUTION
– This pump is intended for use on permanently installed swimming pools and may also be used
with hot tubs and spas if so marked. Do NOT use with storable pools. A permanently installed pool is constructed in
or on the ground or in a building such that it cannot be readily disassembled for storage. A storable pool is
constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity.
Though this product is designed for outdoor use, it is strongly advised to protect the electrical components from the
weather. Select a well-drained area, one that will not flood when it rains. It requires free circulation of air for
cooling. Do not install in a damp or non-ventilated location. (For hot tub and spa pumps) Do not install within an
outer enclosure or beneath the skirt of a hot tub or spa.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 4 of 15
VL Series Pump
ISVL1285 Rev B
WARNING
– Pool and spa components (seals, gaskets, etc.) have a finite life. All components should be
inspected frequently and replaced at least every ten years, or if found to be damaged, broken, cracked, missing, or
not securely attached.
WARNING
–
Risk of Electric Shock.
All electrical wiring MUST be in conformance with applicable local
codes, regulations, and the National Electric Code (NEC). Hazardous voltage can shock, burn, and cause death or
serious property damage. To reduce the risk of electric shock, do NOT use an extension cord to connect unit to
electric supply. Provide a properly located electrical receptacle. Before working on pump or motor, turn off power
supply to the pump.
WARNING
– (For all cord- and plug-connected units) WARNING - To reduce the risk of
electric shock, replace damaged cord immediately.
WARNING
–
Risk of Electric Shock.
In accordance with the National Electric Code (NEC), connect only to a
branch circuit protected by a ground-fault circuit-interrupter (GFCI). Contact a qualified electrician if you cannot
verify that the circuit is protected by a GFCI. The unit must be connected only to a supply circuit that is protected by
a ground-fault circuit-interrupter (GFCI). Such a GFCI should be provided by the installer and should be tested on a
routine basis. To test the GFCI, push the test circuit button. The GFCI should interrupt power. Push the reset button.
Power should be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the GFCI interrupts
power to the pump without the test button being pushed, a ground current is flowing, indicating the possibility of an
electric shock. Do not use this pump. Disconnect the pump and have the problem corrected by a qualified service
representative before using.
WARNING
–
Suction Entrapment Hazard.
Suction in suction outlets and/or suction outlet covers, which
are damaged, broken, cracked, missing, or unsecured cause severe injury and/or death due to the following
entrapment hazards (symbols complements of APSP):
Hair Entrapment
- Hair can become entangled in suction outlet cover.
Limb Entrapment
- A limb inserted into an opening of a suction outlet sump or suction outlet cover that is damaged,
broken, cracked, missing, or not securely attached can result in a mechanical bind or swelling of the limb.
Body Suction Entrapment
- A differential pressure applied to a large portion of the body or limbs can result in an
entrapment.
Evisceration/ Disembowelment
- A negative pressure applied directly to the intestines through an unprotected
suction outlet sump or suction outlet cover which is damaged, broken, cracked, missing, or unsecured can result in
evisceration/disembowelment.
Mechanical Entrapment
- There is potential for jewelry, swimsuits, hair decorations, fingers, toes, or knuckles to be
caught in an opening of a suction outlet cover resulting in mechanical entrapment.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 5 of 15
VL Series Pump
ISVL1285 Rev B
WARNING
– To Reduce the risk of Entrapment Hazards:
−When outlets are small enough to be blocked by a person, a minimum of two functioning suction outlets per
pump must be installed. Suction outlets in the same plane (i.e. floor or wall), must be installed a minimum of
three feet (3’) [0.91 meter] apart, as measured from near point to near point.
−Dual suction fittings shall be placed in such locations and distances to avoid “dual blockage” by a user.
−Dual suction fittings shall not be located on seating areas or on the backrest for such seating areas.
−Never use pool or spa if any suction outlet component is damaged, broken, cracked, missing, or not securely
attached.
−Replace damaged, broken, cracked, missing, or not securely attached suction outlet components
immediately.
−In addition to two or more suction outlets per pump installed in accordance with latest APSP standards and
CPSC guidelines, follow all national, state, and local codes applicable.
−Installation of a vacuum release or vent system, which relieves entrapping suction, is recommended.
WARNING
–
Hazardous Pressure.
Pool and spa water circulation systems operate under hazardous
pressure during start-up, normal operation, and after pump shut-off. Stand clear of circulation system equipment
during pump start-up. Failure to follow safety and operation instructions could result in violent separation of the
pump housing and cover due to pressure in the system, which could cause property damage, severe personal injury,
or death. Before servicing pool and spa water circulation system, all system and pump controls must be in off
position and filter manual air relief valve must be in open position. Before starting pump, all system valves must be
set in a position to allow system water to return back to the pool. Do not change filter control valve position while
pump is running. Before starting pump, fully open filter manual air relief valve. Do not close filter manual air relief
valve until a steady stream of water (not air or air and water mix) is discharged from the valve. All suction and
discharge valves MUST be OPEN when starting the circulation system. Failure to do so could result in severe
personal injury and/or property damage.
WARNING
–
Separation Hazard.
Failure to follow safety and operation instructions could result in violent
separation of pump components. Strainer cover must be properly secured to pump housing with strainer cover lock
ring. Before servicing pool and spa circulation system, all system and pump controls must be in off position and
filter manual air relief valve must be in open position. Do not operate pool and spa circulation system if a system
component is not assembled properly, damaged, or missing. Do not operate pool and spa circulation system unless
filter manual air relief valve body is in locked position in filter upper body. All suction and discharge valves MUST be
OPEN when starting the circulation system. Failure to do so could result in severe personal injury and/or property
damage.
WARNING
– Never operate the circulation system at more than 50 PSI maximum.
WARNING
–
Fire and burn hazard.
Motors operate at high temperatures and if they are not properly
isolated from any flammable structures or foreign debris they can cause fires, which may cause severe personal
injury or death. It is also necessary to allow the motor to cool for at least 20 minutes prior to maintenance to
minimize the risk for burns.
WARNING
– Failure to install according to defined instructions may result in severe personal injury or death.
SAVE THESE INSTRUCTIONS

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 6 of 15
VL Series Pump
ISVL1285 Rev B
2.
General Information
2.1.
Introduction
This manual contains information for the proper installation and operation of the Hayward VL Series Pump. The
instructions in this manual MUST be followed precisely.
2.2.
Product Dimensions
3.
Installation and Wiring
WARNING
– This product should be installed and serviced only by a qualified professional.
3.1.
Pump Location
Locate pump as close to pool as practical and run suction lines as direct as possible to
reduce friction loss. Suction lines should have continuous slope upward from lowest
point in line. Joints must be tight (but not over-tightened). Suction line diameter must
equal or be larger than the discharge line diameter.
Though the pump is designed for outdoor use, it is advised to place pump and filter in the
shade to shield them from continuous direct heat. Select a well-drained area that will not
flood when it rains. Do NOT install pump and filter in a damp or non-ventilated location. Keep motor clean. Pump
motors require free circulation of air for cooling.
3.2.
Pump Mounting
Install pump on a level concrete slab or other rigid base to meet all local and national codes. Secure pump to base
with screws or bolts to further reduce vibration and stress on pipe or hose joints. The base must be level, rigid, and
vibration free.
Pump mount must:
•Allow pump inlet height to be as close to water level as possible.
•Allow use of short, direct suction pipe (to reduce friction losses).
•Allow for valves in suction and discharge piping.
•Be protected from excess moisture and flooding.
•Allow adequate access for servicing pump and piping.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 7 of 15
VL Series Pump
ISVL1285 Rev B
WARNING
–
Hazardous Pressure
. Pumps, filters, and other equipment/ components of a swimming pool
filtration system operate under pressure. Incorrectly installed and/or improperly tested filtration equipment and/or
components may fail resulting in severe personal injury or death.
3.3.
Plumbing
1. Fittings (elbows, tees, valves, etc.) restrict flow. For better efficiency, use the fewest possible fittings. Avoid
fittings that could cause an air trap. Pool and spa fittings MUST conform to the International Association of
Plumbing and Mechanical Officials (IAPMO) standards.
2. Union fittings should be connected hand tight. Do not over tighten the fittings as damage may occur.
3.4.
Electrical
WARNING
– All electrical wiring MUST conform to local codes, regulations, and the National Electric Code
(NEC).
WARNING
– Connect only to a grounded, 3 pin, GFCI protected outlet
3.5.
Voltage
Voltage at pump MUST NOT be more than 10% above or below nameplate rated voltage, or components may
overheat, causing overload tripping and reduced component life. If voltage is less than 90% or more than 110% of
rated voltage when pump is running at full load, consult the power company.
3.6.
Grounding
1. Install, ground and wire pump in accordance with local or national electrical code requirements.
4.
Startup & Operation
4.1.
Starting/Priming the Pump
Fill strainer housing with water to suction pipe level. If water leakage occurs from anywhere on the pump or filter,
DO NOT
start the pump. If no leakage occurs, stand at least 10 feet from pump and/or filter and proceed with
starting the pump.
WARNING
– Return to filter to close filter manual air relief valve when a steady stream of water (not air or air and
water) is discharged from valve. Failure to do so could result in severe personal injury.
ATTENTION
–
NEVER OPERATE THE PUMP WITHOUT WATER
. Water acts as a coolant and lubricant for the
mechanical shaft seal. NEVER run pump dry. Running pump dry may damage seals, causing leakage, flooding, and
voids warranty. Fill strainer housing with water before starting motor.
ATTENTION
– Do NOT add chemicals to pool/spa system directly in front of pump suction. Adding
undiluted chemicals may damage pump and voids warranty.
ATTENTION
– Before removing strainer cover:
1. STOP PUMP before proceeding.
2. CLOSE VALVES in suction and outlet pipes.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 8 of 15
VL Series Pump
ISVL1285 Rev B
3. RELEASE ALL PRESSURE from pump and piping system using filter manual air relief valve. See filter owner’s
manual for more details.
4. If water source is higher than the pump, pump will prime itself when suction and outlet valves are opened. If
water source is lower than the pump, unscrew and remove strainer cover; fill strainer housing with water.
5. Clean and lubricate strainer cover O-ring with "Jack's 327" if necessary.
6. Replace strainer cover on strainer housing; turn clockwise to tighten cover.
NOTE - Tighten strainer cover lock ring by hand only (no wrenches).
Turn on power and wait for pump to prime, which can take up to fifteen (15) minutes. Priming time will depend on
vertical length of suction lift and horizontal length of suction pipe. If pump does NOT prime within 15 minutes, stop
motor and determine cause. Be sure all suction and discharge valves are open when pump is running. See
Troubleshooting Guide.
5.
Maintenance
•Clean strainer basket regularly. Do NOT strike basket to clean. Inspect strainer cover gasket regularly and replace as
necessary.
•Hayward pumps have self-lubricating motor bearings and shaft seals. No lubrication is necessary.
•Keep motor clean. Insure motor air vents are free from obstruction to avoid damage. Do NOT use water to hose off
motor.
•Occasionally, shaft seals must be replaced, due to wear or damage. Replace with genuine Hayward seal assembly
kit. See “Shaft Seal Change Instructions” in this manual.
6.
Storage / Winterization
WARNING – Separation Hazard.
Do not purge the system with compressed air. Purging the system with
compressed air can cause components to explode, with risk of severe injury or death to anyone nearby. Use only a
low pressure (below 5 PSI), high volume blower when air purging the pump, filter, or piping.
ATTENTION
– Allowing the pump to freeze with water in it will void the warranty.
ATTENTION
– Use ONLY propylene glycol as antifreeze in your pool/spa system. Propylene glycol is non-
toxic and will not damage plastic system components; other anti-freezes are highly toxic and may damage plastic
components in the system.
Drain all water from pump and piping when expecting freezing temperatures or when storing pump for a long time
(see instructions below). Gravity drain the system as far as possible.
Keep motor dry and covered during storage. To avoid condensation/corrosion problems, do NOT cover or wrap pump
with plastic film or bags.
6.1.
Storing Pump For Winterization
WARNING –
To avoid dangerous or fatal electrical shock hazard, turn OFF power to motor before draining
pump. Failure to disconnect power may result in serious personal injury or death.
1. Drain water level below all inlets to the pool.
2. Remove drain plugs and strainer cover from strainer housing. (See “Parts Diagram” section of this manual for
pump component locations.)
3. Disconnect pump from wiring (after power has been turned OFF), and piping.
4. Once the pump is fully drained of water, re-install the strainer cover and drain plugs. Store pump in a dry area.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 9 of 15
VL Series Pump
ISVL1285 Rev B
7.
Shaft Seal Change Instructions
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ AND FOLLOW ALL INSTRUCTIONS
When servicing electrical equipment, basic safety precautions should always be observed including the following.
Failure to follow instructions may result in injury.
•
WARNING
– To reduce risk of injury, do not permit children to use this product.
•Disconnect all electrical power service to pump before beginning shaft seal replacement.
•Only qualified personnel should attempt rotary seal replacement. Contact your local authorized Hayward Dealer or
service center if you have any questions.
•Refer to “Parts Diagram” section of this manual for pump component locations.
Exercise extreme care in handling both the rotating and the stationary sections of the two-part replacement seal. Foreign
matter or improper handling will easily scratch the graphite and ceramic sealing surfaces.
7.1.
Removing the Motor Assembly
1. Remove the six (6) 3/8" hex head bolts (item #14), which hold the motor assembly to the pump/strainer housing
(item #6), using a 3/8" wrench or socket.
2. Slide the motor assembly out of the pump/strainer housing (item #6), exposing the diffuser (item #10). Remove
the diffuser (item #10) off of the seal plate (item #13) to expose the impeller (item #11).
7.2.
Removing the Impeller
3. To prevent the motor shaft from turning, secure using a flat screw driver on the motor shaft.
4. Remove the impeller (item #11) by rotating counterclockwise.
7.3.
Removing the Ceramic Seat
5. Remove the spring seal assembly (item #12) and seal plate (item #13) from the motor by removing the four (4)
bolts (item #16) that secure it to the motor, using a 5/16" wrench or socket.
6. Press the ceramic seat with rubber cup out of the seal plate (item #13). If tight, use a small screwdriver to tap
seal out.
STOP
- Clean all recesses & parts to be reassembled. Inspect gaskets & replace if necessary.
7.4.
Seal Installation
7. Clean and lightly lubricate the motor shaft and seal recesses in the seal plate (item #13) with a dilute solution of
non-granulated liquid-type soap. Gently wipe the polished face of the ceramic seal with a soft cotton cloth.
Lubricate the rubber cup on the ceramic seat and press it firmly into the recess of the seal plate (item #13), with
the polished ceramic surface facing out.
8. Reassemble the motor to the seal plate (item #13) using the four (4) bolts (item #16).
9. Gently wipe the black, polished surface of the spring seal assembly (item #12) with a soft cotton cloth.
10. Press the spring seal assembly (item #12) onto the motor shaft, with the black polished surface facing the
ceramic seat.
7.5.
Replacing the Impeller and Diffuser
11. Screw the impeller (item #11) onto the motor shaft in a clockwise direction. Tighten snugly by holding motor
shaft with flat head screw driver as noted in step #4.
12. Place the diffuser (item #10) over the impeller (item #11) and onto the seal plate (item #13), aligning the three
pins on the diffuser (item #10) with the three holes on the seal plate (item #13).

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 10 of 15
VL Series Pump
ISVL1285 Rev B
7.6.
Replacing the Motor Assembly
13. Slide the motor assembly, with the diffuser (item #10) in place, into pump/strainer housing (item #6), being
careful not to disturb the diffuser gasket (item #9).
14. Fasten assembly to pump/strainer housing (item #6) using the six (6) bolts (item #14). (Be sure housing gasket
(item #8) is in place, and lubricated. Replace if damaged). Tighten bolts alternately and evenly to 50-60 inch-

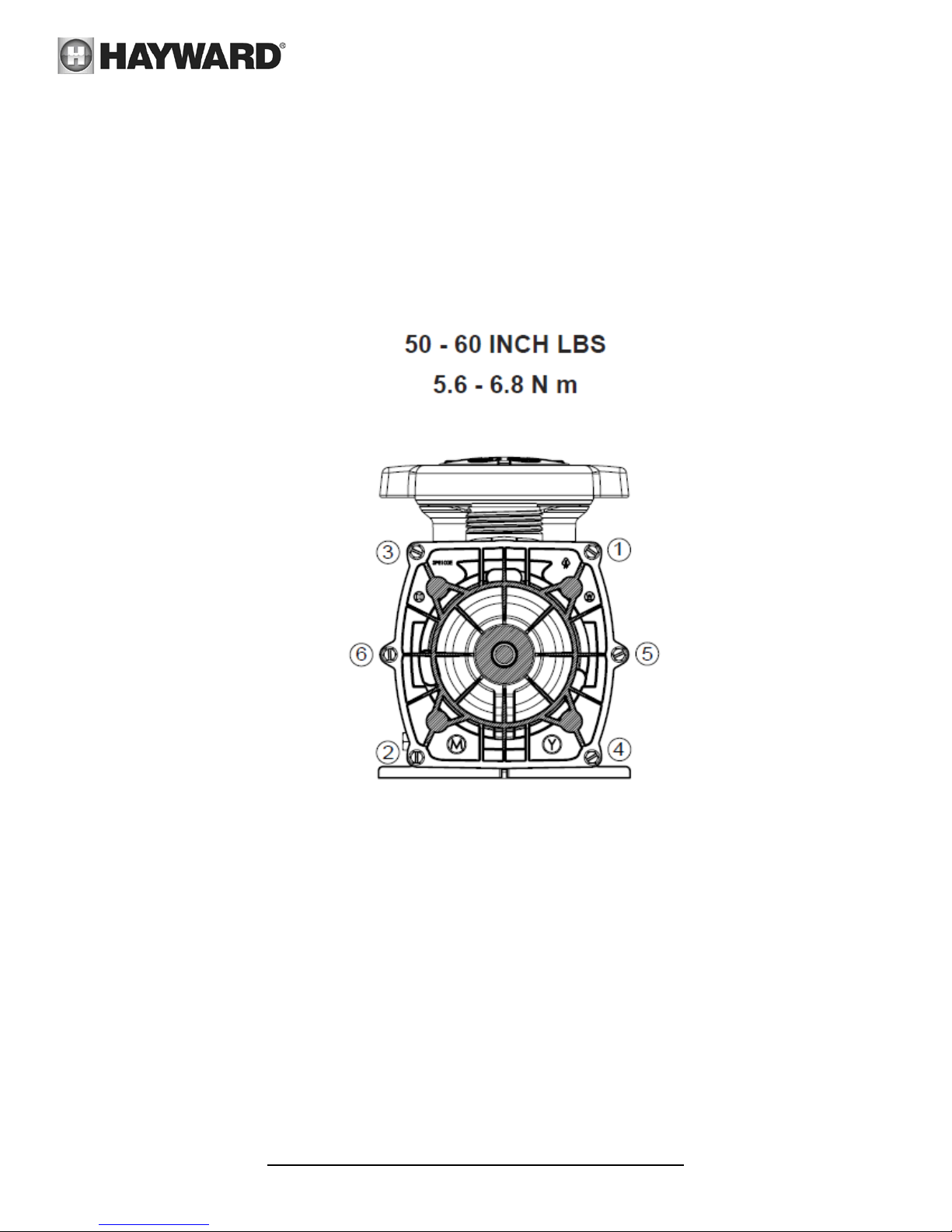

pounds according to housing bolt torque pattern detail (
Figure 7.6-1)
.
Figure 7.6-1

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 11 of 15
VL Series Pump
ISVL1285 Rev B
8.
Replacement Parts
8.1.
Parts Diagram

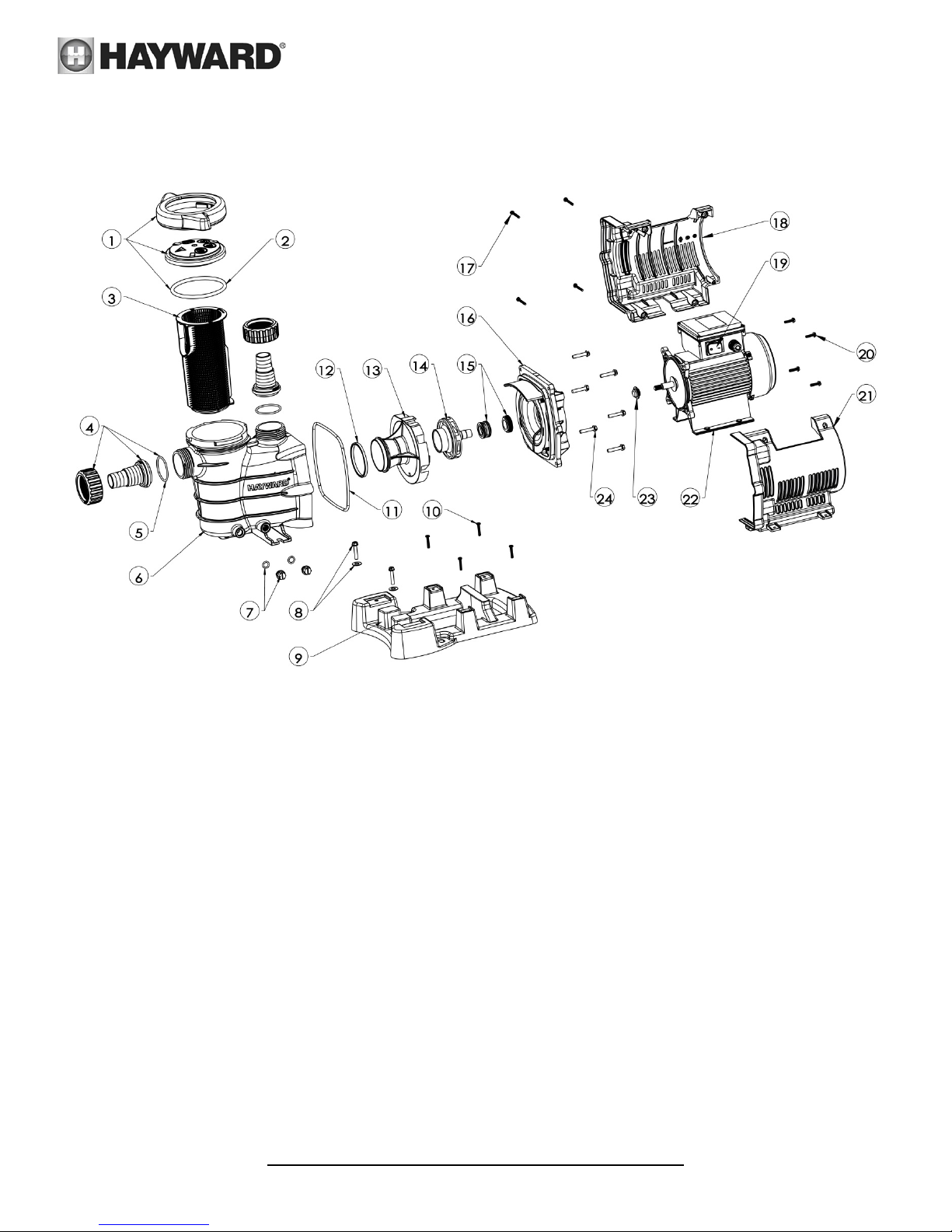

Figure 8.1-1

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 12 of 15
VL Series Pump
ISVL1285 Rev B
8.2.
Replacement Parts Listing
Ref. No.
Description
Model VL2280
Model VL2285
1
Strainer Cover Assembly
SPX8100LDS
SPX8100LDS
2
Strainer Cover O-Ring
SPX8100S
SPX8100S
3
Strainer Basket
SPX8100M
SPX8100M
4
Male Adapter Kit
SPX8100UNBPAK
SPX8100UNBPAK
5
Male Adapter O-ring
SPX8100UNO
SPX8100UNO
6
Pump Housing
SPX8100AA
SPX8100AA
7
Drain Plug Assembly
SPX1700FG
SPX1700FG
8
Housing Fix Screw Kit
SX180KKIT
SX180KKIT
9
Base
VLX2280G
VLX2280G
10
Shroud Fix Screw Kit
SPX0714Z2
SPX0714Z2
11
Seal Plate O-Ring
GMX600F
GMX600F
12
Diffuser Gasket
SPX8100R
SPX8100R
13
Diffuser
SPX8100B
SPX8100B
14
Impeller
VLX1280TC
VLX1280TC
15
Shaft Seal Assembly
SPX1600Z2
SPX1600Z2
16
Seal Plate
SPX8100E
SPX8100E
17
Shroud Screw Kit
SPX2700Z3PAK4
SPX2700Z3PAK4
18
Rear Shroud
VLX2280AM2
VLX2280AM2
19
Switch
LTBCYXSW
LTBCYXSW
20
Motor Mounting Screw
SPX8100Z1
SPX8100Z1
21
Front Shroud
VLX2280AM1
VLX2280AM1
22
Motor
VLX2280Z1C
VLX2285Z1C
23
Slinger
SPX1500Q6
SPX1500Q6
24
Housing Screw Kit
6060XZ1
6060XZ1
25
25' Cord Set
SPX1550WA5CH
SPX1550WA5CH
*
Items 17 & 18 not shown in figure 8.1-1
9.
Troubleshooting
9.1.
General Problems
•
Motor Will NOT Start:
1. Check for and correct any improper or loose wiring connections; open switches or relays; tripped circuit
breakers, or blown fuses.
2. With the power disconnected, manually check the rotation of the motor shaft for free movement and lack of
obstruction. Correct if necessary.
•
Motor Shuts OFF:
1. Check for low voltage or power drop at the motor (frequently caused by undersized wiring). Contact a
qualified professional to verify the electrical connections.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 13 of 15
VL Series Pump
ISVL1285 Rev B
•
Motor Hums, But Does NOT Start:
1. Impeller jammed with debris. Have a qualified repair professional open the pump and remove the debris.
•
Pump Won't Prime:
1. Empty pump/strainer housing. Make sure the pump/strainer housing is filled with water and the cover o-
ring is clean. Ensure the o-ring is properly seated in the cover o-ring groove. Ensure the o-ring sealing
surface is lubricated with “Jack’s 327” and that the strainer cover is locked firmly in position. Lubricant will
help to create a tighter seal.
2. Loose connections on the suction side. Tighten the union connections.
NOTE
- Any self-priming pump will not prime if there are suction air leaks. Leaks will result in bubbles
emanating from the return fittings on the pool wall.
3. Leaking O-ring or packing glands on valves. Tighten, repair, or replace the valves.
4. Strainer basket or skimmer basket loaded with debris. Remove the strainer housing cover or the skimmer
cover. Clean the basket, and refill the strainer housing with water. Tighten the cover.
5. Suction side clogged. Contact a qualified repair professional. You should have 5” - 6” of vacuum at the
strainer cover (your pool dealer can confirm this with a vacuum gauge). You may be able to check by
removing the skimmer basket and holding an object over the bottom port with the skimmer full and the
pump running. If no suction is felt, check for line blockage.
a. If the pump develops a vacuum, check for a blocked suction line or a dirty strainer basket. An air
leak in the suction piping may be the cause.
b. If the pump does not develop a vacuum and the pump has sufficient “priming water”:
i. Re-check the strainer housing cover and all threaded connections for suction leaks. Check
if all system hose clamps are tight.
ii. Check voltage to ensure that the motor is rotating at full rpm’s.
iii. Open the housing cover and check for clogging or obstruction in suction. Check the
impeller for debris.
iv. Remove and replace the shaft seal only if it is leaking.
•
Low Flow – Generally:
1. Clogged or restricted strainer or suction line. Contact a qualified repair professional.
2. Undersized pool piping. Correct the piping size.
3. Plugged or restricted discharge line of filter, valve partially closed (high gauge reading). Sand filters –
backwash as per manufacturer’s instructions; D.E. filters – backwash as per manufacturer’s instructions;
Cartridge filters – clean or replace the cartridge.
4. Air leak in suction (bubbles issuing from return fittings). Re-tighten the suction and discharge connections
using PTFE tape. Inspect other plumbing connections, and tighten as required.
5. Plugged, restricted, or damaged impeller. Replace the impeller including a new seal assembly.
•
Noisy Pump:
1. Air leak in suction piping, cavitation caused by restricted or undersized suction line or leak at any joint, low
water level in pool, and unrestricted discharge return lines. Correct the suction condition or throttle return
lines, if practical. Holding your hand over the return fitting will sometimes prove this, or by putting in a
smaller eyeball fitting.
2. Vibration due to improper mounting, etc. Mount the pump on a level surface and secure the pump to the
equipment pad.
3. Foreign matter in the pump housing. Loose stones/debris hitting the impeller could be the cause. Clean the
pump housing.
4. Motor bearings noisy from normal wear, rust, overheating, or concentration of chemicals causing seal
damage, which will allow chlorinated water to seep into bearings wiping out the grease causing bearing to
whine. All seal leaks should be replaced at once.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 14 of 15
VL Series Pump
ISVL1285 Rev B
10.
Warranty

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 15 of 15
VL Series Pump
ISVL1285 Rev B
DATE OF INSTALLATION ____________________
INITIAL PRESSURE GAUGE READING (CLEAN FILTER) _______________________
PUMP MODEL __________________
11.
Product Registration
*Retain this Warranty Certificate in a safe and convenient location for your records
Register Warranty online at Haywardpool.ca
