HBC eco User manual

Operating Instructions
RadioTransmittereco
AOEM1G30[PMTS/DOKUS] Page 1 / 24
HBC-radiomaticGmbH•74564 Crailsheim•Germany
Information andspecificationssubjectto change without notice.2007-06-18
RadioControlSystem
HBC – Radio Control
R Ra ad di io o T Tr ra an ns sm mi it tt te er r e ec co o

Operating Instructions
RadioTransmittereco
Page 2 / 24 AOEM1G30 [PMTS/DOKUS]
HBC-radiomaticGmbH•74564 Crailsheim•Germany
2007-06-18Information and specificationssubject to change without notice.
RadioControlSystem
Manufacturer: HBC-radiomaticGmbH
HallerStraße47 –53
74564 Crailsheim, Germany
Tel. [phone]
Fax[phone]
E-mail: [e-mail]
http://www.hbc-radiomatic.com
HBCradiomatic GmbHis not liable foranymisprintsorerrors!– All rightsreserved.
™ radiomatic and radiobus are registered German trademarks.
©2007 – 06 , HBC-radiomatic GmbH, 74564 Crailsheim, Germany
Nopartof anysoftwareorof the present document maybe reproduced in anymannerwhatsoeverwithout the expressed
written permission of HBC-radiomatic GmbH.

Operating Instructions
RadioTransmittereco
AOEM1G30[PMTS/DOKUS] Page 3 / 24
HBC-radiomaticGmbH•74564 Crailsheim•Germany
Information andspecificationssubjectto change without notice.2007-06-18
RadioControlSystem
TableofContents
1SafetyInstructions........................................................................4
1.1 Pictographs.......................................................................................4
1.2 GeneralSafetyInstructions................................................................5
1.3 OperatorSafetyInstructions..............................................................6
2Operation......................................................................................7
AutomaticSwitch-OFF (APO Function)...............................................8
FrequencySelection..........................................................................8
2.1 BatteryandBatteryCharger...............................................................9
2.1.1 TransmitterBatteryBA2250_0...............................................9
2.1.2 ACBatteryChargerforBA2250_0........................................10
2.1.3 DC BatteryChargerforBA2250_0........................................11
2.2 Options...........................................................................................12
2.2.1 Utilizationof button asshiftkey......................................12
2.2.2 CableControl Option...........................................................12
2.2.3 radiomatic®infrakey Option.................................................13
2.2.4 Catch–ReleaseOption.......................................................14
2.2.5 Catch–Release–TandemOption.......................................15
2.2.6 TandemOperation Option...................................................16
3FaultCorrection..........................................................................18
4Maintenance................................................................................19
4.1 IntheEventofaFault......................................................................19
5TechnicalData............................................................................20
5.1 Dimensions.....................................................................................21
6ECDeclarationoftheManufacturerandofConformity..............22
Appendix:
– Frequency ListforEurope
– Return Delivery Note

Operating Instructions
RadioTransmittereco
Page 4 / 24 AOEM1G30 [PMTS/DOKUS]
HBC-radiomaticGmbH•74564 Crailsheim•Germany
2007-06-18Information and specificationssubject to change without notice.
RadioControlSystem
1SafetyInstructions
1.1Pictographs
The following pictographswill be used throughout the present operating instructions:
Indicates apossibleshock hazard
Contacting componentsundervoltage maylead todeath.Housing marked withthis
symbolmayonlybe opened byqualified electriciansafterhaving disconnected the
devicefromthe mainssupply(supplyvoltage,operating voltage orinputterminal
voltage).
Indicates safetyrelevantpassages
You will find thispictograph asan indicatorforoccupationalsafetymeasures.The
neglecting ofsuchmeasuresposesaserioushazard.
Alwaysobservethe instructionsand be particularlyattentiveand careful.
Avoidanysituationsthat couldat anytimebe adangertopersonsormachines.
Indicates importantinformation
Thissymbolbringsyourattention toimportantinformation on howtosecurealong
serviceablelifeofthe radiocontrolsystem.
Payattention tothe commentsand instructionsgiven.Ignoring the information provided
maypermanentlyimpairthe reliabilityand operabilityofthe equipment.

Operating Instructions
RadioTransmittereco
AOEM1G30[PMTS/DOKUS] Page 5 / 24
HBC-radiomaticGmbH•74564 Crailsheim•Germany
Information andspecificationssubjectto change without notice.2007-06-18
RadioControlSystem
1.2General SafetyInstructions
Radiocontrolsfacilitateand increasethe operating efficiency of cranesand machines.
Nevertheless,the operatormustthoroughlyunderstand and be inaposition toproperly
usearadiocontrolsystem!
Ø Read the Operating InstructionsManualcarefullyand thoroughlybeforeworking with
the transmitterforthe first time!
Ø The operatorundertakestostrictlyadheretothe instructionsand proceedings
described inthismanual,aswell astofollowthe generalrulesand regulationsfor
workersafetyand accidentprevention.Ignoring anysuchinstructionsorregulations
couldposeafatalthreat tothe operatororothers.
Ø Keep thismanualon location and readilyavailableat all times!
Ø Onlyauthorized and properlytrained personnelmayoperatethe transmitter.
Ø Anyone who isunderthe influenceofdrugs,alcoholormedication thathasa
detrimentaleffecton aperson'sreactionsmayatno timecommission,operate,
maintainorrepairthe transmitter.
Ø Beforeswitching the transmitteron ensurethatno-one isorcan be endangered by
the initiated operation.
Ø UseonlyoriginalHBCbatteries.The useofbatteriesotherthan originalHBC
batteriescan causemalfunction and securityproblemsduring the charging process
(overheating oreven battery explosion)!
Ø Withthe first signsofanymalfunction related tothe operativesafetyand reliability
ofthe devicethe operatormustimmediatelyshutdownornotactivatethe
transmitter. Forthe purposeofthe present manual"shut down"implies:
–switching off the transmitter,
–storing the transmitterinasafeplaceand ensuring no unauthorized access,
–de-energizing the receiver,
–unplugging the connection cableon the receiver!
Ø Defectsmustbe repaired and sourcesofinterferencemustbe removed immediately!
Ø Adefectivetransmittermayonlybe repaired byqualified and competentpersonnel.
UseonlyoriginalHBCspareparts.The devicesecuritycannotbe guaranteed with
the useofsparepartsotherthan HBCoriginals,and thisvoidsourextended
warranty. Onlythe legalwarrantyregulationsarethen applicable.
Ø Observeall periodicaltestsand inspectionsthatarerequired bylawor
recommended inthe present operating instructions!
Ø When using the transmitteralwaysobservethe regulationsand instructions
stipulated inthe authoritativeworkersafetyand accident prevention regulations.
–The transmitterhasbeen manufactured inaccordancewiththe regulationsand
guidelinesstipulated inthe German Trade Association's"Safetyand Accident
Prevention RegulationsforOperating CranesbyRadioControls"(BGVD6;ZH
1/547)and DINEN13557.
–The transmitterhasbeen tested and approved inaccordancewithEMC
guidelinesand complieswiththe authoritativestandardsforemitted interference
and interferenceimmunity.
Ø Usethe transmittercautiouslyand properly.Inparticularwhen using atransmitterto
radiocontrolamachine orcrane forthe first time.

Operating Instructions
RadioTransmittereco
Page 6 / 24 AOEM1G30 [PMTS/DOKUS]
HBC-radiomaticGmbH•74564 Crailsheim•Germany
2007-06-18Information and specificationssubject to change without notice.
RadioControlSystem
1.3OperatorSafetyInstructions
Ø Beforebeginning crane operation,position yourselfsothatyou haveaclearand
completeoverviewofthe working radiusofthe crane ormachine.
Ø Pleasebe carefulofassumed changesofdirection when you change position!
Ø Incaseof an emergency oranydisturbanceswithinthe working range ofthe crane
ormachine,switchthe transmitteroff immediatelybypressing the STOPswitch.
Shouldthe transmittershowsignsoftechnicalfailureorbreakdown, disconnectthe
radiocontrolsystemimmediately!
Ø Alwaysswitchoff the transmitterduring breaksand afterfinishing work toavoid
operating errorsoranyaccidentalactuation ofoperatorcontrols.
–Theseprecautionsareparticularlyimportantwheneverchanging yourposition or
climbing overan obstacle.
Ø Neverleavean activated transmitterunattended.The operatorundertakestofollow
and complywiththe authoritativeregulationsforworkersafetyand accident
prevention.
Note:
Inthe eventofan interruption ofthe radiolinkduring aworking cycle–whatcan
occasionallyhappen –bothtransmitterand receiverautomaticallyshut down(so-called
"compulsory switch-off").
Toreactivatethe systemreleaseall operatorcontrols,suchaspushbuttonsor
momentary contacts,and allowthe controlelementstoreturntotheirzeroposition.The
systemmustbe reactivated beforethe crane ormachine can reacttocontrolcommands!
Thisfeaturehindersanyuncontrolled orunwanted crane ormachine movement, should
the radiolinkbe interrupted.
Please observe:
If the crane isequipped withaMainContactoryou mustpress the button beforethe
crane can react againtocontrolcommands!

Operating Instructions
RadioTransmittereco
AOEM1G30[PMTS/DOKUS] Page 7 / 24
HBC-radiomaticGmbH•74564 Crailsheim•Germany
Information andspecificationssubjectto change without notice.2007-06-18
RadioControlSystem
2Operation
The transmitterisequipped withan electronicradiomatic®iONkey.
radiomatic®iONcontainsall the datarequired foroperating the
transmitter. Operation isnot possiblewithout radiomatic®iON!
The radiomatic®iONcan alsobe used foroperation ofreplacement
transmittersofidenticalconstruction.
Activating thetransmitter

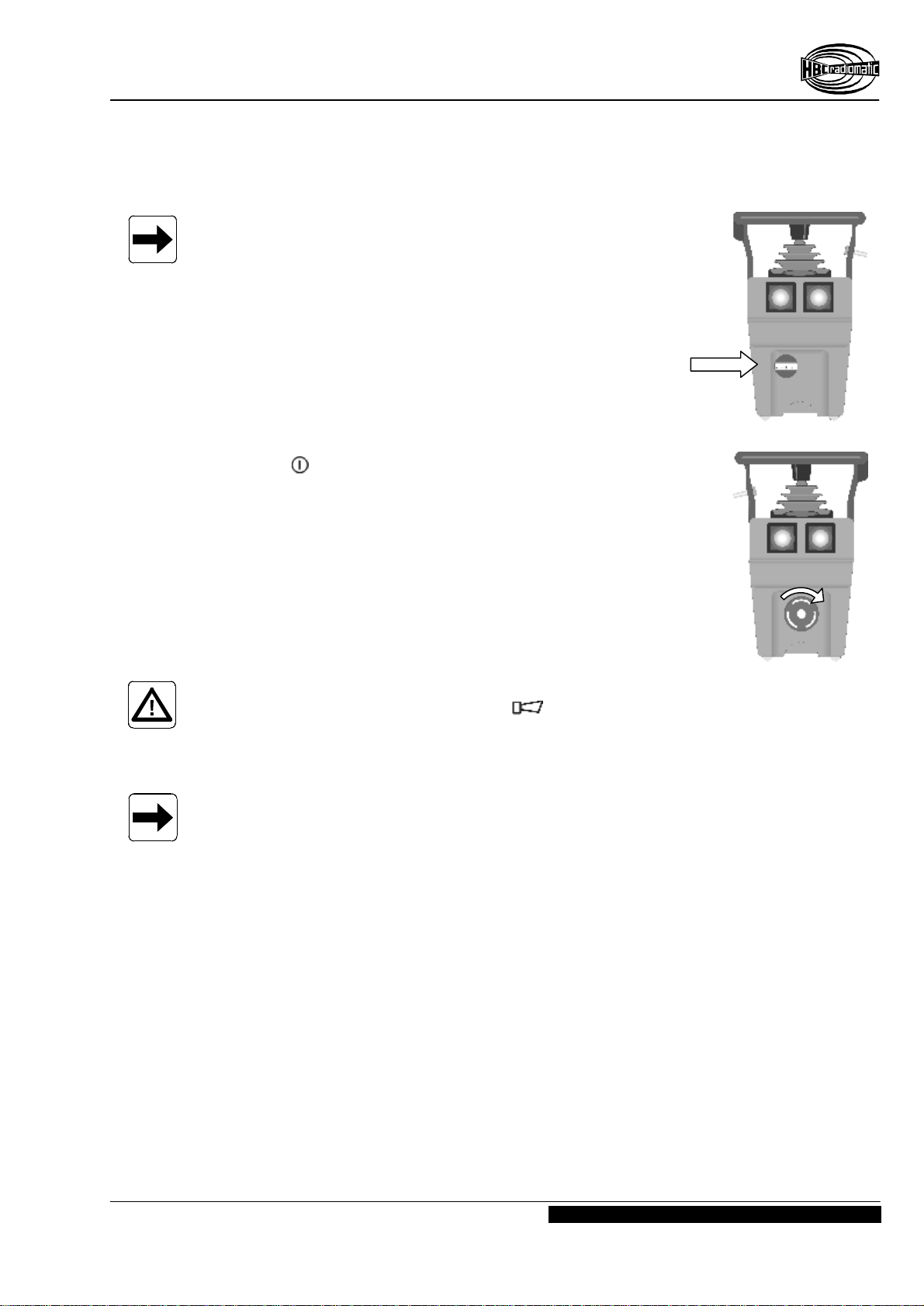

1.Insert acharged battery intothe battery compartment.
2.Unlock the STOPswitchbyturning.
3.Press button.
Ifthe displayflashesgreen, the transmitterisreadyforoperation
Deactivating thetransmitter
Press the STOPswitch.
Caution:
Beforestarting work alwayspress the button and triggerthe acousticsignal.This
warnsall colleaguesthat the crane ormachine isabout tomove.
Note:
Replacethe battery when the displayinthe transmitterflashesred and an acoustic
signalsounds. Otherwise, the transmitterwill switchoff inafewminutes.
Recharge the emptybattery inthe respectivecharger.

Operating Instructions
RadioTransmittereco
Page 8 / 24 AOEM1G30 [PMTS/DOKUS]
HBC-radiomaticGmbH•74564 Crailsheim•Germany
2007-06-18Information and specificationssubject to change without notice.
RadioControlSystem
AutomaticSwitch-OFF (APO Function)
Forsafetyreasonswehaveequipped the transmitterwithan automaticswitch-OFF
(APO= Automatic Power Off function).The transmitterisautomaticallyputoutofcircuit
after15 minutesofnon-use.
The automaticswitch-OFF alsosavesbattery power.
The transmittercan be reactivated bymeansofthe button.
Note:
The automaticswitch-OFF (APOfunction) does notrelieve the operatorofhis
responsibilitytoturnoff the transmitterwhen not inuse!
FrequencySelection
Fixedfrequency
Ifthe identification plateinthe battery compartmentofthe transmittershowsafrequency
value (e.g. 433.500 MHz), the transmitteroperateswithafixed frequency.
Pleasecontactyourservicedepartmentifthe frequency hastobe changed becausethe
frequency channelisalreadyassigned toanotheroperator.
Manual frequencyswitching
Ifthe identification plateinthe battery compartmentof the transmittershowsthe label
man, the transmitterfeatures manual frequency switching.
Thisfunction can be used tochange the frequency channelduring radiooperation.Press
the button intothe first step until an acousticsignalsounds. Then releasethe button.
radiomatic®AFSoption
Ifthe identification plateinthe battery compartmentof the transmittershowsthe label
AFS,the transmitterisequipped with radiomatic®AFS (AutomaticFrequency
Selection).
When activating the transmitterradiomatic® AFS(AutomaticFrequency Selection)will
check ifthe presentfrequency channelisfree.Ifthe frequency channelisoccupied,the
systemautomaticallyfindsand savesafree frequency channel.
The radiomatic®AFSoption alsoincludesthe manualfrequency switching function for
changing the frequency channelduring radiooperation.

Operating Instructions
RadioTransmittereco
AOEM1G30[PMTS/DOKUS] Page 9 / 24
HBC-radiomaticGmbH•74564 Crailsheim•Germany
Information andspecificationssubjectto change without notice.2007-06-18
RadioControlSystem
2.1Batteryand BatteryCharger
2.1.1TransmitterBatteryBA2250_0
The battery capacitydependson the age ofthe battery and the ambienttemperature.
Olderbatterieslosetheircapacityovertime.The battery capacitydiminishesmore
quicklyat temperaturesbelow0°C(32 °F)and above40 °C(104 °F).
Pleasenotethat the battery
Ø must be charged beforeinitialuse.
Ø onlyreachesitsfull capacityafterapprox. 5charging cycles.
Ø mustbe charged atan ambienttemperatureof0–40 °C(32 –104 °F)inorderto
reachfull capacity.
When handled properlythe battery can exceed 500 charging cycles:
Ø Recharge the battery onlywhen itisempty,i.e.when the red displayon the
transmitterblinksand the acousticsignalsounds.
Ø Alwaysstorerechargeablebatteriesat roomtemperature.
Ø Protectthe battery fromshortcircuitsand alwaysstoreitinthe protectivecover
provided.
Ø Charge the battery fullybeforestoring itforaprolonged period.Otherwisetotal
discharge mayoccur.

Operating Instructions
RadioTransmittereco
Page 10 / 24 AOEM1G30 [PMTS/DOKUS]
HBC-radiomaticGmbH•74564 Crailsheim•Germany
2007-06-18Information and specificationssubject to change without notice.
RadioControlSystem
2.1.2ACBatteryChargerforBA2250_0
The chargerconsistsof the battery chargerQA101600 with4interchangeablestandard
adaptersand the battery compartment QC005A00.
Ø UsethischargerforHBCbatteriestype BA2250_0 only.
Ø Usethischargerwiththe included battery compartment only.
Ø The chargermaynot be used inhazardousareas.
Ø The chargerhastobe used indoorsonly.
Ø Usethe chargeratroomtemperatureand protectitagainstheat, dustand humidity.
Ø Do not coverthe chargerwhileit isinuse.
Ø Disconnect the chargerfromthe powersupplywhen it isnot inuse.
Ø Incaseofanyfaultofthe chargerdisconnectitimmediatelyand putitoutof
operation.
Ø Do not makeanytechnicalchangestothe charger.
Ø Defectsmust be repaired byqualified personnelonly.

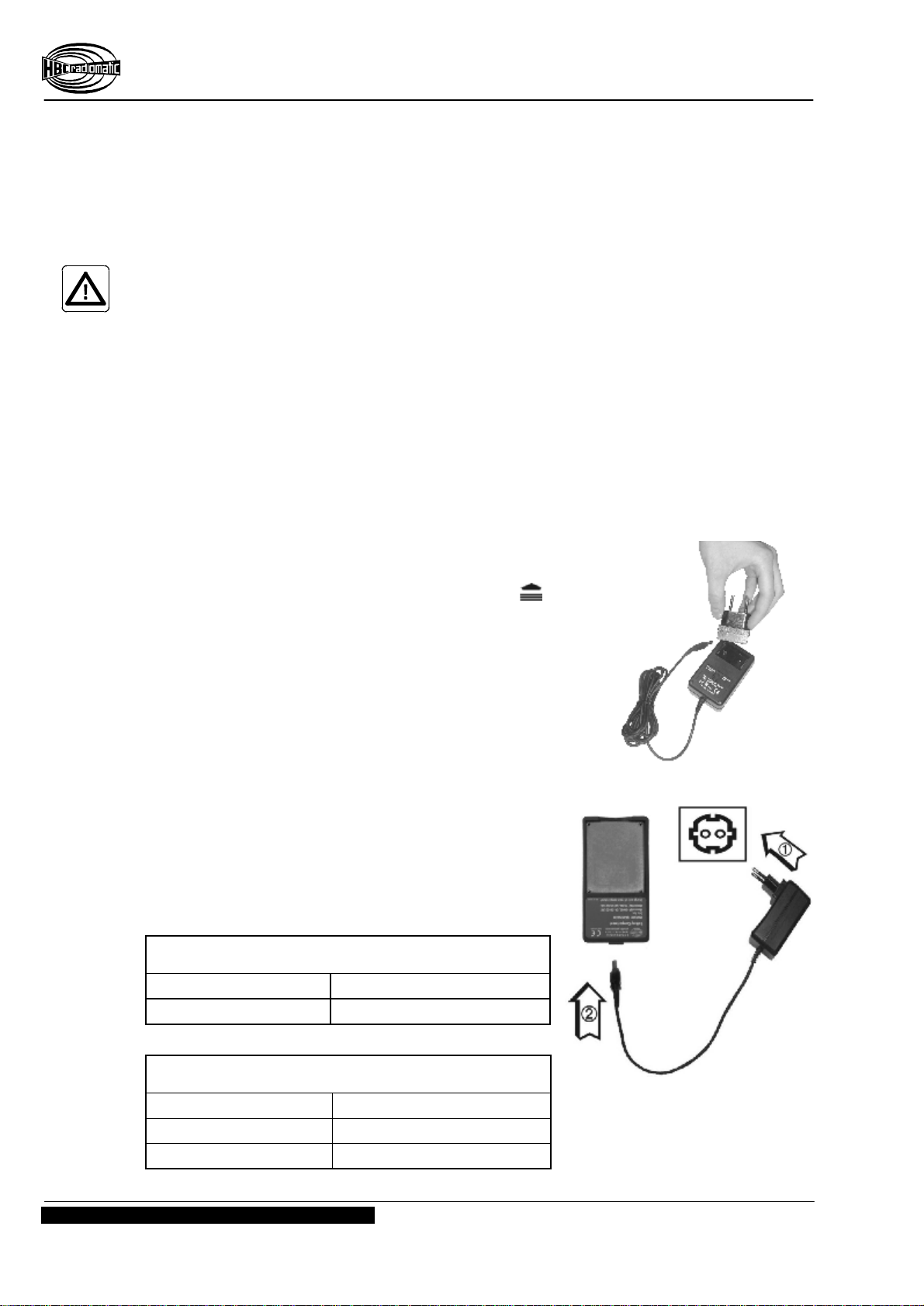

Changing theplug
1.Releasethe plug bypushing the switch inthe
direction ofthe arrow.
2.Select adifferent plug and insert it intothe adapter
compartment. Makesurethe plug clicksintoplace.
Charging thebattery
1.Connect the battery chargertothe mains.
2.Connectthe battery chargertothe battery
compartment.
3.Insertthe battery withthe inscription facing up
intothe battery compartment.
The red LEDon the chargerindicatesthe actual
operating state(see tablebelow).
Operating Display
LEDred flashesBattery ischarging
LEDred off Battery ischarged
Technical Data
Charging timeapprox. 1,5h
Supplyvoltage 100 –240 VAC
Operating temperature 0°C–40°C(32°F–104°F)

Operating Instructions
RadioTransmittereco
AOEM1G30[PMTS/DOKUS] Page 11 / 24
HBC-radiomaticGmbH•74564 Crailsheim•Germany
Information andspecificationssubjectto change without notice.2007-06-18
RadioControlSystem
2.1.3DC BatteryChargerforBA2250_0
The chargerconsistsofthe battery chargerQD112300 and the battery compartment
QC005A00.
Ø UsethischargerforHBCbatteriestype BA2250_0 only.
Ø Usethischargerwiththe included battery compartment only.
Ø The chargermaynot be used inhazardousareas.
Ø The chargerhastobe used invehiclesonly.
Ø Usethe chargeratroomtemperatureand protectitagainstheat, dustand humidity.
Ø Do not coverthe chargerwhileit isinuse.
Ø Disconnect the chargerfromthe powersupplywhen it isnot inuse.
Ø Incaseofanyfaultofthe chargerdisconnectitimmediatelyand putitoutof
operation.
Ø Do not maketechnicalchangestothe charger.
Ø Defectsmust be repaired byqualified personnelonly.

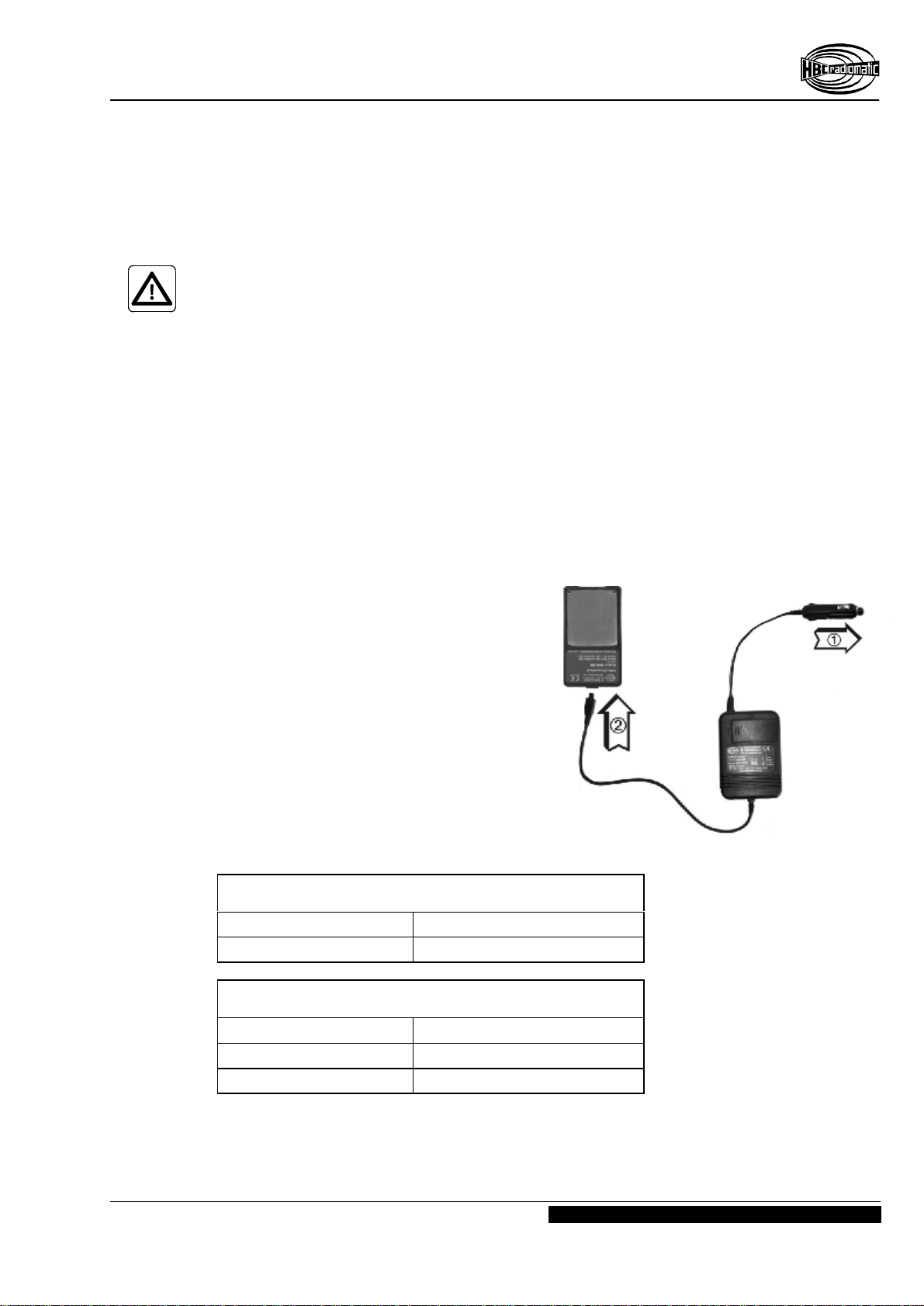

Charging thebattery
1.Connectthe battery chargertoacar
socket.
2.Connectthe battery chargertothe
battery compartment.
3.Insertthe battery withthe inscription
facing downintothe battery
compartment.
The red LEDon the chargerindicatesthe
actualoperating state(see tablebelow).
Operating Display
LEDred flashesBattery ischarging
LEDred off Battery ischarged
Technical Data
Charging timeca. 1,5h
Supplyvoltage 10 –30 VDC
Operating temperature 0°C–40°C(32°F –104°F)

Operating Instructions
RadioTransmittereco
Page 12 / 24 AOEM1G30 [PMTS/DOKUS]
HBC-radiomaticGmbH•74564 Crailsheim•Germany
2007-06-18Information and specificationssubject to change without notice.
RadioControlSystem
2.2Options
2.2.1Utilizationof buttonas shift key
The RPM+and RPM–buttonshaveadualfunction.
Ifthe button iskept depressed and the RPM+resp. RPM–button isalsoactivated,
the MotorStart resp. MotorStop command will be output.
2.2.2CableControl Option
Connecting thecable
1.Press the STOPswitch on the transmitter.
2.Removethe screwlock on the transmitterand receiver.
3.Connect the transmitterand the receiverwiththe cable.
Ensurethat the connectorislocked (clockwise).
4.Unlock the STOPswitch ofthe transmitterbyturning.
5.Press button.
Note:
–Ifthe connection cableisconnected toatransmitterwhileitis
switched on, the transmitterswitchesoff automatically.Press
the button toswitchtocableoperation.
–When the systemisincablemode the transmitterwill receive
the supply-voltage fromthe receiver.I.e.the transmittercan
be used without the battery.
–Ifthe connection cablebetween the transmitterand the
receiverisremoved,the radiosystemswitchesoff
automatically.Press the button toswitchback toradio
operation.
(Illustration exemplarily)

Operating Instructions
RadioTransmittereco
AOEM1G30[PMTS/DOKUS] Page 13 / 24
HBC-radiomaticGmbH•74564 Crailsheim•Germany
Information andspecificationssubjectto change without notice.2007-06-18
RadioControlSystem

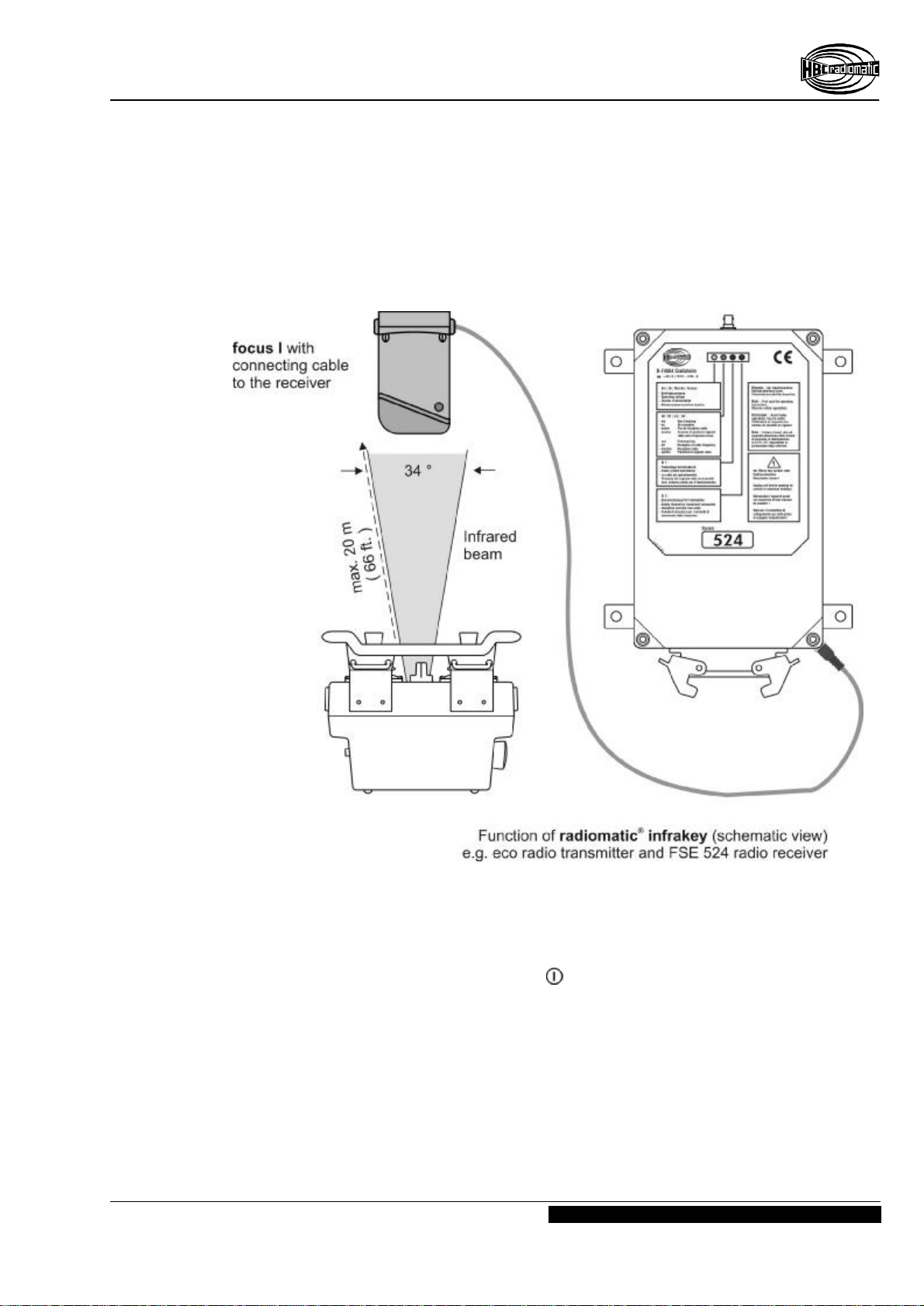

2.2.3radiomatic®infrakeyOption
radiomatic®infrakeyisan additionalinfrared moduleforthe transmitterand the receiver.
Due toseparatecrane activation viainfrared linkitincreasesthe safetyofoperation,i.e.
the crane can not becomeinadvertentlyenabled.
The range ofthe infrared beamismax.approx.20 meters(66 feet)and the angleof
radiation is34°.
Toactivate radiomatic®infrakey, press the button on the transmitter.

Operating Instructions
RadioTransmittereco
Page 14 / 24 AOEM1G30 [PMTS/DOKUS]
HBC-radiomaticGmbH•74564 Crailsheim•Germany
2007-06-18Information and specificationssubject to change without notice.
RadioControlSystem
2.2.4Catch–Release Option
Viathe Catch–ReleaseOption twoormoreradiotransmitterscan controlacrane
alternately.
When the radioreceiverisswitched on,the crane can initiallybe controlled viaany
associated transmitter.Oncethe radioreceiverwastaken overbyone transmitter,the
othertransmittersno longerhaveaccess.
Take over crane
1.Unlock the STOPswitchofthe transmitterbyturning, and press button.
2.Enterthe “Catch“command on the transmitter.
The access rightsforthe crane remainwiththattransmitteruntil the "Release"command
isissued bythat transmitter.
Release crane
1.Enterthe "Release"command on the transmitter.
2.Press the STOPswitchon the transmitter.
The access rightsforthe crane arecancelled.Crane controlcan be taken overby
anothertransmitter.
Operating Example
Transmitter1hastaken overthe crane. Transmitter2istobe given control.
1.Enterthe "Release"command on transmitter1.
2.Press the STOPswitchon transmitter1.
3.Unlock the STOPswitchoftransmitter2byturning, and press button.
4.Enterthe "Catch"command on transmitter2.
Transmitter2nowhassoleaccess toall crane functions.
Notes:
–Ifareceiverhasalreadybeen adopted byatransmittercan be displayed viaalamp
on the crane ormachine.
–Ifthe operating voltage ofthe receiverfailsthe receiverreturnstothe starting
condition inwhichitcan be adopted byanytransmitter.Ifnecessary the receiver
must be adopted anew.
–Ifthe transmitterisdeactivated withoutthe command “Release“having been issued,
the othertransmittershaveno access tothe receiver.The starting condition
described abovecan onlybe resumed bydeactivating the operating voltage atthe
receiver.

Operating Instructions
RadioTransmittereco
AOEM1G30[PMTS/DOKUS] Page 15 / 24
HBC-radiomaticGmbH•74564 Crailsheim•Germany
Information andspecificationssubjectto change without notice.2007-06-18
RadioControlSystem
2.2.5Catch–Release –TandemOption
Viathe Catch–Release–TandemOption twoormoreradiotransmitterscan control
severalcranesalternately.
Eachcrane isequipped witharadioreceiverthatcan receiveand monitorall transmitter
frequencies.
Afteractivating the receiversall transmittershaveequalaccess tothe radiocontrol
system.
Release crane
1.Enterthe “Release“command on the transmitter.
The releaseappliestoall activecranes.
2.Press the STOPswitchon the transmitter.
The access rightsforthe crane(s)arecancelled.Crane controlcan be taken overby
anothertransmitter.
Take over crane
1.Turnrotary switchon the transmittertothe respectiveposition ("A" or"A+B"or
"B").
2.Enterthe ”Catch“command on the transmitter.
The transmitterwithcontroloverthe crane(s)retainsthe access tothe receiveruntil the
operatorhasissued the "Release"command.
Operating Example
Transmitter2hastaken overthe crane(s). Transmitter1istobe given controloverthe
crane(s):
1.Enterthe “Release“command on transmitter2.
2.Press the STOPswitchon transmitter2.
3.Unlock the STOPswitchoftransmitter1byturning, and press button.
4.Turnrotary switchon transmitter1tothe "A"or"A+B"or"B"position.
5.Enterthe “Catch“command on transmitter1.
Transmitter1nowhassoleaccess toall crane functions.
Notes:
–Ifareceiverhasalreadybeen adopted byatransmittercan be displayed viaalamp
on the crane ormachine.
–Ifthe operating voltage ofthe receiverfailsthe receiverreturnstothe starting
condition inwhichitcan be adopted byanytransmitter.Ifnecessary the receiver
must be adopted anew.
–Ifthe transmitterisdeactivated withoutthe command “Release“having been issued,
the othertransmittershaveno access tothe receiver(s).The starting condition
described abovecan onlybe resumed bydeactivating the operating voltage atthe
receiver.

Operating Instructions
RadioTransmittereco
Page 16 / 24 AOEM1G30 [PMTS/DOKUS]
HBC-radiomaticGmbH•74564 Crailsheim•Germany
2007-06-18Information and specificationssubject to change without notice.
RadioControlSystem
2.2.6TandemOperationOption
Tandem Operation T1
The radiosystemconsistsof1transmitterand 2receiversfor2cranes.
The transmittercan controlthe cranesindividuallyorinparallel.
The cranesareselected at the transmitterviaarotary switch:
A onlycrane A
A+B crane A+crane B
B onlycrane B
Tandem Operation T2
The radiosystemconsistsof2transmittersand 2receiversfor2cranes.Both
transmittersaremastertransmittersand can controlthe cranesindividuallyorinparallel.
During normaloperation transmitter1controlscrane Aand transmitter2controlscrane B.
Inordertobe abletoswitchtocrane BorA+Battransmitter1,forexample,the
radiomatic®iONmust be removed fromtransmitter2and inserted intransmitter1.
The cranesareselected at the transmitterviaarotary switch:
A onlycrane A
A+B crane A+crane B
B onlycrane B
Operating Example: Controlofcrane A+Bviatransmitter1.
1.Press the STOPswitchon transmitter1and 2and removethe radiomatic®iONfrom
the transmitters.
2.Insert the radiomatic®iONfromtransmitter2intransmitter1.
Crane selection viatransmitter1isactivated.
3.Switchthe rotary switchoftransmitter1toA+B.
4.Unlock the STOPswitchoftransmitter1byturning, and press button
The radiosystemnowoperatesintandemmode.

Operating Instructions
RadioTransmittereco
AOEM1G30[PMTS/DOKUS] Page 17 / 24
HBC-radiomaticGmbH•74564 Crailsheim•Germany
Information andspecificationssubjectto change without notice.2007-06-18
RadioControlSystem
Tandem Operation TM/ TS
The radiosystemconsistsof2transmittersand 2receiversfor2cranes.One transmitter
isamastertransmitterand can controlcrane Aand Bindividuallyorinparallel.The
othertransmitterisaslavetransmitterand can onlycontrolcrane B.
Inordertobe abletoswitchtocrane BorA+Batthe mastertransmitter,the
radiomatic®iONmust be removed fromthe slavetransmitterand inserted inthe master
transmitter.
The cranesareselected at the mastertransmitterviaarotary switch:
A onlycrane A
A+B crane A+crane B
B onlycrane B
Operating Example: Controlofcrane A+Bviamastertransmitter.
1.Press the STOPswitchon masterand slavetransmitterand removethe
radiomatic®iONfromthe transmitters.
2.Insert the radiomatic®iONfromslavetransmitterinmastertransmitter.
Crane selection viamastertransmitterisactivated.
3.Switchthe rotary switchofmastertransmittertoA+B.
4.Unlock the STOPswitchofmastertransmitterbyturning, and press button
The radiosystemnowoperatesintandemmode.

Operating Instructions
RadioTransmittereco
Page 18 / 24 AOEM1G30 [PMTS/DOKUS]
HBC-radiomaticGmbH•74564 Crailsheim•Germany
2007-06-18Information and specificationssubject to change without notice.
RadioControlSystem
3FaultCorrection
Note:
Pleasecheck the functionsusing the cabinorcablecontrolsfirst!
Problem PossibleCause Remedy
Transmitterdoesnot react
when switched on. − No power. − Check the battery
contactsfordamage or
contamination.
− Insert afullycharged
battery intothe battery
compartment.
− Recharge battery.
Low-powerindicatorafter
minimaloperating time,i.e.
the displayinthe
transmitterflashesred.
− Battery contactsare
contaminated or
damaged.
− Battery not charged.
− Battery defective.
− Check battery contacts
fordamage or
contamination.
− Fullyrecharge battery.
− Ensurethat recharging
process runscorrectly.
− Check transmitter
functionsusing afully
charged orreplacement
battery.
The displayinthe
transmitterflashesgreen
but it isnot possibleto
effect controlcommands.
− The receiverhasno
servicevoltage.
− Thereisno radio
communication available.
− The "Crane On"
command hasnot been
given.
− Check the connecting
cabletothe receiver.
− Check the functionsvia
the LEDsinthe radio
statuspanelofthe
receiver.
Somecommandsarenot
carried out. − The receiverisdefective.
− Thereisan interruption
inthe connecting cable
tothe crane ormachine.
− Check ifall connecting
cablesand cable
junctionsaretight.
− Contact aservice
technician ifnecessary.

Operating Instructions
RadioTransmittereco
AOEM1G30[PMTS/DOKUS] Page 19 / 24
HBC-radiomaticGmbH•74564 Crailsheim•Germany
Information andspecificationssubjectto change without notice.2007-06-18
RadioControlSystem
4Maintenance
The radiocontrolsystemisvirtuallymaintenance-free.The following points,however,
shouldbe taken intoconsideration:
Ø Ensurethat the STOPswitchworkssmoothly.
Contaminantsofanykind can reduceorfullyblock the switchfunction.
Ø Inspect the rubberbellowsofthe operating elementsregularlyforleak-tightness.
Replaceimmediatelyifcracksappearsincethe penetration ofdirtand humiditymay
damage the function ofthe operating elements.
Ø Charge and discharge transmitterbatteriesregularly.
Ø Never useahigh-pressurecleanerorsteamjet cleanerto"clean"the transmitter.
Useasoft brushorclothonly!
Note:
Shouldyou haveanyproblemswiththe radiocontrolsystem,contactyourlocal
distributororHBC-radiomaticGmbH.
4.1IntheEventofaFault
Warning:
Neveroperateacrane ormachine withafaultyordefectiveradiocontrolsystem!
Ø Nevertry torepairthe transmitterelectronics!Opening the transmitterhousing
terminatesthe manufacturerguarantee.
–Send anydefectiveorfaultyequipmenttoyourlocaldistributorortothe
manufacturer.Theyareexpertsand havethe necessary know-howand OEM
spareparts.
–Alwayssend bothtransmitter and receiverand encloseadetailed description of
the problem.
–Do not forget toencloseyouraddress and telephone numbersothatwecan get
intouchwithyou quicklyifnecessary.
Ø Toavoiddamage during transport, usethe originalpacking supplied withthe
transmitterand receiver,otherwisepack securely.Send the consignmenttoyour
distributorortothe following address:
HBC-radiomaticGmbH
HallerStrasse47 –53
74564 Crailsheim, Germany
Ø Shouldyou choosetodeliveradefectiveradiocontrolsystempersonallytoyour
distributororourfactory, pleasecall and arrange an appointment.
HBC-radiomaticGmbH
–CustomerServices/ RepairService–
Tel.: [phone]

Operating Instructions
RadioTransmittereco
Page 20 / 24 AOEM1G30 [PMTS/DOKUS]
HBC-radiomaticGmbH•74564 Crailsheim•Germany
2007-06-18Information and specificationssubject to change without notice.
RadioControlSystem
5Technical Data
eco
Unique systemaddress over1,000,000 combinations
Transmitting powerTC/TX641: <10 mW
Frequencyrange 433 ~435 MHz
Channelincrements25 MHz
Transmitterantenna internal
Operating temperaturerange –25 °C... +70 °C(-13 °F …+158 °F)
Housing materialimpact-resistant ABS plastic
Housing colororange
Dimensions202 x88 x176 mm (8.0x3.5x6.9“)
Protection class IP65
Max. numberofcontrolcommands32 digital+8prop. +STOP
Battery type BA2250_0
Powersupply6V/ 1500 mAh
Operating timeat 100% dutycycleca. 20 hours
Weightca. 1,5kg(3.3lb.)
