Hubbell Compact Locomotive Transmitter 31.340 User manual

Hubbell Industrial Controls, Inc.
Spec Sheet 31.340 • May 2000 • New
Replaces Brochure 31310 of August 94
Compact
Locomotive
Transmitter
Hubbell Radio Remote Control Systems
HUBBELL

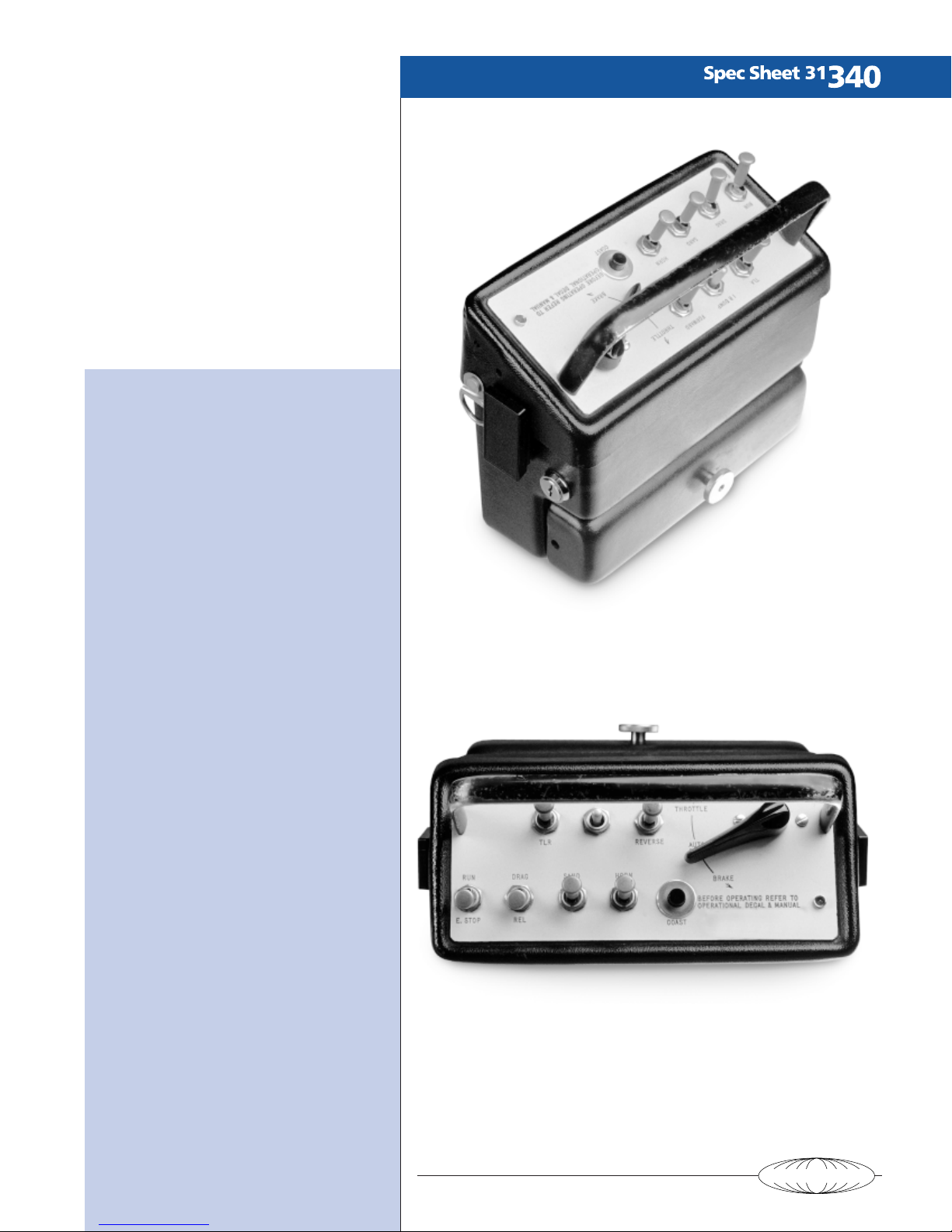

Hubbell also offers a compact transmitter de-
signed specifically for Radio Locomotive Con-
trol Systems, available in 72–76 MHz or
450–470␣ MHz. This compact microcontroller
transmitter offers smaller size, less weight and
greater operator acceptance over the full size
transmitter. The size is reduced by 33% mak-
ing it safe to use in tight conditions. The
weight is reduced by 15% which allows
longer wearing cycles.
The compact transmitter has all the rugged-
ness of the standard Hubbell transmitter and
includes a rechargeable nickel cadmium bat-
tery pack and adjustable harness. All functions
of the locomotive are duplicated with reliable,
high quality switches and pushbuttons. Throttle
position and brake pressure are controlled by
one switch, a reliable return to center device
with positive detents in all positions. All switch-
es are located for ease of operations and
identified on an engraved legend plate.

JPS-500-1M © 2000
Printed in U.S.A.
HUBBELL
50 Edwards Street
Madison, Ohio 44057
[phone]
Fax [phone]
4301 Cheyenne Drive
Archdale, NC 27263
[phone]
Fax [phone]
Hubbell Industrial
Controls, Inc.
a subsidiary of
Hubbell Incorporated
Hubbell Industrial Control Solutions
http://www.hubbell-icd.com/radiocontrols/
72 MHz Transmitters 450 MHz Transmitters
Frequency Range 72-76 MHz 406–430, 450–475 MHz
Channel Available per customer license per customer license
Frequency Stability -10 to 60°C ±5ppm ±5ppm
Emission Type 10KOFID 10KOFID
Spurious/Harmonic Output (below carrier) >70db >80db
Output to Antenna 300 mW 300 mW (low) / 1 W (high)
Effective Radiated Power 3 mW 75 mW (low) / 250 mW (high)
Nominal Range (line of sight) 800 ft 1000 ft (low) / 1500 ft (high)
FCC Identifier LRL922206-72 LRL922206-450
Canada Certificate Number 2259-203-224 2259-203-222
Voltage Requirement 12.5V dc ±15% 12.5V dc ±15%
Battery Usage 40 hrs 60 hrs (low) /40 hrs (high)
Recharge Time 8 hrs 8 hrs
Operating Temperature -22°F to 140°F -30°C to 60°C -22°F to 140°F -30°C to 60°C
Relative Humidity 20% to 90% non - condensing 20% to 90% non - condensing
LED Indicator Flashing: transmitting Steady: low battery Flashing: transmitting Steady: low battery
Function Lever Switches 2 lever switches max. 2 lever switches max.
Auxiliary Switches 8 toggle sw./p.b. 8 toggle sw./p.b.
Weight with Battery 8 lbs. 8 lbs.
Transmitter Specifications
BATTERY
7.75 (REF)
9.50 (REF)4.25 (REF)
