Installation Manual
THM-0500 Touch Screen Programmable Thermostat
Version 1.04
THM-0500

© 2016 HBX Controls2
INTRODUCTION
This manual will help with the installation, parameter setting, troubleshooting
and general maintenance requirements for the controller. To guarantee the
safe and reliable operation of this control, you must rst read this manual in
detail and take particular note to any and all warnings or caution directives
prior to connecting to AC power.
Only suitably qualied individuals with formal training in electrical and HVAC
controls should attempt the installation of this equipment. Incorrect wiring
and installation will affect the warranty provided with this unit. Wiring must be
completed in accordance with the codes and practices applicable to the
jurisdiction for the actual installation.
The HBX THM-0500 is a microprocessor based controller and as such is not to
be regarded as a safety (limit) control. Please consult and install the heating or
cooling appliance in accordance with the manufacturer’s recommendations.
SAFETY SYMBOLS AND WARNINGS
Drawing reference
Refer to the specied electrical or mechanical drawing at the back
of the manual.
Precaution
A measure taken in advance to prevent dangerous or an
unpleasant event
TABLE OF CONTENTS
Introduction Index
Safety symbols and Warnings Index
Receipt and Inspection 1
Description 1
Technical data and dimensions 1
Programming THM-0500 2 - 15
- Navigating the THM-0500 2
- Setting the THM-0500 2 - 5
- Special Functions 2 - 5
- Setup Menu 6 - 15
Installation and Wiring 16-18
Troubleshooting Guide 19-20
Limited Warranty 21
Index

1
RECEIPT & INSPECTION
After receiving, inspect the unit for any possible physical damage that may
have occurred during transportation. After unpacking the unit make sure the
box contains:
• 1 x Universal sensor
• 1 x Thermostat THM-0500
• 1 x Thermostat Wall Cutout Template
• Instruction Manual
DESCRIPTION
The THM-0500 is a programmable thermostat designed to be used with the
ZON- 0550 Zone Control, optional Wi-Fi™ ThermoLinx™ Module, and HBX Zone
mobile app. The thermostat has four daily, automatic settings (wake, day,
evening, sleep) and weekend settings.
It is normal for the THM-0500 screen to remain off up to 120 seconds
upon start-up.
The THM-0500 has two external sensor inputs, multiple heating/cooling modes
and can function as a digital setpoint/aquastat.
Some features of the THM-0500 are:
• Dual stage heating or cooling
• P.I.D. algorithm
• Large, full colour touch screen display
• User-friendly programming features
• Includes external sensor
The THM-0500 is only compatible with the ZON-0550 Zone Control
Technical Data
2 x External Thermistor Input
1 x Power and Communication
Input power: 5VDC 120mA
Dimensions: 80 x 110 x 26mm
ETL Listings:
Only used with ZON-0550
ETL Control No. 3068143
Storage: +10C to +40C
Languages: English

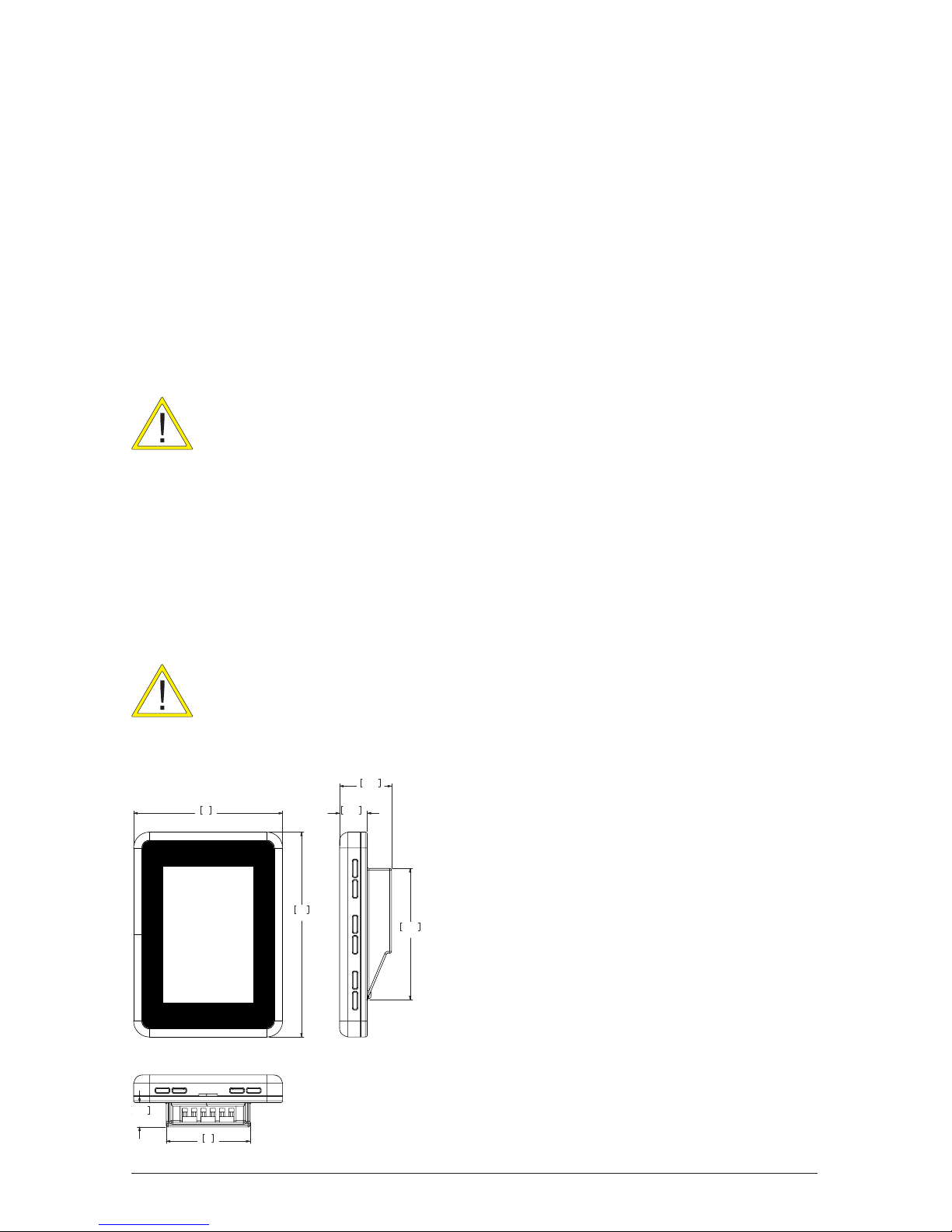

TECHNICAL DATA AND DIMENSIONS
80
3.150
110
4.331
27.90
1.099
14.82
.584
70.50
2.776
45
1.772
13.08
.515
Front View Side View
Bottom View

© 2016 HBX Controls2
PROGRAMMING THM-0500
navigating the thermostat
The touchscreen of this thermostat makes
it easy to change used settings. Touch any
item to adjust it’s setting excluding the
time on the home screen.
Simply touch the temperature to adjust
your desired target temperature. Pressing
the menu icon on top right corner
allows you to view the main “Setup Menu”
options. Pressing the back icon allows
you to return to the home screen or setup
menu.
Touching the area below the current
temperature allows you to see what
current demands are present.
How to set target temperature
Zone 1
LIVING ROOM
72.3
°F
10:00am
Heat Target
74°F
72.3
°F
Zone 1
LIVING ROOM
Current Demands
Fancoil Heat
Floor
75°F
Target
74°F
10:00am
Zone 1
LIVING ROOM
Floor
75°F
Target
74°F
72.3
°F
10:00am
Zone 1
LIVING ROOM
Floor
75°F
Target
74°F
72.3
°F
10:00am
How to see Current Demand
Zone 1
LIVING ROOM
72.3
°F
10:00am
Heat Target
74°F
72.3
°F
Zone 1
LIVING ROOM
Current Demands
Fancoil Heat
Floor
75°F
Target
74°F
10:00am
Zone 1
LIVING ROOM
Floor
75°F
Target
74°F
72.3
°F
10:00am
Zone 1
LIVING ROOM
Floor
75°F
Target
74°F
72.3
°F
10:00am
ZONE 1
LIVING ROOM
Floor
75°F
Target
74°F
72.3
°F
10:00am

3
setting the thermostat
Special Functions
Enter the “Special Functions” screen by touching and holding down the
menu icon for 5 seconds (from the status screen). To select the desired option,
simply touch any item to adjust it’s setting.
Type - Select between Heating, Cooling, and a variety of combined modes.
Heat Only Function
Select the “Heat Only Function” for applications using a
single heating source.
Functions
Type Heat Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Cool Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Heat and Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat with Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Cool with Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat and 2 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Cool Only Function
Select the “Cool Only Function” for applications using a
single cooling source.
Functions
Type Heat Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Cool Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Heat and Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat with Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Cool with Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat and 2 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Heat and Cool Function
Select the “Heat and Cool Function” for applications
using a single heating source and a single cooling source.
Functions
Type Heat Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Cool Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Heat and Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat with Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Cool with Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat and 2 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
2 Stage Heat Function
Select the “2 Stage Heat Function” for applications using
2 stage heating.
Functions
Type Heat Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Cool Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Heat and Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat with Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Cool with Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat and 2 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode

© 2016 HBX Controls4
2 Stage Cool Function
Select the “2 Stage Cool Function” for applications using
2 stage cooling.
Functions
Type Heat Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Cool Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Heat and Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat with Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Cool with Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat and 2 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
2 Heat with Cool Function
Select the “2 Heat with Cool Function” for applications
using 2 stage heating and 1 stage cooling.
Functions
Type Heat Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Cool Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Heat and Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat with Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Cool with Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat and 2 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
2 Cool with Heat Function
Select the “2 Cool with Heat Function” for applications
using 2 stage cooling and 1 stage heating.
Functions
Type Heat Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Cool Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Heat and Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat with Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Cool with Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat and 2 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
2 Heat and 2 Cool Function
Select the “2 Heat and 2 Cool Function” for applications
using 2 stage heating and 2 stage cooling.
This option is only available in Geo Mode. You must set
Geo mode to to enable this function.
Functions
Type Heat Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Cool Only
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type Heat and Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Stage Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat with Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Cool with Heat
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat and 2 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Backlight
This option allows you to dim the idle mode screen to a
darker setting.
ex. For bedrooms or living rooms

5
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
View Auto
This feature allows you to choose between automatic
changeover or manual changeover. Changeover refers to
the thermostat being switched from heat to cool as the air
crosses a certain temperature. Auto changeover switches
from heat to cool automatically while manual changeover
thermostats must be changed by hand. If you select ,
changeover will not appear in the “Adjustment Screen”.
Applicable to: Heat/Cool, 2Heat/Cool, 2Cool/Heat and
2Heat/2Cool modes.
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Room Offset
This feature allows you to program an offset. In the case
that the thermostat is not reading the same temperature
as the actual temperature in the room. This setting allows
the used to offset the temperature showing on the
thermostat.
eg. Actual Room Temperature 72 °F.
Direct Sunlight causes Thermostat to show 73 °F.
The user can put an offset of -1 °F to get the temperatures
to match.
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Setbacks
Allows you to program a setback. A setback can be
programmed to maximize energy during time frames
where the zone may be vacant.
When you select you can program up to 4 setback
time periods in the schedules menu.
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Functions
Type 2 Heat/1 Cool
Backlight
View Auto
Room Offset 0°F
Setbacks
Geo Mode No
Geo Mode
This feature allows you to control 2 or 4 pipe systems for
geothermal applications. This allows for 2 stage heat and
2 stage cool functions.
This mode can only be turned on/off using the rst THM-
0500 thermostat connected to the ZON-0550 Controller.
(THM1)
Default: 2 pipe system. To change to a 4 pipe system, go
to zone setup options (page 12).

© 2016 HBX Controls6
Setup Menu
Pressing the menu icon on the top right corner allows you to view the main
“Setup Menu” options. Pressing the back icon allows you to return to the home
screen or setup menu. Once you are in the setup menu, to select the desired
option, simply touch any item to adjust its setting.
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Target Temp 72°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setback Schedule
Simply touch schedule on the display to bring up schedule
options.
Schedule: Weekday Programs
Adjust four time periods within the weekday program
menu. The “Back” option allows the user to return to the
previous screen.
Cooling Programs
A cooling setpoint is available when the thermostat has
been chosen to have any cooling function.
There must be a minimum of 2°F differential
between hot and cold settings. Cooling must be
a minimum of 2°F higher than Heating.
Heat Target
70
°F
Weekday
6:00am
8:00am
4:00pm
10:00pm
70°F
66°F
72°F
64°F
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
85F
85°F
85F
100°F
Heat Target
72°F
Weekend
8:00am
8:00am
10:00pm
10:00pm
72°F
72°F
64°F
64°F
80°F
80°F
100°F
100°F
Schedule: Weekend Programs
Adjust four time periods within the weekend program
menu. The “Back” option allows the user to return to the
previous screen.
Cooling Programs
A cooling setpoint is available when the thermostat has
been chosen to have any cooling function.
There must be a minimum of 2°F differential
between hot and cold settings. Cooling must be
a minimum of 2°F higher than Heating.
Heat Target
70°F
Weekday
6:00am
8:00am
4:00pm
10:00pm
70°F
66°F
72°F
64°F
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
85F
85°F
85F
100°F
Heat Target
72
°F
Weekend
8:00am
8:00am
10:00pm
10:00pm
72°F
72°F
64°F
64°F
80°F
80°F
100°F
100°F

7
Schedule: Away Temperature
Set the temperature for when the zone is in Away Mode
Away Mode can only be set on the thermostat if setbacks
are enabled in the System Function screen options.
Away mode will override the schedule to a lower/higher
temperature.
Heat Target
70°F
Weekday
6:00am
8:00am
4:00pm
10:00pm
70°F
66°F
72°F
64°F
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
85F
85°F
85F
100°F
Heat Target
72°F
Weekend
8:00am
8:00am
10:00pm
10:00pm
72°F
72°F
64°F
64°F
80°F
80°F
100°F
100°F
Schedule: Set Away
Select to set the zone to Away Mode.
Heat Target
70°F
Weekday
6:00am
8:00am
4:00pm
10:00pm
70°F
66°F
72°F
64°F
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
Schedules
Weekday
Weekend
Away Temp Off
Set Away
85F
85°F
85F
100°F
Heat Target
72°F
Weekend
8:00am
8:00am
10:00pm
10:00pm
72°F
72°F
64°F
64°F
80°F
80°F
100°F
100°F
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Target Temp 72°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Target Temperature
When Setbacks are set to , use this to change the
minimum/maximum temperature for your zone depending
on if your zone is set up for heating or cooling. If the
temperature in the zone falls below/ rises above this
temperature, heating or cooling will come on.
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Target Temp 72°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Heating Temperature
Change the minimum temperature for your zone. If the
temperature in the zone falls below this temperature,
heating will come on.
This setting only applies to heating/cooling modes.
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Target Temp 72°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Cooling Temperature
Change the maximum temperature for your zone. If the
temperature in the zone increases above this temperature,
cooling will come on.
This setting only applies to heating/cooling modes.

© 2016 HBX Controls8
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Target Temp 72°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Changeover
Auto: this option allows you to change automatically from
heat mode to cool mode or vice versa
Heat: Allows the user to be only in heat mode
Cool: Allows the user to be only in cool mode
This option is only available when you select “YES” in View
Auto options in the Special Functions screen.
Applicable to: Heat/Cool, 2Heat/Cool, 2Cool/Heat and
2Heat/2Cool modes.
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Target Temp 72°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
MODE OPTIONS
This option allows you to select between Room, Floor and
Dual sensor modes.
If you are setting your Thermostat as a DHW Zone, see Zone
Demand on page 9. Selecting DHW will automatically
congure your sensor.

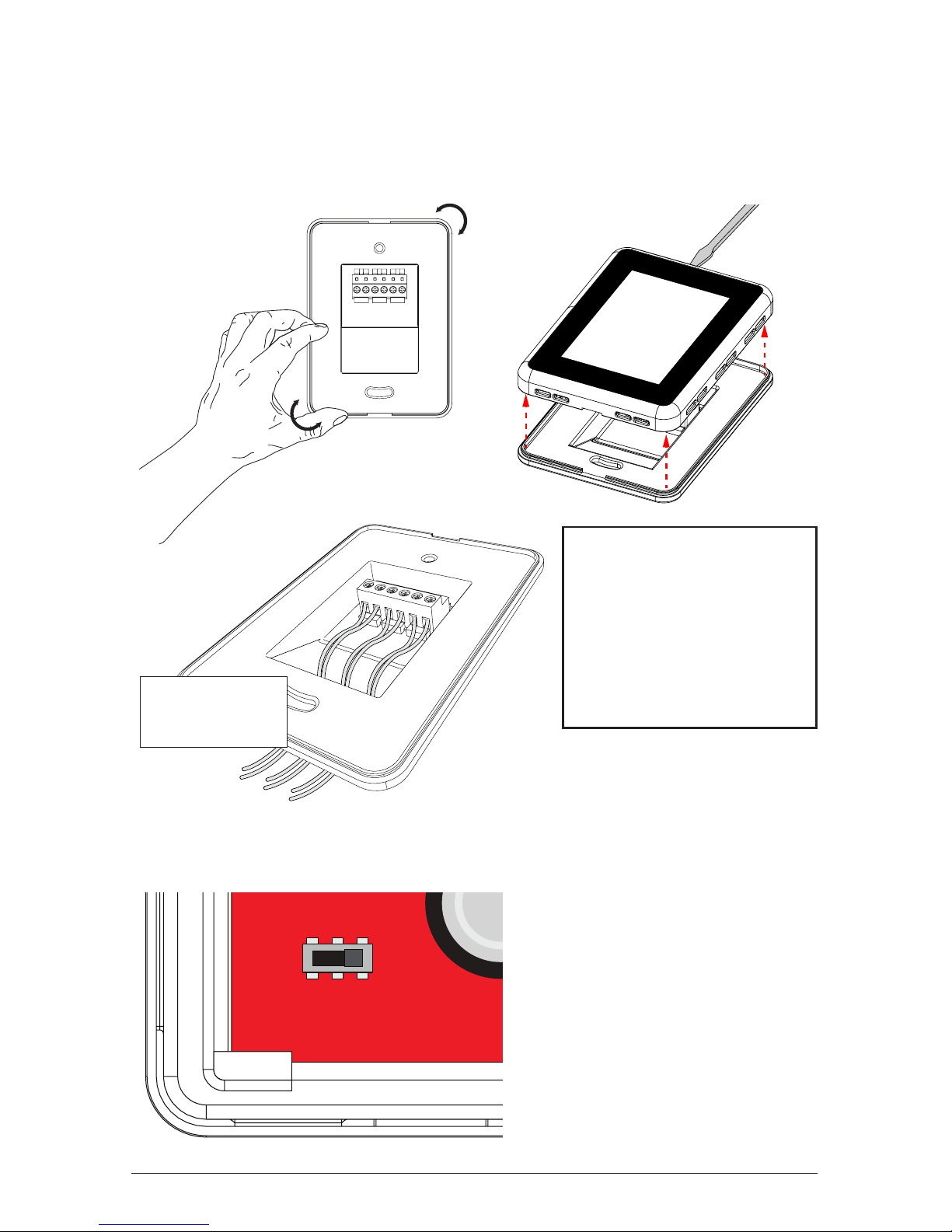

If you are using an external room thermistor, see
page 13 for thermistor switch settings.
room moDe oPtion
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Room Mode
Sensor temperature providing feedback for the specic
room or zone being controlled by the thermostat.
Room Mode: Sensor 1
None – No external thermistor attached.
RM/Ave – averages external 1 and internal sensor,
or optional external room sensor (see page 13 for
instructions).
Outdoor – Uses external sensor to display outdoor
temperature.
Room - disregards internal sensor, uses external 1.
Floor – displays the oor temperature using external 1
sensor.
Mode Setup
Mode Room
Sensor 1
Floor
Mode Setup
Mode Room
Sensor 1
Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor

9
Dual moDe oPtion
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Dual Mode
Sensor temperature providing feedback for both the air
temperature and oor sensor temperatures.
Only available when heating modes are the primary
function.
Dual Mode: Floor Maximum
The thermostat will not allow the temperature in the oor
to go above this value, protecting the integrity of the oor
covering.
If in a 2 stage heating mode, only the radiant heating
contact is turned off.
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Dual Mode: Floor Minimum
The thermostat will not allow the temperature in the oor
to go below this value, protecting the integrity of the oor
covering.
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Dual Mode: Sensor 1
This option will be automatically set to oor sensor.
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor

© 2016 HBX Controls10
floor moDe oPtion
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Floor Mode
Sensor temperature providing feedback from the oor
surface to the thermostat. This mode will run the thermostat
on oor temperature only.
Only available when heating modes are the primary
function.
Floor Mode: Differential
When in oor mode, the differential option is set to allow
a differential around the target to lesson the chances of
short cycling.
Ex. A differential of 4°F is 2°F above the setpoint and 2°F
below the setpoint.
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Floor Mode: Sensor 1
This option will be automatically set to oor sensor.
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Room
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Dual
Floor Max 80°F
Floor Min 70°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Mode Setup
Mode Floor
Floor Max 5°F
Sensor 1 Floor
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Target Temp 72°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
SYSTEM SETUP OPTIONS
This selection allows you to access the System Setup menu.

11
Zone setuP oPtions
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Zone Setup
This setting takes you to the Zone Setup Menu.
Zone Setup: Sequence
This option allows the user to set the zone module
sequence order. Select the sequence you would like to
set up for the module (1-4, 5-8, 9-12,13-16, 17-20). Adjusting
the sequence order can only be done using the rst THM-
0500 (zone 1) thermostat that is connected to the zone
module (ZON-0550).
Ex. Sequence order 5-8 are zones 5, 6, 7 and 8.
Selecting sequence order (1-4) will set the zone
module as the “master”.
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Zone Setup: Demand
This option allows the user to determine what happens
when the thermostat makes a call.
Low - Low Temperature Demand
High - High Temperature Demand
DHW - Domestic Hot Water (Digital Aquastat)
Fan - Fancoil Demand
Geo - 2 stage heating and 2 stage cooling (only
available when geo mode is enabled, see page 5)
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Zone Setup: Priority
This option allows the user to set a priority on a zone(s)
over other zone(s). Priorities range from 1 (highest) to 7
(lowest). Higher priorities will lock out lower priorities until
the demand has been satised. Multiple zones can be
given the same numbered priority.
The Priority Shield option allows a zone to ignore other
priorities from other zones.
Priority 1 is a timed priority of 60 minutes, generally
used for DHW.
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs

© 2016 HBX Controls12
Zone Setup: Password
This option allows the user to see the password to
connect to the HBX Zone App.
Selecting this option allows you to change the password.
No - Password will remain the same
Yes - The Thermostat will randomly generate a new
password.
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Zone Setup: Master ID
With this option, if the thermostat is connected to the rst
zone module it will display the master ID. If selected it will
put the module into “Discovery mode”.
If the thermostat is connected to additional zone
modules, it will indicate the ID of the master module it is
paired to. If selected it will put the module into pairing
mode.
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Zone Setup: Damper Zone
This option allows you to set the zone as a damper
zone. 2 zones and 2 dampers can be set up per zone
module. Zones (1 and 3) are zones and (2 and 4) are
dampers. No thermostats are needed for dampers. THM-
0500 thermostats must be only wired in THM1 and THM3
terminals when using dampers.
Default:
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Zone Setup: 4 Pipe Zone (Geo Mode Only)
This option allows you to control a 4 pipe system in a
geothermal application.
Default:
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
fancoil setuP oPtions
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
This setting takes you to the Fancoil Setup Menu.

13
Fancoil Setup: Fan On Demand
This option will turn the fan on with any fancoil demand.
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup: Zone On Demand
This option will turn the zone pump on with any fancoil
demand.
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup: Temperature Averaging
This option will average the temperature between
thermostats (User Selectable), when that average falls
below or above the setpoint, depending on if it’s in
heating or cooling, then the thermostat will make a call
for heating or cooling on the fancoil.
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup: Fan Mode
OFF: Fan is off
ON: Enables the fan to run constantly, regardless of
whether the thermostat is calling for heating or cooling
INT: This setting will set the ON/OFF time for the
intermittent fan
Ex: The fan will come on for 15 min every 2H. Set (Int Fan
On: 15 min) & (Int Fan Off: 2H)
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Mode INT: Intermittent Fan On
Sets the amount of time the fan will operate. Only
applicable when Fan Mode is set to INT.
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs

© 2016 HBX Controls14
Fancoil Mode INT: Intermittent Fan Off
Sets the amount of time that must pass before the fan
can come on again. Only applicable when Fan Mode is
set to INT.
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
celsius or farenheit
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Degrees
This option will change the thermostat temperature to
either Celsius or Farenheit.
stage Delay
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Stage Delay
Use this setting to adjust the lagtime between stage 1 and
stage 2 coming on.
Default: 15m
This option is only available in 2 stage applications.
sync coDe
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
System Setup
Zone Setup
Fancoil Setup
Degrees °F
Stage Delay 15 Mins
Sync-Code: ABCD-1234
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
Damper Zone
Zone Setup
Sequence 1 - 4
Demand Low
Priority None
Password AB12
Master ID: A2
4 Pipe Zone
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average 1 - 4
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Fancoil Setup
Fan on demand
Zone on demand
Temp Average None
Fan Mode Int
Int Fan ON 2 mins
Int Fan OFF 2 hrs
Sync Code
This number is the identier used in the HBX Zoning App to
connect to your thermostat.

15
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Target Temp 72°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Heating Temp 72°F
Cooling Temp 80°F
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
Setup Menu
Schedule
Changeover AUTO
Mode
System Setup
Time
TIME OPTIONS
This selection allows you to access the System Setup menu.
Time Setup: Time
Set the time for your appropriate time zone.
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup: Day of Week
Set the current day of the week.
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup: Time Zone
Set the appropriate time zone for your area.
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup: Auto Time
Use this setting to allow the network to automatically
update your time when WiFi is enabled on your system
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time
Time Setup
Time 10:00am
Day Of Week Tue
Time Zone Central
Auto Time

© 2016 HBX Controls16
INSTALLATION AND WIRING
mounting instructions
In order to assure proper room temperature, it is important to identify the ideal
location of the thermostat. It should be approximately 5 feet from the oor
and at least 1 foot from door openings on an interior wall. Avoid exposing the
thermostat to direct sunlight, to air ows (doors, windows, etc.) as well as to heat
sources.
external room thermistor
INTERNAL ROOM
EXTERNAL ROOM
On the THM-0500, the room
thermistor switch is located on the
bottom left corner of the
thermostat.
Toggling this switch will allow the
user to alternate between the
built in room thermistor on the
THM-0500, or an external room
thermistor connected to pins 1 and
2 on the THM-0500.
1 2 3 4 5 6
1 - 2: External Room Sensor
3 - 4: External Thermistor
5 - 6: Communication
& Power from
ZON-0550
Use a screwdriver to gently
pop the front cover off from
the top of the thermostat,
and then remove the front to
expose wiring terminals.
Do not use the screwdriver on
the bottom of the thermostat.
This can cause damage to the
THM-0500

17
wiring examPles
*Sensor input can be used for DHW, Room, Floor, and Outdoor Sensors
To use external room thermistor,
toggle dispswitch from Internal
to External on THM-0500
To ZON-0550
Room
Sensor
External
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
DHW
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Floor
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To use external room thermistor,
toggle dispswitch from Internal
to External on THM-0500
To ZON-0550
Floor
Sensor
External
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Outdoor
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To use external room thermistor,
toggle dispswitch from Internal
to External on THM-0500
To ZON-0550
Room
Sensor
External
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
DHW
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Floor
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To use external room thermistor,
toggle dispswitch from Internal
to External on THM-0500
To ZON-0550
Floor
Sensor
External
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Outdoor
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
5 6
THM-0500 using Internal Sensor
THM-0500 using Room Sensor
THM-0500 using DHW Sensor as a
Digital Aquastat
THM-0500 Room averaging using 2
External Room Sensors
5 6 5 6
5 6

© 2016 HBX Controls18
To use external room thermistor,
toggle dispswitch from Internal
to External on THM-0500
To ZON-0550
Room
Sensor
External
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
DHW
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Floor
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To use external room thermistor,
toggle dispswitch from Internal
to External on THM-0500
To ZON-0550
Floor
Sensor
External
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Outdoor
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To use external room thermistor,
toggle dispswitch from Internal
to External on THM-0500
To ZON-0550
Room
Sensor
External
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
DHW
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Floor
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To use external room thermistor,
toggle dispswitch from Internal
to External on THM-0500
To ZON-0550
Floor
Sensor
External
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Outdoor
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To use external room thermistor,
toggle dispswitch from Internal
to External on THM-0500
To ZON-0550
Room
Sensor
External
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
DHW
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Floor
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To use external room thermistor,
toggle dispswitch from Internal
to External on THM-0500
To ZON-0550
Floor
Sensor
External
Room
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
To ZON-0550
Outdoor
Sensor
THM-0500
3
COMM
65
3
TH
2
TH
43
2
Thermostat
1
21
1
DO NOT
CONNECT
POWER
HERE
INT. ROOM
EXT. ROOM
HBX
TH TH
THM-0500 using Floor Sensor
THM-0500 Dual Mode using External
Room Sensor and Floor Sensor
THM-0500 using Outdoor Sensor
5 6
5 6 5 6
