HEART & HEART 7830TL User manual

Manual
All-in-one
Coffee and Beverage Dispenser
Intelligent instant solution
Brewing in 1 second
High capacity of
making beverage
Zhejiang Aidewo Electronics Technology Co., LTD.
No.88, Binhai No.5 Road, Hangzhou Bay New Area
Ningbo, Zhejiang Province
[email protected]
Standard applied: GB4706.1-2005 GB4706.19-2008
GB4706.13-2008

Cautions
water temp.

Cautions
3/4
1600w
37.5cm 50cm 70cm×× 35kg
180w

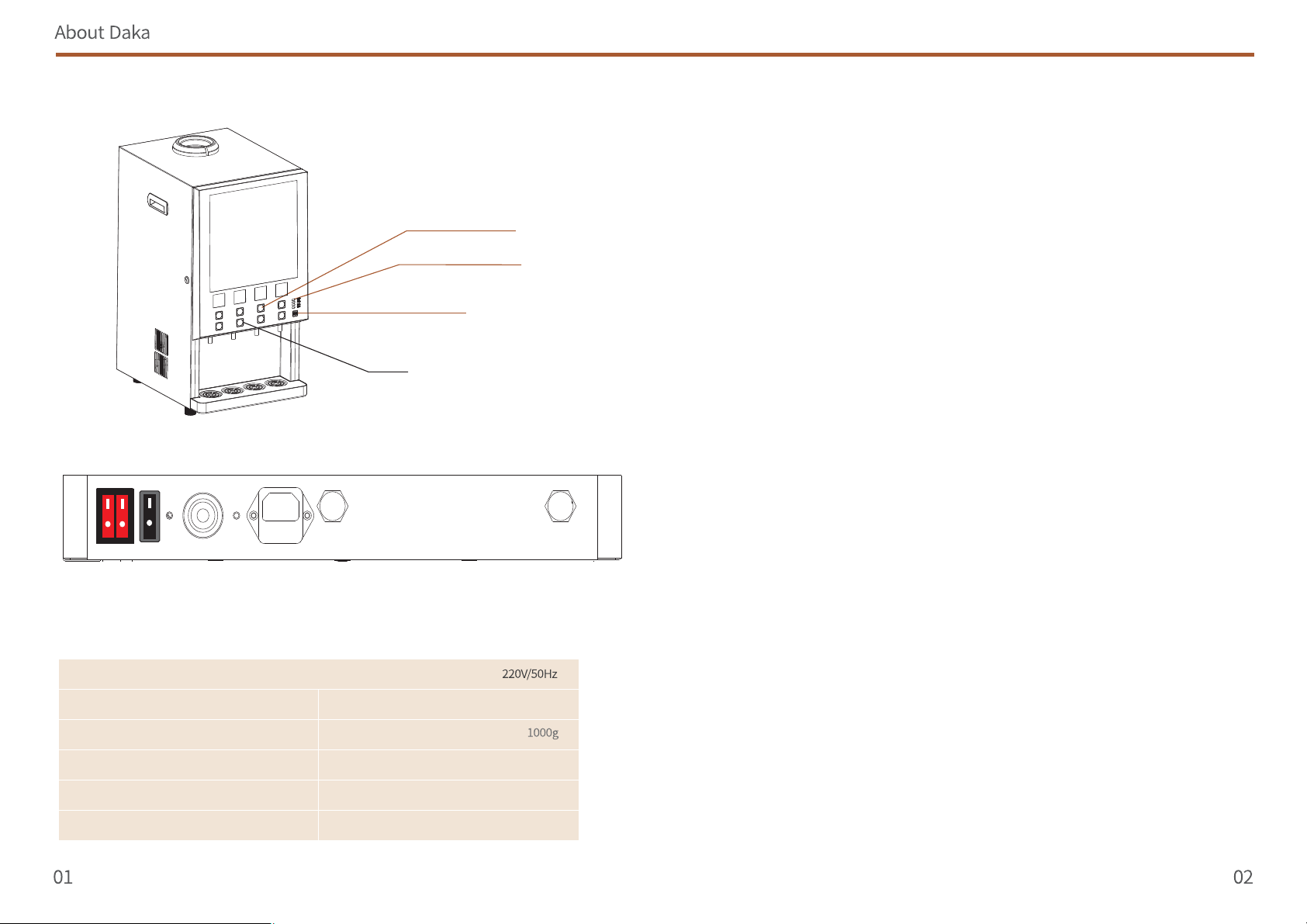

Touch button
Digital display
Front
hot beverage selection buttons
Indicating lights
cleaning button
cold beverage selection buttons
Back
Power
switch
Cooler
switch
Pump
switch Inlet Socket/Fuse
holder
Hot
outlet Cold
outlet
Model
Heater Power
Cooler Power
Display Mode
Button Mode
Size
7830TL 7840TK 7830TL Power supply
Quantity of barrels
Barrel capacity
Queryable parameters
Water supply
mode
Net weight
Quantity of raw material barrels
Temp. powder
water, cups
Top /bottom-mounted
pipeline
Basic information
lDo not operate this or any other appliance with a damaged cord.
lAlways unplug the appliance before performing any care or maintenance.
lCaution and use reasonable supervision when appliance is used near children
lNever allow children to operate, play with or crawl inside the appliance.
lKeep packing materials away from children.
lDo not clean appliance with flammable fluids.
lDo not store or use gasoline or other Flammable vapors and liquids in the vicinity
The fumes can create a fire hazard or explosion
lTo clean, only use mild detergents or glass cleaning products.
Do not use solvent-basedcleaning agents or abrasives.
lWhen disposing of refrigerated appliances, special handling is often required.
lIt is the consumelr's responsibility to comply with federal and local regulations
when disposing the dispenser.
lDo not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified
technician.
lLocate the unit away from direct sunlight and sources of heat (stove, heater,
radiator, etc).
lDo not use this appliance for other than its intended purpose.
lDo not place any other appliance on top of the unit.
lFor adult use only.
lDo not lift or carry the dispenser by the cord.
lDo not plug in to the power socket before setup is complete
lwhen pasitioned or if moving the appliance ensure that it is not set horizontally,
positionedat an angle of more than 45, or tumed upside down.
lPlace the appliance on a solid, level surface .Allow for proper clearances on all sides
of the unit.
lThe dispenser is an electrical appliance, To avoid injury or death from electrical shock,
lDo not operate the unit with wet hands, while standing on a wet surface or while
standing.
lAllow unit to stand upright for 24 hours prior to first plugging it in.
lThis unit is designed for indoor, household use only. Any other use will void
the warranty.
IMPORTANT SAFETY INSTRUCTIGNS

Steps of Use
Please check the spare parts list. Please contact the local
distributor or after- service center if there are any parts
issues or missing
Fuse Key Manual warranty card
Smart seat cover
Smart seat
Drip tray
Powder barrel
Inlet pipe
After taking the dispenser out of box, please
clean and dry it before use.
(1) Please refer to "Water Supply Installation " in page 5 for
details to setup water supply.
(2) Please refer to "Fill powder" in page 6 for details to fill
powder.
(3) Please refer to "Adjust flavor/Water" in page 8 for details to
set up the powder/water ratio.
(4) Please refer to "Adjust water temperature" in page 9 for
details to set the water temperature.
Ready to enjoy the delicious coffee, as long as you turn on
the power and start the machine.
lThe power cord must be plugged into a 3-prong grounding-type wall receptacle,
And according to the national safety rules must be grounded.
It is the personal responsibility of the consumer to have the proper 3-prong
wall receptacle installed by a qualified electrician
lDO NOT, UNDER ANY CIRCUMSTANCE, REMOVE THE POWER CORD
GROUNDING PRONG.
Do not remove any grounding wires from individual components wile servicing,
Unless The component is to be removed and replaced. It is extremely important
to replace all grounding wires when components are replaced
lWe strongly recommend against the use of an extension cord. However if you still
elect to use an extension cord, it must satisfy all the standards of national safety
rules, 3-wire grounding type appliance extension cord with a 3-blade grounding
plug and a 3-glot receptacle. the marded rating of the extension cord should be
230V, 10A
Do not place the dispenser in a humid environment.
Otherwise performance of electrical appliances can
be affected. Risk of electric shock or fire.
Turn off the power supply and unplug the dispenser to
avoid electric shock when replacing the fuse.
Avoid water leak or drops onto the surface or into the dispenser.
Risk of electric shock or fire.
Unplug the power supply if the dispenser is not being used for a
long time. Risk of overheating.
Do not disassemble the dispenser. Risk of electric shock or
damage.
Turn off the power supply immediately and contact your local
distributor or after-service center if you realize abnormal sound
or smell.
Stay the dispenser out of the wall to allow the smooth ventilation
and prevent powder turn into blocks.
Do not put pressure on the control pad area in case of
malfunction.
●
●
●
●
●
●
●
●
Do not use non-powder raw materials. The connecting pipe
may be blocked if using other granular or viscous raw materials,
such as kernels, tea leaves, thick soup, etc.
●
Cautions

 

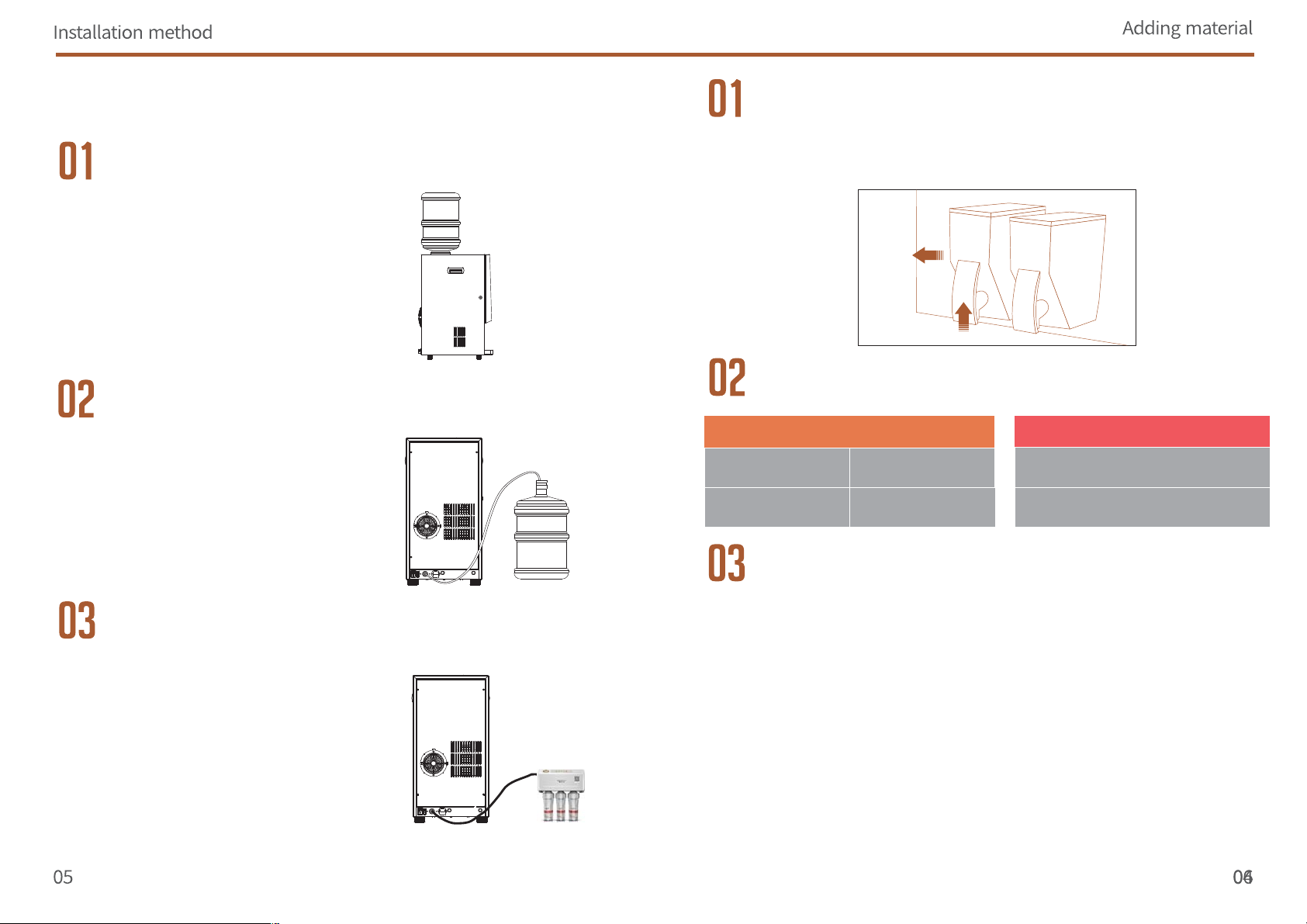

Connect one end of the inlet pipe to the
pipeline joint and the other end screw the nut
onto to the dispenser .
Note: Water supply pressure range
0.05 Mpa~0.45 Mpa.
 
Pipeline water supply
Water supply
Upper mounting
(1)Prepare a bottled water and
buckle it upside down on the smart
seat of the dispenser.
(2)Turn the pump switch to the "O" .
Lower mounting
Load powder
Lift the barrel upward and then gently pull it out according to the
arrow direction which is shown in the figure.
Powders options
Suitable Powders
Coffee powder
Ginseng tea
milk powder
Mixed powdery
coffee
Other powders
Unsuitable Powders
Block or granular powders
Viscous or granular powders
(1) Please cover the barrel lid properly after loading the powder.
(2) When loading powders, please tilt the barrel back slightly to prevent the
powder from leaking out of the barrel.
(3) After loading the powder, please do not press the powder in case the
powder becoming lumpy.
(4) Please make sure the rotating shaft of barrel is properly fit with the
beater shaft.
(5) Please make sure the pins on the bottom of barrel shall be located in the
slot of the stand.
Caution
(1) Place a bucket filled with water beside
the dispenser and remove the lid.
(2) Insert one end of the inlet pipe into the
bucket and the other end screw the nut
onto the dispenser.
(3) Cover the smart seat with the smart
seat cover.

&

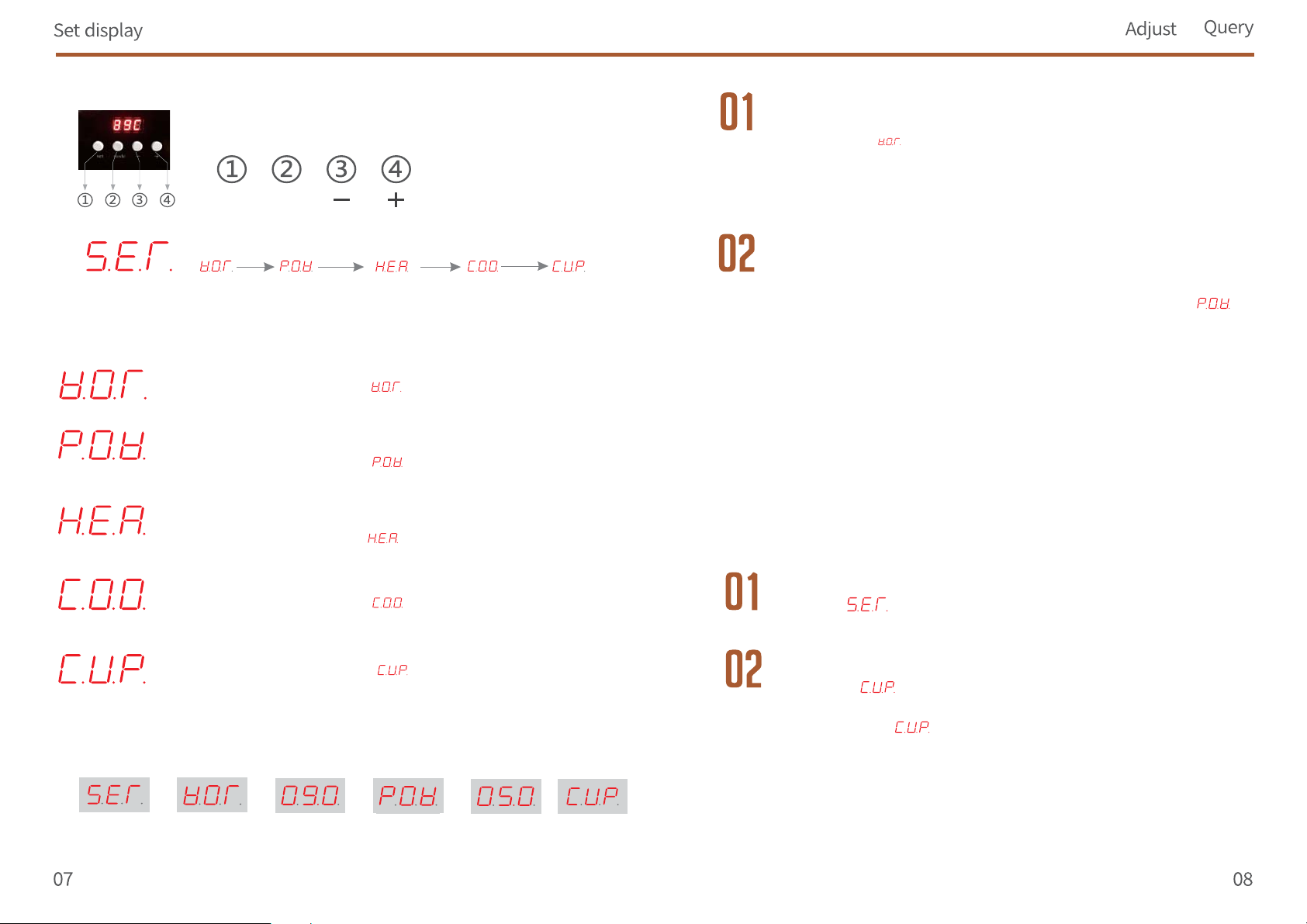

set mode
Parameter loop
Water Powder Hot water
temp.
Cold water
temp.
Cup counts
Press and hold the “Set” button for 3 seconds till the screen shows SET to set Parameters.
The “Mode” key is used to shift “WAT ”,”POW ”, “HEA ”, and “CUP ” cycle per press.
Adjust water
Adjust powder
When the digital screen displays “ ”, At the same time, press the hot
drink button on the glass panel which needs to adjust the channel, then
press “-” or “+” button to adjust the water.
When the digital screen displays “ ”, At the same time, press the hot
drink button on the glass panel which needs to adjust the channel, then
press “-” or “+” button to adjust the powder.
Adjust hot water temperature
When the digital screen displays “ ”, then press “-” or “+” button to
adjust the hot water temp. The range allowed is 20℃~96℃.
When the digital screen displays “ ”, then press “-” or “+” button to
adjust the hot water temp. The range allowed is 5℃~15℃.
Adjust cold water temperature
When the digital screen displays “ ”, then press the flavor key on
the key pad respectively to check the cup counts dispensed per flavor.
Cup dispensed count
Fig 1 Fig 2 Fig 3 Fig 4 Fig 5.. . . .
Adjust concentration
After entering to “ ” model ,Fig.2, and then press the flavor key you want to
adjust to change the water ratio. The screen shows 9.0 ,Fig. 3, which is the
default setting. Press “-” or “+” button to reset the water ratio. There will be 0.5
,Fig. 5, changes on the value by press one time. You can also press and hold the
button
Press and hold the “Set” button for 3 seconds till the screen
shows “SET” , Fig.1, to reset s .Parameter
Follow the same steps to reset the other flavors to reset the water
of other flavors as needed.
After changing the water, press “Mode” button again to enter to “ ”
mode (Fig. 4) and then press the flavor key you want to adjust to change
the powder ratio. The screen shows 5.0 (Fig. 5) which is the default setting.
Press “-” or “+” button to reset the powder ratio. There will be 0.1 changes
on the value by press one time. You can also press and hold the button to
adjust the value faster. The range allowed is 0-99.
For reference only, the value changes at " 1" means the amount of powder
discharged changes at approximately 2.2g while value changes at "1" means
approximately 13ml changes of water respectively.
Fig.7
Query Quantity
Press and hold the “Set” button for 3 seconds till the screen
shows “ ” , Fig.1, to reset s .Parameter
Press the “Mode” button for five times till the screen
displays “ ” (Fig.7)
After entering the “ ” mode, then press a certain flavor key
to show the count dispensed. You can delete the cup count record
thru press and hold the “-” button for seconds till a beep is heard.
Set display

Fig 1 Fig 2 Fig 3.. .

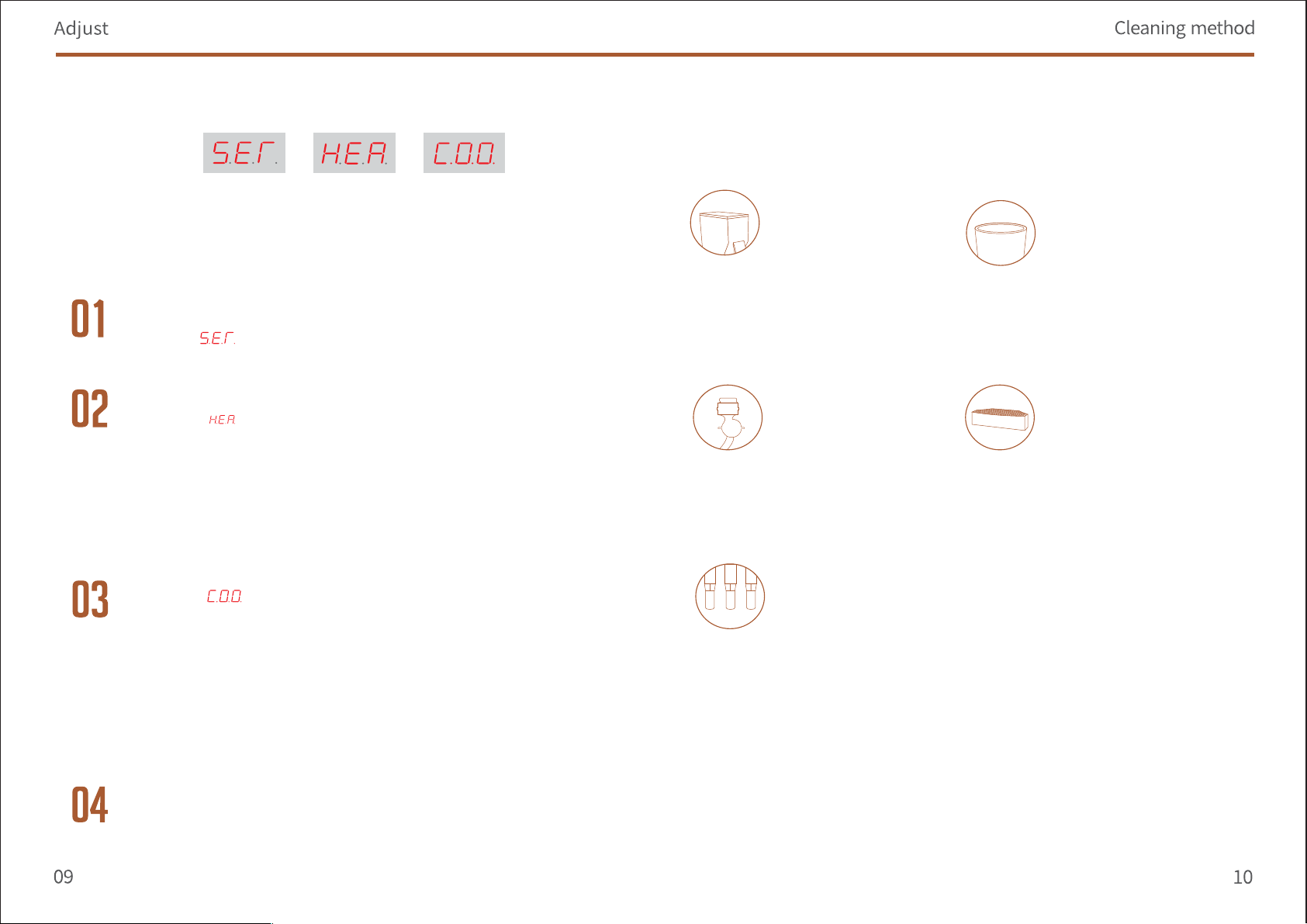

Adjust water temperature
Press and hold the “Set” button for 3 seconds till the screen
shows “ ” , Fig.1, to reset s .Parameter
Press the “Mode” button for three times till the screen
displays “ ”(Fig.2) means the system is ready for
resetting hot water temperature.
Press “-“ or “+” button to adjust the desired hot water temperature.
The temperature value is confirmed by the system till the screen
stops blinking ,Hot water temperature adjustment allowed range
is 20 -96 . The default setting is 92 .℃℃ ℃
Press the “Mode” button for four times till the screen
displays“ ”(Fig.3) means the system is ready for
resetting cold water temperature.
Press “-“ or “+” button to adjust the desired coldwater temperature.
The temperature value is confirmed by the system till the screen stops
blinking ,coldwater temperature adjustment allowed range is 5~15 .℃
The default setting is 5 .℃
Press the “mode” key to turn the display mode of hot or cold water
temperature.
Press “Set” button to exit settings and then the dispenser is
ready to serve.
Cleaning
The powder barrel
Soak the barrel into water.
Wipe it with a soft cloth.
Dry it and put it back to
place. It is recommended
to clean the barrel once a
month.
Water Tank
Wipe the water tank
with a soft and clean
rag scrub the interior.
It is recommended to
clean the water tank
once a month at least.
Mixer and stirring cup
Take the cup apart. Soak
the parts into water. Wipe
them with a soft rag. Dry
the parts and put it back to
place. It is recommended to
clean the cup daily.
Drip tray
Pour the water in the drip
tray from time to time as
needed and wipe it. It is
recommended to wash
the drip tray daily.
Dispensing nozzle
Wipe the nozzle with wet
wipes and then with dry
cloth. It is recommended
to clean the nozzle daily.

Power
Heating
Water
Refri
11

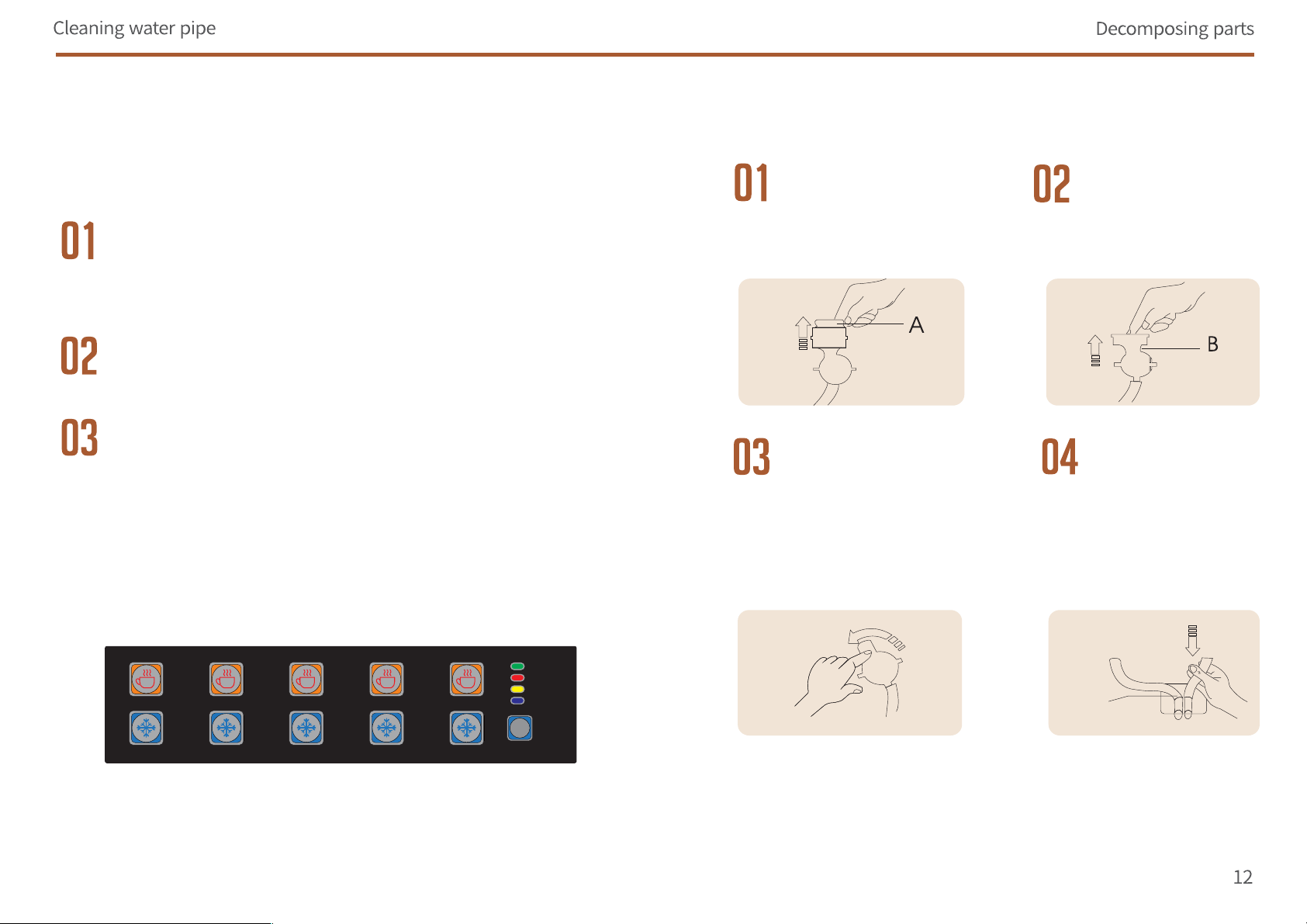

Cleaning water pipe
Place a cup under the dispensing nozzle.
Check if the water source meets the cleaning requirements.
Turn on the power switch. The internal water supply system will
run automatically.
Press the cleaning key on the lower panel and the water will
automatically fall into the cup after connecting the cleaning tube.
Press the “CLN” key turn the system to cleaning mode by
indicating of light on the key. Then press A/B/C to clean the hose
as required. Press “Cleaning” key again to exit from cleaning mode
and return to normal standby mode.
CLN
A.Disassembly
the mixer and stirring cup
After taking out the cup,
pull part A up to remove. Lift part B up for disassembling.
Turn the powder mixer and stirring
cup and remove it by following the
direction of arrow.
Pull the dispensing nozzle and
the connecting hose.

Decomposition of water tank
Turn off the power
Pull out the drain on the back of the
dispenser and take the pipe plug out.
(Warning: Be aware of burning by hot
water when unplugging the pipe)
Drain all the water from the tank.
Open the rear cover behind the
dispenser with a cross screwdriver.
Open the tank cover and remove the
connection joint of the water level
sensor at the bottom of tank. Pull the
tank gently by following the direction
of arrow.
Decomposition of fan cover
Carefully remove the fan cover at the
back of the dispenser by following the
direction of the arrow shown on the
right figure.
(Moisture inside the dispenser mixed with powder,
which is easy to cause pollution. Please disassemble
and wash it in a regular basis.)
Product features
3+2 intelligent mixing system enable the dispenser a
business unit.
Coffee, milk tea, fruit juice, cold and hot water are
available to make multiple choices.
The high-speed balanced stirring system makes powder
well-mixed in 1 second.
The high-speed motors operate stably to accelerate the
brewing process, which enable making the drink in 1
second.
Fully-coated compression-resistant inner cavity
structure
makes the dispenser durable.
The integrated and firm structure, high strength and load
bearing prolongs the service life of the dispenser.
No wait, and continuous beverage dispensing
New type of heating, allows to continue to dispense to
meet
the high-flow of people.
One-button automatic cleaning system makes cleaning
much easier.
Press one key to clean the mixer and the powder barrel
automatically. No need to clean the interior parts of the
dispenser.
