HearthCo Mount Shasta User manual

Essential Outdoor
Mount Shasta
Mount Lassen
This Fire Table is intended for outdoor use only in a well-ventilated
space. It cannot be used inside a screened-in porch, gazebo,
building, garage or any other enclosed area
DANGER
IF YOU SMELL GAS:
Shut off gas to the burner.
Extinguish any open flame.
If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire
department.
WARNING
Do not light the burner without reading
the LIGHTING instruction section of
this manual.
DO NOT STORE OR USE GASEOLINE
OR OTHER FLAMMABLE LIQUIES OR
VAPORS IN TH EVICINITY OF THIS
GAS APPLIANCE. DO NOT STORE
LIQUID PROPANE CYLINDER NOT
CONNECTED TO THIS APPLIANCE IN
THE VICINITY OF THIS APPLIANCE. IF
THESE WARNINGS AND
INSTRUCTIONS ARE NOT FOLLOWED,
A FIRE OR EXPLOSION MAY RESULT,
CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR DEATH.
Notice to Installation Professional: Leave these instructions with
owner for future reference.

Warranty
HearthCo, Inc., manufacturer of precast GFRC (Glass Fiber Reinforced Concrete) products
warrants to the original purchaser of HearthCo, Inc. products that we will repair or
replace, at the sole option of the manufacturer, any HearthCo, Inc. product found to be
defective in material or workmanship within five years of the original purchase..
This warranty applies only to HearthCo, Inc. products which have been stored, handled,
installed and cared for in accordance with the recommendations provided in the
HearthCo, Inc. information and care guide.
The HearthCo, Inc. product warranty is non transferable.
This warranty does not cover any HearthCo, Inc. product that has been installed then moved
from the original place of installation or damages caused by:
1. Failure of any finish, accessories, adhesives, caulk, grout, paint or failure of
anything not related to the HearthCo, Inc. product.
2. Physical abuse, improper use of the product, damage from excessive heat or
breakage not due to a manufacturing defect.
3. Failure to follow the recommendations provided in the HearthCo, Inc.
information and care guide.
4. Installation or repair by a company or individual not recognized as a qualified
technician.
HearthCo, Inc. makes no implied or expressed warranty. HearthCo, Inc. shall not be liable
in tort, contract, or otherwise, for any loss or any direct, consequential, incidental or
exemplary damages arising from the use or inability hereunder is limited solely to repair
or replacement, including necessary and reasonable labor charges of HearthCo, Inc.
GFRC products.
This warranty gives the original purchaser of HearthCo GFRC products specific legal rights.
Other rights may be available, which may vary state to state. To register a claim under
this warranty, please write to:
HearthCo, Inc.
C/O Warranty Dept.
5781 Pleasant Valley Rd.
El Dorado, CA 95623

Conditions and Limitations
HearthCo, Inc. warrants its products against manufacturing defects to the
original purchaser only, provided that the purchase was made
through an authorized HearthCo dealer and is subject to the following
conditions and limitations:”
This warranty is non-transferable and may not be extended what-so-ever by any HearthCo
employee or by our representatives.
This product must be installed by a licensed, authorized service technician or contractor.
Installation must be done in accordance with the installation instructions included with
the product and all local and national building and fire codes.
This limited warranty does not cover damages caused by misuse, lack of maintenance,
hostile environments, accidents, alterations, abuse or neglect and parts installed from
other manufacturers will nullify this warranty
This limited warranty further does not cover any scratches, corrosion or discoloring by heat,
abrasive and chemical cleaners, nor chipping that occurs during the installation of this
product and or the use of this product.
This warranty extends to the replacement of warranted parts, which are defective in material
or workmanship provided that the product has been used in accordance with the
operation instructions and under normal conditions.
After year one, HearthCo may at its discretion, fully discharge all obligations with respect to
this warranty by refunding to the original purchaser the wholesale price of any
warranted defective part(s).
HearthCo will not be responsible for the installation, labor or any other costs or expenses
related to the re-installation of a warranted part, and such expenses are not covered by
this warranty.
Notwithstanding any provision contained in the warranty, HearthCo’s responsibility under this
warranty is defined as above and it shall not in any event extend to any incidental,
consequential, or indirect damages.
This warranty defines the obligation and liability of HearthCo with respect to the HearthCo
GFRC products and any other warranties expressed or implied with respect to this
product, its components or accessories are excluded.
HearthCo neither assumes, nor authorizes any third party to assume, on its behalf, any
other liabilities with respect to the sale of this product.
HearthCo will not be responsible for: over firing, blow outs caused by environmental
conditions such as strong winds, or inadequate ventilation.
Any damages to the HearthCo GFRC product due to weather damage, hail, rough handling,
damaging chemicals or cleaners will not be the responsibility of HearthCo.
A bill of sale or copy will be required with a model number when making any warranty claims
from HearthCo.
HearthCo reserves the right to have its representative inspect any product or part prior to
honoring any warranty claim.
HearthCo shall not be liable for any transportation charges, labor costs, or export duties.

Precast Concrete
Information
&
Product Care Guide
•We want to thank you for purchasing a HearthCo, Inc. GFRC (Glass Fiber
Reinforced Concrete) Outdoor Living Product. We have created this information and
care guide to help you gain some understanding and to aid you in the care of your
fireplace mantel.
• Our GFRC products are made from some of the highest quality materials available.
HearthCo GFRC products are manufactured using non combustible materials;
therefore, they will not burn and there is zero flame spread. HearthCo GFRC products
are hand crafted individually to give variation in color and texture to replicate natural
stone
• HearthCo GFRC products are manufactured using a Portland Cement mixture.
Cements are very durable and strong and somewhat stain resistant. It is very
important to note that the product comes from the factory with a sealer applied and is
stain resistant, not stain proof.
• We do recommend keeping you HearthCo GFRC product clean and to re-seal at
least once every year, very similar to sealing the grout on your tile. This will aid in
maintaining stain resistance. Use a type of sealer that is designed to penetrate
concrete or stone products. Make sure to read and to follow all the instructions.
• This is a concrete product, as concrete cures, small hair line cracks may appear in
time. This is a normal occurrence, use the patch material, fill in the crack, re-seal.
• In the event that something is spilled on the product we recommend as follows:
•Beverage Drinks:
• Using a clean cloth, dab the liquid to soak up the excess only, do not scrub. Then flush
the area with clean fresh water. If more cleaning is needed, gently clean with a non
detergent cleaning solution.
•Soils, dust or dirt:
• First use a vacuum to remove any of the debris on the mantel. If more cleaning is
necessary gently clean with a non detergent cleaning solution.
•Paint:
• If latex paint, use paper towels to soak up excess paint. Then flush the area with clean
fresh water. If more cleaning is needed, gently clean with a non detergent cleaning
solution.
•HearthCo, Inc. has taken the greatest care in manufacturing the highest quality
GFRC products possible. Do to the characteristics of precast products; HearthCo, Inc.
assumes no responsibility for the cleaning and care of your HearthCo, Inc. fireplace
mantel.

• This Fire Pit / Fire Table must be assembled exactly according to the instructions in
the manual. Please review the assemble instructions to confirm correct assembly
and perform the required leak tests performed before operating the Fire Pit / Fire
Table.
• Read the entire instruction manual before operating the Fire Pit / Fire Table.
• The Fire Pit / Fire Table must be used only outdoors in a well-ventilated space. It
cannot be used inside a screened-in porch, gazebo, building, garage or any other
enclosed area.
• Do not use this Fire Pit / Fire Table in windy areas or settings. High wind can cause
blow-outs and adversely affect the performance of this Fire Pit / Fire Table.
• This Fire Pit / Fire Table must not be used or installed in or on any RV and/or boat.
• Under no circumstances should this Fire Pit / Fire Table be modified.
• Do not operate Fire Pit / Fire Table under overhead combustible materials.
• Maintain proper clearances to combustibles, 20” on all sides of the Fire Pit / Fire
Table.
• You must turn off the gas supply valve when the Fire Pit / Fire Table is not in use.
• Do not attempt to use a propane cylinder that is not equipped with a QCC1 type
connection.
• Inspect the fuel supply hose before each use. If there is evidence of excessive
abrasion or wear or the hose is cut, it must be replaced prior to using the Fire Pit /
Fire Table with a replacement hose assembly specified by HearthCo, Inc.
• Leak test the unit before the initial use, annually, and whenever any gas
components are replaces.
• Follow lighting instructions carefully when operating the Fire Pit / Fire Table.
• The burner valve must be off when turning the propane cylinder valve on.
• Adults and especially children should be alerted to the hazards of an open flame,
high temperatures of the media and high temperatures of the surrounding concrete
opening.
• Do not leave Fire Pit / Fire Table unattended when operating.
• Keep any electrical supply cords and fuel supply hoses away from any heated
surfaces.
• Do not allow cold water (rain, sprinklers, hose, etc..) to come in contact with the Fire
Pit / Fire Table while in use. A large temperature differential can cause cracking in
the concrete surfaces.
• Do not use a pressure washer to clean any part of the unit.
WARNING! Failure to follow these instructions could result in property damage,
personal injury or death. Read and follow all warnings and instructions in
this manual prior to operating this product.
Safe Operation Practices

General Information
CALIFORNIA PROPOSITION 65: The burning of gas fuel creates by-products, some of
which are on the list as substances known by the State of California to cause cancer or
reproductive harm. When burning a gas appliance always ensure adequate ventilation to
the unit, to minimize exposure to such substances.
Propane Cylinder Specifications:
WARNING! Failure to follow these instructions could result in property damage,
personal injury or death. Read and follow all warnings and instructions in
this manual prior to operating this product.

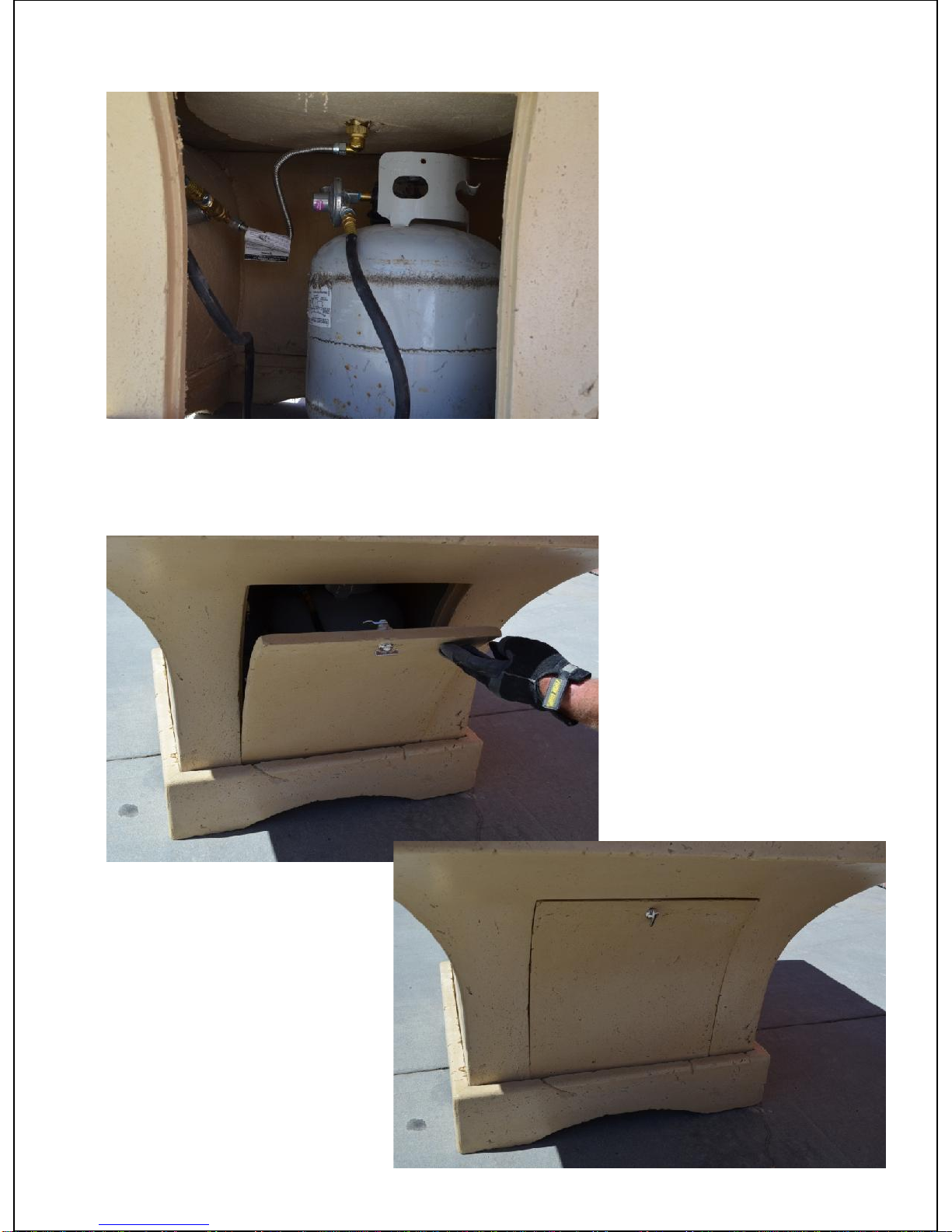

When using propane from a portable cylinder, you must use the regulator supplied from
the manufacturer. Cylinders to be used with this unit must be supplied with a QCC1
cylinder valve. A QCC1 cylinder has a positive seating connection, which will not allow
gas flow until a positive seal has been achieved. It is also equipped with an excess flow
devise. In order to attain full flow to the Fire Pit / Fire Table, the valves must be in the off
position when the cylinder valve is turned on.
A dented or rusty cylinder may be hazardous and should be checked by your propane
supplier. Never use a cylinder with a damaged valve.

Piped in Natural Gas Hook-Up: The piping up to the Fire Pit / Fire Table is the
responsibility of the installer and piping should be located to fit in the cavity of the Fire Pit
/ Fire Table. Use a flexible metal connector to hook up the piped in gas lines to the gas
valve that is supplied with the Fire Pit / Fire Table. Ensure that the connector does not
pass through a wall, floor, ceiling or partition, and is protected from damage. Do not use
a hose to connect the Fire Pit / Fire Table except to connect the cylinder regulator to the
piping system. It must be connected with rigid pipe, copper tube or an approved flexible
metal connector.
The installation must comply with National Fuel Gas code, ANSI Z223.1 in the United
States. The gas supply pipe must be sufficiently sized to supply the BTU/h specified with
the Fire Pit / Fire Table , based on the length of the piping run.
Gas Hook-Up Instructions:
Piped in Propane Gas Hook-Up: The piping up to the Fire Pit / Fire Table is the
responsibility of the installer and piping should be located to fit in the cavity of the Fire Pit
/ Fire Table. Use a flexible metal connector to hook up the piped in gas lines to the gas
valve that is supplied with the Fire Pit / Fire Table. Ensure that the connector does not
pass through a wall, floor, ceiling or partition, and is protected from damage. Do not use
a hose to connect the Fire Pit / Fire Table except to connect the cylinder regulator to the
piping system. It must be connected with rigid pipe, copper tube or an approved flexible
metal connector.
The installation must comply with National Fuel Gas code, ANSI Z223.1 in the United
States. The gas supply pipe must be sufficiently sized to supply the BTU/h specified with
the Fire Pit / Fire Table , based on the length of the piping run.
Leak Testing Instructions:
WARNING! A leak test must be performed annually and each time a cylinder is
hooked up or if a part of the gas system is replaced.
WARNING! Never use an open flame to check for gas leaks. Be certain no sparks
or open flames are in the area while you check for leaks. Sparks or open flames
will result in a fire or explosion, damage to property, serious bodily injury , or
death.
Leak Testing: This must be done before initial use, annually, and whenever any gas
components are replaced or serviced. Do not smoke while performing this test, and
remove all sources of ignition. Turn burner valve to the off position. Turn gas supply
valve on.
Brush a half-and-half solution of liquid soap and water onto all joints and connections
of the regulator, hoses, gas lines, air shutter and valves.
Bubbles will indicate a gas leak Either tighten the loose joint or have the part replaces
with one recommended by the HearthCo, Inc. service department. Have the Fire Pit /
Fire Table inspected by a certified gas installer or contractor.
If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and
have the grill inspected by a certified gas installer or contractor. Do not use the Fire Pit /
Fire Table until the leak has been corrected.

Lighting Instructions
WARNING! Failure to follow these instructions could result in property damage,
personal injury or death. Read and follow all warnings and instructions in
this manual prior to operating this product.
STOP! Read the information provided in this owners manual prior to lighting your
Fire Pit / Fire Table.
TO LIGHT YOUR FIRE PIT / FIRE TABLE
1. Turn the gas key clockwise to the off position
2. Wait 10 minutes for any gas to clear out.
3. Place a burning match on the surface of the media that covers the burner. Do not
hold the match by hand.
4. After the match is burning and in position, rotate the gas key counter-clockwise 1/8 of
a turn. If the gas does not light, turn the gas key to the off position. Check to make
sure you have propane in your propane tank.
TO TURN OFF GAS TO YOUR FIRE PIT / FIRE TABLE
1. Rotate the gas key clockwise to the off position
OFF
ON

Installation Instructions
Your Fire Pit / Fire Table should arrive on a pallet strapped in good condition. Inspect prior to
uncrating, if any damage is visible, please do not open, call your dealer for further
instructions. Once you uncrate you have no recourse against the shipping company for
damage.
The media, access door and burner are stored inside the Fire Table body

Remove all banding.

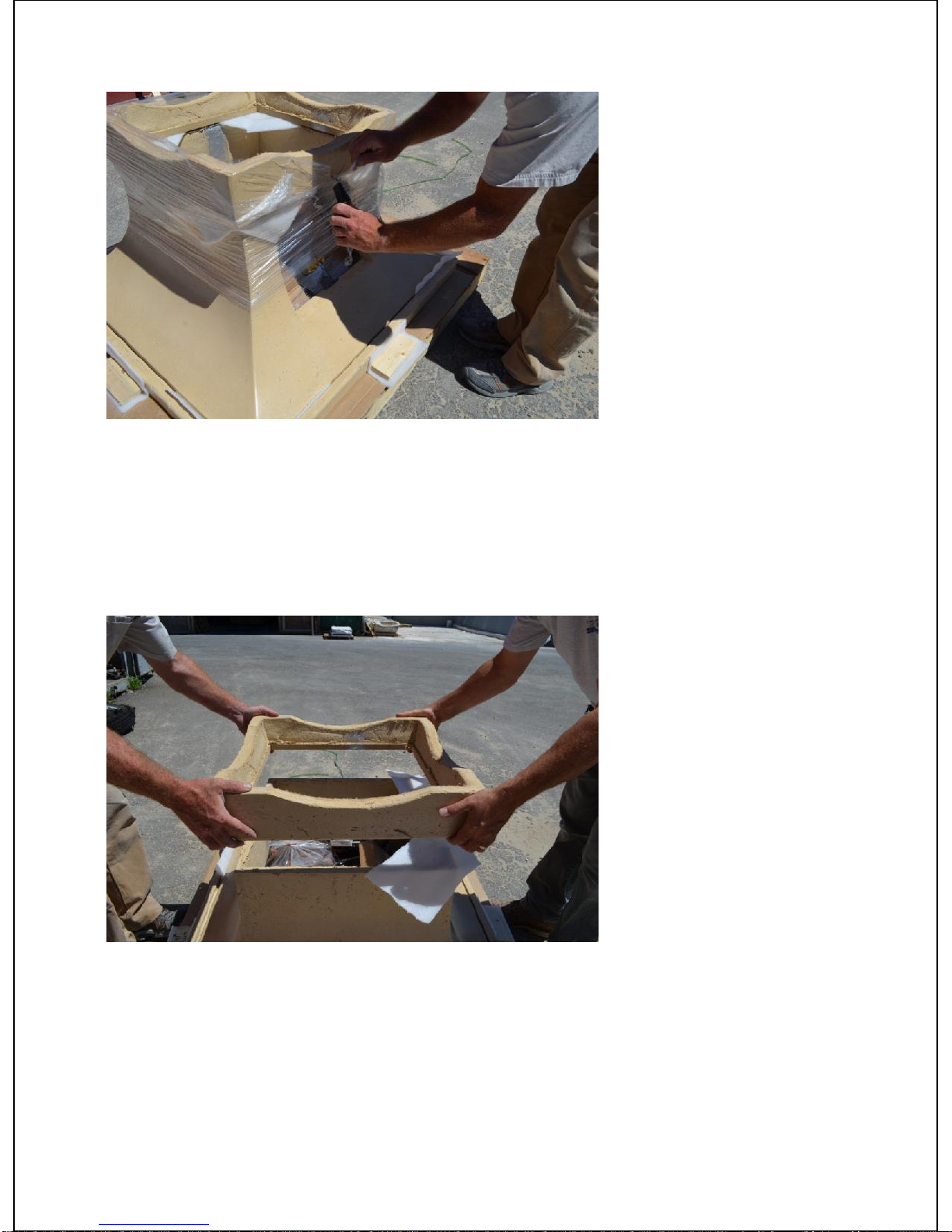

Remove all banding, blocks and shrink wrap.

Remove all banding, blocks and shrink wrap.
Remove Fire Table base and take to location of the to installation.

Remove the media, access door and burner. Set off to the side for installation later.
Place the base at your desired location, make sure the base is level both direction.

You will notice a mark on the
base and on the body. Make
sure to line up these marks
when you set the body on the
base.
Keep in mind the direction of
the gas key and the LP bottle
access door when setting the
base and body in relation to
how it is viewed in your outdoor
living area.

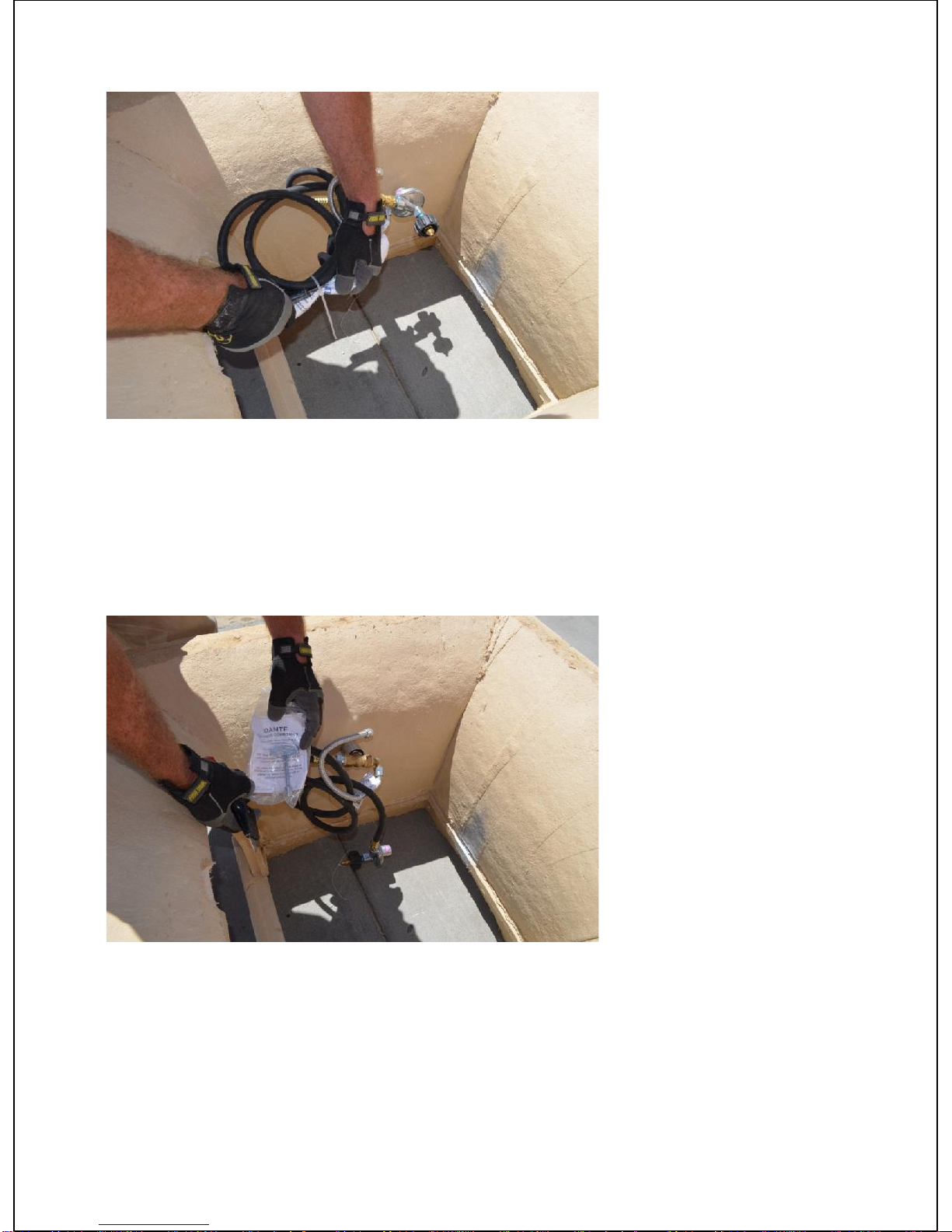

Remove the zip tie that holds the gas lines and the gas key and burner screws.
Remove the bag the holds the gas key and burner screws, set off for later use.

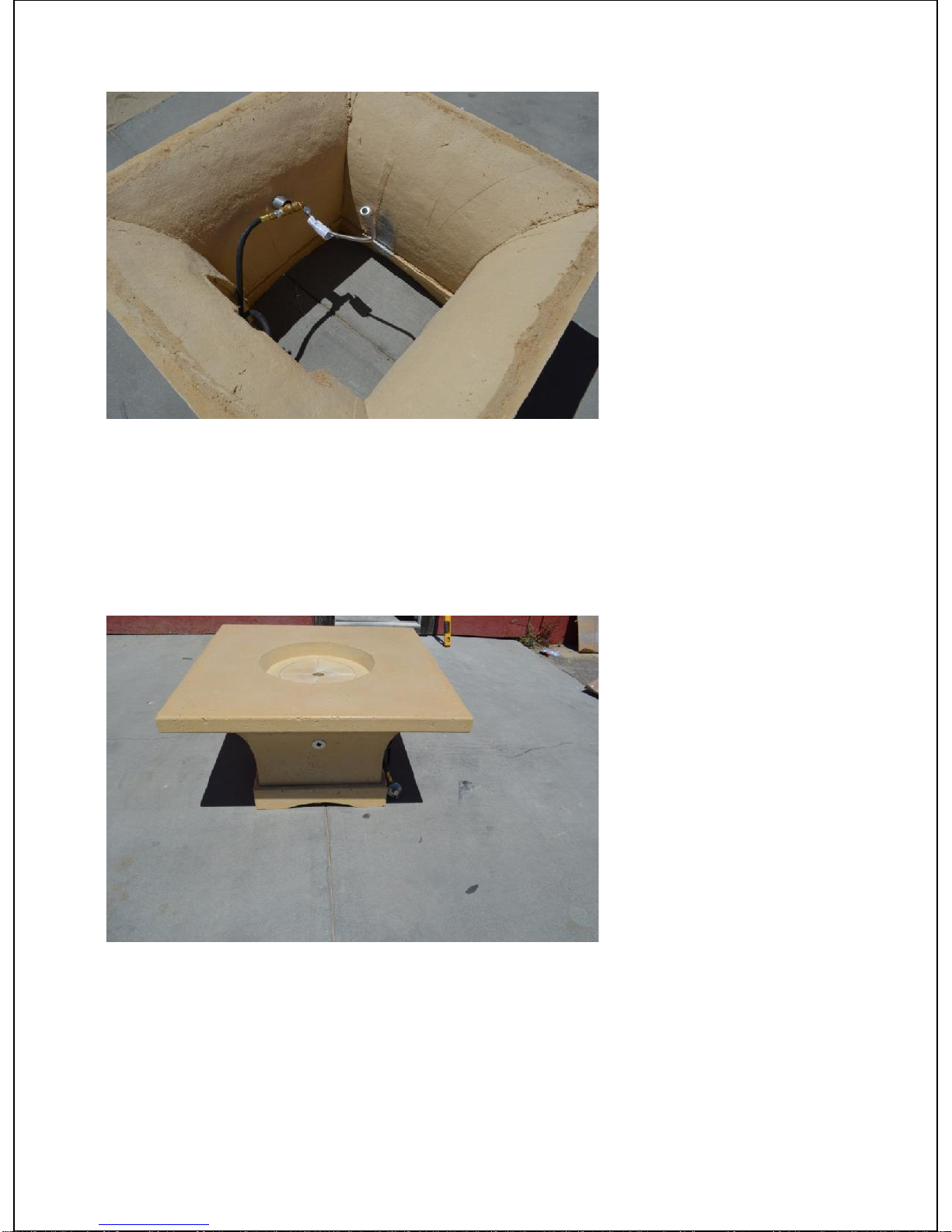

Position gas lines as shown in photo.
Set the top on the base, make sure it sits solid and does not rock. If any rocking occurs you
can either use thin set or place a shim to stop the rocking.

Position gas lines as shown in photo.

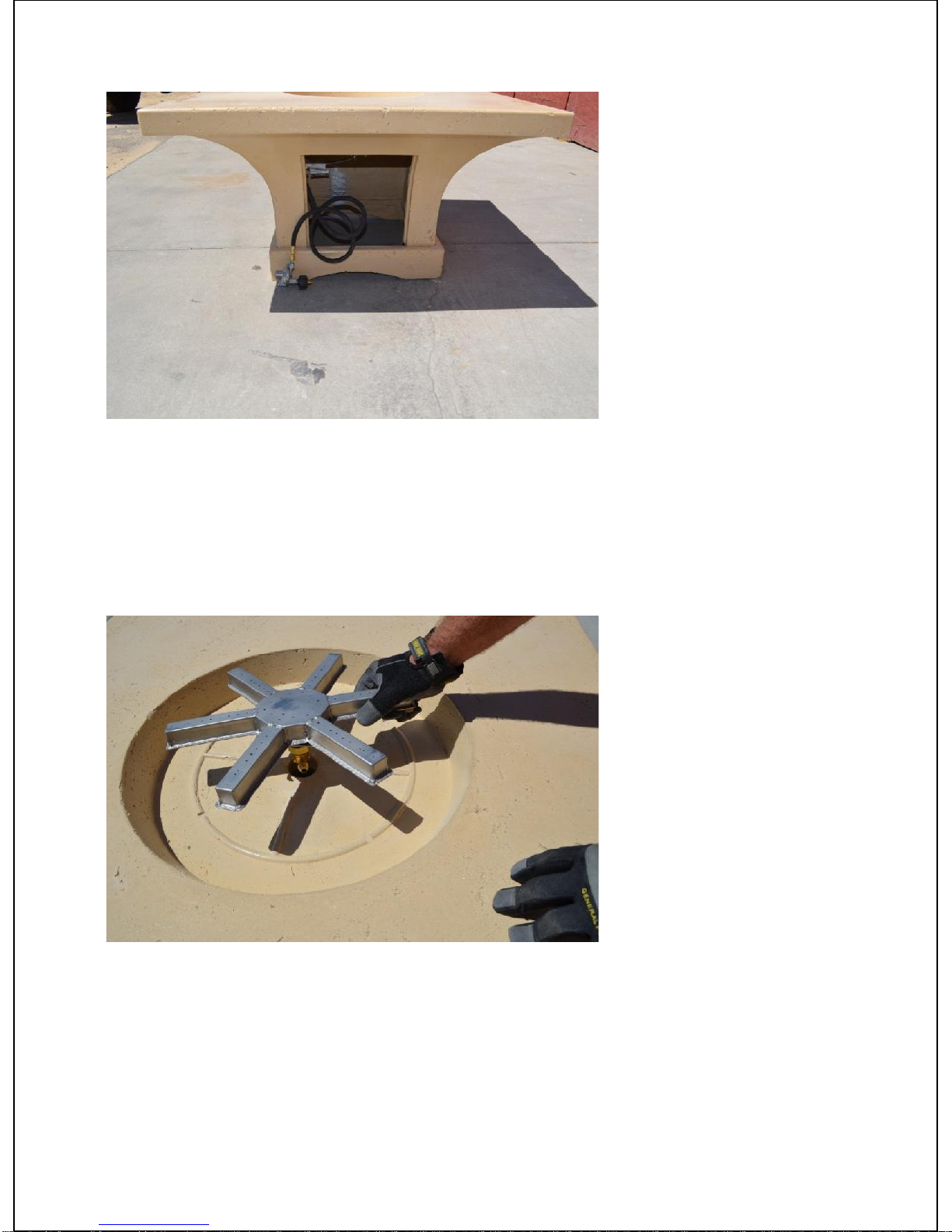

Drop the burner in through the hole in the concrete pan.

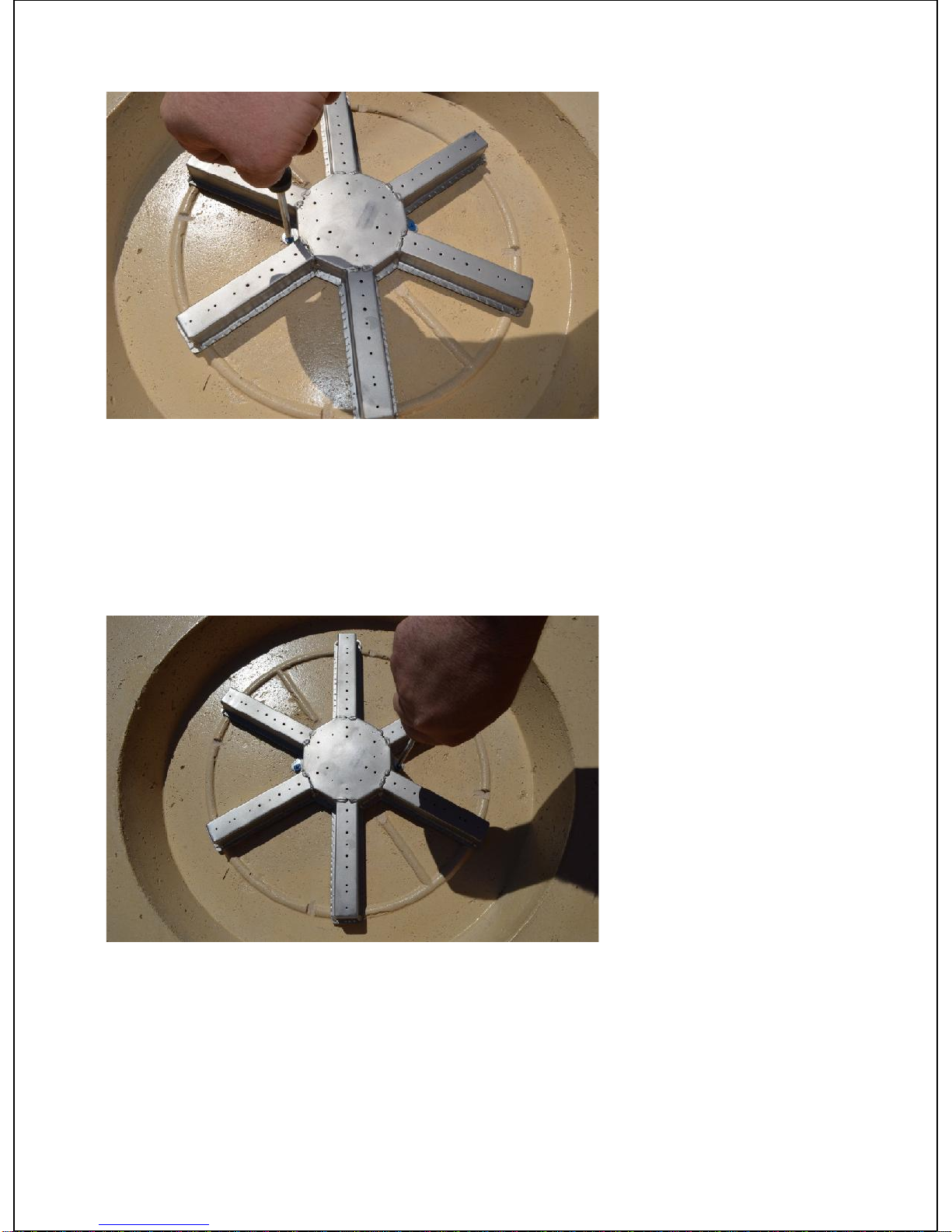

There is a plate that must be screwed down in the predrilled holes, there are 2 screws to be
installed.
2nd screw to be installed.

Hook up the gas line from the gas valve to the burner.
Hook the regulator to the LP tank.

Slide the LP tank into the body and stand upright. Unless you have a LP tank approved for
laying on its side, you must stand upright.
Use a piece of the packaging foam as protection for placing the tank inside the body.

This is how all the parts should look inside the body.
Set the door and turn the
thumb catch to secure the
access door.
This manual suits for next models
1
Table of contents
Popular Outdoor Fireplace manuals by other brands

PATIO HQ
PATIO HQ NC4314R-42-Base manual

Kenwood
Kenwood AT550 instructions

buschbeck
buschbeck Venedig Assembly instruction

Mosaic
Mosaic FSMVPT2042 Assembly instructions & user manual

MODENO
MODENO OFG113NG owner's manual

Hearth and Home Technologies
Hearth and Home Technologies MONTANA MONTANA-36 Installation & operating instructions

Bluegrass Living
Bluegrass Living BFPR-33 user guide

Flare Fireplaces
Flare Fireplaces Flare-VFF-50 manual

Planika
Planika Galio Corten Black Automatic Installation and user manual

Endless Summer
Endless Summer Rustic Charm owner's manual

Maxkon
Maxkon BBQ Series Assembly instructions

Spartherm
Spartherm Fuora Q/R operating manual
