HearthStone Tucson (8700) User manual

Owner’s Manual & Installation Guide
for the Tucson (8700) GAS-FIRED
DIRECT-VENT HEATER
READ THIS OWNER’S
MANUAL
Operate and maintain this gas heater
according to this instruction manual.
Read This Manual In Its Entirety.
WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch electrical switches; do not use
the phone in your building.
•Immediately call your gas supplier from a
neighbors phone. Follow your gas suppliers
instructions.
•If you cannot reach your gas supplier, call the
fire department.
A qualified installer, service agency or gas supplier
must perform installation and service.
AVERTISSEMENT: Assurez-vous de bien
suivre les instructions donné dans cette notice
pour réduire au minimum le risque d’incendie
ou pour éviter tout dommage matéeriel, toute
blessure ou la mort.
Ne pas entresposer ni utiliser d’essence ni d’autre
vaperurs ou liquides inflammables dans le
voisinage
de cet apprareil ou de tout autre appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
•Ne pas tenter d’allumer d’appareil.
•Ne touchez à aucun interrupteur. Ne pas vous
servir des téléphones se trouvant dans le
batiment où vous vous trouvez.
•Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
•Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le service dos incendies.
L’installation et service doit être exécuté par un
qualifié installer, agence de service ou le
fournisseur de gaz.
6400-40432
Model #8700
05-22-03

HearthStone Quality Home Heating Products Inc Tucson Model #8700
2
HearthStone
Quality Home Heating Products
317 Stafford Avenue,
Morrisville, Vermont 05661
E-Mail: [email protected]

HearthStone Quality Home Heating Products Inc Tucson Model #8700
3
INFORMATION SHEET
Record, on this page, all relevant information concerning the purchase, installation, and maintenance
of your TUCSON Gas-Fired Direct-Vent heater. This information will facilitate servicing, purchase of
replacement parts, and warranty claims (if necessary). Keep your original receipt in a safe place as
proof of purchase.
Serial Number:
Fuel type (check one) Natural Gas Liquid Propane
Sold by:
Phone: Date of Purchase:
Installed by:
Phone: Date of Installation:
Gas Supplier:
Phone:
Read this Owner’s Manual before installing or operating the TUCSON heater. Retain this manual for future
reference.
SERVICE RECORD
Date Who Performed Work Work Performed Notes:
WHAT WHEN WHAT WHEN
Firebox Cleaning............. annually Door Gasket.................... Replacement as needed
Glass Cleaning................ as needed

HearthStone Quality Home Heating Products Inc Tucson Model #8700
4
INTRODUCTION
Congratulations on your purchase of a
Tucson Gas-Fired Direct-Vent heater. The
Tucson, by HearthStone, incorporates the
latest in balanced vent gas technology,
which will provide you with clean, efficient
heat for years to come. The combination of
natural stones and cast iron gives the Tucson
a pleasing look that can be maintained with
minimum care.
The Tucson will provide you with years of
practical and convenient service. However,
as with any gas appliance, the unit must be
properly and safely installed and maintained
by qualified service personnel to ensure safe
and trouble-free operation.
Your Tucson is equipped with a standard
pilot which:
1. generates a milli-volt signal that
powers the wall-mounted thermostat
and;
2. lights the main burner when the
thermostat calls for heat.
This unit is equipped with an On/Off/T’stat
switch and a variable output control. The
variable output control is located on the gas
control valve. It allows you to vary the heat
output, along with the flame height to suit
personal taste. Heat output can be reduced
{set to “LOW”} during the Fall and Spring,
when the need for heat is reduced and
increased {set to “HIGH” during Winter
months, when the need for heat is the
greatest.
A wall-mounted thermostat is provided by
HearthStone. Regardless of how you set the
variable output control, when the optional
thermostat has been installed and the
On/Off/T’stat switch is set to “T’stat”, the
wall-mounted thermostat will control the
on/off cycling of the unit. At any time, you
can override the thermostat with the
On/Off/T’stat switch by setting it to “ON”
or “OFF”.
The Unit can also be equipped with an
optional blower fan, Kit which turns on and
off independently of the burner flames.
When the switch, which allows you to turn
the fan on or off and control the speed of the
fan to suit your needs, is set to “High” or
“Lo”, the fan will automatically turn on
when the stove is hot and cycle off when the
unit is no longer hot.
Also available are two different optional
remote controls. Both of the remote controls
are capable of turning the unit on and off.
One of the optional remotes also allows you
to control the temperature of the stove from
anywhere in the vicinity of the unit. If “ON”
& “OFF” are the only controls required, Kit
# 90-56912 can be used. If you would like to
control the temperature via the remote
control, use Kit # 90-56914.
READ THIS OWNER’S MANUAL
Operate and maintain this gas heater
according to the instructions in this manual.
Read this manual in its entirety. This
manual has two sections, the first section is
for the OPERATOR, and the second section is
for the QUALIFIED SERVICE PERSONNEL only.
HEATER MUST BE INSTALLED
AND MAINTAINED BY QUALIFIED
SERVICE PERSONNEL
Verify the gas connections and venting
systems with requirements of local, regional
or national installation codes. Qualified
service personnel must inspect the gas heater
before use and at least annually.

HearthStone Quality Home Heating Products Inc Tucson Model #8700
5
TABLE OF CONTENTS
READ THIS OWNER’S MANUAL........1
INTRODUCTION...........................................4
SAFETY INFORMATION...............................5
FIRE HAZARD........................................... 6
SHOCK HAZARD...................................... 6
MUST BE VENTED TO THE OUTSIDE ......... 6
SERVICE CAUTION ................................... 6
HOT SURFACES ........................................ 6
CERAMIC FIBER LOG SAFETY
INFORMATION.......................................... 7
SPECIFICATIONS:.................................9
OWNER’S INFORMATION..........................10
ROUTINE MAINTENANCE AND CARE.......10
FIREBOX, PILOT, & BURNER TUBES .......11
INSTALLER’S INFORMATION ....................13
UNPACK AND INSPECT FOR DAMAGE ..... 14
VENTING INFORMATION...........................18
ELECTRICAL CONNECTIONS ....................26
GAS SUPPLY & CONNECTIONS.................28
LOG PLACEMENT .....................................29
LIGHTING THE UNIT FOR THE FIRST TIME
...................................................................31
INITIAL ADJUSTMENTS.............................32
MAINTENANCE AND CARE........................36
PARTS LISTS .............................................38
SAFETY INFORMATION
Your Tucson is a very attractive and
extremely efficient, utilizing today’s best
technologies. By following a few simple
safety precautions and by performing minimal
maintenance, the unit will remain appealing
while providing years of quality performance.
The installation must conform to local codes
or, in the absences of local codes, the current
National Fuel Gas Code, ANSI Z223.1 (NFPA
54) or CAN/CGA B149 Installation Code.
(Installer l’appareil selon les codes ou
réglements locaux, ou, en l’absence de tells
réglements, selon les Codes d’installation
CAN/CGA B149.)
Do not use this appliance if any part has been
under water. Immediately call a qualified
service technician to inspect the heater and to
replace any part of the control system and gas
control that has been under water. (Ne pas se
servir de cet appareil s’il a été plongé dans
l’eau, complétement ou en partie. Appeler un
technicien qualifié pour inspector l’appareil et
remplacer toute partie du systéme de contrôle
et toute commande qui ont été plunges dans
l’lau.)
During the first few hours of operation the
appliance may produce a slight smoke and/or
odor. This is normal during the first several
burns. During the initial burn, open a
window(s) to assist in the removal of the
smoke/odor. If the logs appear to smoke, turn
›
WARNING:
A qualified service technician should do
installation and repair. A qualified
service technician should inspect the
appliance befor
e use and at least annually.
More frequent cleaning may be required
due to excessive lint from carpeting,
bedding material, etc. It is imperative that
control compartments, burners, and
circulating air passages of the appliance
are kept clean and free of
obstructions.
(S’assurer que le brûleur et le
compartiment des commandes sont
propres. Voir les instructions
d’installation et d’utilisation qui
accompagnent l’appareil.)

HearthStone Quality Home Heating Products Inc Tucson Model #8700
6
the heater off and call a qualified service
technician.
The appliance and its individual shutoff valve
must be disconnected from the gas supply
piping system during any pressure testing of
that system at test pressures in excess of ½
psig. (3.5k Pa). The appliance must be isolated
from the gas supply piping system by closing
its individual manual shutoff valve during any
pressure testing of the gas supply piping
system at test pressures equal to or less than ½
psig (3.5k Pa).
FIRE HAZARD
Do not store or use gasoline or other
flammable vapors or liquids in the vicinity
of this appliance. The Tucson should be
located out of traffic and away from
furniture, draperies, clothing, and flammable
material.
SHOCK HAZARD
(When equipped with an optional blower)
This appliance is equipped with a three-prong
(grounding) plug for protection against shock
hazard and should be plugged directly into a
properly grounded three-prong receptacle. Do
not cut or remove the grounding prong from the
plug.
MUST BE VENTED TO THE
OUTSIDE
Never vent the gas heater to other rooms or
buildings. This gas appliance must not be
connected to a chimney flue serving a
separate solid-fuel burning appliance.
SERVICE CAUTION
If you believe your Tucson is not, in any
way, performing properly, immediately
discontinue operation until the unit has been
inspected and approved by qualified service
personnel. Prior to servicing the unit, turn
the valve control knob clockwise to “OFF”.
The unit should be cool prior to servicing
and cleaning. Any safety screen, guard, or
component removed during servicing should
be replaced prior to operation. Use of any
components not supplied by HearthStone on
the stove voids all warranties. Do not
substitute components.
HOT SURFACES
Certain exposed surfaces of the Tucson will
reach high temperatures during normal
operation. Clearances to combustibles must
be maintained, as specified in the “Clearances
To Combustibles” section of this manual. Due
to high temperatures the appliance should
be located out of traffic and away from
furniture, draperies, clothing and
flammable materials. Children and adults
should be alerted to the hazards of high
surface temperatures and should stay away
to avoid burns to skin or clothing ignition.
Young children should be carefully
supervised when in the same room as the
appliance. Clothing or other flammable
material should not be placed on or near
the appliance. (Surveille les enfants. Garder
les vêtements, les meubles, l’essence ou autres
liquides à vapeur inflammables lin de
l’appareil.) Clean the area around, under, and
behind the unit on a regular basis to prevent
the accumulation of dust and lint.
NEVER BURN PAPER, WOOD OR
OTHER MATERIALS
This gas heater is designed to burn natural
gas or liquid propane (LP). Never burn any
fuel not intended for use with this unit.
WARNING
This gas appliance must not be connected to
a chimney flue serving a separate solid-fuel
burning appliance

HearthStone Quality Home Heating Products Inc Tucson Model #8700
7
›WARNING: DO NOT OPERATE THE APPLIANCE WITH THE FRONT GLASS
REMOVED,CRACKEDORBROKEN. REPLACEMENTOF GLASS SHOULDBE DONE BY
A LICENSED OR QUALIFIED SERVICE PERSON. ONLY OPEN FRONT FOR ROUTINE
SERVICE. DO NOT SLAM OR STRIKE GLASS.
CERAMIC FIBER LOG SAFETY
INFORMATION
If the decorative ceramic log material
supplied with the Tucson is damaged or
missing, it must be replaced with the same,
approved replacement parts supplied by the
manufacturer. These components affect the
combustion quality and safety of the heater.
Do not replace fiber ceramic logs with
unapproved ceramic logs or any other
material.
Always wear gloves and safety goggles
while handling the log set and ember
strip.
!ELECTRICAL HAZARD!
When the optional blower kit is installed, the
Tucson must be electrically grounded in
accordance with local codes, or in the
absence of local codes, with the National
Electrical Code, ANSI.NFPA 70 in the U.S.
or CSA C22.1 Canadian Electrical Code in
Canada. The Tucson fan accessory is
equipped with two blower fans. The three-
prong grounded plug must be plugged
directly into a properly grounded three-
prong receptacle. Do not cut or remove the
grounding prong from the plug or otherwise
attempt to circumvent the grounding
protection provided with the unit.
DO NOT LIGHT PILOT OR MAIN
BURNERS BY HAND
The standing pilot light equipped on this gas
heater is lit by using a piezoelectric spark
generator as described elsewhere in this
manual. Never attempt to light the pilot or
main burners by hand with a match or
lighter. If, after repeated attempts, the pilot
light fails to light, discontinue operation,
turn off the gas at the gas control valve, and
immediately contact qualified service
personnel for assistance.
Certified for use by:
Board of State Examiners of Plumbers and Gasfitters
100 Cambridge Street, Room 1511
Boston, Massachusetts
02202

HearthStone Quality Home Heating Products Inc Tucson Model #8700
8
MOBILE HOME INSTALLATIONS
This appliance may be installed in an
aftermarket, permanently located,
manufactured (mobile) home, where not
prohibited by local codes.
This appliance is only for use with the
type(s) of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases, unless a certified kit is
used.
(Cet appareil peut être installé dans un
maison préfabriquée (mobile) déjá installée
á demeure si les réglements locaux le
permettent.
Cet appareil doit être atilisé uniquement
avec les types de gas indiqués sur la plaque
signalétique. Ne pas l’utiliser avec d’autres
gas sauf si un kited conversion certifié est
installé. )
SERVICE CAUTION
Any shield, door, or safety screen
component removed for servicing will be
replaced prior to operating. If you believe
your Tucson is not performing properly in
any way what so ever, immediately
discontinue operation until the unit has been
inspected by qualified service personnel.
Always shut off the gas and electricity to the
stove while servicing. Make sure the unit is
not hot when servicing or cleaning. Use of
any components not supplied by
HearthStone on the stove or vent system
voids all warranties. Do not substitute
components.

HearthStone Quality Home Heating Products Inc Tucson Model #8700
9
SPECIFICATIONS:
LISTED: DIRECT-VENT GAS HEATER
Listed: Gas-Fired Direct-Vent Fireplace Heater
Model: Tucson Direct-Vent Gas Fireplace Heater
Testing Agency: Intertek Testing Services NA Inc. (ITS)
Tested to: ANSI Z21.88-1998, CSA 2.33-M98, CAN/CGA2.17
Certified for Canada
Approved for
Mobile Home Installation (see page 7)
Figure 1: Tucson Dimensions
NG LP
Input rating (Btu/hr) 0-1370 m 26,000 26,000
Maximum output (Btu/hr) 0-1370 m 19,000 19,700
Minimum input rating (Btu/hr) 14,500 14,500
Orifice size DMS 0-1370 m 40 53
Man. pressure-HI setting (in.w.c./kPa) 3.5/0.87 10.0/2.48
Man. pressure-LO setting (in.w.c./kPa) 1.2/0.30 3.3/0.80
Inlet pressure-Lo (in.w.c./kPa) 5.0/1.24 11.0/2.88

HearthStone Quality Home Heating Products Inc Tucson Model #8700
10
OWNER’S INFORMATION
The installation must conform with local
codes or, in the absences of local codes, the
current National Fuel Gas Code, ANSI Z223.1
(NFPA 54) or CAN/CGA B149 Installation
Code. (Installer l’appareil selon les codes ou
règlements locaux, ou, en l’absence de tels
règlements, selon les Codes d’installation
CAN/CGA-B149.)Do not use this appliance
if any part has been under water.
Immediately call a qualified service
technician to inspect the heater and to
replace any part of the control system and
gas control that has been under water. (Ne
pas se servir de cet appareil s’il a été plongé
dans l’eau, complètement ou en partie.
Appeler un technicien qualifié pour inspector
l’appareil et remplacer toute partie du système
de contrôle et toute commande qui ont été
plongés dans l’lau.)
DAILY OPERATION
The Tucson gas-fired heater is easily
operated by the homeowner once installed
and adjusted by qualified service personnel.
The unit is controlled via the wall-mounted
thermostat during the heating season. Set the
thermostat to the desired room temperature
and the unit will cycle on and off as
required. By adjusting the variable output
control located on the gas control valve, the
rate of heat output can be varied to meet the
heating requirements of the season.
Choosing a low flame setting will result in
longer burn cycles at a reduced output, while
choosing a high flame setting will result in a
shorter, hotter burn cycle. Through trial and
error, the homeowner can select the
optimum flame size for their setting and
application.
During the summer non-heating season,
switch the wall thermostat to “OFF”, and
turn off the pilot. This will improve the
overall efficiency of the unit as the heat
from the pilot is wasted. When putting the
unit back into service, follow the lighting
instructions described on page 31.
When the unit is first lit, especially when
cool, it is normal to experience some
condensation on the inside of the window
glass. This condensation will burn off within
the first few minutes of operation. If
continuous condensation on the window
glass or dripping water from any part of the
unit or venting system (chimney) is noted,
immediately discontinue operation of the
unit and contact qualified service personnel.
ROUTINE MAINTENANCE
AND CARE
The Tucson requires minimal routine
maintenance and care. The unit should
always be cool and off when being cleaned.
CLEANING
›WARNING: Do not clean the unit
when hot. The unit should receive
regular cleaning on, under, and around
the stove to prevent the buildup of dust
and lint. The exterior surfaces of the unit
can be cleaned using soap, water, and a
soft cloth. Do not use abrasive or
chemical cleaners and take care not to
scratch the glass or enamel finish (if so
equipped) when cleaning the unit. The
use of chemical wax based cleaners or
polishes are not recommended due to the
potential for discoloration or the enamel
when the residue of the cleaners or
polishes is exposed to heat.

HearthStone Quality Home Heating Products Inc Tucson Model #8700
11
FIREBOX, PILOT, & BURNER
TUBES
The firebox should receive periodic cleaning
to prevent the accumulation of dust, lint, and
other debris. To clean the firebox, set the
thermostat to the “OFF” position, and turn
off the gas at the gas control valve. When
the unit is cool, unfasten the front door and
carefully remove the decorative ceramic
fiber log set, taking care not to damage the
logs or chip the enamel cast iron. Clean the
firebox burner tube and carefully vacuum
the entire surface of the log set. Thoroughly
vacuum the ports (holes) along the top of the
burner tubes.
With the decorative ceramic fiber logs out of
the firebox, fasten the door shut and
momentarily light the unit according to the
lighting instructions described on page 31.
Check to insure a flame is burning from
each burner port. The pilot flame should be
large enough to engulf the
sensor/thermocouple as shown in Figure 2.
Turn the unit off by setting the thermostat to
“OFF” and turning off the gas control valve.
Allow the unit to cool. Check and clean any
burner ports that are not burning or not
burning properly. Clean burner ports using
soft a soft brush or vacuum cleaner. If the
pilot flame height needs adjustment, it
should be adjusted by qualified service
personnel as described on page 34.
Figure 2: Pilot Flame Pattern
Complete the cleaning procedure by
carefully placing the log set within the
firebox as described on page 28. Close and
fasten the front door. Turn on the gas, light
the unit and check for proper operation.
Flame patterns should look like Figure 3.
Regularly check to insure the area around
the Tucson is kept free from combustible
materials, gasoline, and other flammable
vapors and liquids. Check that the flow of
combustion and ventilation air is not
obstructed. Once a year the unit and venting
system should be inspected by qualified
service personnel to insure that they are
clean, free of obstruction, safe, and in good
working order. If service or maintenance is
required, it should be performed by qualified
service personnel.

HearthStone Quality Home Heating Products Inc Tucson Model #8700
12
Figure 3: Burner Flame Pattern
REPLACE THE FRONT DOOR
GASKET AS NEEDED
Your Tucson uses a 3/8” rope-type
fiberglass gasket to make a tight seal
between the door frame and the firebox. In
time, the gasket can become brittle and
compressed and should be replaced. New
gasket material is available from your
Authorized HearthStone Dealer.
1. Allow the Tucson to cool completely.
Remove the existing gasket by grasping
one end and pulling firmly.
2. Use a wire brush or the tip of a
screwdriver to clean the channel of
remaining gasket.
3. Determine the correct length of the
appropriate-sized gasket by laying it out
in the channel. Allow an extra 1 to 2”
(25-50mm), and mark the spot to be cut.
4. Cut the gasket at the marked spot with a
utility knife. Twist the ends slightly to
prevent the gasket from unraveling.
5. Apply water glass adhesive to the gasket
channel.
6. Starting at one end, press the gasket into
the channel. Insure a good joint where
the gasket ends meet before trimming
any excess. Do not overlap the gasket
ends or leave ends with ragged edges.
7. Firmly and evenly press the gasket to
seat it in its channel.
CLASS CLEANING
If operating with propane, it may be
necessary to clean the inside of the glass
occasionally. Do not use abrasive cleaners.
Do not clean the glass when hot. Allow
glass to cool and apply a window cleaning
fluid.
›WARNING: Do not operate this
appliance with the glass panel removed,
cracked, or broken. Do not subject the
door to abuse, such as striking or
slamming shut. Replacement of the glass
panel should be done by a licensed or
qualified service person.

HearthStone Quality Home Heating Products Inc Tucson Model #8700
13
INSTALLER’S
INFORMATION
CODES
Adhere to all local codes or, in their
absence, the latest edition of THE
NATIONAL FUEL GAS CODE ANSI
Z223.1 (NFPA 54) or CAN/CGA B149
Installation Code that can be obtained from:
AMERICAN NATIONAL STANDARDS
INSTITUTE, INC.
1430 BROADWAY
NEW YORK, NY 10018
OR
NATIONAL FIRE PROTECTION
ASSOCIATION, INC.
BATTERY MARCH PARK
QUINCY, MA 02269
The appliance when installed, must be
electrically connected and grounded in
accordance with local codes or, in the
absence of local codes, with the current
NFPA 70-National Electrical Code or CSA
C22.1-Canadian Electric Code.
A manufactured home (mobile) OEM
installation must conform with the
Manufactured Home Construction and
Safety Standard, Title 24 CFR, Part 3280
(U.S.) or Standard for Manufactured Home
Installation, ANSI/NCBCS A225.1 or
Standard for Gas Equipped Recreational
Vehicles and mobile Housing, CSA
Z240.4.CAN/SCA Z240 MH (Canada).
(Installer l’appareil selon les codes ou
règlements locaux, ou, en l’absence de tels
règlements, selon les Codes d’installation
CAN/CGA-B149.)
ITEMS REQUIRED FOR
INSTALLATION
* External regulator (for propane/L.P.G.
only)
* Piping which complies with local codes
* Pipe sealant approved for use with
propane/L.P.G. (resistant to sulfur
compounds)
* Manual shutoff valve
* Sediment trap
* Tee joint
* Pipe wrench
* Phillips head screwdriver
* Other parts as required by local code
*Safety Glasses
*Gloves
PACKING LIST
1-Tucson Gas-Fired Heater
2-Decorative Ceramic Fiber Logs
2-Ember Screen
1-Charcoal Embers
1-Owner’s Manual
1-Thermostat
1-40’ Thermostat wire
1-L.P. Fuel Conversion Kit
1-Warranty Validation Form
1-Exhaust Restrictor Kit
Note: Vent kits are supplied separately.
Failure to use the venting components
suggested by HearthStone will void your
warranty.

HearthStone Quality Home Heating Products Inc Tucson Model #8700
14
UNPACKING AND INSPECTION
UNPACK AND INSPECT FOR DAMAGE
The Tucson is packaged by the manufacturer
to withstand shipment without damage.
However, damage can occur during transit
so take care to inspect for damage when
unpacking and installing the unit. If any
damage or missing parts are detected,
immediately contact your dealer.Do not
install or put into service a damaged or
incomplete heater.
Caution: The two top stones and grill are
NOT cemented or otherwise permanently
fastened in place! Carefully remove and set
aside the two stones and the grill. Use the
protective wrapping material to temporarily
protect the stones from chipping and damage
while the unit is inspected and installed.
Inspect the Tucson for visible or concealed
damage. The unit should appear to be square
and true. The stones should be whole and
without cracks, chips, or breakage. The
sheet metal parts should be smooth and free
of bends and dents. The enameled cast iron
should be free of chips or cracks. If visible
or concealed damage is found or suspected,
contact your dealer for instructions.
With the top stones and grill removed and
set aside, undo the lag bolts that fasten the
unit to the pallet. Take care not to mar or
chip the enameled legs. Lift the stove off the
pallet and set it into place.
The decorative ceramic fiber logs supplied
with the Tucson are contained within the
firebox. Always use great care when
handling the decorative ceramic fire logs as
they are fragile and subject to damage and
breakage if handled roughly. Open the
firebox door using a 1/8” allen wrench
screwdriver and inspect the logs for damage.
If a broken log is encountered, contact your
dealer for replacement logs. Otherwise, set
the logs aside until called for during the
installation.
HEARTH REQUIREMENT/FLOOR
PROTECTION
The Tucson may be placed on a non-
combustible surface or wood floor. For
placement of the Tucson on carpeting, vinyl
tile or other combustible materials, the
appliance shall be installed on a metal or
wood panel extending the full width and
depth of the appliance. Installations must
meet local codes.

HearthStone Quality Home Heating Products Inc Tucson Model #8700
15
CLEARANCE TO COMBUSTIBLES
Due to high surface temperatures, the unit
should be located out of traffic and away
from furniture and draperies. Clothing and
other flammable material should not be
placed on or near the heater. When
positioning the unit always maintain
adequate clearances around air openings into
the combustion chamber and allow for
adequate ventilation. Minimum clearances
to combustibles must be maintained as
shown in the illustrations on page 14 +15.
Note: The rear clearance to combustibles
will be determined by either the unit’s or the
vent pipe’s minimum clearance, depending
on whether the installation calls for vertical
rise within the room or a rear exit, through-
the-wall vent pipe.
Be sure to consider the need for access to
the gas control valve access door on the
front of the unit as well as full access for
periodic cleaning and servicing. Also
consider the location of the Optional Blower
Fan.
NOTE: These clearances represent minimum
distances in all cases, which, through testing in an
independent laboratory to ANSI and CSA
standards, will prevent fire or spontaneous
combustion. We do not control the combustible
materials exposed to heat by this product;
therefore, an assessment must be made by the
installer to prevent consequential damage of walls
and flooring.

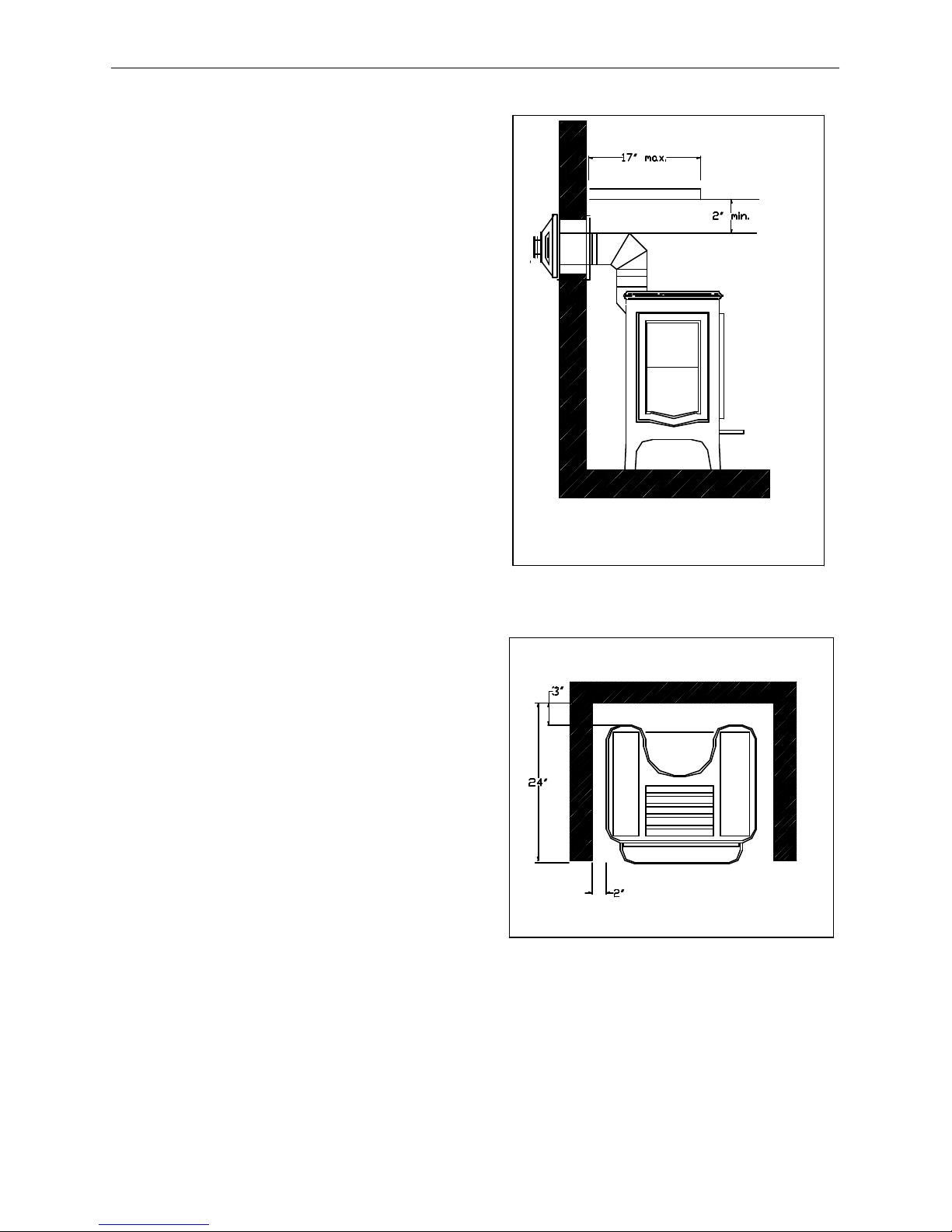

Figure 4: Minimum Venting-Mantle Clearance To
Combustibles
Figure 5: Minimum Venting-Wall Clearance To
Combustibles

HearthStone Quality Home Heating Products Inc Tucson Model #8700
16

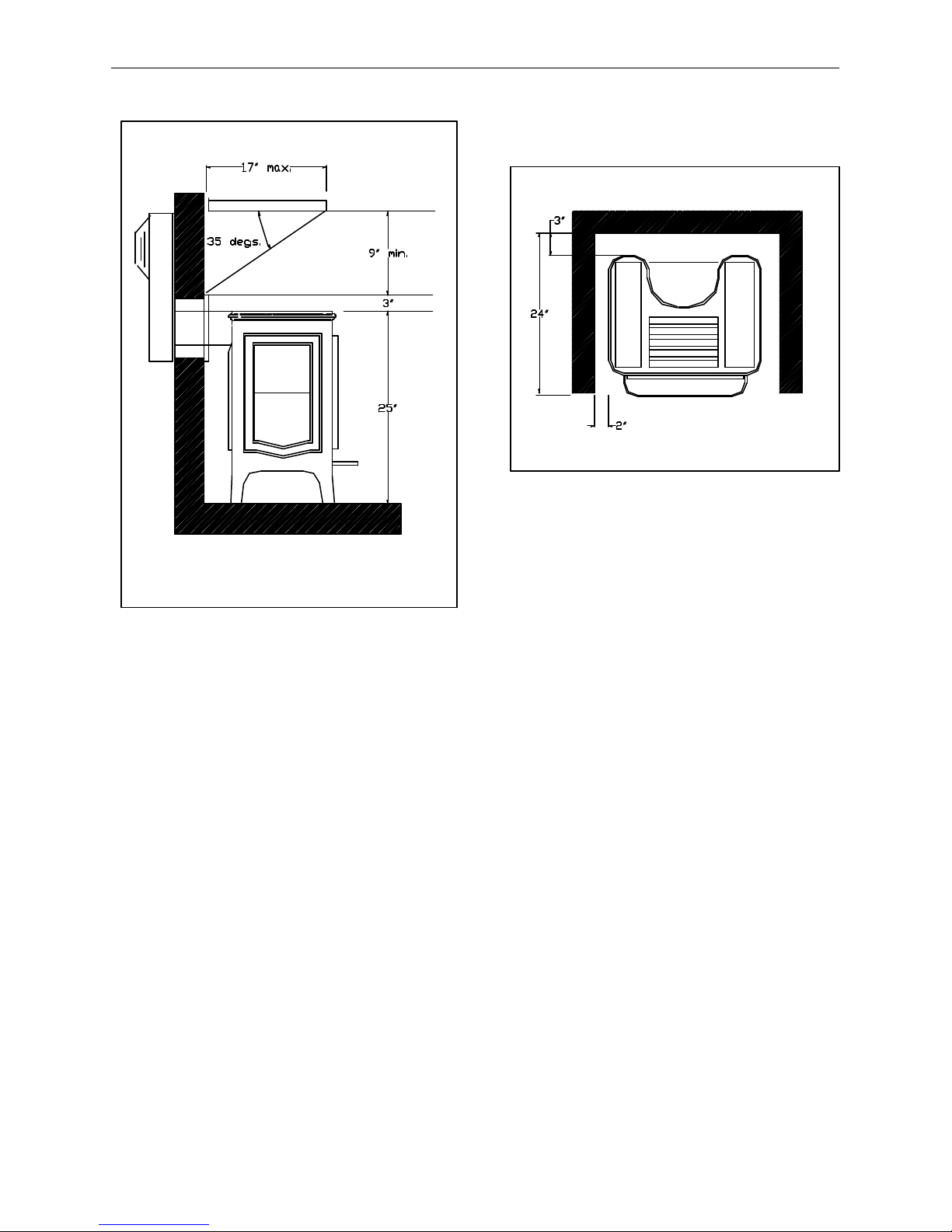

Figure 6: Snorkel-Mantle Clearance To
Combustibles
Figure 7: Snorkel-Wall Clearance To
Combustibles

HearthStone Quality Home Heating Products Inc Tucson Model #8700
17
Acceptable Direct-Vent TERMINATION Cap locations.
Figure 8

HearthStone Quality Home Heating Products Inc Tucson Model #8700
18
VENTING INFORMATION
VENTING CONNECTION
1. The Tucson Direct-Vent is approved for
installation only with the vent
connecting components listed on this
page. Use the following instructions
along with the pipe manufacturer’s
instructions to complete the installation.
2. Attach the inner starter collar and gasket
to the unit with the eight # 8-32 x 3/8"
Phillips Head self-tapping screws.
NOTE: If required to use the restriction
plate, please refer to Figure 9 for correct
locations of the additional gasket, restriction
plate, and inner adapter configuration.
Make sure the screw head on the restriction
plate faces into the firebox. This will allow
for future adjustments if needed.
3. Place the outer starter collar and gasket
onto the back of the stove. Secure the
outer adapter with the eight # 8-32 x
3/8" Phillips Head self-tapping screws
that are provided. Install the rest of the
vent system according to the
manufacturer’s instructions.

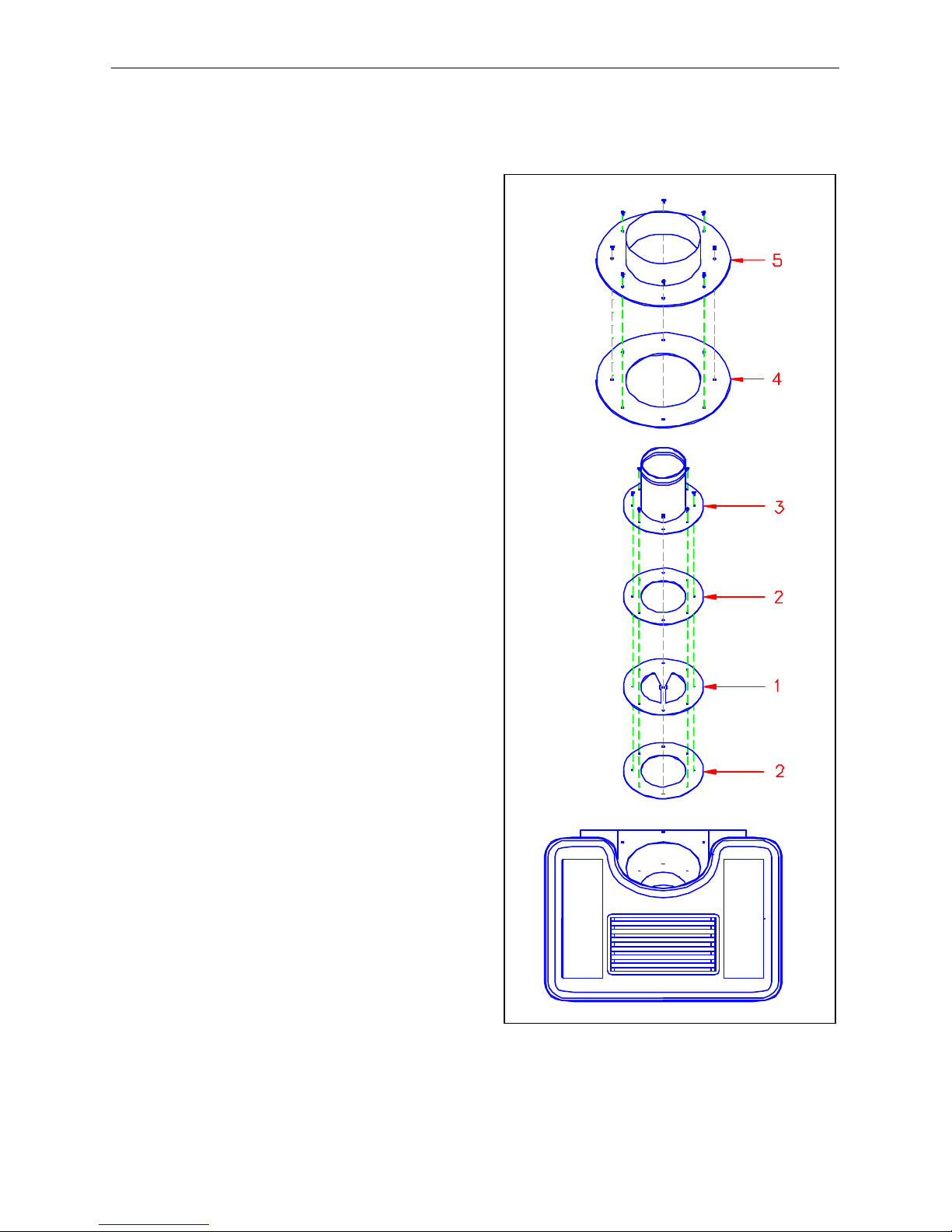

1. Restriction Plate 5950-922
2. Gasket 4” 3160-155
3. Inner starter 924H1
4. Gasket 6” 3160-157
5. Outer Starter 924H1
Figure 9: Gasket & Stove Adapter Installation

HearthStone Quality Home Heating Products Inc Tucson Model #8700
19
RESTRICTION PLATE
The restriction plate is used to control the
draft of the heater. Controlling the draft also
changes the aesthetics of the flame. The
restriction plate has eight settings, one (1)
being the lowest and eight (8) being the
highest. For a fast moving flame with lots of
action, use a low setting. For a slow, lazy
flame, a high setting should be used. See
Figure 11 for instructions on how to adjust
the restriction plate settings.
RESTRICTION PLATE POSITION
A vent restriction plate is available for the
appliance to adjust the flow rate of exhaust
gases. This insures proper flames for the
wide variety of vent configurations and
efficiency. The restriction plate consists of a
rotating shutter below the starter section of
pipe and an adjustment plate with index
holes used to hold the shutter in a fixed
position. Depending on the vent
configuration, you may be required to adjust
the restriction plate position. Refer to pages
21 – 22 for positioning of the restriction
plate.
ADJUSTMENT TO RESTRICTION
PLATE
Remove the log set before adjusting
restriction plate by following the log set
removal on page 29. Make sure the unit is
cool before touching any part of the firebox
and log set. Remove the exhaust baffle by
removing the one screw in the center of the
baffle (refer to Figure 10). The baffle will
fall out once the screw is removed. Be
careful not to drop the baffle on the burner
tube or burner tube holder. Once the baffle
is set aside, check the restriction plate screw
location. There are eight locations that the
restriction plate can be positioned. (refer to
Venting Configuration –Figures 14 –16 for
recommended restriction plate positions)
(refer to Figure 11 for proper adjustment
plate index location) ‘A’ in Figure 11 shows
the locating screw that determines the
position of the plate.
NOTE: These positions are based on lab
results and can have some variance.
Remove the screw and position the
restriction plate in the desired location.
Fasten the screw into the proper hole and
tighten. Reinstall the exhaust baffle by
setting the back edge of the baffle into the
baffle clip attached to the back wall of the
firebox. Then push the baffle against the
heat exchanger and reinstall the fasten bolt.
Reinstall the log set and ember strip as
described in the log set installation
procedure on page 28.

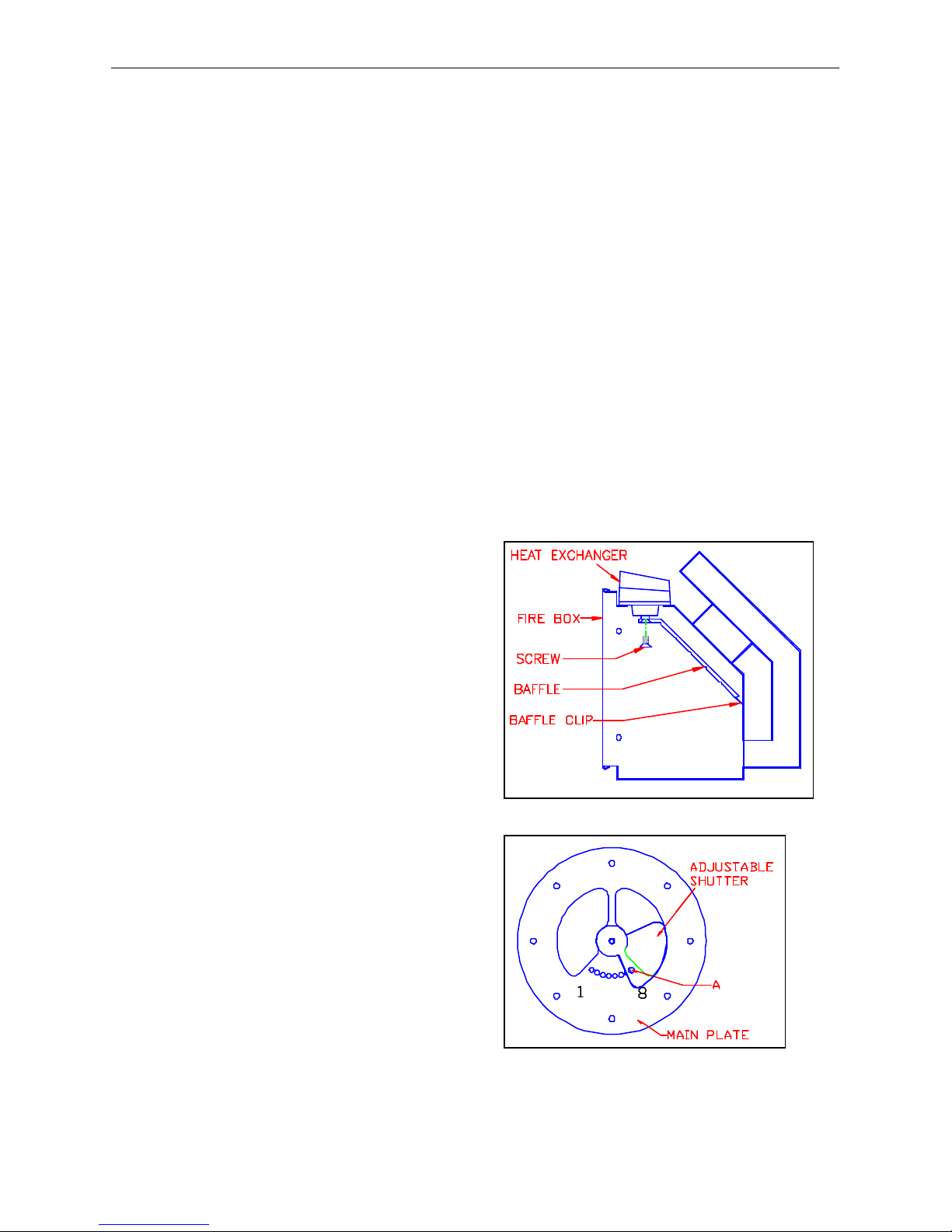

Figure 10: Baffle Removal
Figure 11 : Restriction Plate Adjustments

HearthStone Quality Home Heating Products Inc Tucson Model #8700
20
VENTING COMPONENTS &
CONFIGURATION
The Tucson cannot be vented jointly with
any other solid fuel or gas appliance. It must
be vented directly to the outside of the
building using a proper termination as listed
in the manual. The only type of venting pipe
approved for use with your Tucson Direct-
Vent stove is Simpson Dura-Vent’s GS,
AmeriVent Direct and Secure Vent Direct-
Vent Pipe. The venting configurations are
shown in Figures 12 -18. After determining
the venting configuration for your stove,
select the vent system that will
accommodate your installation.
Caution: Make sure all stove and
termination cap clearances have been
observed per the Owner’s Manual.
Caution: Be sure there is no wiring or
plumbing in the chosen location.
Caution: Venting terminals shall not be
recessed into a wall or siding.
Note: If further direction is needed for
installation, please refer to the venting
instructions, which are provided with the
venting components.
ACCEPTABLE DIRECT-VENT
TERMINATION CAP LOCATIONS
The vent/air intake termination clearances
above the high side of an angled roof are as
follows:
Roof Pitch Feet Meters
Flat to 6/12 1 0.3
7/12 to 9/12 2 0.6
10/12 to 12/12 4 1.2
13/12 to 16/12 6 1.8
17/12 to 21/12 8 2.4
Listed below are Simpson Dura-Vent,
AmeriVent Direct, and Secure Vent
components acceptable for installation,
along with the minimum venting kit
available. The venting system must be
comprised of the appropriate venting
components as specified.
APPROVED VENTING SYSTEM
COMPONENTS
*Component Description
900 Elbow
450 Elbow
6" Straight
9" Straight (Simpson only)
12" Straight
24" Straight
36" Straight
48" Straight
11"-14 5/8" Adjustable Pipe Length
Horizontal Vent Cap
Vertical Vent Cap
Snorkel 14
Vinyl Siding Standoff 4 x 65/8"
Round Ceiling Support Wall
Thimble Covers
Wall thimble
CHIMNEY LINER SYSTEM
1. Direct-Vent Chimney Liner Termination
Kit
2. Chimney Liner Flex
3. Co-Linear Flex Connector
4. Co-Axial to Co-Linear Appliance
Connect
*MINIMUM VENT KIT
*HearthStone Stove Starter Collar
45º Elbow
90º Elbow
(2) 9” Straight
Round Ceiling Support
Wall Thimble Cover
Wall Thimble
Horizontal Vent Cap
*Supplied by HearthStone
