HearthStone Santa Fe User manual

Owner’s Manual & Installation Guide
for the Santa Fe (8761) GAS-
FIRED DIRECT VENT HEATER
READ THIS OWNER’S
MANUAL
Operate and maintain this gas heater according
to this instruction manual.
Read This Manual In Its Entirety.
WARNING: If the information in these instructions
is not followed exactly, a fire, or explosion may
result causing property damage, personal injury, or
loss of life.
•Do not store, or use gasoline, or other
flammable vapors and liquids near this, or
any other gas appliance!
WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch electrical switches; do not use the
phone in your building.
•Immediately call your gas supplier from a
neighbor’s phone. Follow your gas supplier’s
instructions.
•If you cannot reach your gas supplier, call the
fire department.
A qualified installer, service agency, or gas
supplier must perform installation and service.
In the Commonwealth of Massachusetts, all
installation of gas lines and gas fitting shall only
be done by a licensed gas fitter or licensed
plumber.
AVERTISSEMENT: Assurez-vousdebiensuivre les
instructionsdonné dans cettenotice pourréduireau
minimum le risque d’incendie ou pour éviter tout
dommage matéeriel, toute blessure ou la mort.
•Ne pas entresposer ni utiliser d’essence ni
d’autre vaperurs ou liquides inflammables dans
le voisinage de cet apprareil ou de tout autre
appareil!
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
•Ne pas tenter d’allumer d’appareil.
•Ne touchez à aucun interrupteur. Ne pas vous
servir des téléphones se trouvant dans le
batiment où vous vous trouvez.
•Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
•Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le service dos incendies.
L’installation et service doit être exécut
é par un
qualifié installer, agence de service ou le
fournisseur de gaz.
6400-40437 02-17-2005 Model # 8761
317 Stafford Avenue,
Morrisville, Vermont 05661-8695
E-Mail: [email protected]

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
1
INFORMATION SHEET
Use this page to record all relevant information concerning the purchase, installation, and maintenance of your
SANTA FE Gas-Fired Direct Vent Heater. This information will facilitate servicing, purchase of replacement
parts, and warranty claims (if necessary). Keep your original receipt in a safe place as proof of purchase.
Serial Number:
Fuel type (check one) Natural Gas Liquid Propane
Sold by:
Phone: Date of Purchase:
Installed by:
Phone: Date of Installation:
Gas Supplier:
Phone:
Read this Owner’s Manual before installing, or operating the SANTA FE heater. Retain this manual for future
reference.
SERVICE RECORD
Date Who Performed Work Work Performed Notes:
WHAT WHEN WHAT WHEN
Firebox Cleaning............. annually Door Gasket.................... Replacement as needed
Glass Cleaning................ as needed

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
2
WELCOME
Congratulations on your purchase of
HearthStone’s Santa Fe Gas-Fired Direct Vent
heater. The Santa Fe incorporates the latest in
balanced vent gas technology, which will
provide you with clean, efficient heat for years
to come. Combustion air comes directly from
the outside of your home to the sealed firebox
system, eliminating the potential for annoying
back drafts or other problems associated with
home depressurization. The combination of
natural stones with cast iron give the Santa Fe a
pleasing look, which can be maintained with
minimum care.
The Santa Fe will provide you with years of
practical and convenient service. However, as
with any gas appliance, the unit must be
properly installed, and maintained by qualified
service personnel to ensure safe and trouble-free
operation.
READ THIS OWNER’S MANUAL
Operate and maintain this gas heater according
to the instructions in this manual. Read this
manual in its entirety.
THIS HEATER MUST BE INSTALLED AND
MAINTAINED BY QUALIFIED SERVICE
PERSONNEL
Verify the gas connections, and venting systems
with requirements of local, regional, or national
installation codes. Qualified service personnel
must inspect the gas heater before use, and at
least annually.
ALWAYS VENT TO THE OUTSIDE
Never vent the gas heater to other rooms, or
buildings. Do not connect this gas appliance to a
chimney flue serving a separate solid-fuel
burning appliance.
MANUFACTURED BY:
HearthStone Quality Home Heating Products, Inc.
317 Stafford Avenue
Morrisville, Vermont 05661-8695
USA
TABLE OF CONTENTS
WELCOME...................................................2
OWNER’S INFORMATION............................3
DAILY OPERATIONS................................. 4
INSTALLER’S INFORMATION ......................5
UNPACKING AND INSPECTION .................. 5
STOVE DIMENSIONS & CLEARANCES TO
COMBUSTIBLES ........................................ 6
VENTING INFORMATION........................... 9
VENT CONNECTION.................................. 9
APPROVED VENTING SYSTEM
COMPONENTS......................................... 11
GAS CONNECTIONS................................ 16
REPLACING THE GLASS.......................... 17
LOG PLACEMENT ................................... 17
INSTALLATION OF THE LOG SET............. 17
REMOVAL OF LOG SET ........................... 18
LIGHTING THE UNIT THE FIRST TIME.....18
INITIAL ADJUSTMENTS........................... 19
AIR SHUTTER ADJUSTMENTS ................. 19
GAS CONVERSIONS ................................ 20
ROUTINE MAINTENANCE AND CARE.......20
PARTS LISTS........................................... 22
TROUBLESHOOTING GUIDE...........24
LIMITED WARRANTIES ................... 27
WARNING!
A qualified service technician should do
installation, and repair. A qualified service
technician must inspect the appliance before
use, and at least annually. More frequent
cleaning may be required due t
o excessive lint
from carpeting, bedding material, pets, etc. It
is imperative that the control compartments,
burners, and circulating air passages of the
appliance are kept clean and free of
obstructions.
(S’assurer que le brûleur et le
compartiment des c
ommandes sont propres.
Voir les instructions d’installation et
d’utilisation qui accompagnent l’appareil.)

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
3
SERVICE CAUTION
Any components of the stove removed for
servicing must be replaced before operating. If
you believe your Santa Fe is not performing
properly, immediately discontinue operation
until the unit is inspected and approved for
operation by qualified service personnel. Prior to
servicing the unit, turn the valve control knob
clockwise to “OFF”. Ensure the unit is cool
before servicing and cleaning.
•WARNING! Any safety screen, guard, or
component removed during servicing
must be replaced before operation.
Do not use any components other than those
approved by HearthStone Quality Home
Heating Products, Inc., otherwise all
warranties are void. Do not substitute
components!
FIRE HAZARD
Do not store, or use gasoline, or other flammable
vapors or liquids near this appliance. The Santa
Fe should be located out of traffic, and away
from furniture, draperies, clothing, and other
flammable materials.
SHOCK HAZARD (IF EQUIPPED WITH ACCESSORY FAN)
The accessory blower is equipped with a three-
prong (grounding) plug for protection against
shock hazard and must be plugged directly into a
properly grounded three-prong receptacle. Do
not cut, or remove, the grounding prong from
the plug.
HOT SURFACES
Certain exposed surfaces of the Santa Fe will
reach high temperatures during normal
operation. Clearances to combustibles must be
maintained, as specified in the “Clearances To
Combustibles” section of this manual. Due to
high temperatures, the appliance should be
located out of traffic and away from
furniture, draperies, clothing, and other
flammable materials. Alert children and
adults to the hazards of high surface
temperatures and that they must stay away to
avoid burns to skin or possible clothing
ignition. Supervise young children carefully
when in the same room as the appliance. Do
not place clothing or other flammable
material on or near the appliance. (Surveille
les enfants. Garder les vêtements, les meubles,
l’essence ou autres liquides à vapeur
inflammables lin de l’appareil.) Clean the area
around, under, and behind the unit on a regular
basis to prevent the accumulation of dust and
lint.
•WARNING! Do not operate the appliance
with the front glassremoved, cracked, or
broken. Replacement of glass should be
done by a licensed, or qualified service
person. Only open front for routine
service. Do not slam, or strike the glass.
OWNER’S INFORMATION
The installation must conform with local codes
or, in the absences of local codes, the current
National Fuel Gas Code, ANSI Z223.1 (NFPA
54), or CAN/CGA B149 Installation Code.
(Installer l’appareil selon les codes ou
règlements locaux, ou, en l’absence de tels
règlements, selon les Codes d’installation
CAN/CGA-B149.)
Do not use this appliance if any part was
under water. Immediately call a qualified
service technician to inspect the heater, and
to replace any part of the control system that
was submerged. (NE PAS SE SERVIR DE CET
APPAREIL S’IL A ÉTÉ PLONGÉ DANS L’EAU,
COMPLÈTEMENT OU EN PARTIE. APPELER UN
TECHNICIEN QUALIFIÉ POUR INSPECTOR
L’APPAREIL ET REMPLACER TOUTE PARTIE DU
SYSTÈME DE CONTRÔLE ET TOUTE COMMANDE
QUI ONT ÉTÉ PLONGÉS DANS L’LAU.)
Certified for use by:
Board of State Examiners of Plumbers and Gasfitters
100 Cambridge Street, Room 1511
Boston, Massachusetts
02202

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
4
LIGHTING INSTRUCTIONS
1. Set the on/off/T-stat switch or thermostat to
the off position.
2. Unplug the blower accessory, if so equipped.
3. Push in and turn gas control knob clockwise
to “OFF”. (If not previously lit, the knob
should be in this position.)
4.Wait (5) five minutes to clear out any gas.
If you then smell gas, STOP! Smell all
around the appliance area for gas. Be sure
to smell next to the floor because some
gases (LPG) are heavier than air and will
settle on the floor. If you smell gas
immediately, follow the What To Do If You
Smell Gas! warning on the cover of this
Manual. If you do not smell gas, go to the
next step.
5. Turn gas control knob counterclockwise to
“PILOT”.
6. Push in control knob all the way and hold in.
Immediately light the pilot with the gas
lighter (push in and “click” the piezoelectric
spark igniter button several times until lit).
Continue to hold the control knob in for
about 20 seconds after the pilot is lit.
Release the knob and it will pop back out.
Pilot should remain lit. If the pilot goes out,
repeat the operation.
•If knob does not pop out when released,
stop and immediately call a qualified
service technician or gas supplier.
•If the pilot will not stay lit after several
tries, turn the gas control knob “OFF”
and call a qualified service technician or
gas supplier.
7. Turn gas control knob counterclockwise to
“ON”.
8. Select “ON” or “T-STAT” position on the
on/off/t-stat switch.
9. Shut the gas control valve access door.
10. Plug in the blower accessory, if so equipped.
11. Set thermostat to “ON” and set the desired
temperature setting.
Normally, if the “T-STAT” position was
selected, the main burner is cycled on and off by
the Thermostat or the “on”, “off” switch located
on the bottom of the Thermostat body.
TO TURN OFF THE GAS TO THE APPLIANCE
Turn the gas control knob clockwise to “OFF”
position. If shutting the unit off for the non-
heating season, this will improve the overall
efficiency of the unit as the heat from the pilot is
wasted in the summer. When putting the unit
back into service follow the lighting instructions
described on this page.
VARIABLE OUTPUT CONTROL
The gas control valve is equipped with a
variable output control. This control varies the
rate of heat produced by the unit by varying the
gas pressure to the main burner tube.
DAILY OPERATIONS
The homeowner easily operates the Santa Fe
gas-fired heater. The unit comes with a standard
thermostat. Remote thermostats, or wall
switches are available for purchase from your
local HearthStone dealer. Once the thermostat is
installed and properly adjusted, the desired room
temperature is maintained. By adjusting the
variable output control located on the gas control
valve, the rate of heat output can be varied to
meet the heating requirements of the season.
Choosing a low flame setting will result in
longer burn cycles at a reduced output, while
choosing a high flame setting will result in a
shorter, hotter burn cycle. Through trial and
error, the homeowner can select the optimum
flame size for their setting, and application. Also
available is a variable speed blower. (Kit# 93-
57010)

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
5
INSTALLER’S
INFORMATION
Codes
Adhere to ALL local codes or, in their absence,
the latest edition of THE NATIONAL FUEL
GAS CODE ANSI Z223.1 (NFPA 54) or
CAN/CGA B149 Installation Code, which can
be obtained from:
AMERICAN NATIONAL STANDARDS
INSTITUTE, INC.
1430 BROADWAY
NEW YORK, NY 10018
OR
NATIONAL FIRE PROTECTION
ASSOCIATION, INC.
BATTERY MARCH PARK
QUINCY, MA 02269
The appliance when installed, must be
electrically connected and grounded in
accordance with local codes or, in the absence of
local codes, with the current NFPA 70-National
Electrical Code or CSA C22.1-Canadian Electric
Code.
A manufactured home (mobile) OEM
installation must conform with the Manufactured
Home Construction and Safety Standard, Title
24 CFR, Part 3280 (U.S.) or Standard for
Manufactured Home Installation, ANSI/NCBCS
A225.1 or Standard for Gas Equipped
Recreational Vehicles and mobile Housing, CSA
Z240.4.CAN/SCA Z240 MH (Canada).
(Installer l’appareil selon les codes ou
règlements locaux, ou, en l’absence de tels
règlements, selon les Codes d’installation
CAN/CGA-B149.)
For installations from 610-1370 meters (2000-
4500 ft.) the orifice sizes (DMS) for natural and
propane gas are 32 and 52 respectively. See
data plate for additional information. For high
altitude installations consult the local gas
distributor or the authority having jurisdiction
for proper rating methods. If the installer must
convert the unit to adjust for varying altitudes,
the information sticker must be filled out by the
installer and adhered to the appliance at the
same time of conversion. (Cet appareil est
equipè pour des altitudes compries entre 0 et
2000 pieds (0-610 m) seulement.)
CERAMIC LOG SAFETY INFORMATION
If the decorative ceramic logs supplied with the
Santa Fe are damaged, they must be replaced.
HearthStone supplies replacement parts through
your local HearthStone dealer. Do not replace
ceramic logs, or the embers, with any materials
not approved by HearthStone Quality Home
Heating Products, Inc.
UNPACKING AND INSPECTION
Unpack and Inspect for Damage
The Santa Fe is packaged by the manufacturer to
withstand normal shipment without damage.
However, damage can still occur during transit,
so take care to inspect for damage when
unpacking and installing the unit. If any damage,
or a missing part, is detected, immediately
contact your dealer. Do not install or put into
service a damaged or incomplete heater.
The unit should appear to be square and level.
The sheet metal parts should be smooth and free
of bends or dents. The enameled cast iron
should be free of chips or cracks. If visible, or
concealed damage is found, contact your dealer.
The decorative ceramic logs supplied with the
Santa Fe are located in the firebox. Always use
great care when handling the decorative ceramic
logs, as they are very fragile and subject to
damage and breakage. To open the firebox:
remove the front door screw with the supplied
Allen wrench, take care not to chip the enamel,
and swing the door open. Remove the lag bolts,
which fasten the unit to the pallet. Take care not
to chip the enameled legs. Have someone help
lift the stove off the pallet, and set it into place.

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
6
Packing List
1-Santa Fe Gas-fired Heater containing:
5-Decorative Ceramic Logs
1-Pan Burner
1-Owner’s Manual and Warranty
Charcoal Embers (with Rock Wool)
1-Accessory box containing:
1-1/8” Allen key for front door
1-Ash Lip
1-Top Grille
1-Thermostat with Thermostat Wire
2-Extension control Knobs
1-LP Conversion kit
2-Stone Clips
ITEMS REQUIRED FOR INSTALLATION
* External regulator (for propane/L.P.G. only)
* Piping which complies with all codes
* Pipe sealant approved for use with
propane/L.P.G. (resistant to sulfur compounds)
* Manual shutoff valve
* Sediment trap (page 16)
* Tee joint
* Pipe wrench
* Phillips head screwdriver
* Other parts as required by local code
*Safety Glasses
*Gloves
AIR SUPPLY
The Santa Fe Direct-vent does not require
additional installer provided ventilation
STOVE DIMENSIONS & CLEARANCES TO
COMBUSTIBLES
Always maintain clearances around the air
openings in the stove. This allows for adequate
ventilation. (as shown in Figures 3, & 4.)
HEARTH REQUIREMENT/FLOOR PROTECTION
The Santa Fe can be placed on a non-
combustible surface, or wood floor. For
placement of the Santa Fe on carpeting, vinyl
tile, or other combustible materials, the
appliance must be installed on a metal or wood
panel extending the full width and depth of the
appliance. Installations must meet all codes.
26 3/4"
HearthStone
25"
Figure 1-Santa Fe Dimensions

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
7
Figure 2-Santa Fe Dimensions
CLEARANCE TO COMBUSTIBLES
4" MIN.
2" MIN.
1" MIN.
Figure 3 -Rear and side wall clearances
The corner clearance for the Santa Fe is
2”, to be measured from the edge of the
top castings to the adjacent wall.
2" MIN.
17" max.
14" MIN.
Figure 4 -Top clearances (not to scale)
3 1/8"
233/4"
21 3/4"
21"
22"
25 "

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
8
SPECIFICATIONS:
LISTED: DIRECT VENT GAS HEATER
Model: 8761-Santa Fe 1 DV
Testing Agency: Intertek
Testing Services NA, Inc. (ITS)
Tested to: ANSI Z21.88-
2002•CSA 2.33-M02
CAN/CGA 2.17
Fuel type NG LP
Input rating (Btu/hr) 0-2000 ft 35,000 35,000
Input rating (Btu/hr) 2000-4500 ft 35,000 33,300
Orifice size DMS 0-2000 ft 32 51
Orifice size DMS 2000-4500 ft 32 52
Man. press.-LO setting
(in.w.c./kPa) 1.2/0.3 3.3/0.8
Man. press.-HI setting
(in.w.c./kPa) 3.5/0.87 10.0/2.48
Inlet press.-LO
setting(in.w.c./kPa) 5.0/1.24 11.0/2.88
Inlet press.-HI setting(in.w.c./kPa) 7.0/1.74 13.0/3.22
Minimum input rating rating
(Btu/hr) 21,500 20,400
Maximum output (Btu/hr) 0-2000
ft 25,600 25,600

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
9
VENTING INFORMATION
There are many configurations of vent
installations for your stove. Please review
the following pages for the venting
installation that works best for you.
Note: Vent terminals must not be recessed into
walls, or siding
VENT CONNECTION
1. The Santa Fe 1 Direct Vent is approved for
installation only with the vent connecting
components listed on this page and Simpson
Dura-Vent Direct Vent GS, AmeriVent Direct,
or Secure Vent systems. Use the following
instructions along with the pipe manufacturer’s
instructions to complete the installation.
2. Attach the inner starter collar and gasket to
the unit with the eight # 8 x ½" Phillips Head
sheet metal screws.
3. Place the outer starter collar and gasket onto
the back of the stove. Secure the outer adapter
with the eight # 8 x ½" Phillips Head sheet
metal screws that are provided. Install the rest of
the vent system according to the manufacturer’s
instructions.

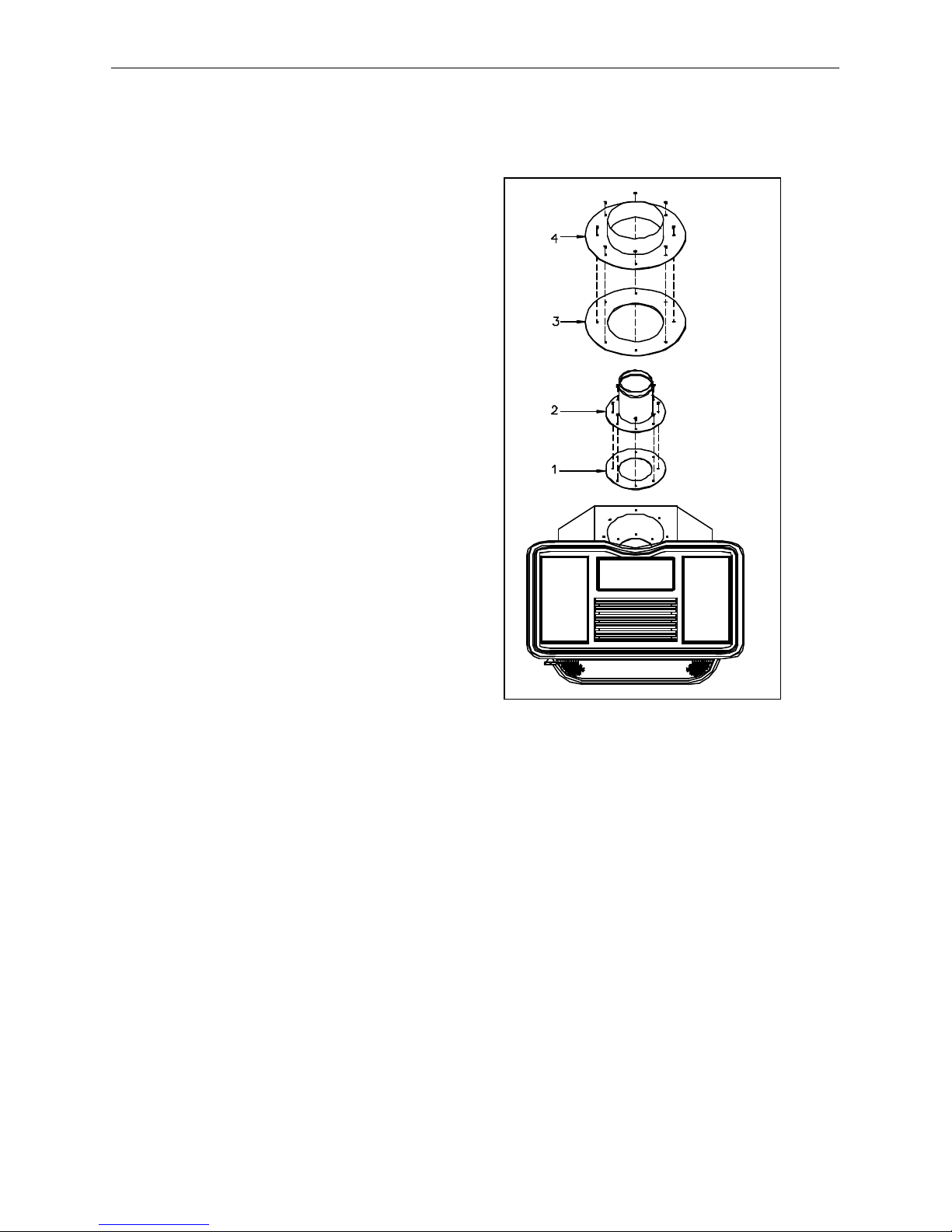

1. Gasket 4”
2. Inner starter
3. Gasket
4. Outer Starter
Figure 5

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
10
Approved Possible Vent TERMINATION locations.

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
11
Note: The Standard Horizontal Vent Kit does
not require a restrictor.
The vent/air intake termination clearances above
the high side of an angled roof as follows:
Roof Pitch Feet Meters
Flat to 6/12 1 0.3
7/12 to 9/12 2 0.6
10/12 to 12/12 4 1.2
13/12 to 16/12 6 1.8
17/12 to 21/12 8 2.4
Figure 6
APPROVED VENTING SYSTEM
COMPONENTS
Component Description
900 Elbow
450 Elbow
6" Straight
9" Straight
12" Straight
24" Straight
36" Straight
48" Straight
11"-14 5/8" Adjustable Pipe Length
Horizontal Vent Cap
Vertical Vent Cap
Snorkel 36”
Vinyl Siding Standoff 4 x 65/8”
Round Ceiling Support Wall
Thimble Covers
Wall thimble
If the vent air intake system, for any reason,
is disassembled, it must be reinstalled per the
instructions provided for in the initial
installation or in this manual.
VENT CONFIGURATION OPTIONS
I. STANDARD HORIZONTAL INSTALLATION
Kit #93-65000)
NOTE:
Install the 45º elbow over the outer collar. Place
the elbow so that the twist lock end is pointing
up. Install the 2’ pipe section into the elbow by
fully inserting it, and turning approximately ¼
turn clockwise until the two sections are fully
locked. Install the 90º elbow in similar fashion.
NOTE: BE SURE THERE IS NO WIRING OR
PLUMBING IN THE CHOSEN WALL LOCATION.
Move the stove and pipe assembly back until the
90º elbow is flush to the wall. The 2’vertical
pipe should be parallel to the wall. Draw a
circle around the pipe. Use the center of this
circle as the center point of the 10” x 10” square
wall pass through. Cut and frame the wall for
the vent pipe. Install the horizontal vent
termination on the outside of the wall. Make
sure both of the retaining straps extend through
the interior wall. Before attaching the vent
termination to the outside of the house, run a
bead of non-hardening mastic around the outside
edges, between the vent termination and the
wall. The arrow on the end cap should point up.
Secure the cap to the wall with the appropriate
screws.
Put the adjustable (11”-14”) pipe into the
horizontal vent cap, (the vent pipe must extend
into the horizontal vent cap a minimum of 1 ¼”).
Move the stove and vent pipe into position,
insert the adjustable (11”-14”) pipe into the 90E
elbow, twist lock it. Secure the straps from the
horizontal vent termination to the interior pipe
with two sheet metal screws, keeping screws as
close to the wall thimble as possible. Bend or
cut the excess strapping so the thimble cover
will fit properly. Screw the thimble cover to the
wall.
•The adjustment range of the wall
thickness for this configuration is
3”min-9”max.

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
12
VENT RESTRICTOR
To adjust your restrictor for maximum flame
appearance, loosen the Phillips head screw and
spin the locator, found on the rear left side of the
stove. (Refer to figure 7)
Figure 7
II. FIREPLACE VENTING INSTALLATIONS
-40' maximum system height (without offsets)
-14' maximum offset (refer to Figures 8-9)
-Maximum rise to run = 1 to 5 (refer to Figures8-9)
-The termination must fall within the area outlined in Figure 8 and the Chart in Figure 7.

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
13

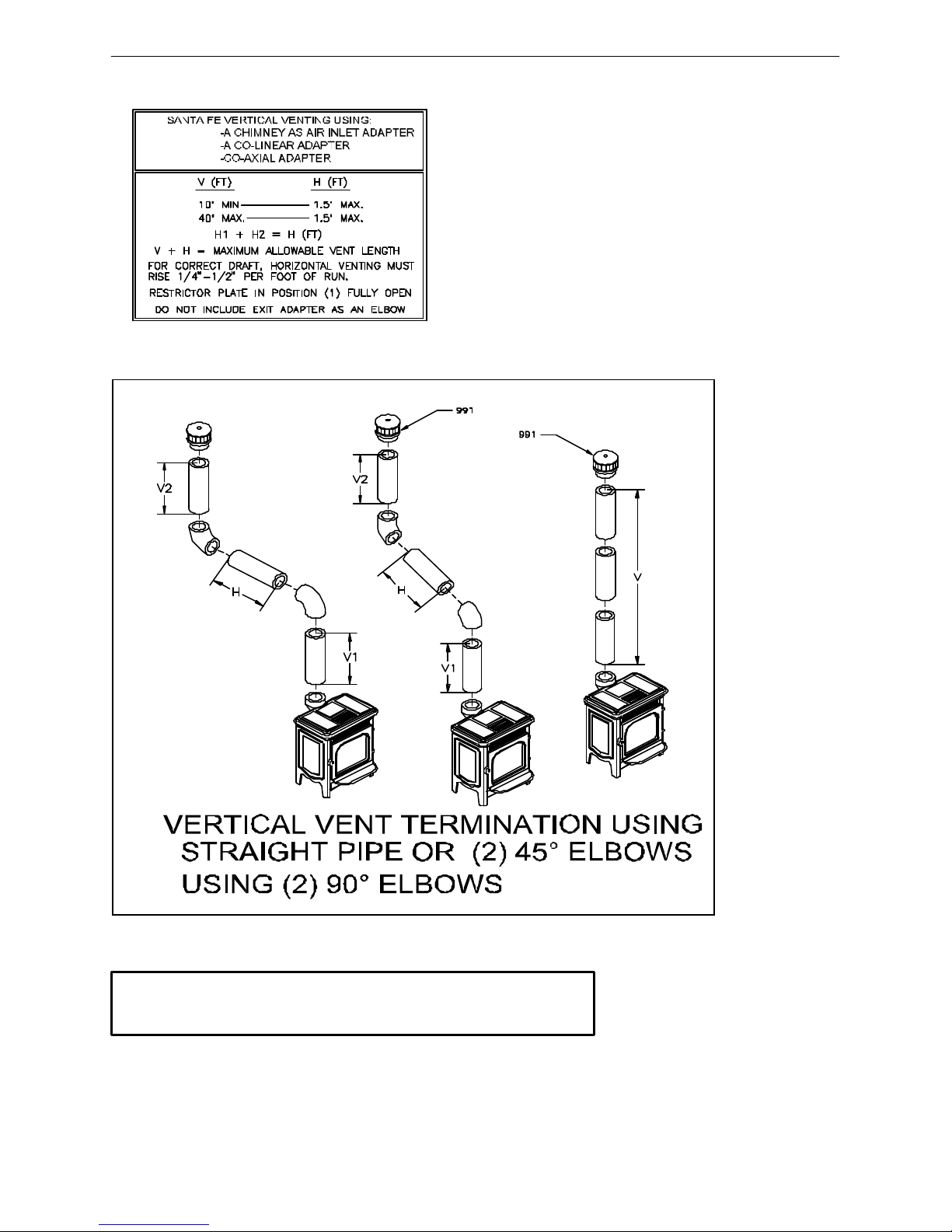

III. VERTICAL TERMINATION VENTING CONFIGURATIONS
-40' maximum system height (without offsets)
Figure 8
The Authority Having Jurisdiction must be consulted before
proceeding with these installation methods.

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
14
Figure 9
IV. Horizontal TerminationVenting
Configurations
-A minimum of 24" rise is required (with or w/o
offsets)
-40' maximum system height (without offsets)
-Maximum rise to run = 1 to 5 (refer to Figures
8 & 9)
-The termination must fall within the area
outlined by the shaded area shown in Figure 7.
Use a vinyl siding Stand off when installing
against vinyl siding.
-Horizontal sections require a 1/4" rise every 12"
of horizontal run.
-For each 900 elbow after the second, remove 5'
from horizontal run.
-Use with snorkel termination 45" maximum
horizontal run.

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
15
Figure 10 Approved DV Venting Configurations for Horizontal Termination
Conditionally approved for purchased mobile
home installation. This appliance may be
installed in an aftermarket permanently
located, manufactured (mobile) home, where
prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used, available
through your local HearthStone dealer.
Cet appareil peut être installé dans un maison
préfabriquée (mobile) déjà installée à demeure
si les règlements locaux le permettent.
Cet appareil doit être utilisé uniquement avec
les types de gas indiqués sur la plaque
signalétique. Ne pas l’utiliser avec d’autres gas
sauf si un kitde conversion certifié est installé

HearthStone Quality Home Heating Products, Inc SANTA FE 1 Gas-Fired Direct Vent heater
16
Figure 11
GAS CONNECTIONS
The gas supply line connection is made to the
Santa Fe’s gas control valve located under the
unit on the left side using a 3/8" NPT fitting.
The pipe must be sized to provide sufficient gas
supply to meet the maximum demand of the
unit. The supply line must include a manual
shut-off valve and union so that the unit can be
disconnected for servicing.
Use of a dedicated sediment trap is required by
code, and by Hearthstone. Damage to
components caused by the lack of a sediment
trap is not covered by warranty.
Once connected to the gas supply, the gas inlet
pressure, and manifold gas pressure, must be
tested. The gas control valve has built in
pressure taps for test gauge connections. The
supply line pressure must be tested to ensure it
meets the minimum pressure for the type of fuel
in use (NG or LP).
Pressure Measurements: To measure the gas
pressures, connect a manometer to the gas inlet
tap (6) and manifold pressure tap (7) in Figure
11.
3" MIN.
Cap
Nipple
To Equipment
Inlet Tee Fitting
Gas Supply
Inlet
SEDIMENT TRAP
GAS PRESSURE ADJUSTMENT
A qualified technician must connect the heater to
the gas supply, and leak test the unit before it is
approved for use. Consult all applicable codes.
The appliance, and its main gas valve, must be
isolated from the gas supply piping system by
closing its individual manual shutoff valve
during any pressure testing of the gas supply
piping system at test pressures equal to or
greater than ½ psig (3.5kPa).

HearthStone Quality Home Heating Products Inc SANTA FE 1 Gas-Fired Direct Vent heater
17
REPLACING THE GLASS
To replace the front glass, shut the pilot light off.
Remove the front screw, using the 1/8” hex
wrench provided. Open the door. Take care and
pull the door up and remove it from its hinges.
Remove the eight Phillips head screws in the
frame and pull the frame and glass off the door.
If the glass is broken, pull the broken fragments
of glass away from the door using heavy-duty
gloves, as the pieces will be very sharp.
Carefully replace the glass gasket as necessary,
and replace the door.
•WARNING! Do not use substitute
materials. Use only parts that have been
supplied by HearthStone, through an
authorized HearthStone dealer.
•CAUTION! Do not clean the glass while
the unit is hot. Allow approximately one
hour before attempting cleaning.
LOG PLACEMENT
Place only the decorative ceramic log set
supplied with the unit in the firebox. This log set
is specifically designed to work with the
provided pan burner. Do not use any other type
of ceramic logs, wood logs, or other materials in
the firebox. If the original log set is damaged, or
broken, contact your HearthStone dealer for
replacement. The decorative ceramic log set will
last a long time, however, they will break easily
if subjected to rough or improper handling.
Exact positioning of the log set is required in
order to obtain a pleasing flame pattern and
efficient combustion. Incorrect log placement
can cause carbon build-up; excess thermal stress
on the log set and stove parts, reduced
efficiency, and high levels of carbon monoxide.
If the log set does not fit into the firebox exactly
as outlined, contact your dealer for assistance.
INSTALLATION OF THE LOG SET
(Refer to the figures in this section)
Caution-Do not place embers near the pilot.
1. Open the front door using a 1/8” hex
wrench. Loosen the bolt that fastens the
doorknob to the door. It also unfastens the
door from the firebox by turning it
counterclockwise. Be careful not to chip
the enamel when loosening the bolt. Pull
the door open by grabbing the top edge of
the doorframe.
WHEN INSTALLING THE LOGS BE
SURE NOT TO COVER ANY SLOTTED
PORTS ON THE BURNER SURFACE
2. Remove the packaging material around
the log set assembly. Be careful not to damage
the log set when unpacking. Observe the 5
mounting “posts”, A, B, C, D, and E.
3. Gently slide the Y-shaped Log (1) onto
pins A and C, as shown below.
4. Gently slide the longer, “half” log (2)
onto pin D. Be sure to position the rear of the
log in front of the pilot assembly and against
the left side of the firebox as shown below.
5. Gently slide the shortest of the “half”
logs (3) onto pin B as shown below.

HearthStone Quality Home Heating Products Inc SANTA FE 1 Gas-Fired Direct Vent heater
18
6. Gently slide the medium length of
the “half” logs (4) onto pin E as shown
below.
7. Gently slide the long unbroken log
(5) onto pins C and D as shown below.
8. Spread evenly across the front portion of
the Pan Burner, one layer high, the Charcoal
Embers. You may or may not need to use all of
the Charcoal Embers. Keep the rest for use
in the future. Locate and open the bag of rock
wool. Pull apart small pieces of the wool and
sprinkle over the Charcoal Embers randomly.
This wool will glow once the unit is running.
Figure 12
9. With a 1/8" hex head wrench, use the
bolt to fasten the door to the firebox. Make
sure the door is properly secured to the firebox
before lighting the unit. Be careful not to chip
the enamel when fastening the door.
REMOVAL OF LOG SET
•Caution! Log set and charcoal embers
will retain heat and can be very hot, if
previously lit! Allow at least 1 hour
after pilot light is turned off before
handling.
To remove the log set, follow the
Installation of Log Set instructions in the
reverse order.
•Caution! Fragile! Handle log set and
charcoal embers with care.
LIGHTING THE UNIT THE FIRST TIME
SMOKE AND FUMES WARNING
When lit for the first time, the Santa Fe will emit
some smoke and odors. This is normal “off-
gassing” of the paints and oils used in the
manufacturing, and assembly of the unit. Open
windows to vent the room if necessary. The off
gassing and fumes will subside after the first 10
to 20 minutes of operation.
Once the Santa Fe is set in place and connected
as described previously, the unit is ready to be lit
for the first time. HearthStone tests each Santa
Fe before shipment, so ignition should take
place without failure.

HearthStone Quality Home Heating Products Inc SANTA FE 1 Gas-Fired Direct Vent heater
19
PILOT LIGHT
The Santa Fe has a piezoelectric spark igniter
(the red or black push button located next to the
gas control valve behind the valve access door),
which ignites the pilot light by means of a spark
at the pilot light assembly. Do not attempt to
light the unit with a match or by any means
other than the piezoelectric spark.
PILOT ADJUSTMENT
The pilot light is preset by the manufacturer and
should not need adjustment. The pilot light
flame must be large enough to engulf the
thermopile and thermocouple located next to the
pilot, but not so large as to create excessive
noise or consume excessive gas. (refer to figure
13) However, it can be adjusted by means of the
pilot light adjustment screw located on the gas
control valve. Open the valve door to access the
pilot adjustment screw. Note that the pilot flame
must engulf the thermopile so that the
thermopile can generate sufficient milli-voltage
(325 to 500-mv) to power the millivolt gas
control valve
Before lighting, smell all around the appliance
area for gas. Be sure to smell next to the floor
because some gases (LPG) are heavier than air
and will settle on the floor. If you smell gas,
check for leaks. Use only your hand to turn the
gas control knob. Never use tools.
•WARNING! The control has an
interlockdevice.If thestovehas been
lit, it will not relight immediately.
After shutting off all gas flow, the
pilot burner cannot be relit until the
thermocouple has cooled, allowing the
electromagnet to be released (Approx.
60 sec.). The gas control knob is
designed to operate by hand. Do not
use any tools during this operation.
Figure 13
INITIAL ADJUSTMENTS
AIR SHUTTER ADJUSTMENTS
The air shutter, located at the lower rear center
of the stove, is adjustable while the stove is
burning by loosening the set nut on the adjusting
bolt located on the lower rear left of the stove.
This nut is hot and should not be touched. Use
only metal tools for this adjustment. Loosen the
set nut using a 7/16” wrench and turn the bolt to
adjust the flame pattern. Turn the bolt clockwise
to open the air shutter, and counterclockwise to
close the shutter. When the flame pattern is
correct, tighten the set nut without letting the
bolt turn. The air shutter is factory set and only
a qualified gas technician should make
adjustments.
Note: Very little movement is needed to
substantially change the burn and flame patterns.
Some conditions cannot be corrected through air
shutter adjustment; an adjustment must be made
to the gas supply pressure. Supply line/manifold
gas line pressure adjustments must be performed
by qualified service personnel. Do not attempt
to complete any part of the installation or
adjustment of this unit unless technically
qualified to do so.
