Installation Requirements
Due to continuing product improvements, Heartland Appliances reserves the right to amend specifica-
tions without notice. Please contact Heartland for the most up to date information, as it applies to product
being purchased, or download latest Site Preparation Specifications from www.heartlandapp.com. Help Desk
877-650-5775
Heartland Appliances Inc. 1050 Fountain St North, Cambridge, ON, N3H 4R7
#02023
02-21-2005 © 2005 HEARTLAND APPLIANCES INC.
Model 9100 (page 1 of 2)
• Maximum ducting run: 25 linear feet - subtract 5'
per 90 deg elbow and 2.5' per 45 deg elbow. Do
not use more than two elbows. All duct work
must be metal. Do not use plastic duct. range
hood should never be exhausted into a wall
cavity or an attic where an accumulation of
grease could become a fire hazard.
• Installation must be completed in accordance
with all local &national codes.
• To eliminate risk of burns or fire, installation of
cabinet storage space above range should be
avoided. Existing cabinets min clearance 30-1/
4” (76 cm) .
• Use only materials which conform to local codes
in effect.
• Gas cooking appliances produce heat and
moisture - ensure kitchen is well ventilated.
Prolonged intensive use may require additional
ventilation (opening windows or addition of
supplemetary air exhaust sources).
Option 1 - Ventless
installation:
• Requires no further
set up (cooking
fumes are drawn
throughpre-installed
filters and exhausted
through rear of hood,
back into the room.
Safety

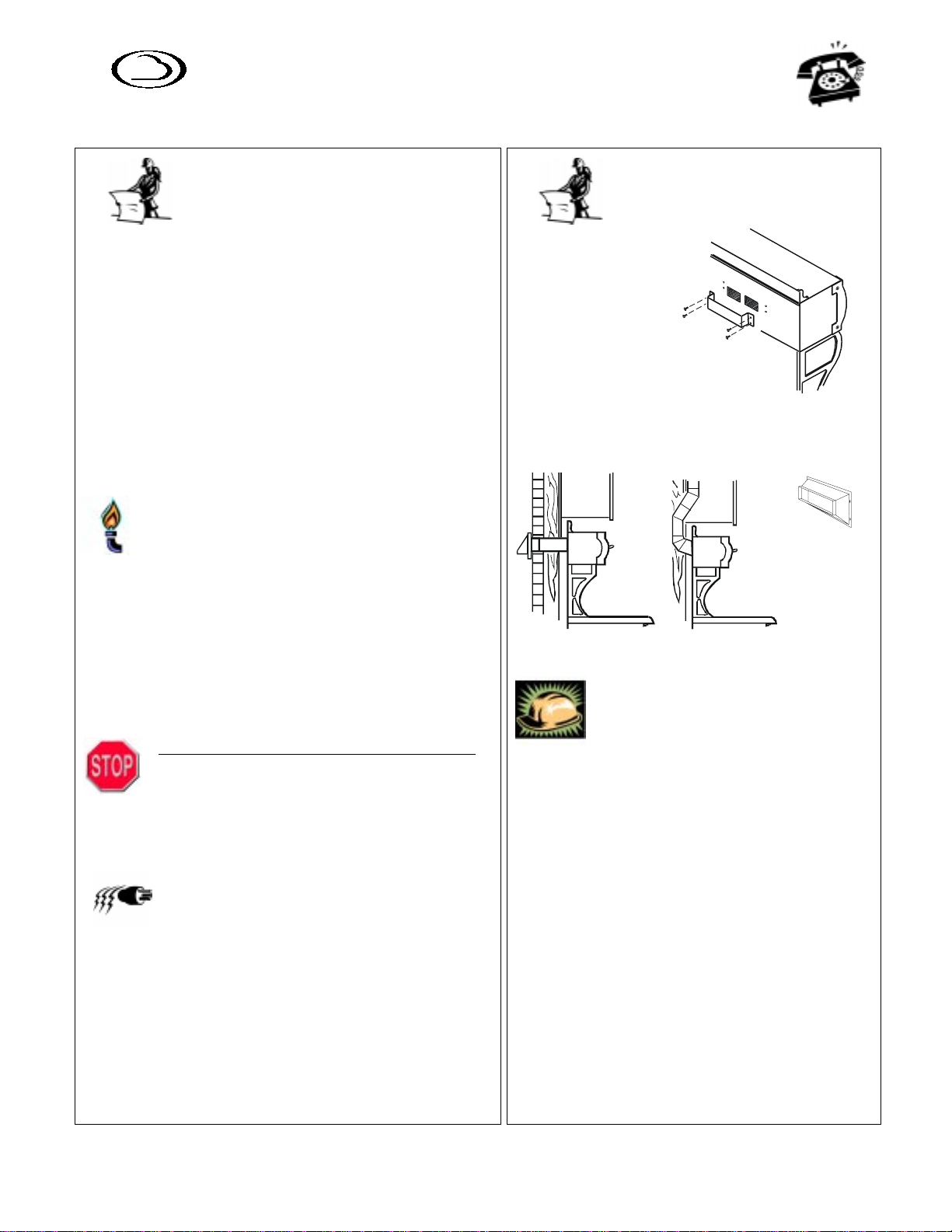

VENTING
Method 1 Method 2
Option 2 - Venting directly outside:
• Method 1 - Installation through outside wall.
• Method 2 - Installation through attic to outside.
3 1/4" x 10"
Exhaust
adaptor
included
with range
Appliance Clearances (see Page 2 for additional details):
• Sides of stove to adjacent surfaces: 1/2” (1.5 cm) min
• Nickel trim to adjacent surfaces: 0” right and left
• Rear clearance: 0”
• Closet right side to cabinetry: 0”
• Top of counter to underside adjacent cabinetry: 18” (46
cm)
• Cooktoptoundersideoverheadcabinets:30-1/4”(77cm)
• Edgeofrangetocombustiblewalloneitherside:6”(15cm)
• Cut out width for range’s manin body: 48-3/4” (124 cm)
• Max. countertop depth: 24” (61 cm); height: 36” (91 cm)
• Max. overhead cabinet depth: 13” (33 cm)
• Note:If unit is installedbesidearefrigeratorit is important
that there be at least 5" (13 cm) between the refrigerator
and range for proper air circulation.
APPLIANCES
• Gas hook-up must be performed by licensed gas fitter.
• NaturalGas/PropaneConversionkitsavailablefromdealer
or factory and must be performed by a licensed gas fitter
• Pressure requirements: Nat Gas: 5” W.C. (min);
LP gas: 11” W.C. (min)
• 5/8” minimum diameter flex line.
• Connection: 1/2” NPT
• An accessible manual shut off valve must be installed at
the appliance.
Appliances installed in the state of Massachusetts
• This appliance can only be installed in the
state of Massachusetts by a Massachusetts
licensed plumber or gas fitter
• This appliance must be installed with a three
(3) foot / 36 inch long flexible gas connector
• A “T” handle type manual gas valve must be
installed in the gas supply line to this appliance
Electrical
Warning
Gas
How-to Steps How-to Steps
• Electrical hookup must be performed by a licenced
electrician
• 120 Volts 60Hz .375 Kw.
• 5 ft (1.5 m) power cord included with 3 prong plug.
• Stove must be electrically grounded in compliance with
local codes. In the absence of local codes, with the
National Electrical code ANSI/NFPA 70 “Latest Edition”
in the US or in Canada with the Canadian Electrical
Code, Part I, CSA Standard C22, or the Local National
Electrical Code.

Installation Requirements
Due to continuing product improvements, Heartland Appliances reserves the right to amend specifica-
tions without notice. Please contact Heartland for the most up to date information, as it applies to product
being purchased, or download latest Site Preparation Specifications from www.heartlandapp.com. Help Desk
877-650-5775
Heartland Appliances Inc. 1050 Fountain St North, Cambridge, ON, N3H 4R7
#02023
02-21-2005 © 2005 HEARTLAND APPLIANCES INC.
Rough In
Dimensions
52”
(132 cm)
with bottom drawer fully open
43-3/4”
(111 cm)
with oven
door open 0” clearance
to the back
3” (7.6 cm)
14”
(36 cm)
29-1/2”
(75 cm)
34”
(86 cm)
Gas
Outlet
6” (15 cm)
10”
(26 cm )
(
Ran
g
e Hood Outlet 3-1/2” x 10-1/2”
8.9 x 26.7 cm )
Receptacle Location
(
use flush mountin
g
j
uction box
)
counter
depth
24”
(61 cm)
5”
(13 cm)
66 3/4”
(169.5 cm)
with std cresting 56”
(142 cm)
cabinet depth
(33 cm)
13”
3-7/8”
(10 cm)
12”
(30.5 cm)
(6” clearance to any
combustible wall)
62 7/8”
(160 cm)
without cresting
33/4"/92mm
Ran
g
e Hood
Outlet : 3 1/4"x 10"
83 mm x 254mm
34 "
864 mm
36 1/8"
917 mm
29 3/4"
756 mm
62 3/8"
1585 mm
66 1/4"
1682 mm
14 7/8 "
378mm
Exhaust
HoodIn
56"
1422 mm
Power In
(
8 ft (2.4m) cord
supplied
direct connection)
Gas Inlet-1/2NPT
29 3/4"
756 mm
62-3/8”
(159 cm)
3-7/8”
(9 cm)
29-3/4”
(76 cm) 29-3/4”
(76 cm)
36-1/8”
(92 cm)
11-3/8”
(29 cm)
29-11/16”
(75 cm)
0
00
30-1/4”
(77 cm) Min 18”
(46 cm)
36”
(91 cm)
