Base Building +1 Extender
10' x 14' Base Building 10' x 10'
STILLWATER 10' x 10' (304,8 x 304,8 cm)
ASSEMBLY MANUAL
VALUE SERIES
KEEP THIS MANUAL FOR FUTURE REFERENCE
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 11.
• CHECK ALL PARTS
Inventory all parts listed on pages 3-6.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See pages 7-8 for required and optional materials and quantities.
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-877-743-3400 email: [e-mail]
BUILDING SIZE ACTUAL FLOOR SIZE
10' x 10' (304,8 x 304,8 cm)
BASE MODEL
10' x 14' (304,8 x 426,7 cm)
ADD (1) 10' x 4'
10' x 10' (304,8 x 304,8 cm)
10' x 14' (304,8 x 426,7 cm)
10/28/202116165

2

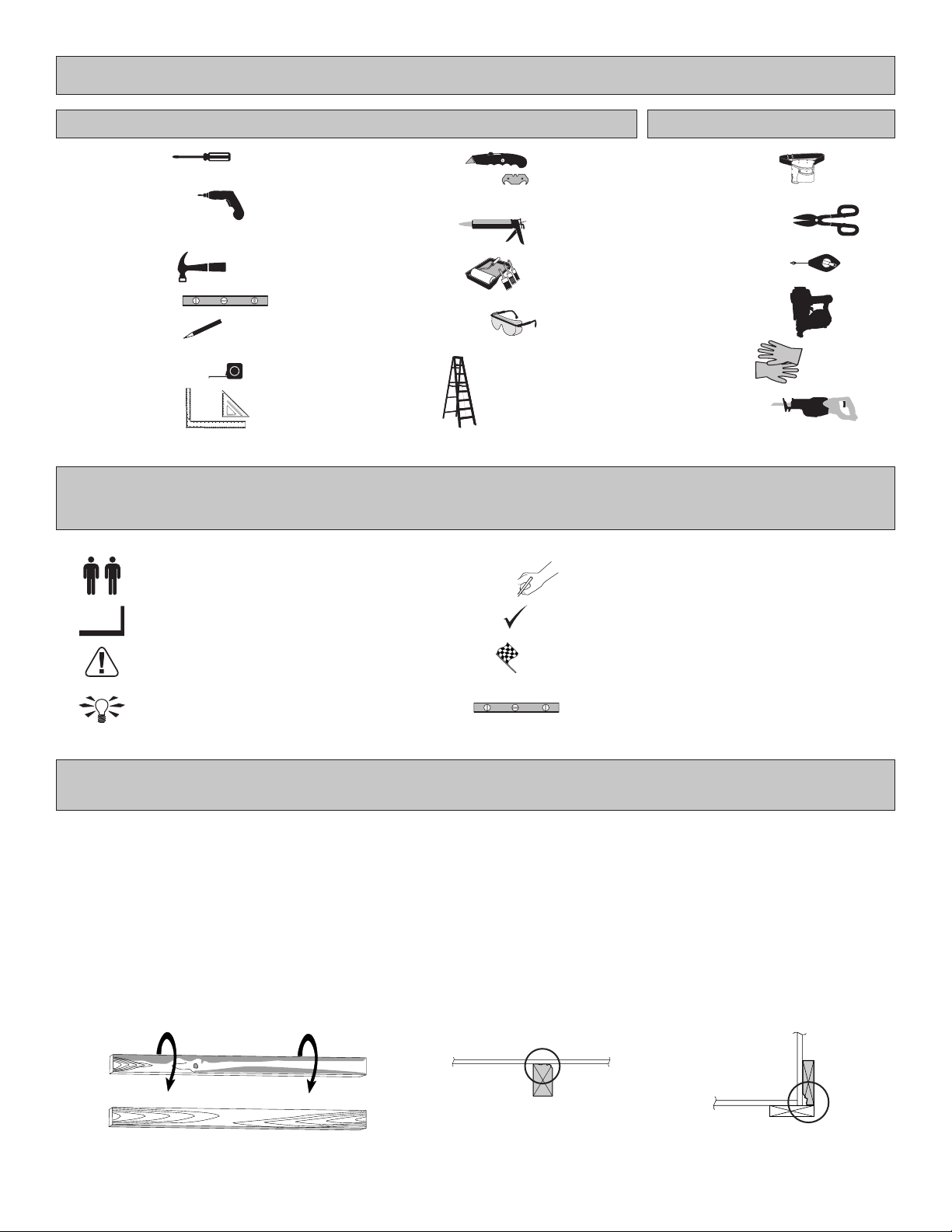

TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑ Phillips
Screwdriver
❑Drill / Driver
❑3/8" Drill Bit
❑#2 Philips Drive Bit
❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑Square or
❑Utility Knife
❑Shingle Blades
B C
❑Sawsall

3
RAFTERSDOORS TRIM WALL
3/4"
(1,9 cm)
x24 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x1 2 x 3 x 72" (5,1 x 7,6 x 182,9 cm)
OY
x5 2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)
TJ
x2 2 x 4 x 96" (5,1 x 10,2 x 243,9 cm)
TP
x2 1 x 3 x 96" (2,5 x 7,6 x 243,9 cm)
BE
2 x 4 x 41-11/16" (5,1 x 10,2 x 105,9 cm)
FIB
x2
2 x 4 x 27-3/8" (5,1 x 10,2 x 69,5 cm)
x1 DPD
2 x 4 x 28" (5,1 x 10,2 x 71,1 cm)
x2 RR
2 x 4 x 24" (5,1 x 10,2 x 61 cm)
x2 RL
2 x 4 x 20-3/8" (5,1 x 10,2 x 51,8 cm)
x4 JBD
2 x 4 x 43-3/16" (5,1 x 10,2 x 109,7 cm)
x2 GPP
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm)
Used as a gauge block for 3/4"
(1,9 cm) measurement.
x1 GAA

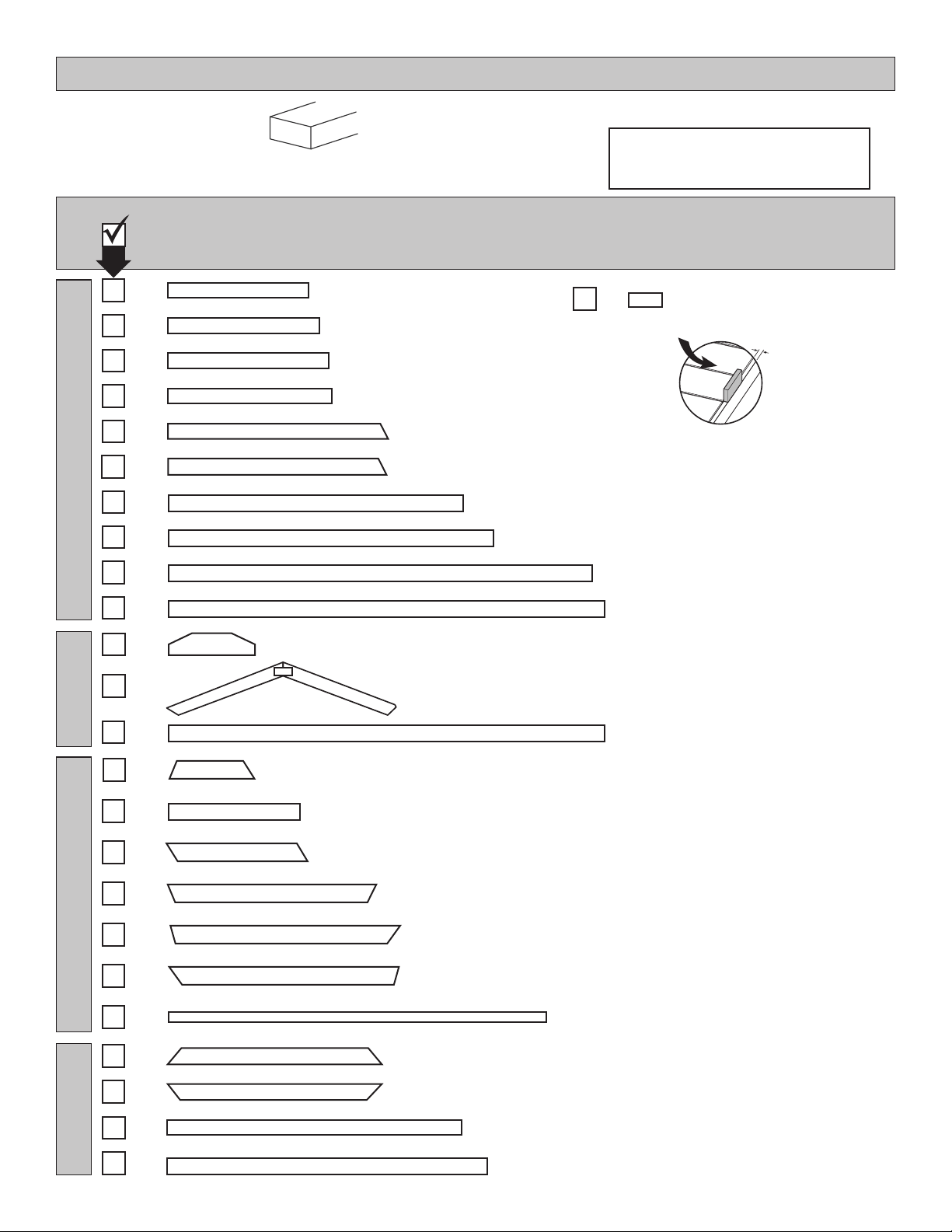

PARTS IDENTIFICATION AND SIZES
Double letter part identication
is stamped on some parts.
• Check these locations for part stamp.
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
RS RS
RS
GAMBREL 10' x 10' PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
10x10'
ZJ
x1 19/32" x 2-1/2" x 72" (1,5 x 6,3 x 182,9 cm)
OO
x2 69" (175,3 cm) Door Stiffener
6 x 24" (15,2 x 61 cm)
x10
x12 Pre-assembled
KX
x4 19/32" x 2-1/2" X 21-3/4"(1,5 x 7,6 x 55,2 cm)
19/32" x 3-1/2 x 40-3/16" (1,5 x 8,9 x 102,1 cm)
AHC
x4
19/32" x 3-1/2 x 48-3/8" (1,5 x 8,9 x 122,9 cm)
BBRx2
19/32" x 3-1/2 x 48-3/8" (1,5 x 8,9 x 122,9 cm)
BBL
x2
19/32" x 2-1/2" x 41-3/4" (1,5 x 6,3 x 106 cm)
CYR
x2
3/8" x 1-3/4" x 71-3/16" (1 x 4,5 x 180,8 cm)
x8
x2 19/32" x 2-1/2" x 12-7/8" (1,5 x 7,6 x 32,7 cm)
JGA
x1 LKA 19/32" x 2-1/2" x 25-3/4" (1,5 x 7,6 x 65,4 cm)
CYLx2 19/32" x 2-1/2" x 41-3/4" (1,5 x 6,3 x 106 cm)

4

x6 x1
3/8 x 48 x 72" (1 x 121,9 x 182,9 cm)
x3
3/8 x 23-7/8 x 72" (1 x 121,9 x 182,9 cm)
x2
3/8 x 15-7/8 x 72" (1 x40,3 x 182,9 cm)
Roof panels are 7/16" (1,1 cm) thick.
PANEL & DOORS PARTS LIST
x1
ROOF PANELS
3/8 x 11-7/8 x 72" (1 x 30,2 x 182,9 cm)
x1
Left
LIP EDGE
SQUARE
EDGE
x1
3/8" x 48" x 48"
(1 x 121,9 x 121,9 cm)
x1
3/8" x 48" x 48"
(1 x 121,9 x 121,9 cm)
x1
3/8" x 48" x 48"
(1 x 121,9 x 121,9 cm)
x1
3/8" x 48" x 48"
(1 x 121,9 x 121,9 cm)
x1
3/8" x 23-7/8" x 52-1/4"
(1 x 60,6 x 132,7 cm)
x1
3/8" x 23-7/8" x 50-13/16"
(1 x 60,6 x 129,1 cm)
x2
48" x 96"
(121,9 x 243,8 cm)
x2
23-7/8" x 96"
(60,6 x 243,8 cm)
x2
23-7/8" x 48"
(60,6 x 121,9 cm)
x2
23-7/8" x 23-7/8"
(60,6 x 60,6 cm)
x2
15-7/8" x 23-7/8"
(40,3 x 60,6 cm)
x2
15-7/8" x 96"
(40,3 cm x 243,8 cm)
3/8 x 11-7/8 x 72" (1 x 30,2 x 182,9 cm)
x1
Right
SQUARE
EDGE
SQUARE
EDGE

5
1-1/4" (3,2 cm)
1-1/2" (3,8 cm)
x185
x68
x25
2" (5,1 cm)
3" (7,6 cm)
3/4" (1,9 cm)
x2
x115
x100
2" (5,1 cm)
1/2" (1,3 cm)
x12
FASTENER/HARDWARE BAG (Shown Actual Size)
NAIL BOXES (Shown Actual Size)
3" (7,6 cm)
2" (5,1 cm)
x3 BOXES
x5 BOXES
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
Not included in base kit.
64"Metal Threshold
x1
Other HARDWARE (Not Actual Size)
3/4" (1,9 cm)
x8
x1
1-1/2" (3,8 cm)
x2
x2
3/4" (1,9 cm)
x11
Bagged separately/
special coating
16" x 8"
x2
1/2" (13 mm)
x12

6
Roof panels are 7/16" (1,1 cm) thick.
WALLRAFTERSROOF PANELS
6" x 24" (15 x 60,1 cm)
x4
x4 Pre-assembled
10' x 4' EXTENDER
GAMBREL EXTENDER KIT PARTS LIST
Inventory your parts before you begin.
We suggest sorting parts by the category they are listed in.

is stamped on some parts.
• Check these locations for part stamp.
RS RS
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
3" (7,6 cm)
x12
HARDWARE
3/8 x 48 x 72"
(1 x 121,9 x 182,9 cm)
x2
x1 1 x 3 x 96" (2,5 x 7,6 x 243,9 cm)
BE
x4 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x4 2 x 4 x 68-3/8" (5,1 x 10,2 x 173,7 cm)
JJA
x2
47-7/8" x 48"
(121,6 x 121,9 cm)
x2
23-7/8" x 47-7/8"
(60,6 x 121,9 cm)
x2
15-7/8" x 48"
(40,3 cm x 121,9 cm)
3" (7,6 cm)
2" (5,1 cm)
x1 BOXES
x1 BOXES

7

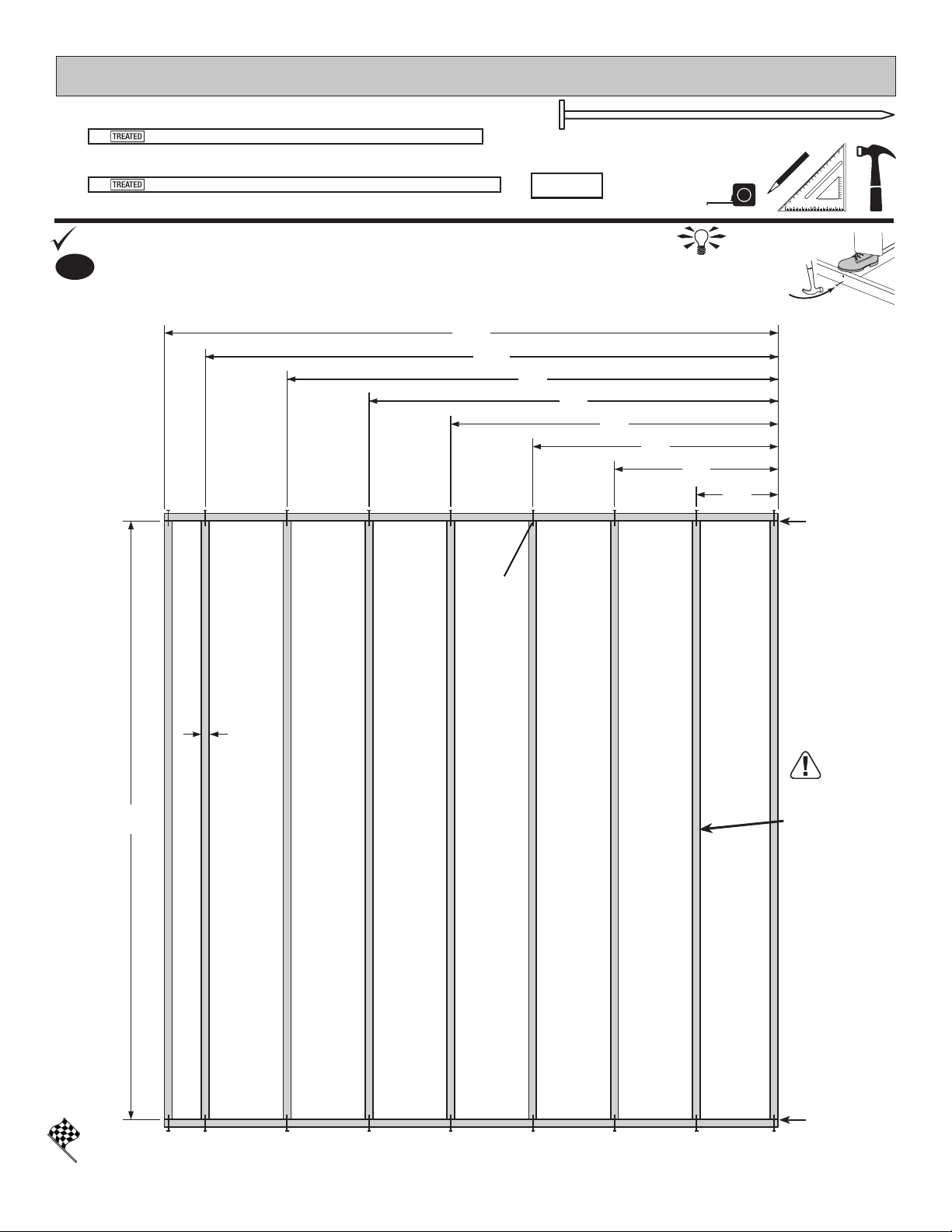

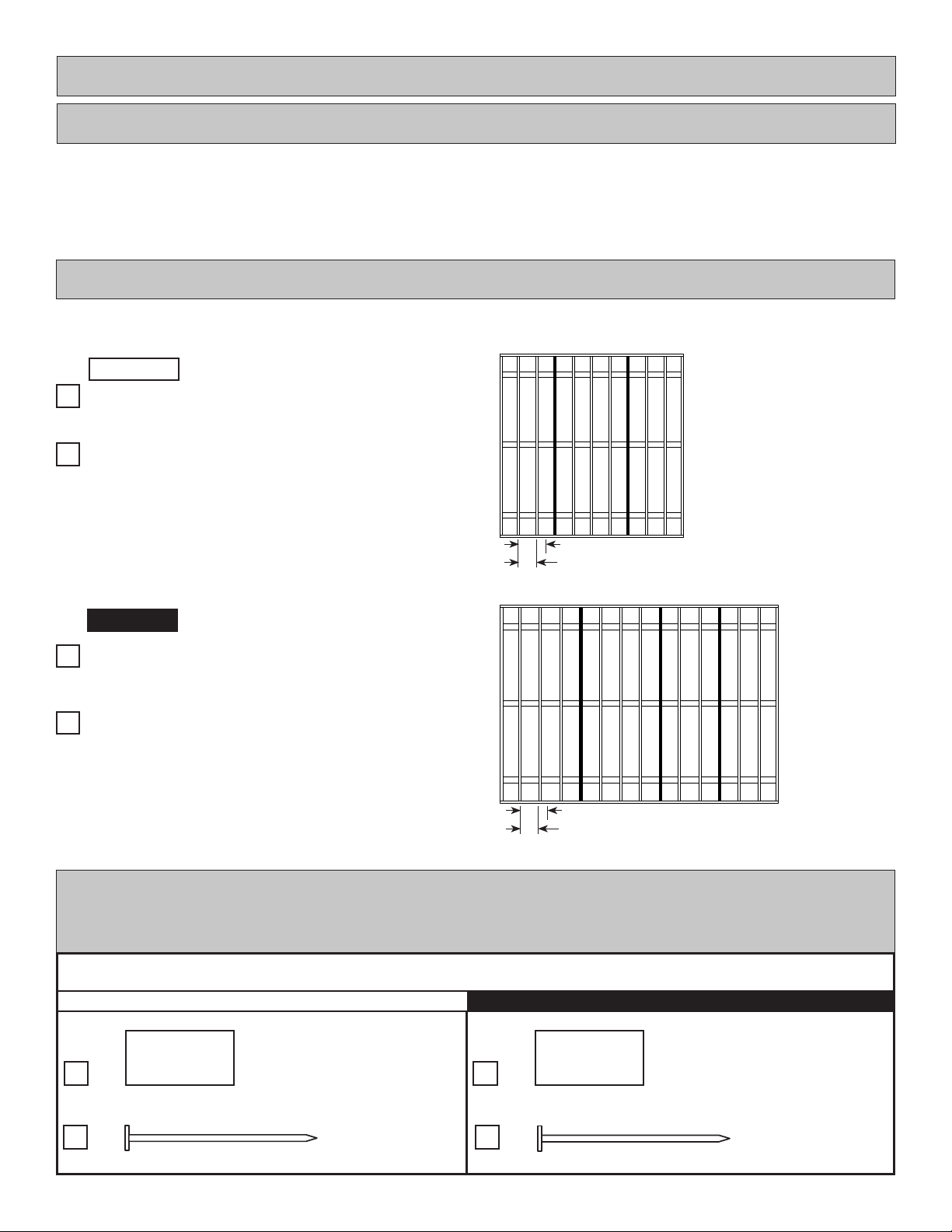

REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! Depending on your specic use you may want to construct a heavy duty oor frame by adding additional oor joists
(shown below as shaded). Below is a list of additional materials (not included):
x2
x3
x8
x12
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm) Treated Lumber
cut to 2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
3" (7,6 cm) hot-dipped galvanized nails
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm) Treated Lumber
cut to 2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
3" (7,6 cm) hot-dipped galvanized nails
10x14'
10x10'
Optional 12" (30,5 cm) spacing
Standard 16" (40,5 cm) spacing
Optional 12" (30,5 cm) spacing
Standard 16" (40,5 cm) spacing
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
• If your shed came with a separate oor kit, then please use the instructions supplied with that kit to assemble your oor.

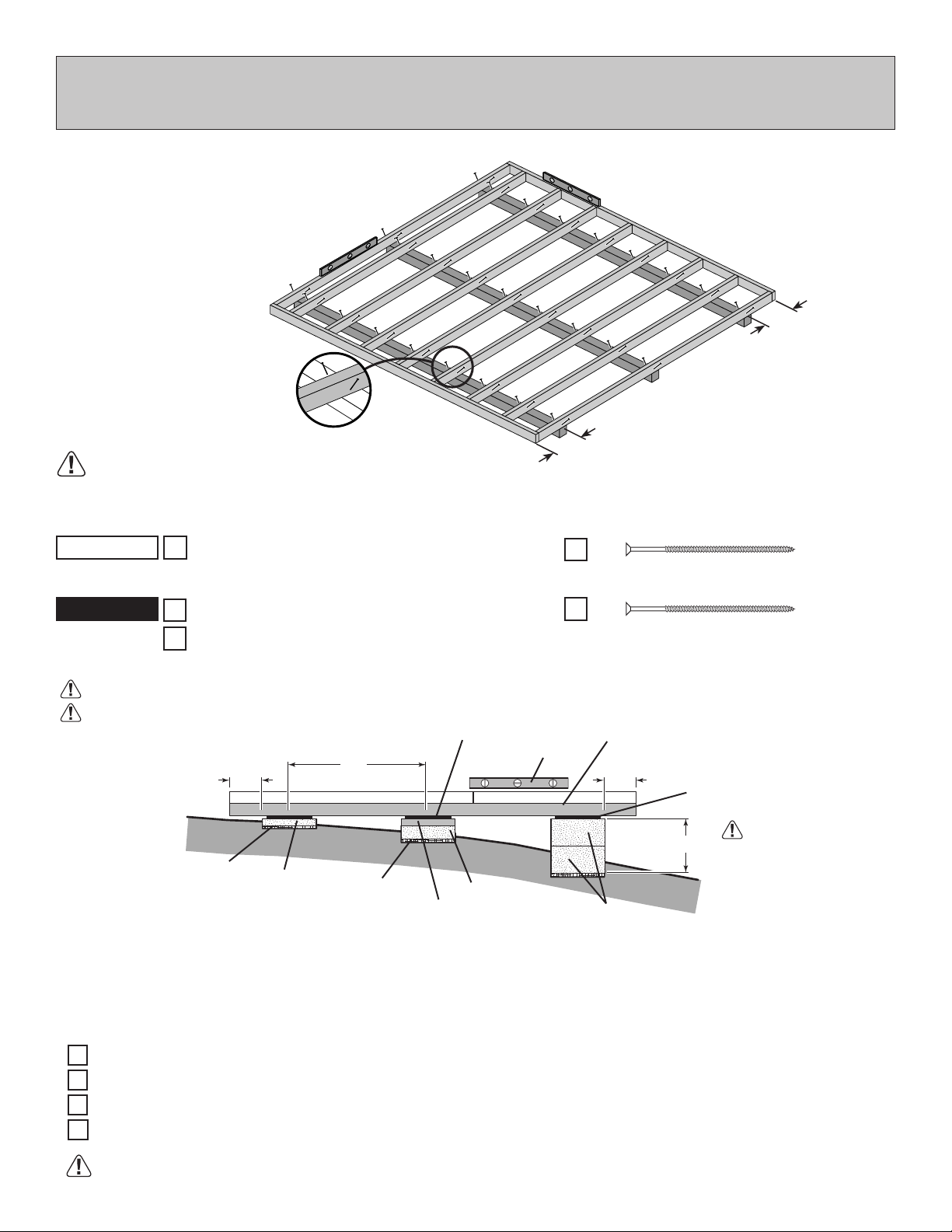

• See the FLOOR LEVELING section on page 11 for recommended methods and suggested materials to properly level your oor,
as this will vary depending on your specic site.
• If you choose to install your oor on a concrete slab, refer to page 9.
• If you choose to build your own wood oor foundation, refer to page 10.
NOTE: Use a minimum of 5/8" (1,6 cm) Oriented Strand Board (OSB)
10x10' 10x14'
2" (5,1 cm) 2" (5,1 cm)
x1 x2
1 lb. of 2" (5,1 cm) Hot
Dipped Galvanized
Box-Type Nails.
1 lb. of 2" (5,1 cm) Hot
Dipped Galvanized
Box-Type Nails.
5/8" x 48" x 96"
(1,6 x 121,9 x 243,8 cm)
x4
5/8" x 48" x 96"
(1,6 x 121,9 x 243,8 cm)
x5
FLOOR PANELS (Not Included)
You will need oor panels and nails to complete your oor.
Floor panel sizes and quantities are shown below.

8
ADDITIONAL MATERIALS
COMPLETING YOUR SHED
You will need these additional materials:
OPTIONAL MATERIALS
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS
FOR INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES (Bundles).........
PAINT FOR SIDING (Gallons).......
Use 100% acrylic latex exterior paint.

For shingles.
Paint for trim/Quart
Use 100% acrylic latex
exterior paint.
Caulk Tubes ...........
Use acrylic paintable
latex exterior caulk.
6
2
3
10x10'
1
3
10x10'
(2) coats recommended.
Drip Edge (Feet).................................


For roong felt.
8
3
4
10x14'
1
4
10x14'
60
1
167
10x10'
60
234
10x14'
1.5

9

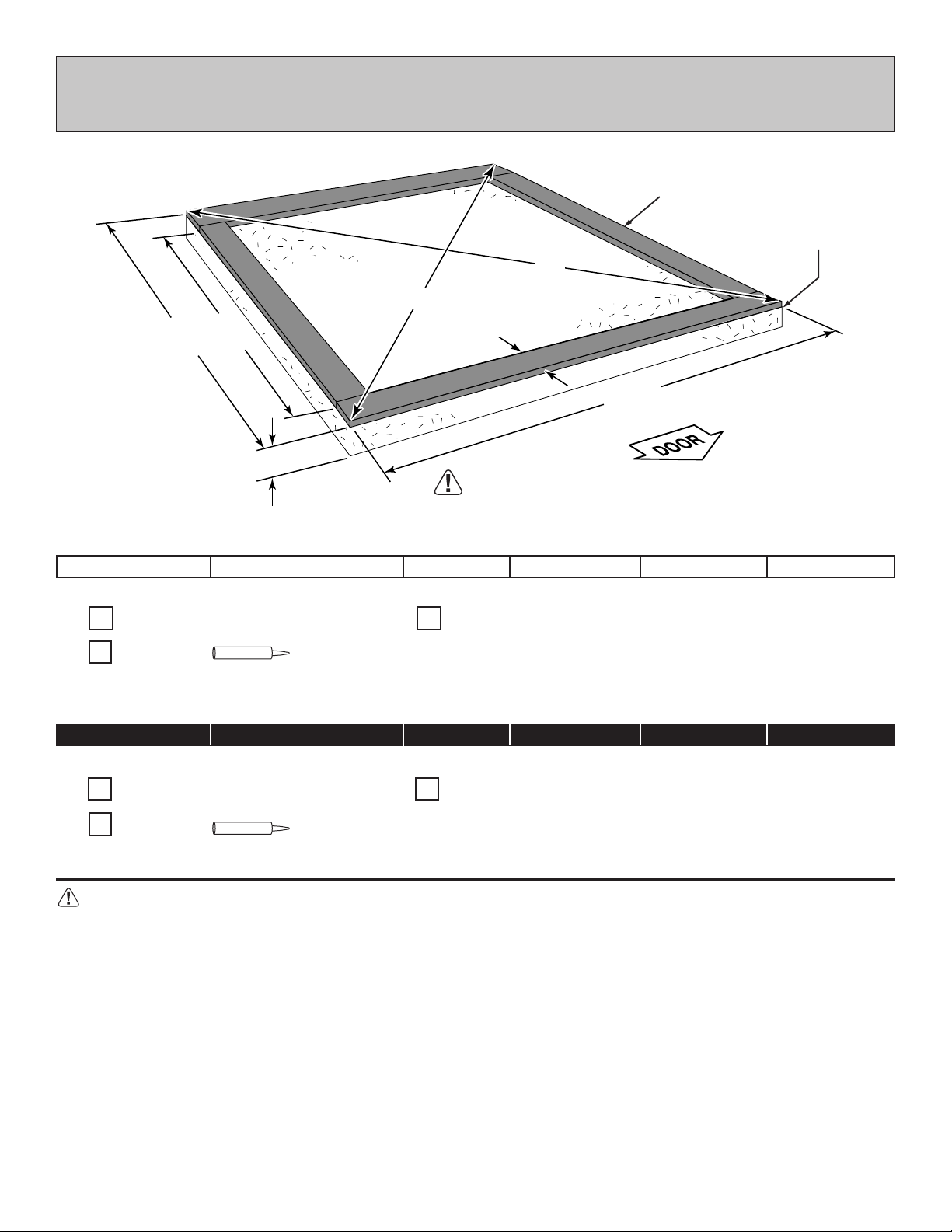

CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
Attach the sill plates on the foundaton as shown, and continue on to page 17.
ABC D
Actual Floor SizeBuilding Size
 
Purchase full length treated lumber, or butt shorter pieces end-to-end and seal seams with caulk.

• Fasten 2x4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).

120" (304,8 cm)
120" (304,8 cm)
113" (287 cm)
161" (408,9 cm)
10'x10' (304,8 x 304,8 cm)
10' x 14' (304,8 x 408,9 cm)
10'x10' (304,8 x 304,8 cm)
10'x14' (304,8 x 408,9 cm)
120" (304,8 cm) 169-11/16" (476,1 cm)
168" (426,7 cm) 206-7/16" (524,4 cm)


2 x 4 x 10' (5,1 x 10,2 x 304,8 cm)
x2 2 x 4 x 10' (5,1 x 10,2 x 287 cm) x2
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm)
x2 2 x 4 x 14' (5,1 x 10,2 x 426,7 cm)
x2
Caulk
Caulk
x1
x1
Allow new concrete slabs to cure for at least seven (7) days.
ABC D
Actual Floor SizeBuilding Size
Cut down to: 113" (278 cm)
Cut down to: 161" (408,9 cm)
A
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
D
D
CB
D
D
Treated Sill Plate
Caulk between
sill plate and
concrete.
Sill plates must be treated lumber.
A

10
117" 120"
120"
16"
(297,2 cm) (304,8 cm)
(304,8 cm)
(40,6 cm)
16" 120"
117"
168"
(40,6 cm) (304,8 cm)
(297,2 cm)
(426,7 cm)
BUILD YOUR OWN WOOD FLOOR OPTION
(Materials not included.)
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm)
2 x 4 x 117" (5,1 x 10,2 x 297,28 cm)
x2
x9
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm)
x2
2 x 4 x 117" (5,1 x 10,2 x 297,28 cm)
x12
MUST be treated lumber
MUST be treated lumber
5/8" x 48" x 96" (1,6 x 121,9 x 243,8 cm)
x4
5/8" x 48" x 96" (1,6 x 121,9 x 243,8 cm)
x5
x1
x2
x36
x48
x54
x72
1 lb. of 2" (5,1 cm) Hot Dipped Galvanized Box-Type Nails
1 lb. of 2" (5,1 cm) Hot Dipped Galvanized Box-Type Nails
3" (7,6 cm) Hot Dipped Galvanized Box-Type Nails
40 Nails - 3" (7,6 cm) Hot Dipped Galvanized Box-Type Nails
3" (7,6 cm)
3" (7,6 cm)
2" (5,1 cm)
2" (5,1 cm)
3" (7,6 cm)
3" (7,6 cm)
MATERIAL REQUIRED
MATERIAL REQUIRED
4 x 4 x 10' (10,2 x 10,2 x 304,8 cm)
Cut to (3) 4 x 4 x 48" (10,2 x 10,2 x 121,9 cm)
x3
4 x 4 x 10' (10,2 x 10,2 x 304,8 cm)
x3
4 x 4 x 12' (10,2 x 10,2 x 365,8 cm)
x1
Screws for Frame to 4"x 4"
Minimum 3" screws / exterior grade.
Screws for Frame to 4"x 4"
Minimum 3" screws / exterior grade.
10' x 10'
10' x 14'

11
10' x 10'
10' x 14'
• 3" Screws angled into 4x4.
• (2) at each point frame
and 4x4 touch.
Runners are generally
12" (30,5 cm) from ends

under seams.
FLOOR FRAME NOT INCLUDED
OPTIONAL WOOD FRAME FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS (Typical for 10' x 10' Kit)
MATERIAL REQUIRED: (Treated Lumber only)
4 x 4 x 10' (10,2 x 10,2 x 304,8 cm)
x3 3" (7,6 cm)
3" (7,6 cm)
Fasteners for Frame to 4x4:
(
3" Screws shown as one option.)
Minimum 3" screws / exterior grade.
Measurements to
centers of 4x4's.
12"
(30,5 cm)
12"
(30,5 cm)
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber.
Never use shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
x54
x72
Cut to (3) 4 x 4 x 48" (10,2 x 10,2 x 121,9 cm)
4 x 4 x 10' (10,2 x 10,2 x 304,8 cm)
x3
4 x 4 x 12' (10,2 x 10,2 x 365,8 cm)
x1

12
16"
32"
48"
64"
80"
96"
112"
120"
117"
(40,6 cm)
1-1/2"
(3,8 cm)
(81,3 cm)
(121,9 cm)
(162,6 cm)
(203,2 cm)
(243,8 cm)
(284,5 cm)
(304,8 cm)
(297,2 cm)
3" (7,6 cm)
x36
x9
2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
x2
2 x 4 x 120" (5,1 x 10,2 x 304,8 cm)
PARTS REQUIRED:
Center
on marks
10' x 10' FLOOR FRAME
Flush
Flush
Look for
Stamp
TREATED
HINT:
For easier nailing
stand on frame.
Arrange parts as shown on at surface. Measure and mark.
Secure with (2) 3" nails at each mark.
Your oor frame is now assembled. Proceed to level and square the frame (page 14).
FINISH
You will
need to cut
120" boards
down to 117".
BEGIN
1

13
112"
128"
144"
160"
168"
16"
32"
48"
64"
80"
96"
117"
(40,6 cm)
1-1/2"
(3,8 cm)
(81,3 cm)
(121,9 cm)
(162,6 cm)
(203,2 cm)
(284,5 cm)
(325,1 cm)
(365,8 cm)
(426,7 cm)
(406,4 cm)
(243,8 cm)
(297,2 cm)
3" (7,6 cm)
x48
x12
2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
x2
2 x 4 x 168" (5,1 x 10,2 x 426,7 cm)
PARTS REQUIRED:
Center
on marks
10' x 14' FLOOR FRAME
Flush
Flush
Look for
Stamp
TREATED
HINT:
For easier nailing
stand on frame.
Arrange parts as shown on at surface. Measure and mark.
Secure with (2) 3" nails at each mark.
Your oor frame is now assembled. Proceed to level and square the frame.
FINISH
You will
need to cut
120" boards
down to 117".
BEGIN
1

14
Measurements to
centers of 4x4's.
Second, secure at ends with
one fastener.
First, secure at ends with
one fastener.
Fig. A
169-11/16"
(476,1 cm)
169-11/16"
(476,1 cm)
• 3" (7,6 cm) screws angled into 4x4.
• (2) at each connnection.
12"
(30,5 cm)
12"
(30,5 cm)
SHED SIZE
4x4 runners are generally installed 12" (30,5 cm) from ends of oor frame and under any seams.
FINISH
Your oor frame is now level.
169-11/16"
(476,1 cm)
206-7/16"
(524,4 cm)

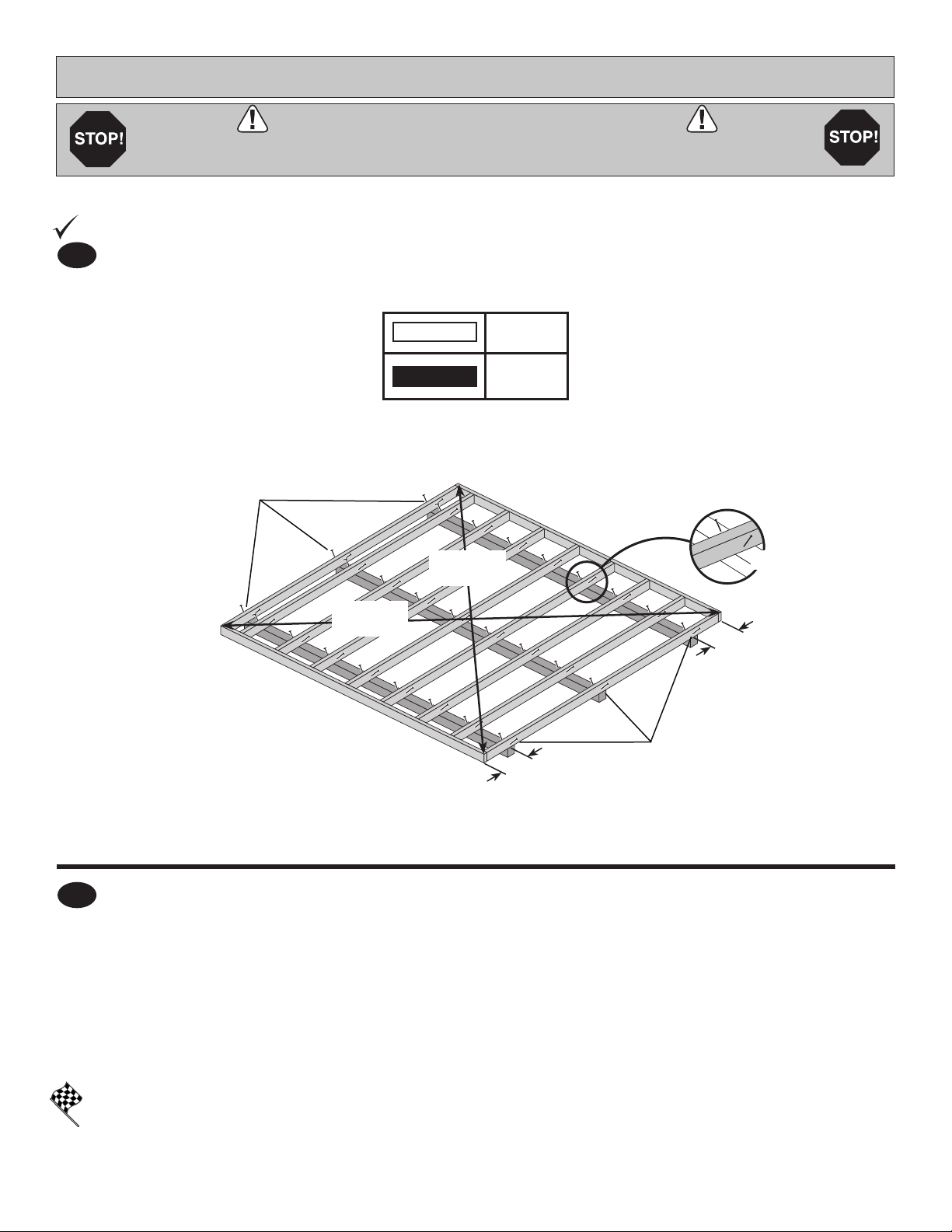

LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
After the frame is level and square, secure one side of frame to 4x4 runners using
one fastener at ends of each runner.
At the opposite end of the frame, secure the frame to 4x4 runners with one
fastener at the ends of each runner, ensuring that the frame remains square.
Fasten the frame to the 4x4 runners with (2) 3" screws at each connection (Fig. A).
2
BEGIN
1
Use a level and ensure the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across the corners (diagonal measurement D).
If the measurements are the same, the frame is square. Use the chart below to determine measurement D.

LEVELING & SQUARING THE FLOOR FRAME (Not Included)
10' x 10'
10' x 14'
NOTE:
10' x 10' oor shown as an example.
D

15
PARTS REQUIRED: Precut panels to these sizes:
x2
x1
x2
x1
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
5/8 x 23-7/8 x 96"
(1,6 x 60,6 x 243,8 cm)
5/8 x 23-7/8 x 48"
(1,6 x 60,6 x 121,9 cm)
5/8 x 23-7/8 x 23-7/8"
(1,6 x 60,6 x 60,6 cm)
x212 2" (5,1 cm)
10' x 10' FLOOR PANELS
2
1
BEGIN
¸
1
FINISH
Your oor panels are now installed.
Install (1) additional 48"x 96" panel
as in step 1.
Secure with (1) 2" nail in each corner.
Install (4) additional pre-cut panels,
as shown.
Secure all panels with 2" nails spaced
6" apart on edges and 12" apart
inside panels.
3/4" Gauge
Block
3/4" Gauge
Block
3/4" Gauge
Block

measurement along panel edge.
BEGIN HERE 3/4"
(1,9 cm)
6" (15,2 cm)
12" (30,5 cm)
Flush
Flush
23-7/8" x 48"
48" x 96"
48" x 96"
23-7/8" x 48"
23-7/8" x 96"
23-7/8 x 23-7/8"
Flush
Flush
Flush
Flush
Flush
Flush
Flush
Flush
3/4" GAUGE
BLOCK
Place (1) 48"x 96" panel on frame,
ush to edges.
Use GAA as a gauge block to maintain
the 3/4" measurement on the oor joist.
Secure the panel with 2" nails spaced
6" apart on edges and 12" apart
inside panel.
Install all panels with the painted grid lines facing up.
3/4"
(1,9 cm)
6" (15,2 cm)
12" (30,5 cm)
Flush

16
PARTS REQUIRED:
x2
x1
x1
x1
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
5/8 x 23-7/8 x 96"
(1,6 x 60,6 x 243,8 cm)
5/8 x 23-7/8 x 48"
(1,6 x 60,6 x 121,9 cm)
5/8 x 47-7/8 x 47-7/8"
(1,6 x 121,6 x 121,6 cm)
x256 2" (5,1 cm)
10' x 14' FLOOR PANELS
2
1
BEGIN
¸
1
FINISH
Your oor panels are now installed.
Install (1) 48"x 72" panel,
as in step 1.
Secure with (1) 2" nail
in each corner.
Install (5) additional panels,
as shown.
Secure all panels with 2" nails
spaced 6" apart on edges
and 12" apart inside panels.
3/4" Gauge
Block
3/4" Gauge
Block
BEGIN HERE 3/4" (1,9 cm)
6" (15,2 cm)
12"
(30,5 cm)
23-7/8" x 72"
23-7/8" x 48"
48" x 72"
48" x 96"
47-7/8" x 48"
23-7/8" x 96"
Flush
Flush
Flush
Flush
Flush Flush
Flush
Flush
Flush
3/4" GAUGE
BLOCK
Place (1) 48"x 96" panel on
frame, ush to edges.
Use GAA as a gauge block to
maintain the 3/4" measurement
on the oor joist.
Secure the panel with 2" nails
spaced 6" apart on edges
and 12" apart inside panel.
Install all panels with the painted grid lines facing up.
6" (15,2 cm)
x1
5/8 x 23-7/8 x 72"
(1,6 x 60,6 x 182,9 cm)
Precut panels to these sizes:
x1
5/8 x 48 x 72"
(1,6 x 121,9 x 182,9 cm)
Flush
Flush
48" x 96"

17

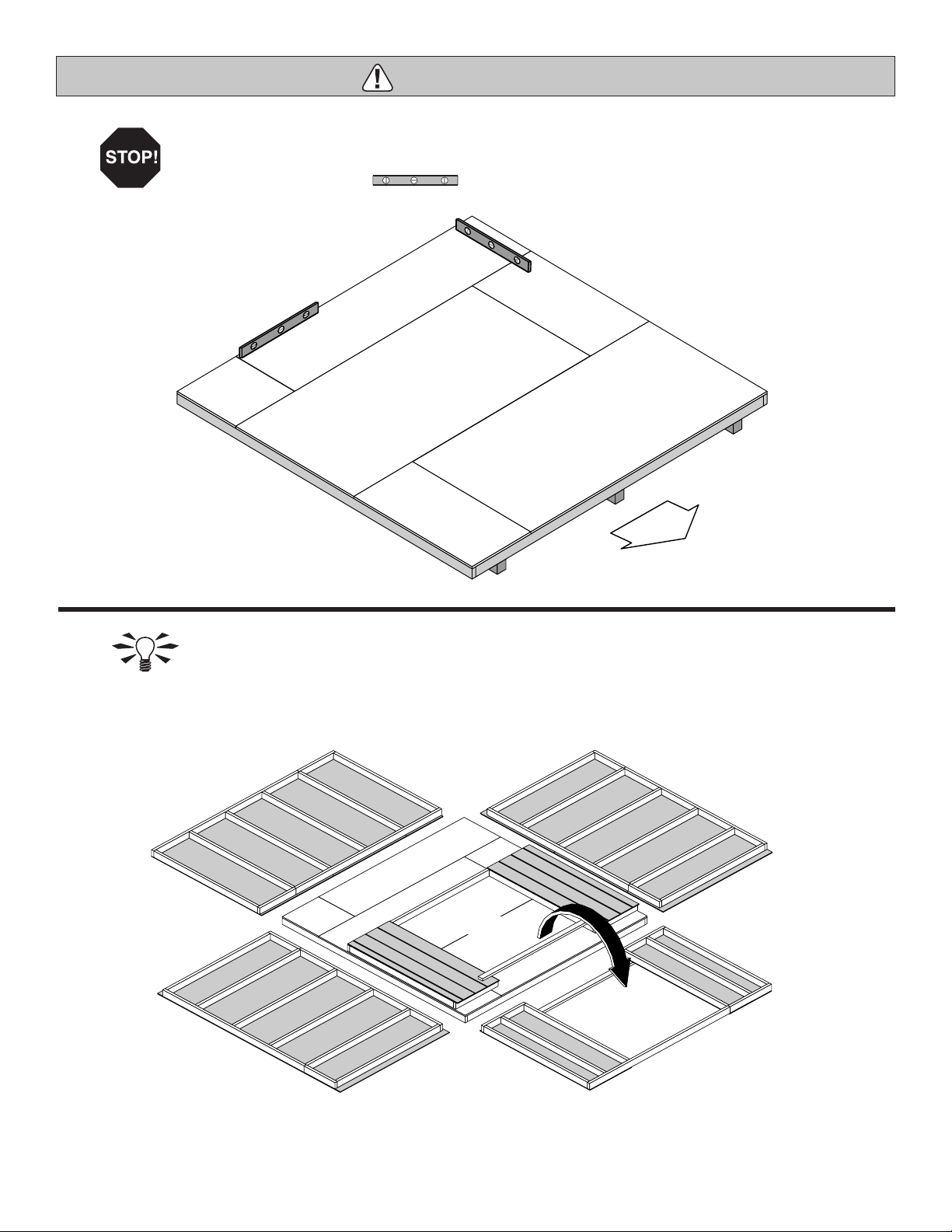

IMPORTANT!
IMPORTANT!

• Organize your assembly procedure during the build process
to avoid over-handling of the walls.
HINT:
DOOR
EAVE WALL
EAVE WALL GABLE WALL
GABLE WALL
GABLE WALL

NOTE: 10' x 10' oor shown as an example.

18
10' x 10' After assembling the walls for your 10' x 10' shed, go to page 28 for wall installation.
10' x 14' After assembling the walls for your 10' x 14' shed, go to page 33 for wall installation.
10' x 10'
Wall 01: Page 20
Wall 02: Page 22
Wall 03: Page 24 (Build 2 eave walls)
10' x 14'
Wall 01: Page 20
Wall 02: Page 22
Wall 04: Page 26 (Build 2 eave walls)
WALL INDEX
01
01
02
02
03
04
03
04
