Building 10' x 8'
06/08/2022
CLASSIC 10' x 8' (304,8 x 243,8 cm)
ASSEMBLY MANUAL 16653-G
KEEP THIS MANUAL FOR FUTURE REFERENCE
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.

Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.

Contact our Customer Service Team if engineered drawings are needed to pull local permits.


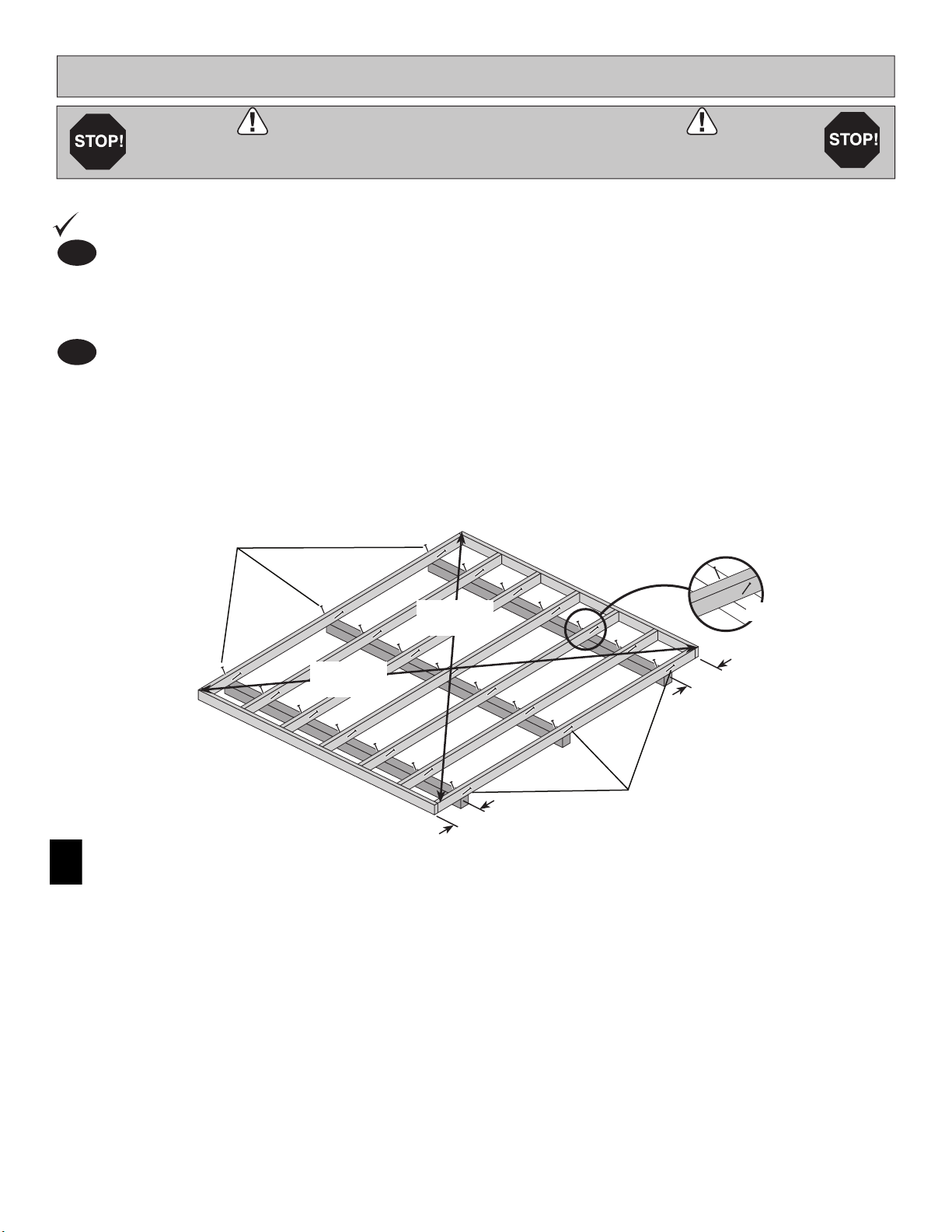

To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 9.

Inventory all parts listed on pages 7.

You will need additional materials to complete your shed. See pages 3-4 for required and optional materials and quantities.
BUILDING SIZE ACTUAL FLOOR SIZE
10' x 8' (304,8 x 243,8 cm) 10' x 8' (304,8 x 243,8 cm)
VALUE SERIES
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-877-743-3400 email: [e-mail]

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired

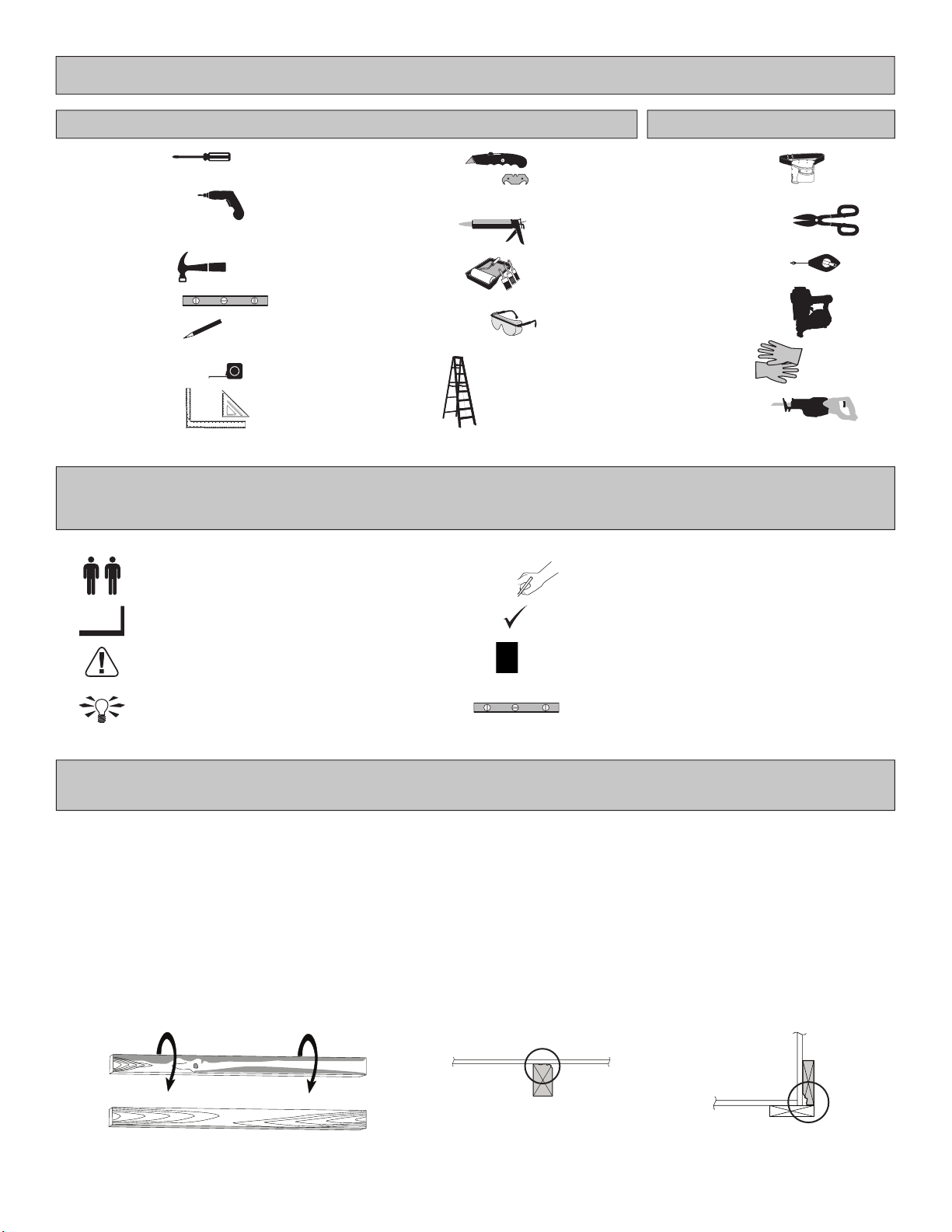

HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have  nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑ Phillips
Screwdriver
❑Drill / Driver
❑3/8" Drill Bit
❑#2 Philips Drive Bit
❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑Square or
❑Utility Knife
❑Shingle Blades
B C
❑Sawsall

3
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
• If you purchased a separate oor kit, use instructions and materials in that kit to construct your oor.
• See the FLOOR LEVELING section on page 9 for recommended methods and suggested materials to properly level your oor,
as this will vary depending on your specic site.
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! Depending on your specic use you may want to construct a heavy duty oor frame by adding additional oor joists
(shown below as shaded). Below is a list of additional materials (not included):
x2
x8
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm) Treated Lumber
cut to 2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
3" (7,6 cm) hot-dipped galvanized nails
Optional 12" (30,5 cm) spacing
Standard 16" (40,5 cm) spacing

4
ADDITIONAL MATERIALS
COMPLETING YOUR SHED
You will need these additional materials:
OPTIONAL MATERIALS
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES (Bundles)..................... 5
PAINT FOR SIDING (Gallons)................... 2
Use 100% acrylic latex exterior paint.

PAINT FOR TRIM ......................1 Quart
Use 100% acrylic latex exterior paint.
WOOD GLUE ................. Exterior Rated
CAULK ...................................... 2 Tubes
Use acrylic latex exterior caulk that is paintable.
(2) coats recommended.
DRIP EDGE (Feet)....................................... 50
#15 ROOFING FELT (Sq ft. to cover)........ 114
¼
For roong felt.
For shingles

5
RAFTERSTRIM WALL
3/4"
(1,9 cm)
6 x 24" (15,2 x 61 cm)
x8
x5 2 x 4 x 7" (5,1 x 10,2 x 17,8 cm)
AL
x2 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
x1 7/16" x 3-1/4" x 66-3/4" (1,1 x 8,3 x 170,2 cm) OSB
x2 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x1 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
TM
x18 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
x2 2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)
TJ
x4 2 x 4 x 96" (5,1 x 10,2 x 243,9 cm)
TP
x1 2 x 4 x 84" (5,1 x 10,2 x 213,4 cm)
TO
x4 2 x 4 x 89" (5,1 x 10,2 x 226,1 cm)

2 x 4 x 65" (5,1 x 10,2 x 165,1 cm)
x10 AD
19/32" x 3-1/2" x 71-15/16" (1,5 x 8,9 x 182,7 cm)
x2 AUR
3/8" x 1-3/4" x 83-1/2" (1 x 4,5 x 212,1 cm)
x8
2 x 4 x 36" (5,1 x 10,2 x 91,4 cm)
x1 SL
2 x 4 x 28" (5,1 x 10,2 x 71,1 cm) ,
x2 RR
2 x 4 x 24" (5,1 x 10,2 x 61 cm)
x2 RL
2 x 4 x 20-3/8" (5,1 x 10,2 x 51,8 cm)
x2 JBD
2 x 4 x 18-1/8" (5,1 x 10,2 x 46 cm)
x4 AF 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm)
Used as a gauge block for 3/4"
(1,9 cm) measurement.
x1 GAA
AH
x2 19/32" x 2-1/2" x 26-5/8" (1,5 x 6,3 x 67,7 cm)
EU
x2 19/32" x 2-1/2" x 17" (1,6 x 7,6 x 43,2 cm)
DI
x2 19/32" x 2-1/2" x 12" (1,5 x 6,3 x 30,5 cm)
PARTS IDENTIFICATION AND SIZES
Double letter part identication
is stamped on some parts.


Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
RS RS
RS

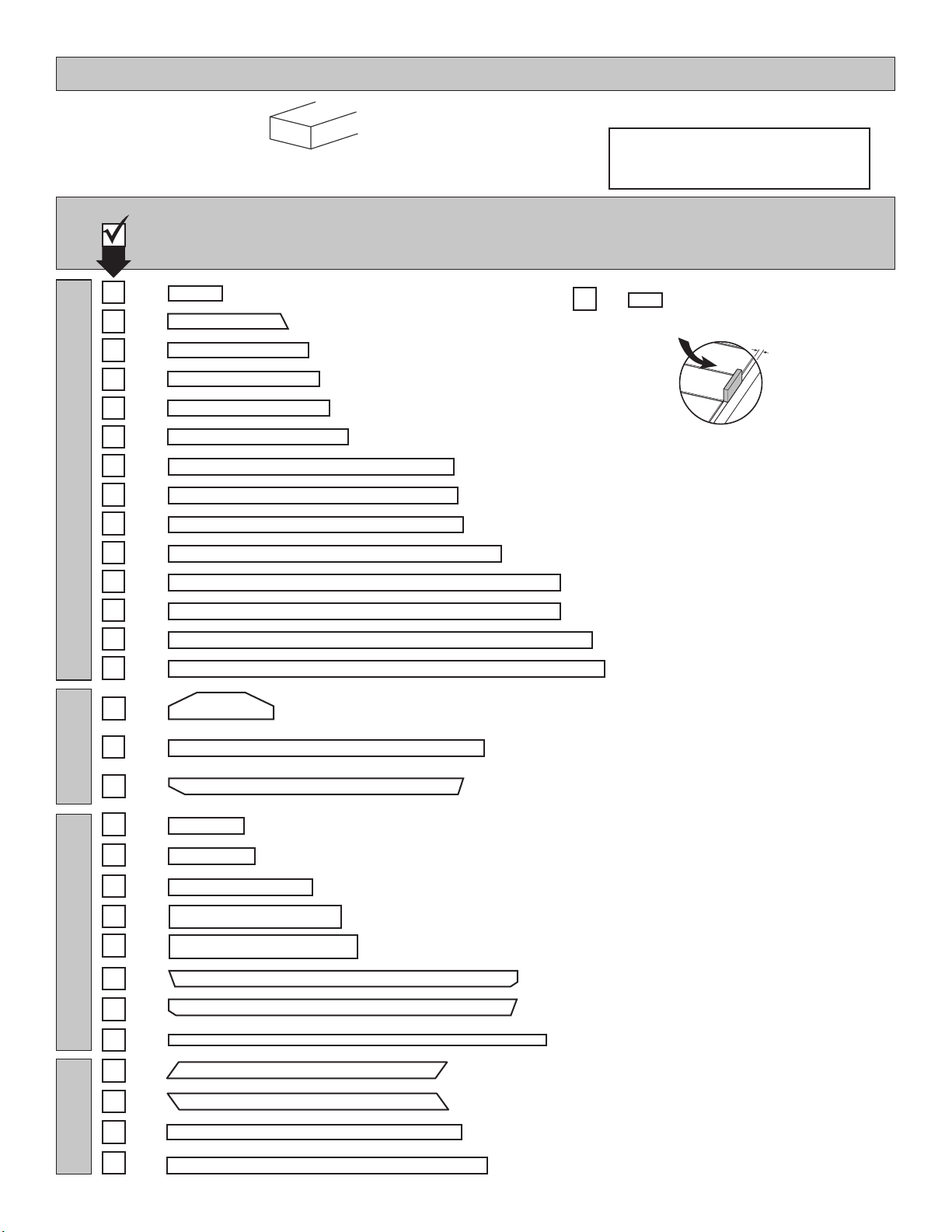

GABLE 10' x 8' PARTS LIST

We suggest sorting parts by the category they are listed in.
10x8'
x2 AUL 19/32" x 3-1/2" x 71-15/16" (1,5 x 8,9 x 182,7 cm)
x2 2 x 6 x 48" (5,1 x 15,2 x 121,9 cm)

x2 2 x 6 x 49-3/4" (5,1 x 15,2 x 126,4 cm)
WTC
DOORS
AHR
x1 19/32" x 2-1/2" x 62" (1,5 x 6,3 x 157,5 cm)

x1 19/32" x 2-1/2" x 72" (1,5 x 6,3 x 182,9 cm)
OO
x2 69" (175,3 cm) Door Stiffener
AHL
x1 19/32" x 2-1/2" x 62" (1,5 x 6,3 x 157,5 cm)

6

x1x6 x1 x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm) 3/8 x 23-7/8 x 84" (1 x 121,9 x 213,4 cm)
3/8 x 11-7/8 x 84"
(1 x 30,2 x 213,4 cm)
3/8 x 11-7/8 x 84"
(1 x 30,2 x 213,4 cm)
Roof panels are 7/16" (1,1 cm) thick.
x2 x2
48" x 96"
(121,9 x 243,8 cm) 23-1/2" x 96" (59,7 x 243,8 cm)
PANEL & DOORS PARTS LIST
x1 x1
ROOF PANELS
x1
Left x1 Right
LIP EDGE
SQUARE
EDGE SQUARE EDGE SQUARE EDGE
x2 x1 x1
3/8" x 23-9/16" x 48"
(1 x 59,9 x 121,9 cm) 3/8" x 23-9/16" x 23-7/8" (1 x 59,9 x 60,6 cm) 3/8" x 23-9/16" x 23-7/8" (1 x 59,9 x 60,6 cm)
x2
3/8" x 23-9/16" x 48"
(1 x 59,9 x 121,9 cm)
Loft panels are 7/16" (1,1 cm) thick.
x1 15-7/8" x 23-7/8" (40,3 x 60,6 cm)
LOFT PARTS LIST
x1 23-7/8" x 96" (60,6 x 243,8 cm)
2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
x1 PT
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
x2 TP
2 x 3 x 23-7/8"
(5,1 x 7,6 x 60,6 cm)
x1 LW
2 x 4 x 24"
(5,1 x 10,2 x 61 cm)
x2 RL

7
1-1/4" (3,2 cm)
1-1/2" (3,8 cm)
x150
x80
x25
2" (5,1 cm)
3" (7,6 cm)
3/4" (1,9 cm)
x55
x85
x85
2" (5,1 cm)
1/2" (1,3 cm)
x12
Other HARDWARE (Not Actual Size)
FASTENER/HARDWARE BAG (Shown Actual Size)
NAIL BOXES (Shown Actual Size)
3" (7,6 cm)
2" (5,1 cm)
x5 BOXES
x5BOXES
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
x4
3/4" (1,9 cm)
x12
64"Metal Threshold
x1
3/8"LOFT HDW. SET:
5-1/2"Hex bolt,
2 at washers, lock nut
x2
3/4" (1,9 cm)
x8
x1
1-1/2" (3,8 cm)
x2
Window
x1
x2
x8
SHELVING PARTS LIST
2 x 3 x 10"
(5,1 x 7,6 x 25,4 cm) 1 x 4 x 23-78" (2,5 x 10,2 x 60,6 cm)
3/8 x 8 x 12-1/2"
(1 x 20,3 x 32 cm)
1 x 4 x 96"
(2,5 x 10,2 x 243,9 cm)
7/16 x 11-7/8 x 23-7/8"
(1,1 x 30,2 x 60,6 cm) 7/16 x 11-7/8 x 96" (1,1 x 30,2 x 243,9 cm)
x12 x2
x12 x2
x2 x2
AC WJ
KP
Shelf panels are 7/16" (1,1 cm) thick.
x2

8
CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
Attach the sill plates on the foundaton as shown, and continue on to page 11.
ABC D
Actual Floor SizeBuilding Size
 
Purchase full length treated lumber, or butt shorter pieces end-to-end and seal seams with caulk.



120" (304,8 cm) 89" (226,1 cm)10'x8' (304,8 x 304,8 cm)
10'x8' (304,8 x 304,8 cm) 96" (243,8 cm) 153-11/16" (476,1 cm)
10' x 8' Building Requires:
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm)
x2 2 x 4 x 8' (5,1 x 10,2 x 304,8 cm) x2
Caulk
x1
Allow new concrete slabs to cure for at least seven (7) days.
Cut down to: 89" (226,1 cm)
A
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
D
D
CB
D
D
Treated Sill Plate
Caulk between
sill plate and
concrete.
Sill plates must be treated lumber.
A

9


and 4x4 touch.
Runners are generally
12" (30,5 cm) from ends

under seams.
FLOOR FRAME NOT INCLUDED

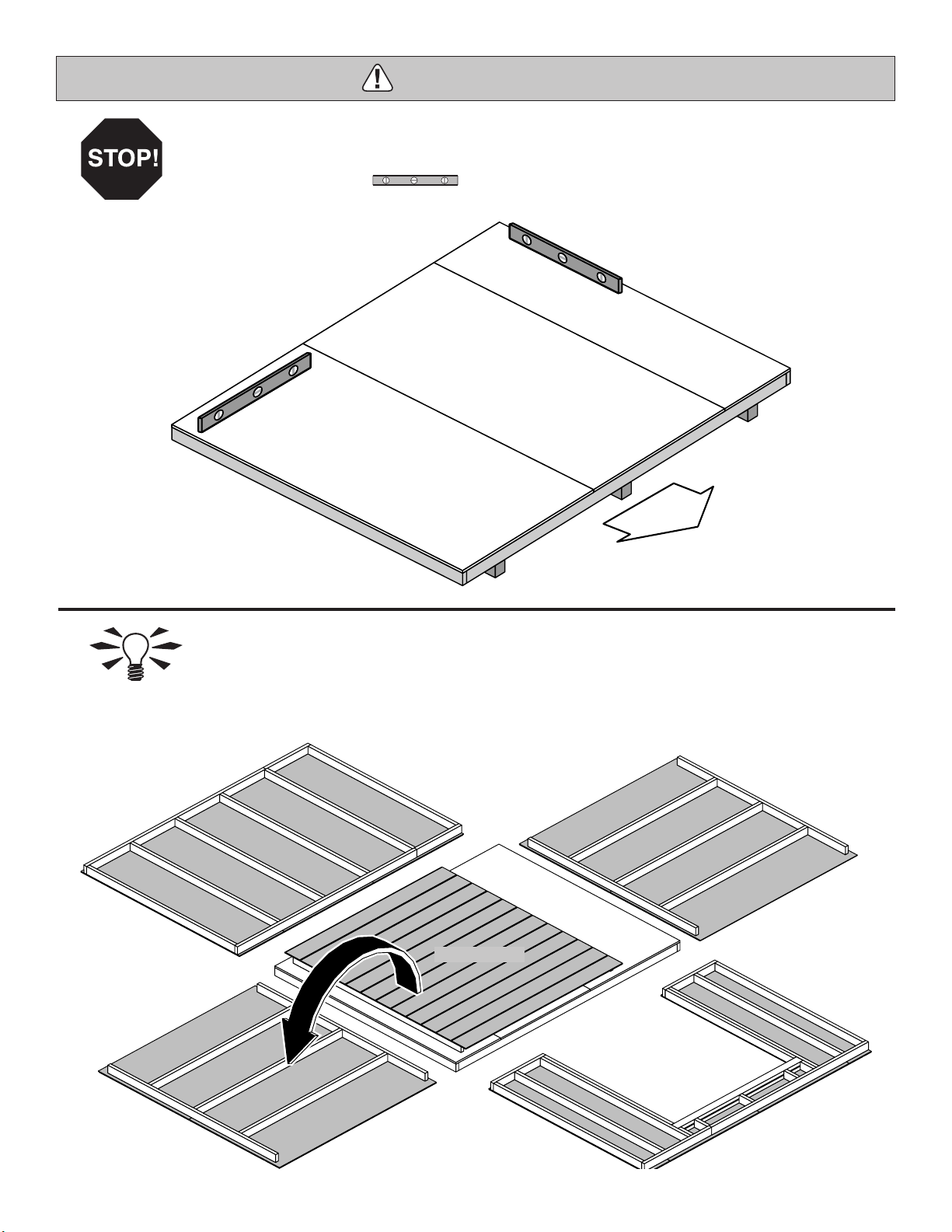

OPTIONAL WOOD FRAME FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS



Never use shingles in direct contact with ground.


MATERIAL REQUIRED:
4 x 4 x 8' (10,2 x 10,2 x 304,8 cm) Treated Lumber
x3
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.

Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
10' x 8' x42 3" (7,6 cm)
Fasteners for Frame to 4x4:
(3" Screws shown as one option.)
Minimum 3" screws / exterior grade.
Measurements to
centers of 4x4's.
8" Block
4" Block
Gravel
Gravel Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
12"
(30,5 cm)
12"
(30,5 cm)

10
Measurements to
centers of 4x4's.
4x4 runners are generally installed 12" (30,5 cm) from ends of fl oor frame and under any seams.
FINISH
Your  oor frame is now level.
After the frame is level and square, secure one side of frame to 4x4 runners using one fastener at ends
of each runner. At the opposite end of the frame, secure the frame to 4x4 runners with one fastener at the
ends of each runner, ensuring that the frame remains square.
Fasten the frame to the 4x4 runners with (2) 3" screws at each connection (Fig. A).
Second, secure at ends with
one fastener.
First, secure at ends with
one fastener.
Fig. A
153-11/16"
(387,8 cm)
153-11/16"
(387,8 cm)
LEVEL AND SQUARE FLOOR FRAME
Before attaching  oor decking, it is important to level and square the  oor frame.
A level and square  oor frame is required to correctly construct your shed.
2
BEGIN
1
Use a level and ensure the frame is level before applying fl oor panels.
Check for frame squareness by measuring diagonally across the corners.
If the measurements are the same, the frame is square.
• The diagonal measurement for the 10' x 8' frame will be approximately 153-11/16" (387,8 cm) .

LEVELING & SQUARING THE FLOOR FRAME (Not Included)


12"
(30,5 cm)
12"
(30,5 cm)

11
IMPORTANT!
IMPORTANT!

 
to avoid over-handling of the walls.
HINT:
DOOR



GABLE WALL
GABLE WALL


12
PARTS REQUIRED: 3" (7,6 cm)
DOOR HEADER
x18
x2 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
x1 7/16 x 3-1/4 x 66-3/4" (1,1 x 8,3 x 170,2 cm) OSB
Place (1) AM and OSB end-to-end on  at surface,  ush in middle.
Center OSB on top of AM.
Fasten together with 3" nails in the pattern shown.
Your door header is now assembled.
FINISH
OSB
ASSEMBLED

BEGIN
1
AM
AM
2Flip header assembly over and nail as shown on the other side.
Flush
Flush

13
x40 2" (5,1 cm)
PARTS REQUIRED:
Place a 48" x 84" panel on the wall frame, as shown.
Locate the panel 1-1/2" above the top plate.
Use a 2 x 3 as a gauge block for the 1-1/2" top overhang measurement.
Use the gauge block to mark the 3/4" side measurement on the wall stud.
Secure panel with (2) 2" nails in the corners (Fig. A).
2
Secure panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
Note the panel lip-edge/square edge orientation.
EXAMPLE WALL
Ensure your wall is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever,
move the panel side-to-side until you have a 3/4" measurement on the wall stud.
Secure corner with (2) 2" nails (Fig. B).
3/4" Gauge
Block
x1 3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm )
For squareness maintain 3/4" and 1-1/2"
measurement along panel edge.
BEGIN HERE
3/4"
(1,9 cm)
6" (15,2 cm)
12" (30,5 cm)
2x3"
TEMP. SPACER
3/4" GAUGE
BLOCK
GAA
WALL PANEL INSTALLATION HINTS & EXAMPLES
BEGIN
1
Angle nail to draw panels
tight at seams.
Install all wall panels with the primed side facing up.
2x3
1-1/2"
(3,8 cm)
3/4"
(1,9 cm)
LIP EDGE
SQUARE
EDGE
Do not nail
in groove.
3/4"
(1,9 cm)
Fig. A 3/4"
(1,9 cm)
2 Nails1-1/2" (3,8 cm)
Overlap
Fig. B 3/4"
(1,9 cm)
1-1/2" (3,8 cm)
Overlap
2 Nails
Install 2nd panel

installed panel.
HINTS

14
12" 25-3/4"
36" 84"
60" 84"
12"
25-3/4"
120"
28"
(30,5 cm)
(65,4 cm)
(91,4 cm) (213,4 cm)
(152,4 cm) (213,4 cm)
(30,5 cm)
(65,4 cm)
(304,8 cm)
(71,1 cm)
28"
(71,1 cm)
78-1/2"
(199,4 cm)
1-1/2"
(3,8 cm)
Fig. B
3" (7,6 cm)
Screws
Pre-Assembled Header
Install Header in
this position
Fig. A
PARTS REQUIRED: 3" (7,6 cm)
10' GABLE WALL WITH DOOR
x72
2
1
BEGIN
3" (7,6 cm)
x6
x1 Pre Assembled Header
x5 2 x 4 x 7" (5,1 x 10,2 x 17,8 cm)
AL
x2 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x6 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
RR
UM UM
TO
RR
SL
AI x6
AL x5
Flush Flush
Flush Flush FlushFlush
Seam
3" (7,6 cm)
Screws
Orient parts on edge on oor as shown. Measure and mark from end of boards.
Orient Pre Assembled Header as shown (Fig. A).
Secure with (2) 3" nails at each connection and (4) 3" nails at seams.
Fasten (3) middle parts AL to Pre Assembled Header with (2) 3" screws (Fig. B).
Fasten (2) end AL to studs AI with (4) 3" nails at each side.
Secure parts AL to top plates with (2) 3" nails at each connection and (4) 3" nails at seam.
Flush
Flush
Seam
64"
(162,6 cm)
2 x 4 x 28" (5,1 x 10,2 x 71,1 cm) ,
x2 RR

15
Install the left panel 1-1/2"
from the top plate.
Use a 2x3 spacer for
consistent measurement.
Secure panel with 2"
nails spaced 6" apart on
edges.
Install the right panel  ush
to installed panel,
as shown.
Ensure 64" (162,8 cm) door
measurement.
Use part OO as a
temporary brace. Secure
with with (2) 3" screws.
Secure panels with 2" nails
spaced 6" apart on edges.
2x3
2x32x3
PARTS REQUIRED:
10' GABLE WALL WITH DOOR
2" (5,1 cm)
x150
x1 x1
6" (15,2 cm)
1-1/2"
(3,8 cm)
BEGIN HERE
3/4"
(1,9 cm)
Flush Flush
OO Temporary Brace
3" (7,6 cm)
x2
4
3
64"
(162,6 cm)
3" (7,6 cm)
Screw 3" (7,6 cm) Screw 3/4"
(1,9 cm)
x1 69" (75,3 cm) Door Stiffener
OO Temporary Brace
Install (2) 11-7/8" x 84"
panels  ush to installed
panels and 1-1/2" from
the top plate.
Secure panels with 2"
nails spaced 6" apart on
edges.
Note the panel
lip-edge/square edge
orientation. Flush Flush
Flush
Flush
5
Your gable wall with door
is now assembled.
Carefully  ip the wall over.
FINISH
LIP EDGE
11-7/8"
(30,2 cm)
SQUARE
EDGE
11-7/8" x 84" (30,2 x 213,4 cm)
x2
1-1/2"
(3,8 cm)
6" (15,2 cm)
3/4" Gauge
Block 3/4" Gauge
Block
Flush

16
10' GABLE WALL
3" (7,6 cm)
PARTS REQUIRED:
x6
x2
x2 x28
2 x 4 x 24" (5,1 x 10,2 x 61 cm)
RL
2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
24"
(61 cm)
24"
(61 cm)
24"
(61 cm)
1-1/2"
(3,8 cm)
72"
(182,9 cm)
96"
(234,8 cm)
120"
(304,8 cm)
96"
(234,8 cm)
78-1/2"
(199,4 cm)
RLTP
RL TP
AI x6
48"
(121,9 cm)
1
BEGIN
Orient parts on edge on oor as shown. Measure and mark from end of boards.
Secure with (2) 3" nails at each connection and (4) 3" nails at seams.
3" (7,6 cm)
Nails
Seam
Seam
HINT:
Flush Flush
Flush Flush

17
3/4" Gauge
Block
BEGIN HERE
3/4"
(1,9 cm)
6" (15,2 cm)
6" (15,2 cm)
12" (30,5 cm)
12" (30,5 cm)
2" (5,1 cm)
PARTS REQUIRED:
10' GABLE WALL
x136
48 x 84"
(121,9 x 213,4 cm )
x2
Your 10' gable wall is now assembled.
Carefully  ip the wall over.
FINISH
Flush Flush
SQUARE
EDGE SQUARE EDGE
Install 48" x 84" panel 1-1/2"
from the top plate.
Use a 2x3 spacer for
consistent measurement.
Secure panel with 2" nails
spaced 6" apart on edges
and 12" inside panel.
Note the panel
lip-edge/square edge
orientation.
2
Install the 48" x 84" and
23-7/8" x 84" panels  ush to
installed panels.
Locate panels 1-1/2" from the
top plate.
Secure with 2" nails spaced 6"
apart on edges and 12" apart
inside panel.
Note the panel
lip-edge/square edge
orientation.
3
23-7/8" x 84"
(60,6 x 213,4 cm )
x1
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
LIP EDGE
FlushFlush
2x3
2x3
23-7/8"
(60,6 cm)

18
78 1/2"
20-5/8"
44-5/8"
68-5/8"
1-1/2"
(3,8 cm)
89"
89"
(199,4 cm)
(52,4 cm)
(113,3 cm)
(174,3 cm)
(226,1 cm)
(226,1 cm)
PARTS REQUIRED:


AI x3
1
BEGIN
Orient parts on edge on oor. Measure and mark from end of boards.
Secure with (2) 3" nails at each connection.
8' EAVE WALLS
3" (7,6 cm)
x24
x6 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
3" (7,6 cm)
Nails
2 x 4 x 89" (5,1 x 10,2 x 226,1 cm)

x4
Build TWO identical 8' walls.
HINT:
