Heat & Glo SL-350TRSI-AUE User manual

1
Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
MODEL: SL-350TRSI-AUE
AUSTRALIAN GAS ASSOCIATION APPROVED
ApprovalNumber 5666
THIS MANUAL MUST BE USED FOR INSTALLATION AND RETAINED
BY HOMEOWNER FOR OPERATION AND MAINTENANCE.
HEAT & GLO, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044 USA
www.heatnglo.com
INSTALLATION AND OPERATION
INSTRUCTIONS
THIS PRODUCT MAYBE COVERED BY ONE OR MORE OFTHE FOLLOWING PATENTS:
(UnitedStates)4593510,4686807,4766876,4793322, 4811534,5000162, 5016609,5076254,5113843,5191877,5218953,5263471,5328356,5341794,5347983, 5429495,5452708,5542407,
5601073,5613487, 5647340,5688568, 5762062,5775408, 5890485,5931661, 5941237,5947112,5996575, 6006743,6019099, 6048195,6053165, 6145502,6170481,6237588, 6296474,
6374822,6413079,6439226,6484712,6543698,6550687,6601579, 6672860,6688302B2,6715724B2,6729551,6736133,6748940,6748942,D320652,D445174,D462436;(Canada) 1297749,
2195264,2225408; (Australia)543790;586383;(Mexico)97-0457;(NewZealand)200265; orotherU.S. andforeignpatentspending.
Í

2Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
IMPORTANT: Read all instructions carefully before starting installation.
Failuretofollowtheseinstallationinstructions may result ina possible fire
hazard and will void the warranty. Save this Manual for future reference.
MODEL SL-350TRSI-AUE
ISAUSTRALIAN GASASSOCIATION
APPROVED FOR NATURAL GAS OR
PROPANE AS A BALANCED FLUE
HEATER.
Refer to the appliance data plates for gas
consumptionsand pressures.
Installationof thisappliance shouldonly be
carried out by an authorized person in ac-
cordance with the manufacturer's instruc-
tions. Applianceistobeinstalledinfullcom-
pliance with the National Gas Installation
Standard AS5601, the manufacturer's in-
structions,andanylocalauthorities'require-
mentsforgas, electricaland buildingregu-
lations.
This appliance and its components are
tested and safe when installed in accor-
dancewiththisInstallationManual. Report
to your dealer any parts damaged in ship-
ment,specificallycheckglasscondition.The
gas logs and flue system components are
inseparatepackages. Readall instructions
beforestarting installationandfollowthese
instructions carefully during installation to
ensure maximum benefit and safety. Fail-
uretofollowthemwillvoidyourwarrantyand
maypresent afire hazard.
TheHeat& Glo,a brandofHearth &Home
TechnologiesInc.warrantywillbevoidedby,
and Heat & Glo, a brand of Hearth & Home
TechnologiesInc.disclaimsanyresponsibil-
ityfor thefollowing actions:
• Installation of any damaged heater or
fluesystemcomponent
• Modification of the heater or balanced
flue system installation other than as
instructed by Heat & Glo, a brand of
Hearth& HomeTechnologiesInc.
• Improper positioning of the gas logs or
theglassdoor
• Installationand/oruseofanycomponent
part not manufactured or approved by
Heat & Glo, brand of Hearth & Home
TechnologiesInc.,not withstanding any
independent testinglaboratory or other
party approval of such componentpart
oraccessory.
PLEASEREADTHISMANUALBEFOREINSTALLING
ANDUSINGTHISAPPLIANCE.
Heat & Glo, a brand of Hearth & Home Technologies, Inc.
20802 Kensington Blvd., Lakeville, MN 55044, USA
Copyright 2006 • Printed in U.S.A.
Heat & Glo Quality Systems
registered by SGS ICS
Í

3
Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
TABLE OF CONTENTS
1.0 InstallationInstructions.........................................................................................5
1.1 Introduction...................................................................................................6
1.2 FlueSystemApprovalsandInstallation .........................................................8
1.3 Connectingthe GasSupply ........................................................................22
1.4 IgnitionSystem Wiring ................................................................................23
1.5 BlowerFan.................................................................................................24
1.6 Finishing ....................................................................................................25
1.7 InstallerTesting ...........................................................................................26
1.8 LogPlacement ...........................................................................................27
2.0 OperatingInstructions .......................................................................................30
2.1 Safetyand LightingInformation...................................................................31
2.2 Fan Operation ............................................................................................32
3.0 Servicingand Maintenance...............................................................................32
3.1 Removal ofCovers forServicing ................................................................33
3.2 Removal ofComponents forService ..........................................................33
3.3 PartsReplacement.....................................................................................33
3.4 Adjustmentsand ReplacementParts ..........................................................33
3.5 Troubleshooting..........................................................................................34
4.0 ReplacementParts ...........................................................................................35
LimitedWarranty...............................................................................................37
Í
Í
Í

4Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
Figure 1. Diagram of SL-350TRSI-AUE
22-3/4 in.
(577mm)
11-3/8 in.
(289mm)
16-3/8 in.
(414mm)
8-3/4 in.
(223mm)
15-7/8 in.
(402 mm)
Ø6-5/8 in.
(167mm)
24 in.
(610mm)
5-5/8 in.
(144mm)
GAS LINE
ACCESS
41-3/4 in.
(1060mm)
21-3/8 in.
(542mm) 2-1/8 in.
(55mm)
30 in.
(764mm)
28-1/8 in.
(714mm)
33 in.
(837mm)
15-1/8 in.
(384mm) 3-1/2 in.
(90mm)
6-7/8 in.
(175mm)
ELECTRICAL
ACCESS
Ø8 in.
(203mm)
30-5/8 in.
(777mm)
FLUE COLLAR
COVER PLATE
TOP STANDOFFS
HOOD
RATING PLATE/LABELS
( BEHIND DOOR)
GAS
CONTROLS
( BEHIND DOOR)
GAS
ACCESS
BOTTOM
ACCESS DOOR
ELECTRICAL
ACCESS
Í

5
Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06

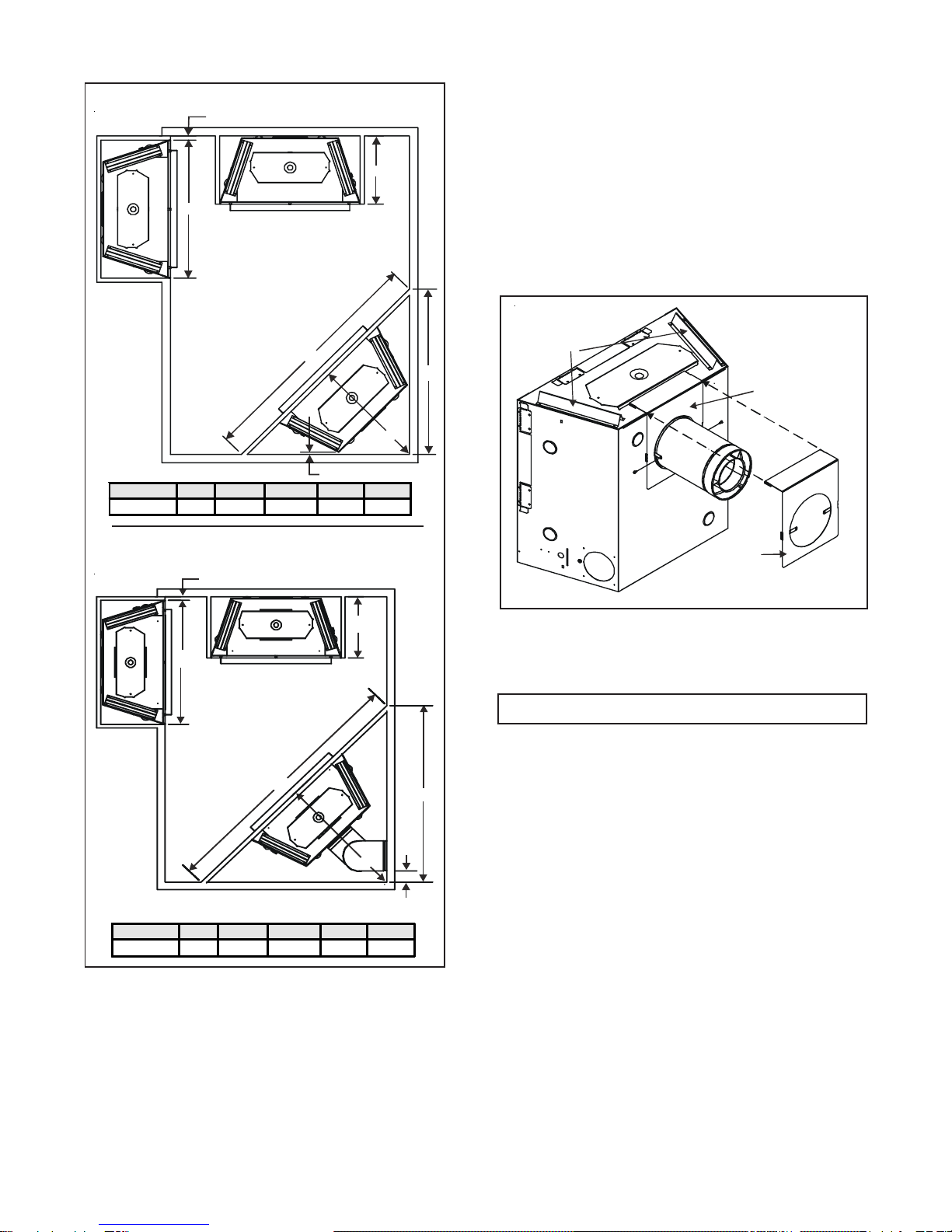

Figure 2. Fireplace Dimensions, Locations, and
Space Requirements
1.0 INSTALLATION INSTRUCTIONS
Clearance Requirements
Thetop and back of fireplace aredefined bystand-offs.
Theheat shield must beattached as shown ifcombus-
tiblematerials areplaced directlyon top standoffs (Fig-
ure3).
The minimum clearance to a perpendicular wall ex-
tending past the face of the fireplace is 25mm.
Theback ofthe fireplacesmay be recessedinto com-
bustibleconstruction, asshown above.
Figure 3. Heat Shield
TOP
STANDOFFS
INSTALLED
HEAT SHIELD
HEAT SHIELD
Inplanning theinstallation forthe heater it is necessary
to determine where the unit is to be installed, the type
of flue system to be used (straight out, corner, or el-
evated),and whetheroptional accessories (wallswitch
orremotecontrol)are desired. Gassupply pipingshould
also be planned. Refer to the appliance data plate on
the base pan of the heater for all gas pressures and
inputrate information.
Theheater canbe mountedon anyof thefollowing sur-
face:
1. Aflat surface (minimum6mm base).
2. Four(4) cornersupports.
(Example: Four (4) concrete masonry blocks). These
supportsmust be positioned so theycontact all four(4)
perimeter edges on the bottom of the unit.
Heaterframing can bebuilt beforeor after theheater is
set in place. Framing should be positioned to accom-
modate wall covering and heater facing material. The
heater framing should be constructed of 2" X 4" (51 x
102mm) lumber or heavier. The framing headers may
reston the heater standoffs.Refer to Figure 2 and Fig-
ure4 forheater andframing reference dimensions.
NOTE: Notintended forfireplace insert.
Top Flue
A B C D E
Millimeter 837 413 728 1001 1416
A B C D E
Millimeter 837 413 843 1192 1686
1 in. MIN. (25mm)
D
B
A
1 in. MIN. (25mm)
C
E
Rear Flue
A
B
1in. Min. (25mm)
E
D
C
½ in. Min (13mm)

6Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
Figure 4. Framing Dimensions
Framing should be constructed
of 2 X 4 lumber or heavier.
The framing headers
may rest on the
fireplace stand-offs.
ABCD*E*
34" 30-5/8" 16 1/2" 41-3/4" 21-1/4"
(864mm) ( 778mm) (419mm) (1060mm) (540mm)
*NOTE: The center of the framing hole
is one inch (254mm) above the
center of the horizontal flue pipe.
CAUTION: Measure heater dimensions, and verify
framingmethodsand wallcovering details beforefram-
ingconstruction begins.
1.1 INTRODUCTION
This model is designed to operate with all combus-
tion air being siphoned from the outside of the build-
ing and all exhaust gases expelled to the outside of
the building.
WARNING: THIS UNIT IS NOT FOR USE WITH
SOLID FUEL.
These units MUST use the flue termination described
in the flueing section of the manual.
Thecontrol system forthis model isan electronic igni-
tiontype.Itconsistsofagascontrolvalve/variableregu-
lator, a pilot/sensor/electrode andan ON/OFF switch.
The controls are located behind the access door. Ro-
tate the door down to open. See Figure 1.
Minimum inlet gas supply pressure for purpose of in-
putadjustment is 4.5inches w.c. (1.13kPa) fornatural
gas and 11 inches w.c. (2.75kPa) for propane. Mani-
fold(outlet) pressures shouldbe set at3.5 inches w.c.
(.8kPa) for natural gas models and 9.5 inches w.c.
(2.36kPa)for propanemodels.
A
B
C
D
E
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front......................................36 ........ 914
Floor .................................................0........... 0
Rear ................................................ 1/2 ........ 13
Sides .............................................. 1/2 ........ 13
Top ................................................1 1/2 ....... 38
Ceiling* ............................................31........ 787
*The clearance to ceiling is measured from the top
of the unit, excluding the standoffs (see Figure 34). For minimum clearances, see the direct vent termina-
tion clearance in Figure 5.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firestops
Top..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25

7
Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. See clause 5.13.6.6 for restrictions on a flue terminal under a roofed area.
4. See Appendix J, Figure J1(a) and J2(a) for clearances required from a flue
terminal to a LP Gas cylinder. A flue terminal is considered to be a source of ignition.

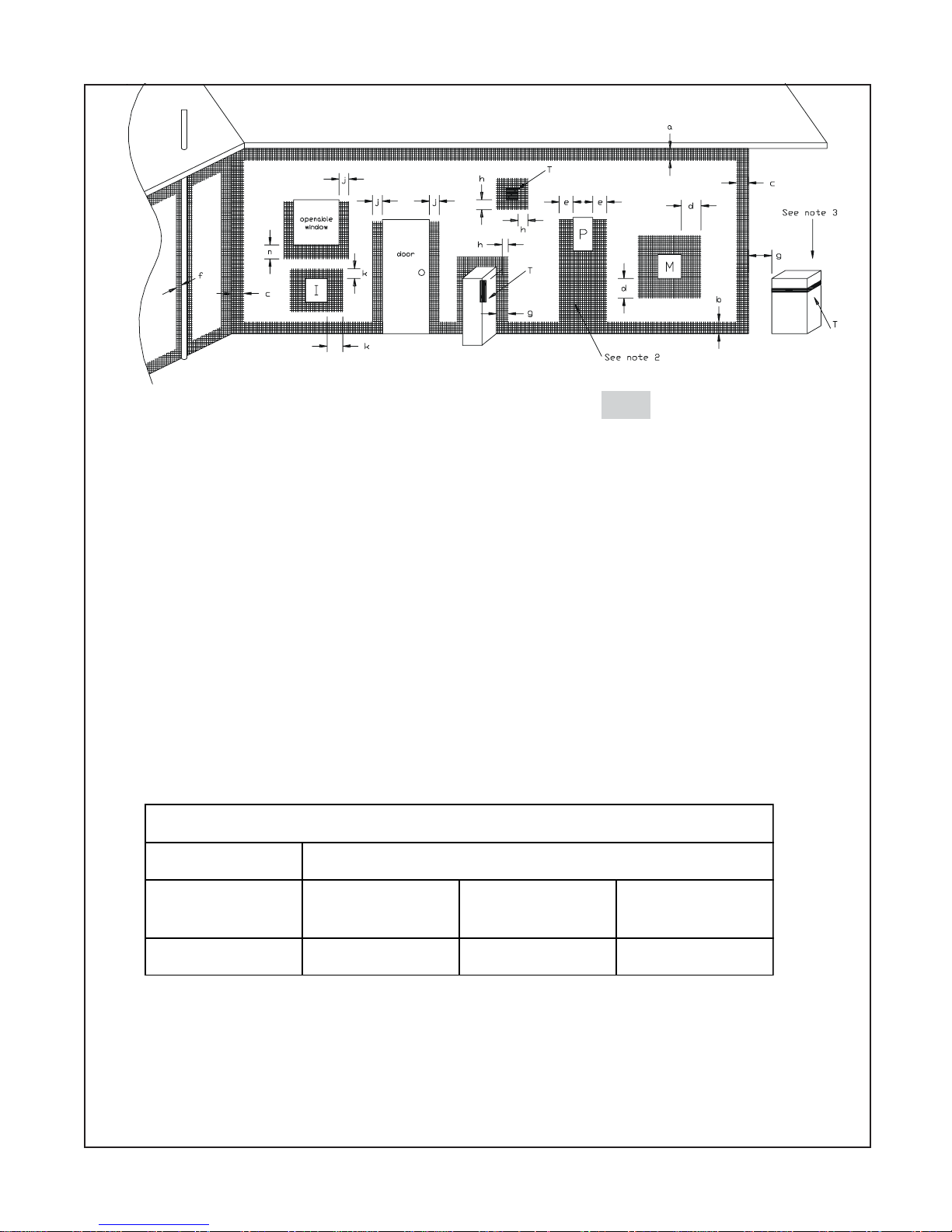

MINIMUMCLEARANCESREQUIREDFORBALANCED FLUE TERMINALS
ORTHEFLUETERMINALSOFOUTDOOR APPLIANCES
Figure 5.
CLEARANCES 'n' (mm)
Space heaters All other appliances
Up to 50 MJ/h
input UP to 50 MJ/h input Over 50 MJ/h & up
to 150 MJ/h
Over 150 MJ/h
input
150 500 1000 1500
T = Flue terminal M = Gas meter Shading indicates prohibited
I = Mechanical air inlet P = Electricity meter or fuse box areas for flue terminals
a - Below eaves, balconies or other projections: MIN. CLEARANCE (mm)
Appliances to 50 MJ/h input ................................................................................................ 300
Appliances over 50 MJ/h input ............................................................................................ 500
b - From the ground or above a balcony...................................................................................... 300
c - From a return wall or external corner ..................................................................................... 500
d - From a gas meter (M) ...........................................................................................................1000
e - From an electricity meter or fuse box (P) ............................................................................... 500
f - From a drain or soil pipe......................................................................................................... 150
g - Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal......................................................... 500
h - From any other flue terminal, cowl, or combustion air intake ............................................... 500
j - Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
sub-floor ventilation:
Appliances up to 150 MJ/h input ......................................................................................... 500
Appliances over 150 MJ/h input ........................................................................................1500
k - From a mechanical air inlet, including a spa blower .........................................................1500
n - Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of ................................. See table
sub-floor ventilation............................................................................................................. below

8Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
TABLE1
1.2 FLUE SYSTEM APPROVALS
Thesemodels haveflue startingcollars on boththe top
and the back of the unit. Depending upon the installa-
tion, decide which ONE set of starting collars will be
usedto attach theflue system. Thestartingcollarsealing
cap must remain on the starting collar NOT used.
Thesemodels useSL-D-series directflue components
whenusing theTOP flue collarsand DVP-series direct
fluecomponents when usingthe REAR flue collars.
WARNING: YOU MUST NOT MIX DVP-SERIES
AND SL D-SERIES COMPONENTS IN ANY FLUE
SYSTEM CONFIGURATION.
Approved flue system components are labeled for
identification. NO OTHER FLUEING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation
instructions are included with each flue termination kit
andshouldbeusedinconjunctionwiththismanual.Figure
5belowshowsfluesystemcomponentsandterminations.
Identifying Flue Components
The flue systems installed on this gas fireplace may
include one, two, or three 90°elbow assemblies. The
relationships of vertical rise to horizontal run in flue
configurations using 90° elbows MUST BE strictly
adhered to. The rise to run relationships are shown in
theflueing drawingsand tables onthe next fewpages.
Ifa 90°elbow is first attached tothe unit,the maximum
horizontal run is 2 feet (610mm).
WARNING:THISGASAPPLIANCEANDFLUEAS-
SEMBLY MUST FLUE DIRECTLYTO THE OUTSIDE
AND MUST NEVER BEATTACHED TOACHIMNEY
SERVINGA SEPARATE SOLID FUEL BURNINGAP-
PLIANCE. EACH GAS APPLIANCE MUST USE A
SEPARATE FLUE SYSTEM-COMMON FLUE SYS-
TEMSAREPROHIBITED.
CAUTION: UNDER NO CONDITION SHOULD
COMBUSTIBLE MATERIAL BE CLOSER THAN 3
INCHES (2 1/2 INCHES (64MM) AT WALL FIRE-
STOPS) FROM THE TOP OF THE PIPE OR 1-INCH
TOTHESIDESANDTHEBOTTOMFORHORIZONTAL
SECTIONS OF THIS FLUE SYSTEM. VERTICAL
SECTIONS OF THIS SYSTEM REQUIRE A MINI-
MUM OF 1-INCH (25MM) CLEARANCE TO COM-
BUSTIBLE MATERIALS ALLAROUND THE PIPE.
For alternative installations, other than depicted, con-
tactyour dealer forfurther information.
Refer to Figure 5 for required clearances to flue terminals.
Flue system termination kits
Flue system components

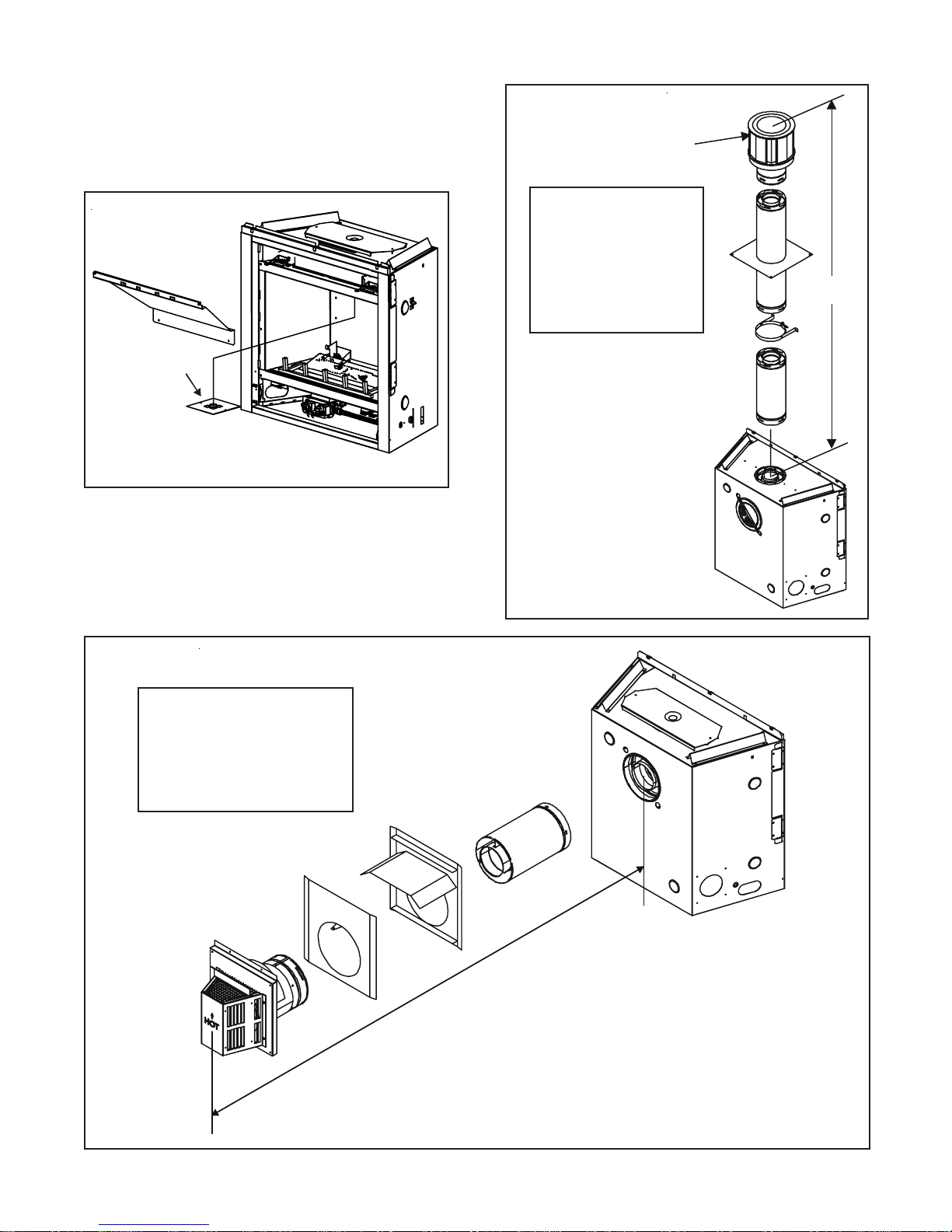

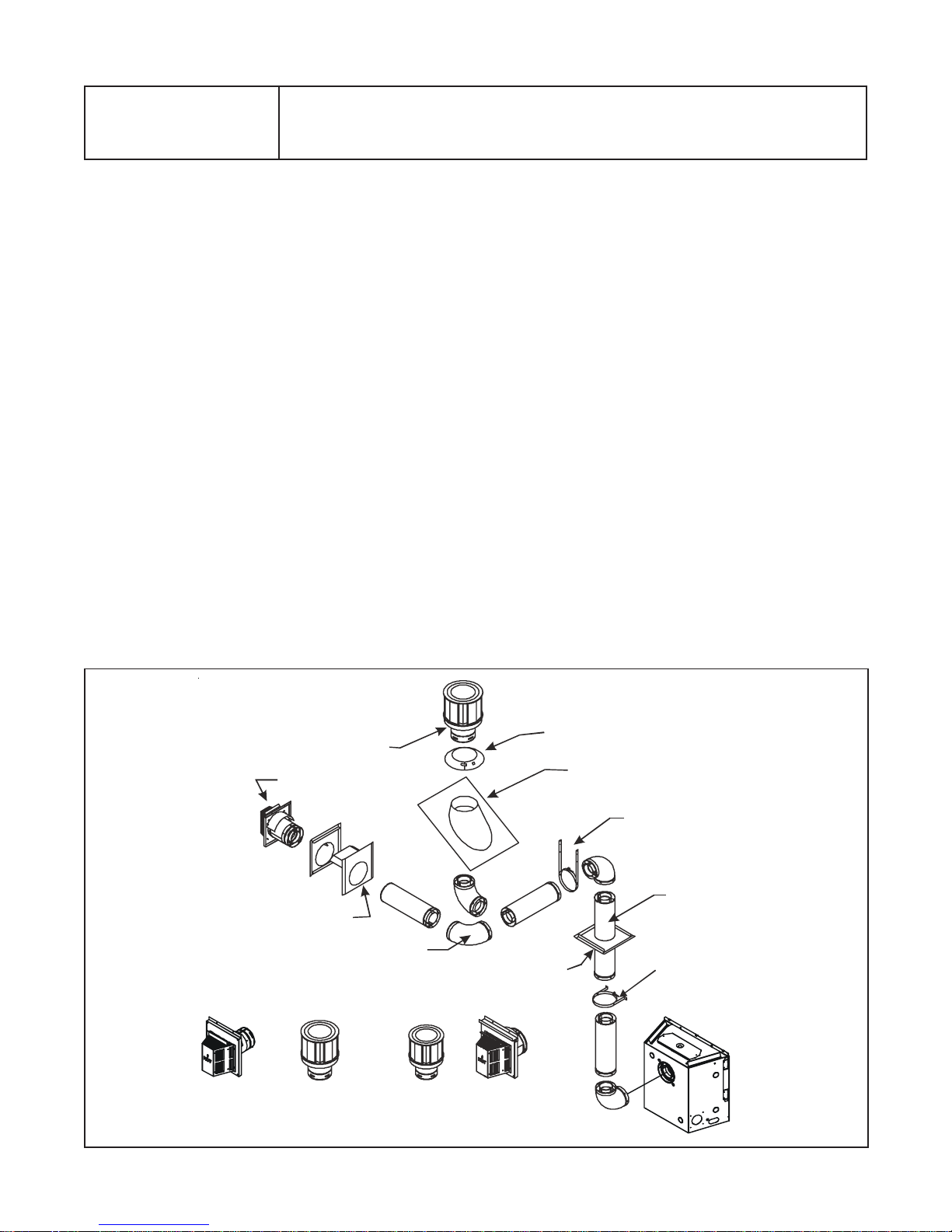

Figure 6. Flue Components and Terminations
MODEL
SL-350TRSI-AUE DVP-TRAP2 & SLK-01TRD HORIZONTALTERMINATION CAP
DVP-TVHW & SLK-991DA VERTICALTERMINATIONCAP
FLUE TERMINATIONAPPROVALS
V
ERTICAL
TERMINATION
HORZONTAL
TERMINATION
WALL
FIRESTOP
STORM
COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
90 DEGREE
ELBOW
SLK-01TRD SLK-991DA DVP-TVHW DVP-TRAP2
DVP-SERIESSL D-SERIES

9
Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
NOTE: PIPES OVERLAP 32mmAT EACH JOINT.
DVP90ST
319mm
286mm
184mm
32mm TYP
13mm TYP
217mm
DVP36
DVP48
1219mm
610mm
914mm
102mm
152mm
DVP4
DVP6
305mm
DVP12
51mm
MIN.
DVP12A
310mm
MAX.
DVP24
251mm
45.0
O
260mm
DVP45
362mm

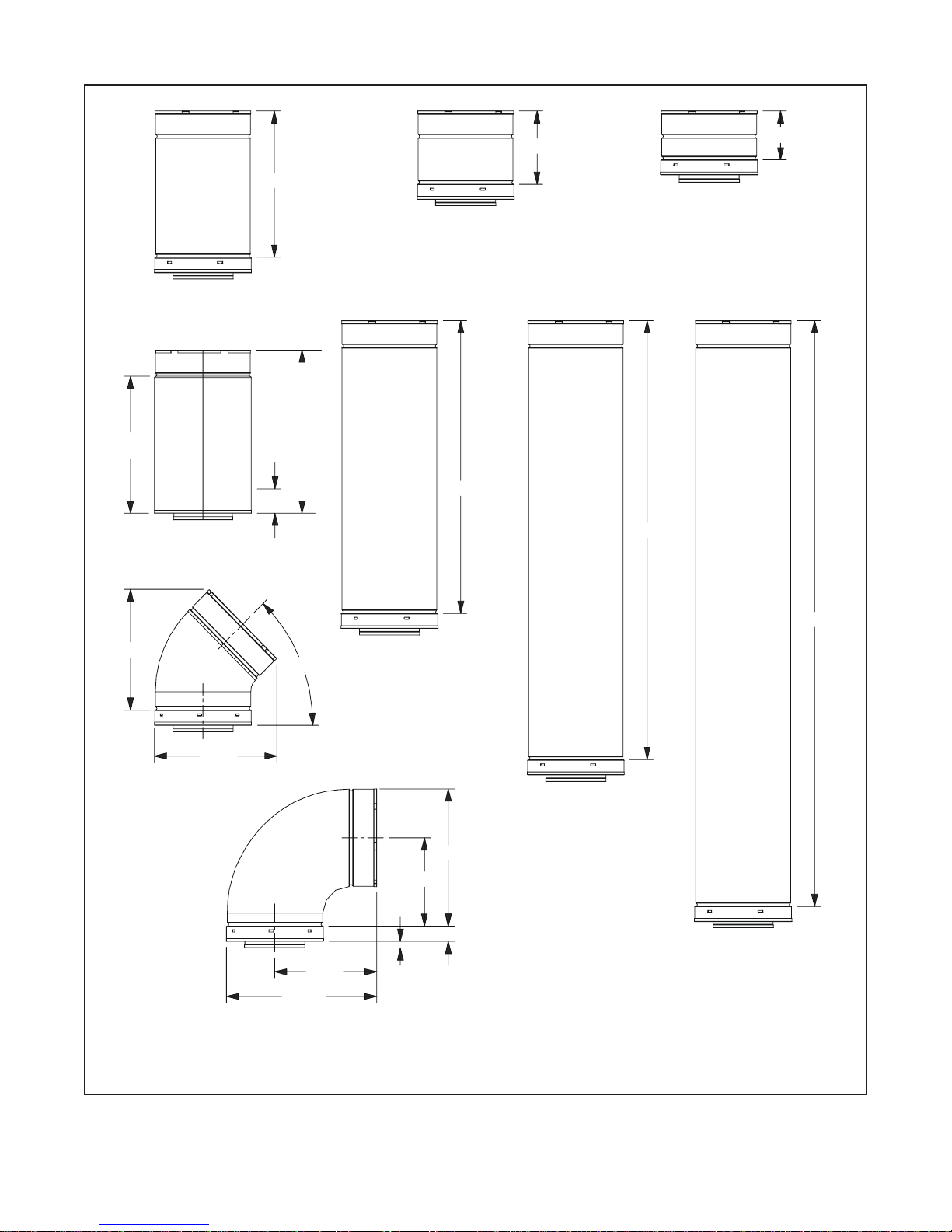

Figure 7. DVP-Series Balanced Flue Component Specifications
(127mm inner pipe / 203mm outer pipe)

10 Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
Figure 8. SL D-Series Balanced Flue Component Specifications (102mm inner pipe / 168mm outer pipe)
NOTE: PIPES OVERLAP 35mmAT EACH JOINT.
168mm
244mm
162mm
162mm
165mm
244mm
SL-90D
165mm
168mm
146mm
298mm
SL-06D
SL-12D SL-17/24D
432-610mm
SL-09D SL-12/17D SL-24D SL-36D SL-48D
222mm
305-432mm
603mm
908mm
1213mm

11
Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
VERTICALFLUEING
V
FT. (M)
36' MAXIMUM (10.97M)
Figure 10.
USESL D-SERIES
COMPONENTSONLY.
Figure 11.
USEDVP-SERIES COMPONENTS ONLY.
STRAIGHTOUTHORIZONTAL
FLUEING
H
Max. Run
24" (610mm)
Vertical Flue Restrictor
Iftheheaterinstallation requires a vertical flueex-
ceeding 4.5m above the unit with no horizontal
flue or elbows, a vertical flue restrictor must be
installed (see Figure 9).
Figure 9.
RESTRICTOR
PLATE
V
CAP
H

12 Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
Figure 12.
V H
FT. (M) FT. (M)
1' MIN.(0.30M) 2' MAX.(0.61M)
2' MIN.(0.61M) 4' MAX.(1.22M)
3' MIN.(0.91M) 8' MAX.(2.44M)
4' MIN.(1.22M) 10' MAX.(3.05M)
V + H = 30' (9.14M)
FLUEING WITH ONE (1) 90° ELBOW
USESL D-SERIES
COMPONENTS
ONLY.
Figure 13.
USEDVP-SERIES
COMPONENTS
ONLY.
FLUEINGWITH ONE (1)90oELBOW
V (FT.) H (FT.)
1' MIN. (0.30M) 3'MAX. (0.91M)
2' MIN. (0.61M) 6'MAX. (1.83M)
3' MIN. (0.91M) 9'MAX. (2.74M)
4' MIN. (1.22M) 12' MAX. (3.66M)
V+H=36' MAX.(10.97M) H= 12' MAX. (3.66M)
H
V
V
H
NOTE: A six inch (146mm) section of
straight flue must be attached to the
heaterbefore a 900elbow.

13
Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06

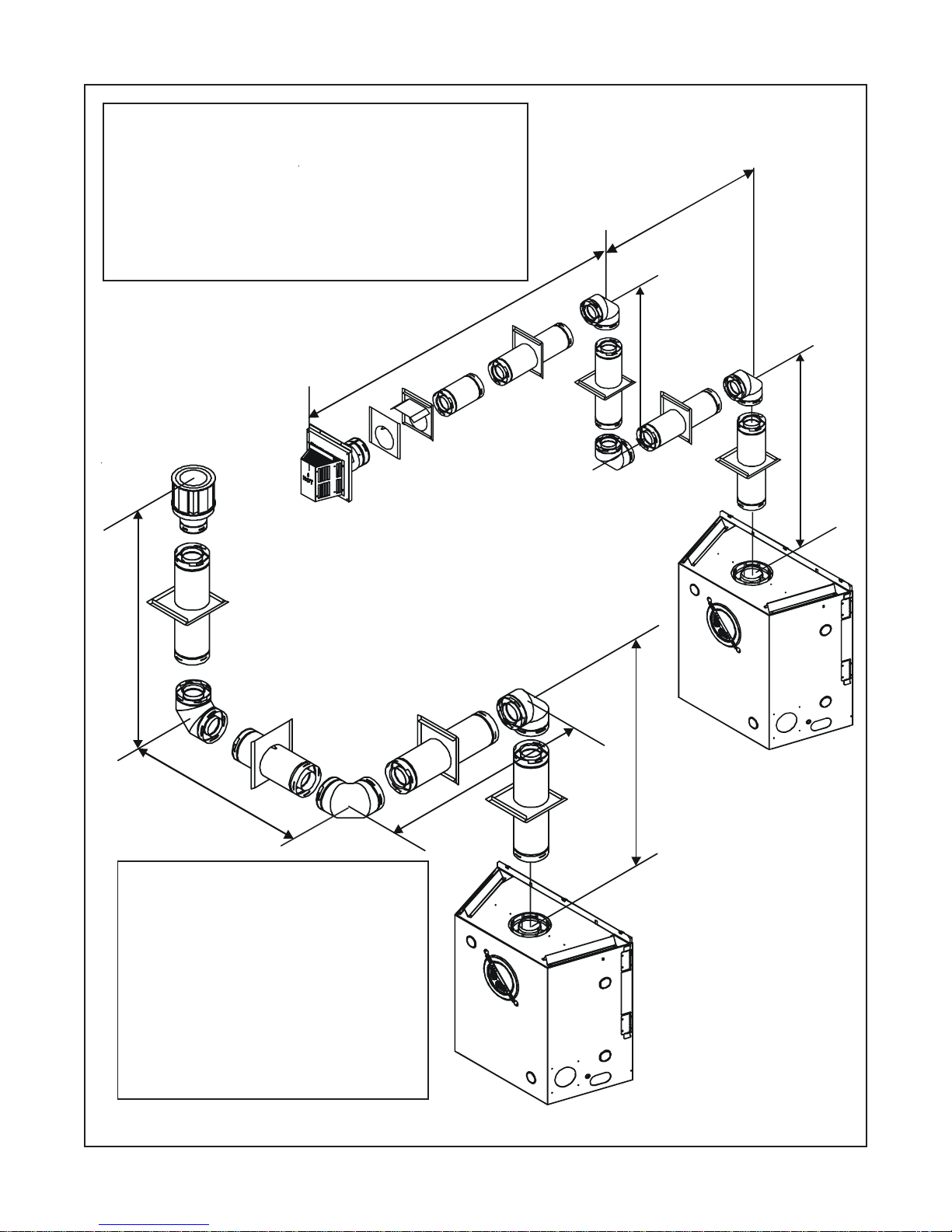

Figure 14.
V H
FT. (M) FT. (M)
1' MIN.(0.30M) 2' MAX.(0.61M)
2' MIN.(0.61M) 4' MAX.(1.22M)
3' MIN.(0.91M) 6' MAX.(1.83M)
4' MIN.(1.22M) 8' MAX.(2.44M)
5' MIN.(1.52M) 12'MAX.(3.66M)
12'MAX.(3.66M)
NOTE: V + V1MAX 33' (10.06M)
FLUEING WITH TWO (2) 90° ELBOWS
V H + H1
FT. (M) FT. (M)
1' MIN.(0.30M) 2' MAX.(0.61M)
2' MIN.(0.61M) 4' MAX.(1.22M)
3' MIN.(0.91M) 6' MAX.(1.83M)
4' MIN.(1.22M) 8' MAX.(2.44M)
5' MIN.(1.52M) 10'MAX.(3.05M)
30' MAX.(9.14M) 10' MAX. (3.05M)
FLUEING WITH TWO (2) 90° ELBOWS
USESLD-SERIES COMPONENTS ONLY.
H 1
H
V
H
V
V 1

14 Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
Figure 15.
USEDVP-SERIES
COMPONENTSONLY.
FLUEINGWITH TWO (2) 90° ELBOWS
V H H + H1
1´MIN. (0.30M) 1´MAX.(0.30M) 2´ MAX.(0.61M)
2´MIN. (0.61M) 2´MAX.(0.61M) 4´ MAX.(1.22M)
3´MIN. (0.91M) 3´MAX.(0.91M) 8´ MAX.(2.44M)
4´MIN. (1.22M) 4´MAX.(1.22M) 10´MAX. (3.05M)
H = 8´ MAX.(2.44M)
H + H
1
= 10´ MAX. (3.05M)
V + H + H1= 30’ (9.14M) MAX.
V (FT) H + H1(FT)
1'MIN. (0.30 M) 3' MAX. (0.91 M)
2'MIN. (0.61 M) 5' MAX. (1.52 M)
3'MIN. (0.91 M) 8' MAX. (2.44 M)
4' MIN. (1.22 M) 10' MAX. (3.05 M)
H + H1= 10' MAX. (3.05 M)
V + H + H1= 33' (10.06m) MAX.
H 1
V
H
V
HH 1

15
Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06

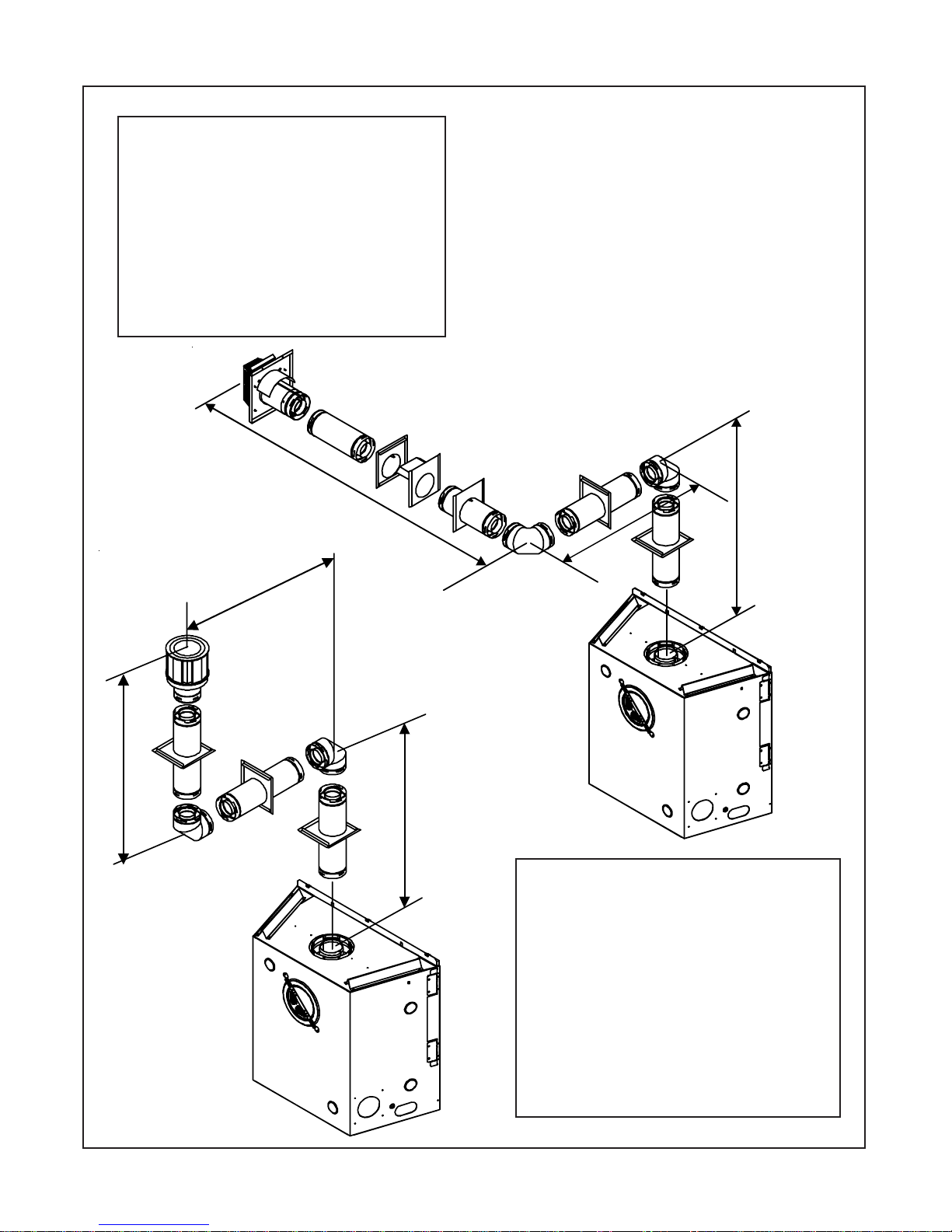

FLUEING WITH THREE (3) 90° ELBOWS
V H H + H1
FT. (M) FT. (M) FT. (M)
2'MIN.(0.61M) 2'MAX.(0.61M) 4' MAX.(1.22M)
3' MIN.(0.91M) 3'MAX.(0.91M) 6' MAX (1.83M)
4'MIN.(1.22M) 4'MAX.(1.22M) 8'MAX.(2.44M)
V+V1 = 30' MAX (9.14M) 6' MAX (1.83M) 8' MAX.(2.44M)
FLUEING WITH THREE (3) 90° ELBOWS
Figure 16.
V H + H1
FT. (M) FT. (M)
1'MIN.(0.30M) 2' MAX.(0.61M)
2'MIN.(0.61M) 4' MAX.(1.22M)
3'MIN.(0.91M) 6' MAX.(1.83M)
4'MIN.(1.22M) 8' MAX.(2.44M)
5'MIN.(1.52M) 12' MAX.(3.66M)
12' MAX.(3.66M)
NOTE:V +V1MAX. 33'(10.06M)
USE SL D-SERIES COMPONENTS ONLY.
H 1
H
V
1
V
V1
H1 H
V

16 Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
Figure 17.
FLUEING WITH THREE (3) 90° ELBOWS
1´ MIN. (0.30M) 1´MAX. (0.30M) 3´MAX. (0.91M)
2´ MIN. (0.61M) 2´MAX. (0.61M) 5´MAX. (1.52M)
3´ MIN. (0.91M) 4´MAX. (1.22M) 8´MAX. (2.44M)
4´ MIN. (1.22M) 6´MAX. (1.83M) 10´MAX. (3.05M)
H = 6´ MAX. (1.83M) H+H1= 10´ MAX. (3.05M)
NOTE: V + V, + H + H1= 33’ (10.06M) MAX.
V (FT.) H (FT.) H + H1(FT.)
V (FT.) H (FT.) H + H1+ H2 (FT.)
1´ MIN. (0.30M) 1´MAX. (0.30M) 2´MAX. (0.61M)
2´ MIN. (0.61M) 2´MAX. (0.61M) 4´MAX. (1.22M)
3´ MIN. (0.91M) 3´MAX. (0.91M) 8´MAX. (2.44M)
4´ MIN. (1.22M) 4´MAX. (1.22M) 10´MAX. (3.05M)
V+H+H
1
+H
2
=30´ MAX.(9.14M) H = 4´MAX.(1.22M) H+H
1
+H
2
= 10´MAX.(3.05M)
FLUEING WITH THREE (3) 90° ELBOWS
USEDVP-SERIES
COMPONENTSONLY.
V 1
H
V
H 1
H
V
H 2
H 1

17
Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06

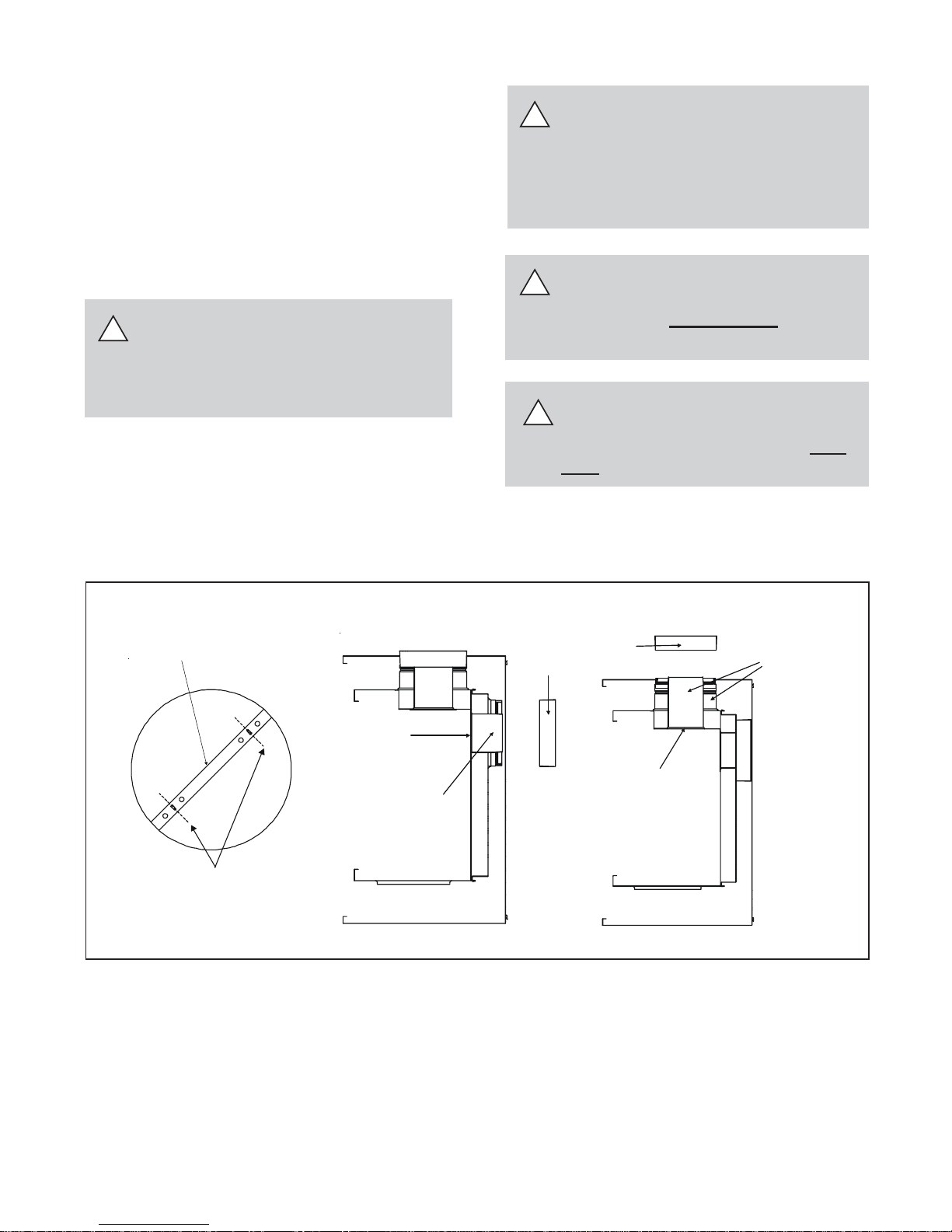

Figure 18.
WARNING: FAILURE TO REMOVE
INSULATION IN THE SET OF COL-
LARS YOU ARE USING COULD
CAUSE A FIRE.
WARNING: THE REAR FLUE COL-
LAR SEAL CAP MUST REMAIN AT-
TACHED TO THE REAR FLUE COL-
LARS IF THE FLUE SYSTEM IS AT-
TACHED TO THE TOP STARTING
COLLARS. SEE FIGURE 17.
WARNING: YOU MUST LEAVE
THE INSULATION IN PLACE IN
THE SET OF COLLARS YOU ARE
NOT USING.
FLUEINGOUTREAR FLUEING OUT TOP
Installing Flue Components
Afterdeterminingwhichsetofstartingcollarswillbe
used (top or rear), follow flueing instructions
accordingly.
Flueing Out the Rear Flue
Remove the rear collar seal cap by cutting the
strap at each end (see Figure 18).
Next, remove the insulation from the rear flue, pull
the heat shield out from outside of the heater.
WARNING: THE TOP FLUE COLLAR
SEAL CAP MUST REMAIN ATTACHED
TO THE TOP FLUE COLLAR IF THE FLUE
SYSTEM IS ATTACHED TO THE REAR
STARTING COLLARS. SEE FIGURE 18.
Flueing Out the Top Flue
Remove the top flue collar cover plate. Remove
the seal cap and both pieces of insulation in the
top collars (see Figure 18). Remove the heat
shield inside the top collars from the outside of
theheater.
!
!
!
!
Insert screwdriver
or similar object
here to remove cap.
CUT
HERE
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
HEAT
SHIELD
INSULATION,
DISCARD
BOTH
PIECES and
HEAT SHIELD
Í

18 Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
!
WARNING: ENSURE THAT THE HEATER
GASKET SUPPLIED WITH THE HEATER
SEALS BETWEEN THE FIRST FLUE COMPO-
NENTAND THE OUTER HEATER WRAP.
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Overlap pipe slip sections at least
38 mm.
• Screws must not exceed one inch long.
• Pipe may separate if not properly
joined.
WARNING
Installing Flue Components
A. On the REAR of the heater
1. Attachingthe First FlueComponent to the Start-
ing Collars:
Toattachthe firstflue componentto the startingcollars
on the rear of the heater:
• Make sure that the flue gasket supplied with the
heater seals between the first flue component and
theouter heaterwrap.
• Slidethe male end ofthe inner flue of the pipe sec-
tionover the innercollar on the heater.At the same
time,slide theouter flueover theouter collar on the
heater. Pushthe fluesection into the appliance col-
laruntilall thelances (seeFigure19) havesnapped
in place. Tug slightly on the flue to confirm that it
has completely locked into place.

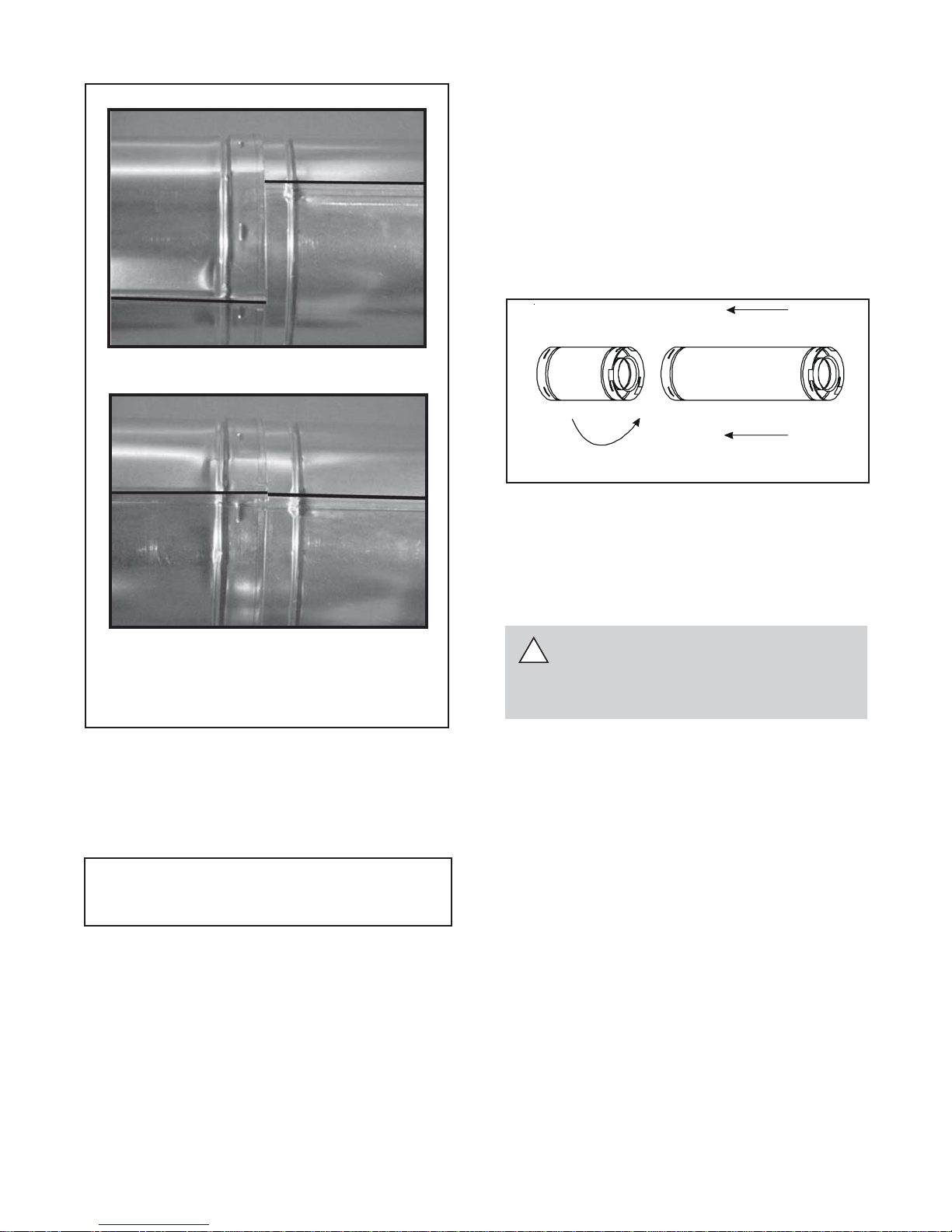

Figure 19.
• Any900elbow installed directlyonto the rearflue of
the heater MUST BE in a verticalposition.
2. Assembling Flue Components
Inserttheinner flueofsectionAintothe flaredinnerflue
of section B.
Start the outer flue of section A over the outer flue of
section B (see Figure 20). Note: The end of the pipe
sections with the lances/tabs on it will face towards
theappliance.
Onceboth innerand outerflues arestarted, presssec-
tionAonto sectionBfirmlyuntilall lanceshavesnapped
into place. Check to make sure they have snapped
together(seeFigure 21)and the seamsare not aligned
(see Figure 22). Tug slightly on sectionAto confirm it
has completely locked into place.
Figure 20. Figure 21.
A
B
Í

19
Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
2. Continue Adding Flue Components
Tocontinueaddingflue componentsinaccordancewith
thepre-planned flue system configuration:
• Ensurethat eachsucceeding fluecomponent isse-
curely fitted and locked into the preceding compo-
nent in the flue system.
For elbows that are changing the flue direction, two
screws minimum should be put in the outer flue at the
jointto prevent the elbow from rotating.
3. Install Support Brackets
For Horizontal Runs - The flue system must be
supportedevery five (5)feet (1.5m)of horizontalrunby
ahorizontal pipe support.
To install support brackets for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
• Whenthe internal beadsof each outerpipe line up,
rotatethe pipe section clockwise aboutone quarter
(1/4) turn.The flue pipe is now locked together.
• Slidethe ceramicfiber pad overthe firstflue section
and place it flush to the fireplace. Continue to add
ventcomponents.
Figure 23. Adding Venting Components
B. On the TOP of the heater
1. Attaching the First Flue Component to the Start-
ing Collars:
Toattach thefirst fluecomponent to thestartingcollars
on the top of the heater:
• Lock the flue components into place by sliding the
concentricpipesections withfour(4)equally spaced
interiorbeads into theheater collar or previously in-
stalledcomponent end with four (4) equally spaced
indentedsections.
NOTE:MakesurethatseamsareNOTalignedtoprevent
unintentionaldisconnection.
For elbows that are changing the flue direction, two
screws minimum should be put in the outer flue at the
jointto prevent the elbow from rotating.
Figure 22. Seams
Note: Make sure that the seams are not aligned to
prevent unintentional disconnection.
CORRECT
INCORRECT
PROCEED TO STEP 3
(Install Support Brackets)
!
WARNING: ENSURE THAT THE HEATER
GASKET SUPPLIED WITH THE HEATER
SEALS BETWEEN THE FIRST FLUE COMPO-
NENTAND THE OUTER HEATER WRAP.

20 Heat & Glo • SL-350TRSI-AUE • 2089-902 Rev. B • 6/06
For Vertical Runs
Theflue systemmustbe supportedevery eight(8) feet
(2.4 M) above the heater flue outlet by wall brackets.
To install support brackets for vertical runs:
• Attachwall brackets to the fluepipe and securethe
wall bracket to the framing members with nails or
screws.

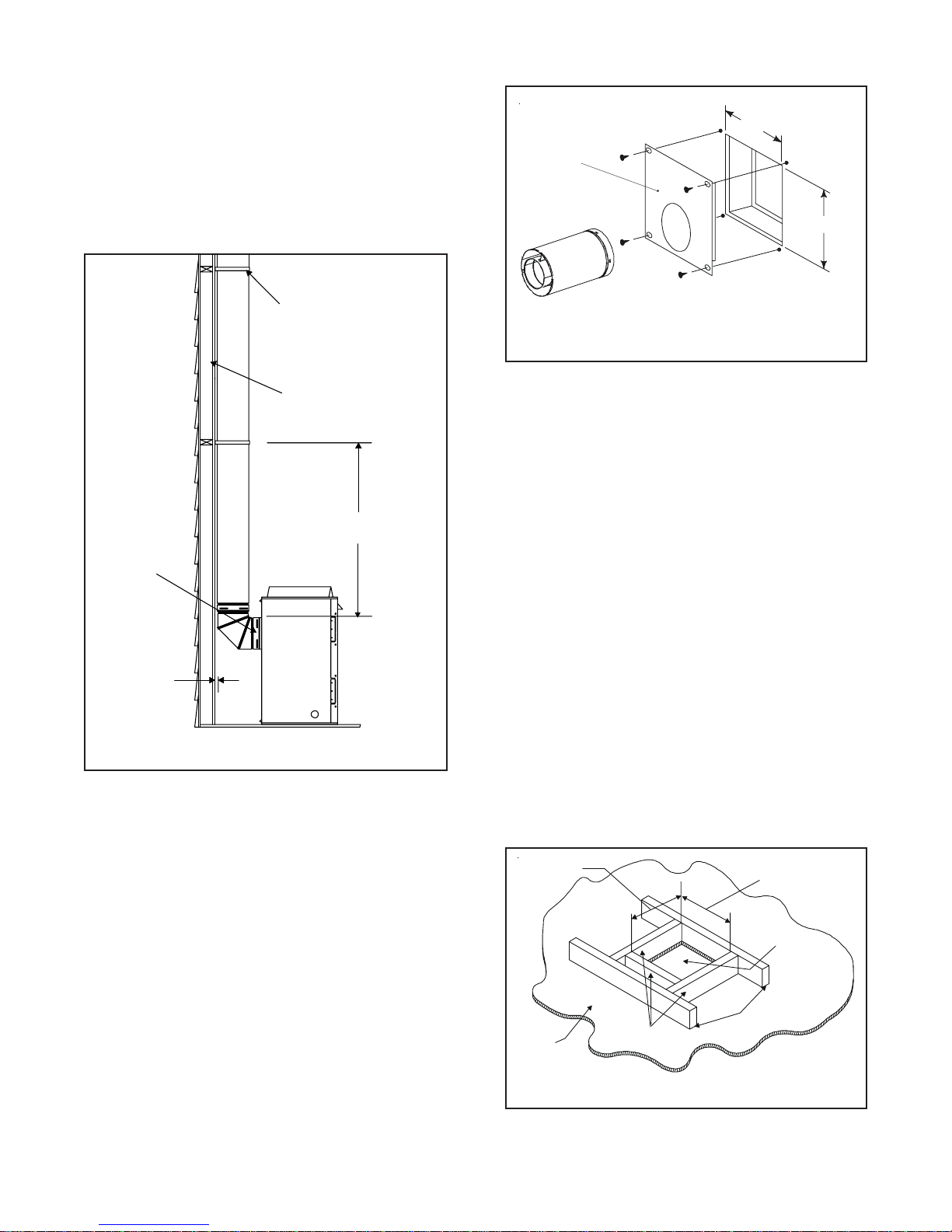

Figure 24. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on
bothsides ofa combustible wall through whichthe flue
passes.
To installfirestops(heat shield) forhorizontalruns that
passthrough either interior or exterior walls:
• Cut a 10-inch by 12-inch (254 mm X 305 mm) hole
throughthe wall.
• Positionthe firestops onboth sides ofthe hole pre-
viously cut and secure the firestops with nails or
screws.
• Thepipe openingof the firestopsMUST BE placed
towards the bottom of the firestop.
• Continuethe flue runthrough the firestop.
WALL BRACKET
WALL STUD
8 FT.
(2.4m)
FLUE
OUTLET
1 INCH MIN.
(25mm)
10" (254mm)
12" (305mm)
INTERIOR
WALL SHIELD
Figure 25. Flue Pipe & Firestop
For Vertical Runs - One firestopis REQUIRED at the
hole in each ceiling through which the flue passes.
To install firestops for vertical runs that pass through
ceilings:
• Positiona plumb bobdirectly over thecenter of the
verticalflue component.
• Mark the ceiling to establish the centerpoint of the
flue.
• Drill a hole or drive a nail through this center point.
• Checkthe floorabove forany obstructions, suchas
wiringor plumbingruns.
• Reposition the heater and flue system, if neces-
sary, to accommodate the ceiling joists and/or ob-
structions.
• Cut a 10-inch X 10-inch (254mm X 305mm) hole
throughthe ceiling, usingthe firestop pipe opening
as a guide.
• Frame the hole with framing lumber the same size
as the ceiling joists.
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254mm)
10” (254mm)
Figure 26. Hole and New Framing Members
