Heat & Glo TWILIGHT Assembly instructions

1
-Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-What to do if you smell gas
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call
the fire department.
-Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Model:
Twilight Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURYOR PROPERTYDAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT AQUALIFIED IN-
STALLER,SERVICEAGENCY,ORTHE
GAS SUPPLIER.
Underwriters
Laboratories Listed
674-900K 6/04
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THISINSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTURE REFERENCE.
1.This appliance may be installed in an af-
termarket, permanently located, manufac-
tured(mobile) home,where notprohibited
by local codes.
2.Thisapplianceisonly for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
Please contact your Heat-N-Glo Lifestyle Productsdealer with
any questions or concerns. For the number of your nearestHeat-
N-Glo Lifestyle Products dealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2004,
Heat-N-Glo Lifestyle Products,
a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWEDEXACTLY,AFIRE OR
EXPLOSION MAYRESULTCAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
This gas fireplace and vent assembly MUST be
vented directly to the outside andMUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas applianceMUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external exhaust vent on a regular
basis to make sure that no debris is interfering with
the air flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLYbe
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of theOwners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should bePERFORMED by a
qualified service person. The appliance and venting
system should beINSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It isIMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEANto provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACEDon or near the
appliance.
Children and adults should beALERTED to the
hazards of high surface temperature and should
STAYAWAYto avoid burns or clothing ignition.
Young children should beCAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!

3
TABLE OF CONTENTS
Safety and Warning Information ................................................. 2
Service Parts List ........................................................................ 4
Section 1: Approvals and Codes................................................ 7
Appliance Certification.................................................................... 7
Installation Codes ........................................................................... 7
High Altitude Installations ................................................................ 7
Section 2: Getting Started .......................................................... 8
Introducing the Heat-N-Glo Lifestyle Products Gas Fireplaces ..... 8
Pre-installation Preparation ............................................................ 8
Section 3: Installing the Fireplace ........................................... 10
Step 1 Locating the Fireplace .................................................. 10
Step 2 Framing the Fireplace................................................... 10
Step 3 Positioning, Leveling, and
Securing the Fireplace.................................................. 12
Step 4 The Gas Control System .............................................. 13
Step 5 The Gas Supply Line .................................................... 13
Step 6 Gas Pressure Requirements ....................................... 13
Step 7 Wiring the Fireplace...................................................... 14
Step 8 Finishing........................................................................ 15
Step 9 Installing Trim, Logs, and Ember Material .................... 15
Installing the Trim .......................................................... 15
Positioning the Logs ..................................................... 15
Shutter Settings ............................................................ 15
Glass Specifications ..................................................... 16
Placing the Ember Material........................................... 16
Step 10 Before Lighting the Fireplace........................................ 16
Step 11 Lighting the Fireplace.................................................... 16
After the Installation ...................................................................... 16
Section 4: Maintaining and Servicing Your Fireplace ......... 17
u= Contains updated information.
u
u

4
*Part number list on following page.
*La liste des numéros de pièce se trouve à la page suivante.

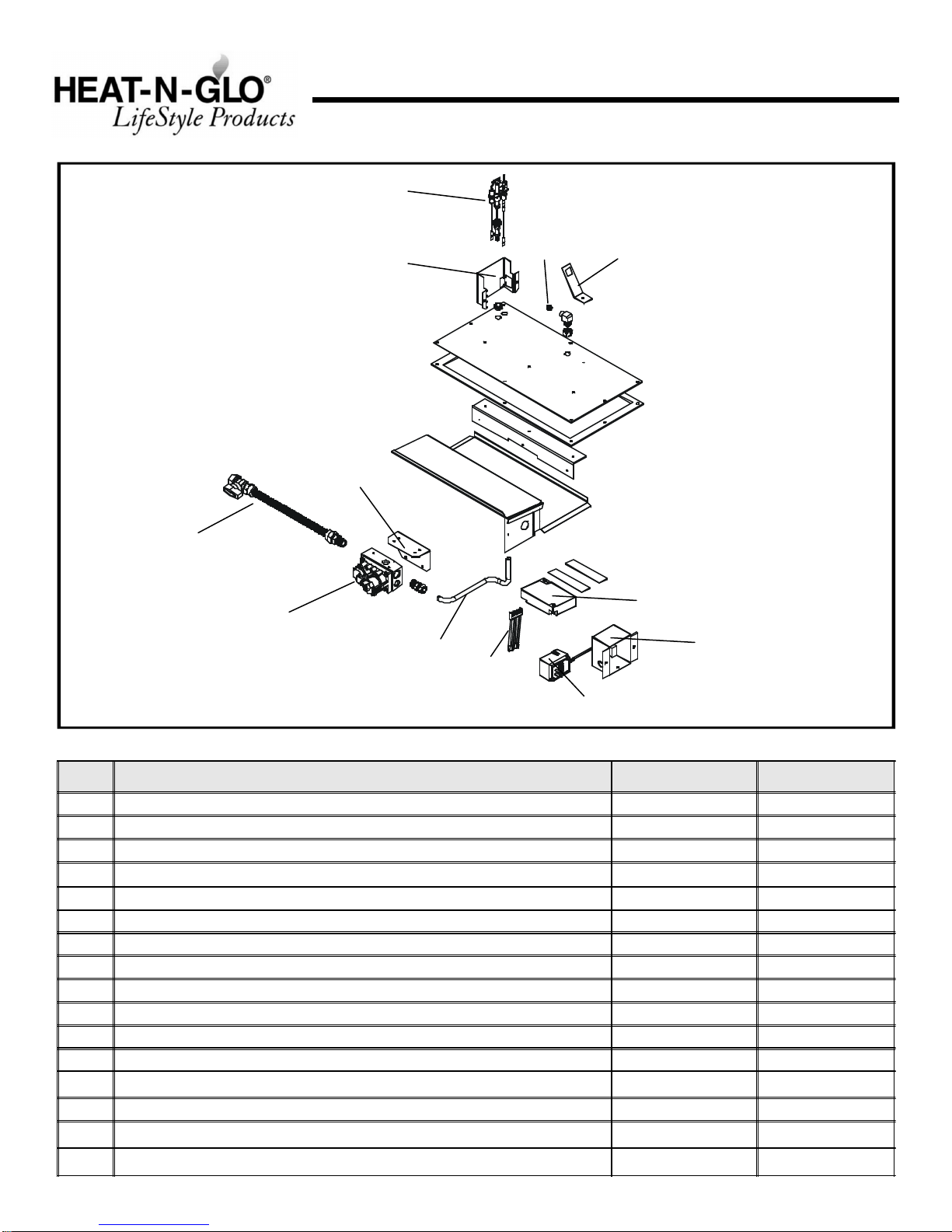

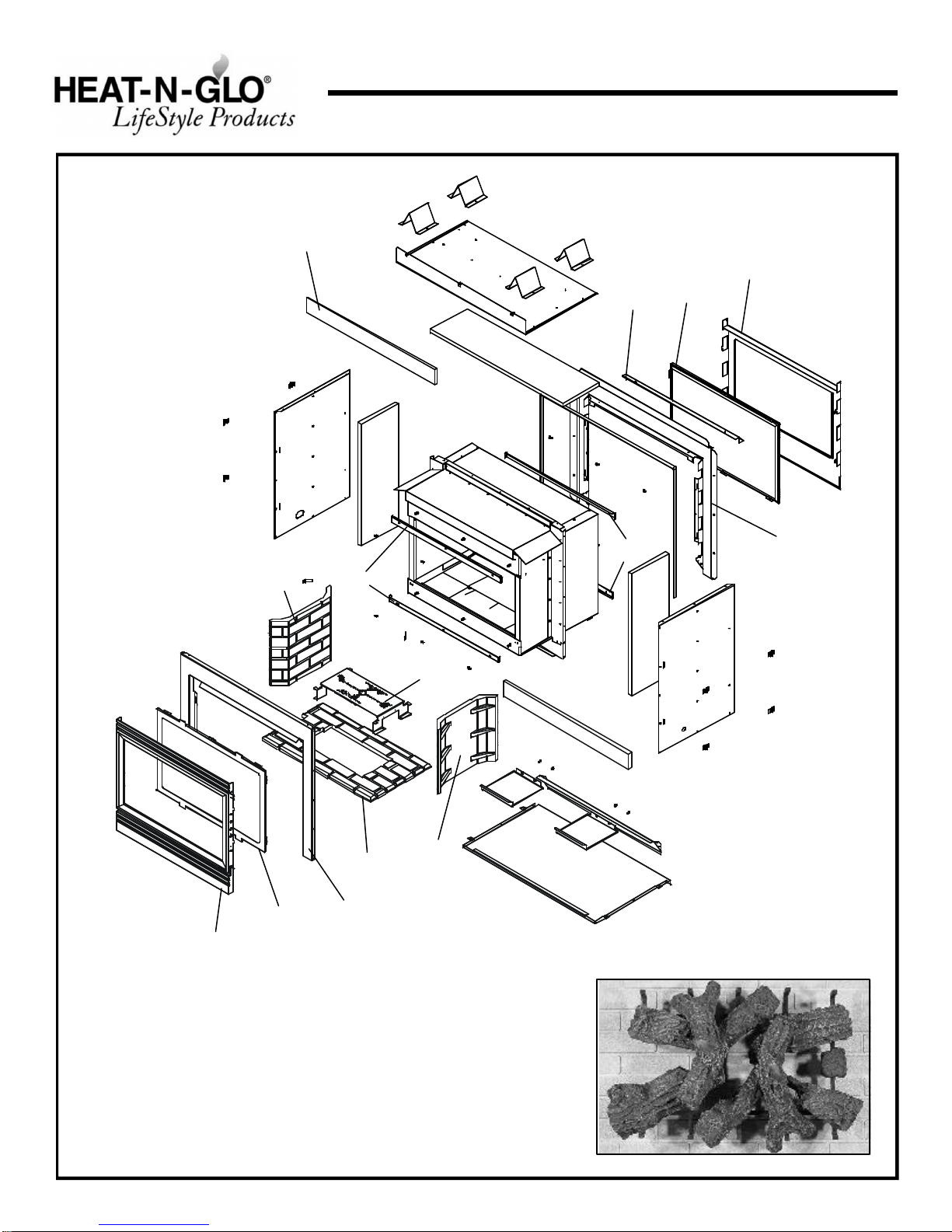

(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts Twilight
Beginning Manufacturing Date: 8-01
Ending Manufacturing Date: ______
4
8
5
12
13
11
9 Log Set Assembly
2
1
76
3
3
14
10

5
(NG, LP) Service Parts List / Liste des pièces de rechange
IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealers VIP site. When ordering,
supply serial and model numbers to ensure correct service parts. /IMPORTANT : L'information fournie dans cette brochure n'est
valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents. Lors
d'une commande, veuillez fournir les numéros de série et de modèles pour un remplacement adéquat des pièces.
Twilight
ITEM /
PIÈCE DESCRIPTION SERIAL # / N° DE SÈRIE PART # / N° DE PIÈCE
INTERMITTENT PILOT IGNITION PARTS / PARTIES D'IGNITION PILOTES INTERMITTENTES
1Burner Assembly NG / Brûleur GN 674-176A
1Burner Assembly LP / Brûleur PL 674-175A
2Base Refractory / Base réfractaire SRV504-738-UM
3Refractory, Side / Réfractaire, côté SRV504-737-UM
4Outdoor Glass Assembly / Assemblée extérieure de verre GLA-OUTDOOR
5Outdoor Door Assembly / Assemblée de Porte Extérieure 674-180
6Indoor Glass Assembly / Assemblée de verre d'intérieur GLA-INDOOR
7Indoor Door Assembly / Assemblée de Porte D'intérieur DF-36H
8Hood / Hotte SRV674-174
9Log Set Assembly (Sold as a Set Only) / Jeu de Bûches PRE 002253964
POST 002253964 LOGS-MS LOGS-TWILIGHT
10 Glass Clip Indoor / Agrafe de Verre D'intérieur 674-138
11 Glass Clip Outdoor / Agrafe de Verre Extérieure 674-137
12 Insulation Board / Conseil d'Isolation 674-452
13 Outside Surround / Entourez à l'extérieur 674-130
14 Inside Surround / Entourez à l'intérieur 674-131
Flashing Corner Cover / Projection de Couverture de Coin 674-169
Mesh Assembly / Écran MESH-36
ACCESSORIES / ACCESSOIRES
Remote Control Kit / Module de commande à distance RC-SMART-HNG
Remote Control Kit / Module de commande à distance SMART-STAT-HTL
Remote Control Kit / Module de commande à distance RC-SMART-HTL
Conversion Kit NG / Module de conversion GN NGK-STIO
Conversion Kit LP / Module de conversion PL LPK-STIO
Wall Switch Kit, Off-white / Interrupteur mural, blanc crème WSK-21-HTI
Wall Switch Kit, White / Interrupteur mural, blanc WSK-21-W-HTI
Spud LP / Pioche LP 446-517
Spud NG / Pioche NG 446-505
Also see following pages for additional valve assembly service part numbers.
u
u
u

6
u
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts TWILIGHT
Beginning Manufacturing Date: 8-01
Ending Manufacturing Date: ______
5
2
9
3
7
4
8
6
ITEM /
PIÈCE DESCRIPTION SERIAL # / N° DE SÉRIE PART NUMBER / N° DE PIÈCE
1Junction Box / Boîtier de dérivation 100-250A
2Valve NG (30 Sec) / Valve (30 Sec) GN 593-500
2Valve LP (30 Sec) / Valve (30 Sec) PL 593-501
3Flexible Gas Connector / Tuyau à gaz flexible 477-301A
4Wire Assembly / Module de fil 593-590A
5Pilot Assembly NG / Module de veilleuse GN 385-510A
5Pilot Assembly LP / Module de veilleuse PL 385-511A
6Pilot Bracket / Parenthèse Pilote 674-164
7Burner Orifice (NG) (#31C) / Orifice de brûleur (GN) (#31C) 582-831
7Burner Orifice (LP) (1.8mm) / Orifice de brûleur (PL) (1.8mm) 582-818
8Valve Bracket / Parenthèse de Valve 674-167
9Flex Ball Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-320A
10 3V Adaptor / 3V Bouchon d'adapteur 593-593A
11 Control Module / Module de commande 593-592
12 Orifice Bracket / Parenthèse d'Orifice 674-110
Battery Pack / Paquet de Batterie(Pile) 593-594A
12
11
1
10

7
Appliance Certification
The Heat-N-Glo Lifestyle Products fireplace models dis-
cussed in this Installers Guide have been tested to certifi-
cation standards and listed by the applicable laboratories.
Certification
MODEL: Twilight
LABORATORY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace
STANDARD: ANSI Z21.50•CGA2.22
ANSI Z21.50b-2000•CSA2.22b-2000
EXTERIOR WINDOW PERFORMANCE STANDARDS
LABORATORY:Stork Twin City Testing
STANDARD:ANSI/AAMA/NWWDA 101/I.S. 2-97
PERFORMANCE GRADES: F-R30* (45x37)
F-LC30* (45x37)
Air leakage does not exceed 0.3 cfm per square foot
at pressure differential of 1.57 lb per square foot per
ASTM E283-91.
The structural test pressure for wind loading
calculations exceeds the F-R/LC30 performance grade
withstanding design pressure of 50 lb per square foot
as tested per ASTM E330-96.
1
Approvals and
Codes
Installation Codes
Thefireplace installationmust conformto localcodes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(inthe UnitedStates), orto the CSAC22.1 Canadian Electric
Code (in Canada).
These models may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
High Altitude Installations
U.L. Listed gas appliances are tested and approved with-
out requiring changes for elevations from 0 to 2,000 feet in
the U. S. A. and in Canada.
When installing this appliance at an elevation above 2,000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating value
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.
The Twilight has been carefully engineered to provide a
unique fireplace experience. Since it is different than any
other product on the market, care must be taken when
installing this fireplace so that our customer does not
experience undesirable performance or conditions.
1. Install the fireplace according to this Installer’s Guide
paying particular attention to flashing and sealing
instructions.
2. In the cold northern climates pay attention to exposures
and prevailing wind conditions when locating the fireplace,
the same as you would for locating exterior windows
and doors.
The Twilight has the thermal characteristics of a high quality
window system. Temperatures near the fireplace will be
cooler than what is realized with a fully insulated wall.
Operation of the fireplace will eliminate any cool drafts and
will provide the room with a comfortable ambiance.

8
2
Getting Started
Introducing the Heat-N-Glo Lifestyle
Products Gas Fireplaces
Heat-N-Glo Lifestyle Products direct vent gas fireplaces are
designed to operate with all combustion air siphoned from
outside of the building and all exhaust gases expelled to
the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-install Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
The Heat-N-Glo Lifestyle Products Warranty will be voided
by, and Heat-N-Glo Lifestyle Products disclaims any
responsibility for, the following actions:
•Installation of any damaged fireplace.
•Modification of the fireplace vent system.
•Installation other than as instructed by Heat-N-Glo
Lifestyle Products.
•Improper positioning of the gas logs or the glass door.
•Installation and/or use of any component part not manu-
factured and approved by Heat-N-Glo Lifestyle Products,
not withstanding any independent testing laboratory or
other party approval of such component part or acces-
sory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a wall
switch or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

9
Figure 1.
Diagram of the Twilight (Dimensions in brackets are millimeters).
TOP STANDOFFS
TOP GRILLE
GLASS DOOR
BOTTOM
GRILLE
GAS CONTROLS
AND LABELS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
INDOOROUTDOOR
(8)
1/2
13[ ]
(2)
43
1093[ ]
377[ ] 3
77
[ ]
42
1068
[ ]
(4)
40-3/4
1034[ ]
42-1/2
1080[ ]
17-7/8
453[ ]
24-1/8
611[ ]
23-3/8
595[ ]
8
204
[ ]
36-1/8
917.7[ ]
8
204[ ]
40-1/2
1030[ ]
36-3/8
924[ ]
ELECTRICAL
ACCESS
GAS LINE
ACCESS

10
3
Installing the Fireplace
Step 1. Locating the Fireplace
The diagram below shows space and clearance require-
ments for locating a fireplace within a room. THE FIRE-
PLACE MUST BE LOCATED FLUSH WITH THE OUTSIDE
OF AN EXTERIOR WALL!
Indoor Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass............................... 36....................914
Floor ................................. 0.......................0
Metal Sides ......................1/2 ....................13
Top ................................ 4 1/2.................. 114
Ceiling* ............................ 31....................787
Figure 2. Fireplace Dimensions and Locations
Clearance Requirements
The top and sides of the fireplace are defined by stand-offs.
Theminimum clearanceforthe indoorsideto aperpendicular
wall extending past the face of the fireplace is one inch (25
mm). The metal ends of the fireplace mayNOT be recessed
into combustible construction.
WARNING: TO PREVENT CONTACT WITH
SAGGING OR LOOSE INSULATION, THE
FIREPLACE MUST NOT BE INSTALLED AGAINST
VAPOR BARRIERS OR EXPOSED INSULATION. LO-
CALIZED OVERHEATING COULD OCCUR AND A
FIRE COULD RESULT.
Step 2. Framing the Fireplace
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
gram below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
*The clearance to the ceiling is measured from the top
of the unit, excluding the standoffs (see Figure 9).
The distance from the unit to combustible construction is to
be measured from the unit outer wrap surface to the com-
bustible construction, NOT from the screw heads that se-
cure the unit together.
!
WARNING: FRAMING DIMENSIONS ASSUME
USE OF 1/2 INCH THICK WALL COVERING
MATERIALS ON EXTERIOR OF FRAMING ONLYAND
NO SHEETROCK ON INTERIOR OF FRAMING.
!
36”
1”
GLASS
FLUSH TO OUTSIDE
GLASS
Framing should be
constructed of 2 X 4
lumber or heavier.
Figure 3.
Framing Dimensions
44
[1117.6]
41 1/4
[1047.8]
22 7/8
[581]
Outdoor Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass............................... 36.................... 914
Floor ................................. 0......................0
Sides*.............................. 12.................... 305
Top* ................................. 12.................... 305
Overhang (non-vinyl) .......... 31.................... 787
Overhang (vinyl) ................ 60................... 1524
*NOTE: Clearance to sides and top are 36” when vinyl siding is used.
In cold northern climates pay attention to exposures and
prevailing wind conditions when locating the fireplace,the same
as you would for locating exterior windows and doors.
The Twilight has the thermal characteristics of a high quality
window system. Temperatures near the fireplace will be
cooler than what is realized with a fully insulated wall.

11
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
V= FIREPLACE OPENING X= AIR SUPPLY INLET = AREA WHERE FIREPLACE IS NOT PERMITTED
Figure 4. Fireplace Opening Minimum Clearances
A=0" ............................ clearances above grade, veran-
da, porch, deck or balcony
B* =12".......................... clearances to window or door
that may be opened, or to per-
manently closed window.
D** =31".......................... vertical clearance to ventilated
soffitlocatedabovetheterminal
within a horizontal distance of 2
feet(60cm)fromthecenter-line
of the terminal
E** =31".......................... clearance to unventilated soffit
F=9" ........................... clearance to outside corner
G* =12".......................... clearance to inside corner
H=3 ft. (Canada) ....... not to be installed above a gas
meter/regulator assembly within
3feet(90cm)horizontallyfromthe
center-line of the regulator
I=3 ft. (U.S.A.)
6 ft. (Canada) ....... clearance to service regulator
vent outletand electric service
J=9" (U.S.A.)
12" (Canada) ......... clearance to non-mechani-
cal air supply inlet to build-
ingorthe combustion airin-
let to any other appliance
K=3 ft. (U.S.A.)
6 ft. (Canada) .......... clearance to a mechanical
airsupplyinlet
L*** =54” ............................ clearance above paved
sidewalkorapaveddriveway
located onpublic property
M****=31"............................ clearance under veranda,
porch, deck or balcony
N=12” ............................ non-vinyl siding
36” ............................ vinyl siding
O=31” ............................ non-vinylsoffitandoverhang
60” ............................ vinyl soffit and overhang
P=8 ft.
CAUTION: IFEXTERIORWALLS ARE FINISHED WITH VINYL SIDING, IT IS NECESSARYTO INSTALL THE VINYL PROTECTOR
KIT TO THE TOP OF THE EXTERIOR FIRESTOP (FOR ALL ROUND TERMINATION CAPS). IT IS STRONGLYRECOMMENDED
WHENEVER POSSIBLE TO USE THE VINYL PROTECTOR KIT.
O
N
P
R
Q
FP
(See Note 1)
(See Note 1)
(See Note 2)
QMIN RMAX
Twilight 10 feet 2 x Q ACTUAL
1 additionalterminationcap Q + 3 feet 1 x Q ACTUAL
2 additionalterminationcaps Q + 6 feet 2/3 x Q ACTUAL
3 additionalterminationcaps Q + 9 feet 1/2 x Q ACTUAL
RMAX = (2 / # capsplusfireplace) x QACTUAL
DE
L
FP
A
H
M
X
J or K
I
A
G
F
FP
FP
FP
FP
FP
B
B
B
** 60” minimum for vinyl clad soffits.
*** a fireplace shall not open directly above a sidewalk or paved
drivewaywhich islocated betweentwo singlefamily dwellings
and serves both dwellings.
**** only permitted if veranda, porch, deck or balcony is fully open
on a minimum of 2 sides beneath the floor, or if the screened
porch guidelines are followed.
NOTE 1:Local codes or regulations may require different clearances.
NOTE 2: Termination in an alcove space (spaces open only on one
sideand with anoverhang) arepermitted with thedimensions specified
for vinyl or non-vinyl siding and soffits.1.Theremust be3feet minimum
between terminations or between the fireplace and termination. 2. All
mechanicalair intakeswithin 10feet ofa terminationmust bea minimum
of 3 feet below the fireplace hood. 3. All gravity air intakes within 3
feet of the fireplace hood must be a minimum of 1 foot below the
termination.
Thisfireplaceis approvedforinstallationonto screenedporches
with the following guidelines:
Minimum porch area: 96 square feet
Minimum ceiling height: 92 inches
Minimum of two walls must be screened
Minimum top of screen height, side walls: 6 ft. 8 in.
Minimum screen area: 64 square feet
NOTE: There may be some odor and small amounts of soot
associated with venting the Twilight onto a screened porch.
Ensuring good cross draft ventilation and routine maintenance
of the fireplace will maximize comfort and cleanliness.
* 36” minimum for vinyl windows or vinyl siding.

12
Step 3. Positioning, Leveling, and
Securing the Fireplace
Placing the Protective Metal Hearth Strip
Included with your fireplace you will find a metal flashing
strip measuring approximately 46” x 4”. This strip is used
to provide added protection where the fireplace and outer
structure meet.
•Place a generous bead of silicone caulk into the corner
of the protective hearth strip. Place the metal strip onto
the structure where the outer edge of the fireplace will sit
(see Figure 6).
•Place the fireplace into position. Make sure flashing edges
on the outdoor surround fit up tight to the framing.
The diagram below shows how to properly position, level,
and secure the fireplace. Before the framing or fireplace is
set in place, the cutout should be covered with tar paper or
similar material.
Theoutdoor sideofthe fireplacecontainsedges thatprotrude
beyond the normal envelope of the fireplace. Special care
should be taken to avoid damage to these parts.
Figure 5. Proper Positioning, Leveling, and
Securing of a Fireplace
Figure 6.
Positioning the Metal Strip
•Level the fireplace from side to side and front to back.
•Shim the fireplace with non-combustible material, such
as sheet metal, as necessary.
•Secure the fireplace to the framing byusing nails or screws
through the nailing tabs.
•See Figure 7 for placement of combustible housewrap or
building paper and non-combustible sheathing for the
outside wall. Combustible housewrap or building paper
may be brought over the fireplace flange, but not past
the bend in the flange (see Figure 8).
•Once the fireplace is in place, put protective flashing
corner cover pieces (found in manual bag assembly) over
top corners on outside of unit (see Figure 8). Use sili-
cone caulk to place these pieces over the corners and
secure into place. Make sure enough silicone caulk is
used to make a water tight seal between outdoor sur-
round and corner pieces.
METAL STRIP
UNDER EDGE OF
FIREPLACE
Figure 7
Figure 8
NOTE: The installation is permitted in screened porch-
es following the guidelines in Figure 4.
FLASHING
CORNER
COVER (2)
BEND IN
FLANGE
FIREPLACE
FLANGE
HOUSEWRAP
SHEATHING
NON-COMBUSTIBLE
SHEATHING
FRAMING
MEMBER
1/4” CLEARANCE
TO HOUSEWRAP
12”
NOTE:
COMBUSTIBLE HOUSEWRAP
OR BUILDING PAPER
MUST BE BEHIND
NON-COMBUSTIBLE
SHEATHING WITHIN
THIS AREA.
OUTSIDE
SECURE
TO FRAMING
IN A MINIMUM
3 PLACES
PER SIDE
SECURE
TO FRAMING

13
!
!
!
Step 4. The Gas Control System
WARNING: THIS UNIT IS NOT FOR USE WITH
SOLID FUEL.
The type of gas control system used with this model: Inter-
mittent Pilot Ignition (IPI).
Intermittent Pilot Ignition (IPI) System
This system includes a 3V control valve, electronic module,
and intermittent pilot.
WARNING: 110-120 VAC MUST NEVER BE
CONNECTED TO ACONTROL VALVE IN AMIL-
LIVOLT SYSTEM.
WARNING: CONTINUOUS 110-120 VAC SER-
VICE MUST BE WIRED DIRECTLYTO THE FIRE-
PLACE JUNCTION BOX.
Figure 9.
Gas Control System
Intermittent
Pilot Ignition
•Insert insulation from the outside of the fireplace and
pack the insulation tightly to totally seal between the
pipe and the outer casing.
•After the gas line installation is complete, all connections
must be tightened and checked for leaks with a commer-
cially-available,non-corrosiveleakchecksolution.Besure
to rinse off all leak check solution following testing.
Step 5. The Gas Supply Line
NOTE: Have the gas supply line installed in accordance
with local building codes by a qualified installer
approved and/or licensed as required by the locality.
(In the Commonwealth of Massachusetts installation
must be performed by a licensed plumber or gas fitter).
NOTE: Before the first firing of the fireplace, the gas
supply line should be purged of any trapped air.
NOTE: Consult local building codes to properly size
the gas supply line leading to the 1/2 inch
(13 mm) hook-up at the unit.
This gas fireplace is designed to accept a 1/2 inch
(13 mm) gas supply line. To install the gas supply line:
•A listed (and Commonwealth of Massachusetts approved)
1/2 inch (13mm) tee-handle manual shut-off valve and a
listed flexible gas connector are connected to the 1/2
inch (13mm) inlet of the control valve. NOTE: If substi-
!
tuting for these components, please consult local codes
for compliance.
•Locate the gas line access hole in the outer casing of
the fireplace.
•The gas line may be run from either side of the fireplace
provided the hole in the outer wrap does not exceed 2” in
diameter and it does not penetrate the actual firebox.
•Open the fireplace lower grille, insert the gas supply line
through the gas line hole, and connect it to the shut-off
valve.
•When attaching the pipe, support the control so that the
lines are not bent or torn.
•After the gas line installation is complete, use a soap
solution to carefully check all gas connections for leaks.
WARNING: DO NOT USE AN OPEN FLAME
TO CHECK FOR GAS LEAKS.
Figure 10. Gas Supply Line
Step 6. Gas Pressure Requirements
Pressure requirements for Heat-N-Glo Lifestyle Products gas
fireplaces are shown in the table below.
Gas Pressure NG LP
Min. Inlet Pressure 5.0inchesw.c. 11.0 inches w.c.
Max. Inlet Pressure 14.0inchesw.c. 14.0 inches w.c.
Manifold Pressure 3.5inchesw.c. 10.0 inches w.c.
A one-eighth (1/8) inch (3 mm) N.P.T. plugged tapping is
provided on the inlet and outlet side of the gas control for a
test gauge connection to measure the manifold pressure.
The fireplace and its individual shut-off valve must be
disconnected from the gas supply piping system during any
pressure testing of the system at test pressures in excess
of one-half (1/2) psig (3.5 kPa).
The fireplace must be isolated from the gas supply piping
system by closing its individual shut-off valve during any
pressure testing of the gas supply piping system at test
pressures equal to or less than one-half (1/2) psig (3.5 kPa).
GAS LINE
ACCESS CONTROL VALVE
USE A WRENCH
ON SHUT-OFF VALVE
WHEN TIGHTENING
GAS LINE.
MANUAL
SHUT-OFF VALVE
GAS
VALVE
FLEX
CONNECTOR
Flame Sensor
Rod u

14
Step 7. Wiring the Fireplace
NOTE: Electrical wiring must be installed by a licensed
electrician.
CAUTION: DISCONNECT REMOTE CONTROLS IF AB-
SENT FOR EXTENDED TIME PERIODS. THIS WILL PRE-
VENT ACCIDENTAL FIREPLACE OPERATION.
For Intermittent Pilot Ignition (IPI) Wiring
Appliance Requirements
WARNING: DO NOT CONNECT 110-120 VAC
TO THE GAS CONTROL VALVE OR WALL
SWITCH OR THE APPLIANCE WILL MALFUNCTION
AND THE VALVE WILL BE DESTROYED.
NOTE: Waterproof insulated wire should be used when wir-
ing the junction box.
!
Figure 11. Intermittent Pilot Ignition (IPI) Wiring Diagram
Optional Accessories
Optional remote control kits require that 110-120 VAC be
wired to the factory installed junction box before the fire-
place is permanently installed.
Wall Switch
Position the wall switch in the desired position on a wall.
Run a maximum of 25 feet (7.8 m) or less length of 18
A.W.G. minimum wire and connect it to the fireplace ON/
OFF switch pigtails.
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNEC-
TION WHEN SERVICING CONTROLS. WIRING ERRORS
CAN CAUSE IMPROPER ANDDANGEROUSOPERATION.
VERIFY PROPER OPERATION AFTER SERVICING.
WALL SWITCH
RED BLK
IGNITION MODULE 3 VAC
TRANSFORMER
3 VAC
BRN
BRN
GRN
ORG
VALVE
OPTIONAL
BATTERY BACKUP
JUNCTION BOX
120 VAC
OPTIONAL
REMOTE
GROUNDTO
FIREPLACE
CHASSIS
FAN
REM
REM FAN
JUNCTION BOX
120VAC
ORG
WHT
I
S
INTERMITTENT PILOT IGNITOR
RED
BLK
IGNITION
MODULE
(3V)
VALVE
ON/OFF
WALLSWITCH
LOW VOLTAGE
LOW VOLTAGE
PLUG-IN
3VTRANSFORMER
NEUTRAL HOT
GROUND
FLAMESPARKER/
SENSOR
OPTIONAL
BATTERY
BACK-UP
REMOTE
CONTROL
SEE NOTE 1
SEE NOTE 1
FAN OUTLET RECEPTACLE
(NO FAN OPTION)
NOTE: 1. Ignition module, valve, pilot, and wall switch operate on 3 volts.
120 VAC is required at junction box unless equipped with battery back-up.

15
Step 8. Finishing
• INDOOR FINISHING
Figure 12 shows the minimum vertical and corresponding
maximum horizontal dimensions of fireplace mantels or other
combustible projections above the top front edge of the
fireplace. See Figures 2 and 3 for other fireplace clearances.
Only non-combustible materials may be used to cover the
black fireplace front.
WARNING: WHEN FINISHING THE FIREPLACE,
NEVER OBSTRUCT OR MODIFY THE AIR IN-
LET/OUTLET GRILLES IN ANY MANNER.
!
Figure 12.
Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles above Fireplace
CAUTION: IF JOINTS BETWEEN THE FINISHED WALLS
AND THE FIREPLACE SURROUND (TOP AND SIDES)
ARE SEALED, A 300°F. MINIMUM SEALANT MATE-
RIAL MUST BE USED. THESE JOINTS ARE NOT RE-
QUIRED TO BE SEALED. ONLY NON-COMBUSTIBLE
MATERIAL (USING 300° F. MINIMUM ADHESIVE, IF
NEEDED) CAN BE APPLIED AS FACING TO THE FIRE-
PLACE SURROUND.
TOP EDGE OF FIREPLACE
1/2"
12"
CEILING
31”
Installing the Trim
WARNING: WHEN FINISHING THE FIREPLACE,
NEVER OBSTRUCT OR MODIFY THE AIR INLET/
OUTLET GRILLES IN ANY MANNER.
FOR INSIDE:
Combustible materials may be brought up to the specified
clearances on the side and top front edges of the fireplace,
but MUST NEVER overlap onto the front face. The joints
between the finished wall and the fireplace top and sides
can only be sealed with a 300° F. (149° C) minimum sealant.
Install optional marble and brass trim surround kits as
desired. Marble, brass, brick, tile, or other non-combustible
materials can be used to cover up the gap between the
sheet rock and the fireplace.
Do not obstruct or modify the air inlet/outlet grilles. When
overlapping on both sides, leave enough space so that the
bottom grille can be lowered and the trim door removed.
FOR OUTSIDE:
Marble, brick, tile, stone, or other non-combustible materials
can be used to cover up the gap between the facing material
and the fireplace. DO NOT obstruct or modify the air intake
or exhaust.
Positioning the Logs
If the gas logs have been factory installed they should not
need to be positioned. If the logs have been packaged
separately, refer to the instructions that accompany the
logs. Save the log instructions with this manual.
If sooting occurs, the logs might need to be repositioned
slightly to avoid excessive flame impingement.
!
Step9. InstallingTrim,Logs&EmberMaterial
INDOOR
CLEARANCES
Figure 13.
Outdoor clearances
A
B
A
A
OVERHANG
___________________________________________
Shutter Settings
NG LP
Twilight 3/8” 1/2”
• OUTDOOR FINISHING
Whenfinishingoutdoorsideoffireplace,durarockorothernon-
combustiblematerial mustbeusedwithin12 inchesoftopand
sides (see Figure 7). A non-combustible facing material such
asbrick,stone,tileormarblemustbeusedwithin12inchesof
the top and sides. For applications where vinyl siding is used,
36 inches of non-combustible facing must be used along the
sides and top of the fireplace.
NOTE: Mantels constructed of combustible materials areNOT
permitted on the outside. Non-combustible mantel construc-
tion not exceeding 12” deep is permitted a minimum of 12”
above the top edge of the fireplace.
To ensure a watertight seal, an ample bead of silicone caulk
shouldbe placedbetweenthefacingmaterial andthefrontface
of the fireplace.
!
WARNING: THE BOTTOM EDGE ON THE OUT-
DOOR SIDE OF THE FIREPLACE CAN NOT BE
COVERED WITH ANY MATERIAL. TO DO SO WILL
PREVENT PROPER WATERSHEDDINGCAPABILITIES.
A B
Vinyl Siding 36” -
Non-vinyl Siding 12” -
Vinyl Overhang -60”
Non-vinyl Overhang -31”

16
Placing the Ember Material
Ember material is shipped with this gas fireplace. The bag
labeled Glowing Ember (050-721) is standard glowing em-
ber material.
To place the ember material:
•Remove the wing nuts and glass clips around the glass
door.
•Remove the glass door from the unit.
•Place dime size pieces of ember material about 1/2 inch
apart near port holes in burner top. Do NOT press em-
bers into burner ports. Cover the top of the burner with a
single layer of ember material. For best performance do
NOT place embers on the ports at the rear of the burner.
•Save the remaining ember materials for use during fire-
place servicing. The bag of embers provided is sufficient
for 3 to 5 applications.
•Replace the wing nut, glass clips, and screws.
•Replace the glass door and a front trim door on the unit.
•Hand tighten the wing nut.

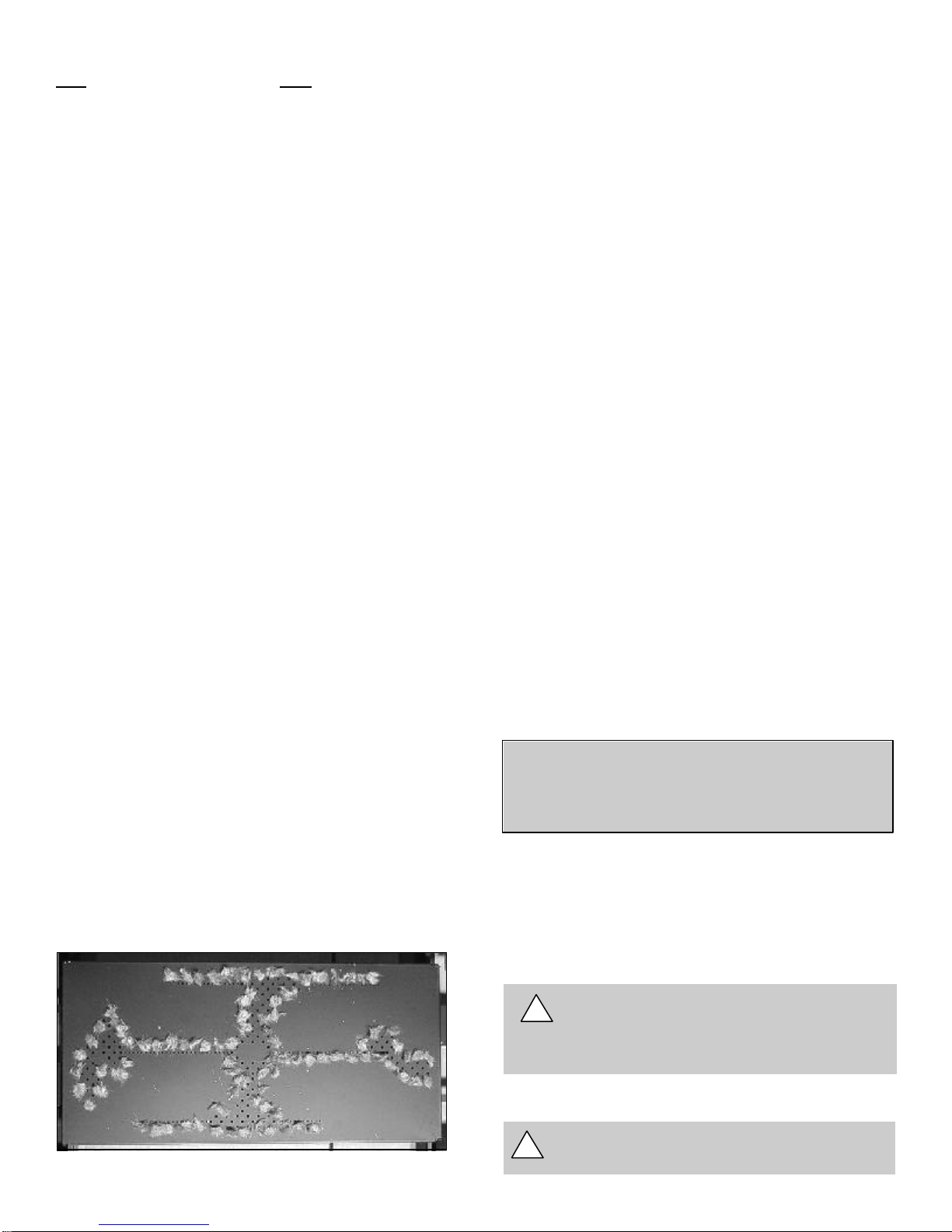

Figure 14. Placement of the Ember Material
Step 10. Before Lighting the Fireplace
Before lighting the fireplace, be sure to do the following:
Remove all paperwork from underneath the fireplace.
Review safety warnings and cautions
•Read the Safety and Warning Information section at
the beginning of this Installers Guide.
Double-check for gas leaks
•Before lighting the fireplace, double-check the unit for
possible gas leaks.
Double-check vent terminations and front grilles for
obstructions.
•Before lighting the fireplace, double-check the unit for
possible obstructions that could be blocking the vent ter-
minations or the front grilles.
Double-check for faulty components
•Any component that is found to be faulty MUST BE re-
placed with an approved component. Tampering with the
fireplace components isDANGEROUS and voids all war-
ranties.
A small amount of air will be in the gas supply lines. When
first lighting the fireplace, it will take a few minutes for the
lines to purge themselves of this air. Once the purging is
complete, the fireplace will light and will operate normally.
Subsequent lightings of the fireplace will not require this
purging of air from the gas supply lines, unless the gas
valve has been turned to the OFF position, in which
case the air would have to be purged.
NOTE: The fireplace should be run 3 to 4 hours on the initial
start-up. Turn it off and let it cool completely. Remove and
clean the glass. Replace the glass and run the fireplace for
an additional 8 hours. This will help to cure the products
used in the paint and logs.
!
!
Glass Specifications:
Side Type
Outdoor CERAMIC
Indoor TEMPERED
Heat-N-Glo Lifestyle Products fireplaces manufactured with
tempered glass may be installed in hazardous locations
such as bathtub enclosures as defined by the CPSC. The
tempered glass has been tested and certified to the require-
ments of ANSI Z97.1-1984 and CPSC 16 CFR 1202. (Safety
Glazing Certification Council SGCC # 1595 and 1597. Ar-
chitectural Testing, Inc. Reports 02-31919.01 and 02-
31917.01.)
This statement is in compliance with SPCS 16 CFR Sec-
tion 1201.5 “Certification and labeling requirements” which
refers to 15 USC 2063 stating “…Such certificate shall ac-
company the product or shall otherwise be furnished to any
distributor or retailer to whom the product is delivered.”
Some local building codes require the use of tempered glass
with permanent marking in such locations. Glass meeting
this requirement is available from the factory. Please con-
tact your dealer or distributor to order.
Step 11. Lighting the Fireplace
You’ve reviewed all safety warnings, you’ve checked the
fireplace for gas leaks, you know the vent system is
unobstructed, and you’ve checked for faulty components.
Now you’re ready to light the fireplace.
WARNING: PLEASE REFER TO THE USER’S
MANUAL FOR ALL CAUTIONS, SAFETY, AND
WARNING INFORMATION PERTAINING TO THE
LIGHTING AND OPERATION OF THE FIREPLACE.
After the Installation
LEAVE THIS INSTALLATION MANUAL WITH
THE APPLIANCE FOR FUTURE REFERENCE.
During this break-in period it is recommended that some
windows in the house be opened for air circulation. This will
help avoid setting off smoke detectors, and help eliminate
any odors associated with the fireplace’s initial burning.

17
4Maintaining and Servicing Your Fireplace
Fireplace Maintenance
Although the frequency of your fireplace servicing and main-
tenance will depend on use and the type of installation, you
should have a qualified service technician perform an appli-
ance check-up at the beginning of each heating season.
See the table below for specific guidelines regarding each
fireplace maintenance task.
IMPORTANT: TURN OFF THE GAS BEFORE SERVICING
YOUR FIREPLACE.
Replacing old ember material
Frequency: Once annually, during the checkup.
By: Qualified service technician.
Task: Brush away loose ember material near the burner.
Replace old ember material with new dime-size and shape
pieces of Glowing Ember (050-721). Save the remaining
ember material and repeat this procedure at your next
servicing. For more information, see Placing Ember
Material.
Cleaning Burner and Controls
Frequency: Once annually.
By: Qualified service technician.
Task: Brush or vacuum the control compartment, fireplace
logs and burner areas surrounding the logs.
Cleaning Flame Sensor Rod (IPI Systems)
Frequency: Annually.
By: Qualified service technician.
Task: Make a visual check of the straight flame sensor rod
(see Figure 9). Use emery cloth to carefully remove any
existing film or white deposits.
Checking Flame Patterns, Flame Height
Frequency: Periodically.
By: Qualified service technician/Home owner.
Task: Make a visual check of your fireplace’s flame patterns.
Make sure the flames are steady - not lifting or floating.
See Figure 15. The thermopile/thermocouple tips should
be covered with flame.
Checking Vent System
Frequency: Before initial use and at least annually
thereafter, more frequently if possible.
By: Qualified service technician/Home owner.
Task: Inspect the external vent on a regular basis to ensure
that no debris is interfering with the flow of air. Inspect entire
vent system for proper function.
Cleaning Glass Door
Frequency: After the first 3 to 4 hours of use. As neces-
sary after initial cleaning.
By: Home owner.
Task: Remove and clean glass after the first 3 to 4 hours of
use. After the initial cleaning, clean as necessary, particu-
larly after adding new ember (flame colorant) material. Film
deposits on the inside of the glass door should be cleaned
off using a household glass cleaner.NOTE: DO NOT handle
or attempt to clean the door when it is hot and DO
NOT use abrasive cleaners.
NOTE: Under certain weather conditions, some water may
accumulate inside the fireplace. This is normal and ex-
pected. The control compartment contains two removable
drip pans that may be cleaned as necessary (see Figure
16). Excess moisture can be eliminated by burning the fire-
place for a few hours.
NOTE: The rating plate is located under the drip tray on the
right side of the fireplace.
Figure 16. Drip Tray
NOTE ORIENTATION
OF DRIP TRAYS ON
SHOULDER SCREW
INCORRECT INSTALLATION
LEFT
SIDE
RIGHT
SIDE
CORRECT INSTALLATION
LEFT
SIDE
RIGHT
SIDE
Figure 15. Burner Flame Patterns
MAKE SURE THE FLAMES
ARE STEADY—NOT
LIFTING OR FLOATING.
