Heat & Glo SL-750TV-IPI-E User manual

1
Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/08
Models:
SL-550TV-IPI-E
SL-750TV-IPI-E
SL-950TV-IPI-E
Owner’s Manual
Installation and Operation
Para obtener un ejemplar en Español de este
Manual del propietario, visite www.heatnglo.com. Pour demander un exemplaire en français de ce
Manuel du propriétaire, visitez www.heatnglo.com.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
byaqualifiedinstaller,serviceagency,orthe
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
DO NOT DISCARD THIS MANUAL
CAUTION
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installedinaccordancewiththemanufacturer’sinstructionsand
themanufactured home construction and safety standard,Title
24CFR,Part3280orStandardforInstallationinMobileHomes,
CAN/CSA Z240MH.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologies suggests NFI certified or factory trained
professionals, or technicians supervised by an NFI
certified professional.
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read,understandandfollow
these instructions for safe
installation and operation.
In the Commonwealth of Massachusetts:
• installation must be performed by a licensed plumber
or gas fitter;
• a CO detector shall be installed in the room where the
appliance is installed.
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.

Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/082
Congratulations
Listing Label Information/Location
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on appliance:____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
Congratulations on selecting a Heat & Glo gas appliance
—an elegant and clean alternative to wood burning
appliances. The Heat & Glo gas appliance you have
selected is designed to provide the utmost in safety,
reliability, and efficiency.
As the owner of a new appliance, you’ll want to read and
carefully follow all of the instructions contained in this
Owner’s Manual. Pay special attention to all Cautions and
Warnings.
This Owner’s Manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this Owner’s Manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo gas appliance will give you years of
durable use and trouble-free enjoyment. Welcome to the
Heat & Glo family of appliance products!
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
We recommend that you record the following
pertinent information about your appliance.
Gas and Electric
Information
Model Number
Serial Number
Type of Gas

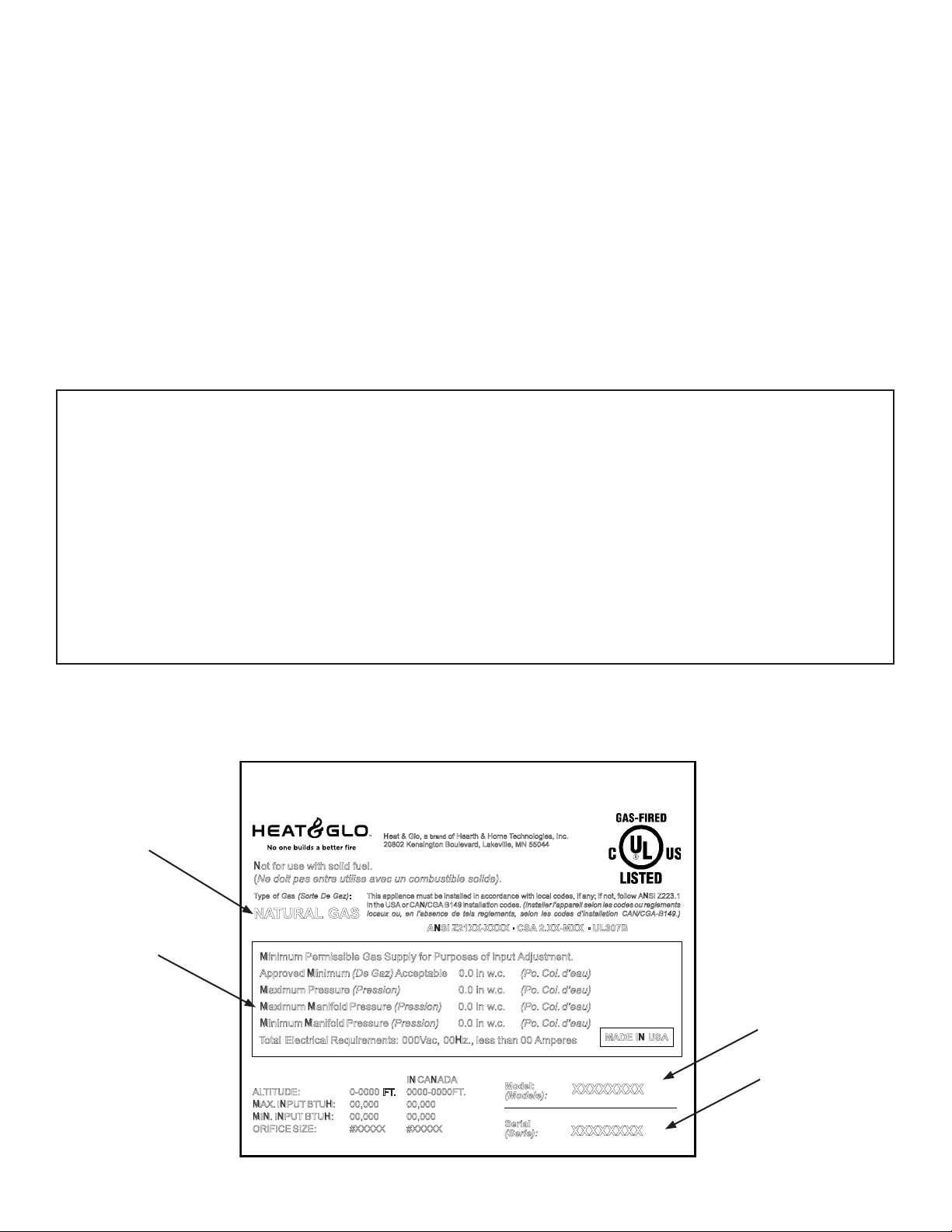

The model information regarding your specific appliance can be found on
the rating plate usually located in the control area of the appliance.
Homeowner Reference Information
Heat & Glo, a of Hearth & Home Technologies, Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
brand
Not for use with solid fuel.
(Ne doit pas entre utilise avec un combustible solide).
This appliance must beinstalled in accordance with local codes, if any;if not, follow ANSI Z223.1
intheUSAorCAN/CGA B149installation codes.(Installerl’appareil selonlescodesoureglements
locaux ou,en l’absence de tels reglements, selon les codes d’installation CAN/CGA-B149.)
Type of Gas (Sorte De Gaz):
NATURAL GAS
MADE IN USA
Minimum Permissible Gas Supply for Purposes of Input Adjustment.
ApprovedMinimum(De Gaz)Acceptable0.0in w.c. (Po.Col.d’eau)
MaximumPressure (Pression) 0.0in w.c. (Po.Col.d’eau)
MaximumManifoldPressure (Pression) 0.0in w.c. (Po.Col.d’eau)
MinimumManifoldPressure(Pression) 0.0in w.c. (Po.Col.d’eau)
Model:
(Modele):
Serial
(Serie):
ANSI Z21XX-XXXX · CSA 2.XX-MXX · UL307B
XXXXXXXX
INCANADA
ALTITUDE:0-0000 FT.0000-0000FT.
MAX.INPUTBTUH: 00,000 00,000
MIN.INPUT BTUH: 00,000 00,000
ORIFICESIZE: #XXXXX #XXXXX XXXXXXXX
Total Electrical Requirements: 000Vac, 00Hz., less than 00 Amperes
This product may be covered by one or more of the following patents: (Nos produits sont couverts par un ou plusieurs des brevets suivants): (United States)
4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495,
5452708,5542407, 5601073, 5613487, 5647340,5688568,5762062, 5775408, 5890485,5931661, 5941237,5947112,5996575, 6006743, 6019099, 6048195,
6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2,
6729551, 6736133, 6748940, 6748942, D320652, D445174, D462436; (Canada)1297749, 2195264, 2225408; or other U.S. and foreign patents pending (ou
autresbrevetsamericains etetrangers enattente).

3
Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/08
Table of Contents
1 Listing and Code Approvals
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B. Glass Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
C. BTU Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D. HighAltitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . . 5
E. Non-Combustible Materials Specification. . . . . . . . . . . . . . 5
F. Combustible Materials Specification . . . . . . . . . . . . . . . . . 5
G. Electrical Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . . . . 6
B. Negative Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
C. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 8
D. Inspect Appliance and Components . . . . . . . . . . . . . . . . . 8
3 Framing and Clearances
A. Selecting Appliance Location . . . . . . . . . . . . . . . . . . . . . . . 9
B. Constructing the Appliance Chase. . . . . . . . . . . . . . . . . . 10
C. Clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
D. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4 Termination Locations
A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . 12
5 Vent Information and Diagrams
A. Vent Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
B. Vent System Configuration. . . . . . . . . . . . . . . . . . . . . . . . 13
6 Vent Clearances and Framing
A. Pipe Clearances to Combustibles . . . . . . . . . . . . . . . . . . 15
B. Vertical Penetration Framing . . . . . . . . . . . . . . . . . . . . . . 15
7 Appliance Preparation
A. Installing Outside Air Kit Damper Assembly. . . . . . . . . . . 16
B. Gas and Electrical Connections. . . . . . . . . . . . . . . . . . . . 16
C. Securing and LevelingAppliance. . . . . . . . . . . . . . . . . . . 17
8 Installing Vent Pipe
A. Assembly of Vent Sections. . . . . . . . . . . . . . . . . . . . . . . . 18
B. Attaching Vent to Firebox. . . . . . . . . . . . . . . . . . . . . . . . . 18
C. Securing Vent Sections . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9 Gas Information
A. Fuel Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
B. Gas Pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
C. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
10 Electrical Information
A. Recommendation for Wire . . . . . . . . . . . . . . . . . . . . . . . . 21
B. Connecting to the Appliance. . . . . . . . . . . . . . . . . . . . . . . 21
C. Intellifire Ignition System Wiring. . . . . . . . . . . . . . . . . . . . 21
D. Junction Box Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 23
E. Wall Switch Installation for Fan (Optional) . . . . . . . . . . . . 23
11 Finishing
A. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
B. Facing Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
12 Appliance Setup
A. Remove Shipping Materials . . . . . . . . . . . . . . . . . . . . . . . 26
B. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
C. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
D. Lava Rock, Mineral Wool/Ember Placement . . . . . . . . . . 27
E. Positioning the Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
F. Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
G. Screen Mesh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
H. Grilles and Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
I. Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
J. Air Shutter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
13 Operating Instructions
A. Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . . . . . 31
B. Check Appliance Draft . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
C. LightingAppliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
D. AfterAppliance is Lit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
E. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 33
14 Troubleshooting
A. Intellifire Ignition System . . . . . . . . . . . . . . . . . . . . . . . . . 34
15 Maintaining and Servicing Appliance
A. Maintenance Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
16 Reference Materials
A. Appliance Dimension Diagram. . . . . . . . . . . . . . . . . . . . . 38
B. Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
C. Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . 46
D. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
= Contains updated information.

Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/084
B. Glass Specifications
Hearth&HomeTechnologiesappliancesmanufacturedwith
tempered glass may be installed in hazardous locations
such as bathtub enclosures as defined by the Consumer
Product Safety Commission (CPSC). The tempered glass
has been tested and certified to the requirements of ANSI
Z97.1andCPSC16 CFR1202 (SafetyGlazingCertification
Council SGCC# 1595 and 1597.ArchitecturalTesting, Inc.
Reports 02-31919.01 and 02-31917.01).
This statement is in compliance with CPSC 16 CFR
Section 1201.5 “Certification and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certificate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
A. Appliance Certification
NOTE: Thisinstallationmustconformwithlocalcodes.Inthe
absence of local codes you must comply with the National
Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A.
and the CAN/CGA B149 Installation Codes in Canada.
NOTINTENDED FORUSE ASA PRIMARYHEAT SOURCE.
Thisapplianceistestedandapprovedaseithersupplemental
room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
C. BTU Specifications
MODELS: SL-550TV-IPI-E, SL-750TV-IPI-E, SL-950TV-IPI-E
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: B-Vent Decorative
STANDARD: ANSI Z21.50-2007 • CSA 2.22-2007
Model(s)
U.S. (0-2000 ft.) or Canada (2000-4500 ft.)
Maximum
Input BTU/h Minimum Input BTU/h
Orifice
Size
(DMS)
SL-550TV-IPI-E US 21,100 14,700 44
CAN 18,990 13,230 45
SL-550TV-IPI-E (LP) US 20,000 14,300 55
CAN 18,000 12,870 56
SL-750TV-IPI-E US 24,800 17,700 42
CAN 22,320 15,930 43
SL-750TV-IPI-E (LP) US 23,200 17,300 54
CAN 20,880 15,570 55
SL-950TV-IPI-E US 30,900 21,300 37
CAN 27,810 19,170 38
SL-950TV-IPI-E (LP) US 30,700 22,500 52
CAN 27,630 20,250 53
This product is listed to ANSI standards for “Vented Gas
Fireplaces” and “Gas Fired Appliances for Use at High
Altitudes”.
This model (natural gas and propane) can be installed in
a bedroom (in the United States) which has a total volume
of unconfined space appropriate to the particular installa-
tion. Refer to the National Fuel Gas Code ANSI Z223.1/
NFPA54 (current edition), The Uniform Mechanical
Code - (current edition), and local Building Officials for
the options allowed in obtaining an effective bedroom vol-
ume of unconfined space.
This model (natural gas and propane) can be installed in
a bedroom (in Canada) if a thermostat (Model WH-STAT)
is installed with the unit. Consult local code authorities.
Detailed installation instructions for Model WH-STAT are
included with the kit.
1
1 Listing and Code Approvals

5
Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/08
D. High Altitude Installations
U.L.Listed gasappliances aretestedand approvedwithout
requiring changes for elevations from 0 to 2000 feet in the
U.S.A. and Canada.
When installing this appliance at an elevation above 2000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above
a 2000 foot elevation in the U.S.A., or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating
value of the gas has been reduced, these rules do not
apply. To identify the proper orifice size, check with the
local gas utility.
If installing this appliance at an elevation above 4500 feet
(in Canada), check with local authorities.
Do NOT use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
E. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750º C, shall be considered
non-combustible materials.
F. Combustible Materials Specification
Materialsmadeoforsurfacedwithwood,compressedpaper,
plant fibers, plastics, or other material that can ignite and
burn, whether flame proofed or not, or whether plastered or
unplastered shall be considered combustible materials.
G. Electrical Codes
NOTICE: This appliance must be electrically wired and
groundedin accordancewithlocal codes or, in theabsence
of local codes, with National Electric Code ANSI/NFPA
70-latest edition or the Canadian Electric Code CSA
C22.1.
• A 110-120 VAC circuit for this product must be protected
withground-faultcircuit-interrupterprotection,incompliance
with the applicable electrical codes, when it is installed in
locations such as in bathrooms or near sinks.
WARNING


Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/086
A. Design and Installation Considerations
Heat & Glo B-type vent gas appliances are designed to
operate with all exhaust gases expelled to the outside of
the building, and combustion air pulled from the room.
When planning an appliance installation, it’s necessary to
determine the following information before installing:
•Where the appliance is to be installed. See Sections 3
and 4.
•Thevent system configuration to beused.See Sections
5 and 6.
•Gas supply piping. See Sections 7 and 9.
•Electrical wiring. See Sections 7 and 10.
•Framing and finishing details. See Sections 3, 6 and 11.
•Whetheroptionalaccessories—devicessuchasafan,wall
switch, or remote control—are desired. See Section 10.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult local building, fire officials or authorities having
jurisdictionaboutrestrictions,installationinspection,and
permits.
CAUTION
Fire Risk
Explosion Risk
Keep appliance dry.
• Water may damage controls.
• Mold or rust may cause odors.
WARNING
2
2 Getting Started

7
Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/08
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs

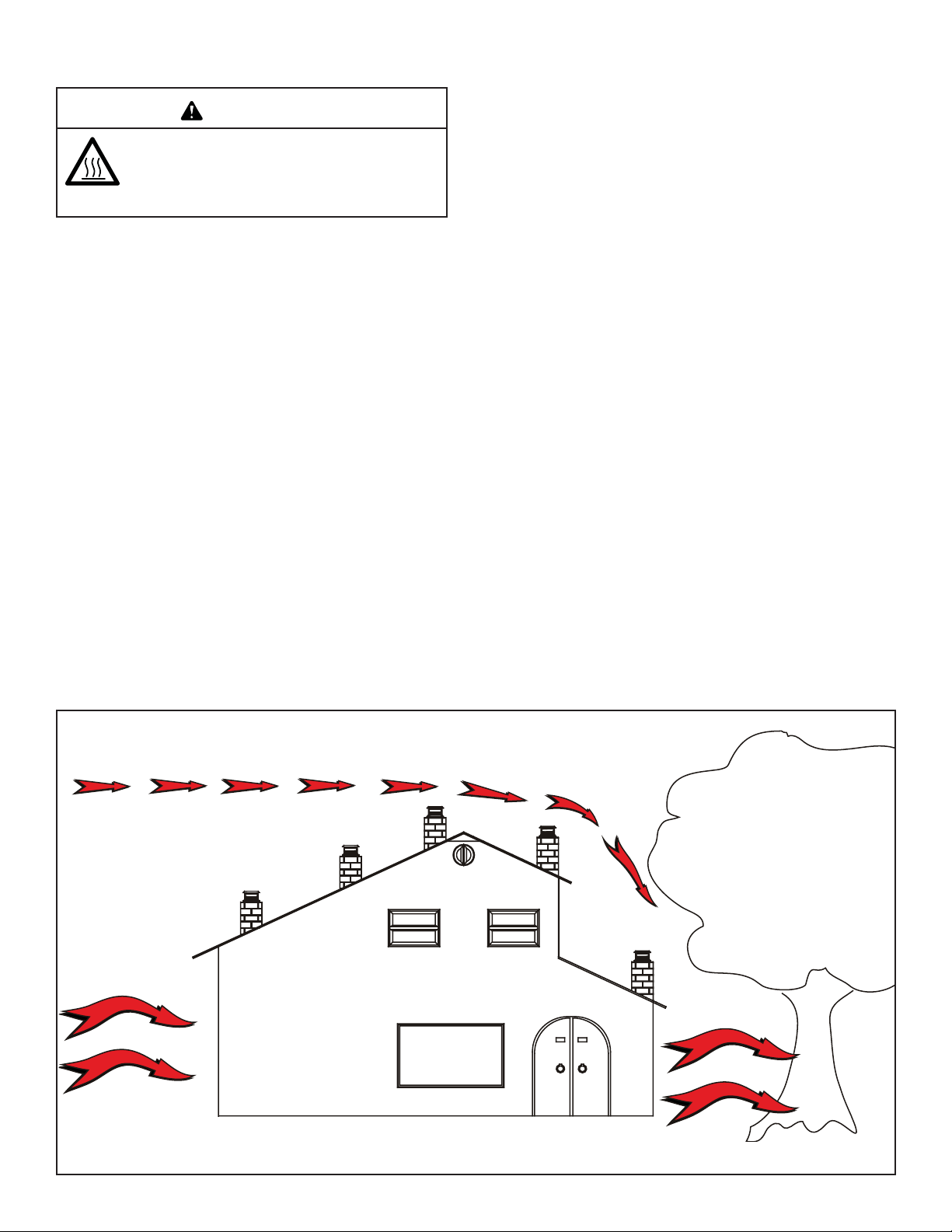

Windward
Leeward
Figure 2.1
B. Negative Pressure
Draft is the pressure difference needed to vent fireplaces
successfully. Considerations for successful draft include:
• Preventing negative pressure
• Location of fireplace and chimney
Negative pressure results from the imbalance of air avail-
able for the fireplace to operate properly. Causes for this
imbalance include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heat-
ers and other combustion appliances
• Clothes dryers
• Location of return-air to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks (recessed lighting, attic hatch
opening, duct leaks)
To minimize the effects of negative air pressure, the fol-
lowing must be considered:
• Install the fresh air kit. Install the intake on the side of
the house towards prevailing winds during the heating
season.
• Ensure adequate outdoor air is supplied for combus-
tion appliances and exhaust equipment.
• Ensure furnace and air conditioning return vents are
not located in the immediate vicinity of the fireplace.
• Avoid installing the fireplace near doors, walkways or
small isolated spaces.
• Recessed lighting should be of “sealed can” design;
attic hatches weather stripped or sealed; and attic
mounted ductwork and air handler joints and seams
taped or sealed.
• Basement installations should be avoided due to stack
effect. Stack effect creates negative pressure in lower
levels. Hearth & Home Technologies recommends the
use of direct vent fireplaces in basements.
Location of the fireplace and chimney will affect perfor-
mance. As shown in Figure 2.1, the chimney should:
• Be installed through the warm space enclosed by the
building envelope. This helps to produce more draft,
especially during lighting and die-down of the fire.
• Penetrate the highest part of the roof. This minimizes
the effects of wind turbulence.
• Be located away from trees, adjacent structures, un-
even roof lines and other obstructions.
Offsets can restrict draft so their use should be minimized.
Consider the fireplace location relative to floor and ceiling
and attic joists.
Asphyxiation Risk.
• Negative pressure can cause spillage of
combustion fumes and soot.
• Fireplace needs to draft properly for safety.
WARNING

Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/088
D. Inspect Appliance and Components
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Reciprocating saw Framing material
Pliers Hi temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Tape measure
Manometer Voltmeter
Non-corrosive leak check solution
1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
One 1/4 inch female connection (for optional fan).
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report suspected damaged parts to dealer.
• Carefully remove the appliance and components from
the packaging.
• Thevent systemcomponentsand trim doorsare shipped
in separate packages.
• The gas logs may be packaged separately and must be
field installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be voided
by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a fire hazard.

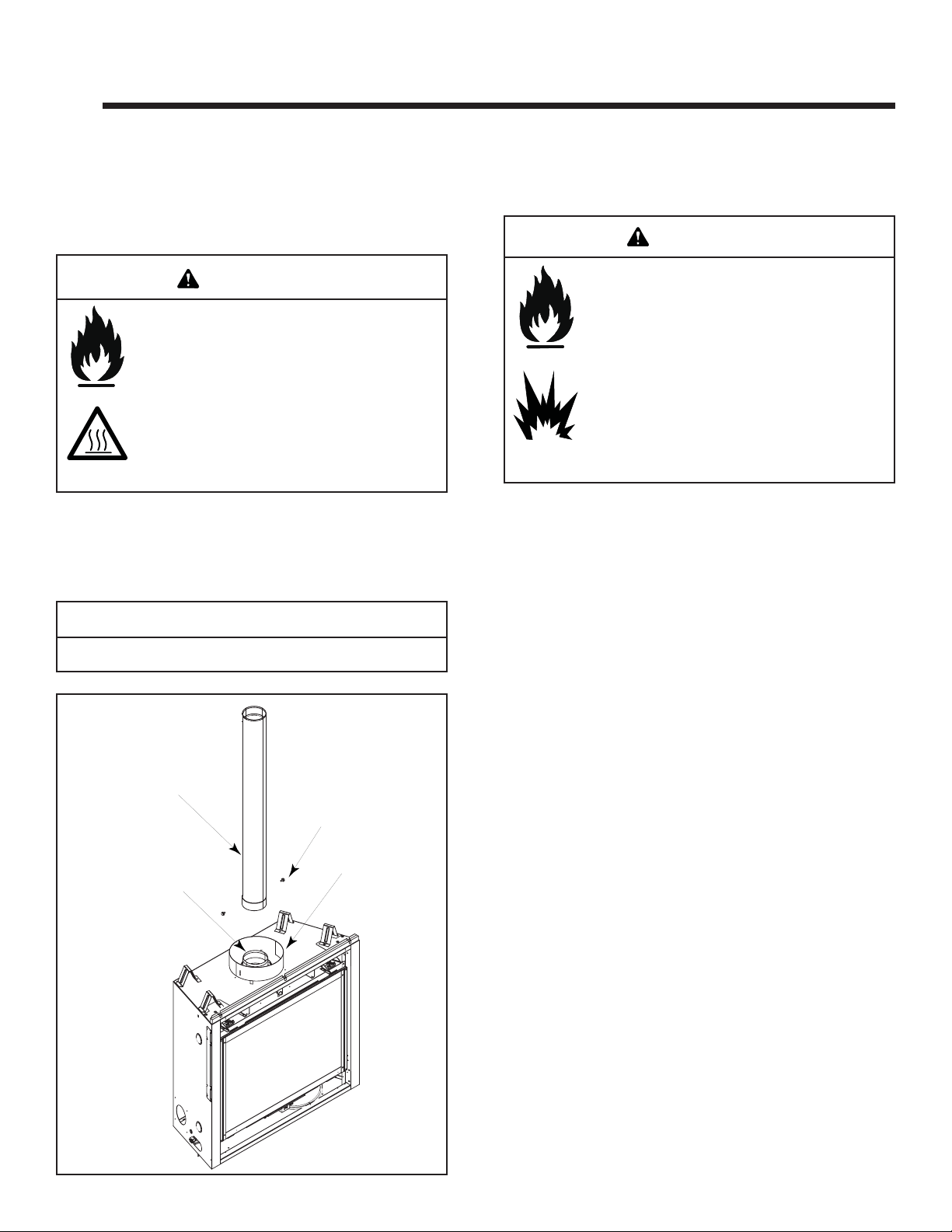

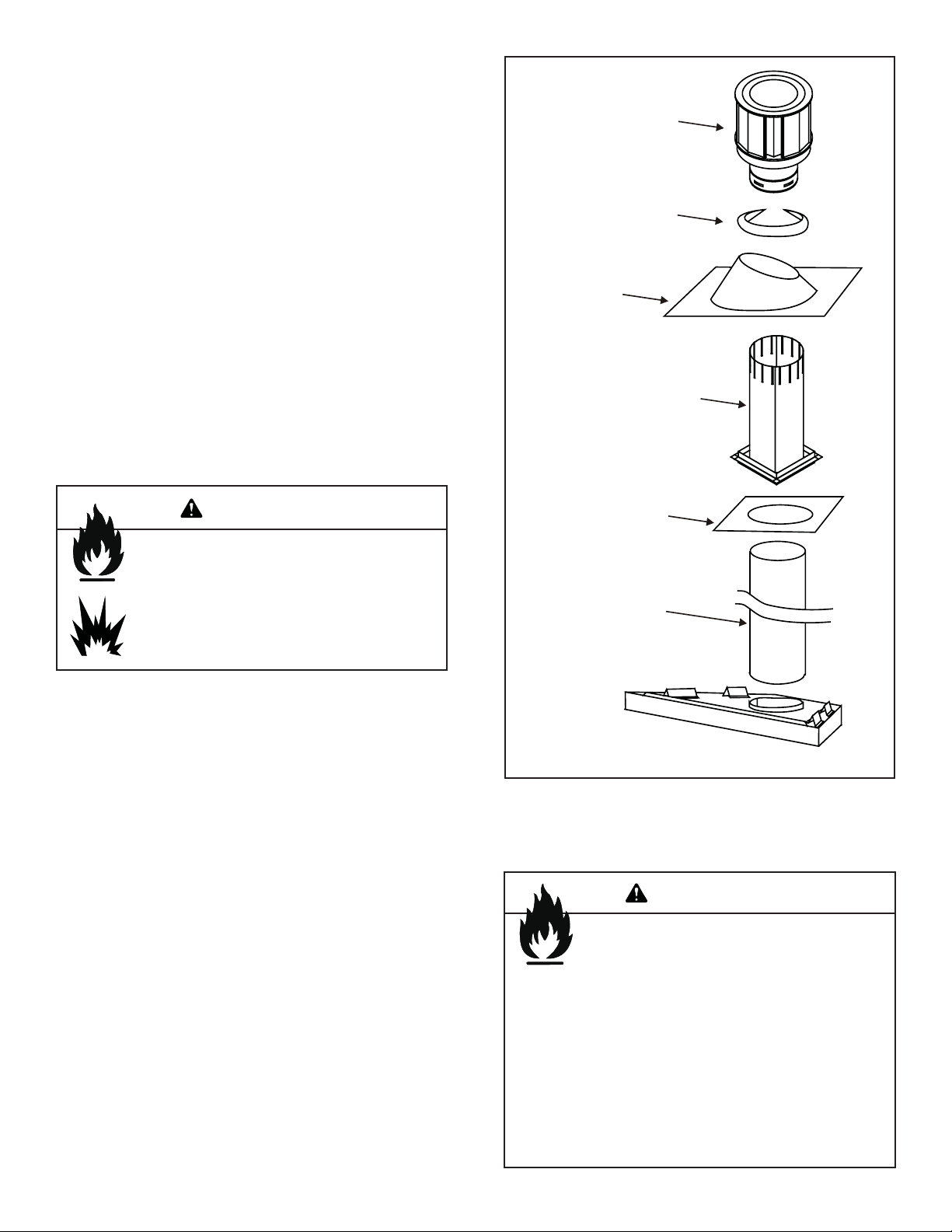

Figure 2.2 Typical Vertical Installation
The following B-vent components are needed for installa-
tion (see Figure 2.2).
• Fireplace Box
• Pipe Components
• Firestops
• Attic Insulation Shield
• Elbows
• Strapping
• Roof Flashing or Chase Top
• Termination Cap
• Storm Collar
• Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
VERTICAL TERMINATION CAP
STORM COLLAR
ATTIC INSULATION SHIELD
GAS B-VENT
PIPE SECTION (S)
FIRESTOP SPACER
ROOF FLASHING
OR CHASE TOP
WARNING
WARNING

9
Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/08
NOTE:
• Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
Fire Risk
Provide adequate clearance:
• Around air openings
• To combustibles
• For service access
Locate appliance away from traffic areas.
A. Selecting Appliance Location
Whenselectingalocationforyourapplianceitisimportantto
consider the required clearances to walls (see Figure 3.1).

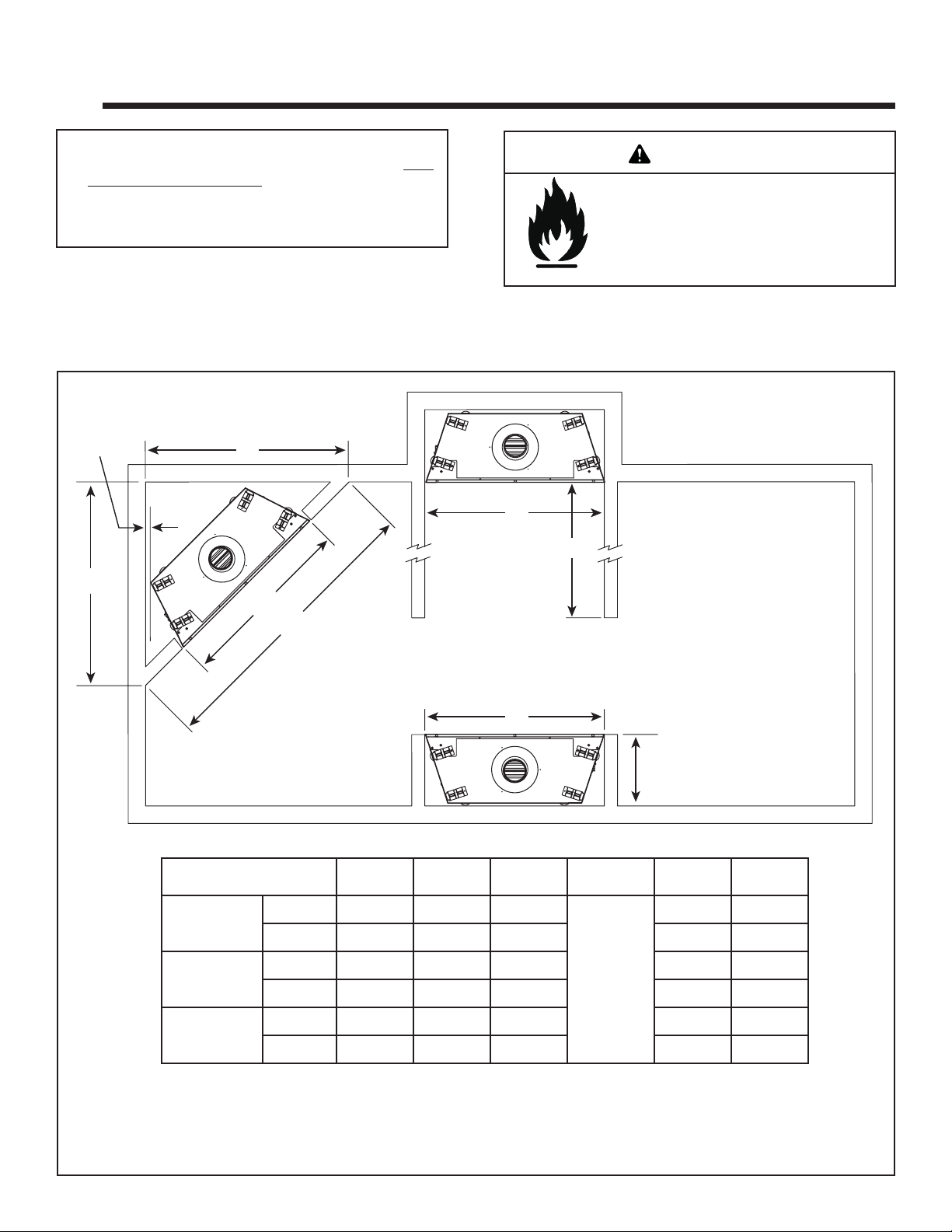

Figure 3.1 Appliance Locations
Model A B C D E F
Minimum
SL-550TV-IPI-E Inches 42 37 59-1/2
See Section
3D for Alcove
Installation
16-1/4 1/2
Millimeters 1067 940 1511 413 13
SL-750TV-IPI-E Inches 45-1/2 42 64-3/8 16-1/4 1/2
Millimeters 1156 1067 1635 413 13
SL-950TV-IPI-E Inches 50-1/2 49 71-1/2 16-1/4 1/2
Millimeters 1283 1245 1816 413 13
C
B
B
TOP VENT
TOP VENT
TOP VENT
ALCOVE
INSTALLATION D
B
A
A
F
E
NOTE: For actual appliance dimensions refer to
Section 16.
In addition to these framing dimensions, also reference the following sections:
• Clearances and Mantel Projections (Sections 3C and 3D)
• Vent Clearances and Framing (Section 6).
WARNING
3
3 Framing and Clearances

Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/0810
C. Clearances

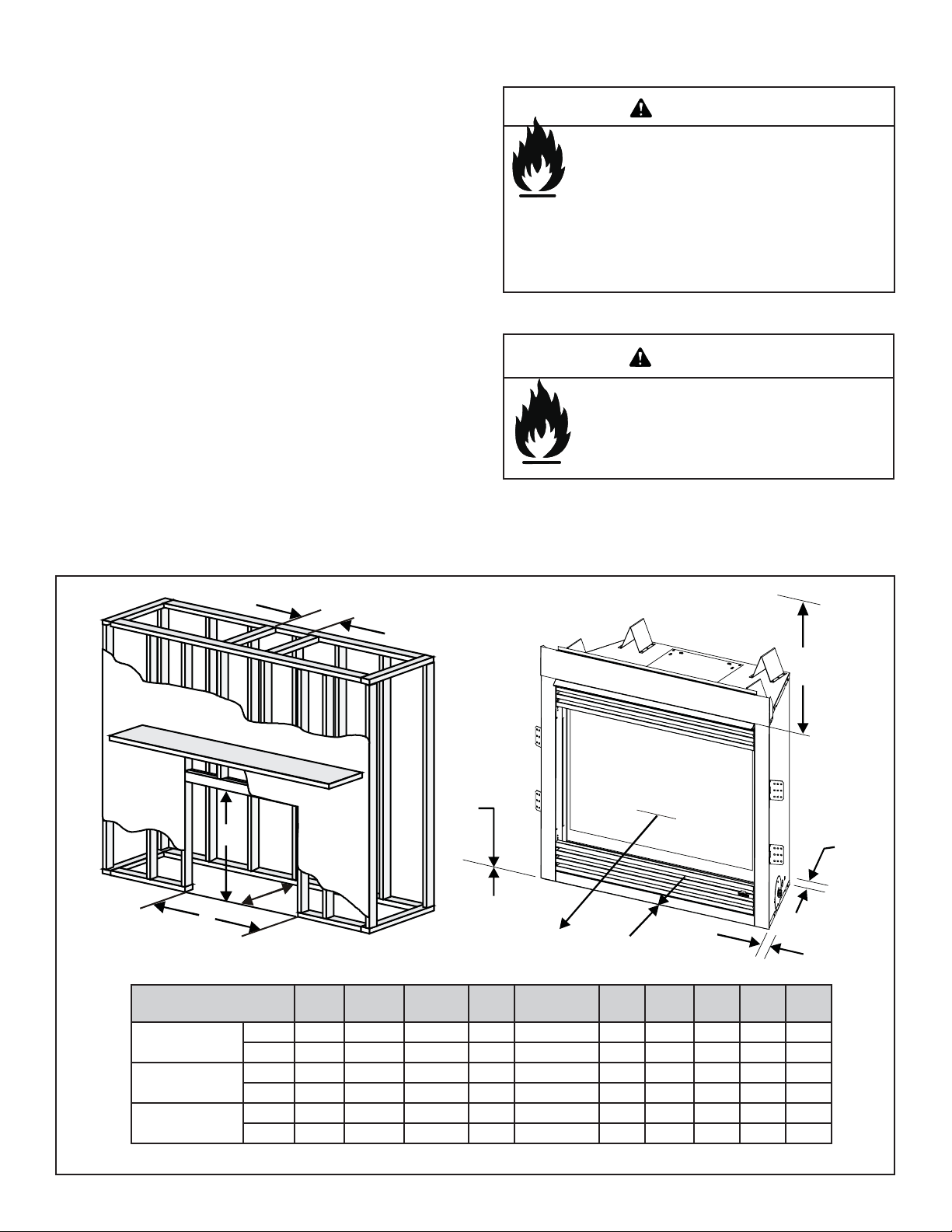

Figure 3.2 Clearances to Combustibles
C
B
D
A
Fire Risk.
• Construct chase to all clearance specifications
in manual.
• Locate and install appliance to all clearance
specifications in manual
Fire Risk.
Odor Risk.
•Installapplianceonhardmetal or wood surfaces
extending full width and depth of appliance.
•Do NOT install appliance directly on carpeting, vinyl, tile
or any combustible material other than wood.
• DoNOTplacefurnitureoranyothercombustiblehousehold
objects within 36 inches of the appliance front.
B. Constructing the Appliance Chase
A chase is a vertical boxlike structure built to enclose the
gasappliance and/oritsvent system.Verticalventsthat run
on the outside of a building may be, but are not required
to be, installed inside a chase.
Construction of the chase may vary with the type of building.
These instructions are not substitutes for the requirements
of local building codes. Local building codes MUST be
checked.
Chasesshould be constructed in the manner ofalloutside
walls of the home to prevent cold air drafting problems.
The chase should not break the outside building envelope
in any manner.
Walls, ceiling, base plate and cantilever floor of the chase
should be insulated. Vapor and air infiltration barriers
should be installed in the chase as per regional codes for
the rest of the home. Additionally, in regions where cold
air infiltration may be an issue, the inside surfaces may be
sheetrocked and taped for maximum air tightness.
To further prevent drafts in cold climates, the firestops
shouldbecaulkedwith hightemperature caulkto sealgaps.
Gas line holes and other openings should be caulked with
high temp caulk or stuffed with unfaced insulation. If the
appliance is being installed on a cement slab, a layer of
plywood may be placed underneath to prevent conducting
cold up into the room.
G
I
H
E
F
J
Models A B C D E
(CEILING) FGHIJ
SL-550TV-IPI-E Inches 10 34-3/4 16-1/4 37 32 0 0 1/2 1/2 36
mm 254 883 413 940 813 0 0 13 13 915
SL-750TV-IPI-E Inches 10 38-1/4 16-1/4 42 32 0 0 1/2 1/2 36
mm 254 971 413 1067 813 0 0 13 13 915
SL-950TV-IPI-E Inches 10 42-1/4 16-1/4 49 32 0 0 1/2 1/2 36
mm 254 1073 413 1245 813 0 0 13 13 915
WARNING
WARNING

11
Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/08
D. Mantel Projections

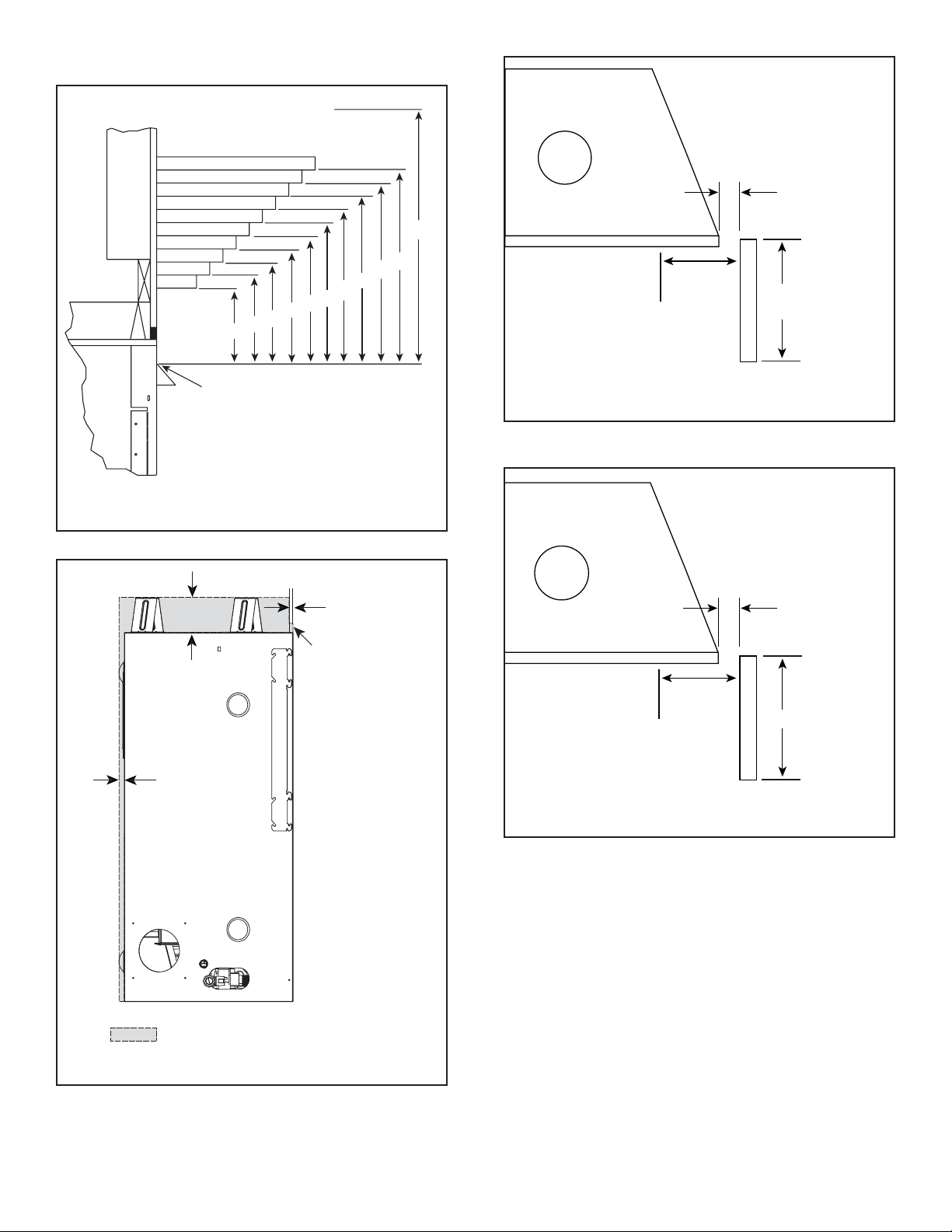

Figure 3.3 Clearances to Mantels or other Combustibles
above Appliance
5678910
345
12
11
10
9
8
7
6
TOP OF HOOD OR FIREPLACE OPENING
4
12 13
11
32
CEILING
2-7/8 IN.
MINIMUM
1/2 IN.
MINIMUM
TOP VIEW
3 FT.
MAXIMUM
Note: Clearance from
opening Alcove/Mantel leg.
Figure 3.5 Clearances to Mantel Legs or Wall Projections
(Acceptable on both sides of opening.)
5-3/8 IN.
MINIMUM
1/2 IN.
MINIMUM
TOP VIEW
UNLIMITED
Note: Clearance from
opening Alcove/Mantel leg.
Figure 3.6 Clearance to Wall Projection
(Acceptable on one side of opening.)
1/2 in.
SHEETROCK
3-1/2 in.
1/2 in.
NON-COMBUSTIBLE ZONE
NON-COMBUSTIBLE
BOARD SHIPPED
WITH APPLIANCE
Figure 3.4 Non-Combustible Zone
Note: All measurements are in inches.

Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/0812
A. Vent Termination Minimum Clearances
Fire Risk.
Explosion Risk.
Maintain vent clearance to combustibles as
specified.
• Do not pack air space with insulation or
other materials.
Failure to keep insulation or other materials
away from vent pipe may cause fire.
Roof Pitch H (Min.) Ft.
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12.................................................1.25*
Over 7/12 to 8/12.................................................1.5*
Over 8/12 to 9/12.................................................2.0*
Over 9/12 to 10/12...............................................2.5*
Over 10/12 to 11/12.............................................3.25
Over 11/12 to 12/12.............................................4.0
Over 12/12 to 14/12.............................................5.0
Over 14/12 to 16/12.............................................6.0
Over 16/12 to 18/12.............................................7.0
Over 18/12 to 20/12.............................................7.5
Over 20/12 to 21/12.............................................8.0

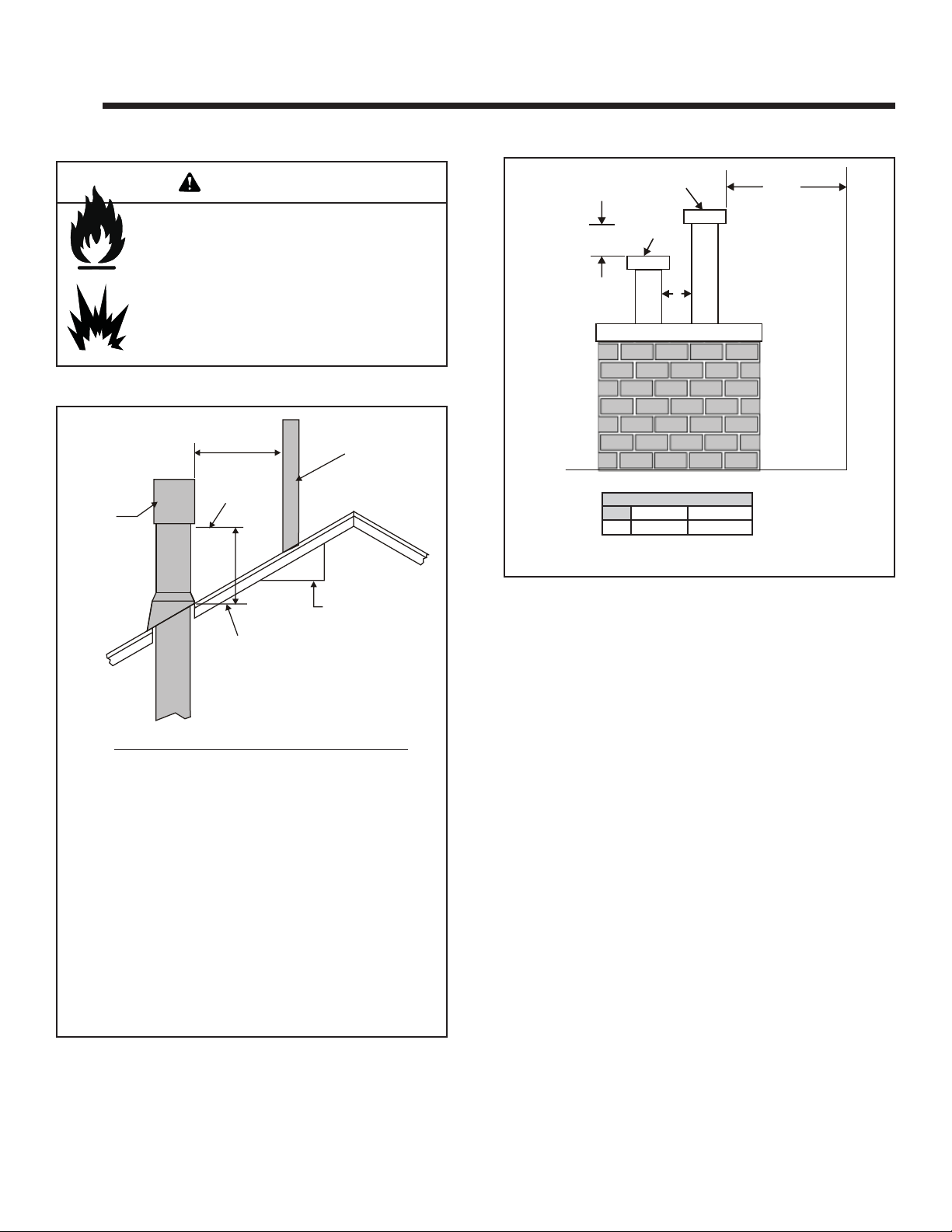

Figure 4.1 Minimum Height from Roof to Lowest Discharge
Opening
Figure 4.2 Multiple Vertical Termination
Figure 4.1 specifies minimum vent heights for various
pitched roofs.
* 3 foot minimum in snow regions
GAS OR WOOD
TERMINATION 8 FEET
(MINIMUM) TO
PERPENDICULAR
WALL (GAS ONLY)
18 IN.
A
GAS
TERMINATION
VERTICAL
WALL
TERMINATION
CAP
12 X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
8 FEET
Termination Clearances
Gas Wood
A6 inches 20 inches
WARNING
4
4 Termination Locations

13
Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/08
Fire Hazard.
Explosion Risk.
Asphyxiation Risk.
Do NOT connect this gas appliance to a
chimney flue serving a separate solid-fuel or
gas burning appliance.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.
May impair safe operation of this appliance or
other appliances connected to the flue.
CAUTION
ALL vent configuration specifications MUST be followed.
• This product is tested and listed to appliance and vent
manufacturer’s specifications.
• Appliance performance will suffer if specifications are not
followed.
B. Vent System Configuration

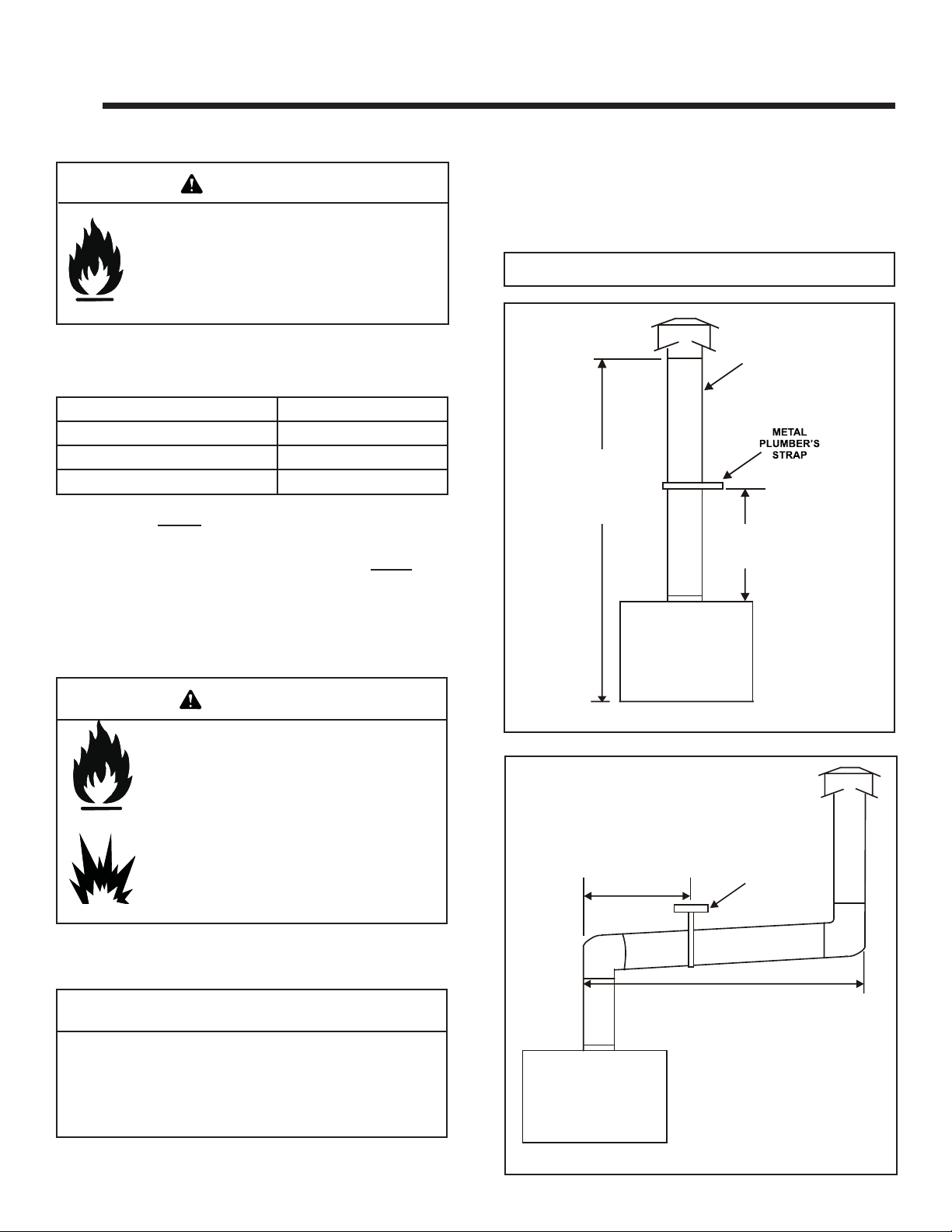

Figure 5.1
A. Vent Guidelines
Figure 5.2
Rise to Run Ratio = 2:1
Maximum Total Horizontal Run = 15 Feet
Minimum Total Vertical Rise = 9 Feet
Maximum Total Vertical Rise = 48 Feet
Maximum Number of Elbows: Two 900or Four 450
These models require the following size B-vent double
wall, or single wall rigid or flex vent pipe.
Fire Risk.
Asphyxiation Risk.
This appliance requires the specified pipe for
operation.
• Incorrectpipemaycausespillage,condensation
and overheating.
METAL
PLUMBERS'STRAP
MAXIMUM HORIZONTAL RUN IS 50%
OF VERTICAL.HORIZONTAL RUN
CANNOT BE MORE THAN 15 FT.
VENT SUPPORTS
ARE PER VENT
MANUFACTURER'S
SPECIFICATIONS.
VENT SUPPORTS ARE PER
VENT MANUFACTURER’S
SPECIFICATIONS
MINIMUM CLEARANCES
ARE PER VENT
MANUFACTURER’S
SPECIFICATIONS
9 FEET
MINIMUM
48 FEET
MAXIMUM
• B-vent pipe MUST be used when the vent system is
within combustible construction.
• Single wall rigid or flexibleventmaybe used ONLYif the
ventsystem isinstalledwithin non-combustible construc-
tion such as a masonry chimney.
• When installing vent pipe, follow manufacture’s installa-
tion instructions.
Models Pipe Size
SL-550TV-IPI-E 5 inches
SL-750TV-IPI-E 5 inches
SL-950TV-IPI-E 6 inches
WARNING
WARNING
5
5 Vent Information and Diagrams
Note: A rise of 1/4 inch per foot of horizontal run is required.

Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/0814
Fire Risk.
Explosion Risk.
Insulation and other combustibles must not
infringe on clearances.
• ALWAYSmaintain specifiedclearances around
venting and firestop systems.
• Install firestops as specified.
Failure to keep insulation or other material away
from vent pipe may cause fire.
Figure 5.3
45 DEGREES
ELBOW
90 DEGREES
ELBOW
OFFSETS EXCEEDING
45 DEGREES ADAPT
HORIZONTAL LIMITATIONS
MAXIMUM
HORIZONTAL
15 FEET
MINIMUM
VERTICAL
9 FEET
Note: Maximum
horizontal distance is
50% of vertical vent
height distance.
WARNING

15
Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/08
A. Pipe Clearances to Combustibles
Fire Risk.
Explosion Risk.
Maintain vent clearance to combustibles as
specified.
• Do not pack air space with insulation or other
materials.
• National building codes recommend using attic
shield to keep loose materials/insulation from
contacting vent.
Failure to keep insulation or other materials away from vent
pipe may cause fire.
Figure 6.1 Pipe Clearances
CLEARANCE
AROUND VERTICAL
SECTIONS
TOP
CLEARANCE
SIDE AND
BOTTOM CLEARANCE
Follow vent pipe manufacturer’s instructions for all clear-
ances around pipe.
B. Vertical Penetration Framing
Use B-vent manufacturer’s firestops to provide adequate
clearances.
Fire Hazard
Keep loose materials or blown insulation from
touching the vent pipe.
• National building codes recommend using
attic shield to keep loose materials/ blown
insulation from contacting vent.
• Hearth&HomeTechnologiesrequires the use
of an attic shield.
WARNING
WARNING
6
6 Vent Clearances and Framing
Note:1in.clearance
all around pipe

Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/0816
A. Installing Outside Air Kit Damper Assem-
bly
CAUTION
Sharp Edges
• Wear protective gloves
and safety glasses dur-
ing installation.
Asphyxiation Risk.
Fire Risk.
Do NOT draw outside combustion air from:
• Wall, floor or ceiling cavity.
• Enclosed space such as an attic or garage.
• Close proximity to exhaust vents or chimneys.
Fumes or odor may result.
• Remove and discard cover plate or knockout from side
of appliance.
• Open air kit damper slightly.
• Locate door hinge toward back of appliance (see Figure
7.1).
• Attach damper assembly to appliance using screws
provided (see Figure 7.2).
• Insert narrow end of handle through tab and into upper
slot of door.
• Check handle operation. Pull handle out to open, and in
to close.

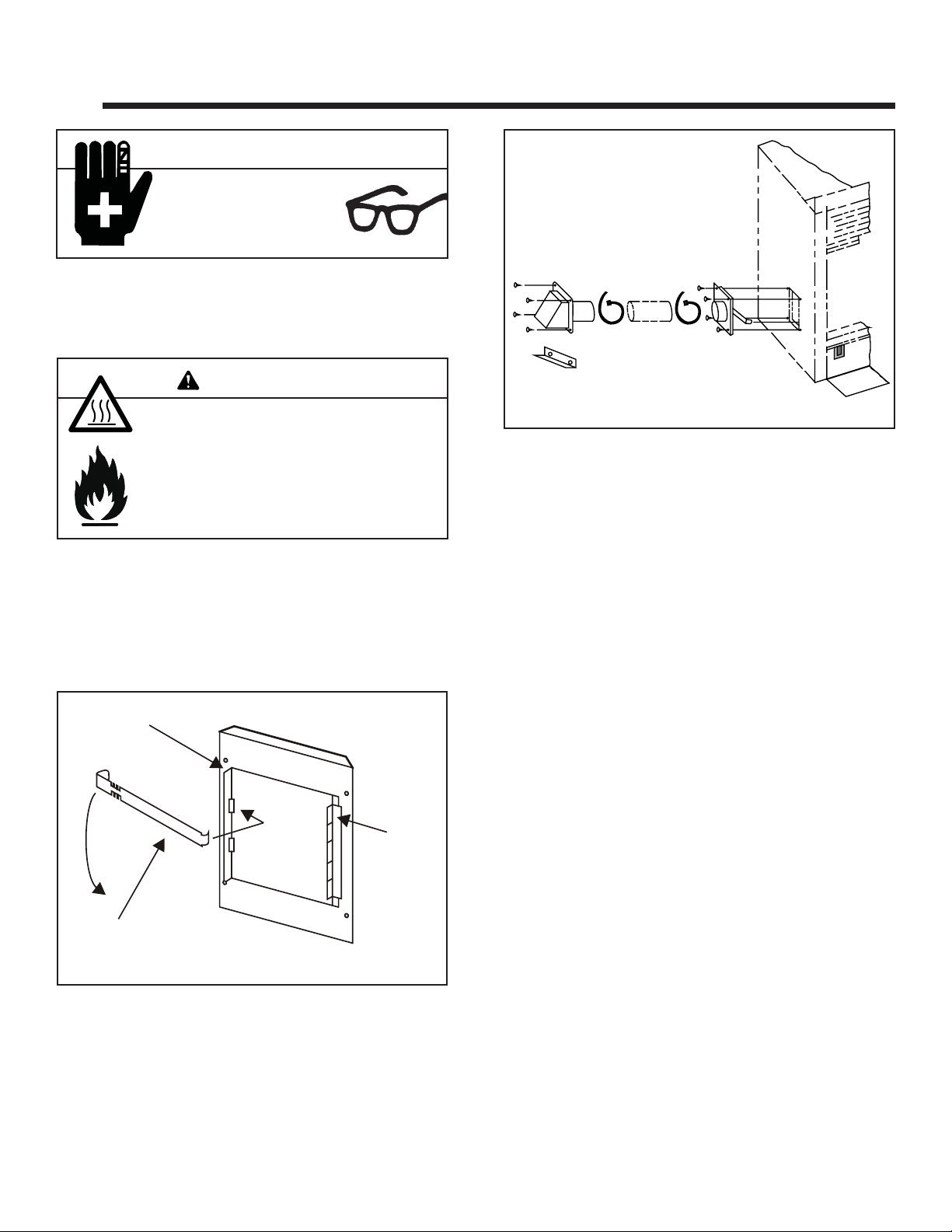

Figure 7.2 Outside Air Kit Installation
Figure 7.1 Damper Assembly and Handle
HANDLE
HINGE
D
OO
R
B. Gas and Electrical Connections
Ifapplicable, ensurethat gasandelectrical connectionsare
installedat this time. Refer to Sections9(Gas Information)
and 10 (Electrical Information).
WARNING
7
7 Appliance Preparation

17
Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/08
C. Securing and Leveling Appliance

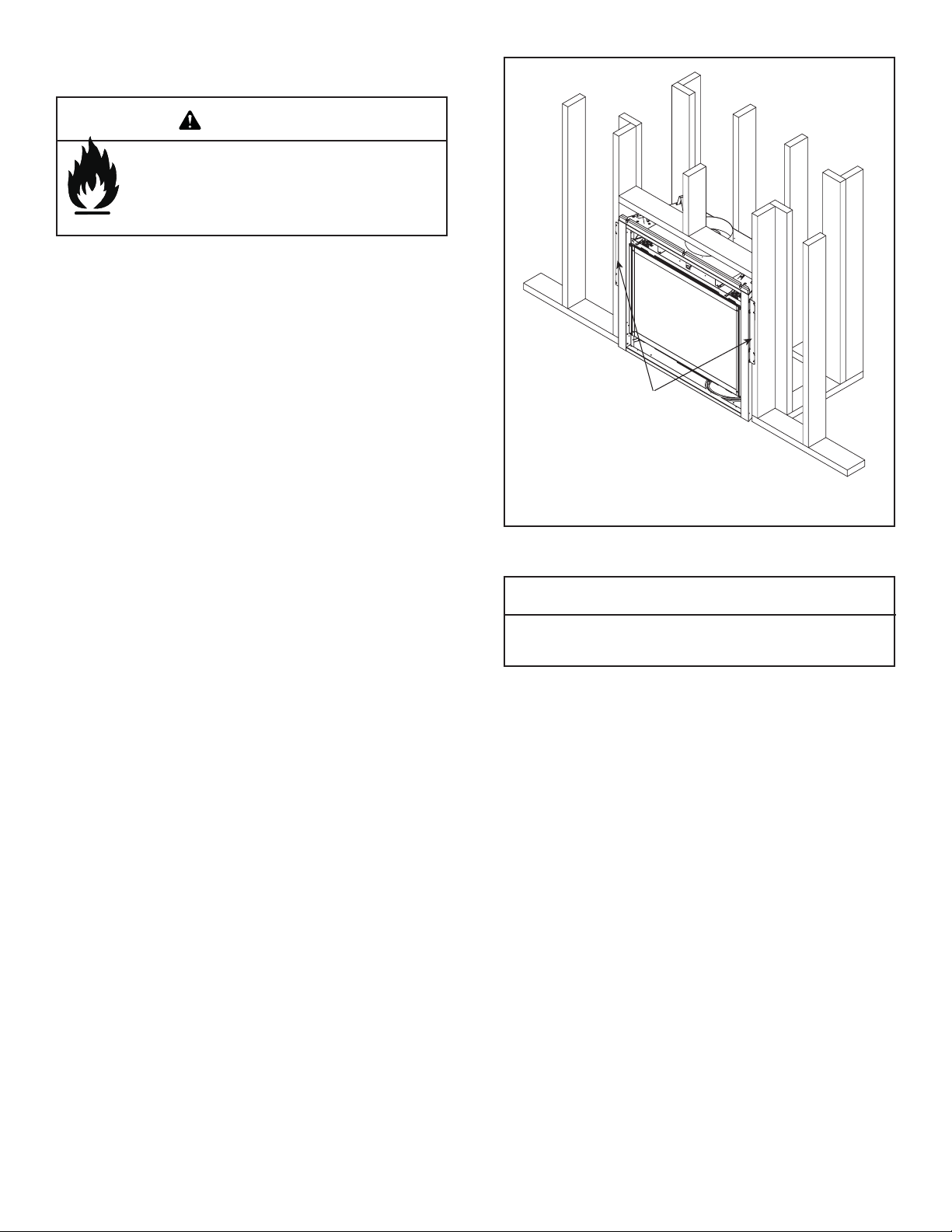

The diagram shows how to properly position, level, and
securethe appliance (see Figure7.3). Nailing tabs are pro-
vided to secure the appliance to the framing members.
• Place the appliance into position.
• Level the appliance from side to side and front to back.
• Shimthe appliance, as necessary. Itisacceptable to use
wood shims.
• Bend out nailing tabs on each side.
• Keep nailing tabs flush with the framing.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs. Figure 7.3 Proper Positioning, Leveling and Securing of a
Appliance
Fire Risk.
• Prevent contact with sagging, loose insulation.
• Do NOT install against combustible materials
suchasexposedinsulation,plasticandinsulation
backer.
Do NOT notch into the framing around the appliance
spacers.
CAUTION
NAILING TABS
BOTH SIDES
WARNING

Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/0818
A. Assembly of Vent Sections
ThisB-Ventappliancerequires 5-inch(SL-550/750TV-IPI-E)
or 6-inch (SL-950TV-IPI-E) B-vent double-wall pipe. Follow
the pipe manufacturer’s installation guidelines when install-
ing the unit. This will ensure proper operation and prevent
safety hazards.
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Assemble pipe sections per B-vent manufac-
turer’s instructions.
• Use support tabs for screws.
• Screws must not exceed one inch long and
must not penetrate inner lining.
• Pipe may separate if not properly joined.
B. Attaching Vent to Firebox
Attach the first B-Vent component to the flue outlet collar
using 2 self-tapping screws. Remove 10-5/8 in. collar for
access to flue outlet collar.
Figure 8.1
Fire Risk.
Explosion Risk.
Combustion Fume Risk.
Use vent run supports per vent manufacturer’s
installation instructions.
Connect vent sections per vent manufacturer’s
installation instructions.
• Maintain all clearances to combustibles.
• Maintain specified slope (if required).
Improper support may allow vent to sag or
separate.
C. Securing Vent Sections
Secure vent sections with 2 screws following B-vent
manufacturer’s instructions.
WARNING
WARNING
8
8 Installing Vent Pipe
B-VENT COMPONENT
SCREW
FLUE OUTLET COLLAR
10-5/8 IN. COLLAR
CAUTION
The 10-5/8 in. collar MUST be reattached. See Figure 8.1.

19
Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/08
NOTE: Have the gas supply line installed in accordance
with local building codes, if any. If not, follow ANSI
223.1. Installation should be done by a qualified installer
approved and/or licensed as required by the locality. (In
the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.)
A. Fuel Conversions
Before making gas connections ensure that appliance be-
ing installed is compatible with the available gas type.
Any natural or propane gas conversions necessary to
meet the appliance and locality needs must be made by
a qualified technician using Hearth & Home Technologies
specified and approved parts.
Fire Risk.
Explosion Hazard.
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressuretestinggasline at testpressuresequal
to or less than 1/2 psig.
B. Gas Pressures
Properinput pressures are requiredforoptimum appliance
performance. Gas line sizing requirements need to be
made following NFPA54.
C. Gas Connection
Verify inlet pressures.
• High pressure may cause overfire condition.
• Low pressure may cause explosion.
• Verifyminimumpressureswhenotherhousehold
gas appliances are operating.
Installregulatorupstream of valve if line pressure
is greater than 1/2 psig.
NOTE: Gaslinemayberunfromeithersideoftheappliance
provided the hole in the outer wrap does NOT exceed 2-1/2
inches in diameter and does not penetrate the firebox.
NOTE: A listed (and Commonwealth of Massachusetts
approved) 1/2 inch (13 mm) T-handle manual shut-off valve
and flexible gas connector are connected to the 1/2 inch (13
mm) control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
NOTE: The gap between the supply piping and gas access
hole may be caulked with high temperature caulk or stuffed
with non-combustible, un-faced insulation to prevent cold
air infiltration.
Refer to Reference Section 16 for location of gas line
access in appliance.
Gas Leak Risk
• Support control when attaching pipe to
prevent bending gas line.
Pressure requirements for appliance are shown in the
table below. Minimum pressure must be met when other
household gas appliances are operating.
Pressure Natural Gas Propane
Minimum Inlet
Pressure 5.0 inches w.c. 11.0 inches w.c.
Maximum Inlet
Gas Pressure 14.0 inches w.c. 14.0 inches w.c.
Manifold Pressure 3.5 inches
w.c. 10.0 inches w.c.
WARNING
WARNING
WARNING
9
9 Gas Information


Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. G • 9/0820
Fire or Explosion Hazard
• Gas build-up during line purge may ignite.
• Purge should be performed by qualified technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as
sparks or open flames.
Fire hazard.
Explosion Risk.
Do NOT change the valve settings.
• This valve has been preset at the factory.
• Changingvalvesettingsmay result infirehazard
or bodily injury.
HIGH ALTITUDE INSTALLATIONS
U.L. Listed gas appliances are tested and approved
withoutrequiring changes for elevations from 0to2000
feet in the U.S.A. and Canada.
When installing this appliance at an elevation above
2000 feet, it may be necessary to decrease the input
rating by changing the existing burner orifice to a
smaller size. Input rate should be reduced by 4% for
each 1000 feet above a 2000 foot elevation in the
U.S.A., or 10% for elevations between 2000 and 4500
feetin Canada. If the heating valueofthe gas has been
reduced,these rules donotapply.Toidentify the proper
orifice size, check with the local gas utility.
If installing this appliance at an elevation above 4500
feet (in Canada), check with local authorities.
• Ensure that gas line does not come in contact with outer
wrap of appliance. Follow local codes.
• Incoming gas line should be piped into the valve com-
partment and connected to the 1/2 inch connection on
the manual shutoff valve.
CHECK FOR GAS LEAKS
Explosion Risk
Fire Risk
Asphyxiation Risk
• Check all fittings and connections.
• Do not use open flame.
• After the gas line installation is complete, all
connections must be tightened and checked
for leaks with a commercially-available, non-
corrosiveleakchecksolution.Besuretorinse
off all leak check solution following testing.
• A small amount of air will be in the gas supply lines.
When first lighting appliance it will take a short time for
air to purge from lines. When purging is complete the
appliance will light and operate normally.
Fittings and connections may have loosened during
shipping and handling.
WARNING
WARNING
WARNING
