Heat Controller B-VFH09MA-1 Instruction manual

Heat Controller • 1900 Wellworth Ave. • Jackson, MI 49203 • [phone] • www.heatcontroller.com
INSTALLATION, OPERATION
& MAINTENANCE MANUAL
InverterFlex Series®
Indoor Ductless Mini-Split
Heat Pumps
B-VFH09MA-1
B-VFH12MA-1
B-VFH18MA-1

2
VFH InverterFlex® - Ductless Mini-Split Heat Controller
!
Caution
• Contact an authorized service technician for repair or maintenance of this unit
• Contact an authorized installed for installation of this unit.
• Installation work must be performed in accordance with local and national electrical codes and
standards by authorized personnel only
TABLE OF CONTENTS
Warnings and Cautions ....................................................................................................... 3
Parts Identication ............................................................................................................... 4
Operation of Wireless Remote Control ............................................................................. 5-9
Special Features of Wireless Remote Control ................................................................... 10
Battery Installation and Replacement ................................................................................ 10
Manual Operation .............................................................................................................. 11
Operation Tips ................................................................................................................... 12
Care and Cleaning ............................................................................................................. 13
Troubleshooting ............................................................................................................14-16
Installation Notices ............................................................................................................ 17
Installation of Location and Clearances............................................................................. 18
Indoor Unit Installation ..................................................................................................19-20
Indoor Wiring ..................................................................................................................... 21
Initial Start-up Checks ....................................................................................................... 23
Installation of Optional Filter .............................................................................................. 23

3
Heat Controller VFH InverterFlex® - Ductless Mini-Split
WARNING!
!
CAUTION!
!
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property.
This symbol denotes item that is PROHIBITED from doing.

CAUTION!
!
• Read the follow SAFETY PRECAUTIONS carefully before installation.
• Electrical work must be performed by a licensed electrician.
• Incorrect installation due to ignoring the instruction will cause harm or damage.
n 
1) Do not install without an authorized services/installer.
2) Install according to this installation instruction. If installation is defective, it can cause water
leakage, or electric shock/re.
3) Use the supplied accessories and specied parts for installation.
4) Install the indoor unit on a wall strong enough to hold the unit’s weight.
5) For electrical work, follow local and national electric codes and these installation instructions.
An independent circuit and single outlet must be used. If electrical circuit capacity is not
enough or defects are found in electrical work, it may cause electrical shock or re.
6) Use the specied cable and connect tightly. Clamp the cable so that no external force will
stress the connections. Loose wiring may overheat at the connection points and create a
possible re hazard.
7) Wiring routing must be properly arranged so that control board cover is xed properly. If control
board cover is not xed perfectly, it will cause overheating at connection point of terminal, re
or electrical shock.
8) When charging the unit, take care not to let air/substances other than the specied refrigerant
go into refrigeration circuit. Otherwise it will cause lower capacity, abnormal high pressure
in the refrigeration circuit, explosion and injury.
1) This equipment must be grounded it may cause electrical shock if grounding work
doesn’t comply with local/national electric codes.
2) Do not install the unit at place where leakage of ammable gas may occur. If gas
leaks and accumulates near the unit, it may cause re.
3) Condensate must properly drain away from the unit as mentioned in installation instructions.
If not done correctly, water may enter the room and damage personal belongings.
WARNING!
!

4
VFH InverterFlex® - Ductless Mini-Split Heat Controller


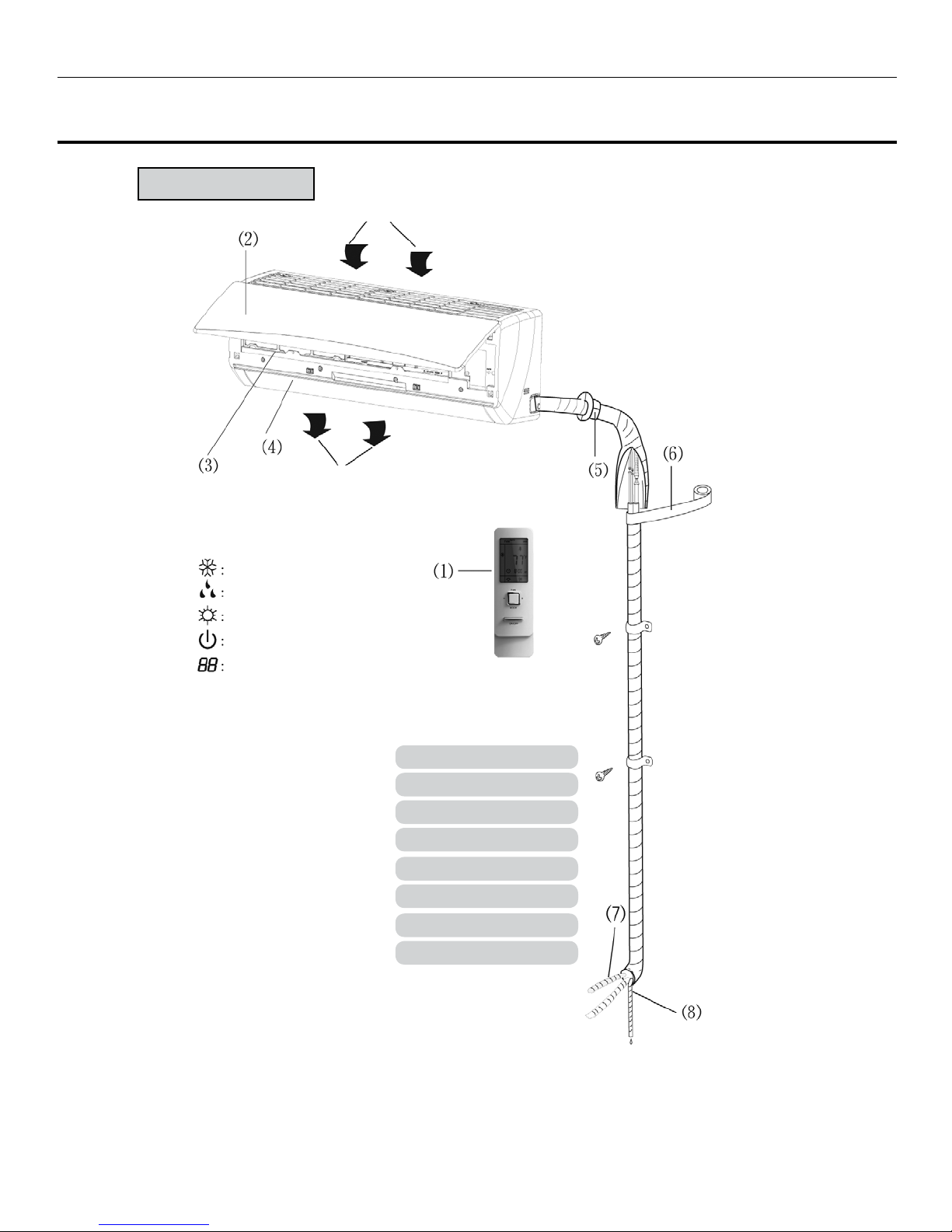

Air Inlet
Air Outlet
Indoor Unit
The icons displayed:
Cool
Dry
Heat
Power
Set temp.
(1) Remote controller
(2) Front panel
(3) Filter
(4) Horizontal louver
(5) Wall pipe bushing
(6) Binding tape
(7) Connection pipes
(8) Condensate drain hose

5
Heat Controller VFH InverterFlex® - Ductless Mini-Split

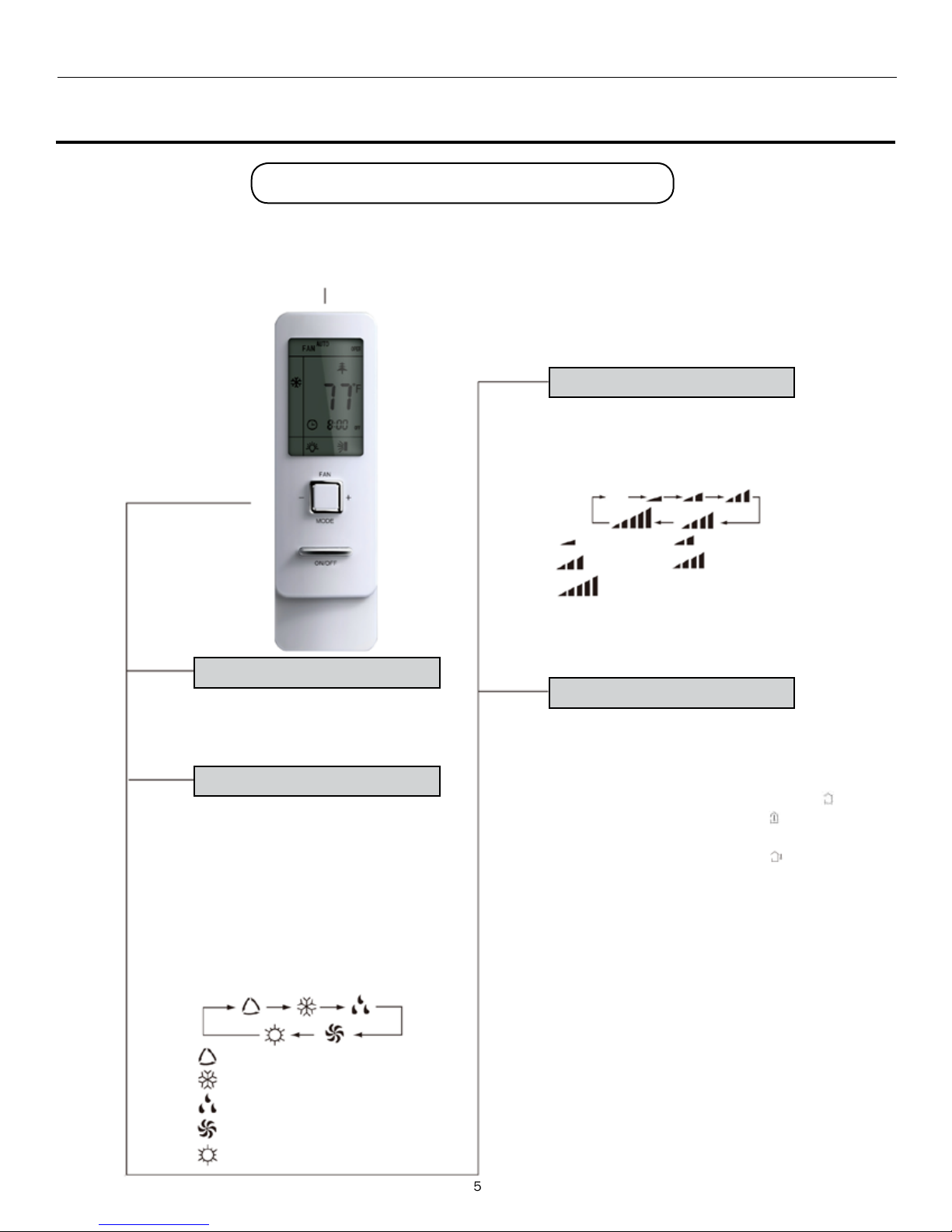

Operation of wireless remote control
Features and functions of wireless remote control
 Be sure that there are no obstructions between the unit’s receiver and remote control. Be careful not to drop the
remote control; Don’t let any liquid get inside the remote control, don’t put the remote control directly in sunlight or any
other place where it is very hot.
Signal transmitter
Remote controller
ON/OFF
MODE MODE button
ON/OFF button
AUTO
COOL
DRY
FAN
HEAT
TEMP button
TEMP
FAN button
FAN
High fan
Medium-high fan
Medium-low fan
Medium fan
Low fan
AUTO
• Press this button, Auto, Low, Medium-low, Medium,
Medium-high, High speed can be sequentially
selected. Auto mode is the default mode. In dry mode,
the only available fan speed is low.
• Press this button, the following temperatures
can be set sequentially: the set temperature,
indoor ambient temperature and outdoor ambient
temperature. When the indoor unit rst powers on,
it will display the set temperature and this icon .
If the button is pressed again, this icon and the
indoor ambient temperature is shown. Pressing the
button a third time will display this icon and the
outdoor ambient temperature. 3 seconds later the
display will return to the set temperature or unless
there is another signal.
  Outdoor ambient temperature display range
is 0~60°C (32~99°F). However, if the outdoor
ambient temperature is below 0°C, it still will display
0°C (32°F). The display can’t show temps below
0°C (32°F).
• Press this button, Auto, Cool, Dry, Fan, Heat
mode can be selected sequentially. When
unit powers on, Auto mode is the default
mode. In Auto mode, the temperature is not
shown on the display. The unit will operate
in heating or cooling modes automatically
based on the room temperature. Under Heat
mode the initial set point is 28°C (82°F);
in other modes, the initial set point is 25°C
(77°F).
• Press this button, the unit will turn on, press
it once more, the unit will turn off. Sleep
function cancels while unit is off.
When
operating buttons
on the cover please
make sure the cover
is closed completely
on the remote.

6
VFH InverterFlex® - Ductless Mini-Split Heat Controller
When quiet mode is used, the fan operates at a low speed. Pressing
the Quiet button activates the mode and the icon “ “ is displayed.
To cancel Quiet mode, press the button again.
• When Quiet mode is selected during the cooling mode, the fan
speed operates at Medium-high speed for 10 minutes or until
the room temperature is < 82°F (28C), after that the fan speed
decreases to Medium-low.
• In heating mode, the indoor fan operates at Medium fan speed.
• During Auto mode, when Quiet mode is enabled, the Quiet icon
“ “ along with the “AUTO” icon is displayed. The fan will operate
as noted above, depending on the mode the unit selects based on
the room temperature (COOL, HEAT, or FAN ONLY).

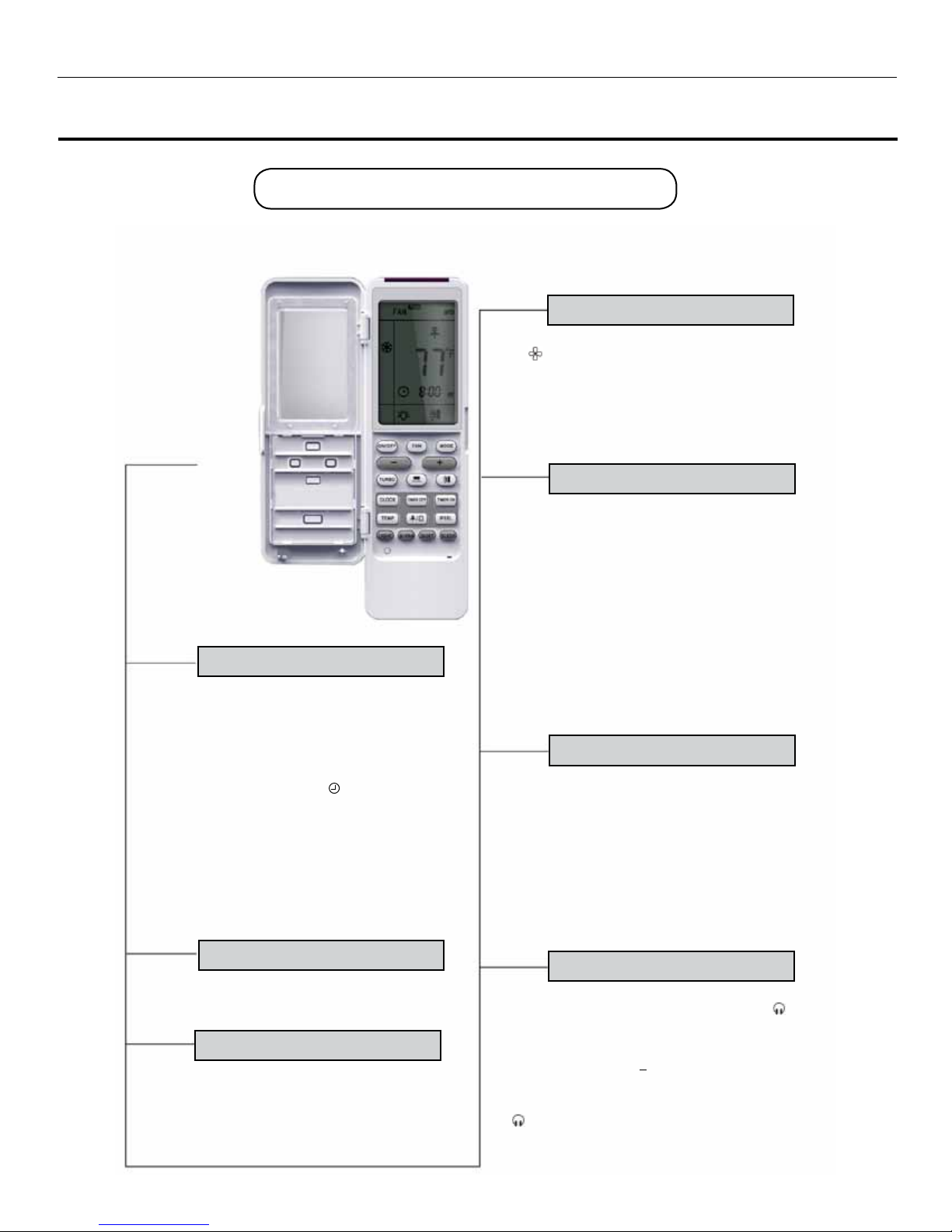

Features and functions of wireless remote control
LIGHT
LIGHT button
TURBO
TURBO button
CLOCK
CLOCK button
Remote controller
• To set the time, press the clock button until
the clock symbol blinks. While blinking, the
time can be adjusted by pressing the (+)
or (-) buttons within 5 seconds. Once the
time is set, press the clock button again to
conrm, the clock symbol will no longer
blink. The rst time the unit is powered on
the time will display 12:00 as the default.
• Under Cool or Heat mode, the turbo button can turn on or
turn off the Turbo function. After the Turbo function turned
on, the Turbo symbol will display. The Turbo mode will
be automatically cancelled if the mode or fan speed is
changed. The Turbo mode can be used to quickly heat or
cool the room.
• When powered on the light is defaulted on. Press the light
button to turn on/off the light.
Operation of wireless remote control
X-FAN
X-FAN button
++ button
-
- button
QUIET
QUIET button
• Using this button, the temperature can be
increased. The temperature can be set
to 61-86°F (16-30°C). The temperature
adjustment can not be made in Auto mode.
• Using this button the temperature can be
decreased. The temperature can be set
to 61-86°F (16-30°C). The temperature
adjustment can not be made in Auto mode.
• By pressing X-FAN button in COOL or DRY mode, the
icon is displayed and the indoor fan will operate for 2
minutes in order to dry the indoor unit after powering off
the unit. X-FAN OFF is the default setting. The X-FAN
feature is not available in AUTO, FAN or HEAT mode.
The X-FAN mode is used to dry the unit out when it won’t
be used for a long time. This helps prevent mold and
mildew from forming inside the unit.

7
Heat Controller VFH InverterFlex® - Ductless Mini-Split
Features and functions of wireless remote control

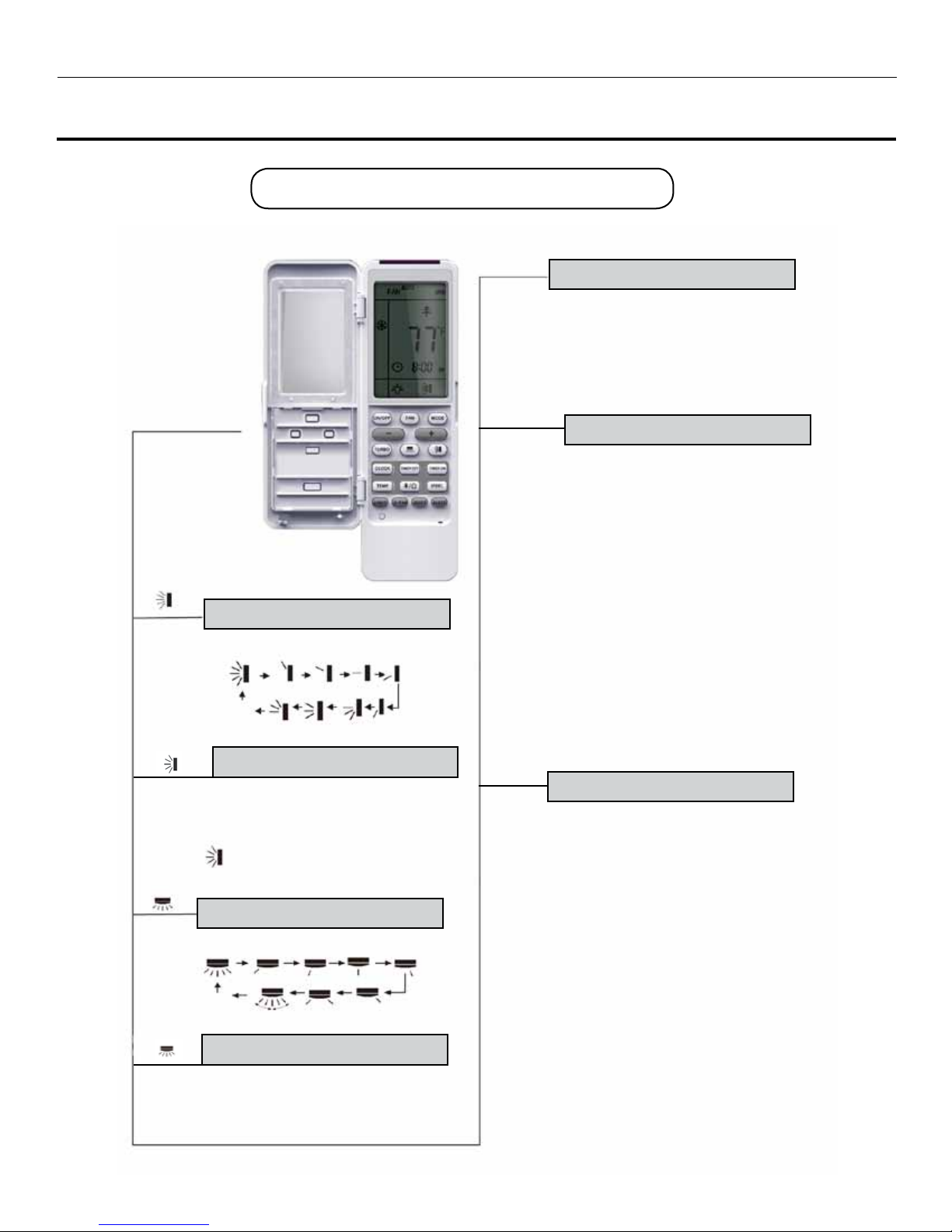

AUTO LOUVER SWING LEFT-RIGHT button
SWING UP AND DOWN button
SWING LEFT AND RIGHT button
Remote controller
OFF
OFF
• Press swing left and right buttons continuously more than 2s
the lower will swing back and forth from the left to the right.
When you release the buttons the louver will stop swinging and
the present position of the louver will be kept.
• Press this button to set left & right swing angle cycling as shown below.
• Adjust the swing of the louver to direct the air ow to the most
comfortable position.
I FEEL I FEEL button
• Due to temperature stratication in the room,
it is more comfortable if the unit senses the
temperature at the level the remote sits,
rather that at the indoor unit, which is up
high on the wall. To select the sensing at
the remote control room temperature rather
than at the unit, press the I-FEEL button.
The I-FEEL icon will be displayed and the
temperature signal will be sent from the
remote to the unit every 10 minutes as long
as the remote controller is in range of the
indoor unit. To cancel, press the I-FEEL
button again.
• Press this button to set swing angle of the louver, which cycles
through the options below.
• Adjust the swing
of the louver
to direct the air
ow to the most
comfortable
position.
• This icon indicates that the
louver swings back and forth.
TIMER ON TIMER ON button
• The Timer feature is a program that can be
used to turn the unit on/off after a certain
amount of time has transpired. To set the
Timer on, press the Timer on button. The “ON”
icon will blink indicating that the program can
be set. Press the (+) or (-) buttons to adjust
the time duration in minutes. After the time
duration is set, press the Timer on button
again to begin the Timer on operation. To
cancel the Timer on operation, press the
Timer on button again.
  Be sure the clock is set to the actual
time before setting the timer. See clock
instructions to set the clock time.
Operation of wireless remote control
TIMER OFF TIMER OFF button
• Press the Timer off button to create the timer off program. The
Timer off icon will blink, indicating it is in programming mode.
The set up process is the same as the timer on process - see
Timer On for instructions. The timer off program allows you to
determine when the unit should turn off based on how much
time has transpired.
AUTO LOUVER SWING button
• Press swing, + and - buttons continuously for more than
2s, the louver will swing back and forth when you release
the button, the louver will stop swinging and the present
position of the louver will be kept.

8
VFH InverterFlex® - Ductless Mini-Split Heat Controller
Features and functions of wireless remote control
SLEEP SLEEP button
Operation of wireless remote control

The sleep program allows for the most comfortable
conditions while you sleep, as body temperatures change.
To activate the sleep mode, press the sleep mode button.
There are (3) different programmed settings to choose
from Sleep 1 ( 1), Sleep 2 ( 2), and Sleep 3 ( 3)
described below. To cancel the Sleep mode, press the
Sleep mode button and cycle through options 1, 2, and 3,
until the Sleep icon disappears from the display.
The Sleep function can not be enabled when the
unit is in Fan or Auto mode. Sleep 1 can only be selected
when the unit is in Cool or Dry mode. When Sleep mode
is enabled, Quiet mode is also automatically enabled
in conjunction. However, Quiet mode can be turned off
manually.

When Sleep 1 is activated while the unit is in Cool or Dry
mode, the unit’s set temperature will increase 1-2 degrees
during the rst hour, then after 2 hours it will decrease
by 3-4 degrees more and then continue to run at this
temp. When Sleep mode is activated while the unit is in
Heat mode, the unit will operate by decreasing the set
temperature by 1-2 degrees the rst hour and then by
3-4° degrees the next 2 hours. Then the unit will continue
to run at this temperature.

Sleep 2 operates differently than Sleep 1, as it takes into
account the set temperature.

• When the initial set temperature is between 61°F-74°F
(16°C-23°C), the temperature will increase 1-2 degrees
every hour until it reaches a 5-6 degree difference. It will
operate at this setting for (7) hours. After 7 hours, the
temperature will decrease 1-2 degrees and continue to
operate under this condition.
• When the initial set temperature is between 75°F-81°F
(24°C-27°C), the temperature will increase 1-2 degrees
every hour until a 3-4 degree difference is achieved.
This will be maintained for (7) hours, after which another
1-2 degree decrease will take place. Then the unit will
continue to operate under this condition.

9
Heat Controller VFH InverterFlex® - Ductless Mini-Split
Features and functions of wireless remote control
SLEEP SLEEP button
Operation of wireless remote control
• When the initial set temperature is between 82°F-85°F
(28°C-29°C), the temperature will increase 1-2 degrees
every hour until a 1-2 degree increase is achieved and
that will be maintained for (7) hours. After (7) hours,
the temperature will decrease another 1-2 degrees and
continue to operate under this condition.
• When the initial set temperature is 86°F (30°C), after 7
hours the temperature will decrease 1-2 degrees and
continue to run under this condition.

• When the initial set temperature is set to 61°F (16°C),
the unit will maintain this temperature.
• When the initial set temperature is between 62°F-68°F
(17°C-20°C), the temperature will decrease 1-2 degrees
every hour until a 1-2 degree decrease is maintained.
• When the initial set temperature is between 69°F-81°F
(21°C-27°C), the temperature decreases 1-2 degrees
every hour, then this temperature is maintained.
• When the initial set temperature is between 82°F-86°F
(28°C-30°C), the temperature decrease 1-2 degrees
every hour until a 5-6 degree decrease has been
achieved. Then the unit will continue to operation under
this condition

Allows customization of the Sleep mode conditions by
setting the temperature and hours it will be maintained
up to 8 hours. To create the individualized program under
the Sleep 3 mode, hold the turbo button until the remote
control displays “1 hour” and the set temperature will
display and blink “88”. Adjust the set temperature by
pressing the (+) or (-) buttons for the rst hour of sleep
mode. Press the “Turbo” button to conrm. The remote
will advance to the next hour and display “2 hours” and
allow you to set the temperature again. After the set
temp is set, press the turbo button to conrm. Repeat
this process for the 8 hours of Sleep mode, setting
the temperature for each hour. After programming is
complete, the remote will resume it’s normal display.

10
VFH InverterFlex® - Ductless Mini-Split Heat Controller
Special features of the wireless remote

Press + and - buttons simultaneously to lock or unlock the keypad. If the remote controller is locked, the icon will
be displayed. If the keyboard is unlocked, the mark will disappear.

While the unit is off, press the MODE and - buttons simultaneously to switch between °C and °F.

In cool mode PRESS the “TEMP” and “CLOCK” buttons simultaneously to enable the energy saving mode. The
remote control will display “SE”. Repeat this operation to cancel the Energy Saving mode.


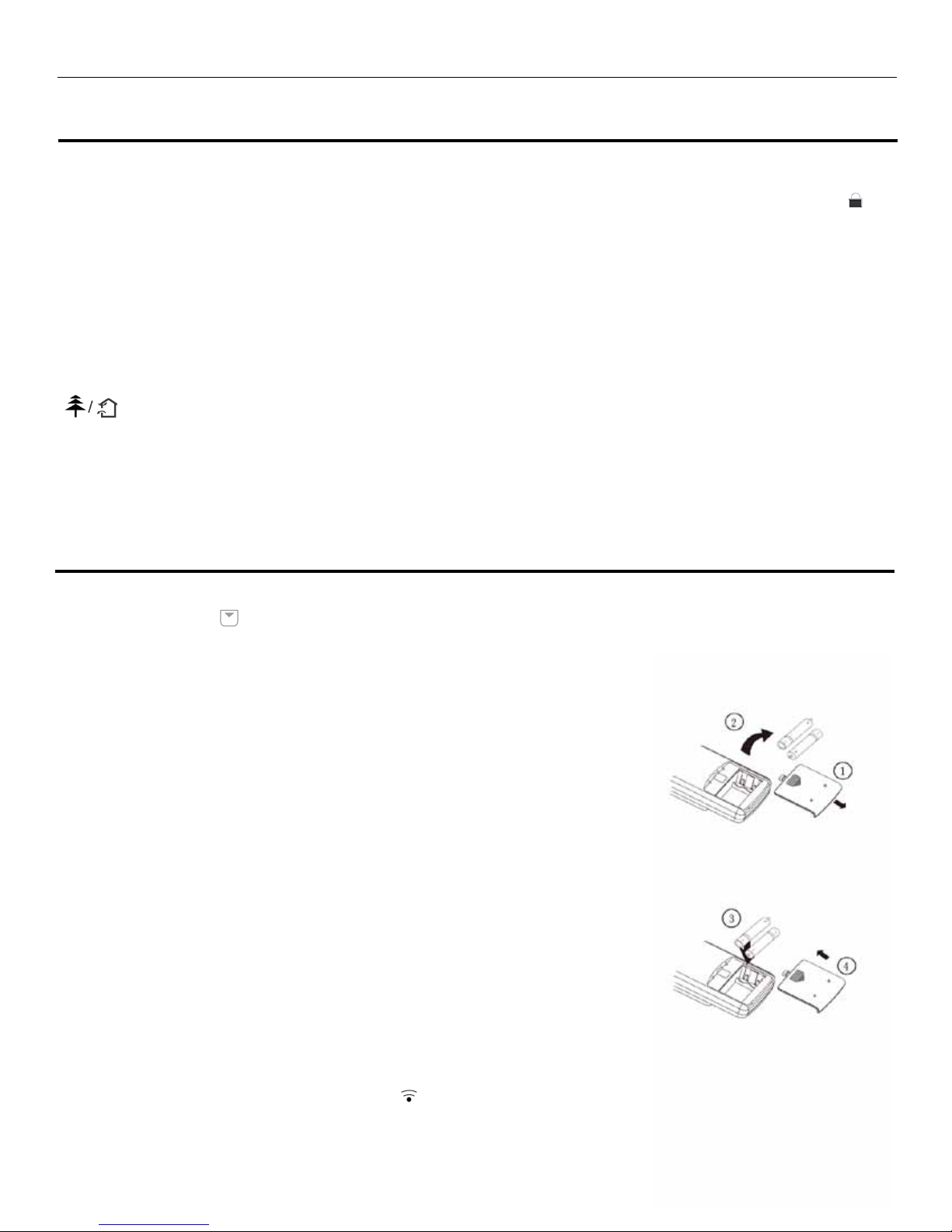

1. Press the place with and push the back cover of wireless remote controller in
the direction of the arrow.
2. Take out the old batteries.
3. Insert two new AAA1.5V dry batteries. Ensure they are inserted with the proper
polarity (+/-). (As show in Fig. 2.)

• When changing the batteries, do not use the old or different brands of batteries,
otherwise it can cause a malfunction of the wireless remote control.
• If the wireless remote control will not be used for a long time, please take the
batteries out. Old batteries can leak battery acid and damage the remote.
• Ensure the signal of the remote is not obstructed and is in range of the indoor unit.
• Due to possible signal interference with other devices, such radios or televisions, be
sure these devices are at least 3 ft (1m) away.
• If the remote control cannot operate normally, take the batteries out and then
reinsert them 30s later; if abnormal operation continues, aim remote controller at
the receiver of the indoor at a closer proximatey to improve the receiving sensitivity
of the indoor unit.
• When the remote controller sends out a signal a symbol will icker for about
1s. The beep signal will be heard when the indoor unit receives the signal from the
remote. Absence of this icon/beep signal may indicate that the batteries need to be
replaced in the remote.




11
Heat Controller VFH InverterFlex® - Ductless Mini-Split
When the remote controller is lost or damaged,
please use the manual switch on the main unit. The
unit will operate in AUTO mode based on the room
temperature.
 In this mode, the set temperature and fan
speed can not be changed.
•  Press AUTO/STOP button to enter
AUTO mode.
The indoor unit will select the mode (COOL, HEAT,
FAN) according to the room temperature.
•  Press AUTO/STOP button again to
turn off the indoor unit.
Manual Operation
Manual switch
Manual Operation

12
VFH InverterFlex® - Ductless Mini-Split Heat Controller


• Air conditioners absorb heat in the room and transmit it to the outdoor unit, so that the room
temperature decreases. The cooling capacity will increase or decrease according to outdoor
ambient temperature.

• If the unit is operating in COOL mode and in low ambient temperatures, frost may form on the
heat exchanger. When indoor heat exchanger temperature decreases below zero, compressor
will stop operation to protect the unit.


• Air conditioners absorb heat from outdoors and transmit it to the indoor unit, increasing room
temperature. The heating capacity will decrease in low ambient temperatures.

• When outdoor temperature is low but humidity is high, frost may form on the outdoor unit during
extended operation, affecting heating efciency. The air conditioner may stop operation during
auto defrosting operation.
• During auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
• During defrosting, the indoor unit heating indicator ashes and the outdoor unit may emit vapor.
This is normal during defrost mode.
• After defrosting is nished, the heating operation will restart automatically.

• In HEAT mode, the indoor fan will not operate for approximately 2 minutes in order to prevent
cold air blowing out until the unit is ready to heat.

1. In HEAT mode, once the room temperature reaches the set point, the compressor stops and
the indoor fan still run for 60s, to remove any residual heat from the refrigerant circuit.
2. In HEAT mode, if you turn off the unit, the compressor stops and the indoor fan still runs for 10s
to remove residual heat from the refrigerant circuit.
Operation Tips

13
Heat Controller VFH InverterFlex® - Ductless Mini-Split
• Disconnect the power supply before performing any cleaning or maintenance.
• Be sure water does not get inside the unit when cleaning. To avoid electrical shock
and damage to the unit.
• The cabinet can be cleaned with a dry or damp cloth. Do not use harsh chemical
cleaners, wax, or polish.
Caution



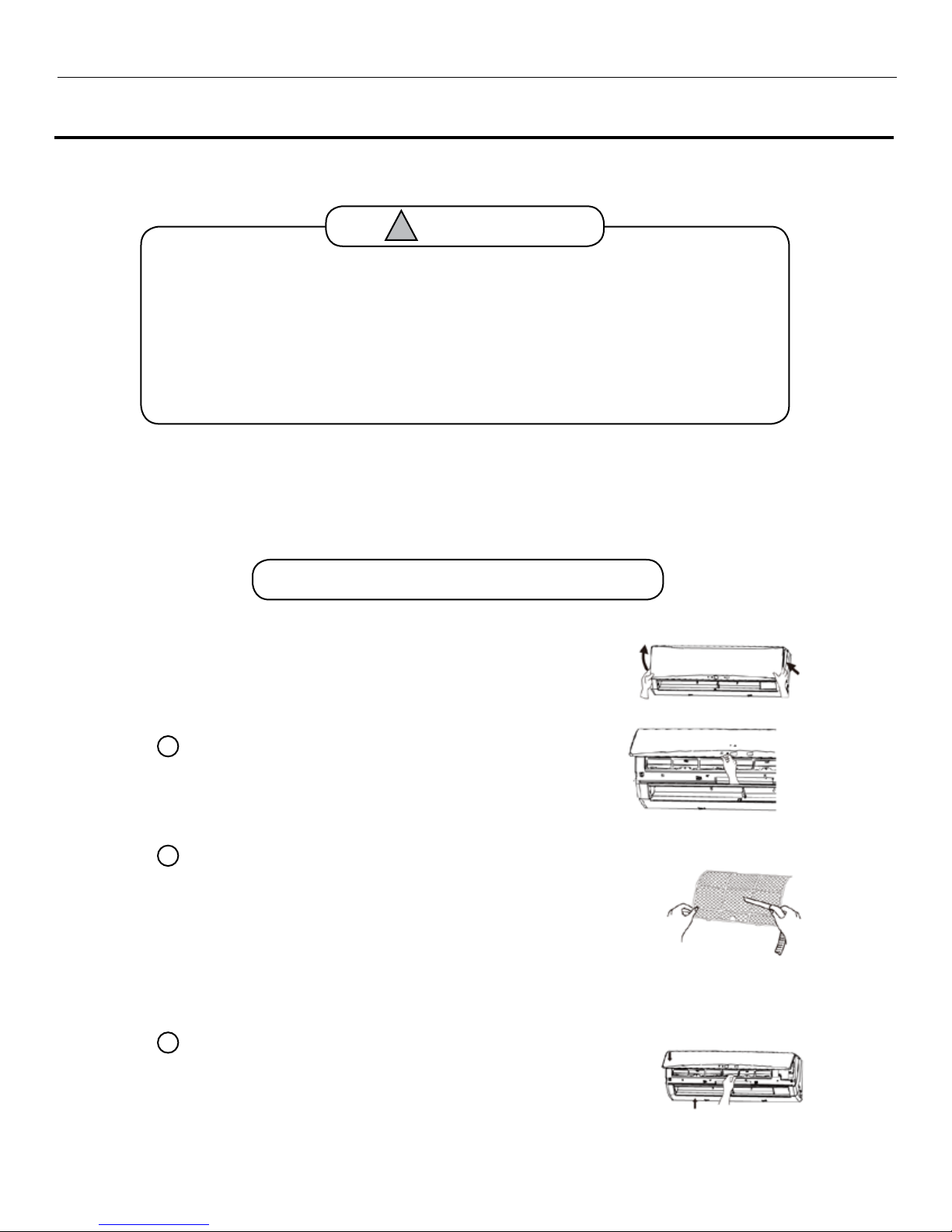

Lift up the front panel.
Pull the air lter downwards to take it out
as shown in Fig. 3 and 4.

Use a vacuum cleaner to remove dust.
If the lter is dirty, wash with warm water
and mild detergent.
Air dry the lters indoors and avoid direct sunlight.
 Cleaning with extremely hot water over
113°F (45°C) can deform or discolor the lter.

Reinstall the lters by pushing back into place
along the direction of the arrows shown.
Close the panel.
 Do not touch the ns of indoor coil during the
cleaning to avoid personal injury. The ns of the indoor
unit have sharp edges that can cut. Failure to clean
the lter can make the unit inefcient and possibility
inoperable.
1
2
3
(Fig. 3)
(Fig. 4)
CAUTION!
!


14
VFH InverterFlex® - Ductless Mini-Split Heat Controller
• The air conditioner is not user serviceable. Incorrect repair may cause electric shock or
re. Please contact an authorized service center or professional to repair. Performing the
following checks prior to contacting may save you time and money.
Caution
Problem 
• The unit does not operate if it is turned on
immediately after it is turned off. This is to protect
the unit. You should wait about 3 minutes to
restart.
• Be sure the unit is in the correct mode and within
it’s designed operation limits. If temperatures
outside are too low the unit may not operate.
• Some odors may be emitted from the indoor
unit. This maybe the result of room smells (such
as furniture, tobacco, etc.) which have been
taken into the air conditioner’s intake and are
being exhausted back out.
• Consult authorized service center for cleaning if
the odors still exist after any sources of odor in
your home have been removed.
• A swishing noise, like water owing is the
refrigerant owing inside the unit. This is a
normal noise during operation.
• During cooling operation, a thin mist may
be seen emitted from the indoor unit due to
high room temperature and humidity. The
mist will disappear, as the room temperature
and humidity decreases. This is normal
under high room temperature and humidity
conditions.
• This is the sound caused by expansion and/
or contraction of panel or other parts due to
the change of temperature. This is normal.
The unit does not operate:
Waiting
Odors are emitted:
“Water owing” noise:
Mist is emitted in COOL mode:
Cracking noise:


15
Heat Controller VFH InverterFlex® - Ductless Mini-Split

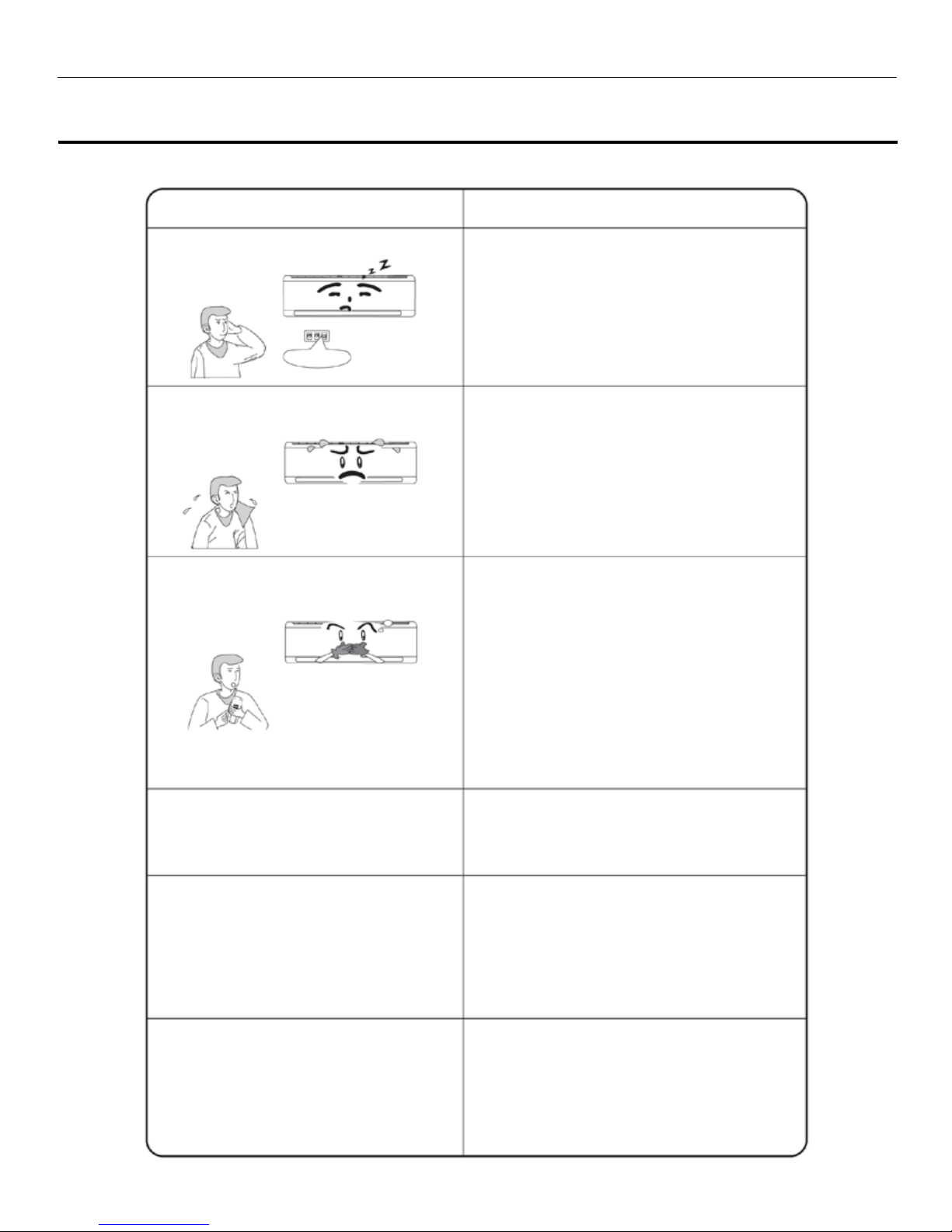

Phenomenon 
Check these things before calling for service:
• Is the power on?
• Has the circuit breaker tripped?
• Is the TIMER correctly used?
• Is temperature set appropriately?
• Is the inlet or outlet blocked?
• Is the lter dirty?
• Is a window or the door open in the room
the unit is operating in?
• Is low fan speed set?
• Are there other heat sources in the room?
• During cooling operation, condensate is
generated around the pipes and connection
joints.
• During defrosting operation, the thawed water
ows out.
• During heating operation, the water on the
heat exchanger drips out.
• Drain hose is loose or clogged.
• The room’s humidity level might be too high.
• There is noise emitted when the fan or
compressor relay is switching on or off.
• When the defrosting operation has started
or stopped, there is a sound of refrigerant
owing in the reverse direction.
Cooling/Heating is poor:
Breaking off
Remote control is not working:
Water leakage of indoor unit:
Water leakage of outdoor unit:
Noise from indoor unit:
The unit will not start up:
• Be sure not objects are blocking the
signal.
• Replace the batteries.
• Try to use the remote while closer to the
indoor unit.


16
VFH InverterFlex® - Ductless Mini-Split Heat Controller
Problem 
• In HEAT mode, when the temperature
of indoor heat exchanger is very low, air
ow stops in order to prevent cold air from
blowing for 2 minutes.
• In HEAT mode, when the outdoor
temperature is low or humidity is high, frost
will form on the outdoor heat exchanger. The
unit will defrost automatically and indoor unit
will stop blowing air for 3-12 minutes.
• In DRY mode, the indoor fan will stop
blowing air for 3-12 minutes in order to avoid
condensed water being vaporized.
• Please check whether the cover is closed
completely.
Turn off the unit and
cut off the power supply.
Moisture on air outlet:
Buttons on the cover are not working or
are insensitive.
If any one of the following situations occur, immediately turn off and
cut off the power supply, then contact an authorized servicer.
Indoor unit can not blow air:
• If the unit operates in a high humidity
environment for a long time, moisture may
condense in the air outlet grill and then
drip off. Try changing the position of the
louver on the indoor unit to prevent this.
• There is loud/abnormal noise during operation.
• Strong odors are emitted during operation, such as
burning smells.
• Water is leaking excessively from the unit.
• The circuit breaker trips often.
• Error codes “C5, F1, F2, H6” appear on the
display.
• It is normal, the unit is in defrost mode.
Operation will return when defrosting is
complete.
Heating indicator blinks: ON for 10s and
OFF for 0.5s.


17
Heat Controller VFH InverterFlex® - Ductless Mini-Split
Caution
1. The unit must only be installed by authorized servicer and in compliance with this installation instruction.
2. Installation must be performed in accordance with the requirements of NEC or CEC and all local codes by authorized
personal only.
3.  Before obtaining access to terminals, all supply circuits must be disconnected.
4. Due to high temperature of the refrigerant circuit, please keep all conduit cables away from the copper tubes to prevent
melting the insulation.

Choose a location that places the outdoor unit as close to the indoor unit as possible. The maximum unit separation and
vertical lift (compressor above the evaporator) must be taking into account. Do not exceed allowable refrigerant line lengths.
Indoor unit
• Unit must be installed in a location that does not obstruct the ow of air and ensures clearances are maintained. (see
installation drawing)
• The site must support the weight of the unit.
• The site must be easily accessible for cleaning, replacement of the air lter, maintenance and service.
• The indoor unit should be mounted as high up on the wall toward the ceiling, leaving a minimum of 6” (150mm) of space
between the ceiling and the top of the indoor unit. (see installation drawing)
• Due to the possibility of electronic interference with other devices, it is recommended that there should be at least
3 ft (1 meter) between the unit and other devices/appliances, such as televisions or radios.
• The unit should be installed away from possible exposure to re, smoke, of ammable gases and be protected from
direct sunlight (sunlight can interfere with the signal between the unit and the remote control).
CAUTION!
!


18
VFH InverterFlex® - Ductless Mini-Split Heat Controller
Space to the ceiling
Space to the wall
6in (15cm)
6in
(15cm)
6in (15cm)
Air outlet side
Space to the wall
8.2ft
(250cm)
above
9.8ft
(300cm)
above
Space to the oor
 When units are mounted too close to
the ceiling or too low from the oor, operation and
performance may be affected.
!
Installation Location and Clearances
Selecting installation place
Choose a location that places the outdoor unit as
close to the indoor unit as possible. The maximum
unit separation and vertical lift (compressor above
the evaporator) must be taking into account. Do not
exceed allowable refrigerant line lengths.
Indoor unit
• Unit must be installed in a location that does not
obstruct the ow of air and ensures clearances are
maintained. (see installation drawing)
• The site must support the weight of the unit.
• The site must be easily accessible for cleaning,
replacement of the air lter, maintenance and
service.
• The indoor unit should be mounted as high up on
the wall toward the ceiling, leaving a minimum of 6”
(150mm) of space between the ceiling and the top of the
indoor unit. see installation drawing)
• Due to the possibility of electronic interference with
other devices, it is recommended that there should be at
least 3 ft (1 meter) between the unit and other devices/
appliances, such as televisions or radios.
• The unit should be installed away from possible
exposure to re, smoke, of ammable gases and be
protected from direct sunlight (sunlight can interfere with
the signal between the unit and the remote control).

19
Heat Controller VFH InverterFlex® - Ductless Mini-Split
Indoor unit installation

A. There are two tabs on the back of the
indoor unit that hold the wall bracket onto
the unit. Press them down with a at head
screwdriver to release the wall bracket
from the back of the unit.
B. Mount the wall bracket ush on structural
parts (studs) of the wall with proper unit
clearances in consideration. (Fig. 5, 6 and
Fig. 7)
 Any space between the unit and the
wall may cause noise or vibration.
C. Screw the wall bracket onto the wall with
type “A” self-tapping screws. If the wall
is made of brick, concrete or the like, drill
1/4” (5mm) diameter pilot holes in the wall.
Use anchors in conjunction with mounting
screws.
NOTE:
• Drill holes in the wall according to the stud
locations and corresponding mounting points
on the actual wall bracket that comes with your
unit. Wall brackets may vary by model and
specications are subject to change.
• It is important to use all screws provided to
secure the wall bracket to the wall.

condensate lines
A. Determine hole position according to the
wall bracket that comes with your unit, the
unit’s required clearances (Fig. 6 and 7)
and which direction (left/right) the lines will
be routed from the back of your unit (Fig.
11). Drill 2.5”(65mm) hole angled downward
(approx. 45°) toward the outdoors. (Fig. 8).
 Ensure that neither studs nor
plumbing are located directly behind the
propsed hole location.
B. Always use a conduit to route the piping
though the hole in the wall. Properly seal
the hole after routing the pipes through to
prevent debris, insects, or small animals
from entering.

A. Run the drain hose sloping downward. Do not
install the drain hose as illustrated in Fig.9.
B. When extending the drain hose, with locally
purchased hose, insulate the connection
with armaex or similar pipe insulation
material. (Fig. 10)

Wall Bracket should be
ush with the interior wall


Extension drain-
hose
Wall
Pipe Insulation
Do not block water ow by a rise Do not put the end of
drain hose into water

Seal Pad
Outdoor
Wall Pipe
Indoor

6 in. (150 mm)
from the wall
or obstacles
6 in. (150 mm) away from ceiling
34.09 in. (866 mm)
6.42 in. (163 mm)6.38 in. (162 mm)
6 in. (150 mm)
from the wall
or obstacles
3.15 in. (80 mm)6.30 in. (160 mm)
10 in. (254 mm)
0.39 in. (10 mm)
2.17 in.
0(55 mm)
2.17 in.
0(55 mm)
1.38 in.
(35 mm)

6 in. (150 mm)
from the wall
or obstacles
6 in. (150 mm)
away from ceiling
5.67 in. (144 mm)
7.44 in. (189 mm)
6 in. (150 mm)
from the wall
or obstacles
26.97 in. (685 mm)
22.64 in. (575 mm)
42.52 in. (1080 mm)
11.06 in.
(281 mm)
2.75 in.
0(70 mm)
2.75 in.
0(70 mm)
6 in. (150 mm)
3.54 in. (90 mm)
2.17 in. (55 mm)
3.7 in. (94 mm)
7.28 in.
(185 mm)
12.56 in.
(319 mm)
2.17 in. (55 mm)
3.54 in. (90 mm)
2.17 in. (55 mm)
5.12 in. (130 mm) 2.72 in. (69 mm)



20
VFH InverterFlex® - Ductless Mini-Split Heat Controller


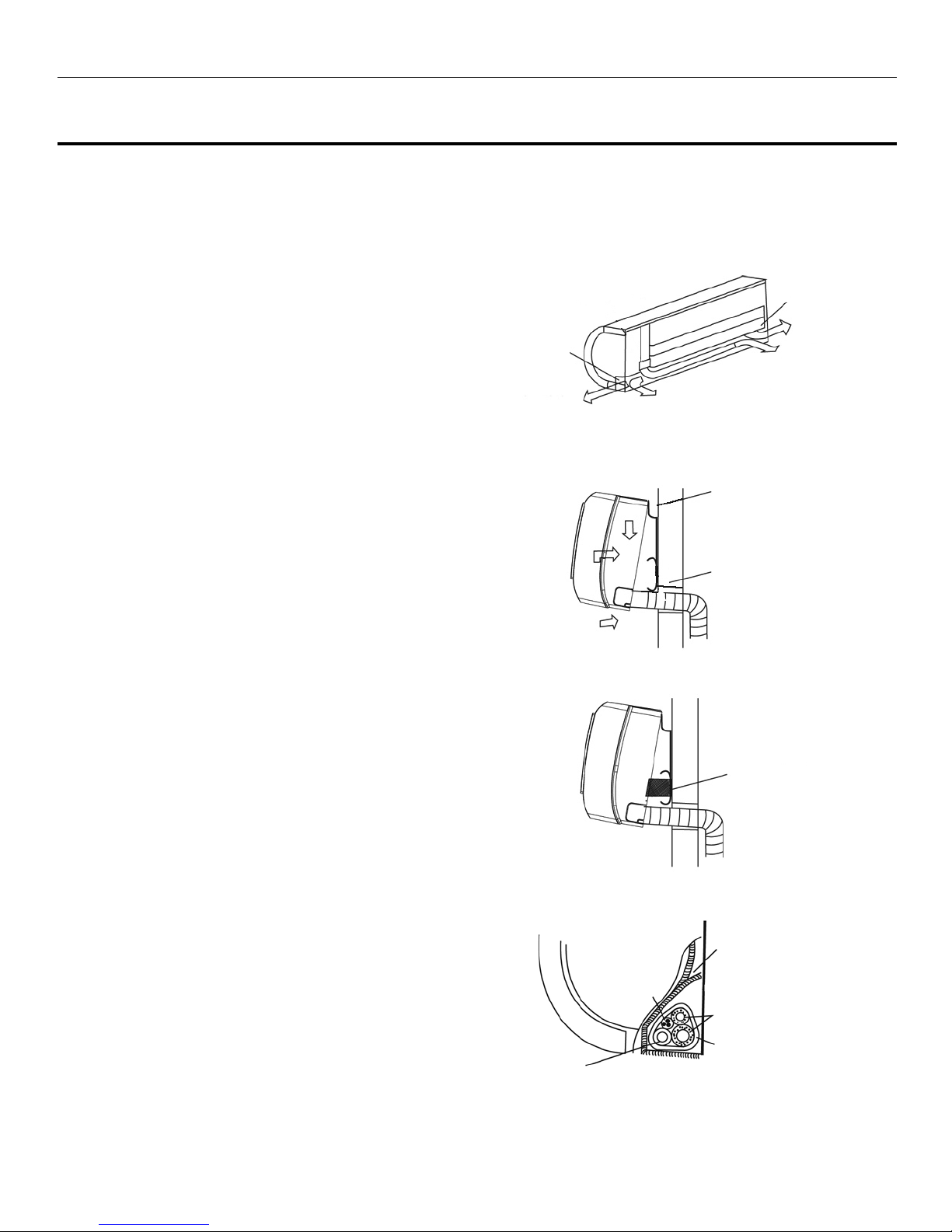

A. Remove the knockout from the desired side of the
unit that the line set will be routed from. The lines
from the unit can be routed either left or right, left
back or right back (Fig. 11).
B. Loosely run the line set connections from the in-
door unit through the hole in the wall (Fig. 8).
C. Hang the unit onto the top anges of the wall
bracket. Ensure the unit is properly seated. (Fig.
12)
D. Keep the unit away from the wall to prevent the
line set from being kinked or crushed, use a piece
of styrofoam as a spacer between the back of the
unit and the wall. (Fig. 13)
E. Feed the condensate drain line and refrigerant line
set through the hole such that the unit can sit ush
against the wall then remove the spacer (Fig. 8).
F. Push the bottom of the unit up and onto the lower
anges of the wall bracket. Ensure that unit is
properly sealed.
G. Be sure that the overall installation of the indoor
unit and installation plate and ush against the
wall and level.

A. Bundle the tubing, connecting cable, and drain hose
with tape or wire ties as shown in (Fig.14).
B. Be sure to arrange the drain line such that it is at
the lowest point within the bundle as they exit the
unit and hole in the wall to the outdoors. (Fig. 14)
C. Because the condensed water from rear of the
indoor unit is gathered in the ponding. Do not put
anything else in this area.
E. Insulated the liquid line and suction lines
separately.
 See outdoor installation instructions
for line set and charging information and
installation instructions.


Spacer
Top Flange
Bottom Flange
Ponding box
Tape/wire tie
Line set
Drain line
Connecting
Cable


Right
Knockout
Knockout
Right back
Left Back
Left
Indoor Unit
Installation of Indoor Unit
