Heat Controller VMH 09 Manual

Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • [phone] • www.heatcontroller.com
REPLACEMENT
PARTS MANUAL
VMH 09/12/18/24
Version C
Inverter Single Zone
Ductless Mini-Split Heat Pump

VMH Inverter Mini-Split REPLACEMENT PARTS MANUAL Heat Controller, Inc.
1

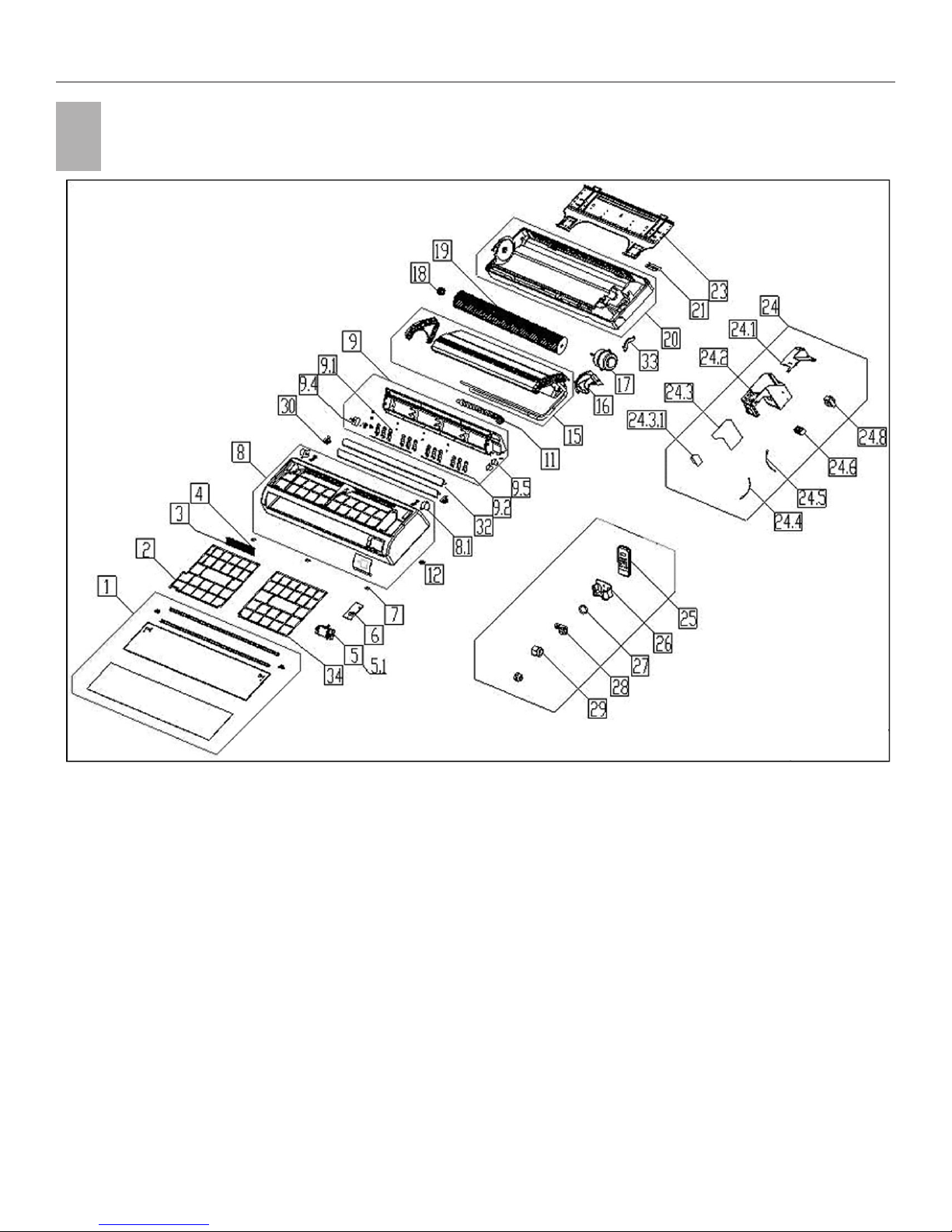

VMH09SC-1 Indoor Unit Exploded View

Heat Controller, Inc. REPLACEMENT PARTS MANUAL VMH Inverter Mini-Split
2
VMH09SC-1 Indoor Unit Parts List
LOCATION PART DESCRIPTION QUANTITY PART NO.
1 Front panel assy 1 201132590008
2Air lter(left)(silver ion) 1 201132500013
3 Air cleaner 1 201130100212
4 Air cleaner holder 1 201130100217
5 Display box assy 1 203332590183
5.1 Display board assy 1 201332590136
6Window cover for repairing 1 201132500012
7 Screw cap 3 201132500055
8Panel frame assy 1 201132500052
8.1 Louver motor 1 202400200105
9Air out frame assy 1 201132590041
9.1 Vertical grille 10 201132590031
9.2 Louver holder 1 201132500032
9.2 Louver holder 1 201132500031
9.3 Horizontal louver 1 201132500060
9.4 negative ion engender 1 202403000006
9.5 Louver motor 1 202400200017
11 Drain hose 1 201101020014
12 Bafe of temperature induction 1 201130490002
14 Breakwater 1 201132500002
15 Evaporator,assy 1 201532390036
16 Motor cover 1 201132500017
17 Motor 1 202400370022
18 Bearing holder 1 202730100201
19 Cross ow fan 1 201100200106
20 Chassis 1 201132500007
21 Connecting pipe clamp 1 201232500001
23 Installation plate 1 201232590025
24 Electronic control box,indoor unit 1 203332390677
24.1 E-Parts box's cover 1 201132500021
24.2 E-Parts box 1 201132500022
24.3 Main control board 1 201332390823
24.4 Indoor temp sensor 1 202433190000
24.5 Evaporator temp sensor 1 202301300080
24.6 Wire join 1 202301450119
25 Remote Controller 1 203355091200
26 Holder,Remote Controller 1 201155000024
27 Seal 1 202720090001
28 Connector for watering 1 201101020011
29 Copper nut 1 201600320001
29 Copper nut 1 201600320000
30 Hinge Slide groove 2 201132500010
31 Airinlet grille Assebmly 1 201132500054
34 Air lter(right)(silver ion) 1 201132500011

VMH Inverter Mini-Split REPLACEMENT PARTS MANUAL Heat Controller, Inc.
3
VMH09SC-1 Outdoor Unit Exploded View

Heat Controller, Inc. REPLACEMENT PARTS MANUAL VMH Inverter Mini-Split
4
VMH09SC-1 Outdoor Unit Parts List
LOCATION PART DESCRIPTION QUANTITY PART NO.
1Indoor temp sensor 1 202301310063
2Rear grille 1 2011374G0003
3Condenser coil assembly 1 201537390033
4Pipe Temperature Sensor 1 202440500004
5 Valve plate 1 201235120614
6Base pan assembly 1 201237590048
7 Clip, capacitor 1 201200100005
8Capacitor,Compressor 1 202401000612
9Handle (large) 1 201235290217
10 Valve cover 1 201135270201
11 Right clapboard 1 201237590003
16 Partition plate assembly 1 201237590008
17 Front panel 1 201237400029
18 Front grille 1 201235100023
19 Motor mounting bracket assembly 1 201237390026
20 Axial ow fan blade assembly 1 201100390002
21 Left support 1 201237400028
22 Fan motor 1 202400370023
24 Top cover assembly 1 201235270249
25 2-Cover for reactance lter 1 201235250802
26 Reactor 1 202301000820
26 Reactor 1 202301000819
27 Electrical box assembly 1 203337390159
27.1 E-Parts box 1 201237300033
27.2 Radiator 1 202301900068
27.3 E-Parts box’s cover 1 201237300162
27.4 Main control board 1 201337390096
27.5 Holder for E-parts 1 201137300162
28 Board of terminal,assy 1 203337590049
28.1 Wire joint 1 202301400223
28.2 Washer for wire joint 1 201135000004
28.3 Board of terminal 1 201237590046
29 Liquid valve assembly 1 201637390095
29.1 Liquid valve 1 201600740523
30 Gas valve assembly 1 201632390037
30.1 Gas pipe valve 1 201600720200
30.2 4-Ways valve 1 201600670003
31 Discharge temp sensor assembly 1 202301310068
32 Rotary compressor 1 201400620600
33 Crank case heater 1 202403100501
38 Handle (small) 1 201150290006
40 Electric pipe heater 1 202403100187

VMH Inverter Mini-Split REPLACEMENT PARTS MANUAL Heat Controller, Inc.
5
VMH12SC-1 Indoor Unit Exploded View

Heat Controller, Inc. REPLACEMENT PARTS MANUAL VMH Inverter Mini-Split
6
VMH12SC-1 Indoor Unit Parts List
LOCATION PART DESCRIPTION QUANTITY PART NO.
1 Front panel assy 1 201132590008
2Air lter(left)(silver ion) 1 201132500013
3 Air cleaner 1 201130100212
4 Air cleaner holder 1 201130100217
5 Display box assy 1 203332590183
5.1 Display board assy 1 201332590136
6Window cover for repairing 1 201132500012
7 Screw cap 3 201132500055
8Panel frame assy 1 201132500052
8.1 Louver motor 1 202400200105
9Air out frame assy 1 201132590041
9.1 Vertical grille 10 201132590031
9.2 Louver holder 1 201132500032
9.2 Louver holder 1 201132500031
9.3 Horizontal louver 1 201132500060
9.4 negative ion engender 1 202403000006
9.5 Louver motor 1 202400200017
11 Drain hose 1 201101020014
12 Bafe of temperature induction 1 201130490002
14 Breakwater 1 201132500002
15 Evaporator,assy 1 201532590004
16 Motor cover 1 201132500017
17 Motor 1 202400370022
18 Bearing holder 1 202730100201
19 Cross ow fan 1 201100200106
20 Chassis 1 201132500007
21 Connecting pipe clamp 1 201232500001
23 Installation plate 1 201232590025
24 Electronic control box,indoor unit 1 203332590475
24.1 E-Parts box's cover 1 201132500021
24.2 E-Parts box 1 201132500022
24.3 Main control board 1 201332590549
24.4 Indoor temp sensor 1 202433190000
24.5 Evaporator temp sensor 1 202301300080
24.6 Wire join 1 202301450119
25 Remote Controller 1 203355091200
26 Holder,Remote Controller 1 201155000024
28 Connector for watering 1 201101020011
29 Copper nut 1 201600320002
29 Copper nut 1 201600320000
30 Hinge Slide groove 2 201132500010
31 Airinlet grille Assebmly 1 201132500054
34 Air lter(right)(silver ion) 1 201132500011

VMH Inverter Mini-Split REPLACEMENT PARTS MANUAL Heat Controller, Inc.
7
VMH12SC-1 Outdoor Unit Exploded View

Heat Controller, Inc. REPLACEMENT PARTS MANUAL VMH Inverter Mini-Split
8
VMH12SC-1 Outdoor Unit Parts List
LOCATION PART DESCRIPTION QUANTITY PART NO.
1Indoor temp sensor 1 202301310063
2Rear grille 1 2011374G0003
3Condenser coil assembly 1 201537490008
4Pipe Temperature Sensor 1 202440500004
5 Valve plate 1 201235120614
6Base pan assembly 1 201237590048
7 Clip, capacitor 1 201200100005
8Capacitor,Compressor 1 202401000612
9Handle (large) 1 201235290217
10 Valve cover 1 201135270201
11 Right clapboard 1 201237590003
16 Partition plate assembly 1 201237590008
17 Front panel 1 201237400029
18 Front grille 1 201235100023
19 Motor mounting bracket assembly 1 201237390026
20 Axial ow fan blade assembly 1 201100390002
21 Left support 1 201237400028
22 Fan moter 1 202400370023
24 Top cover assembly 1 201235270249
25 2-Cover for reactance lter 1 201235250802
26 Reactor 1 202301000820
26 Reactor 1 202301000819
27 Electrical box assembly 1 203337390159
27.1 E-Parts box 1 201237300033
27.2 Radiator 1 202301900068
27.3 E-Parts box's cover 1 201237300162
27.4 Main control board 1 201337390096
27.5 Holder for E-parts 1 201137300162
28 Board of terminal,assy 1 203337590049
28.1 Wire joint 1 202301400223
28.2 Washer for wire joint 1 201135000004
28.3 Board of terminal 1 201237590046
29 Liquid valve assembly 1 201637490232
29.1 Liquid valve 1 201600740523
30 Gas valve assembly 1 201637590195
30.1 Gas pipe valve 1 201600720201
30.2 4-Ways valve 1 201600670003
31 Discharge temp sensor Ass'y 1 202301310068
32 Rotary compressor 1 201400620600
33 Crank case heater 1 202403100501
38 Handle (small) 1 201150290006
40 Electric pipe heater 1 202403100187

VMH Inverter Mini-Split REPLACEMENT PARTS MANUAL Heat Controller, Inc.
9
VMH18SC-1 Indoor Unit Exploded View

Heat Controller, Inc. REPLACEMENT PARTS MANUAL VMH Inverter Mini-Split
10
VMH18SC-1 Indoor Unit Parts List
LOCATION PART DESCRIPTION QUANTITY PART NO.
1 Front panel assy 1 201133090178
2Air lter(left)(silver ion) 1 201133090174
3 Air cleaner 1 201130100212
4 Air cleaner holder 1 201130100217
5 Display box assy 1 203332890007
5.1 Display board assy 1 201332890026
6Window cover for repairing 1 201133090170
7 Screw cap 3 201133090175
8Panel frame assy 1 201133090172
8.1 Louver motor 1 202400200109
9Air out frame assy 1 201133090210
9.1 Vertical grille 12 201133090434
9.2 Louver holder 2 201133090435
9.4 negative ion engender 1 202403000003
9.5 Louver motor 1 202400200004
11 Drain hose 1 201130000011
12 Bafe of temperature induction 1 201130490002
15 Evaporator,assy 1 201532790046
16 Motor cover 1 201133090176
17 Motor 1 202400400931
18 Bearing holder 1 202730100201
19 Cross ow fan 1 201100200110
20 Chassis 1 201133090180
21 Connecting pipe clamp 1 201232800001
23 Installation plate 1 201232990001
24 Electronic control box,indoor unit 1 203333090278
24.1 E-Parts box's cover 1 201133090166
24.2 E-Parts box 1 201133090165
24.3 Main control board 1 201333090372
24.3.1 Wires capacitor 1 202401290009
24.4 Indoor temp sensor 1 202301300092
24.5 Evaporator temp sensor 1 202301300077
24.6 Wire join 1 202301450119
24.8 Transformer 1 202300900166
25 Remote Controller 1 203355091200
26 Holder,Remote Controller 1 201155000024
27 Seal 1 202720090001
28 Connector for watering 1 201101020011
29 Copper nut 1 201600320000
29 Copper nut 1 201600320002
30 Hinge Slide groove 2 201132890023
32 Horizontal louver 1 201133090168
32 Horizontal louver 1 201133090169
33 Fixing board for motor 1 201133090167
34 Air lter(right)(silver ion) 1 201133090177

VMH Inverter Mini-Split REPLACEMENT PARTS MANUAL Heat Controller, Inc.
11
VMH18SC-1 Outdoor Unit Exploded View

Heat Controller, Inc. REPLACEMENT PARTS MANUAL VMH Inverter Mini-Split
12
VMH18SC-1 Outdoor Unit Parts List
LOCATION PART DESCRIPTION QUANTITY PART NO.
1Indoor temp sensor 1 202301310063
2Rear grille 1 2011481G0001
3Condenser coil assembly 1 201537990036
4Pipe Temperature Sensor 1 202440500004
5 Valve plate 1 201235000018
6Base pan assembly 1 201257090030
7 Clip, capacitor 1 201200100026
8Capacitor, compressor 1 202401000612
9Handle (large) 1 201235290217
10 Valve cover 1 201135290005
11 Right clapboard 1 20123789G001
12 Front right clapboard assembly 1 2012481G0001
16 Partition plate assembly 1 201237790031
17 Front panel 1 20124810G002
18 Front grille 1 201235390011
19 Motor mounting bracket assembly 1 2012481G0039
20 Axial ow fan blade assembly 1 201145500002
21 Left support 1 201248100070
22 Fan motor 1 202400400173
23 Supporter of back 1 201248100076
24 Top cover assembly 1 201245500811
25 2-Cover for reactance lter 1 201237790013
26 Reactor 1 202301000834
26 Reactor 1 202301000819
27 Electrical box assembly 1 203338090138
27.1 E-Parts box 1 201237300033
27.2 Radiator 1 202301900112
27.3 E-Parts box's cover 1 201237300162
27.4 Main control board 1 201338090033
27.4.1 Motor capacitor 1 202401200152
27.5 Holder for E-parts 1 201137300162
28 Board of terminal,assy 1 203337990161
28.1 Wire joint 1 202301450118
28.2 Washer for wire joint 1 201135000004
28.3 Board of terminal 1 201237890064
29 Liquid valve assembly 1 201637790385
29.1 Liquid valve 1 201600740522
30 4-Ways valve Ass'y 1 201637790384
30.1 Gas pipe valve 1 201600720194
30.2 4-Ways valve 1 201600690011
31 Discharge temp sensor Assembly 1 202301310068
32 Rotary compressor 1 201400600530
33 Crank case heater 1 202403100501
37 Foam, motor holder 1 202245500001
38 Handle (small) 1 201150290006

VMH Inverter Mini-Split REPLACEMENT PARTS MANUAL Heat Controller, Inc.
13
VMH24SC-1 Indoor Unit Exploded View

Heat Controller, Inc. REPLACEMENT PARTS MANUAL VMH Inverter Mini-Split
14
VMH24SC-1 Indoor Unit Parts List
LOCATION PART DESCRIPTION QUANTITY PART NO.
1 Front panel assy 1 201133090178
2Air lter(left)(silver ion) 1 201133090174
3 Air cleaner 1 201130100212
4 Air cleaner holder 1 201130100217
5 Display box assy 1 203332890007
5.1 Display board assy 1 201332890026
6Window cover for repairing 1 201133090170
7 Screw cap 3 201133090175
8Panel frame assy 1 201133090172
8.1 Louver motor 1 202400200109
9Air out frame assy 1 201133090210
9.1 Vertical grille 12 201133090434
9.2 Louver holder 2 201133090435
9.4 negative ion engender 1 202403000003
9.5 Louver motor 1 202400200004
11 Drain hose 1 201130000011
12 Bafe of temperature induction 1 201130490002
15 Evaporator,assy 1 201533090021
16 Motor cover 1 201133090176
17 Motor 1 202400400931
18 Bearing holder 1 202730100201
19 Cross ow fan 1 201100200110
20 Chassis 1 201133090180
21 Connecting pipe clamp 1 201232800001
23 Installation plate 1 201232990001
24 Electronic control box,indoor unit 1 203333090277
24.1 E-Parts box's cover 1 201133090166
24.2 E-Parts box 1 201133090165
24.3 Main control board 1 201333090371
24.3.1 Wires capacitor 1 202401290009
24.4 Indoor temp sensor 1 202301300092
24.5 Evaporator temp sensor 1 202301300077
24.6 Wire join 1 202301450119
24.8 Transformer 1 202300900166
25 Remote Controller 1 203355091200
26 Holder,Remote Controller 1 201155000024
27 Seal 1 202720090001
28 Connector for watering 1 201101020011
29 Copper nut 1 201600320001
29 Copper nut 1 201600320003
30 Hinge Slide groove 2 201132890023
32 Horizontal louver 1 201133090168
32 Horizontal louver 1 201133090169
33 Fixing board for motor 1 201133090167
34 Air lter(right)(silver ion) 1 201133090177

VMH Inverter Mini-Split REPLACEMENT PARTS MANUAL Heat Controller, Inc.
15
VMH24SC-1 Outdoor Unit Exploded View

Heat Controller, Inc. REPLACEMENT PARTS MANUAL VMH Inverter Mini-Split
16
VMH24SC-1 Outdoor Unit Parts List
LOCATION PART DESCRIPTION QUANTITY PART NO.
1Indoor temp sensor 1 202301310063
2Rear grille 1 2011482G0001
3Condenser coil assembly 1 201538090038
4Pipe Temperature Sensor 1 202301300111
5 Valve plate 1 201245370923
6Base pan assembly 1 201238090025
7 Clip, capacitor 1 201200100026
8Capacitor, Compressor 1 202401000612
9Handle (large) 1 201235290217
10 Water collector 1 201135490001
11 Right clapboard 1 201235490047
12 Front right clapboard assembly 1 201245320903
13 Handle 2 201145400003
14 Separator xation circle 1 201245000901
15 Accumulator cylinder 1 201638090129
16 Partition plate assembly 1 201238090004
17 Front panel 1 201248200028
18 Front grille 1 201235390011
19 Motor mounting bracket assembly 1 201238090007
20 Axial ow fan blade assembly 1 201100300202
21 Left support 1 2012484G0001
22 Fan motoer 1 202400410666
23 Supporter of back 1 201248200095
24 Top cover assembly 1 2012482G0013
25 2-Cover for reactance lter 1 201245320920
26 Reactor 1 202301000834
26 Reactor 1 202301040055
26 Reactor 1 202301000819
27 Electrical box assembly 1 203338090134
27.1 E-Parts box 1 201237300033
27.2 Radiator 1 202301900112
27.3 E-Parts box's cover 1 201237300032
27.4 Main control board 1 201338090027
27.4.1 Motor capacitor 1 202401200152
27.5 Holder for E-parts 1 201137300162
28 Board of terminal,assy 1 203338090187
28.1 Wire joint 1 202301450118
28.2 Washer for wire joint 1 201135000004
28.3 Board of terminal 1 201238090032
29 Liquid valve assembly 1 201638090249
29.1 Liquid valve 1 201600740297
30 Gas valve assembly 1 201638090251
30.1 Gas pipe valve 1 201600720398
30.2 4-Ways valve 1 201600600119
31 Discharge temp sensor Ass'y 1 202301310068
32 Rotary compressor 1 201400600530
33 Crank case heater 1 202403100501
34 Cover for inductance 1 201238090037
35 Protecting board for inductance 1 201238090038
36 Holder board for inductance 1 201250200305
39 Breakwater 1 201137990000

04/2009
09/2010
