Heat-N-Glo Pier-TRC Assembly instructions

1
- Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
orany otherappliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
thefiredepartment.
- Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
Models:
Pier-TRC
ST-TRC
L-Corner-TRC
R-Corner-TRC
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
501-900 REV. O 2/03
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1.This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyforusewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
Please contact your Heat-N-Glo dealer with any
questions or concerns. For the number of your nearest
Heat-N-Glo dealer, please call 1-888-427-3973.
Printedin U.S.A. Copyright 2003
Heat-N-Glo,a divisionofHearth&HomeTechnologiesInc.
20802KensingtonBoulevard,Lakeville,MN55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, AFIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide.NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
TABLE OF CONTENTS
Safety and Warning Information ............................................... 2
Service Parts Lists.................................................................... 4
Section 1: Approvals and Codes ............................................ 12
Approval Listings and Codes ..................................................... 12
Appliance Certification ............................................................... 12
Installation Codes ...................................................................... 12
HighAltitude Installations............................................................ 12
Section 2: Getting Started ...................................................... 13
Introducing the Heat-N-Glo Gas Fireplaces................................ 13
Pre-installation Preparation........................................................ 13
Section 3: Installing the Fireplace ......................................... 17
Step1 Locating the Fireplace ................................................ 17
Step2 Framing the Fireplace................................................. 17
Step3 Installing the Vent System ........................................... 20
A. Vent System Approvals.......................................... 20
B. Installing Vent Components ................................... 27
C. VentTermination.................................................... 30
Step4 Positioning,Leveling, and
Securing the Fireplace................................................ 33
Step5 The Gas Control Systems .......................................... 33
Step6 The Gas Supply Line .................................................. 34
Step7 Gas Pressure Requirements...................................... 34
Step8 Wiring the Fireplace.................................................... 35
Step 9 Finishing ..................................................................... 37
Step 10 Installing Trim, Logs, and Ember Material..................... 38
InstallingtheTrim........................................................ 38
Positioning the Logs ................................................... 38
Shutter Settings.......................................................... 38
Placing the Ember Material ......................................... 38
Step11 Before Lighting the Fireplace ...................................... 39
Step 12 Lighting the Fireplace.................................................. 39
Afterthe Installation.................................................................... 39
Section 4: Maintaining and Servicing Your Fireplace......... 40
= Contains updated information.



12
Appliance Certification
TheHeat-N-GlofireplacemodelsdiscussedinthisInstallers
Guide havebeen testedto certification standardsand listed
by the applicable laboratories.
Certification
MODELS: PIER-TRC, ST-TRC,
L-CORNER-TRC, R-CORNER-TRC
LABORATORY: UnderwritersLaboratories
TYPE: Direct Vent Gas Fireplace
STANDARD: ANSI Z21.50•CGA2.22•UL307B
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes.Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Intheabsence oflocalcodes, thefireplaceinstallation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
theUnitedStates)or theCAN/CGA-B149InstallationCodes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(in Canada).
Thesemodels may be installed ina bedroomor bed-sitting
room in the U.S.A. and Canada.
Approvals and
Codes
HighAltitudeInstallations
U.L. Listed gas appliances are tested and approved with-
out requiring changes for elevations from 0 to 2,000 feet in
the U. S.A. and in Canada.
Wheninstalling this appliance at an elevation above2,000
feet, it may be necessary to decrease the input rating by
changingthe existing burnerorifice to asmaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000 and4500 feetin Canada. Ifthe heatingvalue
of the gas has been reduced, these rules do not apply.To
identify the proper orifice size, check with the local gas
utility.
If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.
Heat-N-GloQuality
Systems registered
by SGS ICS

13
Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glodirect ventgas fireplaces aredesigned tooper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems.Gasfireplace diagrams,includingthe dimensions,
are shown in this section.
Pre-install Preparation
Thisgas fireplace and itscomponents are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
Theventsystemcomponents are shippedinseparatepack-
ages. The gas logs are packaged separately and must be
fieldinstalled.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the own-
er’s warranty and may present a fire hazard.
TheHeat-N-GloWarrantywill be voidedby,andHeat-N-Glo
disclaims any responsibility for, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Heat-N-Glo.
• Improper positioning of the gas logs or the glass door.
• Installationand/or useof any component part notmanu-
factured and approved by Heat-N-Glo, not withstanding
anyindependenttestinglaboratoryorotherpartyapproval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framingand finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

14
Figure 1. Diagram of the PIER-TRC
ELECTRICAL
ACCESS GAS LINE
ACCESS
REAR
COLLARS
GAS CONTROLS
& LABELS
BOTTOM
GRILLE
SIDE GLASS
DOOR
END GLASS
DOOR
TOP STANDOFFS
TOP GRILLE
TOP VENT
COLLARS
FRONT RIGHT SIDE
LEFT SIDE
13 (331mm)
24 1/4 (616mm)
12 1/8 (308mm)
VENT COLLARS
42 3/4 (1086mm)
28 7/8
(735mm)
ELECTRICAL
ACCESS
2 1/2
(64mm)
4 (102mm) 4 (102mm)
GAS LINE
ACCESS
2 1/2
(6mm)
36 7/8 (937mm)
40 3/4 (1035mm)
36 7/8
(937mm)
41
(1043mm)
24 1/4 (616mm)

15
Figure 2. Diagram of the ST-TRC
LEFT SIDE FRONT RIGHT SIDE
TOP VENT
COLLARS
REAR VENT
COLLARS
ELECTRICAL
ACCESS GAS LINE
ACCESS
GAS CONTROLS
& LABELS
BOTTOM
GRILLE
TOP GRILLE
TOP STANDOFFS
GLASS DOOR
45 (1143mm)
13 (330mm)
12 1/8 (308mm)
VENT COLLARS
24 1/4
(616mm)
28 7/8
(733mm)
2 1/2
(64mm)
GAS LINE
ACCESS
4 (102mm)
4 (102mm)
2 1/2
(64mm)
ELECTRICAL
ACCESS
43 (1093mm)
36 1/8 (918mm)
36 7/8
(937mm)
41
(1042mm)
24 1/4 (616mm)

16
Figure 3. Diagram of the L & R CORNER-TRC
LEFT SIDE FRONT RIGHT SIDE
REAR VENT
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
& LABELS
BOTTOM
GRILLE
SIDE GLASS
DOOR
TOP GRILLE
END GLASS
DOOR
TOP STANDOFFS
TOP VENT
COLLARS
42 3/4 (1086mm)
13 (330mm)
VENT COLLARS
12 1/8 (308mm)
25 1/4 (642mm)
GAS LINE
ACCESS
ELECTRICAL
ACCESS
2 1/2
(64mm) 2 /12/
(64mm)
4 (102mm)4 (102mm) 36 1/8 (918mm)
40 3/4 (1034mm)
28 7/8
(733mm)
36 7/8 (937mm)
41 (1041mm)
24 1/4 (616mm)

17
Installing the Fireplace
Step 1. Locating the Fireplace
The diagram below shows space and clearance require-
ments for locating a fireplace within a room.
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Sides or Ends ..........36..................... 914
Floor ....................................0........................ 0
Rear Vent ............................1....................... 25
Metal Sides or Ends.......... 1/2 ..................... 13
Top....................................4 1/2....................114
Ceiling* ...............................31..................... 787
Figure 4. Fireplace Dimensions and Locations
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.The minimumclearance to a perpendicular wall
extendingpast the faceof thefireplace is oneinch (25mm).
The metal ends of the fireplace mayNOT berecessed into
combustible construction.
For minimum clearances, see the direct vent termination
clearance diagrams on pages 27 and 28 in this manual.
Step 2. Framing the Fireplace
Fireplaceframingcan bebuiltbefore orafterthe fireplaceis
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelowshows framing referencedimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections...............1................. 25
Horizontal Sections
Top......................................3................. 75
Bottom................................1................. 25
Sides ..................................1................. 25
At Wall Firestops
Top...................................2 1/2.............63.7
Bottom.............................. 1/2 ............... 13
Sides ..................................1................. 25
* Theclearancetotheceilingismeasuredfrom the top
of the unit, excluding the standoffs (see Figure 35).
Thedistance from theunit tocombustibleconstruction isto
be measured from the unit outer warp surface to the com-
bustible construction, NOT from the screw heads that se-
cure the unit together.
!
WARNING: FRAMING DIMENSIONS ASSUME
USE OF 1/2 INCH THICK WALL COVERING
MATERIALS ON EXTERIOR OFFRAMING ONLYAND
NO SHEETROCK ON INTERIOR OF FRAMING.
36"
GLASS
GLASS PIER-TRC
TOP VIEW
R-CORNER-TRC
TOP VIEW
GLASS
36"
GLASS
GLASS
36"
GLASS
36"
1"
GLASS
GLASS
ST-TRC
TOP VIEW L-CORNER-TRC
TOP VIEW
GLASS
36"

18
Framingshould be
constructed of 2 X 4
lumberorheavier.
Model A B C D E
VENTED VENTED
TOP REAR
PIER-TRC 43 1/4 40 1/4 41 1/2 23 1/4 45 29 7/8
ST-TRC 47 46 41 1/2 23 1/4 45 29 7/8
CORNER-TRC’S 431/4 401/4 41 1/2 24 3/4 45 29 7/8

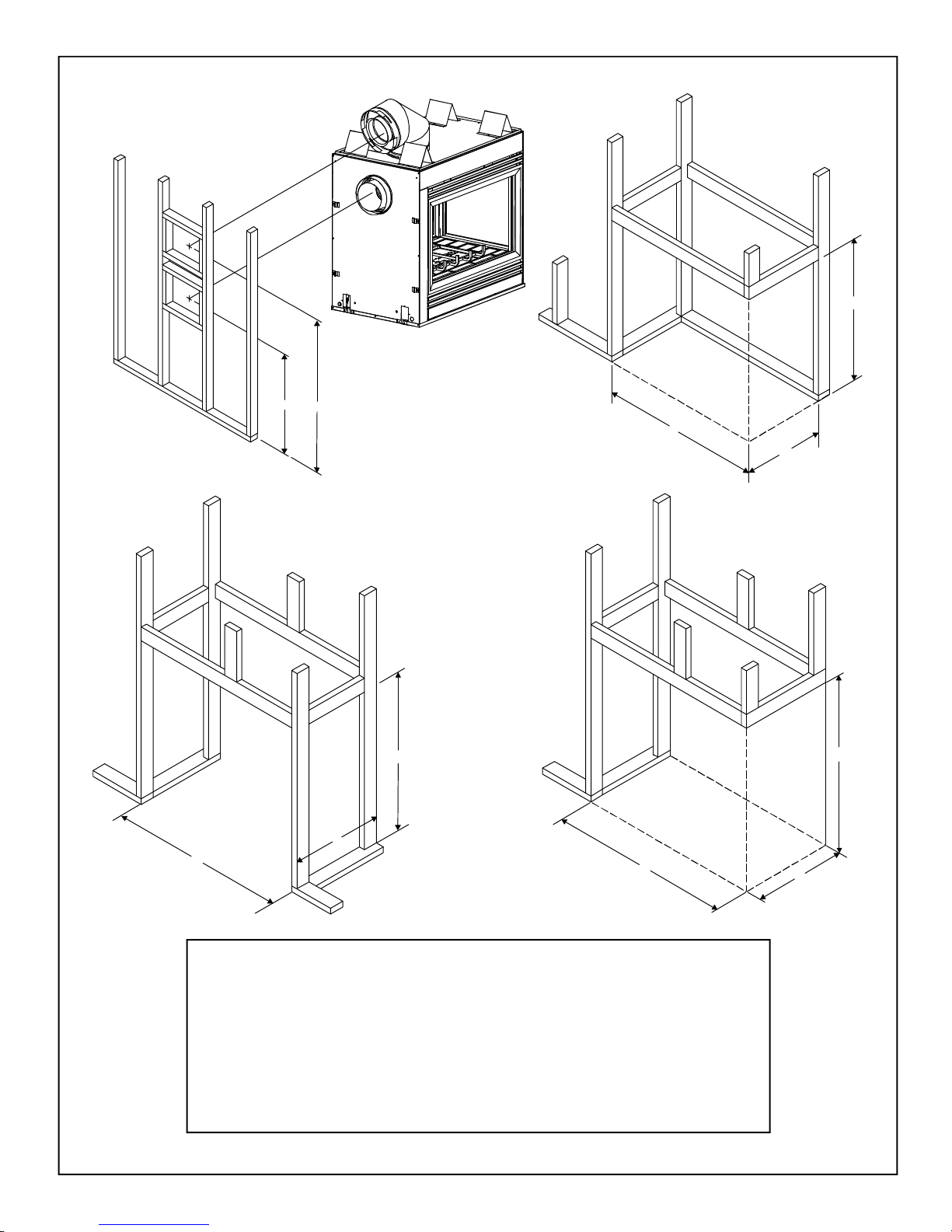

Figure 5. Framing Dimensions
NOTE:DIMENSIONSSHOWN IN INCHES
Shows center of 12” x 12” vent
framing holes for top and rear
venting. The center of the hole is
one inch (25.4mm) above the
center of the horizontal vent pipe.
B
C
A
PIER-TRC
CORNER-TRC'S
A
C
B
ST-TRC
A
C
B
CORNER-TRC'S
D
E

19
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm) AT EACH JOINT.
Figure 6.

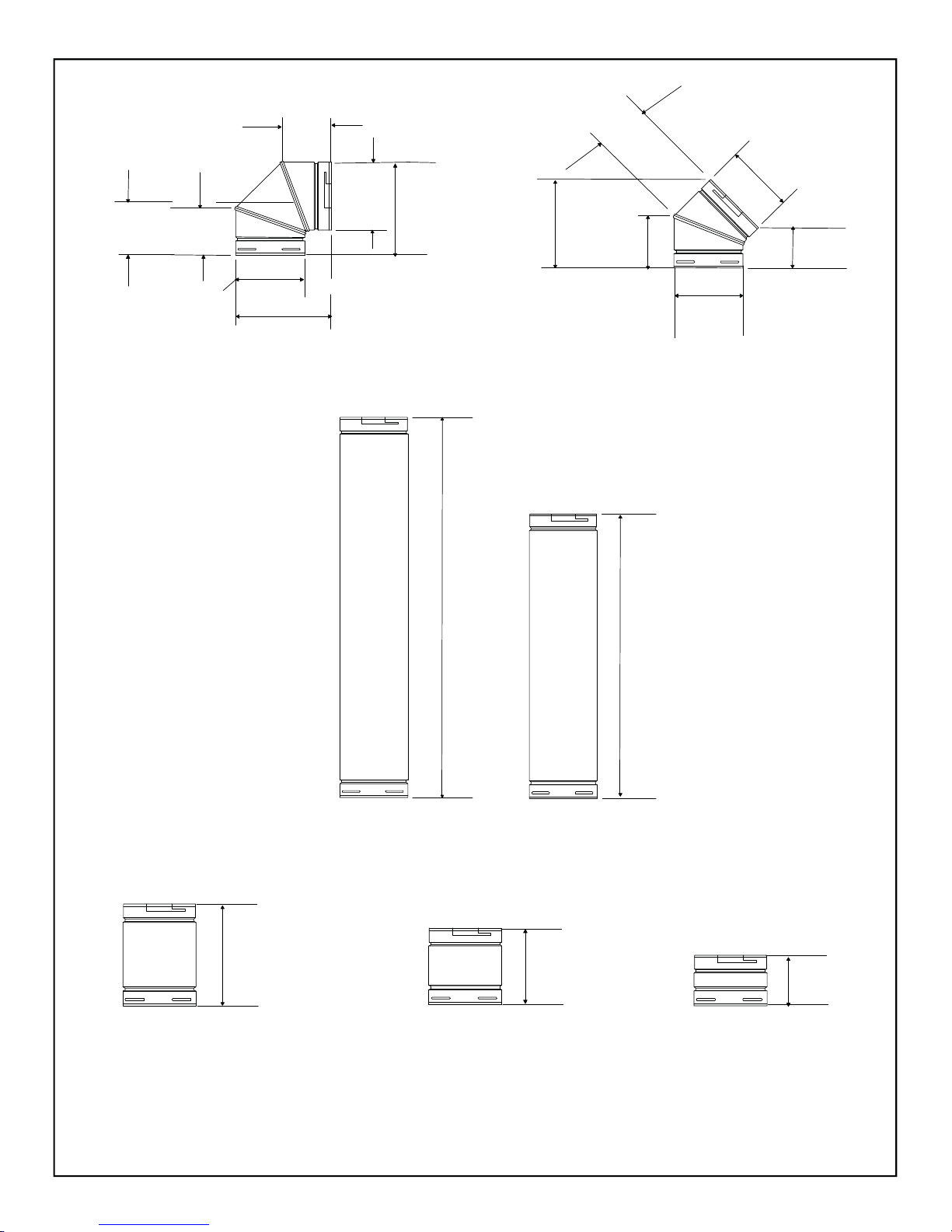

D-Series Direct Vent Component Specifications (5-inch inner pipe / 8 5/8-inch outer pipe)
DV-36D
5 3/4”
(146mm)
8 3/4”
(222mm)
11 3/4”
(298mm)
DV-12D DV-09D DV-06D
DV-48D
DV-90D
73/8”
(187mm)
65/32”
(156mm)
115/8”
(295mm)
1115/16”
(303mm)
57/8”
(149mm)
8 5/8”
(220mm)
81/2”
(216mm)
67/16”
(164mm)
DV-45D
111/16”
(281mm)61/2”
(165mm)
81/2”
(216mm)
51/16”
(129mm)
85/8”
(220mm)
35 3/4”
(908mm)
47 3/4”
(1.2m)

20
Figure 7. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
Thesemodelsareapproved touseD-seriesdirect ventpipe
components and terminations (see Figures 6 and 7). Ap-
provedvent system componentsare labeledfor identifica-
tion. This pipe is tested and listed as an approved compo-
nent of the fireplace. The pipe is tested to be run inside an
enclosedwall.There isnorequirement for inspectionopen-
ingsat each jointwithin the wall.There is no required pitch
for horizontal ventruns. NO OTHER VENTINGSYSTEMS
OR COMPONENTS MAY BE USED.
Detailedinstallationinstructions are includedwitheach vent
termination kit and should be used in conjunction with this
Installers Guide.
The flame and ember appearance may vary based on the
typeof fuel burned and theventing configuration used.
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90°elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
andtables.Referto thediagramsonthe next severalpages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
Thismodel hasvent startingcollars on both the top and the
back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain
on the starting collars NOT used.
Termination kits
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVK-01D DVK-TVCD
DVK-01TRD
PVK-80

DVK-SNKD

21
Figure 8.
Straight Up Vertical Venting
STRAIGHT UP
VERTICALVENTING
V (FT.)
40' MAX. (12.4 M)
STRAIGHTOUT
HORIZONTALVENTING
H
Max. Run
24"(610 mm)
Figure 9.
Straight Out Horizontal Venting
H
V
CAP

22

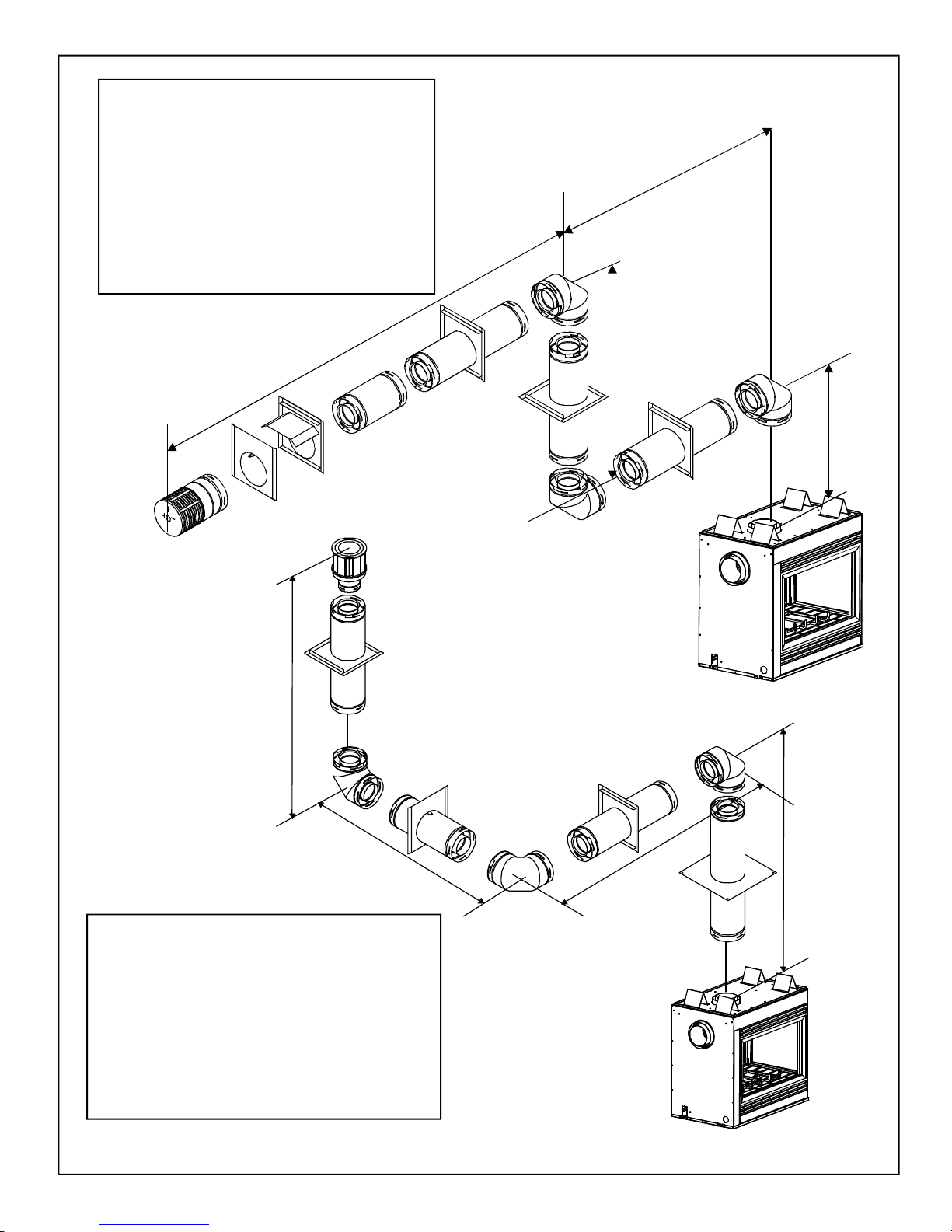

VENTING WITH ONE (1) 90° ELBOW
V (FT.) H(FT.)
1' MIN. (305mm) 3' MAX. (914mm)
2' MIN. (610mm) 6'MAX. (1.86m)
3' MIN. (914mm) 9' MAX. (2.7m)
4' MIN. (1.22m) 12'MAX. (3.6m)
5’ MIN. (1.5m) 15’MAX.(4.5m)
6’ MIN. (1.86m) 17’MAX.(5.1m)
17'MAX. (5.1m)
V + H = 37’ MAX. (11.3m)
Figure 11. Venting with One 90° Elbow
VH
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX.(2.4m)
V+H=37'MAX.(11.3m)
H = 8' MAX. (2.4m)
Figure 10. Venting with One 90° Elbow
VENTINGWITH
ONE(1) 90° ELBOW
V
H
H
V

23
VENTING WITH TWO (2) 90° ELBOWS
V (FT.) H+ H1(FT.)
1' MIN. (305mm) 3' MAX. (914mm)
2' MIN. (610mm) 6'MAX. (1.86m)
3' MIN. (914mm) 9' MAX. (2.7m)
4' MIN. (1.22m) 12'MAX. (3.6m)
5' MIN. (1.5m) 15'MAX.(4.5m)
6' MIN. (1.86m) 17' MAX.(5.1m)
17'MAX. (5.1m)
V + H = 37' MAX. (11.3m)
Figure 12. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 3' MAX. (914m)
2' MIN. (610mm) 6' MAX. (1.86m)
3' MIN. (914mm) 9' MAX. (2.7m)
4' MIN. (1.22m) 12' MAX. (3.6m)
17'MAX. (5.1m)
NOTE: V + V1+ H = 37' MAX. (11.3m)
V
H
H
1
H
V
V
1

24
VENTING WITH TWO (2) 90° ELBOWS
VHH+H
1
1' MIN. (305 mm) 2' MAX. (610 mm) 3' MAX. (914 mm)
2' MIN. (610 mm) 4'MAX. (1.22 m) 6' MAX. (1.86 m)
3' MIN. (914 mm) 6'MAX. (1.86 m) 9' MAX. (2.7 m)
4' MIN. (1.22 m) 8'MAX.(2.48 m) 12'MAX. (3.6 m)
8'MAX.(2.48 m) 17' MAX. (5.1 m)
V=37'MAX.(11.3m)
Figure 13.
Venting with Two 90° Elbows
Figure 14. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90oELBOWS
V FT. H + H1(FT.)
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
8' MAX. (2.4m)
V + H + H1+ 37' MAX. (11.3m)
V
H
1
H
V
H
1
H

25
Figure 15. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
1' MIN. (305 mm) 2' MAX. (610 mm) 3' MAX. (914 mm)
2' MIN. (610 mm) 4' MAX. (1.22 m) 6' MAX. (1.86 m)
3' MIN. (914 mm) 6' MAX. (1.86 m) 9' MAX. (2.7 m)
4' MIN. (1.22 m) 8' MAX. (2.48 m) 15' MAX. (4.5 m)
8' MAX. (2.48 m) 17' MAX. (5.1 m)
V + H + H1+ H2= 37' MAX. (11.3m)
VENTING WITH THREE (3) 90° ELBOWS
V H H + H1+ H2
1' MIN. (305 mm) 2' MAX. (610 mm) 3' MAX. (914mm)
2' MIN. (610 mm) 4' MAX. (1.22 m) 6' MAX. (1.86 m)
3' MIN. (914 mm) 6' MAX. (1.86 m) 9' MAX. (2.7 m)
4' MIN. (1.22 m) 8' MAX. (2.48 m) 12' MAX. (3.6 m)
8' MAX. (2.48 m) 17' MAX. (5.1 m)
V + V1+ H + H1= 37' MAX. (11.3m)
VENTING WITH THREE (3) 90° ELBOWS
V
1
V
H
1
H
H
V
H
1
H
2

26
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 3'MAX. (914mm)
2' MIN. (610mm) 6' MAX. (1.86m)
3' MIN. (914mm) 9' MAX. (2.7m)
4' MIN. (1.22m) 12'MAX. (3.6m)
17'MAX.(5.1m)
NOTE: H + H1= 17' MAX. (5.1m)
V + V1+ H + H1= 37' MAX. (11.3m)
VENTINGWITH THREE (3) 90° ELBOWS
V (FT.) H + H1(FT.)
1' MIN. (305mm) 3' MAX. (914m)
2' MIN. (610mm) 6' MAX. (1.86m)
3' MIN. (914mm) 9' MAX. (2.7m)
4' MIN. (1.22m) 12' MAX. (3.6m)
17'MAX. (5.1m)
NOTE: V + V1+H + H1=37' MAX. (11.3m)
Figure 16. Venting with three 90° elbows
V
1
H
1
H
V
H
1
H
V
1
V

27
!
WARNING: A 3/8 INCH (9.5 MM) BEAD OF
STOVECEMENT MUST BE PLACED AROUND
THE5 INCH (127 MM)FIREPLACE STARTING COL-
LAR BEFOREATTACHING THE FIRST VENT COM-
PONENT. FAILURE TO SEAL THIS JOINT MAY
CAUSETHEFIREPLACETOOPERATEIMPROPERLY.
SEE THE DIAGRAM .
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
!
WARNING: ENSURE THAT THE FIBER-
GLASS ROPE GASKET SUPPLIED WITH
THE FIREPLACE SEALS BETWEEN THE FIRST
VENTCOMPONENTAND THE OUTER FIREPLACE
WRAP.
If the installation is for a termination cap attached directly
tothe fireplace, skipto the sections, Install Firestops and
Vent Termination.
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars
ofthe fireplace:
• Apply a 3/8 inch (9.5mm) bead of stove cement around
the 5 inch (127mm) fireplace starting collar.
• Make sure that the fireplace rope gasket supplied with
thefireplace seals betweenthe first 8-5/8inch (219mm)
ventcomponent and theouter fireplace wrap.
• Lock the vent components into place by sliding the con-
centricpipe sectionswith four (4)equally spacedinterior
beads into the fireplace collar or previously installed com-
ponentendwithfour(4)equallyspacedindentedsections.
• When the internal beads of each 8-5/8 inch (219mm)
outerpipelineup, rotatethepipesection clockwiseabout
one-quarter(1/4)turn.Theventpipeisnowlockedtogether.
Figure 18. Attaching the First Vent Component
to the Starting Collars
!
B. Installing Vent Components
After determining which set of starting collars will be used
(top or rear), follow venting instructions accordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collarsby removing screws(see Figure17). Followthevent
configurationtables accordingly.
Remove the insulation from the REAR five inch flue, pull
the heat shield out from outside of the firebox.
WARNING: THE TOP HEAT SHIELD (INSIDE
THE FIREBOX) MUST REMAINATTACHEDIF
THE VENT SYSTEM IS ATTACHED TO THE
REAR STARTING COLLARS. SEE FIGURE 17.
Venting Out the Top Vent
Remove the screws in the top vent collar seal cap and re-
move the top vent collar seal cap and insulation inside the
top starting collar (See Figure 17).
Remove the heat shield from inside the TOPfive inch flue
fromoutside of the firebox.
The glass must be taken off again for positioning the logs
whenthe unitis finallyinstalled in placeand finishedaround
it. Re-install the glass door.Attach vent system to the top
starting collars.
WARNING: THE REAR VENT COLLAR SEAL
CAP MUST REMAIN ATTACHEDTO THE REAR
VENT COLLARS IF THE VENT SYSTEM ISAT-
TACHED TO THE TOP STARTING COLLARS.
WARNING:FAILURETOREMOVE INSULATION
IN THE SET OF COLLARS YOU ARE USING
COULD CAUSE A FIRE.
WARNING:YOUMUST LEAVETHEINSULATION
IN PLACE IN THE SET OF COLLARS YOU ARE
NOT USING.
If your vertical vent component is over 10 feet, you may
wantto installtheverticalbaffle(locatedinthebagcontaining
the install manual) to improve flame appearance. Center
the vertical baffle on the 5” flue being used, and with self
tappingscrewssecure thebaffleto theinsideof thefirebox.
Figure 17
Venting Out Rear Venting Out Top
!
!
!
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HEAT
SHIELD
DISCARD
and
HEAT SHIELD
INSULATION
SEAL
CAP
SEAL
CAP

28
For Vertical Runs - The vent system must be supported
everyeight (8)feet (2.4m)above thefireplace flueoutlet by
wall brackets.
To install support brackets for vertical runs:
• Attachwall brackets to thevent pipe and secure the wall
bracket to the framing members with nails or screws.
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sidesof a combustible wall throughwhich thevent passes.
NOTE: Model DVK-01TRD does not need an exterior
firestop on an exterior combustible wall. The firestop is
built into the cap.
Toinstallfirestopsforhorizontalrunsthatpassthrough either
interioror exterior walls:
• Cuta 12”x 12” (305mm X 305mm)hole throughthe wall.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
• Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
• The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
• Continuethe vent runthrough the firestops.
Figure 21. 12" x 12" Hole and Vent Pipe
Figure 22. Heat Shield, Interior & Exterior Firestops
V
ENT PIPE
1" (25.4 mm)
12"
(305mm)
12"
(305mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
3. Install Support Brackets
For Horizontal Runs - Theventsystemmust besupported
everyfive(5)feetofhorizontalrunbyahorizontalpipesupport.
To install support brackets for horizontal runs:
• Place the pipe supports around the vent pipe.
• Nail the pipe supports to the framing members.
Figure 19. Adding Venting Components
2.ContinueAdding Vent Components
• Continueaddingventcomponents,lockingeachsucceed-
ing component into place.
• Ensurethat eachsucceedingvent componentis secure-
ly fitted and locked into the preceding component in the
vent system.
• 90° elbows may be installed and rotated to any point
aroundthe precedingcomponent’s verticalaxis. If an el-
bow does not end up in a locked position with the pre-
ceding component, attach with a minimum of two (2)
sheet metal screws.
Figure 20. Installing Support Brackets
FLUE
OUTLET
1 INCH MIN.
(25.4 mm)
8 FT. (2.4 m)
WALL STUD
WALL BRACKET
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
