Heat-N-Glo SL-550TRS-AUC User manual

1
MODEL: SL-550TRS-AUC
AUSTRALIAN GAS ASSOCIATION APPROVED
Approval Number 5666
THIS MANUAL MUST BE USED FOR INSTALLATION AND RETAINED
BY HOMEOWNER FOR OPERATION AND MAINTENANCE.
HEAT-N-GLO, a division of Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044 USA • 1-888-427-3973
347-900C 9/02
INSTALLATION AND OPERATION
INSTRUCTIONS
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
IMPORTANT: Read all instructions carefully before starting installation.
Failure to follow these installation instructions may result in a possible fire
hazard and will void the warranty. Save this Manual for future reference.
Copyright2002
Heat-N-Glo,adivisionofHearthTechnologiesInc.
20802KensingtonBoulevard,Lakeville,MN55044
Printed in U.S.A.
MODEL SL-550TRS-AUC
IS AUSTRALIAN GAS ASSOCIATION
APPROVED FOR NATURAL GAS OR
PROPANE AS A BALANCED FLUE
HEATER.
Refer to the appliance data plates for gas
consumptionsandpressures.
Installationofthis appliance shouldonlybe
carried out by an authorized person in ac-
cordance with the manufacturer's instruc-
tions.Allrelevantcodesandregulationslaid
downby thegas pipingauthorities, munici-
pal building regulations, electrical wiring
regulationsandtherequirementsoftheAGA
GasInstallationCodemust be observed.
This appliance and its components are
tested and safe when installed in accor-
dancewith thisInstallation Manual.Report
to your dealer any parts damaged in ship-
ment,specificallycheckglasscondition.The
gas logs and flue system components are
inseparatepackages. Readallinstructions
beforestartinginstallation andfollowthese
instructions carefully during installation to
ensure maximum benefit and safety. Fail-
uretofollowthemwillvoidyourwarrantyand
maypresenta firehazard.
TheHeat-N-Glo,a divisionofHearth Tech-
nologiesInc.warrantywillbevoidedby,and
Heat-N-Glo,a divisionof Hearth Technolo-
giesInc.disclaims any responsibilityforthe
followingactions:
•Installation of any damaged heater or
fluesystemcomponent
•Modification of the heater or balanced
flue system installation other than as
instructed by Heat-N-Glo,adivision of
HearthTechnologiesInc.
•Improper positioning of the gas logs or
theglass door
•Installationand/oruseofanycomponent
part not manufactured or approved by
Heat-N-Glo,divisionofHearthTechnolo-
gies Inc., not withstanding any inde-
pendent testing laboratory or other
party approval of such componentpart
oraccessory.
INSTALLATIONANDOPERATIONINSTRUCTIONS
PLEASEREADTHISMANUAL BEFORE INSTALLING
ANDUSINGTHISAPPLIANCE.

3
TABLE OF CONTENTS
1.0 InstallationInstructions........................................................................................ 5
1.1 Introduction.................................................................................................. 6
1.2 FlueSystemApprovalsandInstallation ........................................................ 8
1.3 ConnectingtheGasSupply........................................................................ 21
1.4 Fan ........................................................................................................... 21
1.5 Finishing ................................................................................................... 23
1.6 InstallerTesting .......................................................................................... 24
1.7 LogPlacement .......................................................................................... 25
2.0 OperatingInstructions ...................................................................................... 27
2.1 Safety andLighting Information .................................................................. 27
2.2 SafetyInformation...................................................................................... 28
2.3 LightingInstructions ................................................................................... 29
2.4 FanOperation ........................................................................................... 30
3.0 Servicingand Maintenance .............................................................................. 30
3.1 Removalof Coversfor Servicing................................................................ 31
3.2 RemovalofComponentsfor Service.......................................................... 31
3.3 PartsReplacement.................................................................................... 31
3.4 AdjustmentsandReplacementParts ......................................................... 31
3.5 Troubleshooting......................................................................................... 32
4.0 ReplacementParts .......................................................................................... 36
LimitedWarranty.............................................................................................. 38
u= Contains updated information.
u
u
u
u

4
FIGURE 1. Diagram of SL-550TRS-AUC
TOP STANDOFFS
FLUE COLLARS
HOOD
DATA BADGE
& LABELS
DRESS
GUARD
BOTTOM GRILLE
COVER
GAS
CONTROLS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
12-7/8
327[ ]
25-3/4
653[ ]
15-7/8
402[ ] 8-3/4
223[ ]
1/2
14[ ]
16-3/8
415[ ]
23-3/8
593[ ]
6-7/8
174[ ]
3-1/2
90[ ]
5
129[ ]
2-1/8
55[ ]
32-1/2
827[ ]
31
789
[ ]
16-1/8
408[ ]
26-3/8
671[ ]
36
913[ ]
(REAR FLUE
COLLARS
CENTER LINE)
8 5/8 (219)
6 5/8 (168)
(TOP FLUE COLLARS)
GAS
LINE
ACCESS
ELECTRICAL
ACCESS
u

5
NOTE: DIMENSIONS SHOWN WITH THE SIDES, BACK
AND/ORCORNERS OFTHEUNIT TOUCHINGTHE WALL.
Figure 2. Fireplace Dimensions, Locations, and
Space Requirements
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ......................................36 ........ 914
Floor ..................................................0........... 0
Rear ................................................. 1/2 ........ 13
Sides ............................................... 1/2 ........ 13
Top .................................................1 1/2 ....... 38
Ceiling* .............................................31 ........ 787
For minimum clearances, see the direct vent termina-
tion clearance in Figures 19 and 24.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections...............1................. 25
Horizontal Sections
Top ......................................3................. 75
Bottom................................ 1................. 25
Sides ..................................1................. 25
At Wall Firestops
Top ...................................2 1/2.............63.7
Bottom.............................. 1/2 ............... 13
Sides ..................................1................. 25
*Theclearancetotheceilingismeasuredfrom thetop
of the unit, excluding the standoffs (see Figure 27).
A B C D E
37 16 1/4 29 3/8 41 1/2 58 3/4
(940mm) (418mm) (746mm) (1054mm)(1492mm)
1.0 INSTALLATION INSTRUCTIONS
In planning the installation for the heater it is neces-
sary to determine where the unit is to be installed, the
type of flue system to be used (straight out, corner, or
elevated), and whether optional accessories (wall
switchorremotecontrol)aredesired. Gas supply pip-
ingshouldalsobe planned.Refertotheappliance data
plate on the base pan of the heater for all gas pres-
suresand input rate information.
The heater can be mounted on any of the following
surface:
1. Aflatsurface(minimum6mmbase).
2. Four (4) corner supports.
(Example: Four(4) concrete masonry blocks). These
supports must be positioned so they contact all four
(4) perimeter edges on the bottom of the unit.
Heaterframingcanbebuiltbefore or after the heateris
set in place. Framing should be positioned to accom-
modate wall covering and heater facing material. The
heater framing should be constructed of 2" X 4" (51 x
102mm)lumberorheavier.Theframingheadersmay
restontheheaterstandoffs.RefertoFigure2and Fig-
ure3forheaterandframingreferencedimensions.
1/2” MIN. (13mm)
C
3” MIN. (76mm)
A
B
D
E

6
FIGURE 3. Framing Dimensions
Framing should be constructed
of 2 X 4 lumber or heavier.
The framing headers may rest on
the fireplace stand-offs.
Model A B C D E*
SL-550TRS-AUC 37" 33 1/2" 16 1/4" 36 1/2" 24 3/8"
(940mm) (851mm) (418mm) (927mm) (619mm)
*NOTE: Thecenterof
the framing hole is one
inch (254mm) above
the center of the
horizontal flue pipe.
A
B
C
FLUE
FRAMING
HOLE
ED
CAUTION: Measure heater dimensions, and verify
framingmethods andwall coveringdetails beforefram-
ing construction begins.
1.1 INTRODUCTION
This model is designed to operate with all combus-
tion air being siphoned from the outside of the build-
ing and all exhaust gases expelled to the outside of
the building.
WARNING: THIS UNIT IS NOT FOR USE WITH
SOLID FUEL.
These units MUST use the flue termination described
in the flueing section of the manual.
Thecontrolsystemfor thesemodels area millivolttype.
It consists of a gas control valve/variable regulator, a
standing pilot/thermopile/thermocouple, a piezo igni-
tor, and an ON/OFF switch. The controls are located
behindthe lowergrille.Access to the controls is gained
by rotating the grille down. See Figure 1.
Minimum inlet gas supply pressure for purpose of in-
putadjustment is 4.5 inches w.c. (1.13kPa) for natural
gas and 11 inches w.c. (2.75kPa) for propane. Mani-
fold(outlet) pressures should be set at 3.5 inches w.c.
(.8kPa) for natural gas models and 9.6 inches w.c.
(2.40kPa)forpropanemodels.
u

7
NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. See clause 5.13.6.6 for restrictions on a flue terminal under a roofed area.
4. See Appendix J, Figure J1(a) and J2(a) for clearances required from a flue
terminal to a LP Gas cylinder. A flue terminal is considered to be a source of ignition.

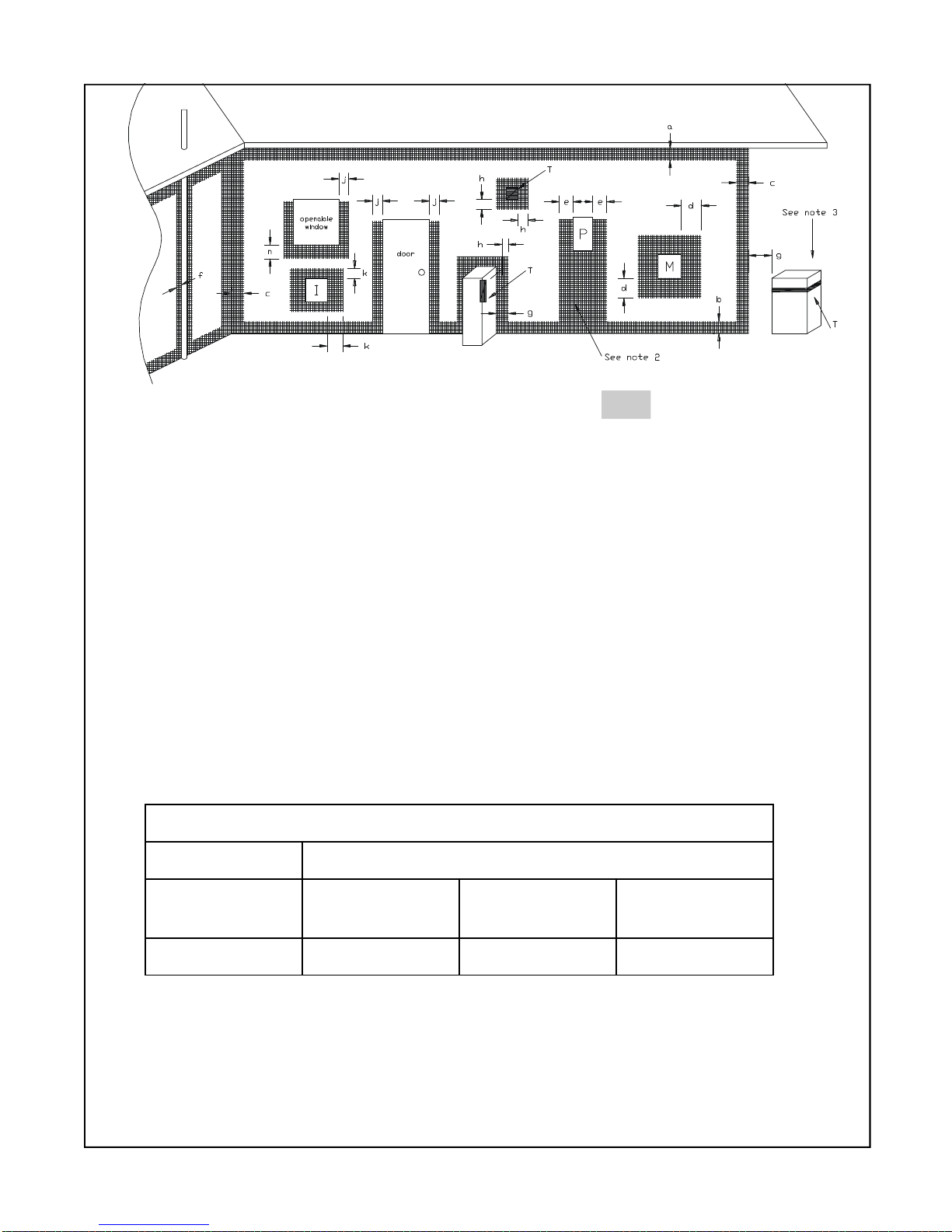

MINIMUMCLEARANCESREQUIRED FOR BALANCEDFLUETERMINALS
ORTHE FLUE TERMINALSOF OUTDOORAPPLIANCES
FIGURE4
CLEARANCES 'n' (mm)
Space heaters All other appliances
Up to 50 MJ/h
input UP to 50 MJ/h input Over 50 MJ/h & up
to 150 MJ/h
Over 150 MJ/h
input
150 500 1000 1500
T=Flueterminal M=Gas meter Shading indicates prohibited
I=Mechanical air inlet P=Electricity meter or fuse box areas for flue terminals
a-Below eaves, balconies or other projections: MIN. CLEARANCE (mm)
Appliances to 50 MJ/h input ................................................................................................300
Appliances over 50 MJ/h input............................................................................................500
b-From the ground or above a balcony .....................................................................................300
c-From a return wall or external corner .....................................................................................500
d-From a gas meter (M)...........................................................................................................1000
e-From an electricity meter or fuse box (P) ...............................................................................500
f-From a drain or soil pipe ........................................................................................................150
g-Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal.........................................................500
h-From any other flue terminal, cowl, or combustion air intake...............................................500
j-Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
sub-floor ventilation:
Appliances up to 150 MJ/h input.........................................................................................500
Appliances over 150 MJ/h input........................................................................................1500
k-From a mechanical air inlet, including a spa blower .........................................................1500
n-Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of ................................. See table
sub-floor ventilation ............................................................................................................ below

8
TABLE1
1.2 FLUE SYSTEM APPROVALS
Thesemodels have fluestarting collars onboththe top
and the back of the unit. Depending upon the installa-
tion, decide which ONE set of starting collars will be
usedtoattachthefluesystem.Thestartingcollarsealing
cap must remain on the starting collar NOT used.
Thesemodels use SL-D-series direct fluecomponents
when using the TOP flue collars and D-series direct
flue components when using the REAR fluecollars.
WARNING:YOU MUST NOT MIX D-SERIES AND
SL D-SERIES COMPONENTS IN ANY FLUE
SYSTEM CONFIGURATION.
Approved flue system components are labeled for
identification. NO OTHER FLUEING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation
instructions are included with each flue termination kit
andshouldbeusedinconjunctionwiththismanual.Figure
5belowshowsfluesystemcomponentsandterminations.
Identifying Flue Components
The flue systems installed on this gas fireplace may
include one, two, or three 90°elbow assemblies. The
relationships of vertical rise to horizontal run in flue
configurations using 90° elbows MUST BE strictly
adhered to. The rise to run relationships are shown in
theflueing drawings and tables on the next fewpages.
Ifa 90° elbow is firstattachedto the unit, the maximum
horizontalrunis2feet(610mm).
WARNING:THIS GAS APPLIANCEAND FLUEAS-
SEMBLYMUST FLUE DIRECTLYTO THE OUTSIDE
AND MUST NEVER BEATTACHED TO ACHIMNEY
SERVINGASEPARATE SOLID FUEL BURNINGAP-
PLIANCE. EACH GAS APPLIANCE MUST USE A
SEPARATE FLUE SYSTEM-COMMON FLUE SYS-
TEMS ARE PROHIBITED.
CAUTION: UNDER NO CONDITION SHOULD
COMBUSTIBLE MATERIAL BE CLOSER THAN 3
INCHES (2 1/2 INCHES (64MM) AT WALL FIRE-
STOPS) FROM THE TOP OF THE PIPE OR 1-INCH
TOTHESIDESANDTHEBOTTOMFORHORIZONTAL
SECTIONS OF THIS FLUE SYSTEM. VERTICAL
SECTIONS OF THIS SYSTEM REQUIRE A MINI-
MUM OF 1-INCH (25MM) CLEARANCE TO COM-
BUSTIBLE MATERIALS ALL AROUND THE PIPE.
For alternative installations, other than depicted, con-
tact your dealer for further information.
Refer to Figure 4 for required clearances to flue terminals.
Flue system termination kits
Flue system components
SL D-SERIES
FIGURE 5 Flue Components and Terminations
MODEL
SL-550TRS-AUC DVK-01DA & SLK-01DA HORIZONTALTERMINATIONCAP
DVK-TVCD & SLK-991DA VERTICALTERMINATION CAP
FLUE TERMINATIONAPPROVALS
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
D-SERIES
DVK-01D DVK-TVCD
SLK-01DA SLK-991DA

9

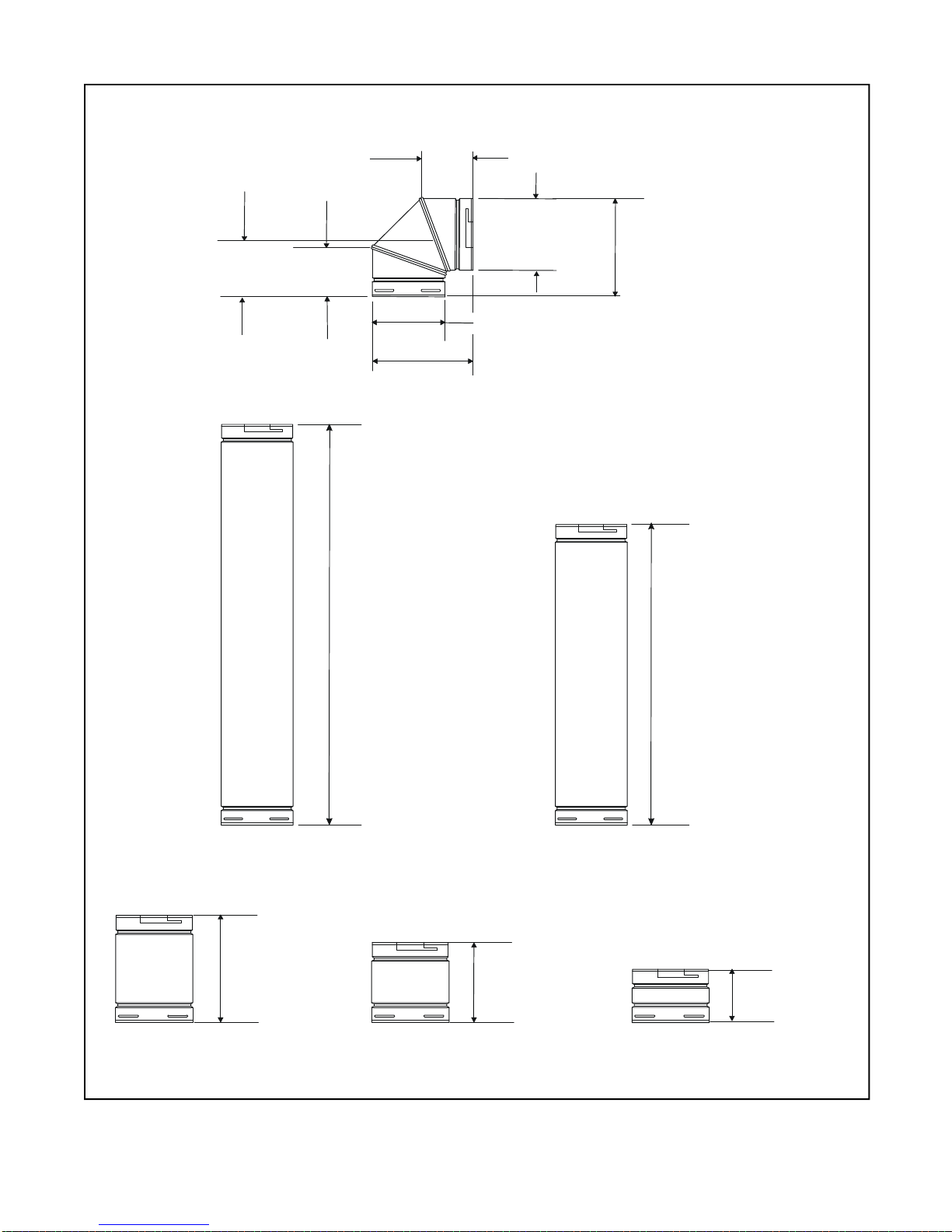

FIGURE 6 D-Series Balanced Flue Component Specifications
(5-inch (127mm) inner pipe / 8 5/8-inch (219mm) outer pipe)
NOTE: PIPES OVERLAP 1 3/8 INCHES (35MM) AT EACH JOINT.
DV-36D
35
¾
”
(908m
m
)
47¾”
(1.2m)
DV-48D
5 ¾”
(146mm)
8 ¾”
(222mm)
11 ¾”
(298mm)
DV-12D DV-09D
DV-06D
D
V
-
9
0
D
65/32
(156mm)
57/8
(149mm)
73/8
(187mm)
8
½
(
2
1
6
m
m
)
1
1
5
/
8
(
2
9
5
m
m
)
85
/
8
(
2
1
9
m
m
)
11
1
5
/
1
6
(
3
0
3
m
m
)

10
FIGURE 7 SL D-Series Balanced Flue Component Specifications
(4-inch (102mm) inner pipe / 6 5/8-inch (168mm) outer pipe)
NOTE: PIPES OVERLAP 1 3/8 INCHES (35mm) AT EACH JOINT.
6 5/8
(168mm)
9 5/8
(244mm)
6 3/8
(162mm)
6 3/8
(162mm) 6 ½
(165mm)
9 5/8
(244mm)
SL-90D
6 ½
(165mm)
6 5/8
(168mm)
5 ¾
(146mm)
11 ¾
(298mm)
SL-06D SL-12D
SL-17/24D
17-24
(432-610mm)
SL-09D
SL-12/17D
SL-24D SL-36D SL-48D
8 ¾
(222mm)
12-17
(305-432mm)
23 ¾
(603mm)
35 ¾
(908mm)
47 ¾
(1213mm)

11

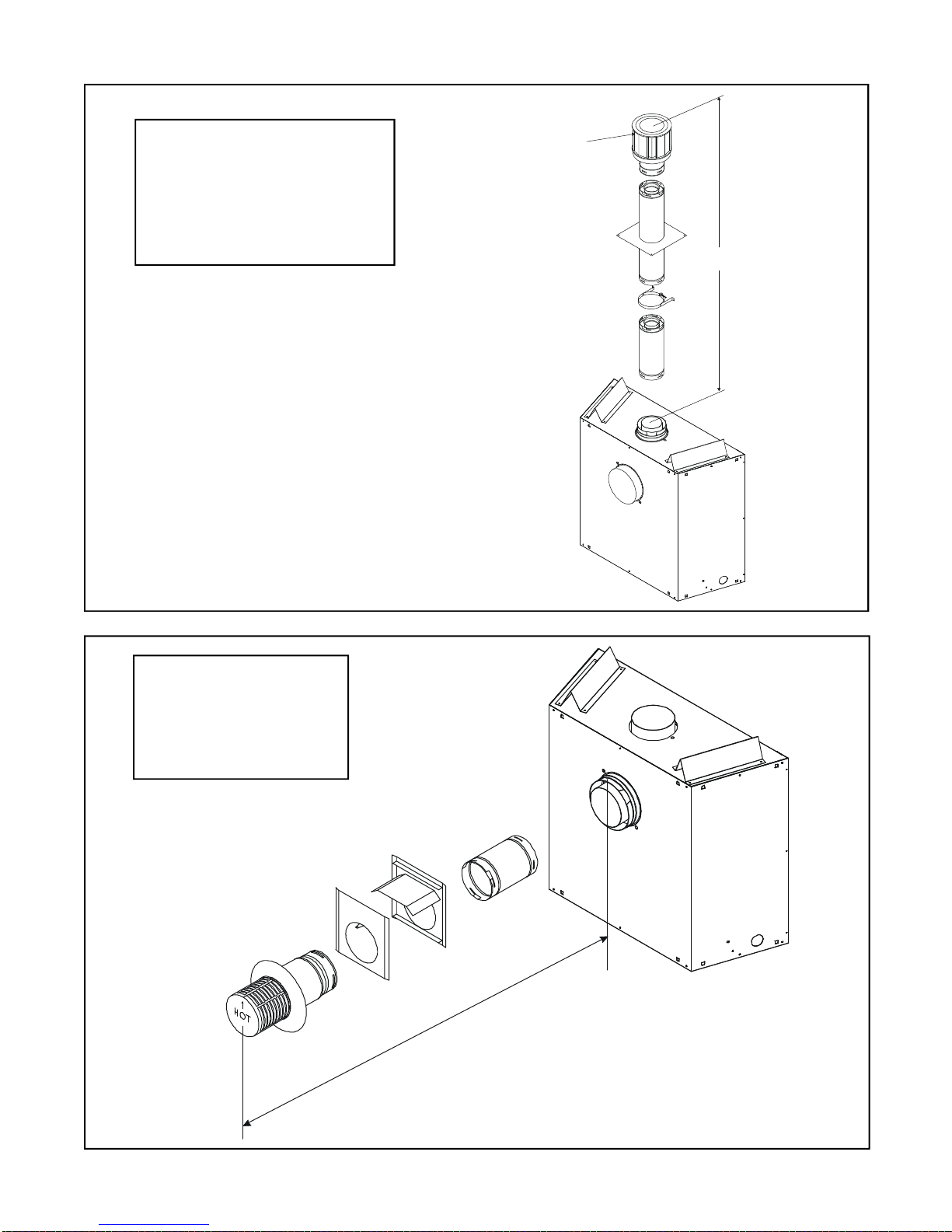

VERTICALFLUEING
V
FT. (M)
30' MAXIMUM (9.1M)
FIGURE8
USESLD-SERIES COMPONENTS ONLY.
FIGURE9
USED-SERIES COMPONENTSONLY.
STRAIGHTOUTHORIZONTAL
FLUEING
H
Max. Run
24" (610mm)
V
CAP
H

12
FIGURE10
VH
FT. (M) FT. (M)
1' MIN.(.3M) 2' MAX.(.6M)
2' MIN.(.6M) 4' MAX.(1.2M)
3' MIN.(.9M) 8' MAX.(2.4M)
4' MIN.(1.2M) 10' MAX.(3M)
V + H = 30' (9.1M)

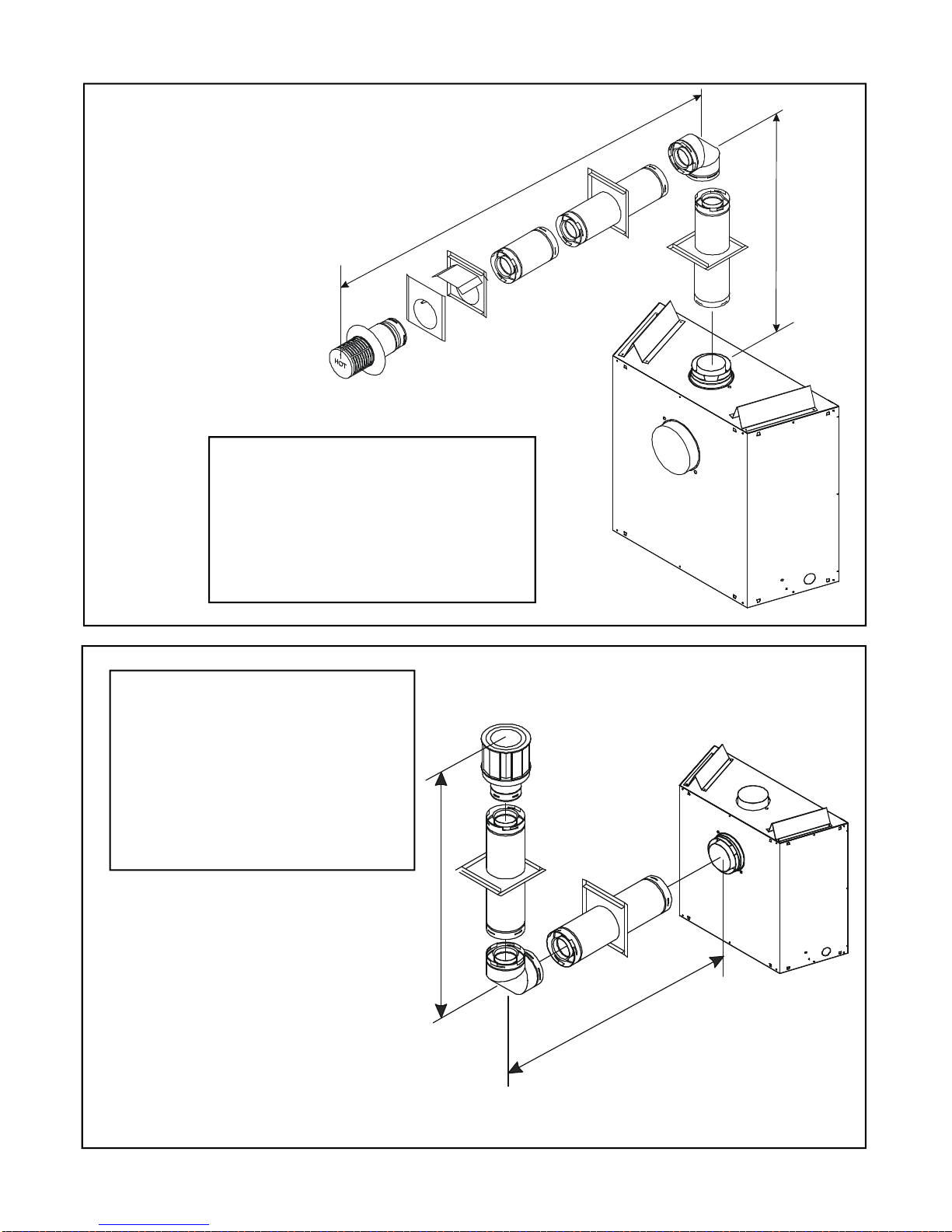

FLUEING WITH ONE (1) 90° ELBOW
USE SL D-SERIES
COMPONENTS
ONLY.
FIGURE 11
USED-SERIES
COMPONENTS
ONLY.
FLUEINGWITH ONE (1) 90oELBOW
V (FT.) H (FT.)
1' MIN. (.3M) 3'MAX. (.9M)
2' MIN. (.6M) 6'MAX. (1.8M)
3' MIN. (.9M) 9'MAX. (2.7M)
4' MIN. (1.2M) 12' MAX. (3.7M)
V+H =30' MAX. (9.1M) H= 12' MAX. (3.7M)
H
V
V
H

13
FIGURE 12
V H
FT. (M) FT. (M)
1' MIN.(.3M) 2' MAX.(.6M)
2' MIN.(.6M) 4' MAX. (1.2M)
3' MIN.(.9M) 6' MAX. (1.8M)
4' MIN.(1.2M) 8' MAX. (2.4M)
5' MIN.(1.5M) 12' MAX. (3.6M)
12' MAX.(3.6M)
NOTE: V + V1MAX 30' (9.1M)

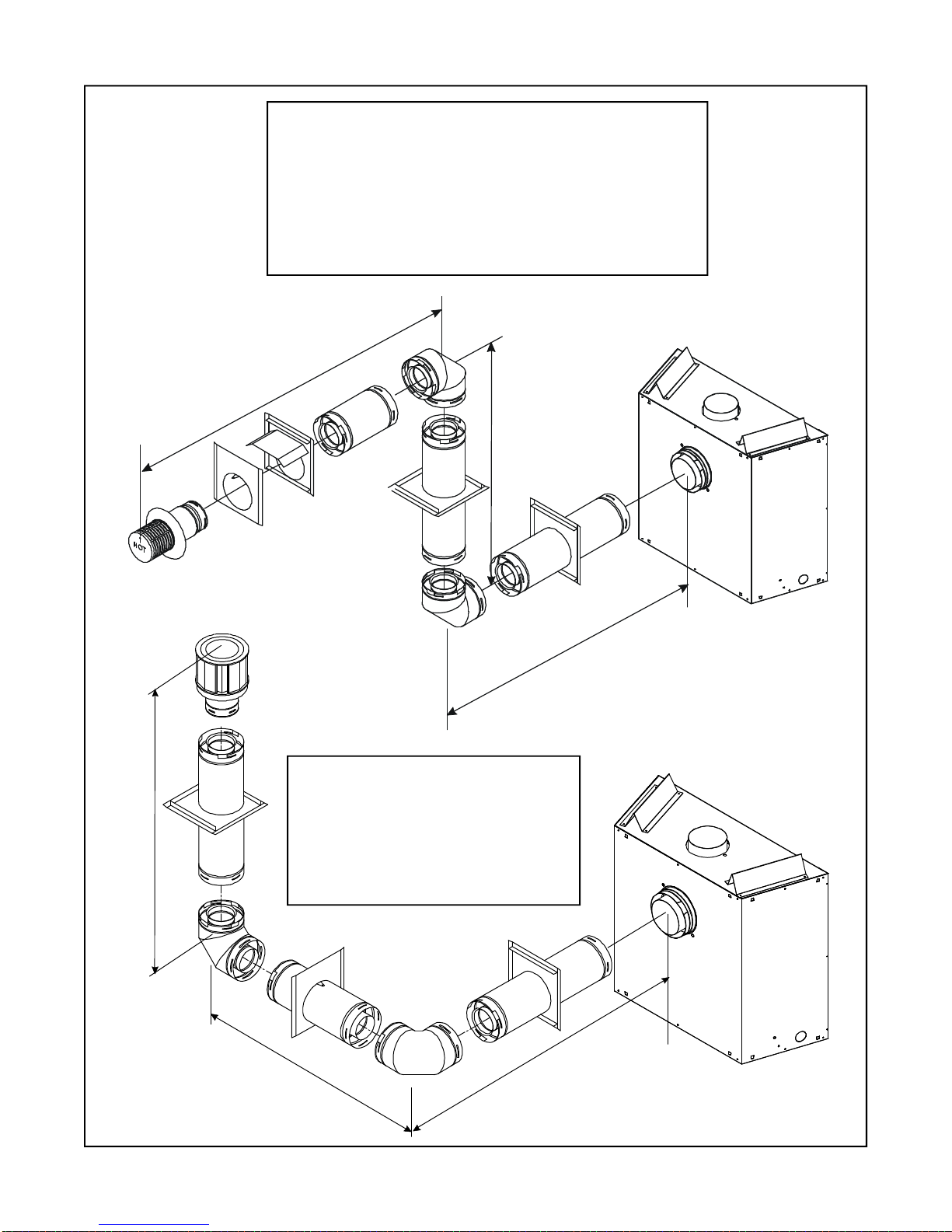

FLUEINGWITH TWO (2) 90° ELBOWS
V H + H1
FT. (M) FT. (M)
1' MIN.(.3M) 2' MAX.(.6M)
2' MIN.(.6M) 4' MAX.(1.2M)
3' MIN.(.9M) 6' MAX.(1.8M)
4' MIN.(1.2M) 8' MAX.(2.4M)
5' MIN.(1.5M) 10'MAX. (3M)
30' MAX.(9.1M) 10' MAX. (3M)
FLUEINGWITH TWO (2) 90° ELBOWS
USE SL D-SERIES COMPONENTS ONLY.
H
V
V
11
H
11
H
V

14
FIGURE 13
USE D-SERIES COMPONENTS ONLY.
FLUEINGWITH TWO (2) 90° ELBOWS
VHH + H1
1´ MIN. (.3M) 1´MAX. (.3M) 2´ MAX.(.6M)
2´ MIN. (.6M) 2´MAX. (.6M) 4´MAX.(1.2M)
3´ MIN. (.9M) 3´MAX. (.9M) 8´MAX.(2.4M)
4´MIN.(1.2M) 4´MAX.(1.2M) 10´MAX.(3M)
H = 8´ MAX.(2.4M) H + H
1
= 10´ MAX. (3M)
V + H + H1= 30’ (9.1M) MAX.
V (FT) H + H1(FT)
1' MIN. (305 mm) 3' MAX. (.9mm)
2' MIN. (610 mm) 5' MAX. (1.5m)
3' MIN. (914 mm) 8' MAX. (2.48m)
4' MIN. (1.22 m) 10' MAX. (3m)
H + H1= 10' MAX. (3m)
V + H + H1= 40' (12.2m) MAX.
V
H 1
H
H
1
V
H

15
FLUEINGWITH THREE (3) 90° ELBOWS
V H H + H1
FT. (M) FT. (M) FT. (M)
2'MIN.(.6M) 2'MAX.(.6M) 4' MAX.(1.2M)
3'MIN.(.9M) 3'MAX.(.9M) 6' MAX (1.9M)
4'MIN.(1.2M) 4'MAX.(1.2M) 8' MAX.(2.4M)
V+V1 = 30' MAX (9.1M) 6' MAX (1.9M) 8' MAX.(2.4M)
FLUEINGWITH THREE (3) 90° ELBOWS
FIGURE 14
V H + H1
FT. (M) FT. (M)
1'MIN.(.3M) 2' MAX.(.6M)
2'MIN.(.6M) 4' MAX.(1.2M)
3'MIN.(.9M) 6' MAX.(1.8M)
4'MIN.(1.2M) 8' MAX.(2.5M)
5'MIN.(1.5M) 12' MAX.(3.6M)
12' MAX.(3.6M)
NOTE: V + V1MAX. 30'(9.1M)
USE SL D-SERIES COMPONENTS ONLY.
V
1
H
1
H
V
H 1
H
V
1
V

16
FIGURE15
FLUEING WITH THREE (3) 90° ELBOWS
1´ MIN. (.3M) 1´ MAX. (.3M) 3´ MAX. (.9M)
2´ MIN. (.6M) 2´ MAX. (.6M) 5´MAX. (1.5M)
3´ MIN. (.9M) 4´MAX. (1.2M) 8´ MAX. (2.4M)
4´ MIN. (1.2M) 6´MAX.(1.9M) 10´ MAX. (3.0M)
H = 6´ MAX. (1.9M) H+H1= 10´ MAX. (3.0M)
NOTE: V + V, + H + H1= 30’ (9.1M) MAX.
V (FT.) H (FT.) H + H1(FT.)
V (FT.) H (FT.) H + H1+ H2 (FT.)
1´ MIN. (.3M) 1´ MAX. (.3M) 2´ MAX. (.6M)
2´ MIN. (.6M) 2´ MAX. (.6M) 4´MAX. (1.2M)
3´ MIN. (.9M) 3´ MAX. (.9M) 8´MAX. (2.4M)
4´ MIN. (1.2M) 4´ MAX. (1.2M)) 10´MAX. (3.0M)
V + H + H
1
+ H
2
= 30´ MAX. (9.1M) H = 4´ MAX. (1.2M) H + H
1
+ H
2
= 10´ MAX. (3.0M)
FLUEING WITH THREE (3) 90° ELBOWS
USED-SERIES
COMPONENTSONLY.
H
V
H
2
H
1
V1
H
V
H
1

17
Figure 16
WARNING: FAILURE TO REMOVE
INSULATION IN THE SET OF COL-
LARS YOU ARE USING COULD
CAUSE AFIRE.
WARNING: THE REAR FLUE COL-
LAR SEAL CAP MUST REMAIN AT-
TACHED TO THE REAR FLUE COL-
LARS IF THE FLUE SYSTEM IS AT-
TACHED TO THE TOP STARTING
COLLARS. SEE FIGURE 16.
WARNING: YOU MUST LEAVE
THE INSULATION IN PLACE IN
THE SET OF COLLARS YOU ARE
NOT USING.
FLUEING OUT REAR FLUEING OUT TOP
Vertical Flue Restrictor
If the heater installation requires a vertical flue exceeding 4.5m above the unit with no horizontal flue or
elbows a vertical flue restrictor must be installed. See instructions with the BAF-VERT kit.
Installing Flue Components
Afterdeterminingwhichsetofstartingcollarswillbe
used (top or rear), follow flueing instructions
accordingly.
Flueing Out the Rear Flue
Remove the rear collar seal cap by cutting the
strap at each end (See Figure 16).
Next, remove the insulation from the rear flue, pull
the heat shield out from outside of the heater.
WARNING: THE TOP FLUE COLLAR
SEAL CAP MUST REMAIN ATTACHED
TO THE TOP FLUE COLLAR IF THE FLUE
SYSTEM IS ATTACHED TO THE REAR
STARTING COLLARS. SEE FIGURE 16.
Flueing Out the Top Flue
Removethe topcollar sealcap bycutting the strap
at each end. Remove the seal cap and both
pieces of insulation in the top collars (See Figure
16).Remove the heat shield inside thetop collars
from the outside of the heater.
!
!
!
!
Insert screwdriver
or similar object
here to remove cap.
CUT
HERE
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
HEAT
SHIELD
INSULATION,
DISCARD
BOTH
PIECES and
HEAT SHIELD

18
1. Attach the First Flue Component to the
Starting Collars
To attach the first flue component to the starting
collars of the fireplace:
•Apply a 3/8 inch (10mm) bead of stove cement
around the inner pipe heater starting collar.
•Make sure that the heater rope gasket sup-
plied with the heater seals between the first
flue component and the outer heater wrap.
•Lock the flue components into place by sliding
theconcentricpipesectionswith four(4)equally
spaced interior beads into the heater collar or
previouslyinstalledcomponentend withfour(4)
equally spaced indented sections.
•When the internal beads of each outer pipe line
up,rotate the pipe sectionclockwise about one-
quarter (1/4) turn. The flue pipe is now locked
together.
•Slide the ceramic fiber pad over the first flue
sectionand place it flush tothe fireplace. Con-
tinue to add vent components.
WARNING: ENSURE THAT THE
FIBERGLASS ROPE GASKET
SUPPLIED WITH THE HEATER SEALS
BETWEEN THE FIRST FLUE COMPO-
NENT AND THE OUTER HEATER
WRAP.
2. Continue Adding Flue Components
Tocontinueaddingfluecomponentsinaccordance
with the pre-planned flue system configuration:
•Ensurethateachsucceedingflue componentis
securelyfittedandlockedintotheprecedingcom-
ponent in the flue system.
90°elbowsmaybeinstalledandrotatedtoanypoint
around the preceding component’s vertical axis. If
an elbow does not end up in a locked position with
the preceding component, attach with a minimum
of two (2) sheet metal screws.
3. Install Support Brackets
For Horizontal Runs - The flue system must be
supported every five (5) feet (1.5M) of horizontal
run by a horizontal pipe support.
To install support brackets for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
!
!
STARTING
COLLAR
FIRST
FLUE
COMPONENT
STOVE
SEALANT
BEAD
3/8" (10mm)
1 INCH (25mm)
WARNING: A3/8 INCH (10MM)
BEAD OF STOVE CEMENT MUST
BE PLACED AROUND THE INNER PIPE
HEATER STARTING COLLAR BEFORE
ATTACHING THE FIRST FLUE
COMPONENT. FAILURE TO SEAL THIS
JOINT MAYCAUSE THE HEATER TO
OPERATE IMPROPERLY.SEEFIGURE17.
Figure 17 Attaching the First Flue
Component to the Starting Collars

19
For Vertical Runs
The flue system must be supported every eight
(8)feet(2.4M) above the heater flue outlet by wall
brackets.
To install support brackets for vertical runs:
•Attach wall brackets to the flue pipe and se-
cure the wall bracket to the framing members
with nails or screws.
Use wall brackets to support vertical runs every
8 feet (2.4M) above the heater flue outlet.
Figure 18 Installing Support Brackets
4. Install Firestops
For Horizontal Runs -Firestops are REQUIRED
on both sides of a combustible wall through which
the flue passes.
To install firestops for horizontal runs that pass
througheither interior orexterior walls:
•Cut a 12-inch by 12-inch (305 mm X 305 mm)
hole through the wall for D-series or a 10-inch
by 10-inch (254mm x 254mm) hole for SL D-
series pipe. The center of the hole is one (1)
inch (25mm) above the center of the horizon-
tal flue pipe.
•Position the firestops on both sides of the hole
previouslycutandsecurethefirestopswithnails
or screws.
•The heat shields of the firestops MUST BE
placed towards the top of the hole.
•Continuethe fluerun through thefirestops.
NOTE: Theremust beno insulationor othercom-
bustibles inside the framed firestop opening.
FLUE PIPE
1" (25mm)
12" (305mm)
12" (305mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
WALL BRACKET
WALL STUD
8 FT.
(2.4mm)
FLUE
OUTLET
1 INCH MIN.
(25mm)
Figure 20 Heat Shield, Interior and Exterior
Firestops
For Vertical Runs -One ceiling firestop is
REQUIRED at the hole in each ceiling through
which the flue passes.
Toinstallfirestopsforverticalrunsthatpassthrough
ceilings:
•Position a plumb bob directly over the center of
the vertical flue component.
•Mark the ceiling to establish the centerpoint of
theflue.
Figure 19 Hole and Flue Pipe

20
Figure 21 Hole and New Framing Members
IftheareaabovetheceilingisNOTanattic,position
andsecuretheceilingfirestopontheceilingsideof
the previously cut and framed hole.
Figure 22 Ceiling Firestop (Ceiling Side)
IftheareaabovetheceilingISanattic,positionand
secure the firestop on top of the previously framed
hole.
Figure 23 Attic Firestop
C. Flue Termination
ForHorizontalTerminations -Toattachandsecure
the termination to the last section of horizontal flue:
•Rotateandinterlock theendsas describedatthe
beginningoftheInstallingFlueComponentssec-
tion.
•The termination kit should pass through the wall
firestopsfrom the exterior ofthe building.
•Adjust the termination cap to its final exterior po-
sitiononthebuilding.
WARNING: THE TERMINATION CAP
MUST BE POSITIONED SO THAT
THE ARROW IS POINTING UP.
•Use the exterior pipelock hole provided on the
roundflangeofthewallfirestoptosecuretheflue
pipeinplace.
•Useahigh-temperaturesealantorfiberglassrope
gasket to seal between the pipe and exterior
firestop.
•See Figure 4 for flue termination clearances.
Figure 24 Round Termination Cap
•Drillaholeordriveanailthroughthiscenterpoint.
•Checktheflooraboveforanyobstructions,such
as wiring or plumbing runs.
•Reposition the heater and flue system, if neces-
sary, to accommodate the ceiling joists and/or
obstructions.
•Cut an 11-inch X 11-inch (280 mm X 280 mm)
for D-series or 10-inch x 10-inch (254mm x
254mm) for SL D-series pipe hole through the
ceiling,usingthecenterpointpreviouslymarked.
•Frame the hole with framing lumber the same
size as the ceiling joists.
!
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
11" (280 mm) or
10" (254 mm) 11" (280mm) or
10" (254mm)
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
9 1/2”
(241mm)
MINIMUM
2” (51mm)
