Heat-N-Glo 6000TRS-AUB Owner's manual

1
MODEL: 6000TRS-AUB
AUSTRALIAN GAS ASSOCIATION APPROVED
AGAAPPROVALNUMBER5668
THIS MANUAL MUST BE USED FOR INSTALLATION AND RETAINED
BY HOMEOWNER FOR OPERATION AND MAINTENANCE.
HEAT-N-GLO, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044, USA 1-888-427-3973
2022-900F 7/04
INSTALLATION AND OPERATION INSTRUCTIONS
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790;586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
IMPORTANT: Read all instructions carefully before starting installation.
Failure to follow these installation instructions may result in a possible fire
hazard and will void the warranty. Save this manual for future reference.
MODEL 6000TRS-AUB
IS AUSTRALIAN GAS ASSOCIATION
APPROVED FOR NATURAL GAS OR PROPANE
AS ABALANCED FLUE HEATER.
Refer to the appliance data plates for gas consump-
tions and pressures.
Installation of this appliance should only be carried
out by an authorized person in accordance with the
manufacturers instructions. All relevant codes and
regulations laid down by the gas fitting authorities,
municipal building regulations, electrical wiring regu-
lations, and the requirements of the AGA Gas In-
stallation Code must be observed.
This appliance and its components are tested and
safe when installed in accordance with this Installa-
tion Manual. Report to your dealer any parts dam-
aged in shipment, specifically check glass condi-
tion. The gas logs and flue system components are
in separate packages. Read all instructions before
INSTALLATION AND OPERATION INSTRUCTIONS
PLEASE READ THIS MANUAL BEFORE INSTALLING AND
USING THIS APPLIANCE.
Copyright 2004 • Printed in U.S.A.
starting installation and follow these instructions
carefully during installation to ensure maximum ben-
efit and safety. Failure to follow them will void your
warranty and may present a fire hazard.
The Heat-N-Glo warranty will be voided by, and Heat-
N-Glo disclaims any responsibility for the following
actions:
•Installation of any damaged heater or flue sys-
tem component
•Modification of the heater or balanced flue sys-
tem installationother thanas instructed byHeat-
N-Glo.
•Improperpositioning of thegas logsor the glass
door
•Installation and/or use of any component part
not manufactured or approved by Heat-N-Glo,
not withstanding any independent testing labo-
ratory or other party approval of such compo-
nent part or accessory.

3
TABLE OF CONTENTS
1.0 INSTALLATION INSTRUCTIONS.............................................................................4
1.1 Locating the Heater................................................................................................5
1.2 Framing the Heater ................................................................................................6
1.3 Flue System Approvals and Installations .............................................................8
1.4 Connecting the Gas Supply...................................................................................16

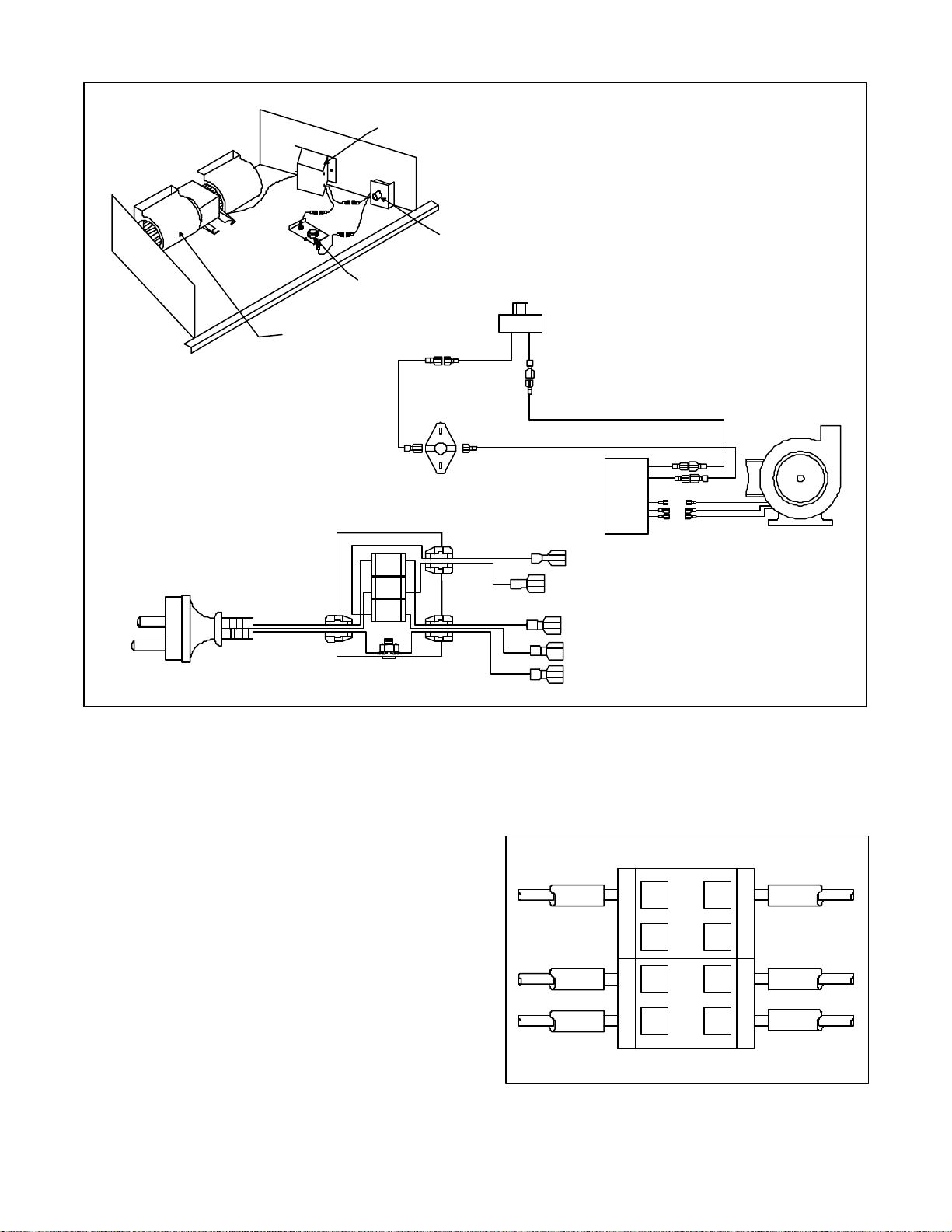

1.5 Fan...........................................................................................................................17
1.6 Mantel Clearances .................................................................................................18

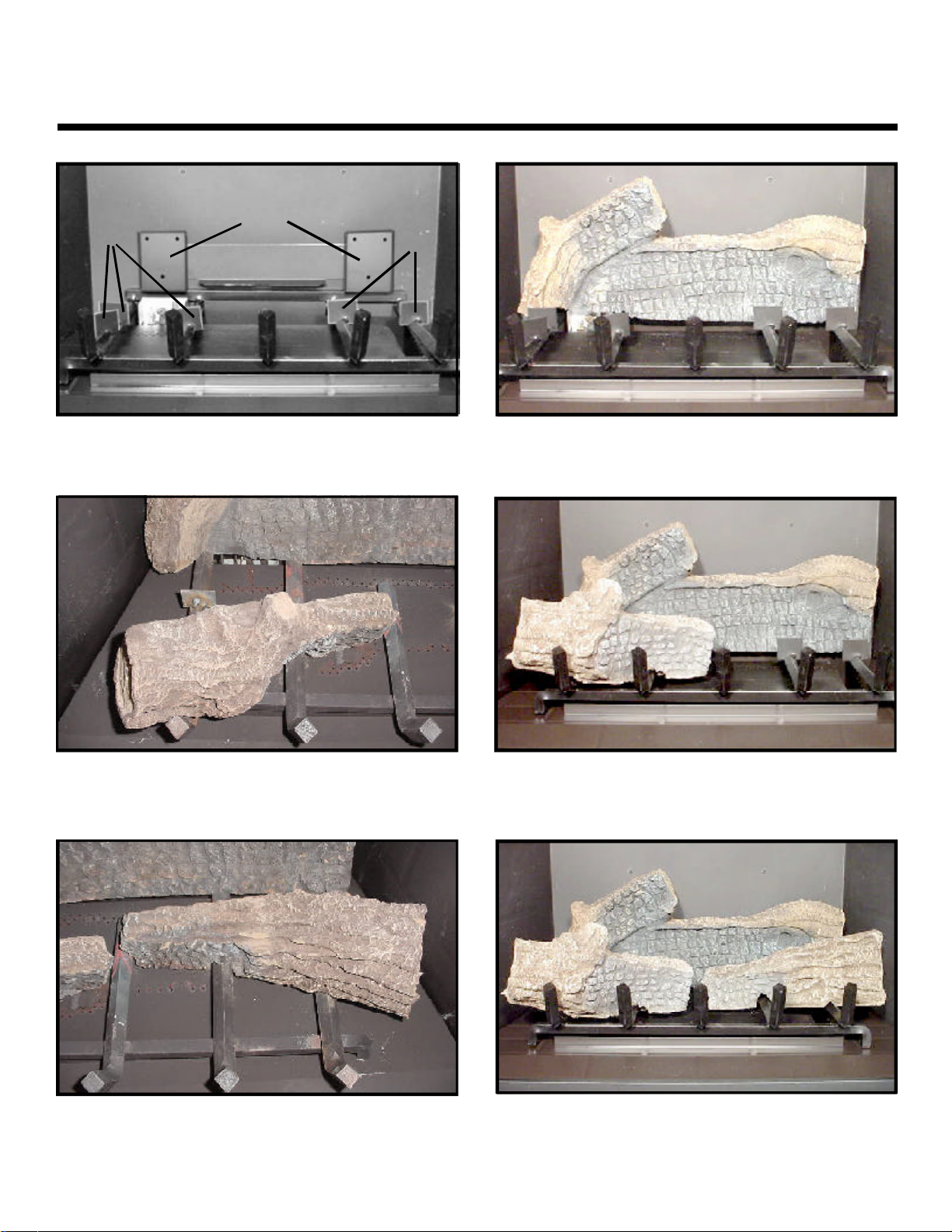

1.7 Log Placement .......................................................................................................19
1.8 Installer Testing .......................................................................................................21
2.0 OPERATING INSTRUCTIONS. .................................................................................21
2.1 Safety and Lighting Information ............................................................................23
2.2 Safety Information...................................................................................................23
2.3 Lighting Instructions................................................................................................24
2.4 Fan Operation.........................................................................................................25
3.0 SERVICINGAND MAINTENANCE...........................................................................25
3.1 Removal of Covers for Servicing ..........................................................................26
3.2 Removal of Components for Service ...................................................................26
3.3 Parts Replacement ................................................................................................26
3.4 Adjustments and Replacement Parts...................................................................26
3.5 Troubleshooting ......................................................................................................27
4.0 REPLACEMENT PARTS. ..........................................................................................31
Limited Warranty ...........................................................................................................33
u
u= Contains updated information.
u

4
FIGURE 1. Diagram of the 6000 Series
1.0 INSTALLATION INSTRUCTIONS
When planning a heater installation, it’s necessary
to determine:
•Where the unit is to be installed.
•The flue system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a
fan, wall switch, or remote control—are desired.
If the heater is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
heater should be installed on a metal or wood panel
that extends the full width and depth of the heater.
ELECTRICAL
ACCESS
GAS LINE
ACCESS
STANDOFFS
GAS CONTROLS
AND SWITCHES
DATA BADGE/LABELS
GLASS
DOOR
TOP
STANDOFFS
27”
(686mm)
GAS LINE
ACCESS
38”
(965mm)
36-1/8”
(917mm)
6-3/4”
(173mm) 36-1/8”
(917mm)
41”
(1043mm)
21”
(534mm)
9”
(228mm)
28-3/8”
(722mm)
14-1/4”
(361mm)
8-7/8”
(225mm)
3-5/8”
(94mm)
ELECTRICAL
ACCESS
2-1/4”
(58mm)

5
Clearance Requirements
The top, back, and sides of the heater are defined by
stand-offs.
The minimum clearance to a perpendicular wall
extending past the face of the heater is one inch (25
mm).
For 6000 Series Models, the back of the heater may
be recessed 21-1/2 inches (546 mm) into combustible
construction.
FIGURE 2. Heater Dimensions, Locations,
and Space Requirements
1.1 Locating the Heater
The diagram (See figure 2) shows space and clearance
requirements for locating a heater within a room.
Minimum Clearances from the Heater to
Combustible Materials
Glass Back of Sides of Top of
Front Floor Heater Heater Heater Ceiling
36 inches 01/2 inch 1/2 inch 3-1/2 inches 31 inches
(914 mm) (13 mm) (13 mm) (89 mm) (787 mm)
1”MIN. (25mm)
C
A
B
D
E
3” (76.2mm)
u
A B C D E
Inches 42 22 38 53-3/4 76
Millimeters 1066 559 965 1365 1930
A B C D E
Inches 42 22 36 50-15/16 72
Millimeters 1066 559 914 1294 1829
1” MIN. (25mm)
B
E
1/2” MIN. (12.5mm)
C
D
Top Flue
Rear Flue

6
Framing should be constructed of
2 X 4 lumber or heavier.
A B C D E
42" 38-1/2" 22" 26-7/8" 41 3/4"
(1066mm) (978mm) (559mm) (684mm) (1060mm)
FIGURE 3. Framing Dimensions
1.2 Framing the Heater
Framing can be built before or after the heater is set in
place. Framing should be positioned to accommodate
wall coverings and heater facing material. The diagram
below shows framing reference dimensions.
The framing
headers may rest
on the heater
stand-offs.
CAUTION: MEASURE HEATER DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVER-
ING DETAILS, BEFORE FRAMING CONSTRUCTION
BEGINS.
* NOTE: Dimension Btaken from finished hearth frame.
Dimensions Dand Etaken from bottom of unit.
For minimum clearances, see the direct flue termination clearance diagrams on page 7.
E
D
*
*
76mm
86mm
WALL
STUD
NON-COMBUSTIBLE ZONE
IS DEFINED BY 76MM ABOVE
THE ELBOW FOR THE ENTIRE
WIDTH AND DEPTH (BEHIND
THE FRONT HEADER) OF
THE FIREBOX.
Minimum Clearances from the Flue Pipe to Combustible Materials
For Horizontal Sections For Vertical
Sections At Wall Firestops
Top Bottom Sides 1 inch
(25mm)
Top Bottom Sides
3 inches
(75mm) 1 inch (25mm) 1 inch (25mm) 2-1/2 inches (63.7mm) 1/2 inch (13mm) 1 inch (25mm)
A
B
C
*

7
NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. See clause 5.13.6.6 for restrictions on a flue terminal under a roofed area.
4. See Appendix J, Figure J1(a) and J2(a) for clearances required from a flue
terminal to a LP Gas cylinder. A flue terminal is considered to be a source of ignition.
MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS
OR THE FLUE TERMINALS OF OUTDOOR APPLIANCES
FIGURE 4.
CLEARANCES 'n' (mm)
Space heaters All other appliances
Up to 50 MJ/h
input UP to 50 MJ/h input Over 50 MJ/h & up
to 150 MJ/h
Over 150 MJ/h
input
150 500 1000 1500
a-Below eaves, balconies or other projections: MIN. CLEARANCE (mm)
Appliances up to 50 MJ/h input......................................................................................................300
Appliances over 50 MJ/h input.......................................................................................................500
b-From the ground or above a balcony................................................................................................300
c-From a return wall or external corner ...............................................................................................500
d-From a gas meter (M) ........................................................................................................................1000
e-From an electricity meter or fuse box (P).........................................................................................500
f-From a drain or soil pipe.....................................................................................................................150
g-Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal................................................................500
h-From any other flue terminal, cowl, or combustion air intake.....................................................500
j-Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
sub-floor ventilation:
Appliances up to 150 MJ/h input ...................................................................................................500
Appliances over 150 MJ/h input...................................................................................................1500
k-From a mechanical air inlet, including a spa blower ................................................................1500
n-Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of...................................... See table
sub-floor ventilation..........................................................................................................................below
T = Flue terminal M = Gas meter Shading indicates prohibited
I = Mechanical air inlet P = Electricity meter or fuse box areas for flue terminals

8
MODEL FLUE TERMINATION APPROVALS
6000TRS-AUB DVP-TRAP, DVP-TVHW
TABLE 1
STRAIGHT OUT HORIZONTAL FLUE SYSTEM
Figure 6 shows straight out horizontal flue systems
approved for use on this model.
ELBOWS
The flue systems installed on this gas heater may also
include one (1), two (2), or three (3) 90 - degree elbow
assemblies.
Figures 6 through 13 and their corresponding tables
show examples of flue configurations using elbows.
The relationships of vertical rise to horizontal run in
flue configurations using elbowsMUST be strictly ad-
hered to.
NOTE: TWO45-DEGREE ELBOWS MAY BE USED
IN PLACE OF ONE 90 -DEGREE ELBOW.
CAUTION: DO NOT INSTALL A 45-DEGREE ELBOW
DIRECTLY TO THE HEATER FOR A CORNER INSTAL-
LATION. USE TWO 90-DEGREE ELBOWS.
ONE (1) 90-DEGREE ELBOW
Figures 7 and 8 show an installation using one (1) 90-
degree elbow. Dimension V is listed asMINIMUM ver-
tical dimensions and dimension H is listed as corre-
sponding MAXIMUM horizontal dimensions.
TWO (2) 90-DEGREE ELBOWS
Figures 9 and 10 show examples of possible installa-
tions using two (2) 90-degree elbows. Dimension V is
listed as MINIMUM vertical dimensions, dimension H
is listed as MAXIMUM beginning horizontal dimen-
sions, and dimension H+H1is listed as corresponding
TOTAL MAXIMUM horizontal dimensions.
THREE (3) 90-DEGREE ELBOWS
Figures 11 through 13 show examples of possible in-
stallations using
three (3) 90-de-
gree elbows. Di-
mensions V are
listed MINIMUM
first vertical di-
mensions and
dimensions H
are listed as be-
ginning MAXI-
MUM horizontal
dimensions. Di-
mensions H+H1
andH+H1+H2 are
listed asTOTAL
MAXIMUM hori-
zontal dimen-
sions. Dimen-
sions V+V1 are
listed asTOTAL
MAXIMUM verti-
cal dimensions.
FIGURE 5
V
CAP
V
MAX. RUN
36 FT.
(10.9m)
FIGURE 4
1.3 FLUE SYSTEM APPROVALS AND
INSTALLATIONS
This model is approved to use DVP-Series flue pipe
components. A DVP-TRAP Termination Cap must be
used to terminate flue systems in a horizontal position.
A DVP-TVHW vertical Termination Cap must be used to
terminate flue systems in a vertical position.
Figures 5 thru 14 show the flue systems approved for
these models. Approved flue system components are
labeled for identification. NO OTHER FLUE SYSTEMS
OR COMPONENTS MAY BE USED. Detailed installa-
tion instructions are included with each flue termination
kit and should be used in conjunction with this manual.
WARNING: THIS GAS APPLIANCE AND FLUE AS-
SEMBLYMUST BE FLUED DIRECTLYTO THE OUT-
SIDE AND MUST NEVER BE ATTACHED TO ACHIM-
NEY SERVING ASEPARATE SOLID FUEL BURNING
APPLIANCE. EACH GAS APPLIANCE MUST USE A
SEPARATE FLUE SYSTEM-COMMON FLUE SYS-
TEMS ARE PROHIBITED.
CAUTION: UNDER NO CONDITION SHOULD COM-
BUSTIBLE MATERIAL BE CLOSER THAN 3 INCHES
(2 1/2 INCHES AT WALL FIRESTOPS) FROM THE
TOP OF THE 8 INCH PIPE OR 1- INCH TO THE SIDES
AND THE BOTTOM FOR HORIZONTALSECTIONSOF
THIS FLUE SYSTEM. VERTICAL SECTIONS OF THIS
SYSTEM REQUIRE A MINIMUM OF 1- INCH CLEAR-
ANCE TO COMBUSTIBLE MATERIALS ALL AROUND
THE 8 INCH PIPE.
For alternative installations, other than depicted, con-
tact your dealer for further information.
Refer to Figure 4 for required clearances to flue terminals.
STRAIGHT UP VERTICAL FLUE SYSTEM
Figure 5 shows straight up vertical flue system approved
for use on this model.
VERTICAL FLUE RESTRICTOR
If the heater installation requires a vertical flue exceed-
ing 4.5m above the unit with no horizontal flue or el-
bows a vertical flue restrictor must be installed (see
Figure 4).
RESTRICTOR
PLATE

9
FIGURE 6. Straight Out Horizontal Flueing
H H
MIN. RUN MAX. RUN
13.1" (331mm) 24" (610mm)
H
FIGURE 7. Flueing with One 90° Elbow
V H
1´ MIN. (305 mm) 2´ MAX. (610 mm)
2´ MIN. (610 mm) 4´ MAX. (1.22 M)
3´ MIN. (914 mm) 6´ MAX. (1.86 M)
4´ MIN. (1.22 M) 8´ MAX. (2.48 M)
24´ MAX. (7.3 M) 8´ MAX. (2.48 M)
V (FT.) H (FT.)
1' MIN. (305mm) 4' MAX. (1.22m)
2' MIN. (610mm) 8' MAX. (2.4m)
3' MIN. (914mm) 12' MAX. (3.7m)
4' MIN. (1.22m) 16' MAX. (4.9m)
V+H= 24’ MAX. (7.3m) H = 8' MAX. (2.4m)
FIGURE 8. Flueing with One 90° Elbow
NOTE: If a 90oelbow is first attached to the unit,
the maximum horizontal run is 3-feet (914mm).
NOTE: For corner installations: A 6-inch (152mm)
section of straight pipe may need to be attached to
the fireplace before a 90o elbow, to allow the flue pipe
to clear the top standoffs.
V
H
H
V

10
FIGURE 9. Flueing with Two 90° Elbows
V FT.) H (FT.) H+H1 (FT.)
1' MIN. (350mm) 2' MAX. (610mm) 4' MAX. (1.22m)
2' MIN. (610mm) 2' MAX. (610mm) 8' MAX. (2.48m)
3' MIN. (914mm) 4' MAX. (1.22m) 12' MAX. (3.72m)
4' MIN. (1.22m) 6' MAX. (1.8m) 16' MAX. (4.9m)
20' MAX. (6.1m) 6' MAX. (1.8m) 16' MAX. (4.9m)
FIGURE 10. Flueing with Two 90° Elbows
V FT.H + H1(FT.)
1' MIN. (305mm) 4' MAX. (1.22m)
2' MIN. (610mm) 8' MAX. (2.4m)
3' MIN. (914mm) 12' MAX. (3.7m)
4' MIN. (1.22m) 16' MAX. (4.9m)
V+H+H1= 36' MAX.(10.9m) H+H
1
= 16' MAX. (4.9m)
V+V1+H= 36' MAX.(10.9m)
H
1
V
H
H
1
H
V
V
V
1
H

11
FIGURE 12. Flueing with three 90° elbows
FLUEING WITH THREE (3) 90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 4´ MAX. (1.22 m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 8´ MAX. (2.48 m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 12´ MAX. (3.6 m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 16´ MAX. (4.9 m)
8´ MAX. (2.48 m) 16´ MAX. (4.9 m)
NOTE: V + V, MAX. 36´ (10.9 m)
FLUEING WITH THREE (3) 90° ELBOWS
FIGURE 11. Flueing with three 90° elbows
V H H + H1+ H2
1´ MIN. (305 mm) 2´ MAX. (610 mm) 4´ MAX. (1.22 m)
2´ MIN. (610 mm) 2´ MAX. (610 mm) 8´ MAX. (2.48 m)
3´ MIN. (914 mm) 4´ MAX. (1.22 m) 12´ MAX. (3.6 m)
4´ MIN. (1.22 m) 6´ MAX. (1.86 m) 16´ MAX. (4.9 m)
20´ MAX. (6.1 m) 6´ MAX. (1.86 m) 16´ MAX. (4.9 m)
H
V
H
1
V
1
H
H
1
H
2
V

12
FLUEING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1(FT.)
1' MIN. (305mm) 4' MAX. (1.22m)
2' MIN. (610mm) 8' MAX. (2.4m)
3' MIN. (914mm) 12' MAX. (3.7m)
4' MIN. (1.22m) 16' MAX. (4.9m)
NOTE: H + H1= 16' MAX. (4.9m)
V + V1 + H + H1= 36' MAX. (10.9m)
V (FT.) H + H1 (FT.)
1' MIN. (305mm) 4' MAX. (1.22m)
2' MIN. (610mm) 8' MAX. (2.4m)
3' MIN. (914mm) 12' MAX. (3.7m)
4' MIN. (1.22m) 16' MAX. (4.9m)
H +H1= 16' MAX. (4.9m)
NOTE: V+V1+H +H1= 36' MAX. (10.9m)
FIGURE 13. Flueing with three 90° elbows
V
H
H
1
V
1
V
H
H
1
V
1

13
1. Attach the Flue Component to the Starting Collars
To attach the first flue component to the starting collars
of the fireplace:
•Make sure that the heater gasket supplied with the
heater seals between the first flue component and
the outer heater wrap.
•Slide the male end of the inner flue of the pipe sec-
tion into the inner collar on the heater. At the same
time, insert the outer flue into the outer collar on
the heater. Push the flue section into the appliance
collar until all the lances (see Figure 16) have
snapped in place. Tug slightly on the flue to confirm
that it has completely locked into place.
•The first 90° elbow installed in the flue system of a
rear flueing heater MUST BE in a vertical position.
FIGURE 16.
1. Attach the First Flue Component to the
Starting Collars
To attach the first flue component to the starting col-
lars of the fireplace:
•Using 2 self-tapping screws from the manual bag
secure that gasket to the outer wrap (see Fig. 15).
Figure 15. Fiberglass Gasket
FIRST VENT
COMPONENT
FIBERGLASS
GASKET
OUTER
WRAP
!
Installing Flue Components
After determining which set of starting collars will be used
(top or rear), follow flueing instructions accordingly.
Flueing Out the Rear Flue
Remove the installed rear seal cap from the rear start-
ing collars by cutting the strap at each end. (see Fig-
ure 14). Follow the flue configuration tables accordingly.
Remove the insulation from the REAR five inch flue, pull
the heat shield out from outside of the firebox.
WARNING: THE TOP HEAT SHIELD (IN-
SIDE THE FIREBOX) MUST REMAIN AT-
TACHED IF THE FLUE SYSTEM IS AT-
TACHED TO THE REAR STARTING COL-
LARS. SEE FIGURE 14.
Flueing Out the Top Flue
Remove the two screws in the top flue collar seal cap
and remove the top flue collar seal cap and two pieces
of insulation inside the top two starting collars (See
Figure 14).
Remove the heat shield from inside the TOP five inch
flue from outside of the firebox.
WARNING: THE REAR FLUE COLLAR SEAL
CAP MUST REMAIN ATTACHED TO THE REAR
FLUE COLLARS IF THE FLUE SYSTEM IS AT-
TACHED TO THE TOP STARTING COLLARS.
Figure 14
CUT
HERE
Flueing Out Rear Flueing Out Top
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HEAT
SHIELD
INSULATION
DISCARD BOTH
PIECES and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
Cut the seal cap
strap and remove white
gasket material.
!

14

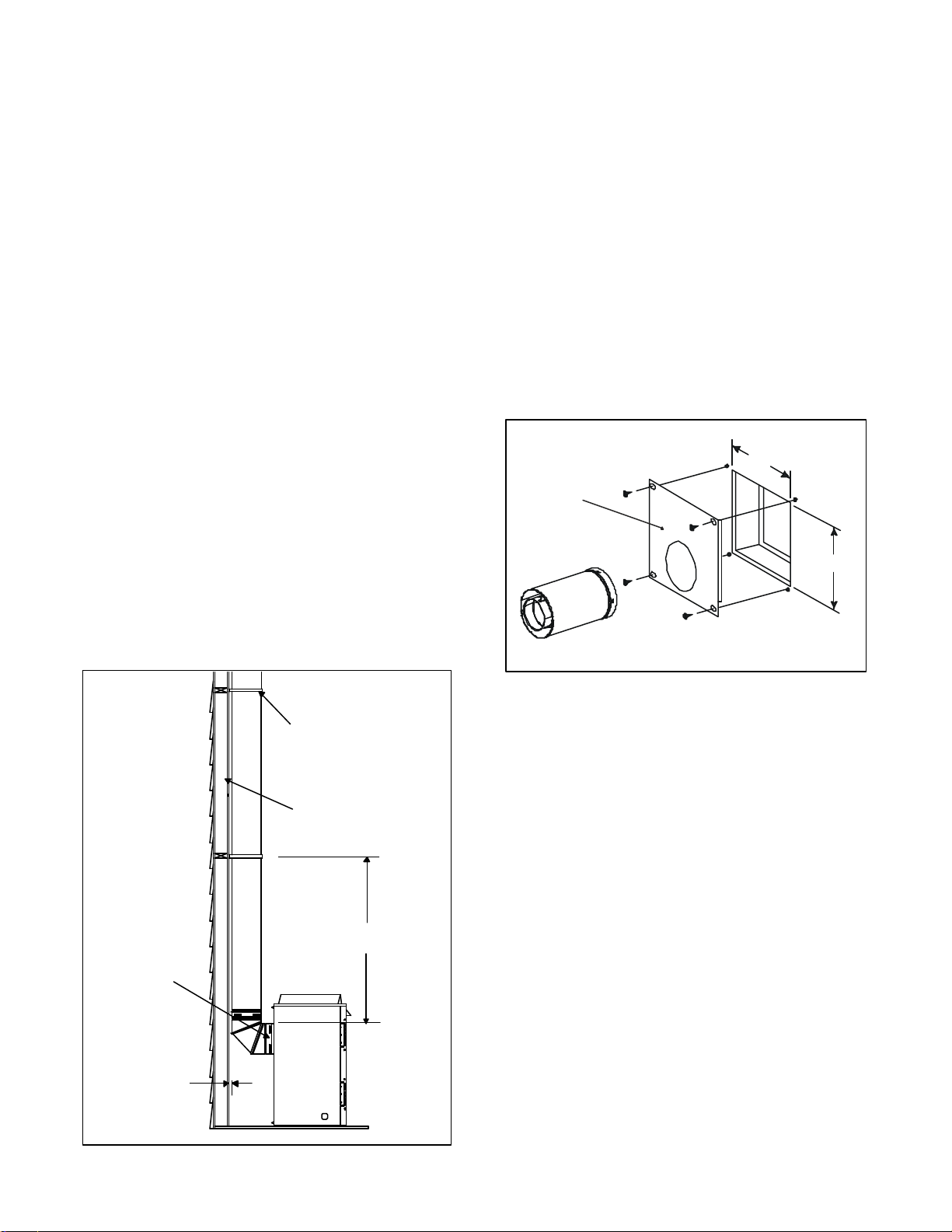

FIGURE 17. Installing Support Brackets
WALL BRACKET
WALL STUD
8 FT.
(2.4m)
FLUE
OUTLET
1 INCH MIN.
(25mm)
10" (254mm)
12" (305mm)
INTERIOR
WALL SHIELD
For Vertical Runs -One firestop is REQUIRED at the
hole in each ceiling through which the flue passes.
To install firestops for vertical runs that pass through
ceilings:
•Position a plumb bob directly over the center of the
vertical flue component.
•Mark the ceiling to establish the centerpoint of the
flue.
•Drill a hole or drive a nail through this center point.
•Check the floor above for any obstructions, such as
wiring or plumbing runs.
•Reposition the heater and flue system, if neces-
sary, to accommodate the ceiling joists and/or ob-
structions.
•Cut a 10" x 10" (254mm X 254mm) hole through the
ceiling, using the firestop pipe opening as a guide.
•Frame the hole with framing lumber the same size
as the ceiling joists.
4. Install Firestops
For Horizontal Runs -Firestops are REQUIRED on
both sides of a combustible wall through which the flue
passes.
To install firestops (heat shield) for horizontal runs that
pass through either interior or exterior walls:
•Cut a 10-inch by 12-inch (254 mm X 305 mm) hole
through the wall.
•Position the firestops on both sides of the hole pre-
viously cut and secure the firestops with nails or
screws.
•The pipe opening of the firestops MUST BE placed
towards the bottom of the firestop.
•Continue the flue run through the firestop.
FIGURE 18. Flue Pipe & Firestop
WARNING: ENSURE THAT THE HEATER GASKET
SUPPLIED WITH THE HEATER SEALS BETWEEN
THE FIRST FLUE COMPONENT AND THE OUTER
HEATER WRAP.
2. Continue Adding Flue Components
To continue adding flue components in accordance with
the pre-planned flue system configuration, ensure that
each succeeding flue component is securely fitted and
locked into the preceding component in the flue system.
NOTE: Make sure that seams are NOT alignedto prevent
unintentional disconnection.
For elbows that are changing the flue direction, two
screws minimum should be put in the outer flue at the
joint to prevent the elbow from rotating.
3. Install Support Brackets
For Horizontal Runs - The flue system must be
supported every five (5) feet (1.5m) of horizontal run by
a horizontal pipe support. To install support brackets
for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
For Vertical Runs - The flue system must be supported
every eight feet (2.4 M) above the heater flue outlet by
wall brackets. To install support brackets for vertical runs:
•Attach wall brackets to the flue pipe and secure the
wall bracket to the framing members with nails or
screws.

15
!

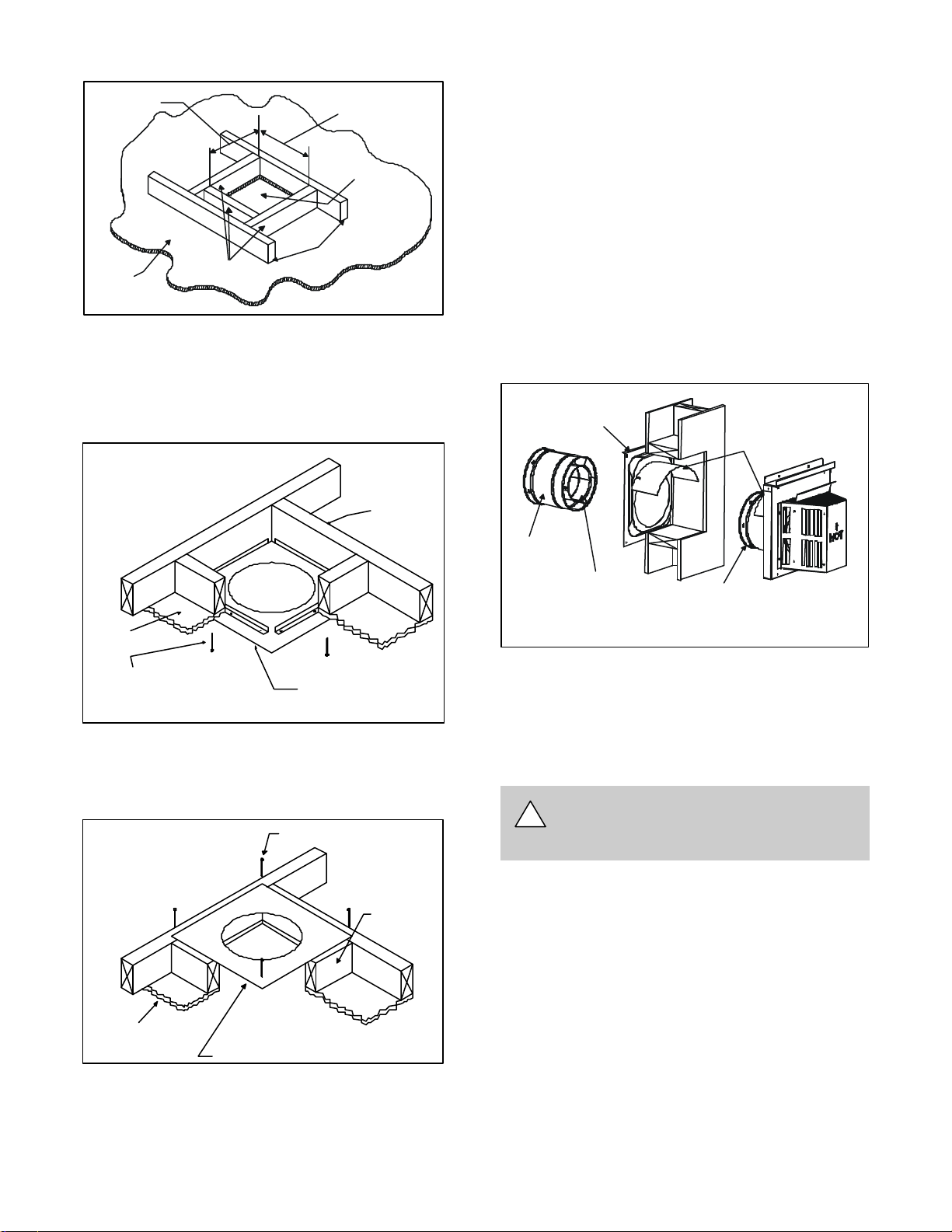

FIGURE 19. Hole and New Framing Members
If the area above the ceiling is NOT an attic, position
and secure the ceiling firestop on the ceiling side of
the previously cut and framed hole.
FIGURE 20. Ceiling Firestop (Ceiling Side)
If the area above the ceiling IS an attic, position and
secure the firestop on top of the previously framed hole.
C. Flue Termination
For Horizontal Terminations - To attach and secure
the termination to the last section of horizontal flue:
•The rear flue heat shield MUST be placed one inch
above the top of the flue between the wall shield and
the base of the termination cap.
•One section of the heat shield is attached to the wall
shield. The other is attached to the termination cap
in the same manner.
•The heat shield sections will overlap to match the
wall thickness (depth). The small leg in the shield
rests on top of the flue to properly space it from the
pipe section (see Figure 22).
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254mm)
10” (254mm)
FIGURE 22. Flueing through the Wall
EXTERIOR
INTERIOR
Interior
Wall Shield
Inner Flue
Rear Vent
Heat Shield
38mm min.
overlap
Outer Flue
38mm min.
Overlap
FIGURE 21. Attic Firestop
•The termination kit should pass through the wall
firestops from the exterior of the building.
•Adjust the termination cap to its final exterior posi-
tion on the building and interlock the flue sections.
WARNING: THE TERMINATION CAP
MUST BE POSITIONED SO THAT THE
ARROW IS POINTING UP.
•Use a high-temperature sealant gasket to seal be-
tween the pipe and exterior firestop.

16
FIGURE 24.
1.4 CONNECTING THE GAS SUPPLY
The gas is introduced to the appliance on the left hand
side. See Figure 24.
After the gas pipe installation is complete, check care-
fully all gas connections for leaks with a commercially-
available, non-corrosive leak check solution. Be sure
to rinse off all leak check solution following testing.
DO NOT USE AN OPEN FLAME.
NOTE: THE GAS SUPPLYLINE SHOULD BE
PURGED OF ANY TRAPPED AIR PRIOR TO THE
FIRST FIRING OF THE UNIT.
FIGURE 23. Termination Cap
For Vertical Terminations - To locate the flue and
install the flue sections:
•Locate and mark the flue center point on the under-
side of the roof, and drive a nail through the center
point.
•Make the outline of the roof hole around the center
point nail.
•The size of the roof hole framing dimensions depend
on the pitch of the roof. There MUST BE a 1-inch (25
mm) clearance from the vertical flue pipe to combus-
tible materials.
•Mark the roof hole accordingly.
•Cover the opening of the installed flue pipes.
•Cut and frame the roof hole.
•Use framing lumber the same size as the roof rafters
and install the frame securely. Flashing anchored to
the frame must withstand heavy winds.
•Continue to install concentric flue sections up through
the roof hole and up past the roof line until you reach
the appropriate distance above the roof.
CAUTION: FOLLOW THE REQUIREMENTS OF THE
AGA GAS INSTALLATION CODE FOR MINIMUM
HEIGHT REQUIREMENTS ABOVE THE ROOF.
To seal the roof hole, and to divert rain and snow from
the flue system:
•Attach a flashing to the roof using nails, and use a
non-hardening mastic around the edges of the flash-
ing base where it meets the roof.
•Attach a storm collar over the flashing joint to form a
water-tight seal. Place non-hardening mastic around
the joint, between the storm collar and the vertical
pipe.
•Slide the termination cap over the end of the flue
pipe and rotate the pipe clockwise 1/4 turn.
GAS LINE
ACCESS
1” (25mm)
7-1/2”
(192mm)
MINIMUM
u

17
FIGURE 25
NOTE: IF ANY OF THE ORIGINAL
WIRE AS SUPPLIED WITH THE
APPLIANCE MUST BE REPLACED,
IT MUST BE REPLACED WITH TYPE
105•C RATED WIRE.
FIGURE 26
WARNING: DO NOT CONNECT 220 VAC TO THE
GAS CONTROL VALVE OR CONTROL WIRING SYS-
TEM OF THIS MODEL.
NEUTRAL (BLUE)
BLUE
HOT (BROWN)
BROWN
BLACK
BLACK
JUNCTION BOX
FAN
BLUE
BROWN
YELLOW/GREEN
BLUE
BRN
YW/GR
BLK
BLK
TEMP. SENSOR
SWITCH
BLK
BLK
SPEED CONTROL
FAN WIRING DIAGRAM
BLK
BLK
YELLOW/GRN
YELLOW/GRN
BLUE
BRN
BRN
BLUE
GRD
BLUE
JUNCTION BOX DETAIL
FAN
TEMPERATURE
SENSOR SWITCH
FAN SPEED
CONTROL
JUNCTION BOX
1.5 FAN
These heaters have a factory installed Fan, Electrical
Junction Boxes, variable speed Rheostat Control Switch
and Temperature Sensor Switch for the fan. These com-
ponents are located behind the lower grille.
Use of the fan requires that the Junction Box (factory
installed) be connected to 240 VAC service before per-
manently enclosing the heater. The factory installed
power cord is attached on the lower front right exterior
side of the heater. Figure 25 shows the fan, switches,
and fan wiring diagram. See Figure 26 for wire connec-
tion detail.

18
FIGURE 28.
FIGURE 27.
1.6 MANTEL CLEARANCES
Clearance to a mantelpiece is 12-inches (305mm). See
Figure 27.
NOTE: ALL DIMENSIONS ARE
SHOWN IN MILLIMETERS.
IF JOINTS BETWEEN THE FINISHED WALLS AND
THE FIREPLACE SURROUND (TOP AND SIDES)
ARE SEALED, A 150° C. MINIMUM SEALANT
MATERIAL MUST BE USED. THESE JOINTS ARE
NOT REQUIRED TO BE SEALED. ONLYNON-
COMBUSTIBLE MATERIAL (USING 150° C.
MINIMUM ADHESIVE, IF NEEDED) CAN BE
APPLIED AS FACING TO THE FIREPLACE
SURROUND. SEE FIGURE 28.
89
127
152
178
203
254
279
5176
102
127
305
279
254
229
203
178
152
TOP FRONT EDGE
OF FIREPLACE
38
25 76
102
114
229
0
FINISH WALL MATERIAL MAY BE
COMBUSTIBLE - TOP AND SIDES
0
0
NON-COMBUSTIBLE
BOARD

19
1.7 LOG PLACEMENT INSTRUCTIONS
Carefully remove the logs from the packaging. CAUTION: Logs are fragile!
LOG #1 (SRV2022-701): Locate log #1 on grate with notches and push log against rear log locators.
LOG #2 (SRV382-702): Locate log #2 on grate with notches. Slide left end of log forward and right side back
against tab.
Log Assembly: LOG-6TRS-AUB
1
22
LOG #3 (SRV382-703): Locate log #3 on grate with notches. Slide back against the tabs.
33
TABS LOG LOCATORS
TABS

20
LOG #4 (SRV675-723): Place log #4 between log #2 and grate tab. Rest the right end on top of log #2.
LOG #5 (SRV382-705): Place bottom of log #5 between the 4th and 5th grate bars and rest the top onto log #1.
LOG #6 (SRV438-724): Place the "Y" shaped part of log #6 over the 3rd grate bar. Rest the tip of the log against
log #1 and log #5.
66
55
44
