Heat-N-Glo SL-950TR-C Assembly instructions

1
- Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
oranyotherappliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Donotuseanyphoneinyourbuilding.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
thefiredepartment.
- Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
Models:
SL-950TR-C
SL-750TR-C
SL-550TR-C
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
530-985N 4/04
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THISAPPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1.This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyfor usewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
Please contact your Heat-N-Glo dealer with any
questionsor concerns. For the number ofyour nearest
Heat-N-Glodealer, pleasecall 1-888-427-3973.
Printed in U.S.A. Copyright 2004,
Heat-N-Glo,a brand of Hearth & HomeTechnologiesInc.
20802Kensington Boulevard, Lakeville,MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY,A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
These unitsMUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide.NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside andMUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas applianceMUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of theOwners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should bePERFORMED by a
qualified service person. The appliance and venting
system should beINSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It isIMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEANto provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACEDon or near the
appliance.
Children and adults should beALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should beCAREFULLY SUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
TABLE OF CONTENTS
Safety and Warning Information ......................................................... 2
Service Parts Lists................................................................................. 4
Section 1: Approvals and Codes........................................................ 10
ApplianceCertification ........................................................................... 10
InstallationCodes .................................................................................. 10
HighAltitudeInstallations ...................................................................... 10
Section 2: Getting Started .................................................................. 11
Introducingthe Heat-N-Glo Gas Fireplaces............................................ 11
Pre-installationPreparation .................................................................... 11
Section 3: Installing the Fireplace..................................................... 15
Constructingthe Fireplace Chase .......................................................... 15
Step 1 Locating the Fireplace........................................................... 15
Step 2 Framing the Fireplace ........................................................... 16
Step 3 Installing the Vent System .................................................... 19
A. Vent SystemApprovals ................................................... 19
B. Installing Vent Components............................................. 29
C. VentTermination.............................................................. 32
Step 4 Positioning, Leveling, and
Securingthe Fireplace .......................................................... 35
Step 5 The Gas Control Systems ..................................................... 35
Step 6 TheGasSupplyLine............................................................. 36
Step 7 Gas Pressure Requirements................................................. 36
Step 8 Wiringthe Fireplace .............................................................. 37
Step 9 Finishing ............................................................................... 39
Step10 InstallingTrim, Logs,and EmberMaterial ............................. 40
Installingthe Trim.................................................................. 40
RemovingGrateShippingSupport........................................... 40
Positioningthe Logs ............................................................. 40
Shutter Settings.................................................................... 40
Placing the Ember Material................................................... 40
GlassSpecifications ............................................................. 40
Step 11 Before Lighting the Fireplace................................................. 41
Step 12 Lighting theFireplace............................................................ 41
Afterthe Installation ............................................................................... 41
Section 4: Maintaining and Servicing Your Fireplace .................... 42
= Containsupdated information.



10
1Approvals and
Codes
NOTE: THESE MODELS ARE UL LISTED TO UL307B,
THE STANDARD FOR GAS-BURNING HEATING APPLI-
ANCES FOR MANUFACTURED HOMES AND RECRE-
ATIONAL VEHICLES.
Installation Codes
Thefireplace installation must conform to local codes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(inthe United States), or tothe CSA C22.1 Canadian Electric
Code (in Canada).
These models may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
Heat-N-Glo Quality
Systems registered
by SGS ICS
Appliance Certification
The Heat-N-Glo fireplace models discussed in thisInstallers
Guide have been tested to certification standards and listed
by the applicable laboratories.
Certification
MODELS: SL-950TR-C, SL-750TR-C, SL-550TR-C
LABORATORY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD: ANSI Z21.88•CSA2.33•UL307B
High Altitude Installations
U.L. Listed gas appliances are tested and approved without
requiring changes for elevations from 0 to 2,000 feet in the
U. S. A. and in Canada.
When installing this appliance at an elevation above 2,000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating value
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.

11
2Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glo direct vent gas fireplaces are designed to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control

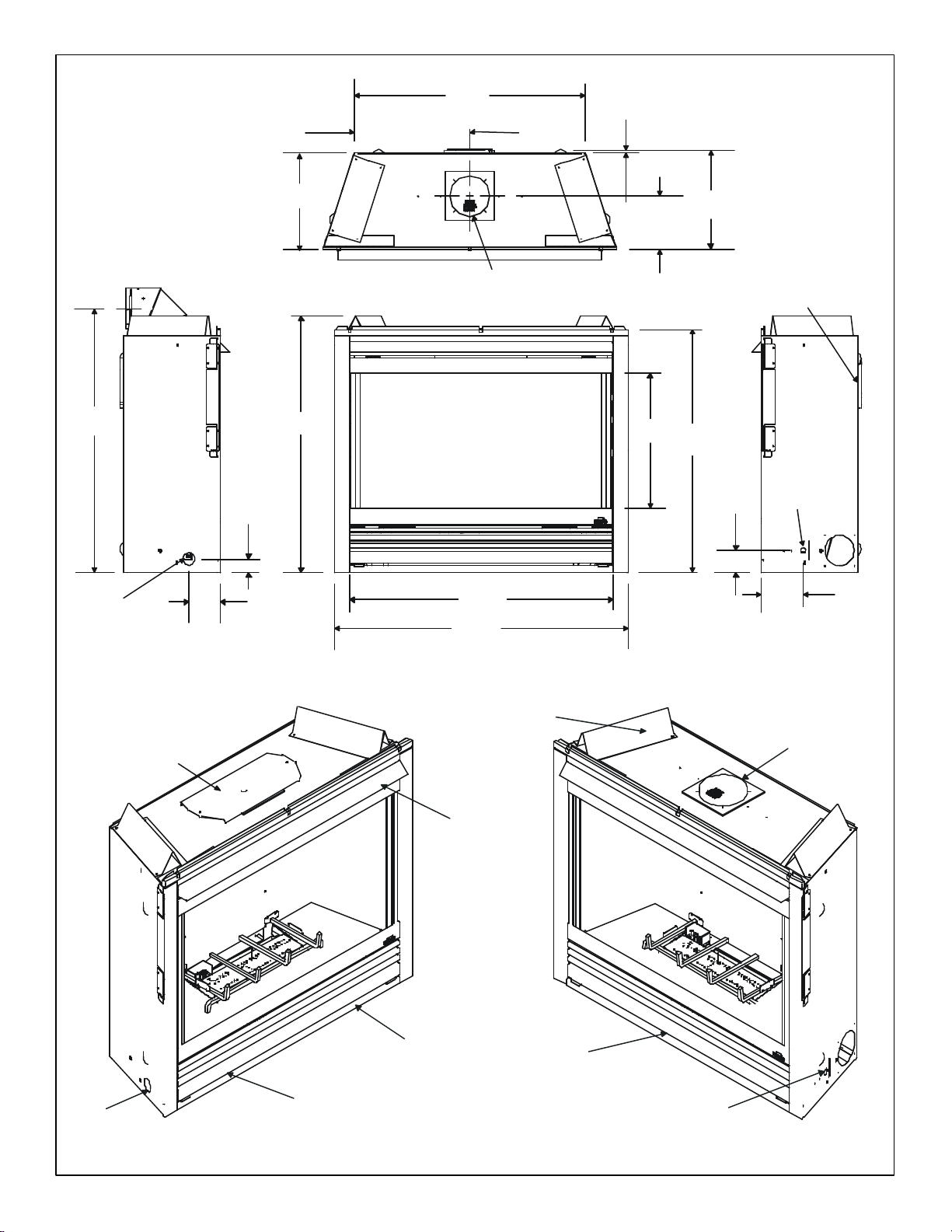

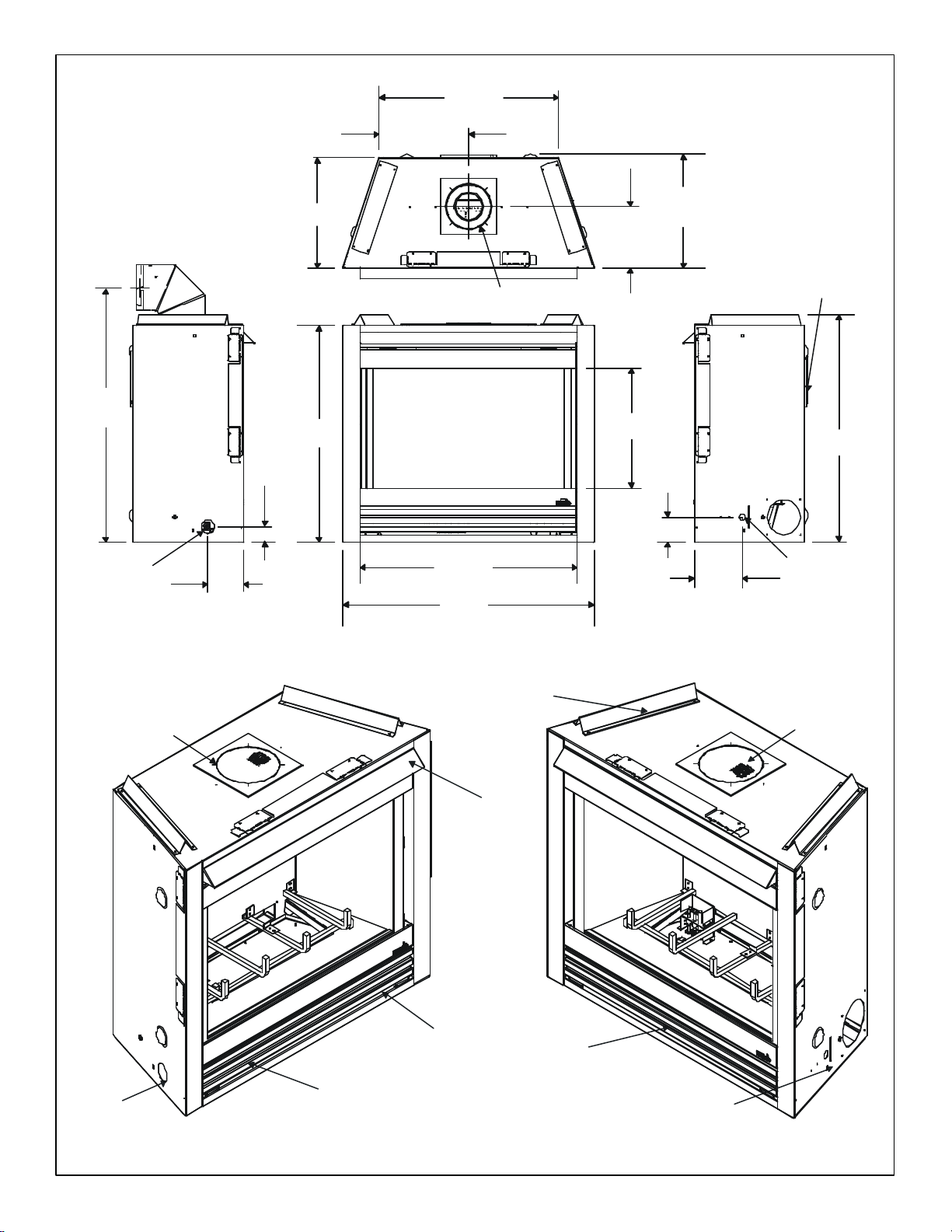

systems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-install Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs are packaged
separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
The Heat-N-Glo Warranty will be voided by, and Heat-N-Glo
disclaims any responsibility for, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Heat-N-Glo.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not manu-
factured and approved by Heat-N-Glo, not withstanding
any independent testing laboratory or other party approval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

12
Figure 1. Diagram of the SL-950TR-C
Ø8
[203mm]
ELECTRICAL
ACCESS
GAS LINE
ACCESS 6-7/8
(174mm)
3-9/16
(90mm)
39-5/8
(1007mm)
22
(559mm)
43
(1092mm)
48
(1218mm)
41-7/8
(1063mm)
43
(1092mm)
2-3/16
(55mm)
5-1/16
(129mm)
Ø6-5/8
[168mm]
37-5/8
(956mm0
18-7/8
(478mm)
1/2
(13mm)
16-1/4
(414mm)
8-3/4
(223mm)
15-11/13
(402mm)
RATING PLATE/LABELS
GAS
ACCESS GAS
CONTROLS
HOOD
CERAMIC
FIBER PAD
BOTTOM
GRILLE COVER
ELECTRICAL
ACCESS
VENT
COLLARS
TOP STANDOFFS

13
Figure 2. Diagram of the SL-750TR-C
GAS
LINE
ACCESS 5 1/16
(129mm)
2 3/16
(55mm)
34 5/8
(879mm)
30 3/4
(781mm)
15 3/8
(391mm)
15 7/8
(403mm)
36 1/8
(917mm)
40 7/8
(1039mm)
3 9/16
(90mm)
ELECTRICAL
ACCESS
37 7/8
(961mm)
Ø8
(203mm)
Ø 6 5/8
(168mm)
16 3/8
(416mm)
8 13/16
(224mm)
1/2
(13mm)
20 3/4
(526mm)
6 7/8
(174mm)
40
(1016mm)
RATING PLATE/LABELS
GAS
ACCESS GAS
CONTROLS
HOOD
CERAMIC
FIBER PAD
BOTTOM
GRILLE COVER
ELECTRICAL
ACCESS
VENT
COLLARS
TOP STANDOFFS

14
Figure 3. Diagram of the SL-550TR-C
25 3/4
(653mm)
12 7/8
(326mm)
15 7/8
(402mm) 8 13/16
(223mm)
16 3/8
(414mm)
31 1/8
(790mm)
2 3/16
(55mm)
5 1/16
(129mm)
GAS LINE
ACCESS 31
(790mm)
36
(913mm)
6 7/8
(174mm)
ELECTRICAL
ACCESS
32 9/16
(828mm)
Ø8
(203mm)
Ø6 5/8 (168mm)
17 1/4
(438mm)
3 9/16
(90mm)
36 7/16
(925mm)
BOTTOM
GRILLE COVER
ELECTRICAL
ACCESS
VENT
COLLARS
TOP STANDOFFS
RATING PLATE/LABELS
GAS
ACCESS
GAS
CONTROLS
HOOD
CERAMIC
FIBER PAD

15
3Installing the Fireplace
Step 1. Locating the Fireplace
Space and clearance requirements for locating a fireplace
within a room (see Figure 4).
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ................................... 36........914
Floor ..............................................0.......... 0
Rear .............................................1/2 ........13
Sides ............................................1/2 ........13
Top (SL-550TR-C) ....................... 1 1/2 .......38
(SL-750TR-C & SL-950TR-C) . 3 1/4 .......83
Ceiling* ......................................... 31........787
For minimum clearances, see the direct vent termination
clearance diagrams in Figures 29 and 30 in this manual.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............ 1 ............... 25
Horizontal Sections
Top .................................. 3 ............... 75
Bottom............................. 1 ............... 25
Sides ............................... 1 ............... 25
At Wall Firestops
Top ................................2 1/2............63.7
Bottom............................ 1/2.............. 13
Sides ............................... 1 ............... 25
* The clearance to the ceiling is measured from the top
of the unit, excluding the standoffs (see Figure 38).
The distance from the unit to combustible construction is to
be measured from the unit outer wrap surface to the com-
bustible construction, NOT from the screw heads that se-
cure the unit together.
1/2 “ MIN. (13mm)
C
3” MIN.
(
76mm
)
A
B
D
E
Clearance Requirements
The top and back of the fireplace are defined by stand-offs.
The minimum clearance to a perpendicular wall extending
past the face of the fireplace is 3 inches (76mm). The back
of the fireplace may be recessed 16 1/4 inches (413mm)
into combustible construction.
Figure 4. Fireplace Dimensions, Locations,
and Space Requirements
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gas fireplace and/or its vent system. Vertical vents that run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOP SPACERS AND
CONSTRUCTION OF THE CHASE MAY VARY WITH THE
TYPE OF BUILDING. THESE INSTRUCTIONS ARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDING CODES. THEREFORE, YOUR LOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.
Factory-built fireplace chases should be constructed in the
manner of all outside walls of the home to prevent cold air
drafting problems. The chase should not break the outside
building envelope in any manner.
This means that the walls, ceiling, base plate and cantilever
floor of the chase should be insulated. Vapor and air infiltra-
tion barriers should be installed in the chase as per regional
codes for the rest of the home. Additionally, Heat-N-Glo rec-
ommendsthat theinside surfacesbe sheetrockedand taped
for maximum air tightness.
To further prevent drafts, the firestops should be caulked to
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room. Be sure to include spark arrestors for
woodburning units if they are required.
THE CHASE SHOULD BE CONSTRUCTED SO THAT ALL
CLEARANCES TO THE FIREPLACE ARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.
NOTE: For SL-950TR-C ONLY: When venting with a 900
elbow as the first vent component, an area 3” above the
horizontal vent, the entire width and depth of the firebox
must be free of combustibles (see Figure 5).
*NOTE:If venting with (2) 900elbows off rear of unit
the dimensions C, D, and E, will change.
MODEL VENTING A B C D E
SL-950TR-C Top 49 16-1/4 35-3/8 50 70-3/4
Rear 49 16-1/4 40-1/8 57 80-1/4
SL-750TR-C Top 42 16-1/4 31-7/8 45 63-3/4
Rear 42 16-1/4 36-5/8 52 73-1/4
SL-550TR-C Top 37 16-1/4 29-3/8 41-1/2 58-3/4
Rear 37 16-1/4 34-1/8 48-1/2 68-1/4
*
*
*

16
Figure 5. Framing Dimensions
Framing should be
constructed of 2 X 4
lumberor heavier.
WARNING:
To ensure proper clearances the
frontframingheadermustbeinstalled
onitsnarrowedgeandtothefrontof
the frame.
The framing headers
may rest on the
fireplace stand-offs.
VENT
FRAMING
HOLE
ED
Model A B C D E
SL-950TR-C 49” 421/4” 16 1/4” 44” 317/8”
SL-750TR-C 42” 38 1/4” 16 1/4” 41” 27 7/8”
SL-550TR-C 37” 33” 16 1/4” 36 1/2” 24 3/8”
A
B
C

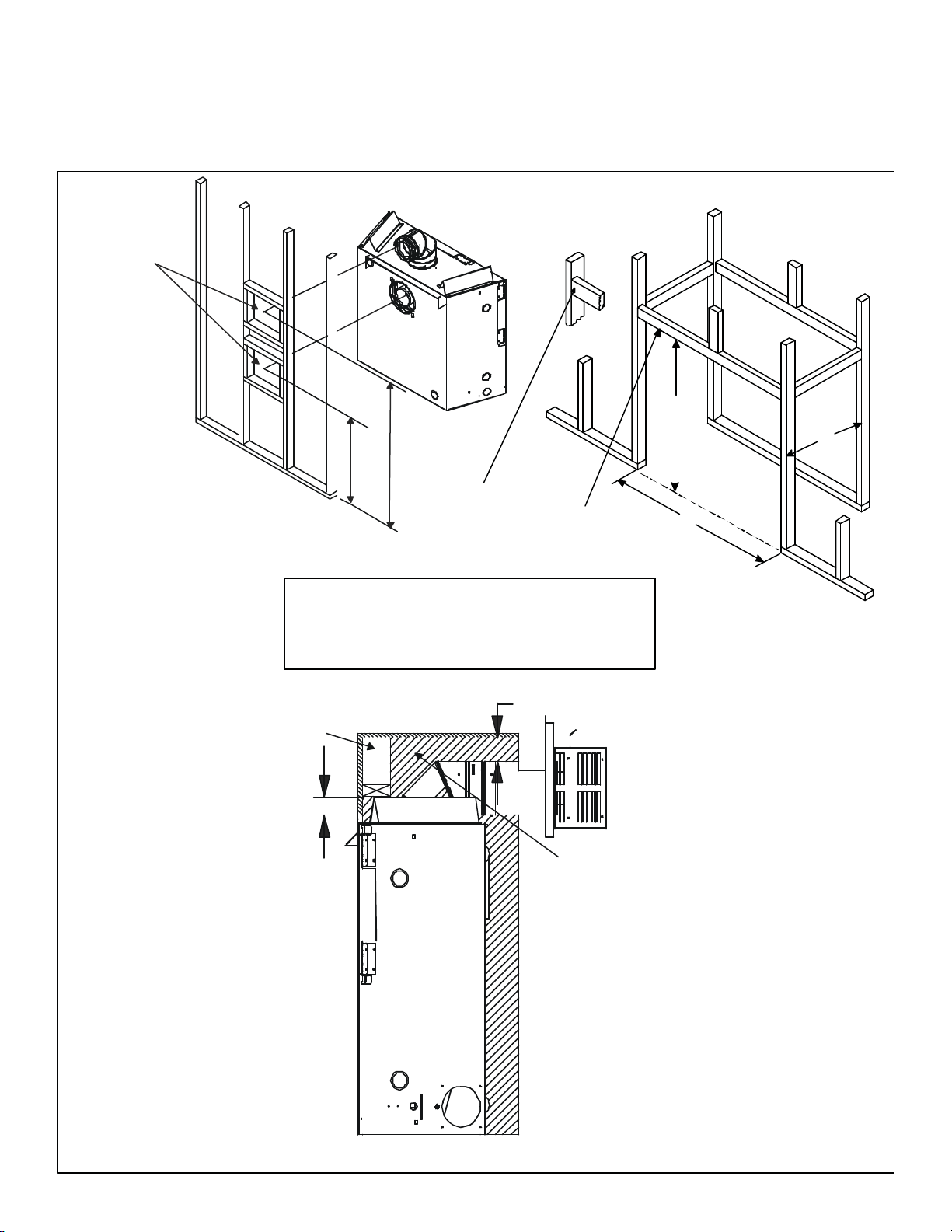

Step 2. Framing the Fireplace
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
gram below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
WALL STUD
FOR SL-950TR-C ONLY:
NON-COMBUSTIBLE ZONE
IS DEFINED BY 3” ABOVE THE
ELBOW FOR THE ENTIRE
WIDTH AND DEPTH (BEHIND THE
FRONT HEADER) OF THE FIREBOX.
3”
2-1/4”
The center of the
framing hole is one
(1) inch (25.4mm)
above the center of
the horizontal vent
pipe.

17
NOTE: PIPES OVERLAP 1-1/4 INCHES
(34.93mm) AT EACH JOINT.

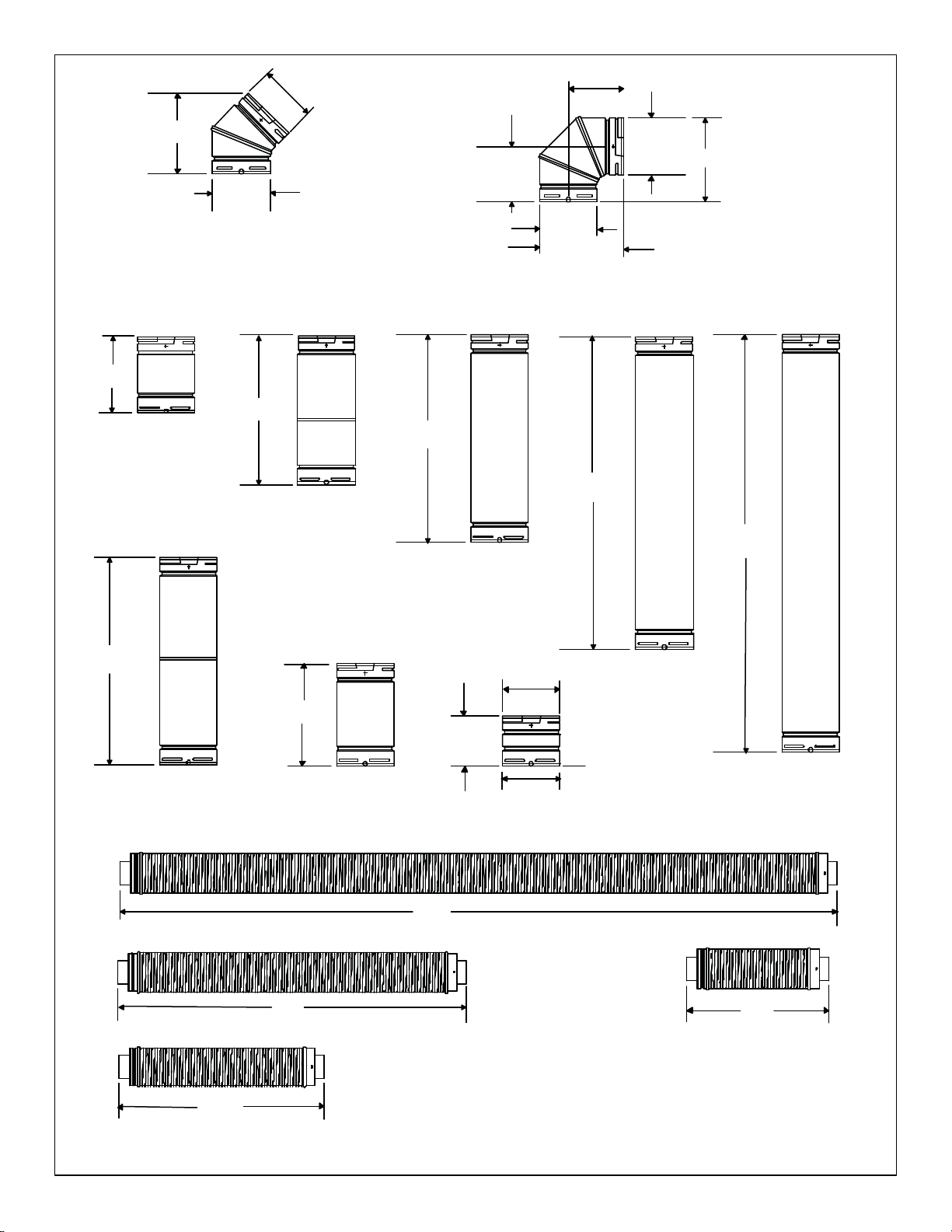

Figure 6. DVP-Series Direct Vent Component Specifications (5-inch inner pipe / 8-inch outer pipe)
DVP90ST
12-9/16
11-1/4
7-1/4
1-1/4 TYP
1/2 TYP8-9/16
DVP36
DVP48
48
24
36
4
6
DVP4
DVP6
12
DVP12
2
MIN.
DVP12A
12-3/16
MAX.
DVP24
9-7/8
45.0
O
10-1/4
DVP45
14-1/4

18
NOTE: PIPES OVERLAP 1-3/8 INCHES
(34.93mm) AT EACH JOINT.
Figure 7. SL D-Series Direct Vent Component Specifications (4-inch inner pipe / 6 5/8-inch outer pipe)
120”
(3048mm)
24”
(610mm)
36”
(914mm)
60”
(1524mm)
9 1/4
6 5/8
6 1/2 6 3/8
6 1/2 9 5/8
9 5/8
6 5/8
6 3/8
8 3/4
SL-09D
12-17
SL-12/17D (SL12-17D) SL-24D SL-36D SL-48D
47 3/4
35 3/4
23 3/4
SL-45D
SL-90D
SL-17/24D
(SL17-24D)
17-24
SL-06D
SL-12D
5 3/4
6 5/8
6 1/2
11 3/4
SL-FLEX-2
SL-FLEX-10
SL-FLEX-5
SL-FLEX-3

19
!

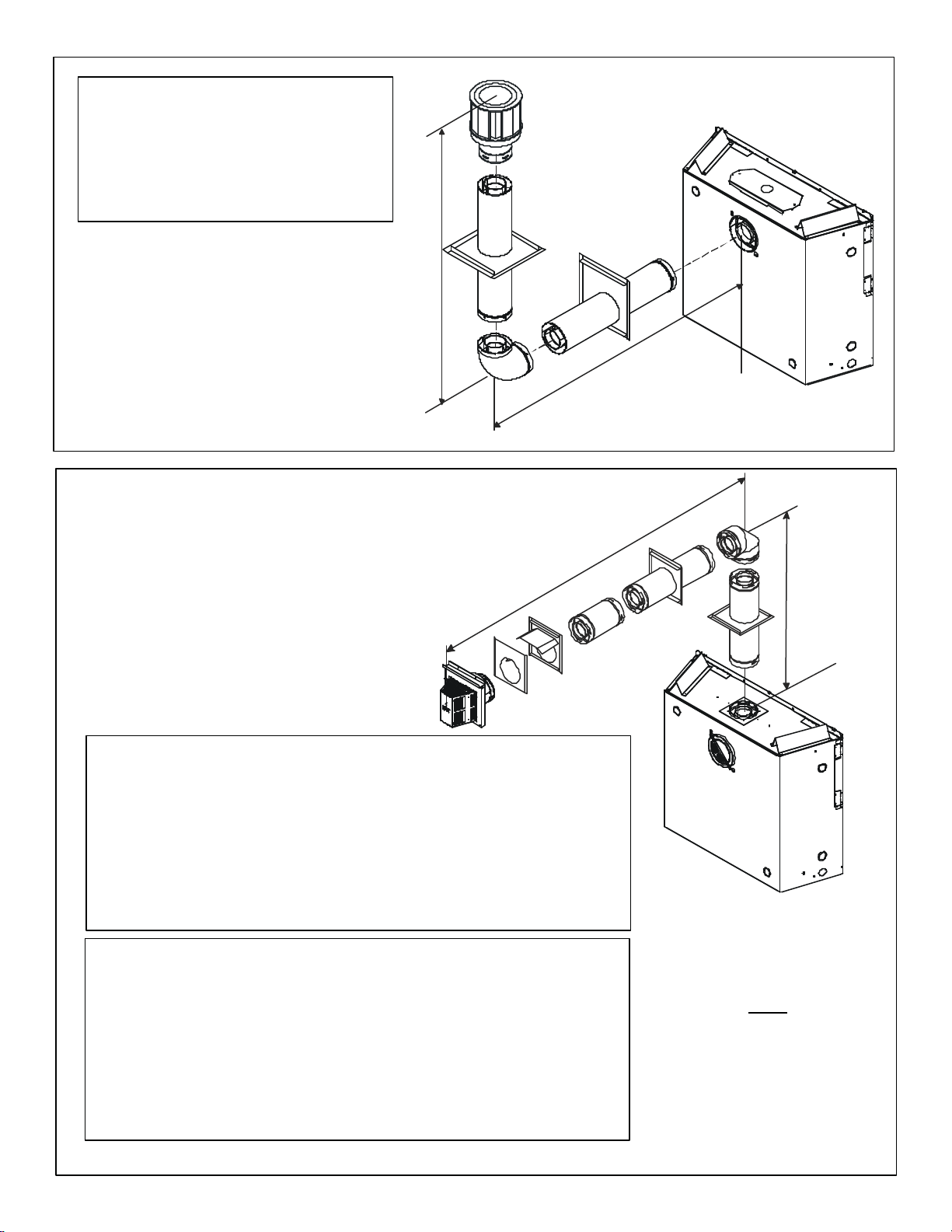

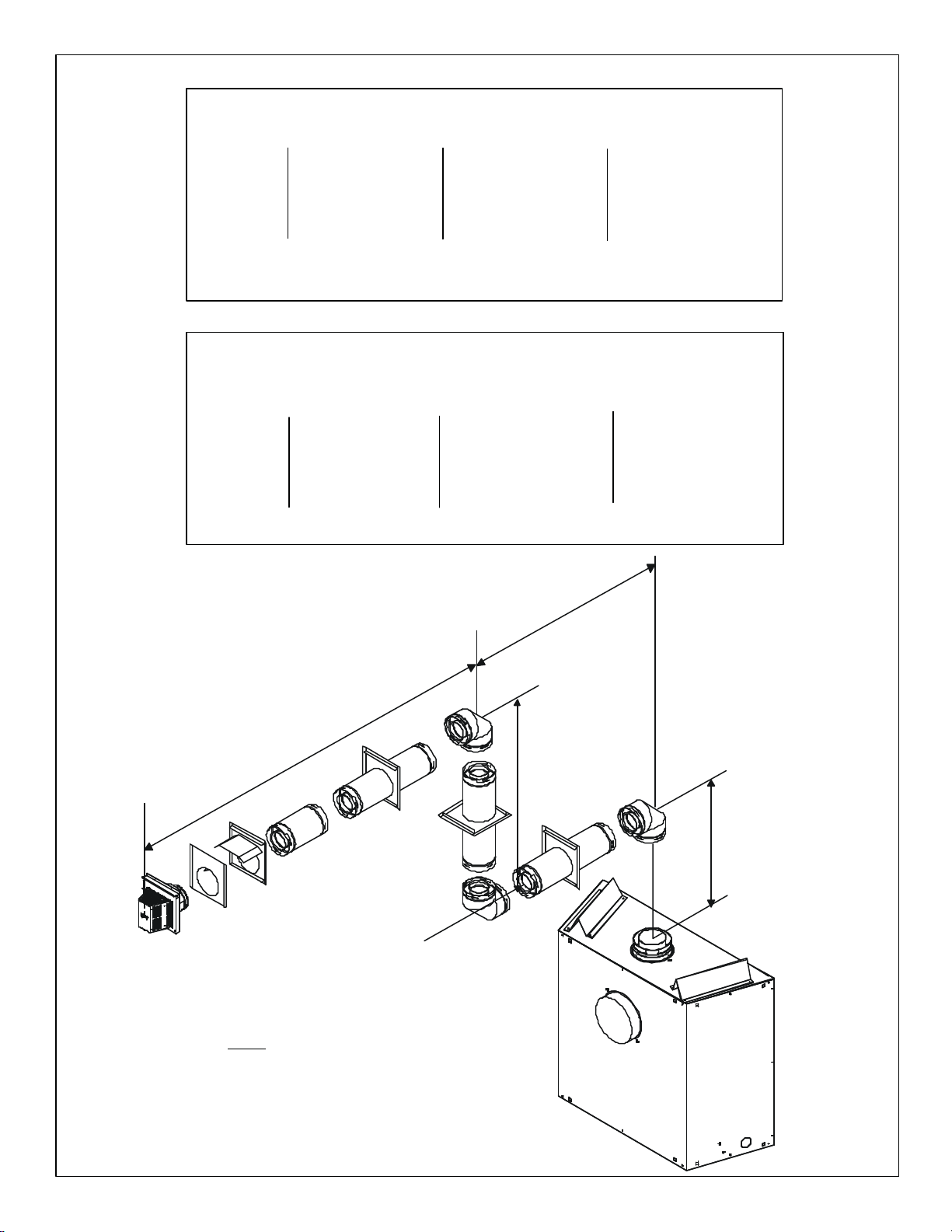

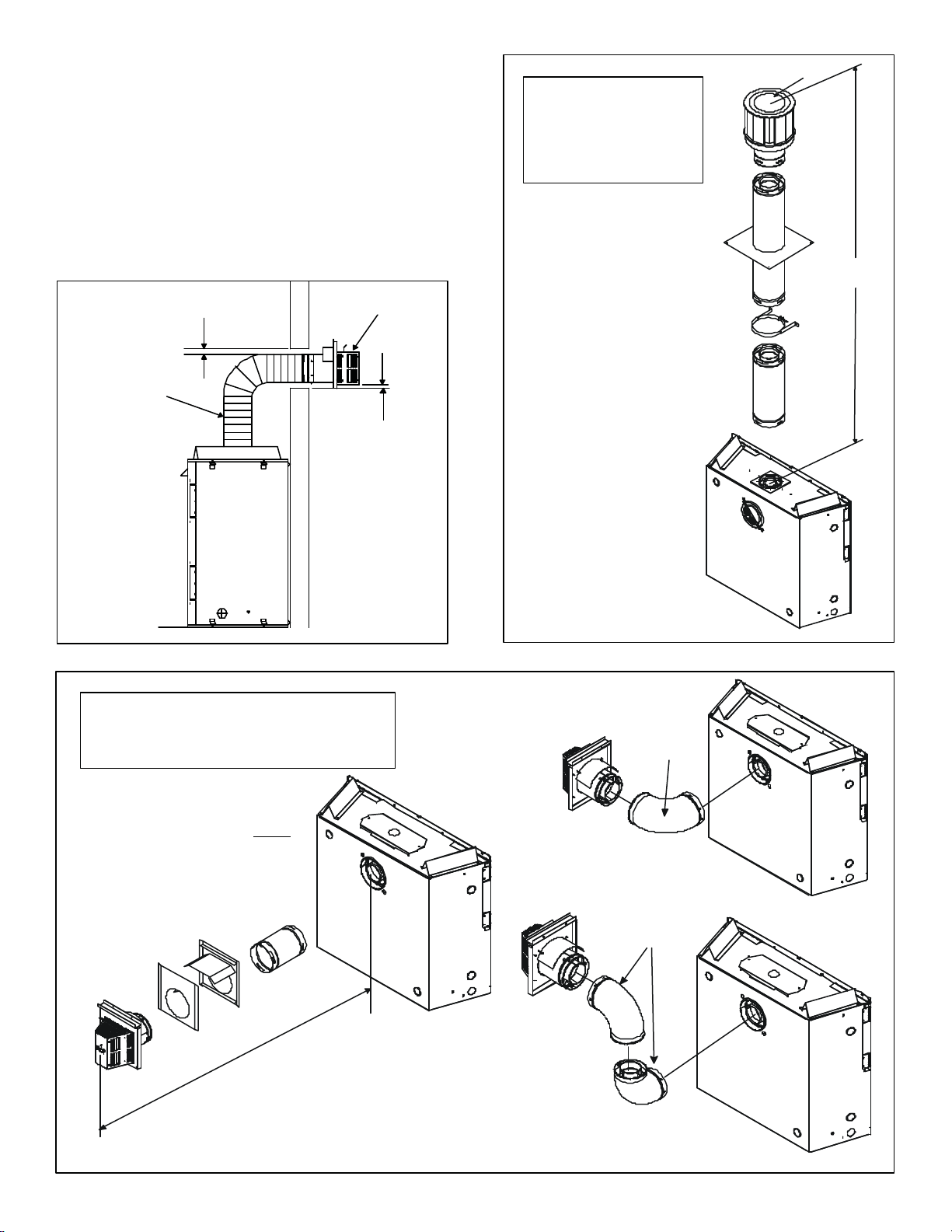

Step 3. Installing the Vent System
A. Vent System Approvals
These models have vent starting collars on both the top
and the back of the unit. Depending upon the installation,
decide which ONE set of starting collars will be used to
attach the vent system. The starting collar sealing cap must
remain on the starting collar NOT used.
These models use SL-D-series, direct vent components
when using the TOP vent collars. This pipe is tested and
listed as an approved component of the fireplace. The pipe
is tested to be run inside an enclosed wall. There is no
requirement for inspection openings at each joint within the
wall. There is no required pitch for horizontal vent runs.
These models also use DVP-series direct vent components
when using the REAR vent collars.
The flame and ember appearance may vary based on the
type of fuel burned and the venting configuration used.
WARNING: YOU MUST NOT MIX DVP-SERIES
ANDSLD-SERIES COMPONENTS IN ANY VENT
SYSTEM CONFIGURATION.
Identifying Vent Components
Approved vent system components are labeled for identifi-
cation. NO OTHER VENTING SYSTEMS OR COMPO-
NENTS MAY BE USED. Detailed installation instructions
are included with each vent termination kit and should be
used in conjunction with this Installers Guide. Figure 8
shows vent system components and terminations.
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90° elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
and tables. Refer to the diagrams on the next several pages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Maximum and minimum rise to run ratios
must always be maintained in the vent system when
using 45° elbows.

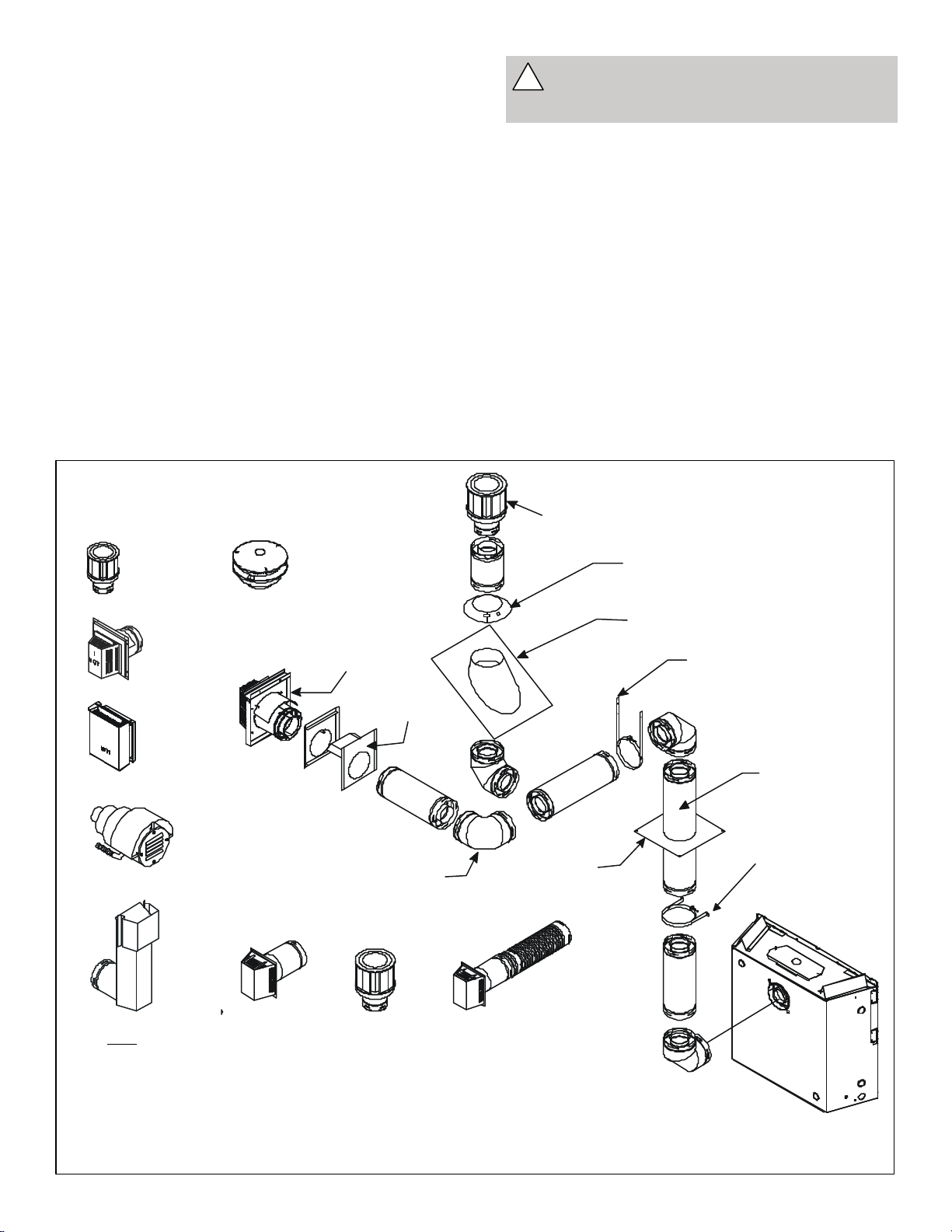

Figure 8. Vent System Components and Termination Kits
Vent System Termination Kits Vent System Components
* For use with flex vent only.
** For use on IPI units only.
HORIZONTAL
TERMINATION
WALL
FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALLBRACKET
CEILING
FIRESTOP
SLK-991DA
SLK-01TRD
SLK-01TRF
DVP-TVHW
SL D-SERIES
DVP-SERIES
SL-FLEX2-01TRF
(SL-Series)
(SL-Series)
DVP-TRAP
DVP-TB1
DVP-TV
PVK-80
SLK-SNKD *
**
(Required
to have a
minimum of 3
feet of vertical
in the vent
system)
(There MUST be a 25%
reduction in total H
when using the snorkel
cap except when using
the simple up and out
installation (see Fig. 9)
(For use with both DVP
and SL-D venting)

20
STRAIGHT UP
VERTICAL VENTING
V (FT.)
45' MAX.
Figure 10.
Straight up Vertical Venting
Use SL D-Series
components only.
NOTE: For vertical venting
over 20 feet a restrictor
plate is recommended for
improvedflameappearance.
Figure 9.
Flex Vent
The flex vent must be supported with the spacing between
support intervals not exceeding 4 feet, with no more than ½
inch sag between supports.
A support is required at each change in venting direction,
and in any location where it is necessary to maintain the
necessary clearance to combustibles. A simple “up and out”
installation (Figure 9) requires only enough support to main-
tain the necessary clearance to combustibles. However, the
vent attachment point and the firestop location are consid-
ered to be supports.
3” CLEARANCE TERMINATION
CAP
FLEX-VENT
1”
CLEARANCE
V
CAP
STRAIGHT OUT HORIZONTAL VENTING
H
Max. Run
36" (914 mm)
Use DVP-Series
components only.
Figure 11. Straight Out Horizontal Venting
Note: You may use a 45oelbow in
corner installations for models SL-
550TR-C and SL-750TR-C ONLY.
Use two 90oelbows for corner
installations on SL-950TR-C.
For corner installation of models SL-
550TR-C and SL-750TR-C ONLY.
45-DEGREE
ELBOW
H
90-DEGREE
ELBOWS
For corner
installation of
model SL-950TR-C.
The use of two 900
elbows in a corner
installation will affect space
requirements (see Fig. 4)

21
Figure 13. Venting with One 90° Elbow - TR-C Models
Use SL D-Series
components only.
MODEL SL-550TR-C
V (MIN.) H (MAX.)
90oElbow on Top 2.5 FT (863mm)
1 FT (305mm) 3 FT (914mm)
2 FT (610mm) 4 FT (1.22m)
3 FT (914mm) 6 FT (1.86m)
4 FT (1.22m) 8 FT (2.48m)
5 FT (1.52m) 16 FT (4.8m)
VENTING WITH ONE (1) 90oELBOW NATURAL GAS
H MAX. = 16 FT (4.8m) V + H MAX. = 40 FT (12.2m)
MODEL SL-750TR-C MODEL SL-950TR-C
H (MAX.) H (MAX.)
2.5 FT (863mm) 2 FT (610mm)
3 FT (914mm) 3 FT (914mm)
4 FT (1.22m) 4 FT (1.22m)
6 FT (1.86m) 6 FT (1.86m)
8 FT (2.48m) 8 FT (2.48m)
16 FT (4.8m) 16 FT (4.8m)
MODEL SL-550TR-C
V (MIN.) H (MAX.)
90oElbow on Top 2.5 FT (863mm)
1 FT (305mm) 2.5 FT (863mm)
2 FT (610mm) 4 FT (1.22m)
3 FT (914mm) 6 FT (1.86m)
4 FT (1.22m) 8 FT (2.48m)
5 FT (1.52m) 16 FT (4.8m)
VENTING WITH ONE (1) 90oELBOW PROPANE
H MAX. = 16 FT (4.8m) V + H MAX. = 40 FT (12.2m)
MODEL SL-750TR-C MODEL SL-950TR-C
H (MAX.) H (MAX.)
NOTALLOWED NOTALLOWED
2 FT (610mm) 2 FT (610mm)
4 FT (1.22m) 4 FT (1.22m)
6 FT (1.86m) 6 FT (1.86m)
8 FT (2.48m) 8 FT (2.48m)
16 FT (4.8m) 16 FT (4.8m)
H
V
NOTE: There MUST be a 25%
reduction in total H when using
flex vent except when using
the simple up and out installa-
tion (see Figure 9).
V H
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m)
H = 8' MAX. (2.4m)
Figure 12. Venting with One 90° Elbow
Use DVP-Series
components only.
V
H

22
VH H+H
1
1' MIN. (305 mm) 2' MAX. (610 mm) 4' MAX. (1.22m)
2' MIN. (610 mm) 4'MAX. (1.22 m) 8'MAX.(2.4m)
3' MIN. (914 mm) 6'MAX. (1.86 m) 12' MAX. (3.6m)
4' MIN. (1.22 m) 8' MAX. (2.48 m) 16' MAX. (4.8m)
V+H+H 1 = 40' MAX. (12.4 m) H = 8' MAX. (2.48 m) H+H
1
= 16' MAX. (4.8m)
Figure 14. Venting with Two 90° Elbows
V (FT) H + H1(FT)
1' MIN. (305 mm) 2' MAX. (610 mm)
2' MIN. (610 mm) 4'MAX. (1.22 m)
3' MIN. (914 mm) 6'MAX. (1.86 m)
4' MIN. (1.22 m) 8' MAX. (2.48 m)
H + H1= 8' MAX. (2.48 m)
V + H + H1= 40' (12.2m) MAX.
Use DVP-Series
components only.
V
H
H
1
H
1
V
H

23
Figure 15. Venting with Two 90° Elbows - TR-C Models
MODEL SL-550TR-C
V (MIN.) H + H1(MAX.)
90oElbow on Top 2.5 FT (863mm)
1 FT (305mm) 3 FT (914mm)
2 FT (610mm) 4 FT (1.22m)
3 FT (914mm) 6 FT (1.86m)
4 FT (1.22m) 8 FT (2.48m)
5 FT (1.52m) 16 FT (4.8m)
VENTING WITH TWO (2) 90oELBOWS NATURAL GAS
H + H1MAX. = 16 FT (4.8m) V + H + H1MAX. = 40 FT (12.2m)
MODEL SL-750TR-C MODEL SL-950TR-C
H + H1(MAX.) H + H1(MAX.)
2.5 FT (863mm) 2 FT (610mm)
3 FT (914mm) 3 FT (914mm)
4 FT (1.22m) 4 FT (1.22m)
6 FT (1.86m) 6 FT (1.86m)
8 FT (2.48m) 8 FT (2.48m)
16 FT (4.8m) 16 FT (4.8m)
MODEL SL-550TR-C
V (MIN.) H + H1(MAX.)
90oElbow on Top 2.5 FT (863mm)
1 FT (305mm) 2.5 FT (863mm)
2 FT (610mm) 4 FT (1.22m)
3 FT (914mm) 6 FT (1.86m)
4 FT (1.22m) 8 FT (2.48m)
5 FT (1.52m) 16 FT (4.8m)
VENTING WITH TWO (2) 90oELBOWS PROPANE
H + H1MAX. = 16 FT (4.8m) V + H + H1MAX. = 40 FT (12.2m)
MODEL SL-750TR-C MODEL SL-950TR-C
H + H1(MAX.) H + H1(MAX.)
NOTALLOWED NOTALLOWED
2 FT (610mm) 2 FT (610mm)
4 FT (1.22m) 4 FT (1.22m)
6 FT (1.86m) 6 FT (1.86m)
8 FT (2.48m) 8 FT (2.48m)
16 FT (4.8m) 16 FT (4.8m)
V
H
H
1
NOTE: There MUST be a 25% reduction
in total H when using flex vent except
when using the simple up and out
installation (see Figure 9).
Use SL D-Series
components only.

24
Figure 16. Venting with Two 90° Elbows - TR-C MODELS
MODEL SL-550TR-C
V (MIN.) H (MAX.)
90oElbow on Top 2.5 FT (863mm)
1 FT (305mm) 3 FT (914mm)
2 FT (610mm) 4 FT (1.22m)
3 FT (914mm) 6 FT (1.86m)
4 FT (1.22m) 8 FT (2.48m)
5 FT (1.52m) 16 FT (4.8m)
VENTING WITH TWO (2) 90oELBOWS NATURAL GAS
H MAX. = 16 FT (4.8m) V + V1+ H MAX. = 40 FT (12.2m)
MODEL SL-750TR-C MODEL SL-950TR-C
H (MAX.) H (MAX.)
2.5 FT (863mm) 2 FT (610mm)
3 FT (914mm) 3 FT (914mm)
4 FT (1.22m) 4 FT (1.22m)
6 FT (1.86m) 6 FT (1.86m)
8 FT (2.48m) 8 FT (2.48m)
16 FT (4.8m) 16 FT (4.8m)
MODEL SL-550TR-C
V (MIN.) H (MAX.)
90oElbow on Top 2.5 FT (863mm)
1 FT (305mm) 2.5 FT (863mm)
2 FT (610mm) 4 FT (1.22m)
3 FT (914mm) 6 FT (1.86m)
4 FT (1.22m) 8 FT (2.48m)
5 FT (1.52m) 16 FT (4.8m)
VENTING WITH TWO (2) 90oELBOWS PROPANE
H MAX. = 16 FT (4.8m) V + V1+ H MAX. = 40 FT (12.2m)
MODEL SL-750TR-C MODEL SL-950TR-C
H (MAX.) H (MAX.)
NOTALLOWED NOTALLOWED
2 FT (610mm) 2 FT (610mm)
4 FT (1.22m) 4 FT (1.22m)
6 FT (1.86m) 6 FT (1.86m)
8 FT (2.48m) 8 FT (2.48m)
16 FT (4.8m) 16 FT (4.8m)
Use SL D-Series components only.
H
V
V
1
NOTE: There MUST be a 25%
reduction in total H when using
flex vent except when using
the simple up and out installa-
tion (see Figure 9).

25
Figure 17. Venting with Three 90° elbows
1' MIN. (305 mm) 2' MAX. (610mm) 4' MAX. (1.22m)
2' MIN. (610 mm) 4' MAX. (1.22m) 8' MAX. (2.48m)
3' MIN. (914 mm) 6' MAX. (1.86m) 12'MAX.(3.72m)
4'MIN.(1.22 m) 8' MAX. (2.48m) 16' MAX. (4.8m)
V1+V+H+H1= 40' MAX. (12.4m)
H= 8'MAX. (2.48m) H+H1=16' MAX. (4.8m)
V H H + H1
1' MIN. (305 mm) 2' MAX. (610 mm) 4' MAX. (1.22m)
2' MIN. (610 mm) 4' MAX. (1.22 m) 8' MAX. (2.48m)
3' MIN. (914 mm) 6' MAX. (1.86 m) 12' MAX. (3.72m)
4' MIN. (1.22 m) 8' MAX. (2.48 m) 16' MAX. (4.8m)
V+H+H1+H2= 40' MAX. (12.4 m)
H = 8' MAX. (2.48m) H + H1+ H2= 16' MAX. (4.8m)
V H H + H1+ H2
Use DVP-Series
components only.
H
H
1
H
2
V
H
V
H
1
V
1

26
Figure 18. Venting with three 90° elbows - TR-C MODELS
Use SL D-Series
components only.
MODEL SL-550TR-C MODEL SL-750TR-C MODEL SL-950TR-C
V (MIN.) H (MAX.) H + H1(MAX.) H (MAX.) H + H1(MAX.) H (MAX.) H + H1(MAX.)
90oElbow on Top 2.5 FT (863mm) 4 FT (1.22m) 2.5 FT (863mm) 4 FT (1.22m) 2 FT (610mm) 4 FT (1.22m)
1 FT (305mm) 3 FT (914mm) 6 FT (1.86m) 3 FT (914mm) 6 FT (1.86m) 3 FT (914mm) 6 FT (1.86m)
2 FT (610mm) 4 FT (1.22m) 8 FT (2.48m) 4 FT (1.22m) 8 FT (2.48m) 4 FT (1.22m) 8 FT (2.48m)
3 FT (914mm) 6 FT (1.86m) 12 FT (3.72m) 6 FT (1.86m) 12 FT (3.72m) 6 FT (1.86m) 12 FT (3.72m)
4 FT (1.22m) 8 FT (2.48m) 16 FT (4.8m) 8 FT (2.48m) 16 FT (4.8m) 8 FT (2.48m) 16 FT (4.8m)
5 FT (1.52m) 16 FT (4.8m) 16 FT (4.8m) 16 FT (4.8m) 16 FT (4.8m) 16 FT (4.8m) 16 FT (4.8m)
VENTING WITH THREE (3) 90oELBOWS NATURAL GAS
V + H + V1+ H1MAX. = 40 FT (12.2m)
VENTING WITH THREE (3) 90oELBOWS PROPANE
MODEL SL-550TR-C MODEL SL-750TR-C MODEL SL-950TR-C
V (MIN.) H (MAX.) H + H1(MAX.) H (MAX.) H + H1(MAX.) H (MAX.) H + H1(MAX.)
90oElbow on Top 2.5 FT (863mm) 5 FT (1.53m) NOT ALLOWED NOT ALLOWED NOT ALLOWED NOT ALLOWED
1 FT (305mm) 2.5 FT (863mm) 5 FT (1.53m) 2 FT (610mm) 4 FT (1.22m) 2 FT (610mm) 4 FT (1.22m)
2 FT (610mm) 4 FT (1.22m) 8 FT (2.48m) 4 FT (1.22m) 8 FT (2.48m) 4 FT (1.22m) 8 FT (2.48m)
3 FT (914mm) 6 FT (1.86m) 12 FT (3.72m) 6 FT (1.86m) 12 FT (3.72m) 6 FT (1.86m) 12 FT (3.72m)
4 FT (1.22m) 8 FT (2.48m) 16 FT (4.8m) 8 FT (2.48m) 16 FT (4.8m) 8 FT (2.48m) 16 FT (4.8m)
5 FT (1.52m) 16 FT (4.8m) 16 FT (4.8m) 16 FT (4.8m) 16 FT (4.8m) 16 FT (4.8m) 16 FT (4.8m)
V + V1+ H + H1MAX. = 40 FT (12.2m)
H
1
H
V
1
V
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 9).
