Heat Wave Sonoma 4 Person Hemlock Carbon Sauna User manual

SA7020
Ver. 9/20
OWNER’S MANUAL
Sonoma 4 Person
Hemlock Carbon Sauna
Please Do Not Hesitate to
Contact Our Consumer Hotline
at 800-759-0977
with Any Questions That May
Arise During Assembly or
Use of This Product!

2
ASSEMBLY TIPS & WARNINGS
PARTS IDENTIFIER
ASSEMBLY INSTRUCTIONS
3
4
5-9
TABLE OF CONTENTS
ENJOYING YOUR SAUNA
HEALTH & SAFETY WARNINGS
CLEANING & MAINTANENCE
TROUBLESHOOTING GUIDE
REPLACEMENT PARTS
WARRANTY INFORMATION
11
12
13
13-14
15
16
The information contained in this manual is subject to change without notice.
Les informations contenues dans ce manuel peuvent être modiées sans préavis.
If you would like a French version of this manual, please contact
our Customer Service Department at 800-759-0977 or [email protected]
Si vous voulez une version française d’un manuel, s'il vous plaît contacter
notre service à la clientèle au 800-759-0977 ou custserv@splashnetx
OPERATION INSTRUCTIONS FOR MP3 PLAYER 10
SAUNA USE DISCLAIMER 14

3

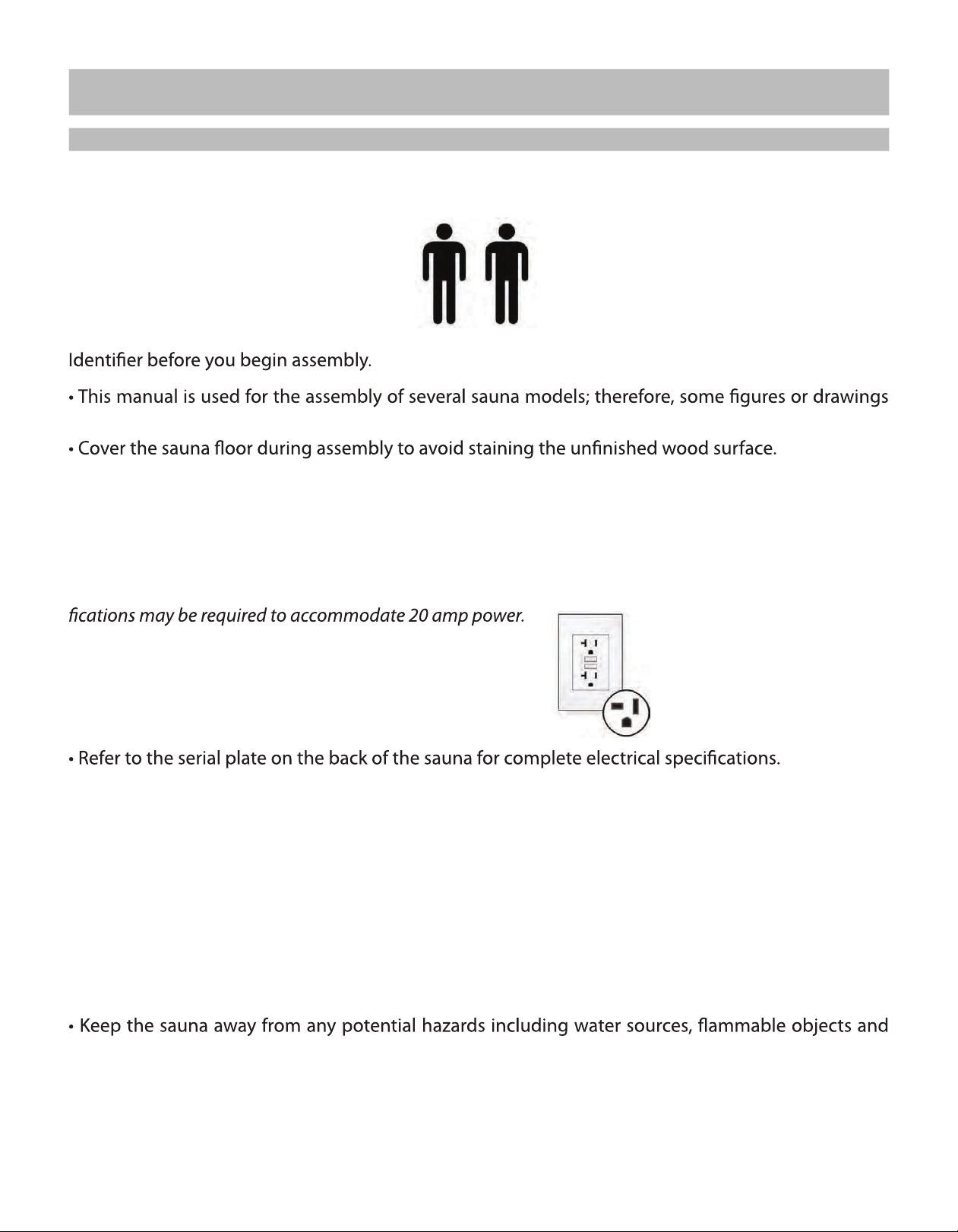

• Before you begin, read all assembly instructions and safety warnings carefully.
• This sauna requires at least 2 adults to complete assembly.
• Remove all of the contents from boxes and verify that you have all of the parts shown on the Parts
Note: Some parts may be pre-installed or pre-assembled.
may not look exactly like your product.
• Retain this Owner’s Manual for future reference.
ELECTRICAL REQUIREMENTS
• We recommend consulting a licensed electrician and checking local ordinances before installing
ANY sauna.
• These saunas require a 20 amp receptacle and a 20 amp circuit breaker. Note: Electrical modi -
•These saunas requires a dedicated circuit - No other appliances should share the same outlet
with the sauna.
CHOOSING A LOCATION
• This sauna should only be placed INDOORS on a dry, level surface.
• There should be a minimum of 5 inches clearance between the sauna and any wall.
• Make sure the main power cord will reach the outlet and remains easy to access.
• The sauna should only be used in a dry location as moisture will damage the wood and electrical
components.
combustible materials.
ASSEMBLY TIPS & WARNINGS

PARTS IDENTIFIER (NOT TO SCALE)
4
The parts identified above, unless otherwise indicated, are the main components used for assembly.
Other pre-assembled parts are listed on PAGE 15.
Refer to REPLACEMENT PARTS (PAGE 15) to determine the correct part number when ordering replacements.
If you are experiencing issues with your sauna or need replacement parts, please have the following
information available when calling Customer Service at 800-759-0977:
• Date & Proof of Purchase • Model/SKU number • Image of the metal plate mounted on back of sauna by plug
• Quality images of issue/concern (preferabbly in PDF format) • Clear description of the issue

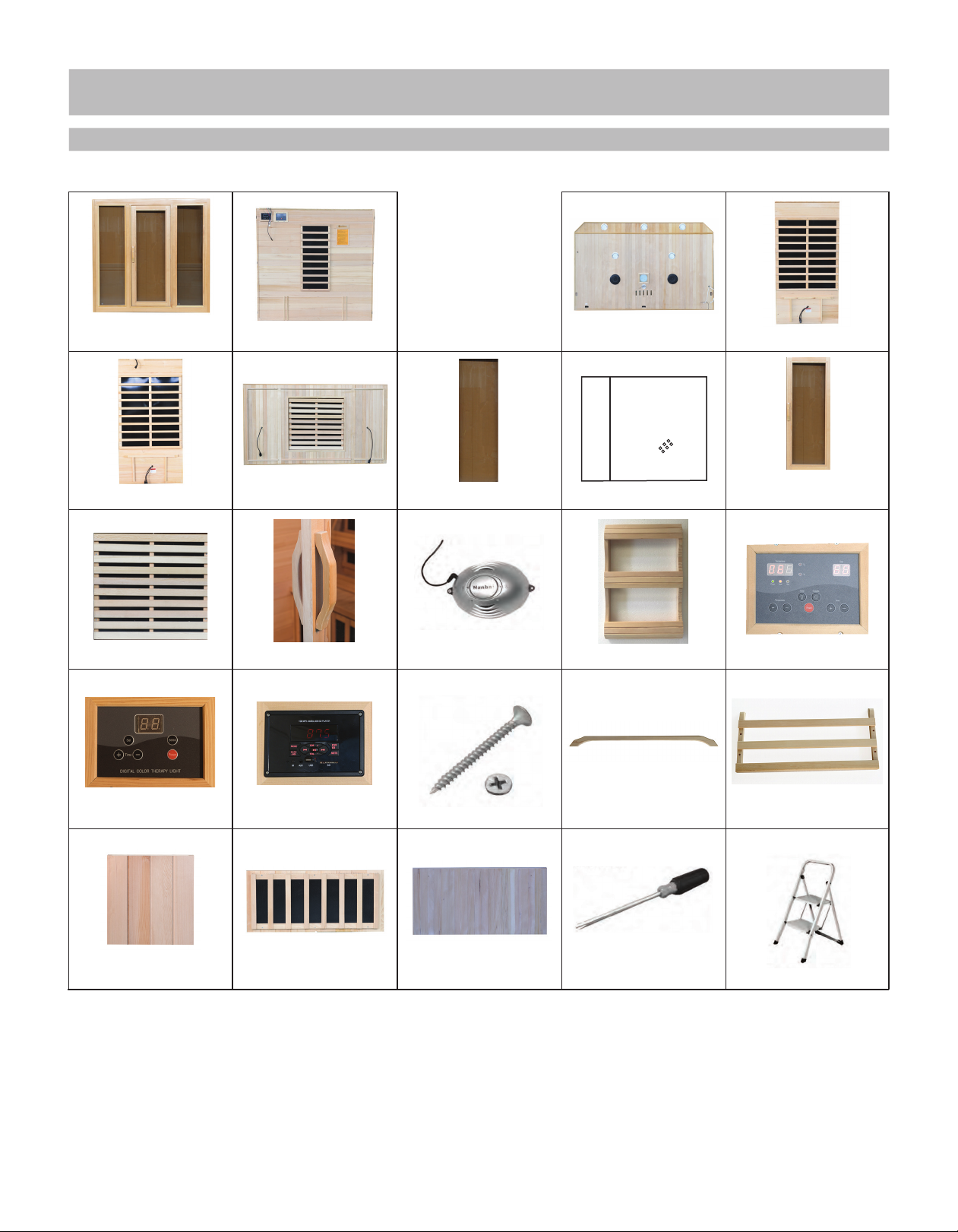

FRONT PANEL
WITH GLASS DOOR BACK PANEL ROOF LEFT SIDE PANEL
OXYGEN IONIZER
HARDWARE
PHILLIPS HEAD
SCREWDRIVER STEP LADDER
BENCH SUPPORT
HEATER PANEL
DOOR HANDLE CONTROL PANEL
RIGHT SIDE PANEL
FLOOR HEATER
ROOF COVER DOOR GLASS WITH
WOOD FRAME
BENCH SEAT
1/16”wood
veneer
AB
Illustrations Not to Scale
1 2 4 5
46 47 ADDITIONAL EQUIPMENT
REQUIRED:
30 33 37-40 41 42
15 17 18 27 29
6 7 8 9 14
ADDITIONAL EQUIPMENT
REQUIRED:
Individual pc
breakdown
on Pg. 15
Pre-installed
Pre-installed
FRONT SMALL
BENCH SUPPORT
45
DOOR GLASS
BACKREST
COLOR THERAPY
CONTROLLER MAGAZINE RACK
MP3 PLAYER TOWEL BAR
Pre-installed
FLOOR

ASSEMBLY INSTRUCTIONS
5

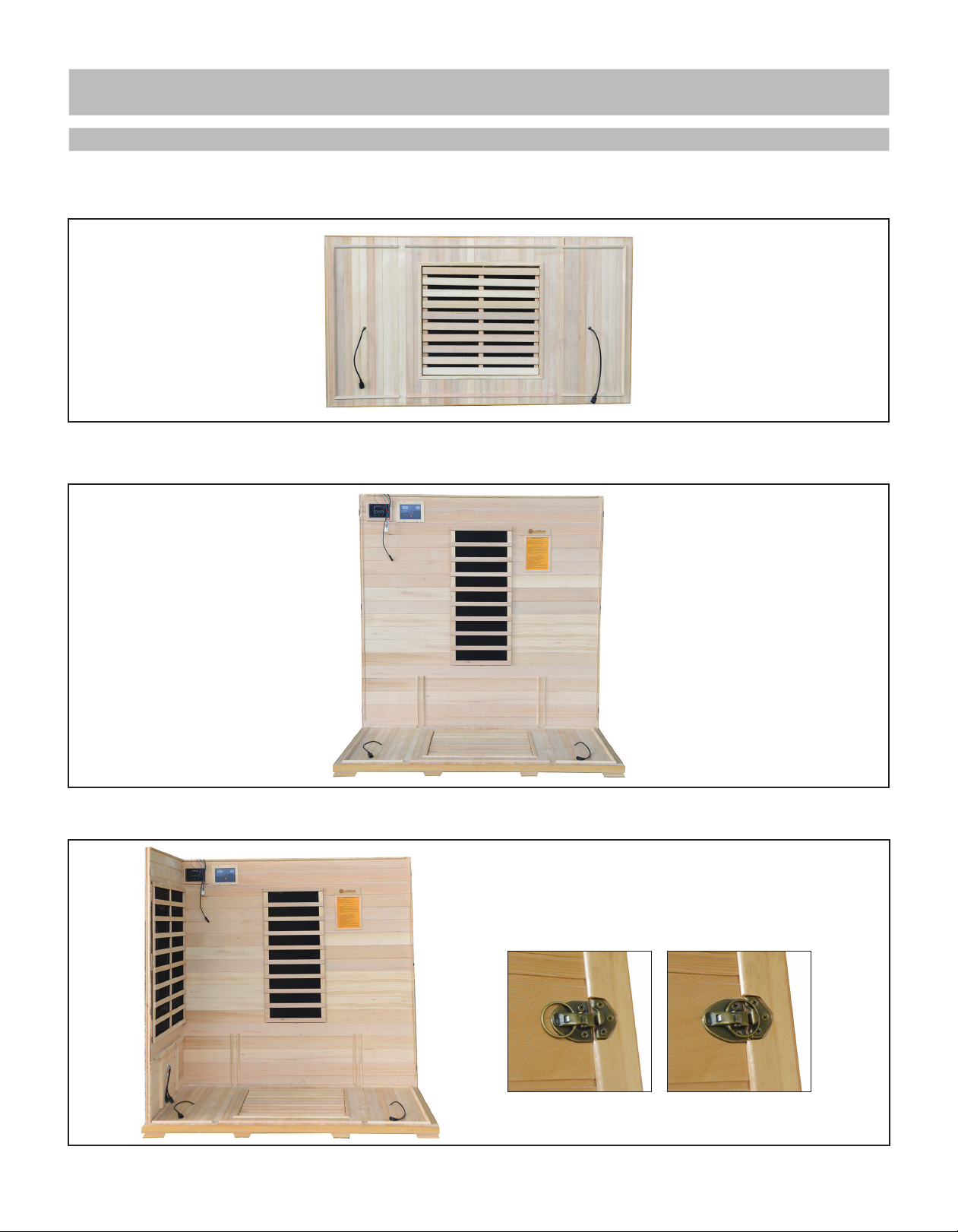

1. Begin assembly by determining an appropriate location for your sauna – see ASSEMBLY TIPS & WARNINGS
for details. Place the FLOOR PANEL on the oor in this location.
2. Place the BACK PANEL on the FLOOR PANEL, lining up the BACK PANEL against the oor trim piece on the
backside of the FLOOR.
3. Place the LEFT PANEL on the FLOOR in the same manner and buckle it to the BACK PANEL.
1 2
NOTE: make sure all panels t together snugly,
with side wall end tting in groove and outer
trim overlapping wall, when buckling panels.

ASSEMBLY INSTRUCTIONS (CONT.)

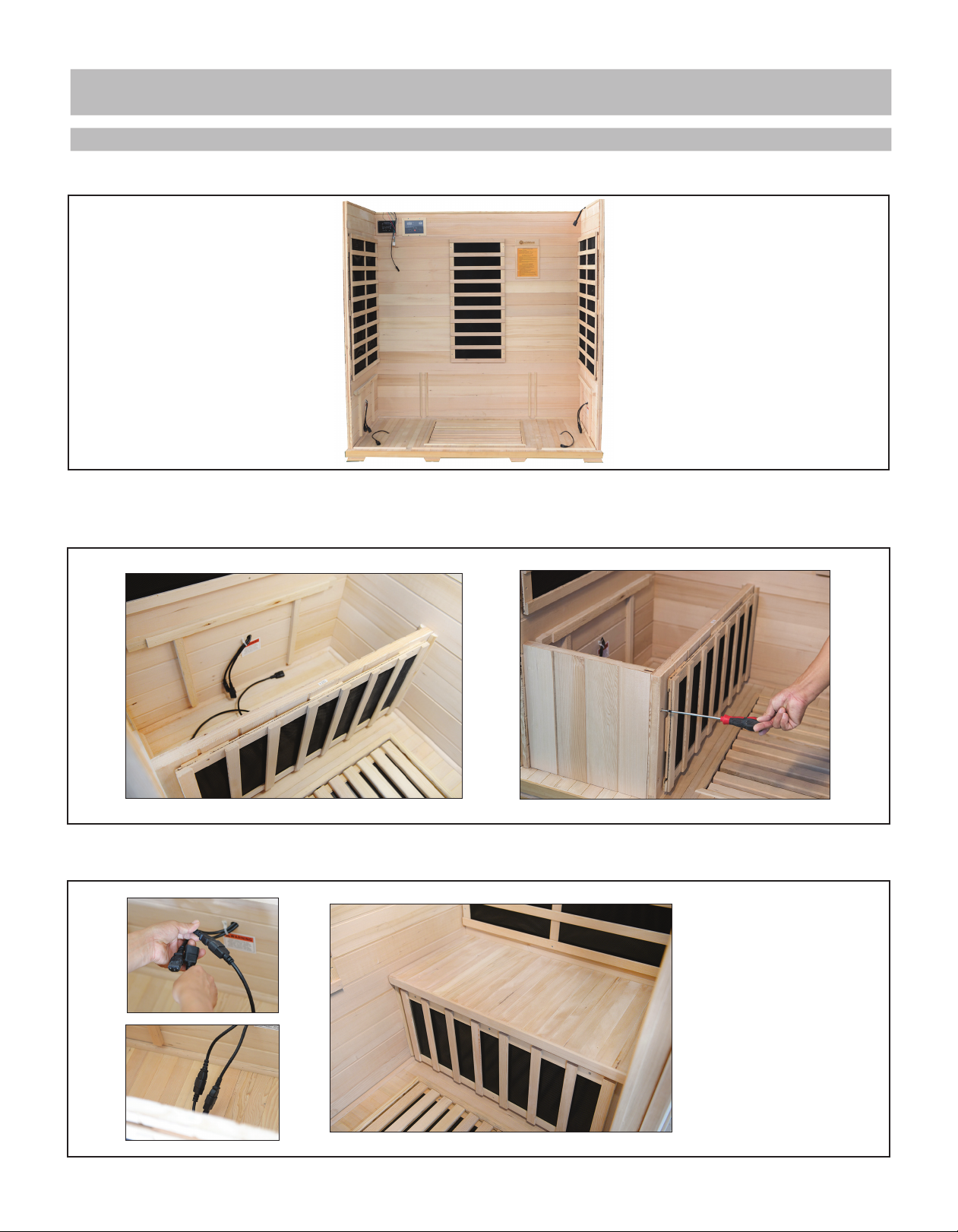

5. Place the two BENCH SUPPORT HEATER PANELS into place as shown, one on each side, against the BACK
PANEL between the wood strips. Then insert FRONT SMALL BENCH SUPPORTS on either side of front, as shown,
and attach with (2 ea.) 2” SCREWS.
6. Plug in all bench heater plugs into wires from back wall. Make sure connections are tight. Attach the BENCH
SEATS with (2 ea.) 2” SCREWS in pre-drilled holes into BENCH SUPPORTS.
4. Place the RIGHT PANEL on the FLOOR in the same manner and buckle it to the BACK PANEL as you did in Step 3.
NOTE: the BENCH SEATS
may be installed after the
FRONT PANEL in attached
in Step 7.
6

7. Place the FRONT PANEL on the front lip of the FLOOR and buckle it to the SIDE PANELS as shown in Step 3.
9. Secure the ROOF to the sauna with (4) 1-1/8” SCREWS. Connect the control panel wire, speakers, MP3 player,
and heater plugs on the roof to the corresponding wire connections coming up from walls through roof holes.
ASSEMBLY INSTRUCTIONS (CONT.)

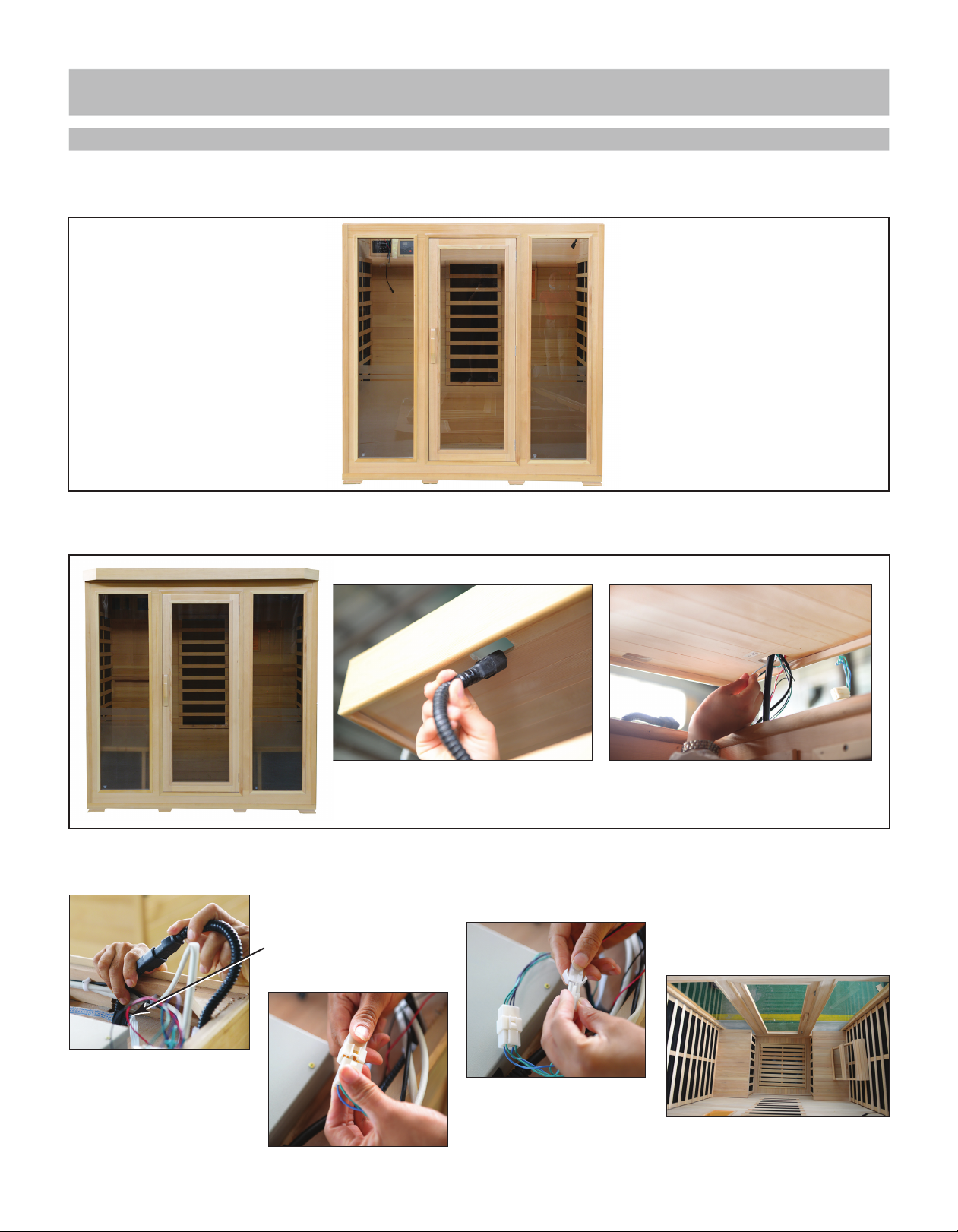

8. Lift the ROOF above the sauna, feeding the heater cables on side & back walls, and the wire harnesses and
power plug in back left corner, through the corresponding holes on perimeter of roof.
7
Heater connections
Speaker connection
MP3 Player connection
Control panel
connection
View of sauna inside from above

ASSEMBLY INSTRUCTIONS (CONT.)
8
10. Feed the main power cable through hole in ROOF and plug securely into receptacle on back of POWER
SUPPLY box . Secure the ROOF COVER with (16) 3/4”SCREWS.
11. Attach the DOOR HANDLE through GLASS DOOR FRAME using (2) 2-3/8” (60MM) SCREWS.
12. There will be two wires coming out of the top of the wall above the COLOR THERAPY CONTROLLER, that you
fed thru the roof. Plug the 4 and 5 pin wire plugs into the corresponding connectors on the roof.
Note: If you ever need to replace the controller, unscrew
from wall and replace faulty controller with new. Plug the
4 and 5 pin wire plugs onto the corresponding connectors
on the back, then reattached to wall with screws.

ASSEMBLY INSTRUCTIONS (CONT.)

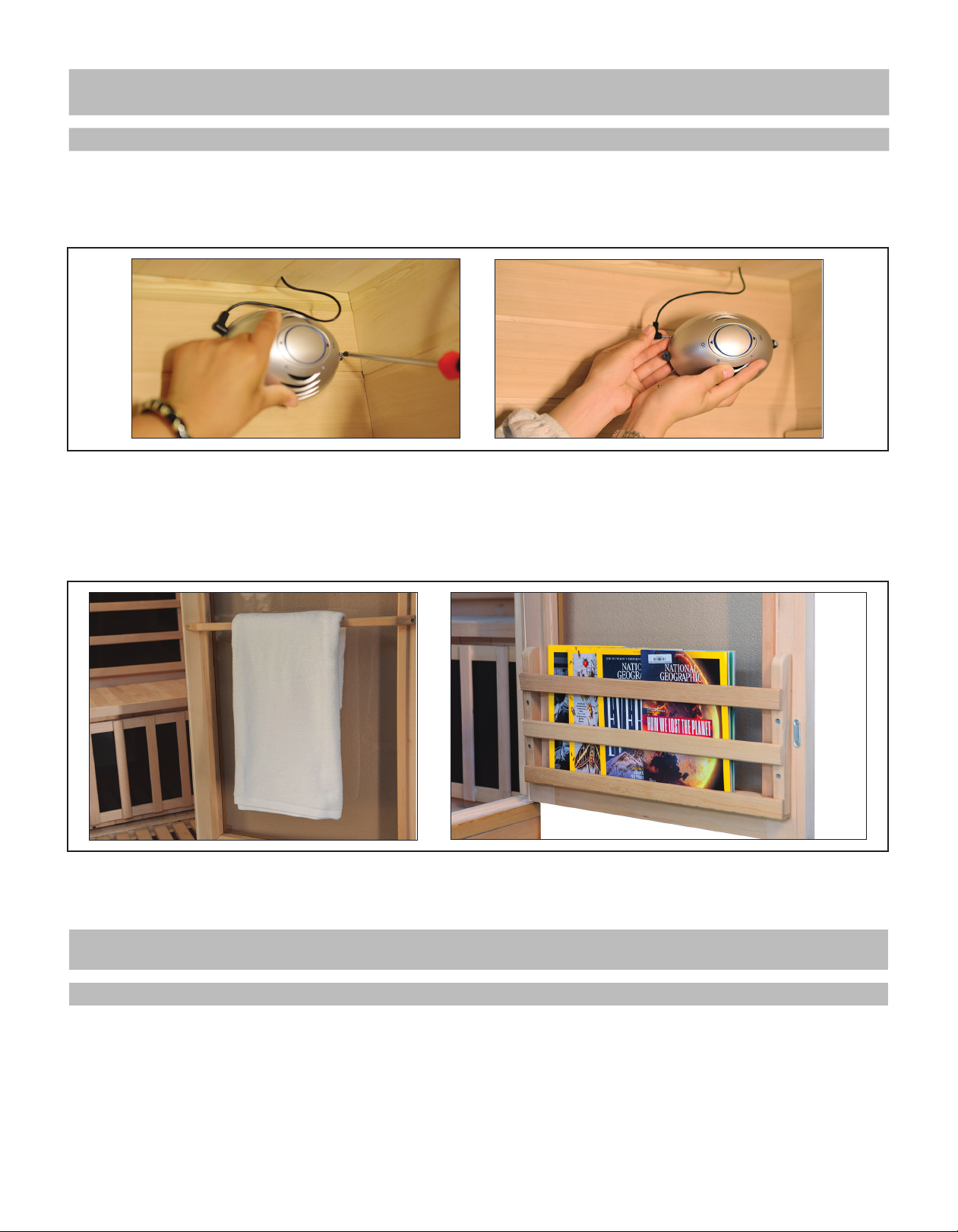

14. Attach the TOWEL BAR with (2) 1-1/8” SCREWS and the MAGAZINE RACK with (4) 1-1/2”
SCREWS on the back of the door as shown. Note: attaching these items is optional, but if you do,
consider the position carefully before driving any screws into the sauna interior.
13. Remove the back cover of the OXYGEN IONIZER by turning it as indicated. Unwrap and
install the fragrance patch, then reattach the back cover. Attach the OXYGEN IONIZER in the
designated position with (2) 3/4”SCREWS. Plug the power cable into the OXYGEN IONIZER.
15. Plug the main power cable into a dedicated outlet. Note: No other appliances should share
the same outlet or circuit with this sauna.
The assembly of your sauna is now complete.
Please review the Operation Instructions and Health & Safety warnings before using your sauna.
To ensure years of trouble-free use, follow the Cleaning & Maintenance guidelines carefully.
9
CONGRATULATIONS!
Note: Press ION to release negatively charged ions to purify the air & press O3 to disinfect the air with ozone.

OPERATION INSTRUCTIONS FOR MP3 PLAYER BLUETOOTH
10
1. Press “POWER” button to turn on MP3 player
A. Select “SETTINGS” on
phone
B. Select “BLUETOOTH”
and get “CONNECTED”
3. Phone Settings
C. Select “SAUNA”
and get “CONNECTED”
D. Select your music “APP” E. Select song to play
2. Press “MODE” button until “AUH” appears on screen*
*Other “MODE” options include radio, USB & SD

ENJOYING YOUR SAUNA

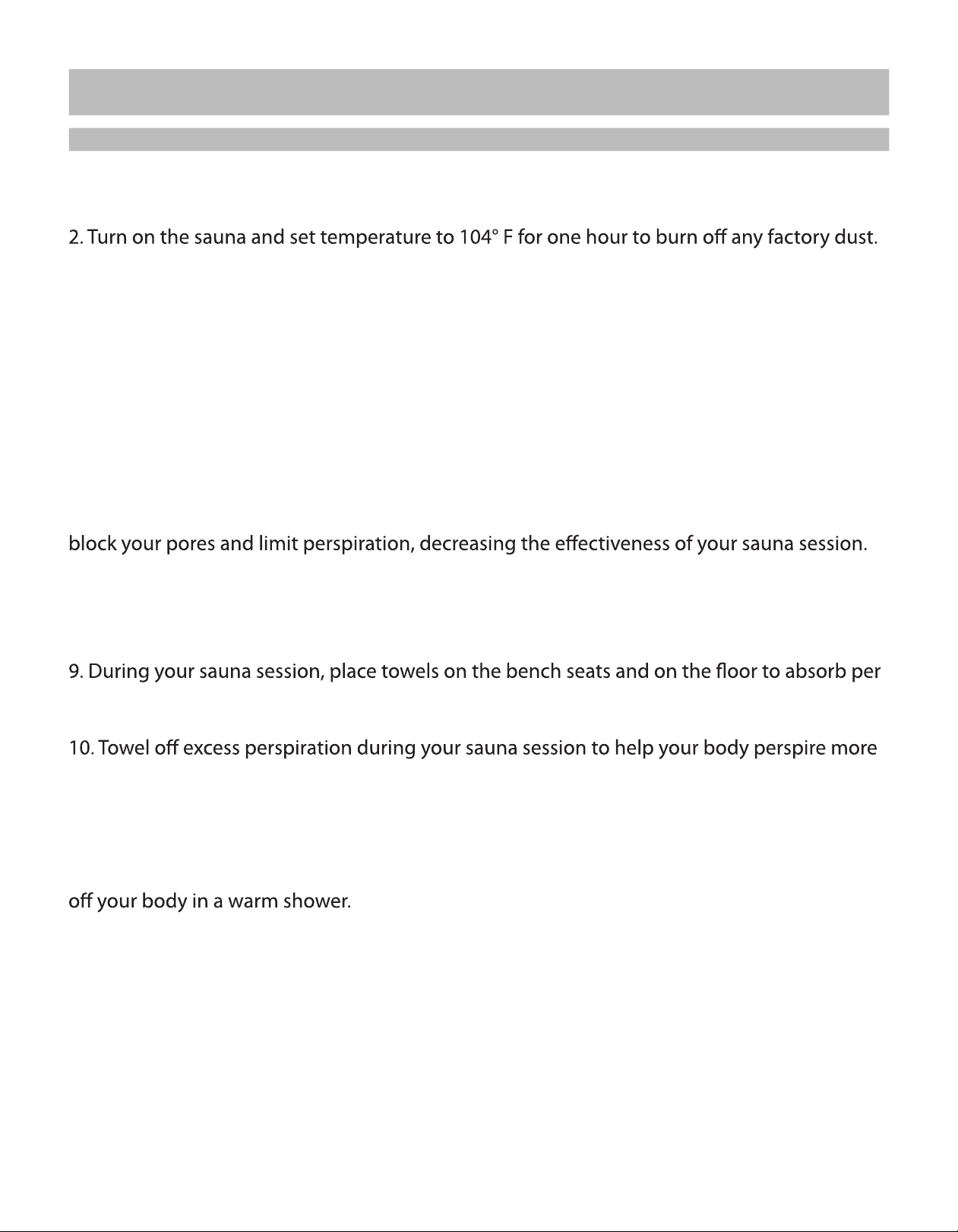

1. Prior to initial use, wipe down all interior surfaces of the sauna with a damp cloth.
3. Always drink plenty of water before, during and after your sauna session to stay properly
hydrated.
4. A normal sauna session should last 30 minutes or less.
5. Allow approximately 20 to 30 minutes for the sauna to warm up before entering.
6. Perspiration will begin within 15 to 25 minutes after entering the sauna.
7. Limit the use of lotions or oils on your body while using your sauna. These products can
8. For spot treatment of a particular area, position that body part closer to the heater, allow-
ing for deeper heating in that area.
-
spiration and maintain the cleanliness of your sauna.
freely.
11. Open the ceiling vent or the front door to allow fresh air into your sauna.
12. Allow your body to cool down following your sauna session, then rinse the perspiration
11

HEALTH & SAFETY WARNINGS
1. Review all instructions and warnings before operating your sauna. A sauna is not a toy. Seri-
ous injury may result from negligence, intentional misuse and failure to follow safety instruc-
tions.
2. Hyperthermia Danger: Hyperthermia occurs when the body absorbs more heat than it can
emergency and requires immediate treatment to prevent disability or death. It is very impor-
tant not to allow your body’s core temperature to rise above 103° F. Symptoms of hyperthermia
failure to perceive heat, failure to recognize the need to exit the sauna, unawareness of the im-
pending health hazard, physical inability to exit the sauna and unconsciousness.
3. If you are feeling uncomfortable, faint or dizzy, exit the sauna immediately.
4. Do not exceed recommended time and temperature guidelines.
5. Do not touch or interfere with the temperature sensor on the control panel.
6. Do not touch or spray water on the heater elements.
8. Do not sleep inside the sauna.
9. Do not use the sauna immediately following strenuous exercise. Allow your body to cool
down for 30 minutes before entering the sauna.
10. Pets should never be placed in the sauna.
sauna.
12. Children over the age of 6 should always be supervised by an adult.
13. People with health problems including open wounds, fever, sunburn or dehydration should
not use the sauna.
circulatory system problems or diabetes should consult a physician before using the sauna.
15. Consult a physician before using the sauna if you take any prescription medications.
16. Keep towels and combustible materials away from the heater elements.
17. Remove all towels and materials after your sauna session.
18. Never leave your sauna unattended while in use.
19. Always unplug the sauna and allow it to cool down before performing any cleaning or main-
tenance.
12
for extended periods of time.

CLEANING & MAINTENANCE
1. Always unplug the sauna and allow it to cool down before performing any cleaning or
maintenance.
2. Use furniture polish or furniture oil when cleaning the sauna exterior.
3. The sauna interior surfaces should only be wiped down with a damp cloth. Do NOT use
4. As with all natural wood products, variations in the color and the grain as well as irregu-
natural beauty of the wood and should not be considered defective.
13
WARNING!
1. Check that the Main Power Cable is plugged into the wall outlet.
2. Check that the circuit breaker for the outlet has not tripped. If the breaker has tripped, check that the
amperage of the breaker is appropriate for your sauna.
3. Check all connections to the Power Supply Box.
4. Check for damage to the Main Power Cable; replace, if necessary.
5. Replace the Power Supply Box, if necessary.
1. Check that all the connections are tight.
2. Replace the Heater Element.
1. Check that all connections are tight.
2. Replace the Heater Circuit Board, if necessary.
Problem
Solution
Solution
Solution
Problem
Problem
THERE IS NO POWER TO THE SAUNA
ONE HEATER DOES NOT WORK
NONE OF THE HEATERS WORK
TROUBLESHOOTING GUIDE
• Always unplug the sauna and allow it to cool down before performing any maintenance.
• Unauthorized repairs or alterations will void the manufacturer’s warranty.

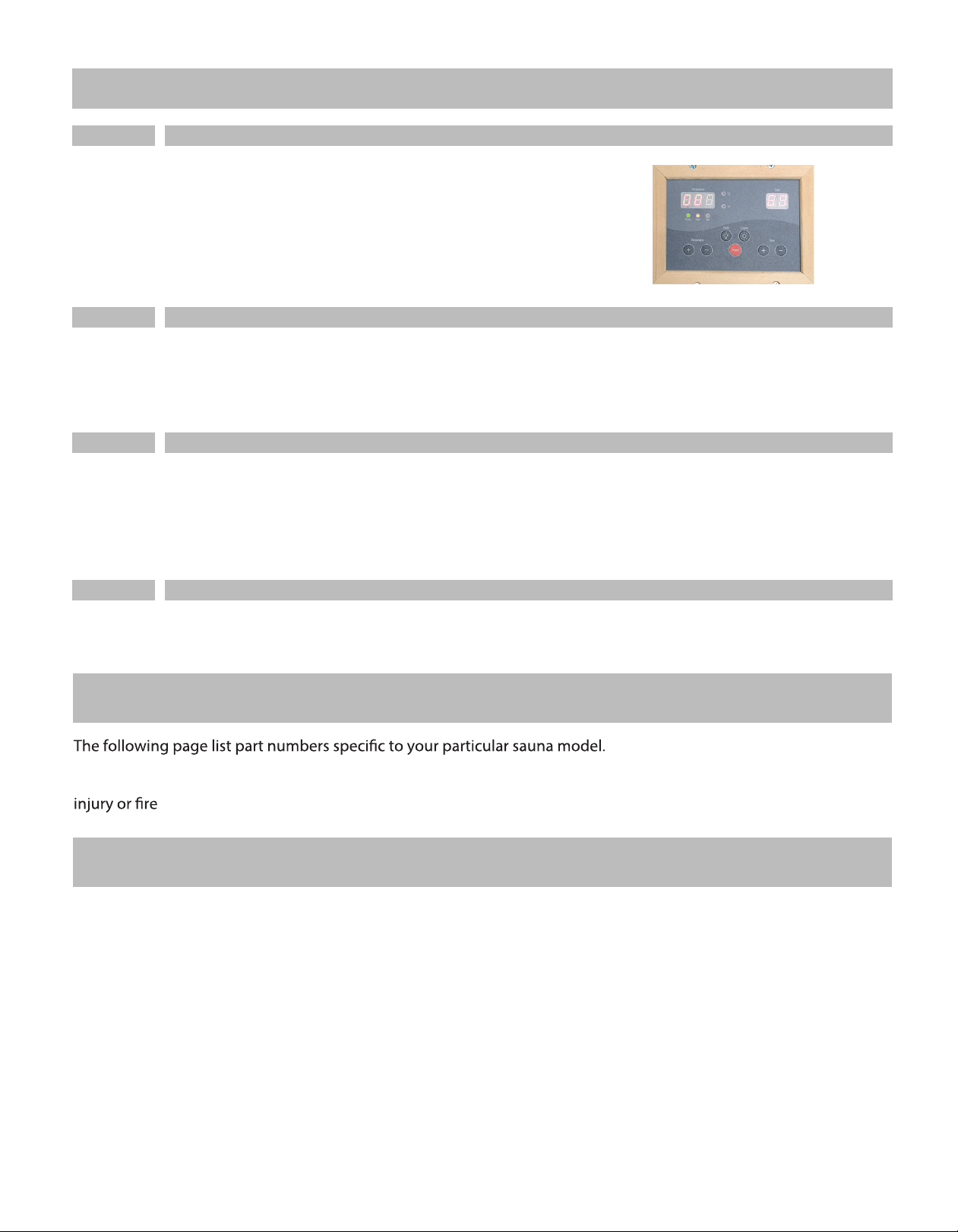

TROUBLESHOOTING GUIDE (CONT.)
1. Check that all the connections are tight.
2. If the numbers are scrambled or the buttons are unresponsive,
replace the Control Panel.
3. If the temperature indicator does not work or reads “--” or “EP”,
replace the Control Panel.
1. Check that all the connections are tight.
2. If one light does not work, replace the light xture.
3. If neither the lights nor the radio are working, replace the Power Supply Box.
1. Check that the volume is not turned all the way down and that the fader control is set correctly.
2. If only one speaker is working, check to see that the sound balance on the stereo is not set all the way
to one side.
3. Check that all the connections are tight.
4. Replace the speaker, if necessary.
1. Check that all the connections are tight.
2. Replace the Color Therapy Light or Control Panel, if necessary.
Problem
Problem
Problem
Problem
THE CONTROL PANEL DOES NOT WORK
THE LIGHTS ARE NOT WORKING
THE SPEAKERS ARE NOT WORKING
THE COLOR THERAPY LIGHTS ARE NOT WORKING
Solution
Solution
Solution
Solution
REPLACEMENT PARTS
In the event that you need replacement
manufacturer. The use of unauthorized substitutes may damage your sauna or cause electrical hazards resulting in
, and will void the warranty.
SAUNA USE DISCLAIMER
Always consult a health care provider who is knowledgeable in sauna use before using a sauna.
Saunas are powerful devices and monitoring your progress by a professional trained in sauna use is always advisable.
Variables of sauna therapy such as health condition of user, duration of sauna therapy, proper hydration, electrolyte and
mineral balance and restoration must be properly considered and heeded before proceeding with sauna therapy.
Blue Wave products are not registered with the United States Food and Drug Administration (FDA) as a Medical Devices.
Consult your licensed health care provider to see if our saunas are right for you. Blue Wave products and/or its partners,
associates, etc. are not liable for the use of Blue Wave products nor any incidental or consequential damages. Under no
circumstances shall Blue Wave products or any of its representatives be held liable for injury to any persons or damage to
any property. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you.
The FDA requires us to inform you that this product is not intended to diagnose or treat any disease or medical problem
and is not a substitute for regular medical care from a licensed health care provider.
parts, use this guide to reference the part number. It is important to use only replacement parts specied by the
14

15
REPLACEMENT PARTS Rev. 9/20
REF. # DESCRIPTION PART NUMBER
SA7020 SONOMA 4-PERSON HEMLOCK CARBON HEATERS SAUNA
QTY.
1 FRONT PANEL WITH GLASS DOOR SAP7131 1 A
2 BACK WALL PANEL SAP7132 1 A
4 ROOF SAP7134 1 C
5 LEFT SIDE WALL PANEL SAP7135 1 B
6 RIGHT SIDE WALL PANEL SAP7136 1 B
7 FLOOR SAP7137 1 C
8* DOOR GLASS SAP7138 1 A
9 ROOF COVER SAP7139 1 C
10* 300W HEATER ELEMENT – BACK WALL (40 x 100cm) SAP2422 1 A
11* 300W HEATER ELEMENT – SIDE WALL (40 x 100cm) SAP2422 4 B
12* 180W HEATER ELEMENT – BENCH (30 x 80cm) SAP2419 2 C
13* 125W HEATER ELEMENT – FLOOR (30 x 60cm) SAP2701 2 C
14* DOOR GLASS WITH WOOD FRAME SAP7140 1 A
15* FLOOR HEATER PANEL SAP7141 1 C
17 DOOR HANDLE SAP7104 1 SET C
18 OXYGEN IONIZER SAP2409 1 C
19* GLASS CLIP - METAL SAP2537 2 A
20* DOOR MAGNET SAP25371 2 A
21* DOOR HINGE SAP7103 3 A
22* BUCKLE SAP2607 12 A,B
23* SPEAKER SAP2416 2 C
24* POWER SUPPLY BOX – 12.5A SAP7022 1 C
25* POWER SUPPLY RECEPTACLE SAP24073 1 C
26* HEATER CIRCUIT BOARD SAP2826 1 C
27 BACKREST SAP2412 1 C
28* INTERIOR & EXTERIOR LIGHT FIXTURE SAP2604 5 C
29* CONTROL PANEL SAP2406 1 A
30* COLOR THERAPY CONTROL PANEL SAP2427 1 B
31* COLOR THERAPY LIGHT SAP7110 1 C
32* COLOR THERAPY COVER SAP7108 1 C
33* MP3 PLAYER SAP7105 1 A
34* VENTILATION COVER SAP2817 1 C
35* MAIN POWER CABLE SAP2704 1 A
36* 25 AMP OVERCURRENT PROTECTOR SAP2530 1 C
37** 2” (50MM) SCREW SAP7106 8 C
38** 1-1/8” (30MM) SCREW SAP7106 8 C
39** 3/4” (20MM) SCREW SAP7106 18 C
40** 1-1/2” (40MM) SCREW SAP7106 6 C
41 TOWEL BAR & (2) 2-3/8” (60MM) SCREWS SAP7107 1 C
42 MAGAZINE RACK SAP7111 1 C
43* THERMOSTAT WIRE SAP25314 1 C
44* ANTENNA SAP7109 1 C
45 FRONT SMALL BENCH SUPPORT SAP7143 2 C
46 BENCH SUPPORT HEATER PANEL SAP7144 2 C
47 BENCH SEAT SAP7145 1 B
* These items are pre-installed in your sauna
** 37-40 are included in hardware pack
CARTON

SAUNA WARRANTY REGISTRATION CARD
1. This sauna has a 7-YearLimited Warranty against defects in materials and workmanship from date of purchase. To receive the warranty,
the card below must
the wood structure*. Heating elements and all electronics are covered bya5-Year Limited Warranty. The radio/CD player (if included with
your sauna) is covered bya limited 1-Year Warranty. The light bulbs and light xtures are covered for 90 days.
2. This product is intended tobe utilized for private, non-commercial use. Blue Wave Products sauna must be usedas directed in the
Product Operation Manual. Utilization of non-Blue Wave replacement parts or repairs which are not done by or under the direction of
Blue Wave Products, Inc. shall also void any warranties/guarantees, expressed or implied.
3. This warranty does not cover defects or damage due to improper installation, alteration, accident, installation of unauthorized
parts or any other event beyond the control of the Blue Wave Products. Defects or damage resulting from misuse, abuse or
negligence will void this warranty. This warranty does not cover scratching or damage that may result from normal usage.
4. Please notify Blue Wave Products in advance of any sauna warranty claim prior to shipping the sauna back. Contact our warranty
claim department at [email protected]. This warranty becomes valid at time of purchase and terminates either by
5. This warranty is nontransferable and is expressly limited to the repair or replacement of the defective product. During the warranty
period, Blue Wave Products shall repair or replace defective parts at no cost to the purchaser. Shipping charges andinsurance are not
covered and are the responsibility of the purchaser. Labor charges and related expenses for removal, installation or replacement of
the product or components are not covered under this warranty.
6. If the warranty claim department determines that the item must be returned,it must be returned with freight prepaid and a receipt showing
date of purchase, purchase price, and the dealer from which the sauna was purchased. No warranty claimwill be honored without a receipt.
7. Warranty claims will only be resolved with the repair of the current product, or shipment of a replacement product or parts at the
sole discretion of Blue Wave Products. NO REFUNDS will be given.
10. Improper installation, misuse or damages resulting from acts of nature will render this warranty null andvoid.
11. This warranty is in lieu of all other warranties expressed or implied and no responsibility is assumed for future damage due tomisuse.
This sauna is intendedfor INDOOR USE ONLY– outdoor installation of the sauna WILLVOID THE WARRANTY. Additional actionsthat will void
the warranty are: Use of lacquer or paints on any part of the sauna, placing sauna on non-approved surface, andoutdoor applications.
*Surface cracks are NOT considered defects in material or workmanship, as they are normal characteristics of all wood. This includes
minor cracks due to wood expansionand contraction. Note: since the wood used in construction has been kiln dried, a certain amount
of expansion and contraction is expected in the wood within a sauna environment. Also, over time the sauna wood may darken or
change color tones. This color change is considered normal aging and is not covered under warranty.
To send in this warranty card:
Fill out below, detach and mail
to the following address:
BLUE WAVE PRODUCTS
1745 Wallace Ave. Suite B
St. Charles, IL 60174
SAUNA WARRANTY REGISTRATION FORM
Date Purchased: _____/_____/_____
Name: _____________________________________________________________________________________
Address: ___________________________________________________________________________________
City/State/Zip: ______________________________________________________________________________
Phone: ( ) ____________________________________ Email: ______________________________________
Purchased from: _____________________________________________________________________________
ItemNumber:____________________________________ PurchasePrice:_______________________________
Serial Number: ______________________________________________________________________________
To ensure product warranty, complete all information and mail this card within 30 days of purchase.
8. Blue Wave Products reserves the right to make substitutions to warranty claims if parts are unavailable or obsolete.
9. Blue Wave Products shall not be liable for loss of use of the product or other consequential or incidental costs, expenses or
damages incurred by the consumer of any other use. The user assumes all risk of injury resulting from the use of this product.
For further warranty information
or inquiries, please call 800-759-0977
16
1/19
