Heatilator CALIBER DESIGNER B-VENT SERIES Manual

01-02 1 28365 Rev E
CALIBER DESIGNER
B-VENT SERIES
INSTALLATION & OPERATING
INSTRUCTIONS
WARNING!
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this
manual. For assistance or additional information, consult a qualified installer, service agency or the gas supplier.
WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result causing property damage, personal in-
jury or loss of life
 Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
 What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use
any phone in your building.
 Immediately call your gas supplier from a
neighbors phone. ollow the gas suppliers
instructions.
 If you cannot reach your gas supplier, call the
fire department.
 Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
CAUTION:
Do not expose the appliance to the elements (such as rain, etc.)
U.S. Patent 5,613,487

28365 Rev E 2 01-02
CALIBER BV DESIGNERS
A. PREPARATION
1. U.S. AND CANADA CERTIFICATION
he Caliber Designer B-Vent Series Gas Appliance
has been tested in accordance with the ANSI
standard Z21.50-1996 (Decorative); in Canada, the
current CAN/CGA M2.22-M96, IR41, P4, and IR55 and
has been LIS ED by Underwriters Laboratories Inc.
for installation as described in this manual. All
components are UL or AGA safety certified.
2. LOCAL CODES
his installation must conform with local codes. In
the absence of local codes comply with the National
Fuel Gas Code ANSI Z223.1-latest edition in the
U.S.A., and the CAN/CGA B149 Installation Codes in
Canada.
For assistance during installation contact your local
dealer or contact Heatilator echnical Services
Department, 1915 W. Saunders Street, Mt. Pleasant,
Iowa 52641.
HEA ILA OR® is a registered trademark of
Heatilator, a Division of Hearth echnologies Inc.
CONTENTS
A. Preparation ..................................................................................................................................................................... 2
B. Location and Clearances ............................................................................................................................................... 3
C. raming ........................................................................................................................................................................... 5
D. Setting the Appliance ...................................................................................................................................................... 5
E. Venting ............................................................................................................................................................................. 6
. Utilities ............................................................................................................................................................................ 8
G. inishing ....................................................................................................................................................................... 10
H. Appliance Preparation .................................................................................................................................................. 10
I. Determining the Ignition Type ....................................................................................................................................... 12
J. Lighting Instructions ..................................................................................................................................................... 12
K. Seasonal Checklist....................................................................................................................................................... 14
L. Start-up Issues .............................................................................................................................................................. 15
M. Maintenance Instructions .............................................................................................................................................. 16
N. Optional Components .................................................................................................................................................. 18
O. Replacement Parts ....................................................................................................................................................... 19
Index .............................................................................................................................................................................. 23
Warranty ........................................................................................................................................................................ 24

01-02 3 28365 Rev E
CALIBER BV DESIGNERS
Note: Minimum and maximum clearances must be
maintained at all times. Illustrations throughout these
instructions reflect typical installations and are for de-
sign purposes only. Actual installation may vary slightly
due to individual design preferences.
The illustrations and diagrams used throughout these
installation instructions are not drawn to scale.
ools and building supplies normally required for
installation:
Tools: Building Supplies:
Saw Wall-finishing materials
Pliers raming material
Hammer Surround
Phillips Screwdriver Caulking material
Tape measure
Plumb Line
Level
Electric Drill/Bits
raming Square
Safety Gloves
#golataCnoitpircseD
63TSBGsaglarutan,tolipgnidnats,hguorht-eeS ecnailppa
63LFBGsaglarutan,tolipgnidnats,alusnineP ecnailppa
63RCBGsaglarutan,tolipgnidnats,thgiRrenroC ecnailppa
63LCBGsaglarutan,tolipgnidnats,tfeLrenroC ecnailppa
63SIBG ecnailppasaglarutan,tolipgnidnats,dnalsI
swollofsadenifederasexiffusgniwollofehT :
iffuson saGlarutaN,toliPgnidnatS
LsaGenaporP,toliPgnidnatS
EsaGlarutaN,noitingIcinortcelE
EL saGenaporP,noitingIcinortcelE
:elpmaE cinortcele,hguorhT-eeSasiEL63TSBG .ecnailppasagenaporp,noitingi
B. LOCATION AND CLEARANCES
Dimensions
WARNING!
Due to high temperatures, the appliance should be located out of traffic and away from furniture
and draperies

28365 Rev E 4 01-02
CALIBER BV DESIGNERS
1. APPLIANCE LOCATIONS AND SPACE REQUIREMENTS
igure 1 illustrates a variety of ways the appliance may be located in a room. The Caliber Designer Series may be
installed directly on the floor or raised on a hearth. These appliances are certified for installation in a bedroom, bed/
sitting room or bathroom in the U.S. and Canada, provided that the bedroom or bathroom has a volume of at least
1700 cubic feet.
Common venting of this gas appliance with other gas appliances is not allowed in multifamily dwellings.
Figure 1
Appliance Locations and Clearances
2. CLEARANCES
igure 2 shows venting clearances that must be
maintained around the appliance.
Figure 2
Venting Clearances to Combustible Materials
3. HIGH ALTITUDE INSTALLATION
or U.S. installation, appliances are tested and
approved for elevations from 0-2000 feet. When
installing this appliance at an elevation above 2000
feet, United States codes require a decrease of the
input rating by changing the existing burner orifice to
a smaller size. Input should be reduced 4% for each
1000 feet above sea level. Check with the local gas
utility for proper orifice size identification.
or Canada, appliances are certified for elevations
from 0-4500 feet. When installing this appliance at an
elevation between 0-4500 feet in Canada, the input
rating does not need to be reduced. When installing
this appliance at an elevation above 4500 feet in
Canada, check with local authorities.
CAUTION:
Wear gloves and safety glasses for protection.

01-02 5 28365 Rev E
CALIBER BV DESIGNERS

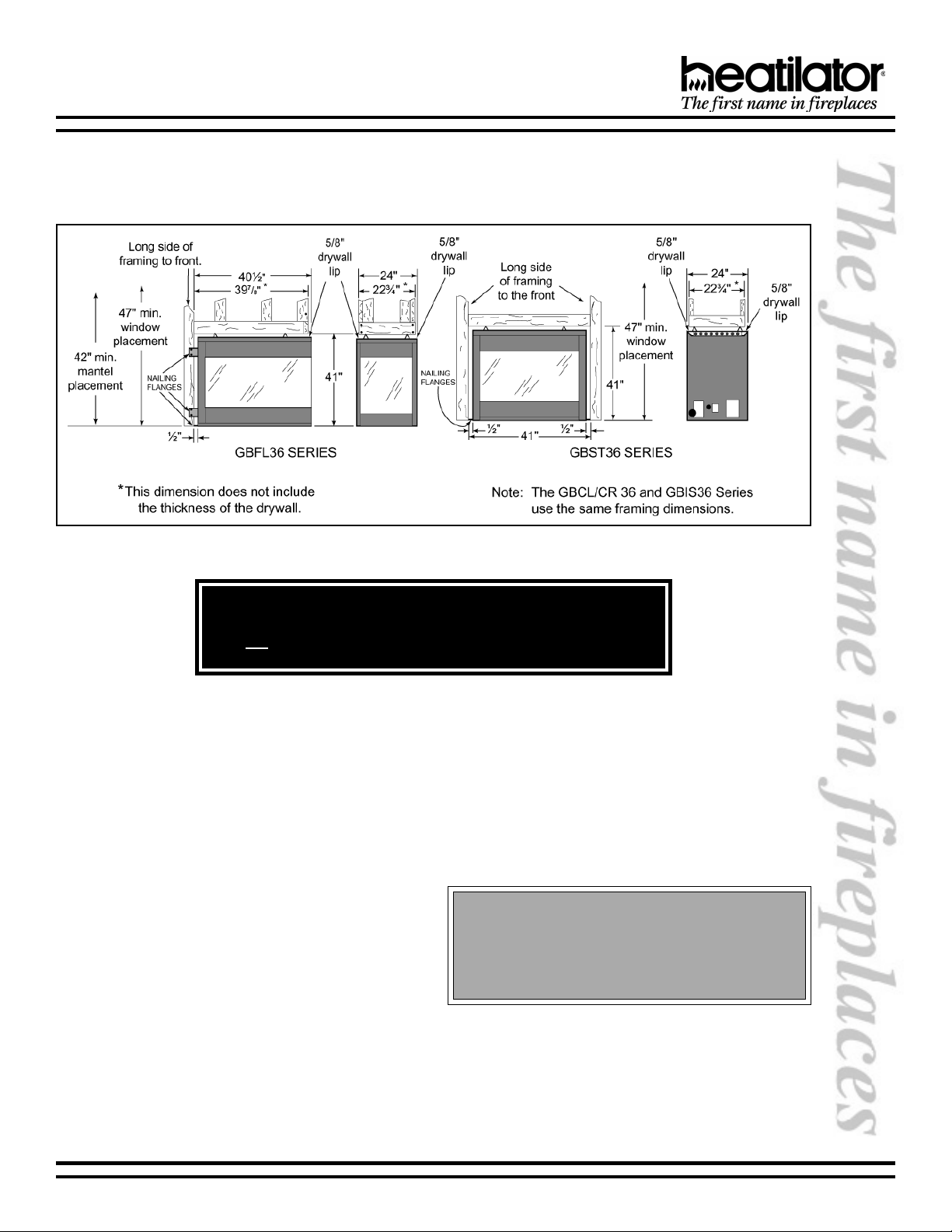

C. FRAMING
igure 3 shows a typical framing of this appliance using combustible materials. All required clearances to combustibles
must be adhered to.
Figure 3 - Framing
D. SETTING THE APPLIANCE
This appliance may be placed on a smooth
combustible or noncombustible continuous, flat
surface. When the appliance is installed directly on
carpeting, tile or other combustible material other than
wood flooring, the appliance shall be installed on a
metal or wood panel extending the full width and depth
of the appliance. Slide the appliance into position and
level the appliance from side-to-side and front-to-back.
Shim with noncombustible material as necessary.
Secure the appliance by bending out the nailing
flanges on each side of the appliance and nail to
framing. The nailing flanges have been positioned
5/8 back from the front of the appliance to allow the
addition of drywall.
CAUTION:
Provide adequate clearances around the air
openings into the appliance and adequate
accessibility clearances for servicing and proper
operation.
WARNING!
o prevent contact with sagging or loose insulation, the appliance
must not be installed against vapor barriers or exposed insulation.

28365 Rev E 6 01-02
CALIBER BV DESIGNERS

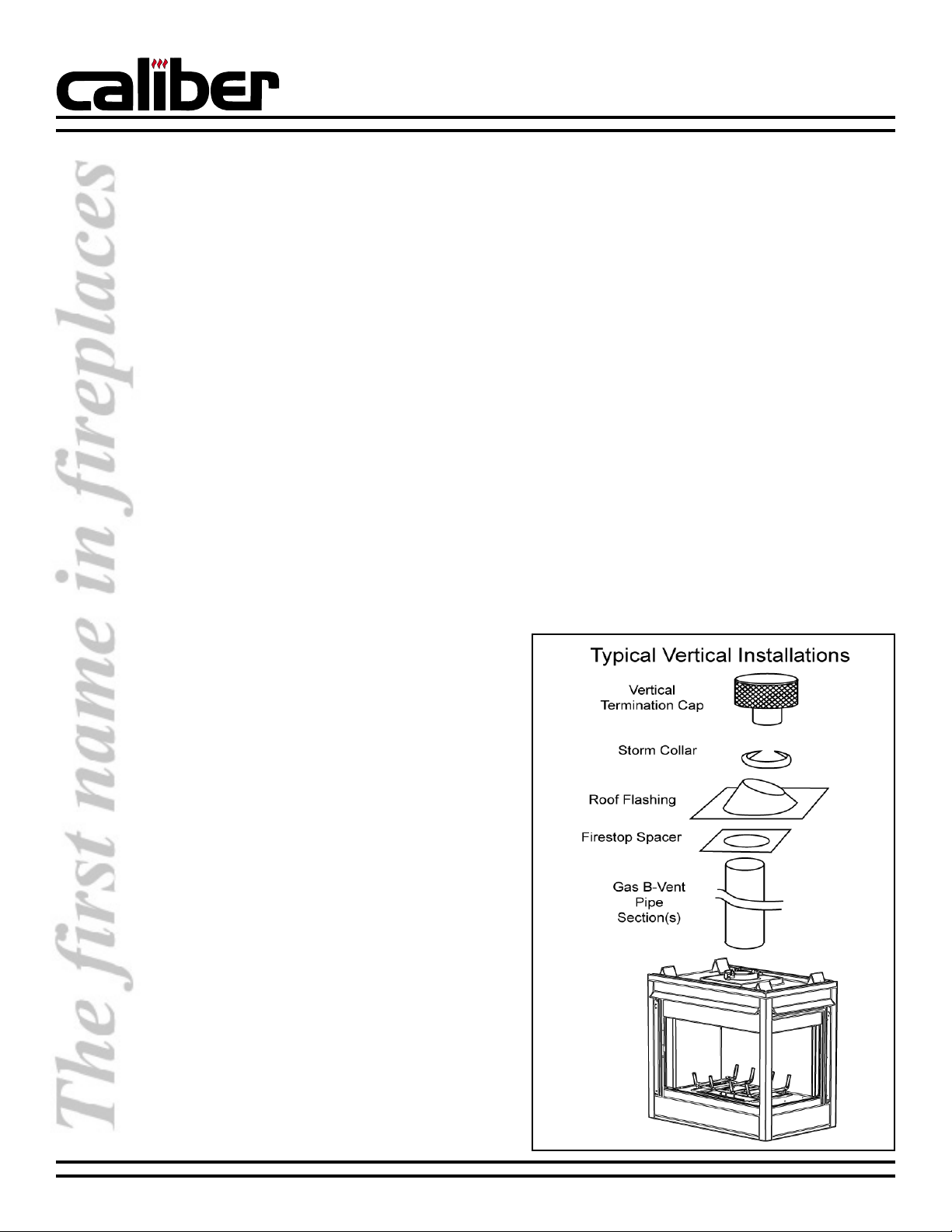

E. VENTING
VERTICAL TERMINATION
This appliance is designed and tested for use with a listed
5 inch B-Vent vent system.
1. CLEARANCES
Vent clearances are per vent manufacturers
specifications.
2. VENT LENGTHS
Various venting configurations are shown in igures4
and 5 from which maximum vent runs can be
determined.
CAUTION:
Provisions shall be made to provide adequate
combustion and ventilation air.
WARNING - RISK OF FIRE!
Always maintain minimum clearances or greater
around the vent system. Do not pack air spaces with
insulation or other material.
WARNING!
he horizontal run of vent must have a 1/4 rise for
every 1 ft. of run towards the termination. Never allow
the vent to run downward. his could cause high
temperatures and may present a fire hazard.
Figure 4 - Vertical ermination Vent Lengths
Figure 5 - Vertical ermination Vent Lengths
3. FIRESTOP SPACER/VENT
INSTALLATION
rame an opening and install a firestop spacer
whenever the vent penetrates a ceiling/floor area, as
shown in igure 6. rame the opening with the same
sized lumber as used in the ceiling floor joists. Unless
the flue is offset, the hole should be directly above the
appliance. DO NOT pack insulation around the vent.
Assemble vent sections with three screws per joint.
Figure 6
Installing the firestop spacer

01-02 7 28365 Rev E
CALIBER BV DESIGNERS

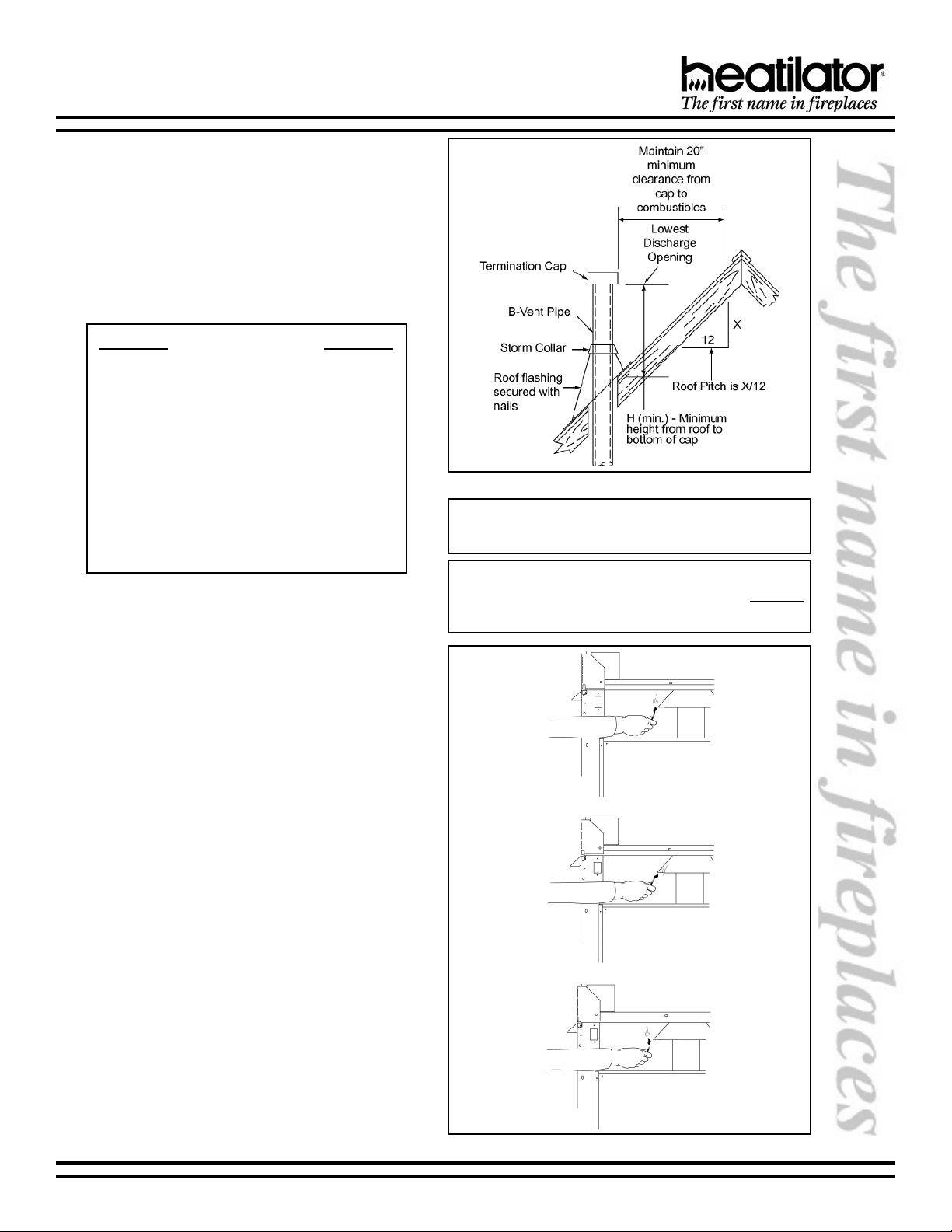

4. CHASE/TERMINATION INSTALLATION
igure 7 and Table 1 specify minimum vent heights
for various pitched roofs. Vent sections may have to
be cut to a certain length.
These vent heights are necessary for safety and do
not ensure draft-free operation. Trees, buildings,
adjoining roof lines, adverse conditions, etc. may
create a need for a taller vent should down drafting
occur.
Figure 7 - Vent Height for Vertical ermination
able 1 - Vent Height
Note: To ensure proper operation, verify all venting and
that the termination is unobstructed.
Roof Pitch H (Min.) Ft.
lat to 6/12 ................................................ 1.0
6/12 to 7/12............................................... 1.25
Over 7/12 to 8/12 ...................................... 1.5
Over 8/12 to 9/12 ...................................... 2.0
Over 9/12 to 10/12 .................................... 2.5
Over 10/12 to 11/12 .................................. 3.25
Over 11/12 to 12/12 .................................. 4.0
Over 12/12 to 14/12 .................................. 5.0
Over 14/12 to 16/12 .................................. 6.0
Over 16/12 to 18/12 .................................. 7.0
Over 18/12 to 20/12 .................................. 7.5
Over 20/12 to 21/12 .................................. 8.0
5. CHECK VENTING SYSTEM
Check the venting system to assure proper operation.
This can be done with a match while the appliance is
operating.
Hold a lighted match at the bottom edge of the draft
hood opening. If the flames and smoke remain upright,
ventilation is acceptable. If the flames and smoke are
drawn into the draft hood, this means ventilation is
good. If the flames and smoke are forced away from
the draft hood, this may indicate a ventilation blockage
or down draft resulting in gas spillage into the home.
If this occurs, turn off the appliance and do not burn it
until it has been inspected by a qualified service
person. See igure 8.
. OUTSIDE AIR KIT INSTALLATION
An outside air kit is supplied as an optional feature
with this appliance. An outside air kit helps to decrease
the amount of room air taken by utilizing outside air
for combustion. It is strongly recommended that it be
installed.
The outside air kit can only be installed on the left
side of the GBST, GB L and GBCR, on the right side
of the GBCL, and on the bottom of the GBIS.
To install the outside air kit, refer to the installation
instructions provided with the kit.
Figure 8 - esting Ventilation
Note: The outside air kit can terminate at any level with
the exception that it must terminate at least one foot
below the vent termination cap.

28365 Rev E 8 01-02
CALIBER BV DESIGNERS
F. UTILITIES
1. GAS LINE CONNECTION
Open the control access panel as shown in igures 9
and 10. See igure 11 to connect gas line.
All connections must be checked for leaks with a soap
and water solution or a leak detector.
Bleed the gas line for about 5 seconds to extract any
air that may have been trapped inside the pipe.
Figure 9 - Control Access Panel Removal
Figure 10 - Control Access Panel Removal
2. GAS PRESSURE
A 1/8 NPT plugged tapping is provided on the gas
control valve, near the outlet to the main burner
immediately upstream of the gas supply connection
to the appliance, accessible for a test gage connection.
Pressure taps are located on the top of the valve for
both inlet and outlet pressure.
Table 2 shows optimum gas pressure information.
Consult your local gas company for assistance in
determining the proper orifice for your altitude or refer
to ANSI Z223.1-latest edition, Appendix .
Note: The appliance and its manual shutoff valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test pres-
sures in excess of 1/2 psi (3.5 kPa). The appliance must
be isolated from the gas supply piping system by clos-
ing its manual shutoff valve during any pressure testing
of the gas supply piping system at test pressures equal
to or less than 1/2 psi (3.5 kPa).
Figure 11 - Gas Line
REBILAC
)saglarutan(erusserpylppussagtelnI).nim(5.4
*).am(0.7
)saglarutan(erusserpdlofinammumitpO*5.3
)sagPL(erusserpylppussagtelnI).nim(0.11
*).am(0.41
)sagPL(erusserpdlofinammumitpO*5.01
)saglarutan(etartupnI.rh/UTB000,43
)sagenaporp(etartupnI.rh/UTB000,03
ezisecifirOsaGlarutaNmm29.2/.ni511.
eziSecifirOsaGenaporPmm07.1/.ni760.
nmulocretawsehcnI*

01-02 9 28365 Rev E
CALIBER BV DESIGNERS
3. WIRING
a. Electronic Ignition
1) Appliance Requirements: This appliance
requires a 110V AC supply from a wall switch
to the appliance junction box for operation. A
wiring diagram is shown in igure 12.
2) Optional Accessories Requirements:
Wiring for optional accessories should be
done now to avoid reconstruction.
Note: This appliance must be electrically wired and
grounded in accordance with local codes or, in the ab-
sence of local codes, with National Electric Code ANSI/
N PA 70-latest edition or the Canadian Electric Code,
CSA C22.1.
Figure 12
Electronic Ignition Wiring Diagram
b. Standing Pilot Ignition
1) Appliance requirements: A wiring diagram is shown in igure 13.
2) Optional Accessories Requirements: Wiring for optional accessories should be done now to avoid
reconstruction.
WARNING!
his appliance does not require a 110V AC
supply for operation. Connecting the
appliance/wall switch to a 110V AC supply
will cause the appliance to malfunction and
destroy the valve and thermopile.
Figure 13
Standing Pilot Ignition Wiring Diagram

28365 Rev E 10 01-02
CALIBER BV DESIGNERS
G. FINISHING
Combustible Finishing Material: Material made of or
surfaced with wood, compressed paper, plant fibers,
plastics, or any material capable of igniting and burning,
whether flame proofed or not, plastered or unplastered
(this includes drywall).
Noncombustible Finishing Material: Material which will
not ignite and burn. Such materials are those consisting
entirely of steel, iron, brick, tile, concrete, slate, glass or
plasters, or combination thereof, or have a UL ire rating
of zero (0).
High emperature Sealant Material: Sealants that will
withstand high temperatures: General Electric RTV103
(Black) or equivalent. Rutland, Inc. Appliance Mortar #63,
or equivalent.
A high temperature sealant, 1/8 inch wide minimum, must
be used to close off gaps between the appliance and
facing to prevent cold air leaks. See igure 14.
A combustible mantel may be installed at a minimum of
42 inches above the base of the appliance.

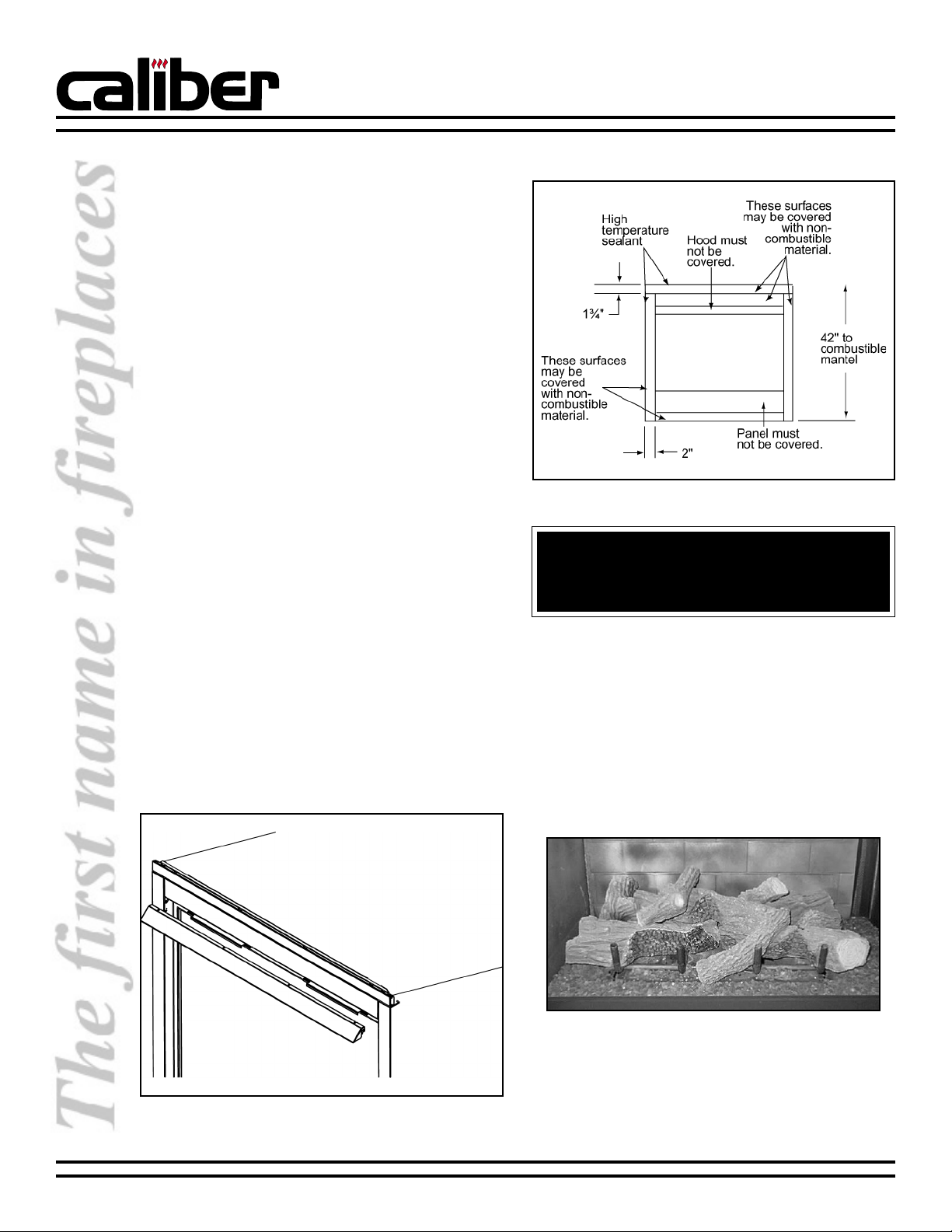

Figure 14
Finishing Materials
WARNING!
Lower grille on this appliance cannot, in any way, be
covered as it may create a fire hazard.
1. ATTACHING THE HOOD
The hood is to be located above the glass panel. The
hood must be attached or a fire hazard may result.
Locate the three tabs just inside the upper section of
the appliance. Position the hood and slide into
position. See igure 15.
Figure 15
Hood Replacement
2. GLASS AND SCREEN REMOVAL
See page 17 of this manual.
3. APPLIANCE PREPARATION
Remove the straps from the screws on the hearth
pan. Remove the foam material. The log set should
look similar to that in igure 16.
Figure 16
Caliber Log Set
(GBCR36 shown)
H. APPLIANCE PREPARATION

01-02 11 28365 Rev E
CALIBER BV DESIGNERS
4. PLACING THE VERMICULITE AND LAVA
ROCK
Place the vermiculite and lava rock around but not on
the burner. See igure 17.
5. PLACING THE ROCK WOOL
Place a small amount of 1/2 diameter pieces (dime-
size) of rock wool on the burner pan so that the rock
wool touches but does not cover the holes in the burner
pan. This will provide the glowing embers look. See
igure 17.
. GLASS AND SCREEN REPLACEMENT
See page 17 of this manual.
WARNING - RISK OF CARBON MONOXIDE!
Never operate this appliance with the glass removed.
WARNING - RISK OF CARBON MONOXIDE!
Do not hit or strike glass. Do not operate this
appliance if the glass is broken or cracked.
Figure 17
Placing the Vermiculite and Lava Rock
(Logs are removed for clarity).
INSTALLATION IS COMPLETE

28365 Rev E 12 01-02
CALIBER BV DESIGNERS
FOR YOUR SAFETY
READ BEFORE OPERATING
I. DETERMINING THE IGNITION TYPE
To determine whether your appliance is an electronic ignition or a standing
pilot ignition, open the control access panel to examine the wiring system. If
your system has a red ignitor button, as shown in igure 18, you own a
standing pilot ignition appliance. If no red ignitor button is present, you own
an electronic ignition appliance.
You may also check the rating label located on the inside of the control
access panel to determine ignition type.
Figure 18
Standing Pilot Ignition
1. ELECTRONIC IGNITION OPERATION
WARNING! If you do not follow these instructions exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
A. This appliance does not have a pilot. It is equipped with an ignition device which automatically lights the
burner. Do not try to light the burner by hand.
B. BE ORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the floor because
some gas is heavier than air and will settle on the floor.
WHA O DO IF YOU SMELL GAS
 Do not try to light any appliance.
 Do not touch any electric switch; do not use any phone in your building
 Immediately call your gas supplier from a neighbors phone. ollow the suppliers instructions.
 If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in and move the gas control lever or turn the gas control knob. Never use tools, If
the lever or knob will not move by hand, dont try to repair it - call a qualified service technician. orce or
attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this label.
2. Turn wall switch to the O  position.
3. This appliance is equipped with an ignition device which automatically lights the burner. Do not try to light
burner by hand.
4. Wait five (5) minutes to clear out any gas. If you then smell gas, STOP! ollow B in the safety information
above on this label. If you dont smell gas, go on to the next step.
5. To turn on burner, turn on all electric power to this appliance.
6. If the appliance will not operate, follow the instructions TO TURN O GAS TO APPLIANCE and call your
service technician or gas supplier.
TO TURN OFF GAS TO APPLIANCE
1. Turn off the wall switch.
2. Push gas control lever in and move to the O  position or push gas control lever to the O  position. Do
not force.
3. Close the control access panel.
J. LIGHTING INSTRUCTIONS

01-02 13 28365 Rev E
CALIBER BV DESIGNERS
2. STANDING PILOT OPERATION
A. This appliance has a pilot which must be lighted
by hand. When lighting the pilot, follow these
instructions exactly.
B. BE ORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next to
the floor because some gas is heavier than air
and will settle on the floor.
WHA O DO IF YOU SMELL GAS
 Do not try to light any appliance.
 Do not touch any electric switch; do not use
any phone in your building.
 Immediately call your gas supplier from a
neighbors phone. ollow the suppliers
instructions.
 If you cannot reach your gas supplier, call the
fire department.
C. Use only your hand to push in or turn knob. Never
use tools. If the knob will not push in or turn by
hand, dont try to repair it; call a qualified service
technician. orce or attempted repair may result
in a fire or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to replace
any part of the control system and any gas control
which as been under water.
WARNING! If you do not follow these instructions exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
LIGHTING INSTRUCTIONS
STOP! Read the safety information above on this label!
1. Turn wall switch to the OFF position or set thermostat
to lowest setting.
2. Open control access panel.
3. Turn gas line to CLOSED. ait 5 minutes to clear out
any gas. Then smell for gas, including near the floor. If
you smell gas, STOP! Follow B in the safety
information above on this label. If you dont smell gas,
go to the next step.
4. Turn gas line to OPEN.
5. Turn pilot knob clockwise to OFF. Knob may have
to be depressed to pass the PILOT position.
6. Locate pilot assembly inside the appliance.
7. Locate red ignitor button.
8. Turn pilot knob to PILOT and push in.
9. Continue to hold in pilot knob and push the red ignitor
button 12-15 times until small blue pilot flame appears.
10. Continue to hold in pilot knob for approximately one
minute. Pilot should remain lit. If pilot goes out, wait 5
minutes and repeat Steps 4-9.
11. Release and turn the knob counterclockwise to ON.
12. If the appliance will not operate, follow the instructions
To Turn Off Gas To Appliance and call your service
technician or gas supplier.
Note: To light main burner, turn the Wall Switch to
ON. Do not light by hand.
TO TURN OFF THE GAS TO THE APPLIANCE
1. Turn off the wall switch or set thermostat to lowest
setting.
2. Open control access panel.
3. Turn gas line to CLOSED position. Do not force.
4. Close control access panel.
FOR YOUR SAFETY READ BEFORE LIGHTING THE STANDING PILOT
5118
7
6
4
3
2
7

28365 Rev E 14 01-02
CALIBER BV DESIGNERS
K. SEASONAL CHECKLIST
WARNING!
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the same room
as the appliance.
CAUTION:
Any safety screen or guard removed for servicing an appliance must be replaced prior to operating this appliance.
Clothing or other flammable material should not be placed on or near the appliance.
Installation and repair should be done by a qualified service person. The appliance should be inspected before use
and at least annually by a qualified service person. More frequent cleaning may be required due to excessive lint
from carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air pas-
sageways of the appliance be kept clean.
Before operating this appliance, have a qualified
technician:
1. Review proper placement of logs, rock wool and
vermiculite.
2. Check wiring.
3. Check the air shutter adjustment.
4. Ensure there are no gas leaks.
5. Ensure the glass is sealed and in proper position.
6. Ensure the flow of combustion and ventilation air is
not obstructed.
WARNING!
Keep the area near the appliance clear and free from
combustible materials, Gasoline and other
flammable vapors and liquids.
WARNING!
Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system and any gas control which has
been under water.
OPERATING THE OUTSIDE AIR KIT
The outside air kit is supplied as an optional feature with
this fireplace. The outside air kit helps to decrease the
amount of room air taken, by utilizing outside air for
combustion. It is strongly recommended that it be installed.
To operate the outside air kit and before starting the
appliance, open the control access panel. Locate the
outside air door handle and rotate to the open position.
See igure 19).
When you are through burning the appliance, open the
control access panel, grasp the handle and rotate to the
closed position. Close the control access panel.
Figure 19 - Operating the Outside Air Door

01-02 15 28365 Rev E
CALIBER BV DESIGNERS
L. START-UP ISSUES
1. STANDING PILOT OPERATION
Hearth Technologies Inc. (HTI) recommends you leave
the pilot on year round.
If you decide to shut down the appliance for a long
period of time:
a. Turn all wall switches to O .
b. Turn pilot knob on valve to O .
c. Turn the gas line to CLOSED.
2. ELECTRONIC IGNITION OPERATION
To shut down the appliance for a long period of time:
a. Turn all wall switches to O .
b. Turn the gas line to CLOSED.
Lighting the Appliance during Regular Use: Turn the
wall switch to ON.
Shutdown During Regular Use: Turn the wall switch
to O .
3. FUEL
Do not burn wood or other material in this appliance.
Natural or propane gas conversions necessary to
meet the application need to be made by a qualified
technician using HTI specified and approved parts.
In the event your appliance must be converted to use
propane, you must use a CKVP Conversion Kit. To
convert to use natural gas, you must use a CKVN
Conversion Kit.
WARNING!
Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to
replace any part of the control system and any
gas control which has been under water.
WARNING!
Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid or similar liquids in this appliance.
Keep any flammable liquids a safe distance from the appliance.
EUSSISNITULS
.1.ssalgehtnonoitasnednoC.1sA.snoitairaverutarepmetdnanoitsubmocsagfotluserasisihT
.raepasiddluohsnoitasnednocsiht,smrawecnailppaeht
.2.semalfeulB.2otnigeblliwsemalfehtdnanoitarepolamronfotluserasisihT
.nrubotdewollasiecnailppaehtsawolley
.3.ecnailppamorfrodO.3ehtrofrodonaesaeleryamecnailppasiht,detarepotsrifnehW
dnatniapehtfognirucehtybdesuacsisihT.sruohlarevestsrif
.gnirutcafunammorfgniniamerslioynafoffogninrubeht
.4.ssalgehtnomliF.4.sgoldnatniapehtfossecorpgnirucehtfotluserlamronasisihT
otgninrublaitinifosruoh6-4nihtiwdenaelcebdluohsssalG
A.ssecorpgnirutcafunamehtmorfslioybtfelstisopedevomer
.yrassecenebyamossarBsahcus,renaelcevisarba-non

28365 Rev E 16 01-02
CALIBER BV DESIGNERS
M. MAINTENANCE INSTRUCTIONS
1. CLEANING THE BURNER AND CONTROL
COMPARTMENT
Keep the burner and control compartment clean by
brushing and vacuuming at least once a year.
Always turn off the wall switch (or remote control)
and gas valve before cleaning.
2. CHECKING THE VENT SYSTEM
est the venting system periodically to assure
proper operation. he appliance and venting system
should be inspected before use, and at least
annually, by a qualified field service person, to
ensure that the flow of combustion and ventilation
air is not obstructed
3. CHECKING FLAME PATTERNS
Check the flame of the burner periodically, making
sure the flames are steady, not lifting or floating.
he flame color should be blue with yellow tips. See
Figure 23. he ignitor (electronic) or thermopile and
thermocouple (standing pilot) tips should be
covered with flame. See Figures 20 through 22.
If the vent configuration is installed incorrectly, the
vent may cause the flames inside the appliance to
lift or ghost - a dangerous situation. Inspect the
flames after installation to ensure proper
performance. See Figure 23. If the vent configuration
is correct, yet the flames are lifting or ghosting,
shut off gas to the appliance and contact the dealer.
Note: The look of the flames and embers may differ
based on the type of fuel and venting assembly that is
required.
Figure 20 - Electronic Ignition
Figure 21 - Electronic Ignition
Figure 22 - Standing Pilot
Figure 23 - Flame Patterns

01-02 17 28365 Rev E
CALIBER BV DESIGNERS
4. CLEANING THE GLASS
See igure 24.
Never operate this appliance without the glass
properly secured in place or if the glass is broken.
In the event of glass breakage, carefully remove the
glass frame. This will allow the removal of all glass
fragments and sheet metal edge protection strips.
Vacuum all remaining glass pieces with a shop vac.
DO NO VACUUM IF PIECES ARE HO ! Replace glass
with an HTI glass panel assembly only, ordered direct
or through your local distributor. Never use substitute
material. Only fully tempered soda lime safety glass
or ceramic glass may be used on this appliance.
5. LOG REMOVAL/REPLACEMENT
If removal of the logs becomes necessary, remove
the four screws at each end of the grate. Grasp the
grate as shown. Pull the log up and off the burner.
See Figure 25.
o replace the logs, grasp the grate as shown. Lower
the log set onto the burner pan, making sure the
grate bars drop into holes provided. Attach the four
screws at the end of the grate.
o prevent the possibility of soot, we have provided
your appliance with an adjustable air shutter. Your
air shutter is provided in the closed position for
natural gas and in the open position for propane. In
the event soot is accumulating in your appliance,
the air shutter should be opened farther. his can
be done by opening the control access panel and
locating the wing bolt located on the bottom of the
firebox. When the wing bolt is turned out, the air
shutter is fully closed. When the wing bolt is turned
in, the air shutter is fully open.
Figure 25 - Log Removal
Figure 24 - Glass Cleaning
Safety Note:
Handle glass
with care to
avoid striking,
scratching or
slamming shut.
NEVER clean
glass when hot.
Keep children
and pets a safe
distance away.

28365 Rev E 18 01-02
CALIBER BV DESIGNERS
N. OPTIONAL COMPONENTS
MF1
Adjustable Flame Head
(Natural Gas Standing Pilot)
MF2
Adjustable Flame Head
(Propane Gas Standing Pilot)
DF370A/B
(Fixed End Panel - Antique or Bright Brass)
DF318A/B
(Fixed Doors - Antique or Bright Brass)
CKVP
Natural Gas to Propane
Standing Pilot Conversion Kit
CKVN
Propane to Natural Gas
Standing Pilot Conversion Kit
KS3A/B, KFL3A/B, KCR3A/B,
KCL3A/B, KIS3A/B
KD5A/B
Brass rim Kits
RC-SMAR -H L
Remote Control (standing pilot)
RC-ELEC-H L
Remote Control (electronic
ignition)
RC-BA -H L
Battery-operated remote control
(standing pilot)
RC -ML -H L
Multi-Function Remote Control
SMAR -S A -H L
Remote Control with
hermostat Control
SMAR -BA -H L
Battery-operated Remote Control
with hermostat Control

01-02 19 28365 Rev E
CALIBER BV DESIGNERS

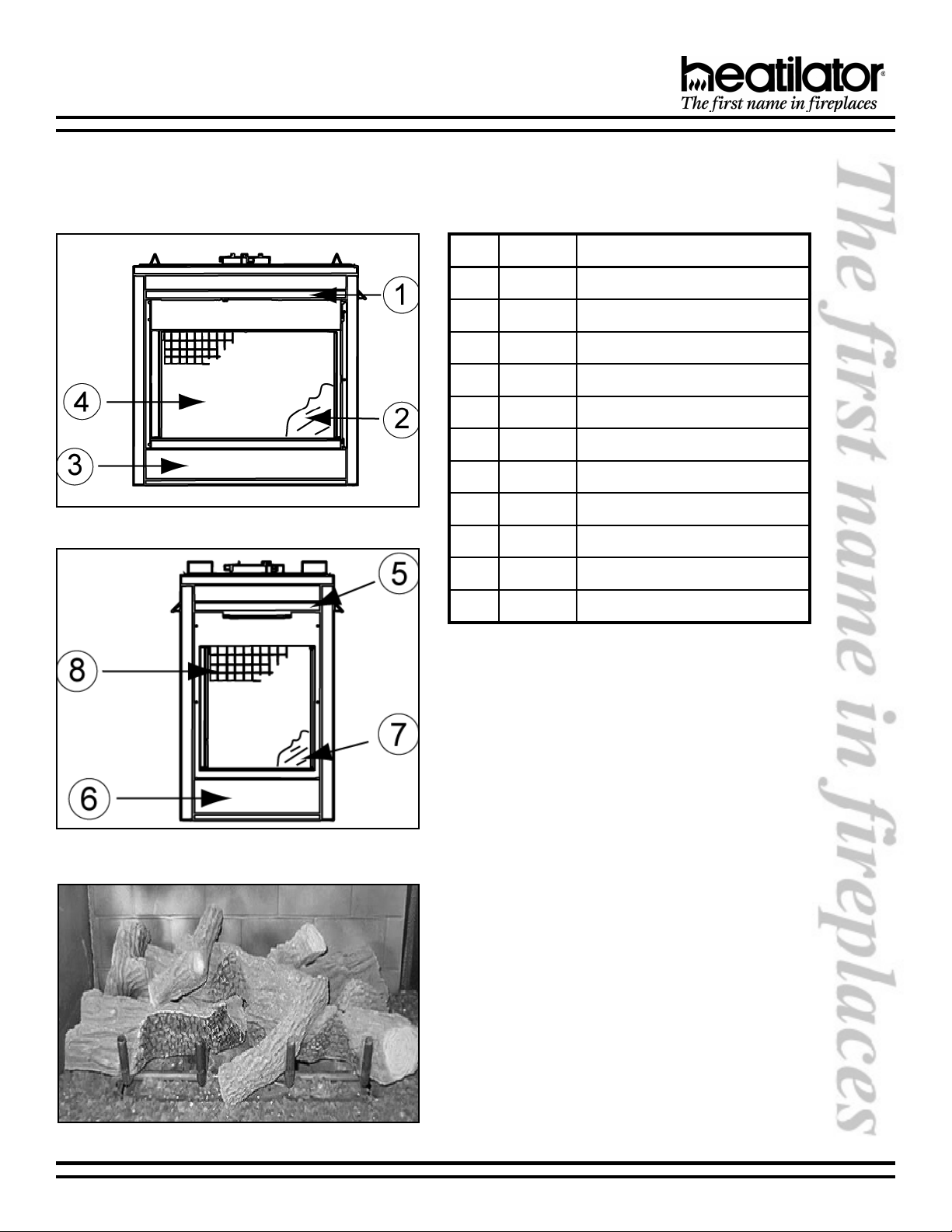

O. REPLACEMENT PARTS
Replacement parts are available from you distributor/dealer.
#10 - Grate/Gas Log Assembly
METI#TRAPNITPIRCSED
185672dooHtnorF
255162ylbmessAssalGtnorF
339852rooDsseccAlortnoC
416162ylbmessAneercStnorF
595672dooHediS
631952ecaFdnErewoL
785162ylbmessAssalGdnE
846162ylbmessAneercSdnE
966072)nwohston(sehctaLsseccAkciuQ
0139772ylbmessAgoL/etarG
1121952)nwohston(lenaPraeRrewoL

28365 Rev E 20 01-02
CALIBER BV DESIGNERS
Homeowners Notes
