Heatilator G270 SERIES B User manual

Heatilator 1915 W. Saunders Street Mt. Pleasant, IA 52641 A Division of Hearth Technologies Inc.
INSTALLATION
INSTALLATION INSTRUCTIONS - G270 SERIES
B - VENT GAS APPLIANCE
Read these Installation Instructions completely before beginning
installation. Failure to follow them could cause an appliance mal-
function resulting in serious injury and/or property damage.
WARNING!
Improper installation,
adjustment, alteration,
service or maintenance
can cause injury or
property damage. Refer
to this manual. For
assistance or additional
information, consult a
qualified installer, ser-
vice agency or the gas
supplier.
FOR YOUR SAFETY
What to do if you smell gas:
• Do not try to light any appliance.
• Do not touch any electrical
switch.
• Do not use any phone in your
building.
• Immediately call your gas sup-
plier from a neighbor’s phone.
Follow the gas supplier’s
instructions.
• If you cannot reach your gas
supplier, call the fire depart-
ment.
FOR YOUR SAFETY
Do not store or use
gasoline or other
flammable vapors
and liquids in the
vicinity of this or any
other appliance.
TABLE OF CONTENTS
A. Preparation..............................................................
B. Location and Clearances.........................................
C. Framing....................................................................
D. Setting The Unit.......................................................
E. Venting.....................................................................
F. Utilities.....................................................................
G. Finishing.................................................................
H. Firebox Preparation................................................
Scroll to Page 14o for the
“Operating and
Maintenance Instructions.”

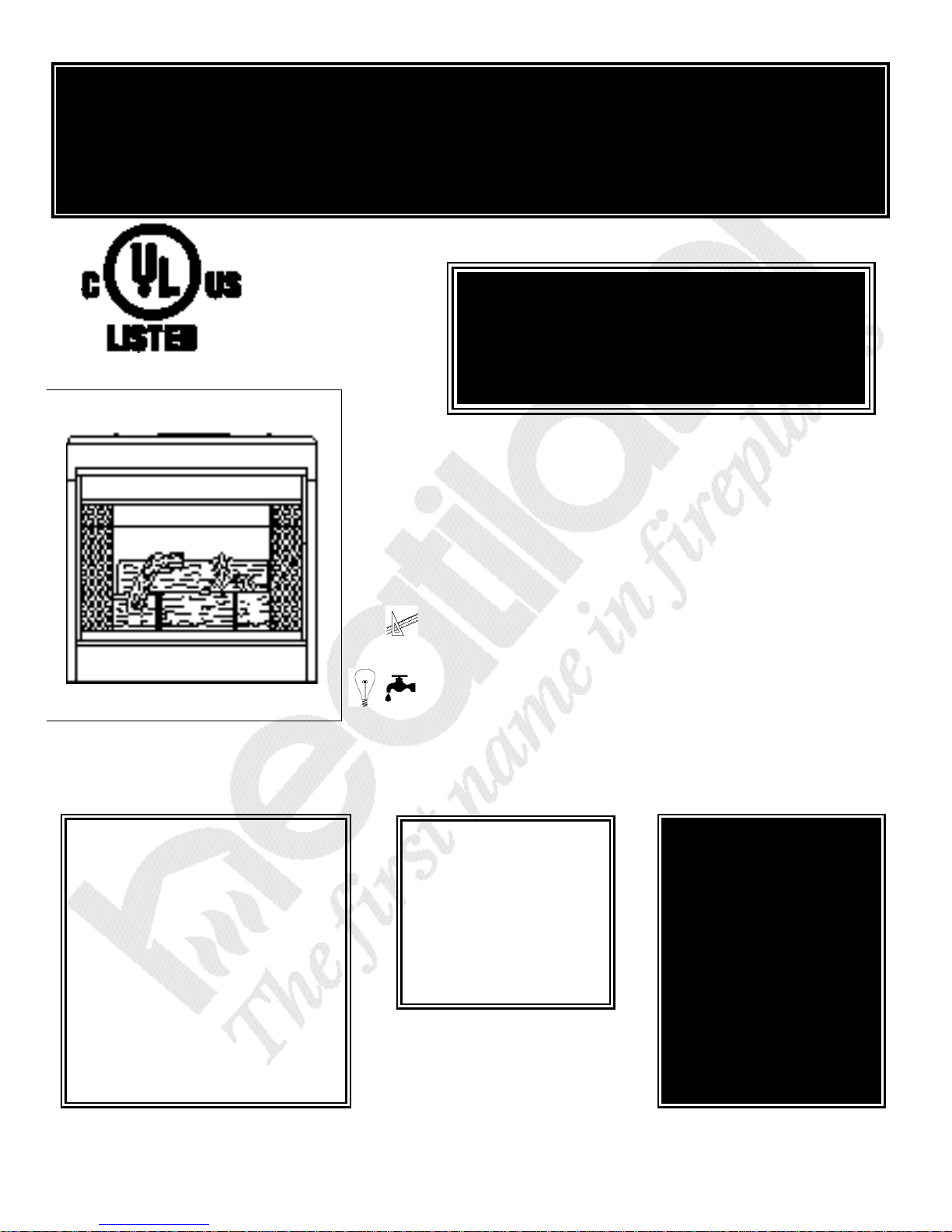

The G270 B-Vent Gas Appliance
11-98 30094 Rev C
2i
3i
4i
5i
5i
8i
11i
11i

9-98 2i 30094B
G270 SERIES B - VENT GAS APPLIANCE
A. PREPARATION
U.S. and Canada Certification.
The G270 Gas Appliance has been tested in accor-
dance with the ANSI standard Z21.50b-1996 in the
United States. In Canada, the current CAN/CGA
M2.22-M96 and have been LISTED by Underwriters
Laboratories Inc. for installation as described in this
manual. All components are UL, AGA, CGA or CSA
safety certified.
Local Codes.
This installation must conform with local codes. In the
absence of local codes comply with the National Fuel
Gas Code, ANSI Z223.1-latest edition, in the U.S.A.
and the CAN/CGA B149, Installation Codes, in
Canada.
For assistance during installation contact your local
dealer or contact Heatilator Customer Relations
Department, 1915 W. Saunders Street, Mt. Pleasant,
Iowa 52641.
HEATILATOR®is a registered trademark of
Heatilator, a Division of Hearth Technologies Inc.
Note: Minimum and maximum clearances must
be maintained at all times. Illustrations
throughout these instructions reflect typical
installations and are for design purposes only.
Actual installation may vary slightly due to indi-
vidual design preferences.
The illustrations and diagrams used throughout
these installation instructions are not drawn to
scale.
Tools and building supplies normally
required for installation:
Tools Building Supplies
Saw Wall-finishing materials
Pliers Framing material
Hammer Fireplace surround
Phillips screwdriver Caulking material
Tape measure
Plumb line
Level
Electrical drills/bits
Square
Gloves
G270 Nomenclature
Catalog # Description
G270 Standing Pilot, Natural Gas
G270L Standing Pilot, L.P. Gas
G270E Electronic Ignition, Natural Gas
G270LE Electronic Ignition, L.P. Gas
G270M Standing Pilot, Natural Gas, Millivolt System
G270LM Standing Pilot, L.P. Gas, Millivolt System
Catalog # Optional Components
FF270* Glass Doors and Surround Kit
RC4 Remote Control Kit - Millivolt Valve
RC5 Remote Control Kit - Electronic Ignition
RC6 Remote Control Kit - Millivolt Valve - Battery Operated
We strongly recommend that you DO NOT
install B-Vent Gas Appliances in strong nega-
tive air locations, such as a basement or a pub-
lic facility. Living rooms with cathedral ceilings
could be susceptible to a negative air situation,
but such installations can be overcome through
raising the termination, depending on specific
installations. This fireplace uses room air for
normal operation and could have problems
establishing a positive draft in negative air loca-
tions. in lieu, we recommend a direct vent
appliance.
*FF270 is not compatible with units with Date Codes
prior to 54195.

7-98 3i 30094A
G270 SERIES B - VENT GAS APPLIANCE
B. LOCATION AND CLEARANCES (In inches)
DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC
AND AWAY FROM FURNITURE AND DRAPERIES.
1. APPLIANCE LOCATIONS AND SPACE
REQUIREMENTS

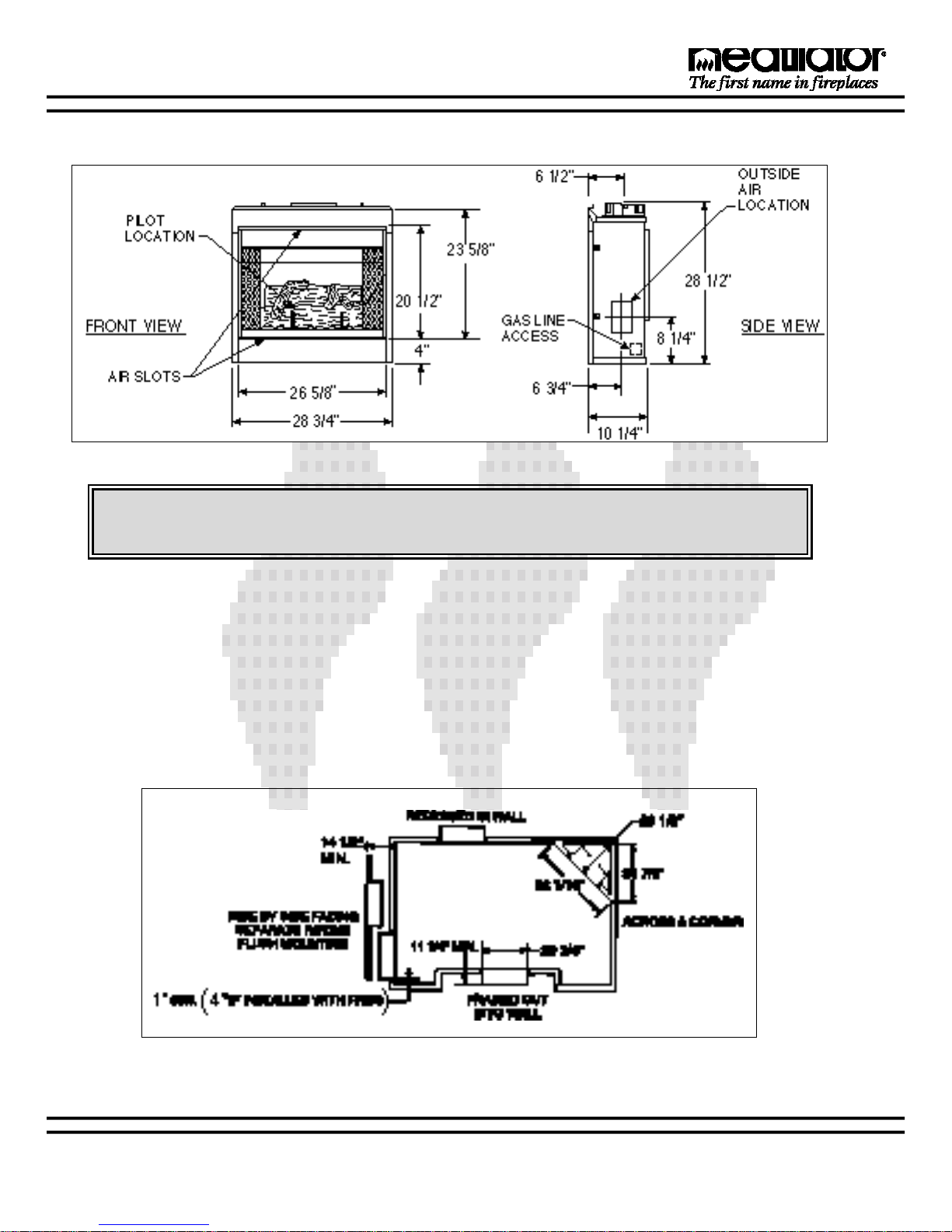

Figure 2 illustrates a variety of ways the appliance may
be located in a room. The G270 may be installed
directly on the floor or raised on a hearth.
Figure 2
Appliance Locations
2. CLEARANCES
1. For unit:
Top of stand-offs 0”
Floor 0”
Back of unit 1”
Side 1”
Face to ceiling 30”
Figure 1 - Unit Dimensions

7-98 4i 30094A

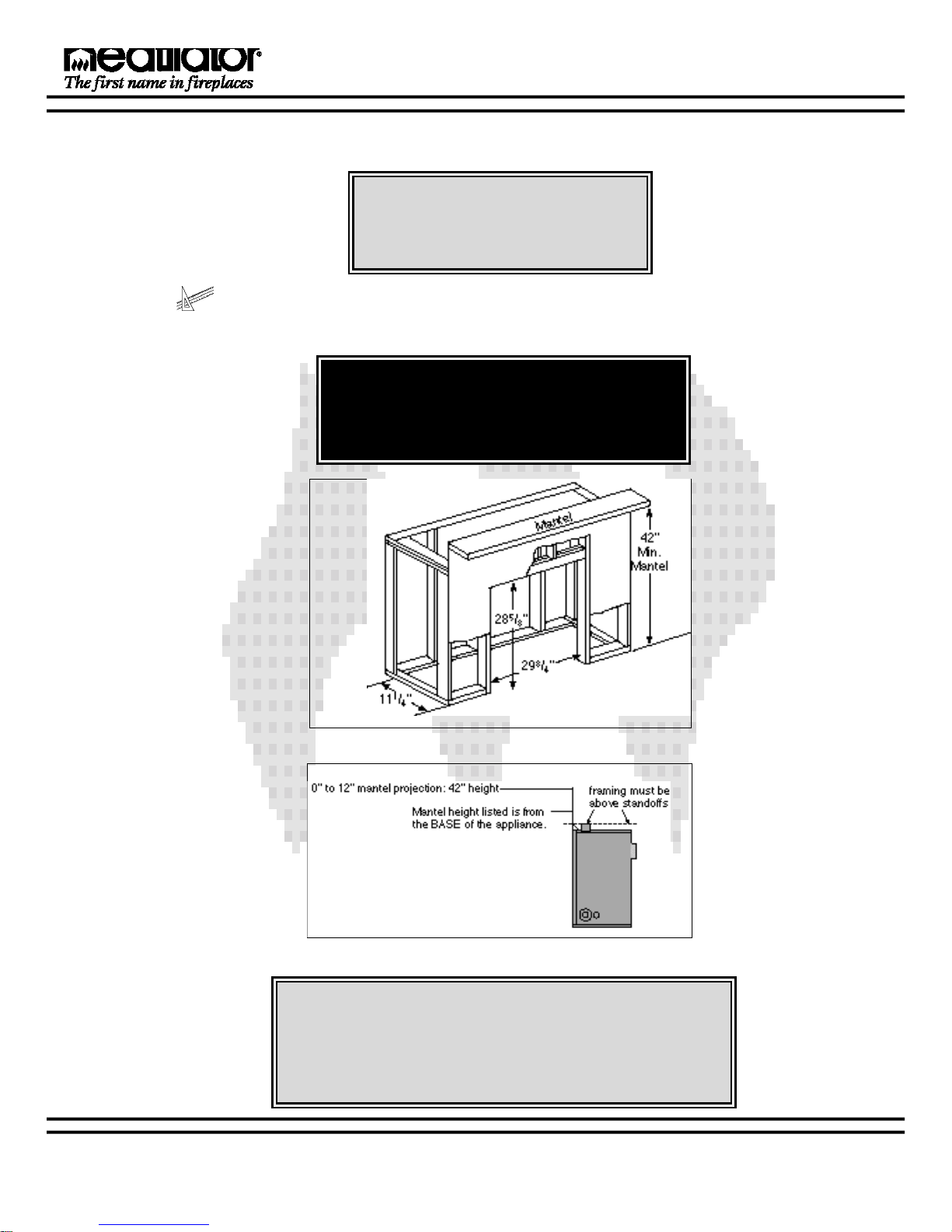

C. FRAMING
Figure 3a - Framing
Figure 3a shows a typical framing of this appliance using combustible materials. Figure
3b shows the mantel heights for mantel projections. All required clearances to com-
bustibles must be adhered to.
CAUTION
WEAR GLOVES AND SAFETY
GLASSES FOR PROTECTION.
CAUTION
PROVIDE ADEQUATE CLEARANCES AROUND THE AIR
OPENINGS INTO THE COMBUSTION CHAMBER AND ADE-
QUATE ACCESSIBILITY CLEARANCES FOR SERVICING
AND PROPER OPERATION.
G270 SERIES B - VENT GAS APPLIANCE
Figure 3b - Framing
WARNING - RISK OF FIRE!
ALWAYS MAINTAIN MINIMUM AIR SPACE
CLEARANCES OR GREATER AROUND THE
APPLIANCE AND CHIMNEY SYSTEM.

7-98 5i 30094A
D. SETTING THE UNIT
1. Positioning the Firebox.
This appliance may be placed on a smooth
combustible or non-combustible, continuous
flat surface. When the appliance is installed
directly on carpeting, tile or other combustible
material other than wood flooring, the appliance
shall be installed on a metal or wood panel
extending the full width and depth of the appli-
ance. Slide the unit into position and level the appli-
ance from side-to-side and front-to-back. Shim with
non-combustible material as necessary.
Secure the appliance by bending out the Nailing
Flanges on each side of the appliance and nail to
Framing. The Nailing Flanges have been positioned
5/8" back from the front of the unit to allow the addi-
tion of drywall.
G270 SERIES B - VENT GAS APPLIANCE
E. VENTING
1. Vent Height.
This appliance requires a 4” B-vent for operation. Never
downsize pipe! It must be terminated above the roof line.
Follow all B-vent requirements and installation instructions,
including minimum clearances.
The minimum height of vent installation must be nine feet
from the top or 12 feet from the base of the appliance.
Horizontal run must never exceed 50% of the height of the
vent system as shown in Figure 4.

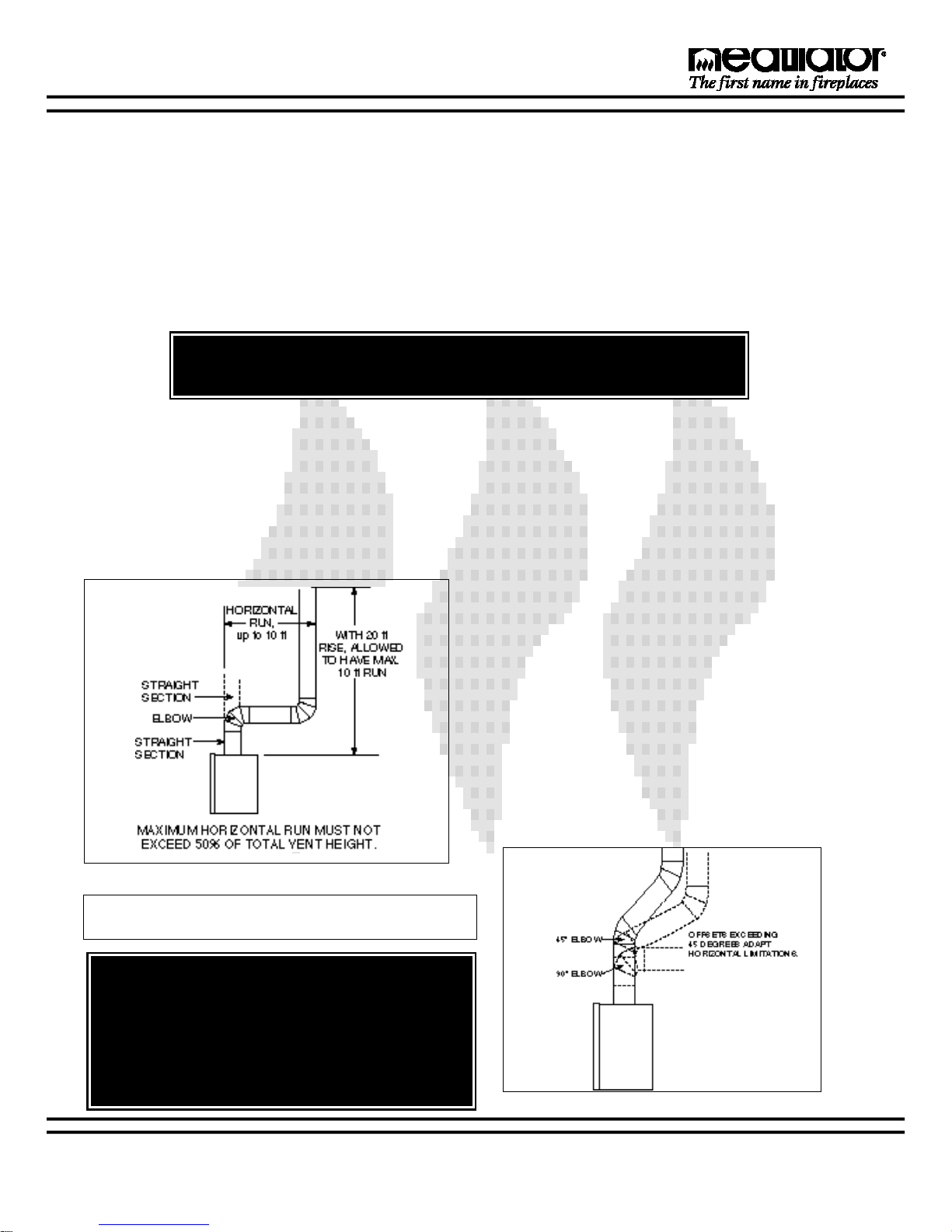

Figure 4 - Venting Off the Top of Appliance
Figure 5 - Using Elbows
2. Attaching Venting.
a. Assembling Vent Sections. Attach a straight Vent
Section to the top of the appliance. Use only B-vent
sections.
b. Using Elbows. Elbows exceeding 45° from the verti-
cal shall be considered horizontal and therefore adapt
horizontal run limitations. See Figure 5.
c. Penetrating the Ceiling. Mark and cut out an open-
ing in the ceiling for a Firestop Spacer. Frame the open-
ing with the same size of lumber used in the Ceiling
Joists.
d. Installing the Firestop Spacers. Firestop Spacers
must be used whenever the Venting penetrates a ceil-
ing/floor area. In all situations, Firestop Spacers are to
be nailed to the Ceiling Joists from the bottom or appli-
ance side, EXCEPT when the space above is an insulat-
ed ceiling or attic space. In this situation, the Firestop
Spacer must be secured from the top side to meet fire
stopping requirements.
Install the Firestop Spacer by positioning and securing
the four sides of the Firestop Spacer to the Joists using
a minimum of [3] Fasteners per side..
NOTE: Vertical rise off the top of the unit before elbow-
ing creates a less restrictive venting environment.
WARNING - RISK OF FIRE!
AIR SPACE CLEARANCES MUST BE MAINTAINED AT ALL TIMES.
WARNING - RISK OF FIRE!
THE HORIZONTAL RUN OF VENT MUST HAVE A
1/4” RISE FOR EVERY 1 FT. OF RUN TOWARDS
THE TERMINATION. NEVER ALLOW THE VENT
TO RUN DOWNWARD. THIS COULD CAUSE
HIGH TEMPERATURES AND MAY PRESENT A
FIRE HAZARD.

7-98 6i 30094A
CAUTION
PROVISIONS SHALL BE MADE TO PROVIDE ADEQUATE COMBUSTION AND VENTILA-
TION AIR.
G270 SERIES B - VENT GAS APPLIANCE

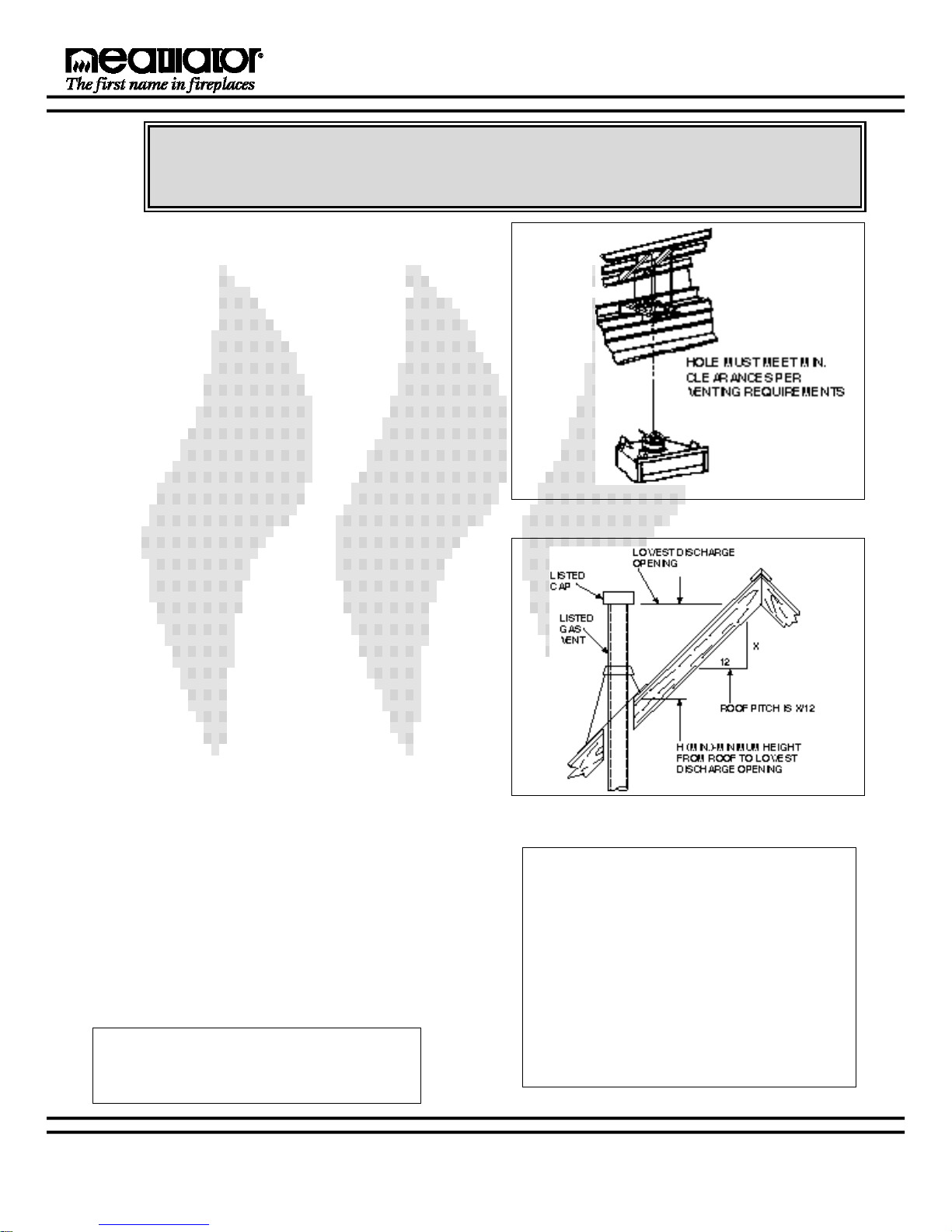

Figure 6a - Roof Exiting
Table 1 - Vent Height
Roof Pitch H (Min.) Ft.
Flat to 6/12 ...........................................1.0
6/12 to 7/12 ..........................................1.25
Over 7/12 to 8/12..................................1.5
Over 8/12 to 9/12..................................2.0
Over 9/12 to 10/12................................2.5
Over 10/12 to 11/12..............................3.25
Over 11/12 to 12/12..............................4.0
Over 12/12 to 14/12..............................5.0
Over 14/12 to 16/12..............................6.0
Over 16/12 to 18/12..............................7.0
Over 18/12 to 20/12..............................7.5
Over 20/12 to 21/12..............................8.0
e. Securing Vent System. Continue assembling the Vent
Sections up through the Firestop Spacers as needed. Vent
Sections must be locked into position. Elbows and Chimney
Stabilizers have straps for securing these parts to Joists or
Rafters.
f. Marking the Exit Point in the Roof. Locate the point
where the Venting will exit the roof by plumbing down to the
center of the Vent System. Drive a nail up through the roof
to mark the center. See Figure 6a.
g. Cutting Out the Hole in the Roof. Measure to either
side of the nail and mark the opening required to meet mini-
mum clearances per Venting requirements. This is mea-
sured on the horizontal; actual length may be larger depend-
ing on the pitch of the roof. Cut out and frame the opening.
See chapter 25 of the Uniform Building Code for Roof
Framing details.
A one inch or greater minimum air space clearance (see
Vent Instructions) must be maintained between the vent
section and the roof.
h. Install Roof Flashing or Site-produced Chase Top.
Position a Roof Flashing or a site-produced Chase Top and
secure into place.
i. Assembling Vent Sections. Continue to add vent sec-
tions through the roof opening, maintaining minimum air
space clearance.
j. Termination Cap. Major building codes specify a mini-
mum termination height above the roof top depending on the
roof pitch. It is strongly recommended that the cap should
be at least 2’ higher than anything within 10’ of it, and a min-
imum of 3’ out of the roof. This will help to ensure the best
air flow.
Note: Be sure to provide intermediate support
for the vent during construction and check to
be sure inadvertent loading has not dislodged
the vent from the appliance or any vent joint.
Unlisted Cap. If you are using an unlisted Termination
cap and your Vent Section is at least 8 feet from a vertical
wall, follow the information in Figure 6b and Table 1 to deter-
mine the allowable termination height and location.
Measure the roof pitch. (Roof pitch is X/12 as shown in
Figure 6b.) Find your roof pitch in Figure 8 to determine the
minimum height the Termination Cap must be located from
the point where the Vent Section penetrates the roof (H in
Figure 6b).
Listed Cap. If you are using a listed Termination Cap, you
must follow the manufacturer’s installation instructions for
minimum clearances to roof and any obstructions.
Figure 6b - Vent Height for Vertical Termination

7-98 7i 30094A
G270 SERIES B - VENT GAS APPLIANCE
3. Check Venting System.
Check the Venting System to assure proper operation. This can be done with a match while the unit is operat-
ing.
Hold a lighted match at the bottom edge of the Drafthood opening. If the flames and smoke remain upright, ven-
tilation is acceptable. If the flames and smoke are drawn into the Drafthood, this means ventilation is good. If
the flames and smoke are forced away from the Drafthood, this may indicate a ventilation blockage or down draft
resulting in gas spillage into the home. If this occurs, turn off the fireplace and do not burn it until it has been
inspected by a qualified service person. See Figure 7.
4. Installing an Outside Air Kit (strongly recom-
mended).
An AK14 Outside Air Kit should be purchased as a fea-
ture with this fireplace. An Outside Air Kit helps to
decrease the amount of room air taken, by utilizing out-
side air for combustion. The Outside Air Kit can only be
installed on the left side of the fireplace. Remove the
Outside Air Knock-out located behind the Gas Access
Panel. Install the AK14 as detailed in the installation
instructions provided with the Kit.
A maximum of 40’ of Air Kit ducting is allowed. The Air
Kit must terminate at least four feet below the venting
termination and must terminate to the outside.
NOTE: The Outside Air Kit can terminate at any
level with the exception that it must terminate at
least one foot below the chimney Terminal Cap.
Figure 7 - Testing Ventilation
WARNING!
Exhaust products of gasoline engines are
hazardous. The outside air must not be
taken from a garage space, attic spaces,
basements, or above the roofing where
other heating appliances, fans, or chim-
neys exhaust or utilize air.
WARNING - RISK OF FIRE!
ALWAYS MAINTAIN MINIMUM CLEAR-
ANCES OR GREATER AROUND THE
CHIMNEY SYSTEM. DO NOT PACK AIR
SPACES WITH INSULATION OR OTHER
MATERIAL.
WARNING:
A Gas appliance must not be con-
nected to a chimney flue serving a
separate Solid - Fuel Burning appli-
ance.

7-98 8i 30094A
G270 SERIES B - VENT GAS APPLIANCE
F. UTILITIES
Note: The appliance and its individual shutoff
valve must be disconnected from the gas supply
piping system during any pressure testing of that
system at test pressures in excess of 1/2 psi (3.5
kPa). The appliance must be isolated from the gas
supply piping system by closing its individual
manual shutoff valve during any pressure testing
of the gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).
3. Gas Pressure.
On the Standing Pilot Millivolt Gas Control Valve, a
Pressure Tap is included on the Front Face of the
Valve. The electronic Valve includes an 1/8” NPT
Plugged Tap on the left and right of the Valve near
the outlet to the main Burner. Pressure Taps should
be located immediately upstream of the gas supply
connection and accessible for test gauge connection.
Manual Valve Ignition is not provided with Pressure
Taps.
Table 2 shows optimum gas pressure information.
Consult your local gas company for assistance in
determining the proper orifice for your altitude or refer
to ANSI Z223.1-latest edition, Appendix F.
G270
Inlet gas supply pressure (natural gas) 4.5 (min.)-7.0 (max.)*
Optimum manifold pressure (natural gas) 3.5*
Inlet gas supply pressure (LP gas) 11.0 (min.)-14.0 (max.)*
Optimum manifold pressure (LP gas) 10.5*
Input rate (natural gas) 16,500 BTU/hr
Input rate (prop. gas) 16,500 BTU/hr
Decorative - Natural Gas Orifice size .078 in/ 1.98 mm
Decorative - Propane Gas Orifice Size .046 in/ 1.16 mm
Table 2
Gas Information for Electronic and Standing Pilot Units
* Inches of water column.
2. Gas Line Connection.
Connect the Gas Line to the appliance Manual Valve
Inlet, using 3/8" pipe. To ease installation, a listed
Flexible Connector and Manual Shut-off Valve are
supplied.
Remove the Logs. Remove the screws securing the
Hearth Pan Assembly. Lift and remove the
Assembly. See Figures 8 and 9.
Run the 3/8” pipe approximately 3” into the appli-
ance. Connect a 12” to 18” Flexible Connector to the
pipe and Valve. All connections must be checked for
leaks with a soap and water solution.
Bleed the Gas Line for about 5 seconds to extract
any air that may have been trapped inside the pipe.
Place the hearth Pan Assembly and Logs back in the
appliance.

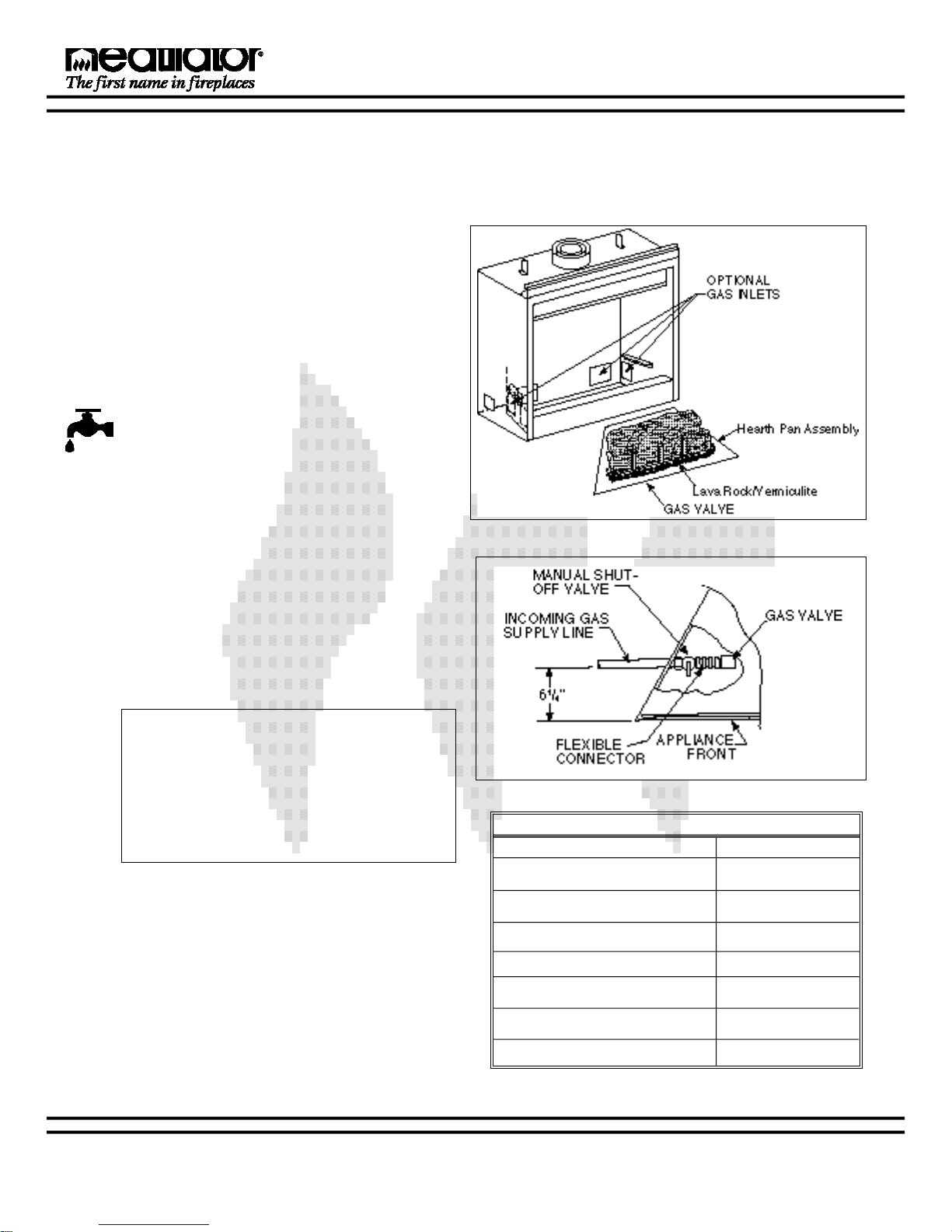

Figure 8 - Hearth Removal
Figure 9 - Gas Line Connection
1. High Altitude Installation.
For U.S. installation, units are tested and approved for eleva-
tions from 0-2000 feet. When installing this unit at an elevation
above 2000 feet, United States codes require a decrease of the
input rating by changing the existing burner orifice to a smaller
size.
Input should be reduced 4% for each 1000 feet above sea level.
Check with the local gas utility for proper orifice size identifica-
tion.
For Canada, units are certified for elevations from 0-4500 feet.
When installing this unit at an elevation between 0-4500 feet in
Canada, the input rating does not need to be reduced. When
installing this unit at an elevation above 4500 feet in Canada,
check with local authorities.
Table 2 shows optimum gas pressure information. Consult
your local gas company for assistance in determining the prop-
er orifice for your altitude or refer to ANSI Z223.1-latest edition,
Appendix F.

7-98 9i 30094A
G270 SERIES B - VENT GAS APPLIANCE
14-3 with ground Romex is the recommended wiring to
the appliance Junction Box. This allows each outlet to
power the unit and fan independently.

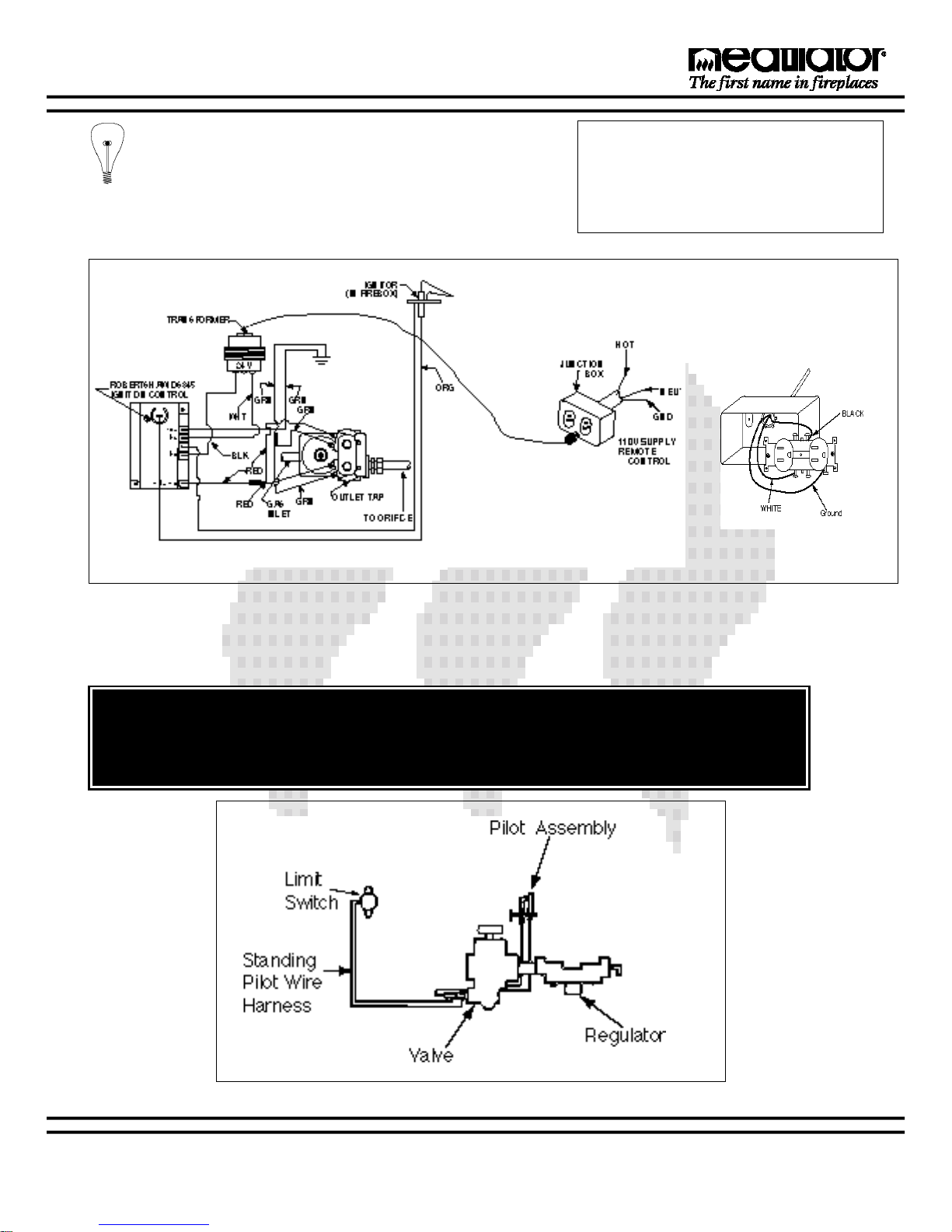

Figure 10 - Electronic Ignition Wiring Diagram
Detailed Picture of Junction Box
A. ELECTRONIC IGNITION
1. Appliance Requirements. This appliance requires a 110VAC
supply from a wall switch to the appliance junction box for opera-
tion. A wiring diagram is shown in Figure 10.
2. Optional Accessories Requirements. Wiring for optional
accessories should be done now to avoid reconstruction.
Warning!
This appliance DOES NOT require a 110VAC supply for operation. Connecting the appli-
ance/wall switch to a 110V AC supply will cause the unit to malfunction and destroy the valve
and thermopile.
Note: This appliance must be electrically
wired and grounded in accordance with
local codes or, in the absence of local
codes, with National Electric Code
ANSI/NFPA 70-latest edition or the
Canadian Electric Code, CSA C22.1.
3. Wiring
B. STANDING PILOT IGNITION, MANUAL VALVE
Please refer to Figure 11 below for the Standing Pilot Ignition
wiring diagram.
Figure 11 - Standing Pilot, Manual Valve Wiring Diagram

11-98 10i 30094C
G270 SERIES B - VENT GAS APPLIANCE
14-3 with ground Romex is the recommended wiring to
the appliance Junction Box. This allows each outlet to
power the unit and fan independently.
Detailed Picture of Junction Box
(Optional for Standing Pilot Units)
C. STANDING PILOT IGNITION, MILLIVOLT VALVE
1. Appliance requirements. A wiring diagram is shown in
Figure 12.
2. Optional Accessories Requirements. Wiring for optional
accessories should be done now to avoid reconstruction.
Warning!
This appliance DOES NOT require a 110VAC supply for operation. Connecting the appli-
ance/wall switch to a 110V AC supply will cause the unit to malfunction and destroy the valve
and thermopile.
Figure 12 - Standing Pilot, Millivolt Valve Wiring Diagram

7-98 11i 30094A
G270 SERIES B - VENT GAS APPLIANCE
Figure 14 - Log Placement
(See Pg. 9o for Replacement Part Number reference)
Figure 15 - Lava Rock and Vermiculite Placement

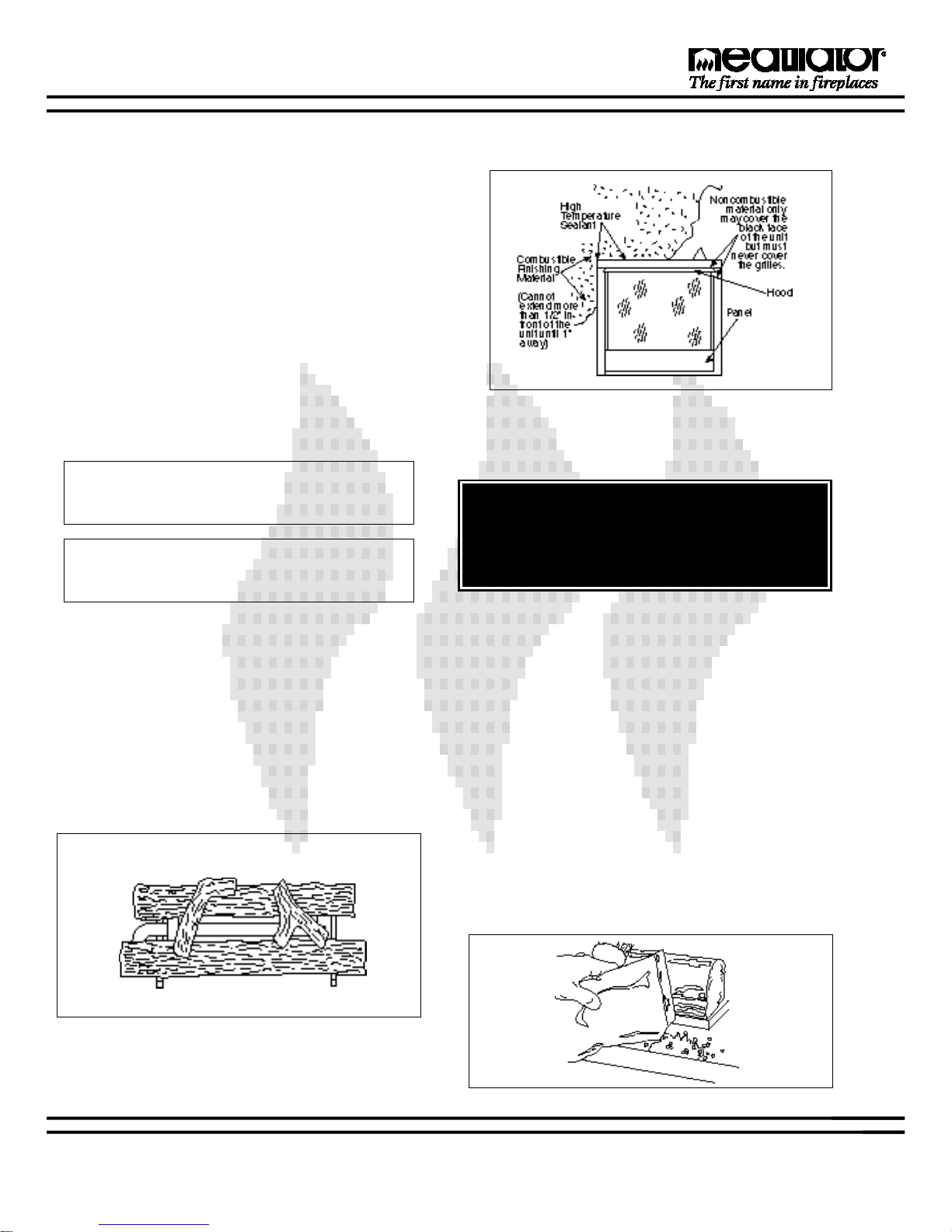

G. FINISHING
Combustible Finishing Material. Material made of or
surfaced with wood, compressed paper, plant fibers, plas-
tics, or any material capable of igniting and burning,
whether flame proofed or not, plastered or unplastered
(this includes drywall).
Non-combustible Finishing Material. Material which will
not ignite and burn. Such materials are those consisting
entirely of steel, iron, brick, tile, concrete, slate, glass or
plasters, or combination thereof, or have a UL Fire rating
of Zero (0).
High Temperature Sealant Material. Sealants that will
withstand high temperatures; General Electric RTV103
(Black), or equivalent. Rutland, Inc. Appliance Mortar #63,
or equivalent.
A high temperature sealant, 1/8" inch wide minimum, must
be used to close off gaps between the appliance and fac-
ing to prevent cold air leaks. See Figure 13.
WARNING!
THE HOOD AND GRILLES ON THIS APPLI-
ANCE CANNOT, IN ANY WAY, BE COVERED
AS IT MAY CREATE A FIRE HAZARD.
Figure 13
Finishing Materials
Note: If an optional fan or hand held remote con-
trol are to be used, wiring must be done prior to
finishing to avoid reconstruction.
Note: The remote wall switch must be wired prior
to applying the finishing material in order to avoid
reconstruction.
H. FIREBOX PREPARATION
1. Log Placement.
Position the Log Set to look similar to that in
Figure 14.
2. Placing the Lava Rock and Vermiculite.
Spread the Lava Rock over the area in front of the Burner
and the [2] Side Pans. Do not cover the front Gas Ports with
the Lava Rock. See Figure 15.
Take a small amount of Vermiculite and sprinkle it on top of
the Lava Rock. Do not cover the front Gas Ports with the
Vermiculite. See Figure 15.
(It is not necessary to use all of the Lava Rock or Vermiculite
provided.)
If the unit is lit but the front Gas Ports will not light, make
sure that the Ports are not blocked by Lava Rock or
Vermiculite.

7-98 12i 30094A
G270 SERIES B - VENT GAS APPLIANCE
Figure 16 - Screen Installation
4. Pre-Use ✔Checklist
Before operating this unit, please review the safety
precautions given on page 2 as well as the items
listed below:
-The air shutter on the burner stem must be
secured to a minimum opening of 0.125” for
Natural Gas. Propane Gas must be secured to a
minimum opening of 0.62”.
-Check to make sure the logs have all been placed
correctly.
-Check to see that all wiring is correct and
enclosed to prevent possible shock.
-Check to ensure there are no gas leaks. This
may be done with a soap and water solution.
-Verify that all venting and caps are unobstructed.
because exhaust gases are extremely hot. Be
sure there are no possible future obstructions from
trees, bushes, snow drifts, etc.
-Read and understand these Instructions thor-
oughly before attempting to operate this unit.
CAUTION
ANY SAFETY SCREEN OR GUARD REMOVED
FOR SERVICING AN APPLIANCE MUST BE
REPLACED PRIOR TO OPERATING THE APPLI-
ANCE. CLOTHING, GASOLINE AND OTHER
FLAMMABLE MATERIAL SHOULD NOT BE
PLACED ON OR NEAR THE APPLIANCE.
3. Screen Installation
NOTE: Fireplace must be cool when performing this
step. Wear gloves for your protection.
1. Remove Screen from the plastic bag inside the
Firebox.
2. Determine which is the Left and Right Screens by
the Screen Handle’s location, which belongs in the
center of the fireplace.
3. For ease of installation, bend down the [6]
Firescreen Retainers. See Figure 16.
4. Hook the [3] rings over the Retainers, and then
bend back.

7-98 13i 30094A
G270 SERIES B - VENT GAS APPLIANCE
INSTALLATION IS NOW COMPLETE.

7-98 14o 30094 REV C
Heatilator 1915 W. Saunders Street Mt. Pleasant, IA 52641 A Division of Hearth Technologies Inc.
OPERATION
OPERATION INSTRUCTIONS - G270 SERIES
B - VENT GAS APPLIANCE
Read these Installation Instructions completely before begin-
ning installation. Failure to follow them could cause an appli-
ance malfunction resulting in serious injury and/or property
damage.
WARNING!
Improper installation,
adjustment, alteration,
service or mainte-
nance can cause
injury or property
damage. Refer to this
manual. For assis-
tance or additional
information, consult a
qualified installer, ser-
vice agency or the gas
supplier.
FOR YOUR SAFETY
What to do if you smell gas:
• Do not try to light any appliance.
• Do not touch any electrical
switch.
• Do not use any phone in your
building.
• Immediately call your gas sup-
plier from a neighbor’s phone.
Follow the gas supplier’s
instructions.
• If you cannot reach your gas
supplier, call the fire depart-
ment.
FOR YOUR SAFETY
Do not store or use
gasoline or other
flammable vapors
and liquids in the
vicinity of this or any
other appliance.
Scroll back to Page 1i
for the
“Installation Instructions.”
The G270 B - Vent Gas Appliance
TABLE OF CONTENTS
A. Lighting Instructions for Electronic Units..........................
B. Lighting Instructions for Standing Pilot,
Manual Valve.....................................................................
C. Lighting Instructions for Standing Pilot, Millivolt Valve....
D. Seasonal Checklist...........................................................
E. Field Fuel Conversion Instructions...................................
F. Start-Up Issues.................................................................
G. Maintenance Instructions..................................................
H. Replacement Parts...........................................................
15o
16o
17o
18o
19o
19o
20o
21o

7-98 15o 30094A
G270 SERIES B - VENT GAS APPLIANCE
A. ELECTRONIC UNITS
FOR YOUR SAFETY,
READ BEFORE LIGHTING.
WARNING! If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance does not have a pilot. It is equipped with an ignition device which automatically lights the burner.
Do not try to light the burner by hand.
B. BEFORE OPERATING, smell all around the appliance area for gas. Be sure to smell next to the floor because
some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
oDo not try to light any appliance.
oDo not touch any electric switch; do not use any phone in your building.
oImmediately call your gas supplier from a neighbor’s phone. Follow the supplier’s instructions.
oIf you can not reach your gas supplier, call the fire department.
C. Use only your hand to push in and move the gas control lever or turn the gas control knob.
Never use tools. If the lever or knob will not move by hand, don’t try to repair it - call a qualified service technician.
Force or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
LIGHTING INSTRUCTIONS
1. Turn off the wall switch.
2. Turn off all electric power to the appli-
ance if service is to be performed.
TO TURN OFF GAS TO APPLIANCE
3. Turn gas line to the “OFF” position.
4. Replace control access panel.
1. STOP! Read the safety information above on this label.
2. Turn wall switch to the “OFF” position.
3. Turn off all electric power to the appliance.
4. This appliance is equipped with an ignition device which automatically lights the burner. Do not try to light burner by hand.
5. Wait five (5) minutes to clear out any gas. If you then smell gas, STOP! Follow “B” in the safety information above on this label.
If you don’t smell gas, go on to the next step.
6. To turn on burner, turn on all electric power to this appliance and turn on the wall switch.
7. If the appliance will not operate, follow the instructions “TO TURN OFF GAS TO APPLIANCE” and call your service technician
or gas supplier.
Determining the Ignition Type.
To determine whether your appliance is an Electronic Ignition or a
Standing Pilot ignition, remove the Lower Panel or Hearth
Assembly to examine the wiring system. If your system has a
Red Ignitor Button (as shown in Figure 1), you own a Standing
Pilot Millivolt Ignition fireplace. If a Manual ON/OFF/Pilot Valve is
present but no Red Ignitor Button, you have a Manual Standing
Pilot Ignition. If no Red Ignitor Button or Manual Valve is present,
you have an Electronic Ignition appliance.
You may also check the rating label located on the inside of the
lower panel to determine ignition type.

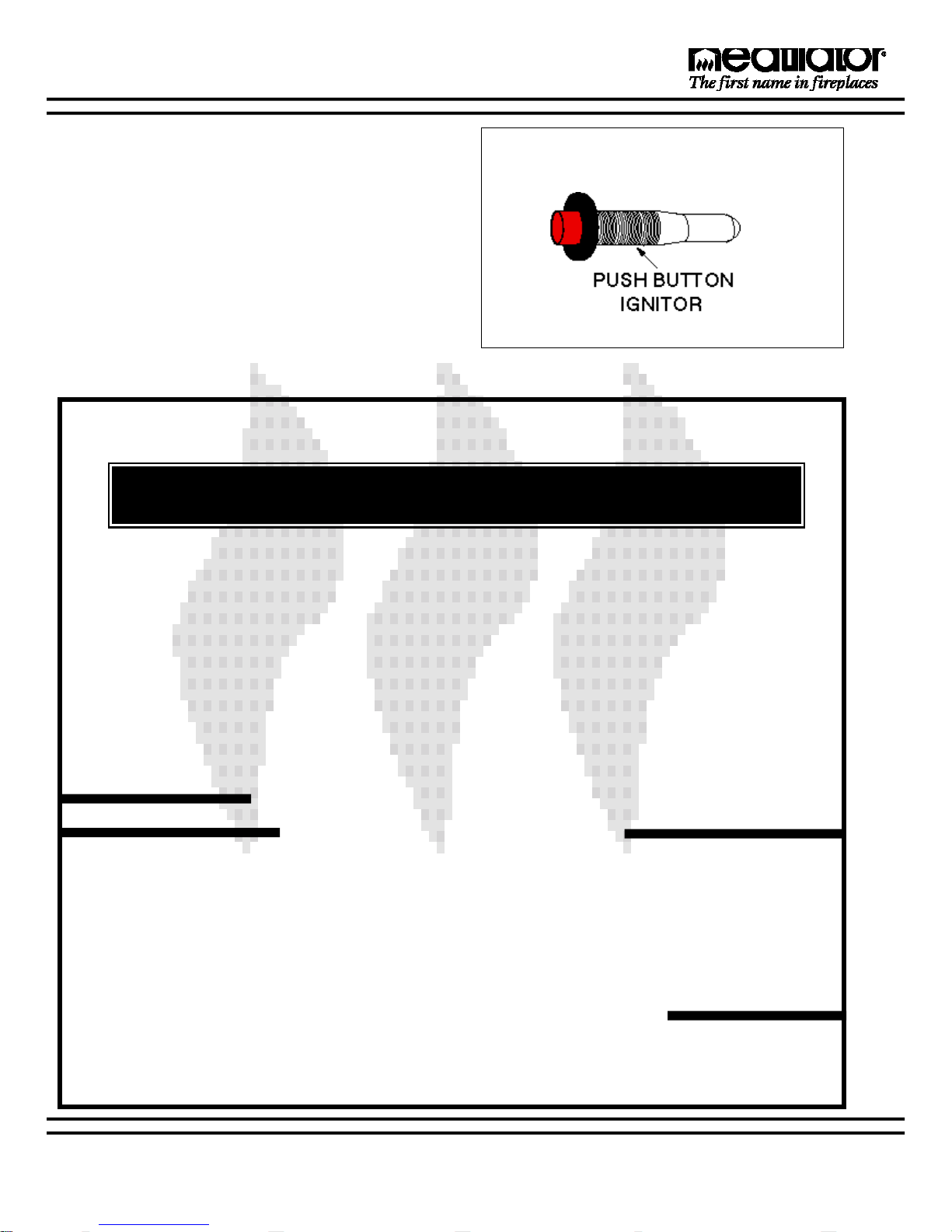

Figure 1 - Standing Pilot Ignition

G270 SERIES B - VENT GAS APPLIANCE
7-98 16o 30094A
B. STANDING PILOT, MANUAL VALVE
STANDING PILOT, MANUAL VALVE
A. This appliance (Standing Pilot version) has a pilot which
must be lit manually. When lighting the pilot, follow these
instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to push in or turn knob. Never use
tools. If the knob will not push in or turn by hand, don't
try to repair it; call a qualified service technician. Forced
or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the con-
trol system and any gas control which has been under
water.
LIGHTING/SHUTDOWN INSTRUCTIONS
Standing Pilot System
1. STOP! Read all the Safety Instructions on this page.
2. Push in gas control knob slightly and turn clockwise to
“OFF”. (See Figure 16, page 15).
3. NOTE: Knob cannot be turned from “PILOT” to “OFF”
unless knob is pushed in slightly. Do not force.
4. Wait five (5) minutes to clear out any gas. If you then
smell gas, STOP! Follow “B” in the safety information on
this page. If you don’t smell gas, go on to the next step.
FOR YOUR SAFETY, READ BEFORE LIGHTING.
5. Initial and Seasonal Lighting procedure. Initial lighting con-
stitutes the first time the appliance has been lit after
installation. Seasonal lighting refers to lighting the appli-
ance after it has been unused and the Gas Valve has
been turned to “OFF”.
Be sure the knob has been turned to the “OFF” position.
Also, your unit may have a Rocker Switch installed inside
the Lower Panel; if it does, this also needs to be turned
to the “OFF” position. If not ,do so and allow the appli-
ance to sit for five [5] minutes so that any gas that may
have accumulated in the main Burner Compartment
escapes.
Turn the gas knob to “PILOT”, as shown in Figure 17,
and press in. While holding it in, light the pilot with a
match. Continue to hold in the gas knob for about one
minute after the pilot is lit. Release the gas knob. The
pilot should remain lit. If it goes out, turn everything to
the “OFF” position, let it sit for five minutes and repeat
this step again.
When the pilot remains lit, turn the gas knob to the “ON”
position. See Figure 17. Watch you appliance display
beautiful, dancing flames. Initially, the flames may
resemble more of a blue color but after the first 20 min-
utes of operation, they will become more yellow.
WARNING!
IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
Standing Pilot Manual Valve Settings.

G270 SERIES B - VENT GAS APPLIANCE
-98 17o 30094A
A. This appliance has a Pilot which must be lit by hand. When
lighting the Pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for
gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the supplier's instructions.
• If you cannot reach your gas supplier, call the fire depart-
ment.
C. Use only your hand to push in or turn knob. Never use tools. If
the knob will not push in or turn by hand, don't try to repair it;
call a qualified service technician. Forced or attempted repair
may result in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO THE APPLIANCE
1. Turn off the Wall Switch.
2. Remove the Control Access Panel. 3. Turn Gas Line to “CLOSED” position. Do not force!
4. Replace the Control Access Panel.
Turn off all wall switches to the appliance or set the
Thermostat to the lowest setting (if applicable).
Remove bottom Access Panel.
Turn gas line to CLOSED. Wait 5 minutes to clear out
any gas. Then smell for gas, including near the floor.
If you smell gas, STOP! Follow “B” in the safety
information above on this label. If you don’t smell gas,
go to the next step.
Turn gas line to OPEN.
Turn pilot knob clockwise to “OFF”. (Knob may have
to be depressed to pass “PILOT” position.)
Locate Pilot assembly inside unit.
Locate Red Ignitor Button in bottom of the unit.
Turn Pilot knob to “PILOT” and push in.
Continue to hold in Pilot Knob and push the Red
Ignitor Button 12-15 times until small blue Pilot flame
appears.
Continue to hold in Pilot Knob for approximately one
minute. Pilot should remain lit. If Pilot goes out, wait 5
minutes and repeat Steps 4-9.
Release and turn Knob counterclockwise to “ON”. The
Main Burner should ignite if it is a Manual
Ignition unit. To turn Off, turn Knob Clockwise
back to “Pilot”.
STOP! Read the safety information above on this label!
WARNING! If you do not follow these instructions exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
4
5
11
3

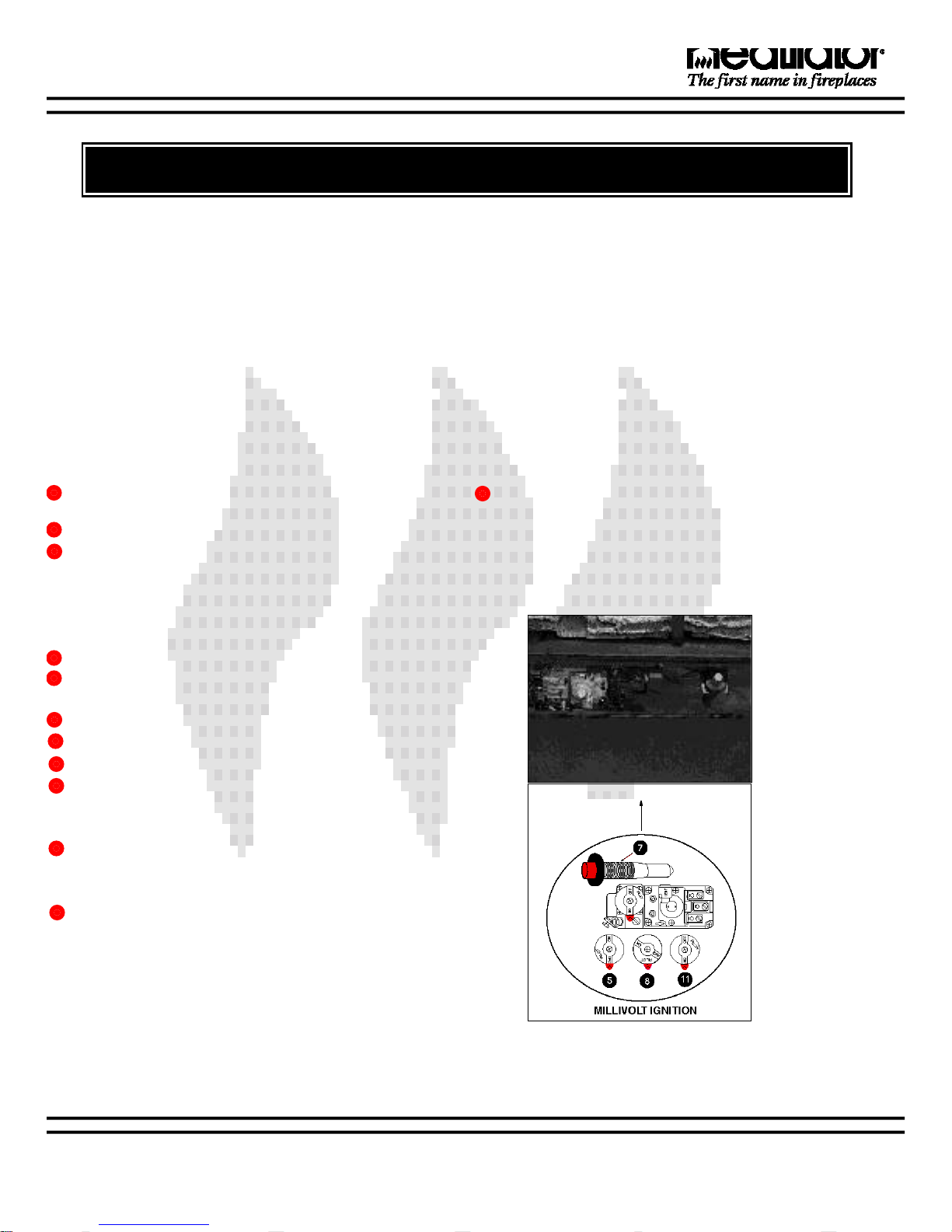

C. STANDING PILOT, MILLIVOLT VALVE
6
7
8
9
10
2
1
If the appliance will not operate, follow the instructions
“To Turn Off Gas To Appliance” and call your
service technician or gas supplier.
NOTE: For Millivolt Valves, turn Wall Switch to “ON” to light
the Main Burner. Do not light by hand!
12

7-98 18o
30094A
WARNING!
CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEM-
PERATURES AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION. YOUNG
CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.
CAUTION
ANY SAFETY SCREEN OR GUARD REMOVED FOR SERVICING AN APPLIANCE MUST BE
REPLACED PRIOR TO OPERATING THIS APPLIANCE.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE
APPLIANCE.
Before operating this appliance, have a qualified tech-
nician:
1. Review proper placement of logs, rock wool and
vermiculite.
2. Check wiring.
3. Ensure there are no gas leaks.
4. Ensure the glass is sealed and in proper position.
5. Ensure the flow of combustion and ventilation air
is not obstructed.
2. STANDING PILOT OPERATION
(Manual and Millivolt)
Heatilator recommends you leave the Pilot on year round.
If you decide to shut down the appliance for a long period of
time:
1. Turn all Wall switches to “OFF” (if applicable).
2. Turn Pilot Knob on valve to “OFF”.
3. Turn the gas line to CLOSED.
Lighting the Fireplace During Regular Use. Turn the Wall
Switch to “ON” (millivolt valve). Turn Switch to “ON” (Manual
Valve).
Shutdown During Regular Use. Turn the Wall Switch to
“OFF” (Millivolt Valve). Turn Switch to “OFF” (Manual
Valve).
On the Manual Standing Pilot Ignition, the Btu/hr input can
be adjusted to your satisfaction by turning the Flame
Adjustment Knob on the Valve Counter-clockwise for “Lo” or
Clockwise for “Hi”
3. ELECTRONIC IGNITION OPERATION
To shut down the appliance for a long period of time:
1. Turn all Wall Switches to “OFF”.
2. Turn the gas line to CLOSED.
Lighting the Fireplace During Regular Use. Turn the wall
switch to “ON”.
Shutdown During Regular Use. Turn the Wall Switch to
“OFF”.
WARNING!
KEEP THE AREA NEAR THE APPLI-
ANCE CLEAR AND FREE FROM COM-
BUSTIBLE MATERIALS, GASOLINE
AND OTHER FLAMMABLE VAPORS
AND LIQUIDS.
INSTALLATION AND REPAIR SHOULD BE
DONE BY A QUALIFIED SERVICE PER-
SON. THE APPLIANCE SHOULD BE
INSPECTED BEFORE USE AND AT LEAST
ANNUALLY BY A QUALIFIED SERVICE
PERSON. MORE FREQUENT CLEANING
MAY BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING MATE-
RIAL, ETC. IT IS IMPERATIVE THAT CON-
TROL COMPARTMENTS, BURNERS AND
CIRCULATING AIR PASSAGEWAYS OF
THE APPLIANCE BE KEPT CLEAN.
WARNING!
DO NOT USE THIS APPLIANCE IF ANY
PART HAS BEEN UNDER WATER. IMMEDI-
ATELY CALL A QUALIFIED SERVICE TECH-
NICIAN TO INSPECT THE APPLIANCE AND
TO REPLACE ANY PART OF THE CONTROL
SYSTEM AND ANY GAS CONTROL WHICH
HAS BEEN UNDER WATER.
D. SEASONAL CHECKLIST
1. PRIOR TO OPERATION
G270 SERIES B - VENT GAS APPLIANCE

G270 SERIES B - VENT GAS APPLIANCE
-98 19o 30094A
E. FUEL/FIELD FUEL CONVERSION INSTRUCTIONS
Do not burn wood or other material in this appliance.
Natural or Propane gas conversions necessary to meet the application are to be made by a qualified technician,
using Heatilator specified and approved parts only.
F. START-UP ISSUES
Issue: Causes and Possible Solutions:
1. Condensation on Glass:
(If applicable)
2. Blue flames:
3. Odor from unit:
4. Film on Glass:
(If applicable)
1. This is a result of gas combustion and temperature
variations. As the unit warms, this condensation should
disappear.
2. This is a result of normal operation and the flames will
begin to yellow as the unit is allowed to burn.
3. When first operated, this unit may release an odor for
the first several hours. This is caused by the curing of the
paint and the burning off of any oils remaining from manu-
facturing.
This is a normal result of the curing process of the paint
and Logs. If the Glass is not cleaned within 4 - 6 hours of
initial burning, this may require the use of a non-abrasive
cleaner to remove, such as Brasso.
WARNING!
NEVER USE GASOLINE , GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHAR-
COAL LIGHTER FLUID OR SIMILAR LIQUIDS IN THIS APPLIANCE. KEEP ANY FLAM-
MABLE LIQUIDS A SAFE DISTANCE FROM THE APPLIANCE.
In the event that your appliance must be converted to burn an alternate gas, please contact your local Dealer or
Heatilator Customer Relations at: Heatilator, 1915 W. Saunders Street, Mt. Pleasant, IA 52641.

G270 SERIES B - VENT GAS APPLIANCE
7-98 20o 30094A
1. Cleaning the Burner and Control Compartment.
Keep the burner and control compartment clean by
brushing and vacuuming at least once a year. Always
turn off the wall switch (or remote control) and gas
valve before cleaning. Failure to do so may shorten
the life of the components.
2. Checking Flame Patterns.
Visually check the flame of the burner periodically,
making sure the flames are steady, not lifting or float-
ing. The flame color should be blue with yellow tips.
See Figure 5. The ignitor (electronic) or thermopile
and thermocouple (standing Pilot) tips should be cov-
ered with flame. See Figures 2 through 4.
If the vent configuration is installed incorrectly, the
vent may cause the flames inside the appliance to lift
or “ghost”, which is a dangerous situation. Inspect
the flames after installation to ensure proper perfor-
mance. See Figure 5. If the vent configuration is cor-
rect, yet the flames are lifting or ghosting, shut off gas
to the appliance and contact the dealer.
G. MAINTENANCE INSTRUCTIONS
Figure 4a - Standing Pilot, Millivolt Valve
Figure 2
Electronic Ignition
Figure 3
Electronic Ignition
Figure 5 - Flame Patterns
3. Venting System Inspection.
The appliance and Venting System should be
inspected before use and at least annually by a quali-
fied field service person to ensure that the flow of
combustion and ventilation air is not obstructed.
Figure 4b - Manual Standing Pilot
