Heatilator NOVUS GNBC30 Manual

01-02 1 28466 Rev H
NOVUS SERIES
B-VENT GAS APPLIANCE
GNBC30, 33, & 36
INSTALLATION & OPERATING
INSTRUCTIONS
WARNING!
Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Refer to this manual. For assistance or additional information, consult a ualified installer,
service agency or the gas supplier.
WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result causing property damage, personal in-
jury or loss of life.
 Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
 What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use
any phone in your building.
 Immediately call your gas supplier from a
neighbors phone. ollow the gas suppliers
instructions.
 If you cannot reach your gas supplier, call the
fire department.
 Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.

28466 Rev H 2 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
Table of Contents
A. Preparation .................................................................................................................................................. 3
B. Location and Clearances ............................................................................................................................. 4
C. Framing ....................................................................................................................................................... 5
D. Setting the Appliance ................................................................................................................................... 6
E. Venting ........................................................................................................................................................ 6
F. tilities ...................................................................................................................................................... 10
G. Finishing .................................................................................................................................................... 13
H. Appliance Preparation ................................................................................................................................13
I. Determining the Ignition Type ..................................................................................................................... 14
J. Lighting Instructions................................................................................................................................... 15
K. Seasonal Checklist .................................................................................................................................... 17
L. Start-up Issues .......................................................................................................................................... 18
M. Maintenance Instructions ........................................................................................................................... 19
N. Optional Components ................................................................................................................................21
O Replacement Parts .................................................................................................................................... 23
Index ......................................................................................................................................................... 27
Warranty.................................................................................................................................................... 28

01-02 3 28466 Rev H
NOVUS B-VENT INSTALLATION INSTRUCTIONS
1. U.S. AND CANADA CERTIFICATION
The Novus B-Vent Gas Appliance has been tested in
accordance with the ANSI standard Z21.88-2000. In
Canada, the current CSA 2.33-2000, IR41, P4, and
IR55 and have been LISTED by Underwriters
Laboratories Inc. for installation as described in this
manual. All components are UL, AGA, CGA or CSA
safety certified.
2. LOCAL CODES
This installation must conform with local codes. In
the absence of local codes comply with the National
uel Gas Code ANSI Z223.1-latest edition in the U.S.A.,
and the CAN/CGA B149, Installation Codes in
Canada.
or assistance during installation contact your local
dealer or contact Heatilator Technical Services
Department, Hearth Technologies Inc., 1915 W.
Saunders Street, Mt. Pleasant, Iowa 52641, phone
1-800-843-2848.
HEATILATOR® and NOVUS® are registered
trademarks of Hearth Technologies Inc.
Note: Minimum and maximum clearances must be
maintained at all times. Illustrations throughout these
instructions reflect typical installations and are for de-
sign purposes only. Actual installation may vary slightly
due to individual design preferences.
The illustrations and diagrams used throughout these
installation instructions are not drawn to scale.
Tools and building supplies normally required for
installation:
Tools: Building Supplies:
Saw Wall-finishing materials
Pliers raming material
Hammer Surround
Phillips screwdriver Caulking material
Tape measure
Plumb line
Level
Electric drill/bits
Square
Gloves
A. PREPARATION
TYPICAL VERTICAL INSTALLATION

28466 Rev H 4 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
B. LOCATION AND CLEARANCES

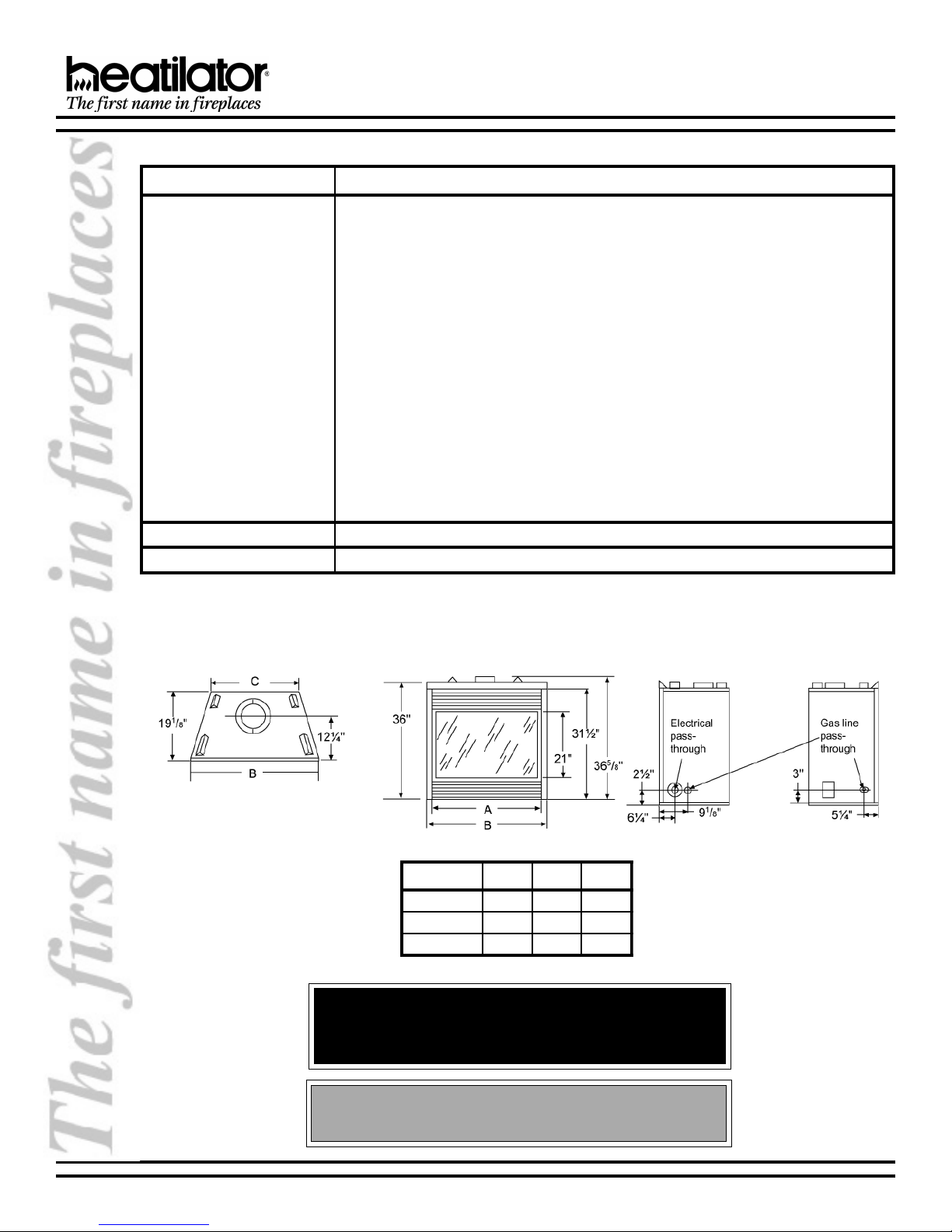

Appliance Dimensions
WARNIN !
Due to high temperatures, the appliance should be located
out of traffic and away from furniture and draperies.
NOVUS NOMENCLATURE
CAUTION
Do not expose appliance to the elements (such as rain, etc.)
rebmuNgolataCnoitpircseD
EL63CBNGrebmuNedoCredrOecnailppA
NGSUVONsaG
BtneV-B
CgnitalucriC
63ecnailppA"63-63
ecnailppA"33-33
ecnailppA"03-03
ELsaGlarutaN,toliPgninatS-xiffusoN
saGenaporP,toliPgninatS-L
saGlarutaN,noitingIcinortcelE-E
saGenaporP,noitingIcinortcelE-EL
BEL63CBNG rebmuNedoCedargpUhtiwrebmuNedoCredrOecnailppA
BxoberiFkcalB
BEL63CBNG ELPAXE ,saGenaporP,"63,gnitalucriCtaeH,tneV-B,SUVONsaG-
xoberiFkcalBhtiwecnailppanoitingIcinortcelE
tnenopmoCnoitallatsnInoitpircseD
41KA )eilppuston-enemmocerylhgih(tikriaeistuO
LEDOMABC
03CBNG"0343
7
/ 8 "8
5
/ 8 "
33CBNG"3373
7
/ 8 "11
5
/ 8 "
63CBNG"6304
7
/ 8 "41
5
/ 8 "

01-02 5 28466 Rev H
NOVUS B-VENT INSTALLATION INSTRUCTIONS
1. APPLIANCE LOCATIONS AND SPACE
REQUIREMENTS
igure 1 illustrates a variety of ways the appliance
may be located in a room. The NOVUS Series may be
installed directly on the floor or raised on a hearth.
These appliances are certified for installation in a
bedroom, bed/sitting rooms or bathrooms in the U.S.
and Canada, provided that the bedroom or bathroom
has a volume of at least 540 cubic feet.
Common venting of this gas appliance with other gas
appliances is not allowed in multifamily dwellings.
2. CLEARANCES
igure 2 shows all clearances that must be
maintained around the appliance.
igure 1
Appliance Locations
igure 3 shows a typical framing of this appliance using
combustible materials. All required clearances to
combustibles must be adhered to.
CAUTION
Wear gloves and safety glasses for protection.
C. FRAMING
igure 2
Appliance Clearances to Combustible Materials
We strongly recommend that you DO NOT install
B-Vent Gas Appliances in strong negative air
locations, such as a basement or a public facility.
Living rooms with cathedral ceilings could be
susceptible to a negative air situation, but such
installations can be overcome through raising
the termination, depending on specific
installations. This appliance uses room air for
normal operation and could have problems
establishing a positive draft in a negative air
location. In lieu, we recommend a direct vent
appliance.
igure 3 - raming
LEDOMABC
03CBNG43
1
/ 4 "84
1
2/ "53
7
/ 8 "
33CBNG63
1
/ 4 "15
1
/ 4 "83
7
/ 8 "
63CBNG83
3
/ 8 "45
1
/ 4 "14
7
/ 8 "
LEDOMA
03CBNG53
7
/ 8 "
33CBNG83
7
/ 8 "
63CBNG14
7
/ 8 "

28466 Rev H 6 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
CAUTION
Provide adequate clearances around the air openings into the combustion chamber and adequate accessibility
clearances for servicing and proper operation.
D. SETTING THE APPLIANCE
1. POSITIONING THE APPLIANCE
This appliance may be placed on a smooth
combustible or noncombustible, continuous flat
surface. When the appliance is installed directly on
carpeting, tile or other combustible material other than
wood flooring, the appliance shall be installed on a
metal or wood panel extending the full width and depth
of the appliance. Slide the appliance into position and
level from side-to-side and front-to-back. Shim with
noncombustible materials as necessary.
E. VENTING
1. VENT HEIGHT
This appliance requires a 5 B-vent for operation.
Never downsize pipe. It must be terminated above
the roof line. ollow all B-vent requirements and
installation instructions, including minimum
clearances.
The minimum height of vent installation must be nine
feet from the top or twelve feet from the base of the
appliance. Horizontal run must never exceed 50% of
the height of the vent system as shown in igure 4.
Secure the appliance by bending out the nailing
flanges on each side of the appliance and nail to
framing. The nailing flanges have been positioned
5/8 inch back from the front of the appliance to allow
the addition of drywall.
2. ATTACHING VENTING
a. Assembling Vent Sections. Attach straight vent
section to the top of appliance. Use only B-vent
sections.
b. Attaching the Vent to the Collar Shield. Three
tabs extend from the collar shield to the B-vent
section. Screw the tabs to the B-vent section using
self-tapping screws.
c. Using Elbows. Elbows exceeding 45° from the
vertical shall be considered horizontal and
therefore adapt horizontal run limitations. See
igure 5.
igure 4
Venting Off the Top of Appliance
Note: Vertical rise off the top of the firebox before elbow-
ing creates a less restrictive venting environment. igure 5 - Using Elbows
WARNIN !
To prevent contact with sagging or loose
insulation, the appliance must not be installed
against vapor barriers or exposed insulation.
Localized overheating could occur and a fire

01-02 7 28466 Rev H
NOVUS B-VENT INSTALLATION INSTRUCTIONS
3. FIRESTOP SPACER/VENT
INSTALLATION
rame an opening and install a firestop spacer
whenever the vent penetrates a ceiling floor area, as
shown in igure 6. rame the opening with the same
sized lumber as used in the ceiling/floor joist. Unless
the flue is offset, the hole should be directly above the
appliance. DO NOT pack insulation around the vent.
Assemble vent sections with three screws per joint.
WARNIN - RISK OF FIRE
Always maintain minimum clearances or greater
around the vent system. Do not pack air spaces with
insulation or other material. The flow of combustion
and ventilation air must not be obstructed.
WARNIN !
The horizontal run of vent must have a 1/4 rise for
every 1 ft. of run towards the termination. Never allow
the vent to run downward. This could cause high
temperatures and may present a fire hazard.
WARNIN !
When vent sections exceeding three feet in length
are installed between an offset/return, structural
support must be provided to reduce off-center
loading and prevent vent sections from separating
at the vent joints. ollow all B-vent manufacturer
guidelines.
4. CHASE/TERMINATION INSTALLATION

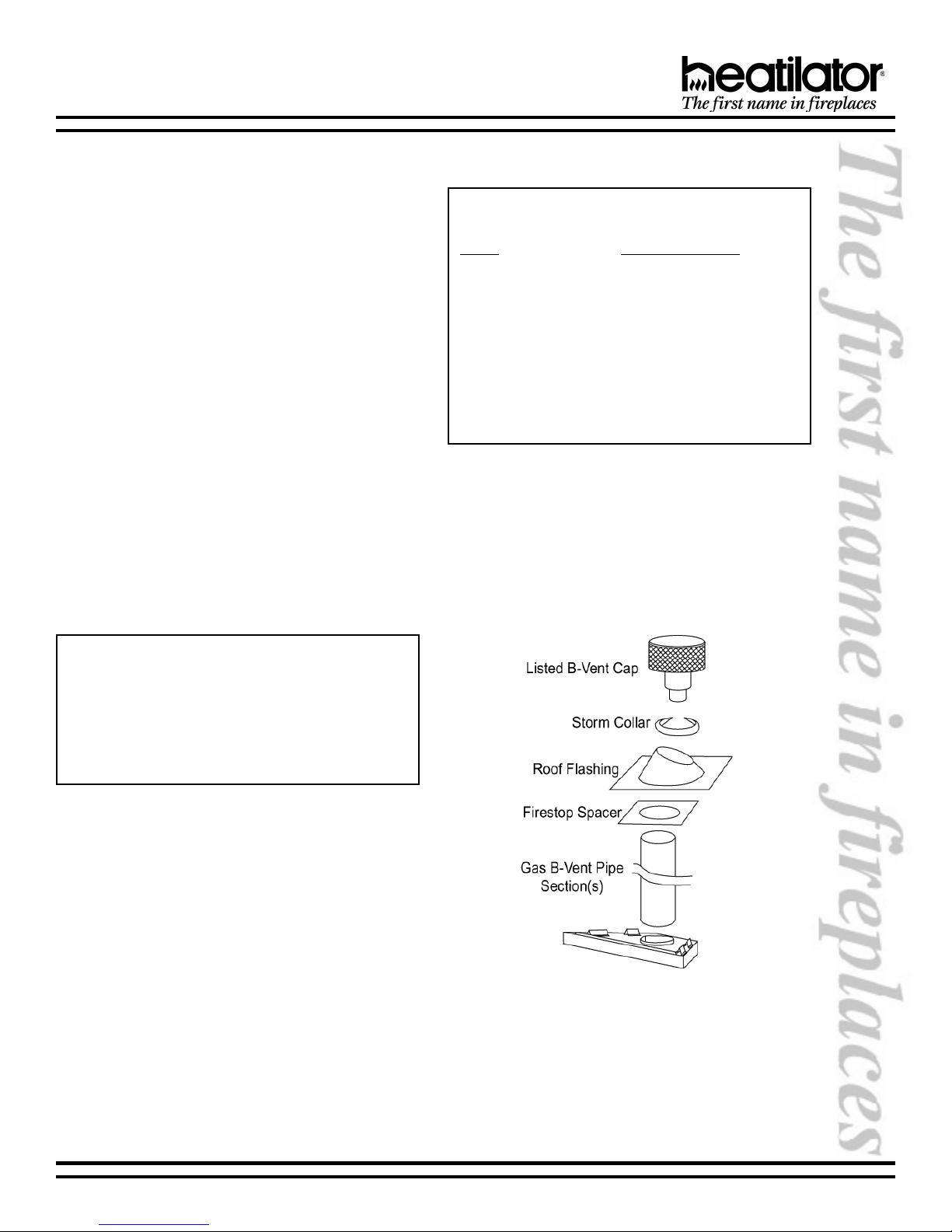

igure 7 and Table 1 specify minimum vent heights
for various pitched roofs. Vent sections may have to
be cut to a certain length.
These vent heights are necessary for safety and do
not ensure draft-free operation. Trees, buildings,
adjoining roof lines, adverse conditions, etc., may
create a need for a taller vent should down drafting
occur.
igure 6
Installing the irestop Spacer

28466 Rev H 8 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
Roof Pitch H (Min.) t.
lat to 6/12 ................................................ 1.0
6/12 to 7/12 ............................................... 1.25
Over 7/12 to 8/12 ...................................... 1.5
Over 8/12 to 9/12 ...................................... 2.0
Over 9/12 to 10/12 .................................... 2.5
Over 10/12 to 11/12 .................................. 3.25
Over 11/12 to 12/12 .................................. 4.0
Over 12/12 to 14/12 .................................. 5.0
Over 14/12 to 16/12 .................................. 6.0
Over 16/12 to 18/12 .................................. 7.0
Over 18/12 to 20/12 .................................. 7.5
Over 20/12 to 21/12 .................................. 8.0
igure 7
Vent Height for Vertical Termination
5. CHECK VENTING SYSTEM
Check the venting system to assure proper operation.
This can be done with a match while the appliance is
operating.
Hold a lighted match at the bottom edge of the draft
hood opening. If the flames and smoke remain upright,
ventilation is acceptable. If the flames and smoke are
drawn into the draft hood, this means ventilation is
good. If the flames and smoke are forced away from
the draft hood, this may indicate a ventilation blockage
or down draft resulting in gas spillage into the home.
If this occurs, turn off the appliance and do not burn it
until it has been inspected by a qualified service
person. See igure8.
Table 1
Vent Height
6. INSTALLING AN OUTSIDE AIR KIT
(STRONGLY RECOMMENDED)
An AK14 Outside Air Kit should be purchased as a
feature with this appliance. An outside air kit helps to
decrease the amount of room air taken by utilizing
outside air for combustion. igure 9 illustrates two of
many possible methods that can be used to supply
outside air to the appliance.
A maximum of 40 of air kit ducting is allowed. The air
kit must terminate at least three feet below the venting
termination and must terminate to the outside.
igure 8
Testing Ventilation
WARNIN !
Exhaust products of gasoline engines are
hazardous. The outside air must not be taken from a
garage space, attic spaces, basements or above
the roofing where other heating appliances, fans or
chimneys exhaust or utilize air.
Note: The outside air kit can terminate at any level with
the exception that it must terminate at least one foot
below the chimney termination cap.

01-02 9 28466 Rev H
NOVUS B-VENT INSTALLATION INSTRUCTIONS

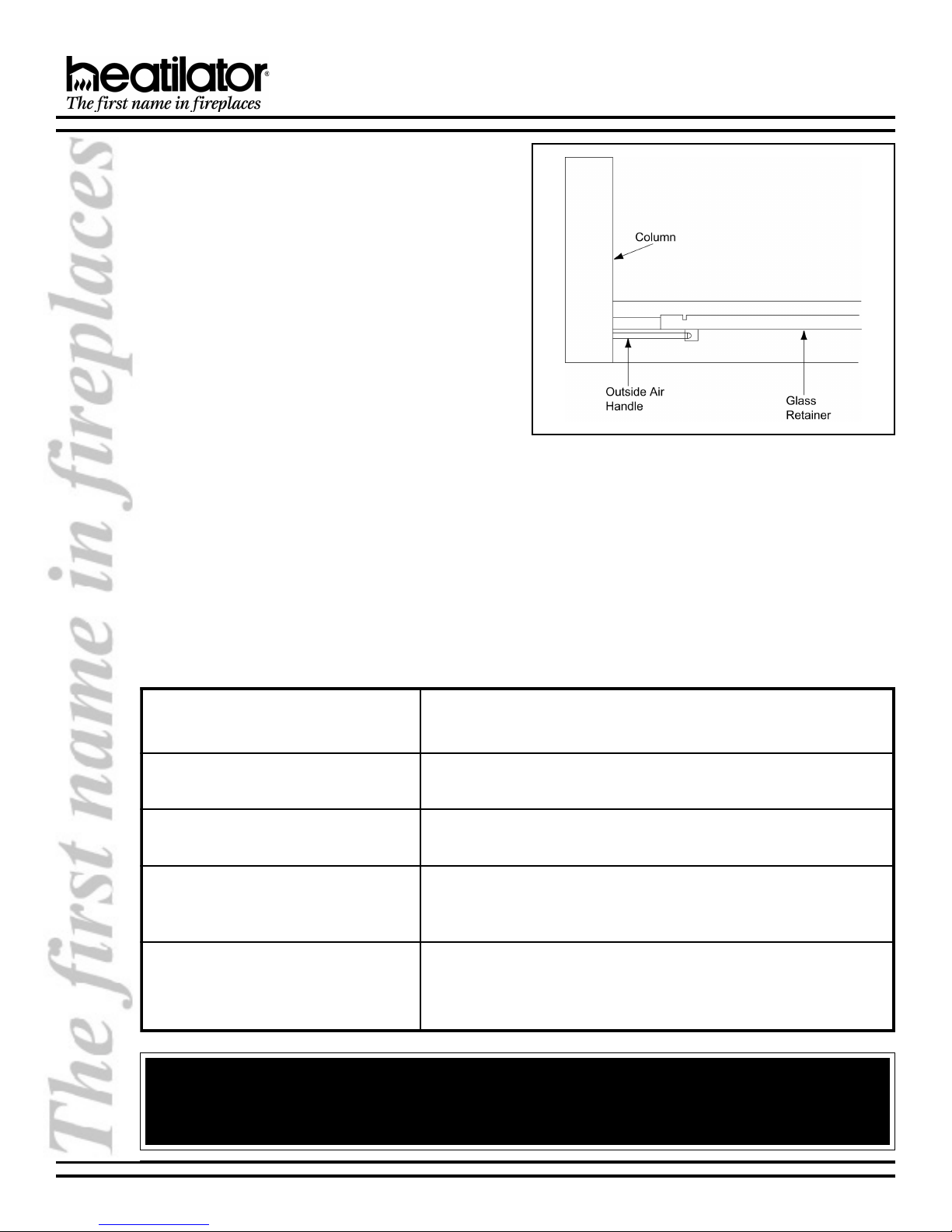

a. The air kit can only be installed on the left side of
the appliance. See igures 10 and 11 for correct
orientation of the door assembly and handle. The
hinge will be toward the back of the appliance.
b. Remove the cover plate or knockout from the side
of the appliance and discard.
c. Partly open the air kit door. The hinge on the door
assembly should be located toward the back of
the appliance. If the hinge is not positioned in
this manner, the door will not function correctly.
d. Attach the door assembly to the appliance using
the screws provided.
e. Bend down the left tab on the lower left glass
retainer. Insert the narrow end of the handle
through the tab and into the upper slot on the air
kit door.
f. Check operation by pulling the handle out to open,
and pushing it in to close.
g. Mark and cut a hole in the building side for air
entry. This hole should allow some framing (two
sides) so the inlet tube assembly may be
fastened properly.
h. Assemble the flexible duct (not supplied) between
the door assembly and the inlet tube assembly.
Secure it in position with the supplied wire ties.

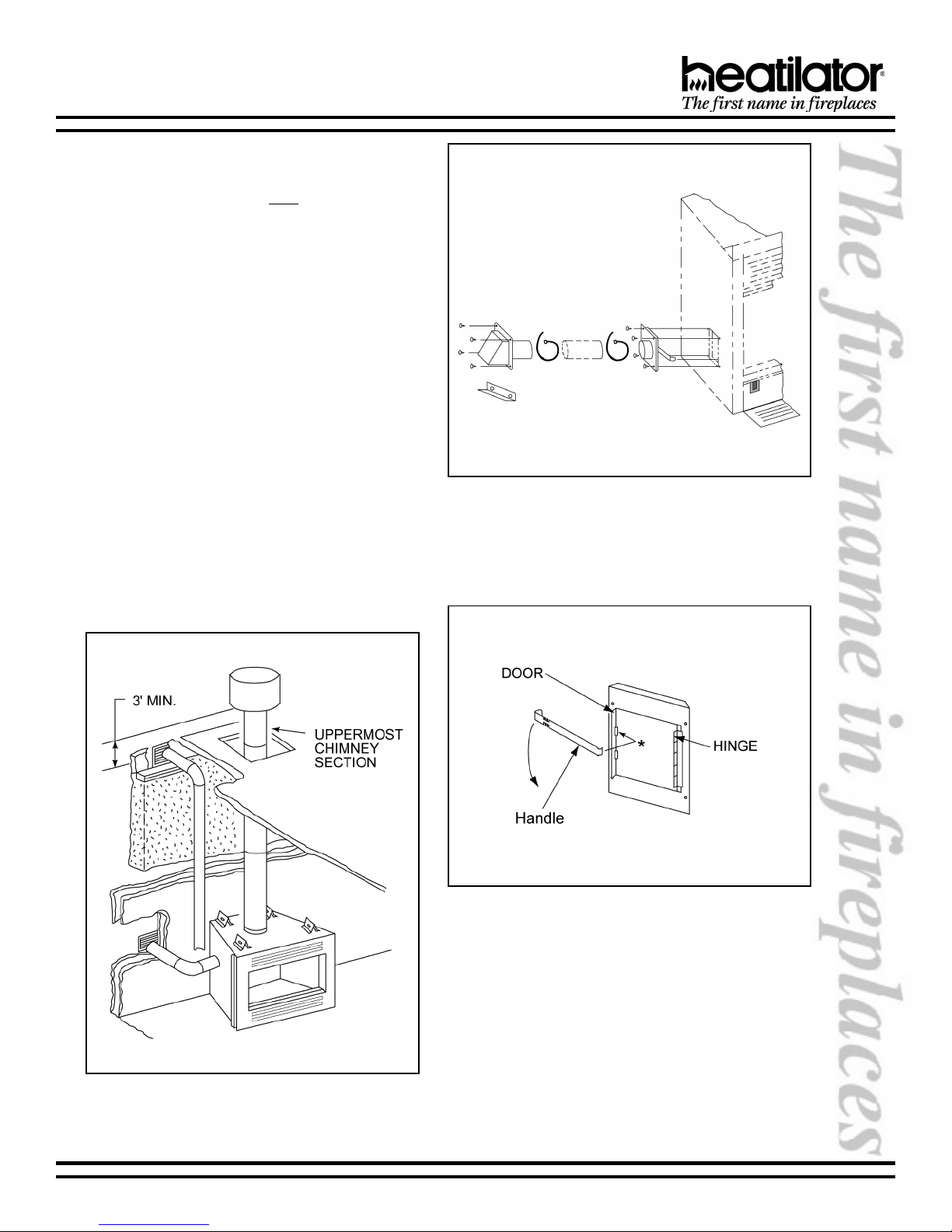

igure 9 - Outside Air Locations
igure 10 - Air Kit Installation
igure 11 - Air Kit Door Assembly & Handle

28466 Rev H 10 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
F. UTILITIES
1. HIGH ALTITUDE INSTALLATION
or U.S. installation, appliances are tested and approved for elevations from 0-2000 feet. When installing this
appliance at an elevation above 2000 feet, National uel Gas Codes require a decrease of the input rating by
changing the existing burner orifice to a smaller size. Input should be reduced 4% for each 1000 feet above sea
level. Check with the local gas utility for proper orifice size identification. Orifices are available from your distributor.
or Canada, appliances are certified for elevations from 0-4500 feet. When installing this appliance at an elevation
between 0-4500 feet in Canada, the input rating does not need to be reduced. When installing this appliance at an
elevation above 4500 feet in Canada, check with local authorities.
2. GAS LINE CONNECTION
Open the control access panel as shown in igures 12 and 13. The appliance is provided with a stainless steel
flexible connector and manual shutoff valve. The incoming gas line should be piped into the valve compartment and
connected to the 1/2 IP connection provided on the manual shutoff valve. See igure 14. All connections must be
tightened and checked for leaks with a soap water solution or leak detector. Bleed the gas line to extract any air that
may have been trapped inside the pipe.

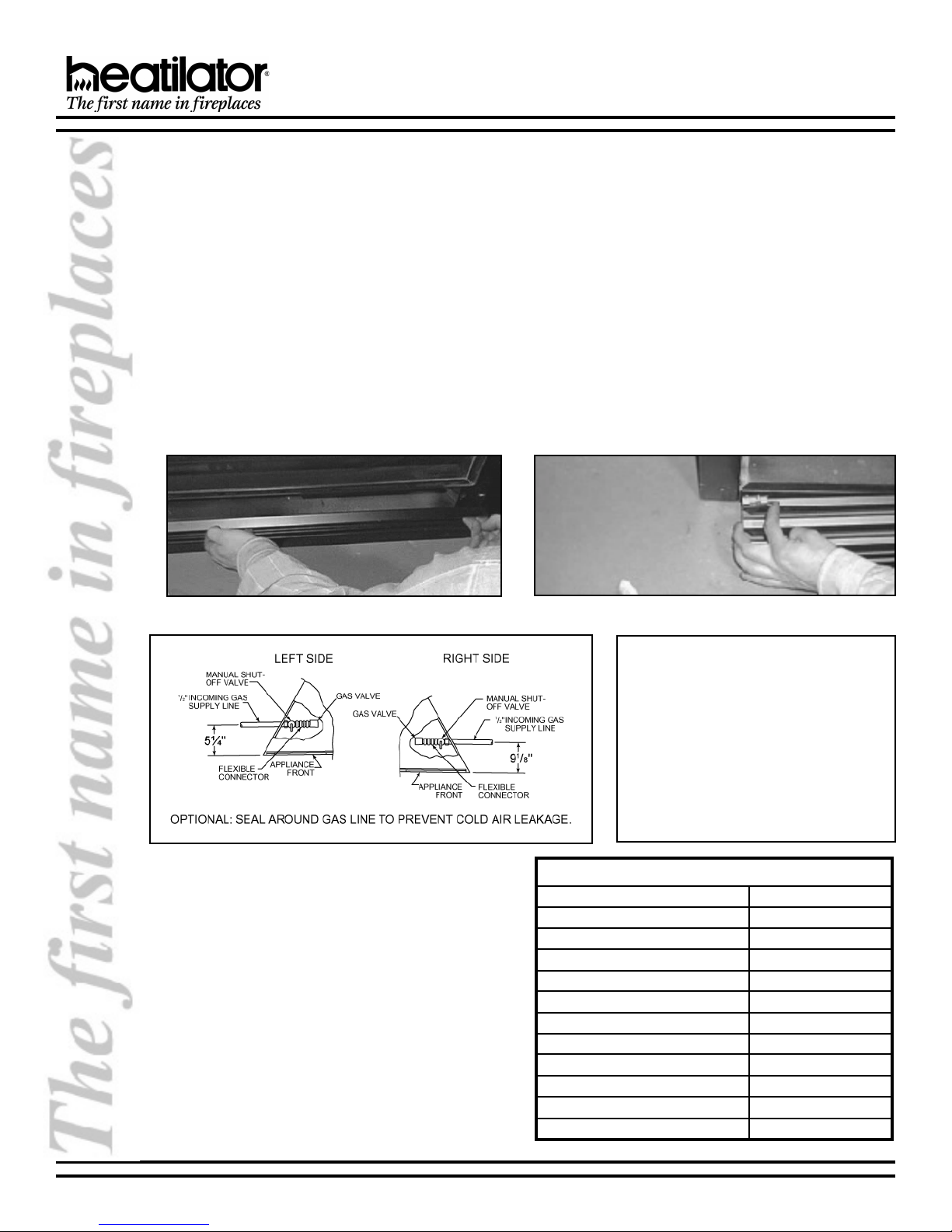

igure 12 - Control Access Panel Removal igure 13 - Control Access Panel Removal
Note: The appliance and its individual
shutoff valve must be disconnected from
the gas supply piping system during any
pressure testing of that system at test pres-
sures in excess of 1/2 psi (3.5 kPa). The
appliance must be isolated from the gas
supply piping system by closing its indi-
vidual manual shutoff valve during any pres-
sure testing of the gas supply piping sys-
tem at test pressures equal to or less than
1/2 psi (3.5 kPa).
igure 14 - Gas Line
3. GAS PRESSURE
On the standing pilot gas control valve and the
electronic valve, a pressure tap is included on the
front face of the valve.
Table 2 shows optimum gas pressure information.
(The * designates measurement in inches/water
column.)
Consult your local gas company for assistance in
determining the proper orifice for your altitude or refer
to ANSI Z223.1-latest edition, Appendix .
Table 2
SUVON
.G.N-erusserpylppuSsagtelnI*).xaM(0.7-).niM(5.4
.G.N-erusserplofinaMmumitpO*5.3
.P.L-erusserpylppuSsaGtelnI*).xaM(0.41-).niM(0.11
.P.L-erusserplofinaMmumitpO*0.01
.G.N-etaRtupnI03CBNG.rh/UTB000,52
33CBNG.rh/UTB000,52
63CBNG.rh/UTB000,72
.P.L-etaRtupnI63/33CBNG.rh/UTB000,52
03CBNG.rh/UTB000,42
.G.N-eziSecifirO63CBNGmm65.2/.ni101.
33/03CBNGmm34.2/.ni690.
.P.L-eziSecifirO
63/33/03CBNG
mm05.1/.ni950.
nmulocretaw/sehcni*

01-02 11 28466 Rev H
NOVUS B-VENT INSTALLATION INSTRUCTIONS
4. WIRING
Note: This appliance must be electrically wired and grounded in accordance with local codes or, in the absence of local
codes, with National Electric Code ANSI/N PA 70-latest edition or the Canadian Electric Code, CSA C2.1.
WARNIN !
This appliance does not require a 110VAC supply for operations. Connecting the appliance/wall switch
to a 110V AC supply will cause the appliance to malfunction and destroy the valve and thermopile.
a. Standing Pilot Ignition
This standing pilot appliance does not require a 110V AC supply to operate. It is suggested that a switched 110V
junction box be installed to power the optional remote control and/or fan.
Only heater listed appliances may be connected to a thermostat. Use a thermostat that is compatible with a
millivolt gas valve. See igure15.
Note: Optional Accessories Requirements: Wiring for optional accessories should be done now to avoid reconstruction.
CAUTION:
Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
igure 15 - Standing Pilot Ignition Wiring Diagram

28466 Rev H 12 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
b. Electronic Ignition
1) This electronic ignition appliance requires a 110V AC supply to operate. It is suggested that a switched
110V junction box be installed to power the optional remote control and/or fan.
2) Only heater listed appliances may be connected to a thermostat. If connecting a 24V thermostat (not
supplied), disconnect the black wire from the transformer or high limit switch at the ignition control. Connect
the thermostat wires between the ignition control box and the black wire (from transformer or high limit
switch). See igure 16.
igure 16 - Electronic Ignition Wiring Diagram
igure 17 - Junction Box Detail
c. Junction Box Wiring
We recommend you operate the two outlets on
separate circuits. This allows independent
operation of the appliance and fan. Independent
operation is obtained by using minimum 14-3
with ground Romex and separating the two outlets
by breaking out the tab as shown in igure 17.
NO additional wire is
supplied b Hearth
Technologies Inc.

01-02 13 28466 Rev H
NOVUS B-VENT INSTALLATION INSTRUCTIONS
G. FINISHING
1. COMBUSTIBLE FINISHING MATERIAL
Material made of or surfaced with wood, compressed
paper, plant fibers, plastics, or any material capable
of igniting and burning, whether flame proofed or not,
plastered or unplastered (this includes drywall).
2. NONCOMBUSTIBLE FINISHING
MATERIAL
Material which will not ignite and burn. Such materials
are those consisting entirely of steel, iron, brick, tile,
concrete, slate, glass or plasters, or combination
thereof, or have a UL ire rating of Zero (0).
3. HIGH TEMPERATURE SEALANT
MATERIAL
Sealants that will withstand high temperatures:
General Electric RTV103 (Black) or equivalent.
Rutland, Inc. Appliance Mortar #63, or equivalent.
A high temperature sealant, 1/8 inch wide minimum,
must be used to close off gaps between the appliance
and facing to prevent cold air leaks. See igure 18.
Note: If an optional fan or hand held remote control
are to be used, wiring must be done prior to finish-
ing to avoid reconstruction.
Note: The remote wall switch must be wired prior to
applying the finishing material in order to avoid
reconstruction.

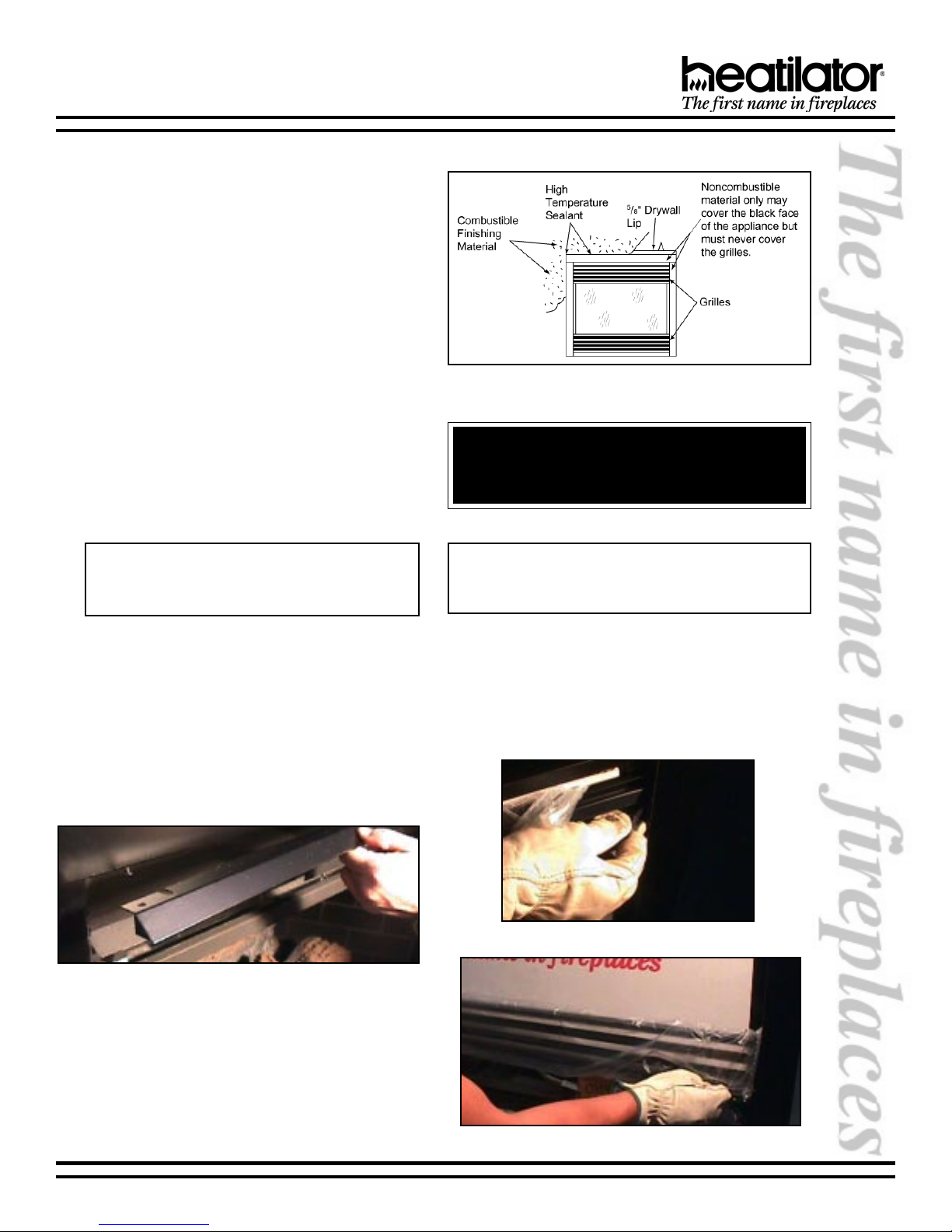

igure 18 - inishing Materials
WARNIN !
Grilles on this appliance cannot, in any way, be cov-
ered as it may create a fire hazard.
H. APPLIANCE PREPARATION
igure 19 - Hood Placement
1. ATTACHING THE HOOD
The hood is to be located above the glass panel.
The hood must be attached or a fire hazard may
result. Locate the four screws just inside the upper
section of the appliance. Position the hood and slide
into position. Tighten the four screws. See igure19.
igure 20 - Upper Grille Panel Removal
2. UPPER GRILLE PANEL REMOVAL
Grasp the upper grille panel and remove the rubber
pins holding the grille. See igure 20.
3. CONTROL ACCESS PANEL REMOVAL
Release the spring pin on the right hand side of the
control access panel. See igure 21.
4. GLASS AND SCREEN REMOVAL
See page 20 of this manual.
igure 21 - Control Access Panel Removal

28466 Rev H 14 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
I. DETERMINING THE IGNITION TYPE
igure 25 - Standing Pilot Ignition
To determine whether your appliance is an electronic
ignition or a standing pilot ignition, open the control access
panel to examine the wiring system. If your system has a
red ignitor button, as shown in igure 25, you own a
standing pilot ignition appliance. If no red ignitor button is
present, you own an electronic ignition appliance.
You may also check the rating label located on the inside
of the control access panel to determine ignition type.
igure 22 - Log Set for NOVUS
5. APPLIANCE PREPARATION
a. Log Set
The log set should look similar to that in
igure22.
WARNIN ! RISK OF CARBON MONOXIDE!
Do not hit or strike glass. Do not operate this
appliance with the glass removed, broken, or not
sealed.
7. CONTROL ACCESS PANEL PLACEMENT
Place the control access panel as shown in igure24.
b. Placing the Lava Rock and Vermiculite
See igure 23 for lava rock and vermiculite
placement.
c. Placing the Rock Wool
Place a small amount of 1/2 diameter pieces
(dime-size) of rock wool on the burner pan so
that the rock wool touches but does not cover the
holes in the burner pan. This will provide the
glowing embers look. See igure 23.
igure 24 - Control Access Panel
igure 23
Placing the Rock Wool
(top logs removed for clarity)
6. GLASS AND SCREEN REPLACEMENT
See page 20 of this instruction manual.

01-02 15 28466 Rev H
NOVUS B-VENT INSTALLATION INSTRUCTIONS
1. ELECTRONIC IGNITION

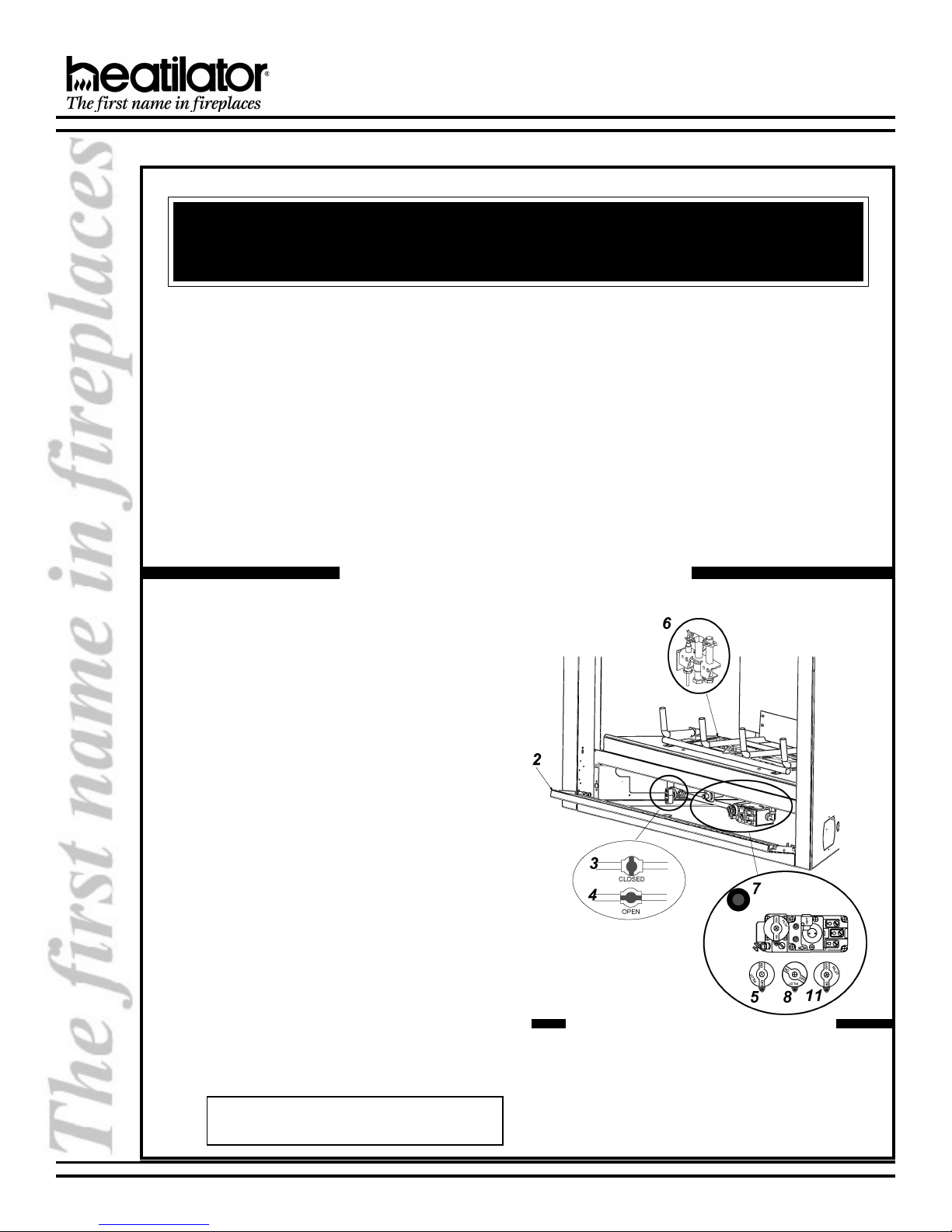

J. LIGHTING INSTRUCTIONS
FOR YOUR SAFETY
READ BEFORE OPERATING
WARNING!
If you do not follow these instructions exactly, a fire or explosion may result causing property damage,
personal injury or loss of life.
A. This appliance does not have a pilot. It is equipped with an ignition device which automatically lights the
burner. Do not try to light the burner by hand.
B. BE ORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will settle on the floor.
WHAT TO DO I YOU SMELL GAS
 Do not try to light any appliance.
 Do not touch any electric switch; do not use any phone in your building.
 Immediately call your gas supplier from a neighbors phone. ollow the suppliers instructions.
 If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to turn the manual shutoff valve. Never use tools. If the manual shutoff valve will not
move by hand, dont try to repair it - call a qualified service technician. orce or attempted repair may
result in a fire or explosion.
D. Do not use the appliance if any part has been under water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the control system and any gas control which has been
under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this label.
2. Turn wall switch to the O  position.
3. This appliance is equipped with an ignition device which automatically lights the burner. Do not try to light
burner by hand.
4. Wait five (5) minutes to clear out any gas. If you then smell gas, STOP! ollow B in the safety information
above on this label. If you dont smell gas, go on to the next step.
5. To turn on burner, turn on the wall switch.
6. If the appliance will not operate, follow the instructions TO TURN O GAS TO APPLIANCE and call your
service technician or gas supplier.
TO TURN OFF GAS TO APPLIANCE
1. Turn off the wall switch or set the thermostat to the lowest setting.
2. Turn off all electric power to the appliance if service is to be performed.
3. Turn the manual shutoff valve to the closed position. Do not force.
4. Close control access panel.

28466 Rev H 16 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
1. Turn wall switch to the OFF position or set
thermostat to lowest setting.
2. Lower control access panel.
3. Turn manual shutoff valve to CLOSED. Wait 5
minutes to clear out an gas. Then smell for gas,
including near the floor. If ou smell gas, STOP!
Follow B in the safet information above on this
label. If ou dont smell gas, go to the next step.
4. Turn manual shutoff valve to OPEN.
5. Turn pilot knob clockwise to OFF. Knob ma have
to be depressed to pass the PILOT position.
6. Locate pilot assembl inside firebox.
7. Locate red ignitor button.
8. Turn pilot knob to PILOT and push in.
9. Continue to hold in pilot knob and push the red ignitor
button 12-15 times until small blue pilot flame appears.
10. Continue to hold in pilot knob for approximatel one
minute. Pilot should remain lit. If pilot goes out, wait
5 minutes and repeat Steps 4-9.
11. Release and turn the knob counterclockwise to
ON. To light main burner, turn wall switch to ON.
Do not light b hand.
12. If the appliance will not operate, follow the
instructions To Turn Off Gas To Appliance and
call our service technician or gas supplier.
2. STANDING PILOT IGNITION
A. This appliance has a pilot which must be lighted b hand. When lighting the pilot, follow these instructions exactl .
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
 Do not tr to light an appliance.
 Do not touch an electric switch; do not use an phone in our building.
 Immediatel call our gas supplier from a neighbors phone. Follow the suppliers instructions.
 If ou cannot reach our gas supplier, call the fire department.
C. Use onl our hand to push in or turn knob. Never use tools. If the knob will not push in or turn b hand, dont tr to repair
it; call a qualified service technician. Force or attempted repair ma result in a fire or explosion.
D. Do not use this appliance if an part has been under water. Immediatel call a qualified service technician to inspect the
appliance and to replace an part of the control s stem and an gas control which as been under water.
WARNING!
If you do not follow these instructions exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
LIGHTING INSTRUCTIONS
STOP! READ THE SAFETY INFORMATION ABOVE ON THIS LABEL!
Note: To light main burner, turn the Wall
Switch to ON. Do not light by hand.
TO TURN OFF THE GAS TO THE
APPLIANCE
1. Turn off the wall switch or set thermostat to lowest
setting.
2. Open control access panel.
3. Turn the manual shutoff valve to CLOSED position.
Do not force.
4. Close control access panel.
FOR YOUR SAFETY READ BEFORE LIGHTING THE STANDING PILOT.

01-02 17 28466 Rev H
NOVUS B-VENT INSTALLATION INSTRUCTIONS
WARNIN !
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid
burns or clothing ignition. Young children should be carefully supervised when they are in the same room as the
appliance.
K. SEASONAL CHECKLIST
CAUTION
Any safety screen or guard removed for servicing an appliance must be replaced prior to operating this appli-
ance.
Clothing or other flammable material should not be placed on or near the appliance.
Installation and repair should be done by a qualified ser-
vice person. The appliance should be inspected before
use and at least annually by a qualified service person.
More frequent cleaning may be required due to exces-
sive lint from carpeting, bedding material, etc. It is im-
perative that control compartments, burners and circu-
lating air passageways of the appliance be kept clean.
1. STANDING PILOT IGNITION
OPERATION
Hearth Technologies Inc. recommends you leave the
pilot on year round.
If you decide to shut down the appliance for a long
period of time:
a. Turn all wall switches to O .
b. Turn pilot knob on valve to O .
c. Turn the manual shutoff valve to CLOSED.
Lighting the appliance during regular use: Turn the
wall switch to ON.
Shutdown during regular use: Turn the wall switch
to O .
2. ELECTRONIC IGNITION OPERATION
To shut down the appliance for a long period of
time:
a. Turn all wall switches to O .
b. Turn the manual shutoff valve to CLOSED.
Lighting the Appliance During Regular Use: Turn
the wall switch to ON.
Shutdown During Regular Use: Turn the wall switch
to O .
3. FUEL
Do not burn wood or other material in this appliance.
Natural or propane gas conversions necessary to
meet the application need to be made by a qualified
technician using Heatilator brand specified and
approved parts.
In the event your appliance must be converted to
use propane gas, you must use a CKVP Conversion
Kit. To convert to use natural gas, you must use a
CKVN Conversion Kit.
WARNIN !
Keep the area near the appliance clear and free from
combustible materials, Gasoline and other flammable
vapors and liquids.
WARNIN !
Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system and any gas control which has
been under water.
BEFORE OPERATIN THIS APPLIANCE HAVE A
QUALIFIED TECHNICIAN:
* Review proper placement of logs, rock wool, lava
rock, and vermiculite.
* Check the wiring.
* Check the air shutter adjustment.
* Ensure that there are no gas leaks.
* Ensure that the glass is sealed and in the proper
position.
* Ensure that the flow of combustion and ventilation
air is not obstructed.

28466 Rev H 18 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
L. START-UP ISSUES
WARNIN !
Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid or similar liquids in this appliance.
Keep any flammable liquids a safe distance from the appliance.
4. OUTSIDE AIR KIT OPERATION
The outside air kit should be purchased with this
appliance. The outside air kit helps to decrease the
amount of room air taken, by utilizing outside air for
combustion. It is strongly recommended that it be
installed.
To operate the outside air kit, before starting the
appliance, open the control compartment of the
appliance by rotating down the bottom grille panel.
Grasp the small, black handle located on the left side
of the appliance, just below the glass retainer. See
igure 26. Lift the handle out of its slot and pull towards
the front. The outside air door should open. Replace
the handle back in the slot on the bracket from which
it was removed (so the outside air door remains open)
and close the lower grille panel. When through
burning the appliance, lower the panel, grasp the
handle and push the outside air door closed. igure 26 - Outside Air Kit Operation
:seussI:snoituloSdnasesuaCelbissoP
.1.ssalgehtnonoitasnenoC.1sA.snoitairaverutarepmetnanoisubmocsagfotluserasisihT
.raeppasiluohsnoitasnenocsiht,pusmrawecnailppaeht
.2.semalfeulB.2otnigeblliwsemalfehtnanoitarepolamronfotluserasisihT
.nrubotewollasiecnailppaehtsawolley
.3.ecnailppaehtmorfroO.3tsrifehtrofroonaesaeleryamecnailppasiht,etarepotsrifnehW
ehtnatniapehtfognirucehtybesuacsisihT.sruohlareves
.gnirutcafunammorfgniniamerslioynafoffogninrub
.4.ssalgehtnomliF.4.sgolnatniapehtfossecorpgnirucehtfotluserlamronasisihT
otgninrublaitinifosruoh6-4nihtiwenaelcebluohsssalG
-nonA.ssecorpgnirutcafunamehtmorfslioybtfelstisopeevomer
.yrassecenebyamossarBsahcus,renraelcevisarba

01-02 19 28466 Rev H
NOVUS B-VENT INSTALLATION INSTRUCTIONS
M. MAINTENANCE INSTRUCTIONS
1. CLEANING THE BURNER AND
CONTROL COMPARTMENT
Keep the burner and control compartment clean by
brushing and vacuuming at least once a year. ailure
to do this may shorten the fans life (where applicable).
Always turn off the wall switch (or remote control) and
gas valve before cleaning.
2. CHECKING FLAME PATTERNS
Visually check the flame of the burner periodically,
making sure the flames are steady, not lifting or
floating. The flame color should be blue with yellow
tips. The ignitor (electronic) or thermopile and
thermocouple (standing pilot) tips should be covered
with flame. See igures 27-29.
If the vent configuration is installed incorrectly, the vent
may cause the flames inside the appliance to lift or
ghost, which is a dangerous situation. Inspect the
flames after installation to ensure proper
performance. See igure 30. If the vent configuration
is correct, yet the flames are lifting or ghosting, shut
off gas to the appliance and contact the dealer you
purchased the appliance from.
Note: The look of the flames and embers may differ
based on the type of fuel and venting assembly that is
required.
igure 27
Electronic Ignition
igure 28
Electronic Ignition
igure 29 - Standing Pilot
igure 30
lame Patterns

28466 Rev H 20 01-02
NOVUS B-VENT INSTALLATION INSTRUCTIONS
3. VENTING SYSTEM INSPECTION
The appliance and venting system should be
inspected before use, and at least annually, by a
qualified field service person, to ensure that the flow
of combustion and ventilation air is not obstructed.
4. CLEANING THE GLASS
See igure 31.
Never operate this appliance without the glass
properly secured in place or if the glass is broken.
In the event of glass breakage, carefully remove the
glass frame. This will allow the removal of all glass
fragments and sheet metal edge protection strips.
Vacuum all remaining glass pieces with a shop vac.
DO NOT VACUUM I PIECES ARE HOT! Replace
glass with only a Heatilator glass panel assembly
ordered direct or through your local distributor. Never
use substitute material. Only fully tempered soda lime
safety glass may be used on this appliance.
5. LOG REMOVAL/REPLACEMENT
If removal of the logs becomes necessary, remove
the two screws at the front of the grate. Grasp the two
outside upright grate bars. Pull the log set toward the
front and up, off the burner. See igure 32.
To replace the log set, grasp the two outside upright
grate bars. Push and lower the log set onto the burner
pan, making sure the back of the left most grate bar
slides through the grate mounting bracket attached
to the hearth pan. Attach the two screws at the front of
the grate.
igure 31 - Glass Cleaning
igure 32 - Log Removal (33-36 Log Set Shown)
Safety Note:
Handle glass with care to
avoid striking, scratching or
slamming shut. NEVER
clean glass when hot. Keep
children and pets a safe
distance away.
6. Set glass on nonabrasive
surface. Clean using a
nonabrasive, mild cleaning
solution (i.e. Brasso).
5. Rotate bottom out and
awa from retaining
brackets. Pull down and
remove from top channel.
4. Lift glass straight up above
glass retaining brackets.
1. Lift and pull out upper grille.
2. Control access panel.
3. Lift and pull
out bottom of
screen.
Rotate
screen
brackets
upward as
shown here
before
proceeding.
7. To replace, ensure glass bottom is set completel down in
bottom retainers. Rotate screen brackets down and replace
screen.
